Underbody Coating

UNDERBODY COATING

INTRODUCTION

Underbody parts are mainly structure elements and panels placed in the lower part of the vehicle including the whole vehicles platform. If you live in an area having significant amount of snow or are located in a coastal region the possibility of war and tear is high.

A cars underbody is exposed to the most wear and tear caused by muddy water, potholed roads, stones and other obstacles on the road. Because it’s not in plain sight we often do not see the damaged of the underneath metal parts like suspension arms, brakes axles etc. so underbody coating protects parts from corrosion and wear and tear etc.

PURPOSE OF UNDERBODY COATINGS

1. Protects Against Rust & Corrosion

The primary objective of getting underbody coating done is preventing metal components that are exposed on the bottom side of the car to damage from corrosion. You can shut out the adverse effects of corrosion on your car by simply applying a rubberised anti-rust coating all over the belly of your car.

2. Reduces NVH (Noise Vibrations Harshness) Levels

Our country is filled with roads having uneven patches and potholes and while we manoeuvre our cars through such sections, the unpaved crumbs, and pebbles hit the car from underneath or get stuck in the wheel wells. The underbody coating’s consistency is so thick that the layer it creates absorbs all the unpleasant noises and vibrations and marginally improves the driving experience.

3. Prevents Paint Chipping

Running on the highway or while pacing through a city road, you will often encounter sharp gravel or any other unattended object hitting the belly of your car with high momentum. This scrapes and chips off the metal from down below. A thick layer of Underbody Coating definitely comes to aid and minimises the effects of such contacts on the body.

4. Protects Vital Components

Underneath a car is somewhere a lot of indispensable parts of a car are left exposed like the Engine, silencer, etc. One simply can’t afford to let these parts go bad due to rusting and hence in order to save yourself from a hefty repair bill, a considerably less expensive Anti-Rust Coating is a must.

TYPES OF UNDERCOATING

Rubberized Undercoating

Rubberized vehicle undercoating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents. In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray. Overall, rubberized coating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.

Polyurethane Undercoating

The other option for undercoating your vehicle is to use a polyurethane-based sealant. This type of vehicle undercoating is a little bit quicker and easier to apply. Oftentimes, polyurethane undercoating will come in canisters ready to preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect oxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over. On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.

Wax or Paraffin-Based Undercoating

A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.

Wax-based undercoating never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

Asphalt-Based Undercoating

For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.

Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

STEPS INVOLVED IN COATING PROCESS

Modern automotive coating methods consist of five main steps. They include the following:

1. Pre-treatment: removes and cleans excess metal and forms an appropriate surface structure enabling bonding of a corrosion protection layer.
2. The next step is electrodeposition (ED) of the anti-corrosion or rust prevention layer
3. A sealer like Poly Vinyl Chloride (PVC) is applied for anti-corrosion, elimination of water leaks, and minimization of chipping and vibrational noise.
4. A primer is then applied to promote adhesion between the surface and the basecoat; it also imparts a smoother surface for subsequent layers and has anti-chipping properties.
5. Finally, the topcoats that include a basecoat and clear coat are applied; they provide Surface properties that are sought after, including colour, appearance, gloss, smoothness, and weather resistance.

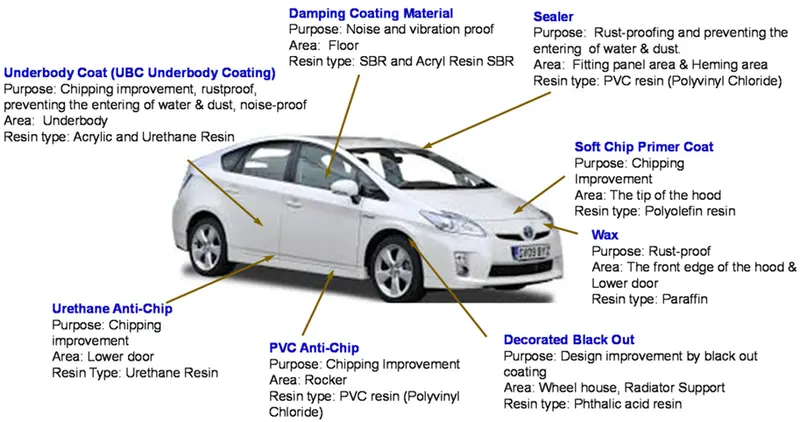

The below picture shows the coating given for different parts of the car, materials used for the coating and purpose of the coating.

PROS.

• It provides an extra layer of protection against rust and corrosion.
• It will extend the life of vehicle.
• Can be self-applied.
• Minimizes the sound underneath the car.
• Chances of chipping away are less.
• Provides insulation from the heat that comes from underneath.

CONS.

• It can’t do anything for the corrosion which is already present.
• It will add extra weight to the vehicle.
• Expensive.
• Can’t be used for the entire life time of a car.
