Underbody Coating

AIM: A report on Underbody Coating and its purposes.

Introduction:

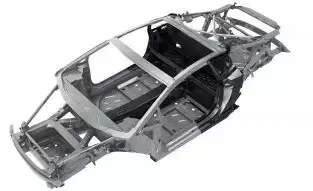

Modern-day cars are made of various materials combined but the main chassis of the car body is made of carbon steel or aluminum alloys to reduce weight while also giving the required strength to the body.

But even after many layers of an added frameworks on the main body, it is still exposed from the bottom when a car is manufactured, and hence even after a certain time period rust starts to happen due to various climatic changes and terrains faced by the vehicle during its lifetime, hence it starts to corrode/rust which in short de-strengths the body resulting in a reduced life span of the vehicle.

To overcome this situation usually, an underbody coating is done on the body at the time of assembling.

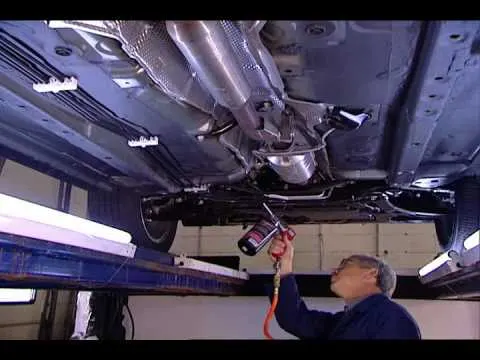

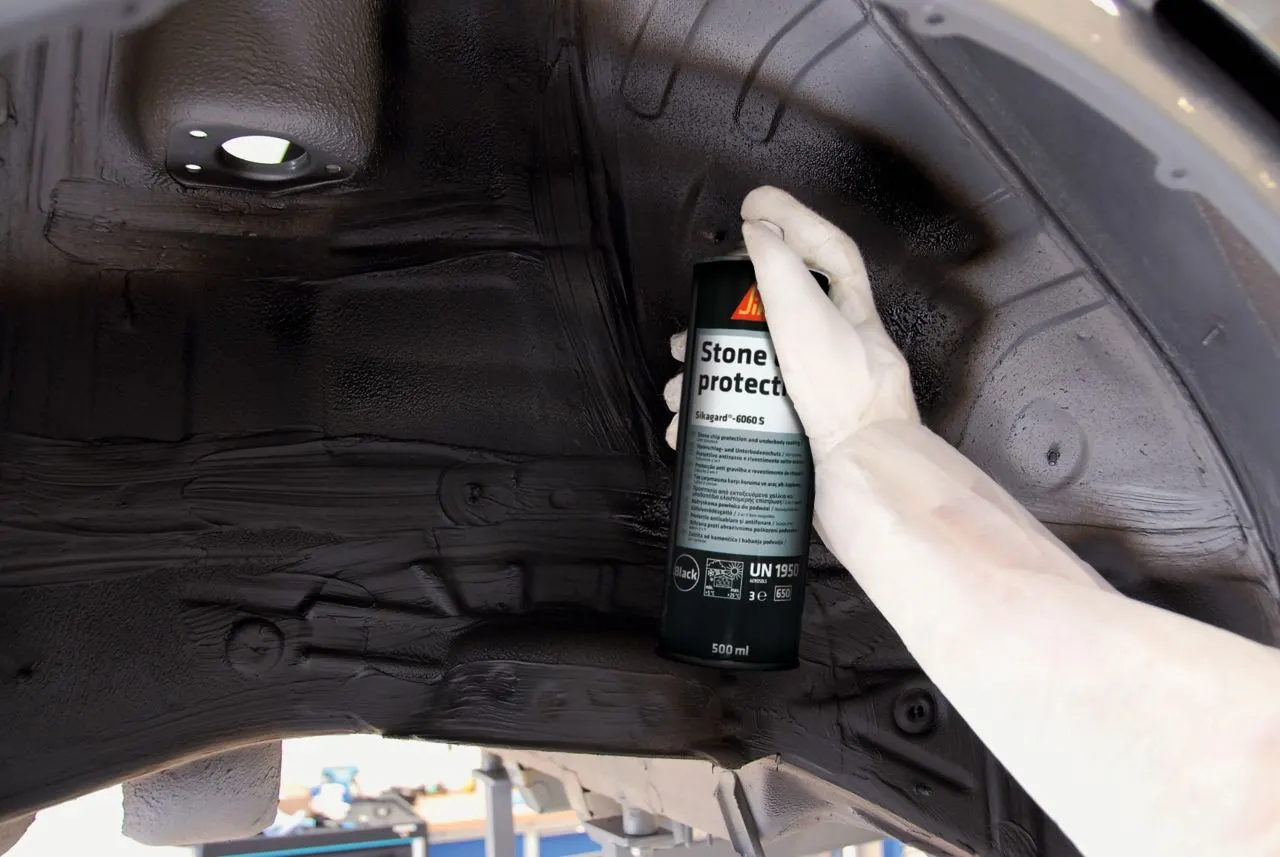

Underbody coating is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean

Types of Undercoating

• Rubberized Underbody Coating


This is generally thought of as the best underbody coating for your car. It preserves the underbody well, protecting it from scratches. Applying this to the undercarriage is not much of a hassle either. Products used are Bosny Rubberized Undercoat Aerosol Spray, Rust-Oleum 248657 Automotive Rubberized Undercoating, etc.

• Wax Based Underbody Coating


This – more or less – ephemeral undercoating will wear away in a few months’ time. On the upside, wax-based undercoating puts up a big fight against moisture. It is also the most affordable option out there. Products commonly used are presto UBS Wachs hell 1000

• Asphalt Based Automotive Undercoating


Best suited for lorries, trucks, and large vehicles this provides a greater degree of protection compared to rubber-based coatings. However, asphalt-based coatings contain little amount of rubber for sound-insulation purposes. The process of applying this coating is a bit time-consuming though. Products commonly used are Tectyl 6430 | Water-Based Asphalt Undercoating, etc.

• Polyurethane Underbody Coating

This coating closes up splits and fractures on the underbody of the vehicle. It offers up good protection against corrosion and also bonds with the metal. Unlike in the case of asphalt-based coating, you can paint over the polyurethane coating. Products commonly used are Ugam Exposed Steel Anti Corrosive Polyurethane Coating, Car Gravitex Plus HS Stone Chip Protector, etc.

Advantages of Underbody coating:

• Fights Rust


It plays an important role in keeping corrosion at bay. Underbody coating can come in handy especially if you live near the sea, where there is too much humidity, and rusting is just one of those everyday things. You should also seriously consider undercoating if you reside in a place where it snows in winter.

• Absorbs Noise

Believe it or not, very thick undercoating can soften the noises that reach the cabin. Since the undercoating is often made up of rubber it absorbs some of the rackets. The occupants of the car could spare themselves of the road noises – at least up to a certain extend.

• Reinforcement


If your car comes with stock underbody coating, using another coating on top of it, is not going to hurt. It will offer additional reinforcement, protecting the underbody from water, road debris, gravel, and small pebbles. There would also be a lesser chance for the factory coat to flake away.

• Prolong Car’s Life


Good undercoating not only defends the underbody from corrosion but also protects the engine and transmission as well! Less rusting coupled with slower wear and tear can surely add years to the lifespan of your vehicle. There would be fewer dents, dings, and scratches on the undercarriage for you to fret about.

Disadvantages of underbody Coating:

• Best on new cars

Undercoating will work best on new vehicles that have not been exposed to road conditions. A used vehicle may already have residue on the bottom of the car or even have spots of rust and corrosion. Undercoating will not help you if corrosion already exists and the corrosion needs to be removed first before it can be applied, which can be expensive.

• Expensive

Good underbody coating methods are expensive which gives really good coverage, but cheaper methods show to remove off easily over a short period of time. naturally buying a good product becomes costly as such to maintain its protectiveness for a longer period of time.

Conclusion:

At the end of this study, we can clearly see the importance of underbody coating and its various types which can be used depending on the terrain or surroundings the Vehicle is used.
