Underbody Coating

Underbody Coating

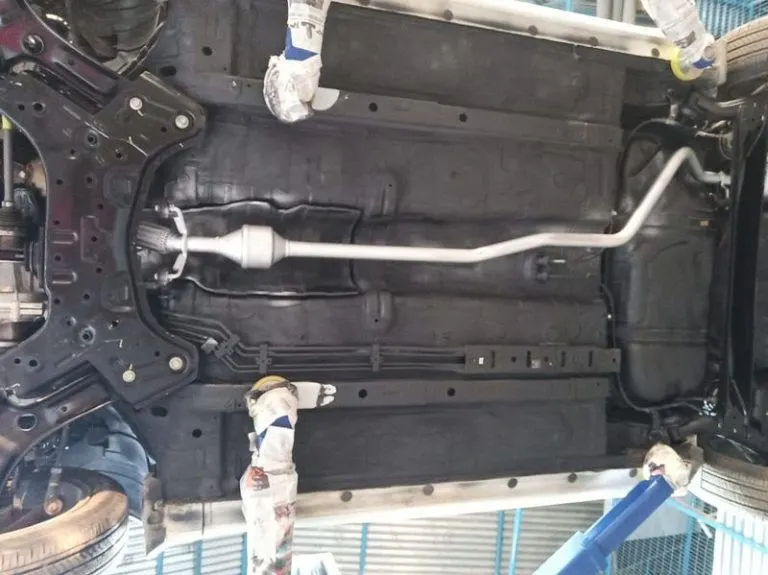

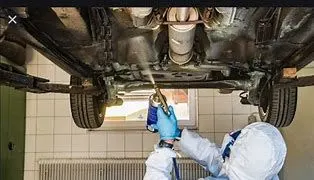

• It is usually a dense cladding (often based on rubber) applied uniformly to the undercarriage of the automobile. It is normally sprayed or painted on when the car is just out of the dealership and is clean. But even if you are getting the undercoating applied after a couple of years, it’s fine too. This is because it can prevent further damage to the undercarriage.

Purpose of Underbody Coating

• The main purpose of undercoating is to check rust especially in the body components like frame rails along with other exposed metal parts.
• Underbody coating can also reduce wear and tear.
• ProtectsEnvironmental conditions
• Impacts
• Dampens sound and vibration

Types of Underbody Coating

• Rubberized Undercoating

1. Rubberized Undercoating is easy to apply and offers sound-cushioning as well as protection from dust, moisture, and dings or dents.
2. In addition to your undercarriage, rubberized undercoating is also safe to use on wheel wells and quarter panels, and dries to a soft rubbery finish that prevents further rust, damage, or moisture seeps. The coating can be painted over and, if necessary for bodywork, can be easily removed with an undercoating removal spray.
3. Overall, Rubberized Undercoating is generally the best option for protecting your vehicle's undercarriage, as it provides the simplest and best protective measures against rust and moisture.

• Polyurethane Undercoating

1. The other option for undercoating your vehicle is to use a polyurethane-based sealant. This type of vehicle undercoating is a little bit quicker and easier to apply.
2. Oftentimes, polyurethane undercoating will come in canister preload into an application gun. This type of sealant works by seeping into all cracks and seams, displacing salt and moisture and oozing around rusty areas to bond with and protect unoxidized metal. It also sands quickly in case you'll need to perform bodywork and can be painted over.
3. On the flipside, this type of car undercoating generally requires a little bit more surface prep work before applying -- sanding and applying an etching primer to bare metals before using are generally recommended.

• Wax or Paraffin-Based Undercoatings

1. A paraffin-based undercoating will be the cheapest and quickest option available with which to protect the undercarriage of your vehicle. However, keep in mind that it will wear off quicker than other types of undercoating and will need to be stripped and reapplied at least once every year.
2. Wax-based undercoatings never truly harden. During application, they drip or flow into seams and cracks to provide protective properties. They are usually available in a spray gun canister or in an aerosol can and offer at least a base protection in moderately humid climates.

• Asphalt-Based Undercoating

1. For standard vehicles, any of the aforementioned types of undercoating will provide sufficient protection. For large trucks and heavy machinery, asphalt-based undercoating provides a bit of extra durability against rocks, chips, and moisture.
2. Asphalt-based undercoating generally contains a little bit of rubberized material that sets up firmly and also helps soften noise. Generally sold in five gallon containers, this type of undercoating also needs more cure time than the other three, and is NOT paintable, making it best to use only for undercarriages.

Advantages

• It minimizes the sound from underneath the car resulting a noiseless, smooth driving experience.
• It insulates the interior of the car from extreme temperatures from beneath the vehicle providing a comfortable cabin experience.
• If any stone hits the coating it does not get chipped away hence protects the underbody from exposure to water.

Disadvantages

• Apllying underbody coating will not have any effect to the already corroded part.
• Undercoating is costly.
• Since the corrosion itself starts after few year, underbody coating is not preferable to ower who change their car after few year.
