Studying Micro-controller

AIM: To study the Micro-controller, BMS, pseudo-code, and microprocessor

OBJECTIVES:

1. What is the need for communication within the charger, battery pack, and motor drive?
2. Pseudocode is an informal way of programming description that does not require any strict programming language syntax or underlying technology considerations. It is used for creating an outline or a rough draft of a program and summarizes a program's flow.

   Write a pseudo code for displaying speed on the digital dashboard as per the below conditions.

        Update displayed speed every second, Turn on high-efficiency indicator between 50 to 60 kmph, Turn on safe drive indicator above 80 kmph

3. a.) What are the factors affecting the selection of microprocessors/microcontrollers?

        b.) Explain the architecture of an 8-bit microcontroller(8051 or any other type can be considered). List the applications for the same.

        c.) Explain the different types of transmission(serial communication) modes with the help of real-time examples.



OBJECTIVE 1 -What is the need for communication within the charger, battery pack, and motor drive?

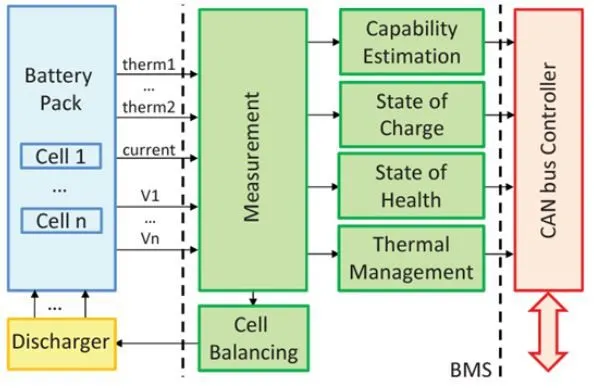

Communication is one of the most important parts of the Battery Management System (BMS). BMS is designed to monitor the parameters associated with the battery pack and its individual cells, apply the collected data to eliminate the safety risks, and optimize the battery performance. With the help of communication between devices, BMS continuously monitors parameters such as temperature, voltage, current in and out of the pack to ensure it is being operated in safe conditions the entire time.

Electric vehicles run on very high voltage lithium-ion battery packs. Lithium-ion batteries have a higher energy density (100-265 Wh/kg) than other battery chemistries. These batteries come with the risk of catching fire under unusual circumstances. It is imperative to operate the EV batteries in pre-defined safe limits to ensure the safety of the user as well as the vehicle.

With the help of communication, BMS is responsible for the thermal management of the battery and monitors its temperature continuously. If required, BMS can adjust cooling and trigger other safety mechanisms to seize operations and minimize risk. E.g. Hyundai Kona Electric, if overheating of the battery pack is detected by the BMS, the vehicle’s power is automatically limited and the car is put in full-safe mode.

Overcharging of lithium-ion cells can also lead to thermal runaway and potentially an explosion. BMS continuously monitors the voltage of the pack as well as individual battery cells and controls the supply of the current to avoid overcharging. BMS can enforce the limits of the maximum charge or discharge according to temperature.

Through communication, BMS is responsible for optimizing the performance of the battery pack. Lithium-ion batteries perform best when their State of Charge (SOC) is maintained between the minimum and maximum charge limits defined in the battery profile. Overcharging as well as deep discharging degrades the capacity of the battery, thereby shortening its life. At the time of charging BMS determines how much current can safely go in & communicates the same to the EVSE (Electric Vehicle Supply Equipment or the charger). During discharge of the battery, BMS would communicate to the motor controller to avoid cell voltages reaching too low. Vehicles can show corresponding alerts to the user to charge the battery pack. The BMS also controls the recharging of the battery pack by generated energy through regenerative braking.

Individual cells in the battery pack can develop differences in capacity with time, which amplify with each charge/discharge cycle. This imbalance limits the amount of energy that can be derived from the battery also how much the battery pack can be charged. Cell balancing is needed to maintain the cells at equal voltage levels and maximize the capacity utilization of the battery pack.

Measurement of the individual cell voltages by BMS indicates their relative balance and acts as a pointer to how much charge equalization is required. The BMS performs cell balancing by draining excess energy from cells that are more charged than others, through active and passive balancing techniques.

With the help of communication technology, BMS uses the collected data points (temperature, voltage, current) to estimate the State of Charge (SOC) & State of Health (SOH) of the battery pack. The SOC refers to the available energy in the battery & determines how far the vehicle can go before needing to charge. The SOH determines the current condition of the battery as compared to its original capacity and indicates the battery’s suitability for the application. Both SOC & SOH are presented as percentages. It also checks for anomalies in the parameters and behavior of the cells and the battery pack. It stores the error codes and logs diagnostic information that helps fix any issues with the battery. BMS can either take necessary corrective actions or trigger failsafe mechanisms to preserve the health of the pack.

With the help of communication techniques, BMS is responsible for communicating with other ECUs in the vehicle. It relays the necessary data about the battery parameters to the motor controller to ensure the smooth running of the vehicle. In the case of AC charging the BMS communicates with the onboard charger to monitor and control the charging of the battery pack. For DC charging the communication link is directly established between the EVSE and the BMS. BMS communicates the required output voltage and current levels to the EVSE. & sends instructions to start and stop the charging process.



OBJECTIVE 2 - Pseudocode is an informal way of programming description that does not require any strict programming language syntax or underlying technology considerations. It is used for creating an outline or a rough draft of a program and summarizes a program's flow.

Write a pseudo code for displaying speed on the digital dashboard as per the below conditions.

        Update displayed speed every second, Turn on high-efficiency indicator between 50 to 60 kmph, Turn on safe drive indicator above 80 kmph.



There are some important terms while writing Pseudocode –

Procedure – A Procedure is a finite sequence of well-defined instructions, each of which can be carried out in a finite amount of time.

Algorithm – An algorithm is a step-by-step procedure to solve a given problem.

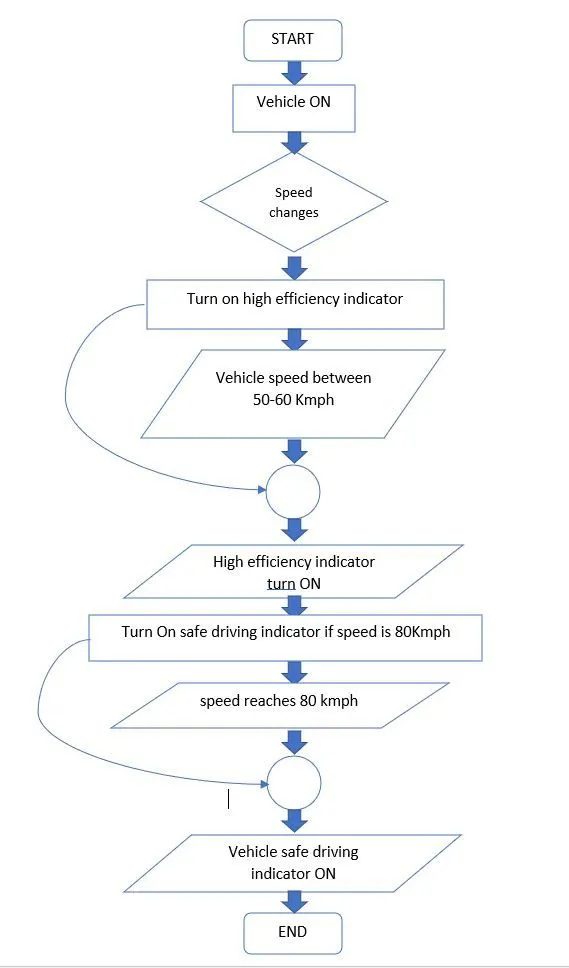

Flowchart – Flowchart is a type of diagram that represents an algorithm or process.

Pseudo Code – A Pseudo Code is a compact and informal high-level description of a program. It is a step-by-step written outline of your code that you can gradually transcribe into the programming language.



OBJECTIVE 3 -

        a.) What are the factors affecting the selection of microprocessors/microcontrollers?

        b.) Explain the architecture of an 8-bit microcontroller(8051 or any other type can be considered). List the applications for the same.

        c.) Explain the different types of transmission(serial communication) modes with the help of real-time examples.



a.) What are the factors affecting the selection of microprocessors/microcontrollers?

The brain of an embedded device, which is the processing unit, is a key determinant of the success or failure of the device in accomplishing the task(s) for which it is designed. The processing unit is responsible for every process involving from input to the system, to the final output, thus selecting the right platform for the brain becomes very important during the device design as every other thing will depend on the accuracy of that decision.

Microcontroller and Microprocessor

The processing components used for embedded devices can be divided into two broad categories; Microcontrollers and Microprocessors.

Microcontrollers are small computing devices on a single chip that contain one or more processing cores, with memory devices embedded alongside programmable special and general-purpose input and output (I/O) ports. They are used especially in applications where only specific repetitive tasks need to be performed.

Microprocessors on the other hand are general-purpose computing devices that incorporate all the functions of the central processing unit on a chip but do not include peripherals like memory and input and output pins like the microcontroller.

Although manufacturers are now changing a lot of things that are blurring the line between microcontrollers and microprocessors like the use of memory on chips for microprocessors and the ability of microcontrollers to connect to external memory, key differences still exist between these components and the designer will need to choose the best between them for a particular project.

Factors to Consider when Selecting an MPU or MCU

Before making any decision on the direction to go as regards the processing device to use for the design of an embedded product, it is important to develop the design specifications. Developing the design specifications provides an avenue for device pre-design which helps identify in detail, the problem to be solved, how it is to be solved, highlights the components to be used, and much more. This helps the designer make informed general decisions about the project and helps determine which direction to travel for the processing unit.

Some of the factors in the design specification that needs to be considered before choosing between a microcontroller and a microprocessor are described below.

1. Processing Power

Processing power is one of the main (if not the main) things to consider when selecting between a microcontroller and a microprocessor. It’s one of the main factors that tilt use for microprocessors. It is measured in DMIPS (Dhrystone Millions of Instructions Per Seconds) and represents the number of instructions a microcontroller or microprocessor can process in a second. It is essentially an indication of how fast a device can complete a task assigned to it.

While determining the exact computational power your design requires can be a very difficult task, an educated guess can be made, by examining the task(s), the device is being created to perform and what the computational requirements of those tasks might be. For instance, the development of a device that requires the use of a full operating system either embedded Linux, Windows CE, or any of the other OS would require a processing power as high as 500 DMIPS, sounding like a processor? Yes. To add to it, running an operating system on a device will require a memory management unit (MMU) which will increase the required processing power. Device applications that involve a lot of arithmetic also require very high DMIPS values and the more the maths/numeric computations the device is to perform, the more the design requirements tilt towards the use of a microprocessor due to the processing power required.

One other main implication of processing power that affects the choice between microprocessors and microcontrollers is the complexity or simplicity of things like User interfaces. It is a desirable thing these days to have colorful and interactive GUIs even for the most basic of applications. Most libraries used in creating user interfaces like QT require processing power as much as 80 – 100 DMIPS and the more animations, images, and other multimedia contents to be displayed, the more the required processing power. However, simpler user interfaces on low-resolution screens require little processing power and can be powered using microcontrollers as quite a number of them these days, come with embedded interfaces to interact with different displays

Asides from some of the core functions mentioned above, it is important to reserve some processing power for communications and other peripherals. Although most examples given above tend to support the use of a microprocessor, they are generally more expensive compared to microcontrollers and will be overkill when used in certain solutions, for example using a 500 DMIPS microprocessor to automate a light bulb will make the overall cost of the product higher than normal and could ultimately lead to its failure in the market.

2. Interfaces

The interface to be used to connect different elements of the product is one of the factors to be considered before choosing between a microcontroller and a microprocessor. It is important to ensure the processing unit to be used as the interfaces required by the other components.

From a connectivity and communications standpoint, for instance, Most microcontrollers and Microprocessors possess the interfaces required to connect to communication devices but when high-speed communication peripherals like the super speed USB 3.0 interface, multiple 10/100 Ethernet ports, or Gigabit Ethernet port are required, things tilt in the direction of the Microprocessor as the interface required to support these are generally only found on them because they are more capable of handling and processing the large amounts of data and the speed at which those data are transferred.

The Impact of the protocols used for these interfaces on the amount of memory required for the firmware should be confirmed as they tend to increase memory requirements. It’s a general rule of thumb that a microprocessor-based design, be adopted for applications that require high-speed connectivity with a large amount of data being exchanged especially when the system involves the use of an operating system.

3. Memory

These two data processing devices handle memory and data storage differently. Microcontrollers for instance come with embedded, fixed memory devices while microprocessors come with interfaces to which memory devices can be connected. Two major implications of this are;

4. Cost

The microcontroller becomes a cheaper solution since it does not require the use of an additional memory device while the microprocessor becomes an expensive solution to be adopted due to these additional requirements.

5. Limited Memory

The fixed memory on the microcontroller makes the amount of data that can be stored on it limited. This is a situation not applicable to processors since they are usually connected to external memory devices. A good example of when this limitation can be a problem is when developing firmware for the device. Adding Additional kilobytes to the code size may require a change in the microcontroller to be used but if the design were based on a processor, we will only need to change the memory device. Thus Microprocessors offer more flexibility with memory.

There are several other factors based on the memory to be considered, one of them is the start-up (boot) time. The Microprocessors for instance store the firmware on external memory (Usually an external NAND or Serial Flash memory) and boot, the firmware is loaded into the DRAM of the processor. While this takes place within a couple of seconds, it might not be ideal for certain applications. The microcontroller on the other takes less time.

For general speed considerations, the MCU usually wins due to its ability to address the most time-critical applications because of the processor core used in them, the fact that the memory is embedded and the firmware used with them is always either an RTOS or bare metal C.

6. Power

A final point to consider is power consumption. While Microprocessors have low power modes, these modes are not as many as the ones available on a typical MCU and with the external components required by a microprocessor-based design, it is slightly more complex to achieve low power modes. Asides from the low power modes, the actual amount of power consumed by an MCU is a whole lot lower than what a microprocessor consumes, because the larger the processing capability, the more the amount of power required to keep the processor up and running.

Microcontrollers, therefore, tend to find applications where ultra-low power processing units are required such as remote controls, consumer electronics, and several smart devices where the design emphasis is on the longevity of battery life. They are also used where highly deterministic behavior is needed.

Microprocessors on the other hand are ideal for industrial and consumer applications that require an operating system, are computation-intensive, and require high-speed connectivity or a user interface with lots of media information.

Several other factors exist and serve as determinants for choosing between these two platforms and all fall underperformance, capability, and budget but the overall selection becomes easier when a proper systems pre-design is in place and the requirements clearly stated. Microcontrollers are mostly used in solutions with a very tight BOM budget and with stringent power requirements while Microprocessors are used in applications with huge computation and performance requirements.



  b.) Explain the architecture of an 8-bit microcontroller(8051 or any other type can be considered). List the applications for the same.

8051 microcontroller is designed by Intel in 1981. It is an 8-bit microcontroller. It is built with 40 pins DIP (dual inline package), 4kb of ROM storage and 128 bytes of RAM storage, 2 16-bit timers. It consists of are four parallel 8-bit ports, which are programmable as well as addressable as per the requirement. An on-chip crystal oscillator is integrated into the microcontroller having a crystal frequency of 12 MHz.

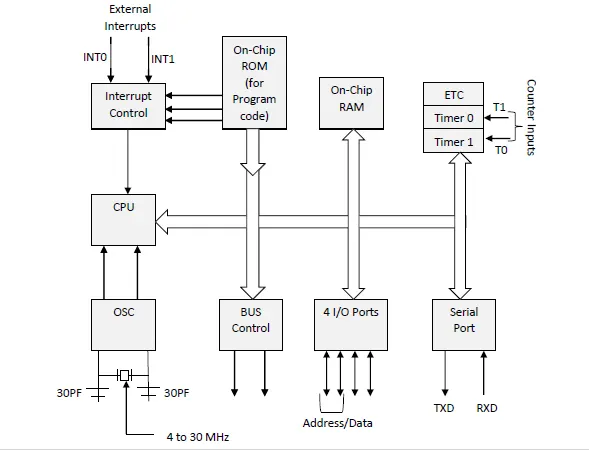

In the following diagram "1" the system bus connects all the support devices to the CPU. The system bus consists of an 8-bit data bus, a 16-bit address bus and bus control signals. All other devices like program memory, ports, data memory, serial interface, interrupt control, timers, and the CPU are all interfaced together through the system bus.

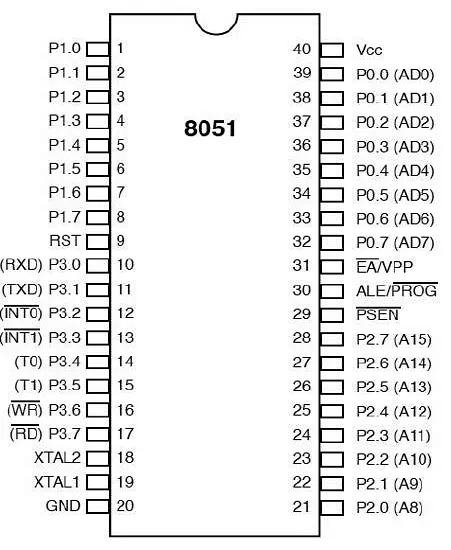

The pin diagram of the 8051 microcontroller looks as follows −

• Pins 1 to 8 − These pins are known as Port 1. This port doesn’t serve any other functions. It is an internally pulled up, bi-directional I/O port.

• Pin 9 − It is a RESET pin, which is used to reset the microcontroller to its initial values.

• Pins 10 to 17 − These pins are known as Port 3. This port serves some functions like interrupts, timer input, control signals, serial communication signals RxD and TxD, etc.

• Pins 18 & 19 − These pins are used for interfacing an external crystal to get the system clock.

• Pin 20 − This pin provides the power supply to the circuit.

• Pins 21 to 28 − These pins are known as Port 2. It serves as an I/O port. Higher-order address bus signals are also multiplexed using this port.

• Pin 29 − This is PSEN pin which stands for Program Store Enable. It is used to read a signal from the external program memory.

• Pin 30 − This is an EA pin that stands for External Access input. It is used to enable/disable external memory interfacing.

• Pin 31 − This is ALE pin which stands for Address Latch Enable. It is used to demultiplex the address-data signal of the port.

• Pins 32 to 39 − These pins are known as Port 0. It serves as an I/O port. Lower order address and data bus signals are multiplexed using this port.

• Pin 40 − This pin is used to provide a power supply to the circuit.

8051 microcontrollers have 4 I/O ports each of 8-bit, which can be configured as input or output. Hence, a total of 32 input/output pins allow the microcontroller to be connected with the peripheral devices.

Pin configuration, i.e. the pin can be configured as 1 for input and 0 for output as per the logic state.

Input/Output (I/O) pin − All the circuits within the microcontroller must be connected to one of its pins except the P0 port because it does not have pull-up resistors built-in.

Input pin − Logic 1 is applied to a bit of the P register. The output FE transistor is turned off and the other pin remains connected to the power supply voltage over a pull-up resistor of high resistance.

Port 0 − The P0 (zero) port is characterized by two functions −

When the external memory is used then the lower address byte (addresses A0A7) is applied to it, else all bits of this port is configured as input/output.

When the P0 port is configured as an output then other ports consisting of pins with a built-in pull-up resistor connected by its end to 5V power supply, the pins of this port have this resistor left out.

Input Configuration

If any pin of this port is configured as an input, then it acts as if it “floats”, i.e. the input has unlimited input resistance and in-determined potential.

Output Configuration

When the pin is configured as an output, then it acts as an “open drain”. By applying logic 0 to a port bit, the appropriate pin will be connected to the ground (0V) and applying logic 1, the external output will keep on “floating”.

To apply logic 1 (5V) on this output pin, it is necessary to build an external pullup resistor.

• Port 1

  P1 is a true I/O port as it doesn’t have any alternative functions as in P0, but this port can be configured as general I/O only. It has a built-in pull-up resistor and is completely compatible with TTL circuits.

• Port 2

  P2 is similar to P0 when the external memory is used. Pins of this port occupy addresses intended for the external memory chip. This port can be used for a higher address byte with addresses A8-A15. When no memory is added then this port can be used as a general input/output port similar to Port 1.

• Port 3

  In this port, functions are similar to other ports except that logic 1 must be applied to the appropriate bit of the P3 register.

• Pins Current Limitations

  When pins are configured as an output (i.e. logic 0), then the single port pins can receive a current of 10mA.

  When these pins are configured as inputs (i.e. logic 1), then built-in pull-up resistors provide very weak current but can activate up to 4 TTL inputs of LS series.

  If all 8 bits of a port are active, then the total current must be limited to 15mA (port P0: 26mA).

  If all ports (32 bits) are active, then the total maximum current must be limited to 71mA.

Interrupts are the events that temporarily suspend the main program, pass the control to the external sources and execute their task. It then passes the control to the main program where it had left off.

8051 has 5 interrupt signals, i.e. INT0, TFO, INT1, TF1, RI/TI. Each interrupt can be enabled or disabled by setting bits of the IE register and the whole interrupt system can be disabled by clearing the EA bit of the same register.



c) Explain the different types of transmission(serial communication) modes with the help of real-time examples.

Data Transmission mode defines the direction of the flow of information between two communication devices. It is also called Data Communication or Directional Mode. It specifies the direction of the flow of information from one place to another in a computer network.

In the Open System Interconnection(OSI) Layer Model, the Physical Layer is dedicated to data transmission in the network. It mainly decides the direction of data in which the data needs to travel to reach the receiver system or node.

So, in this blog, we will learn about different data transmission modes based on the direction of exchange, synchronization between the transmitter and receiver, and the number of bits sent simultaneously in a computer network.

The data transmission modes can be characterized in the following three types based on the direction of exchange of information:

1. Simplex
2. Half-Duplex
3. Full Duplex

The data transmission modes can be characterized in the following two types based on the synchronization between the transmitter and the receiver:

1. Synchronous
2. Asynchronous

The data transmission modes can be characterized in the following two types based on the number of bits sent simultaneously in the network:

1. Serial
2. Parallel

Now, let us study these various data transmission modes in the computer network one by one.

According to the Direction of Exchange of Information:

1. Simplex

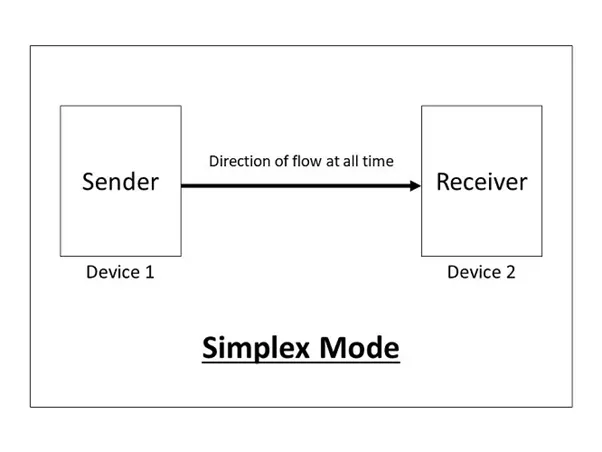

Simplex is the data transmission mode in which the data can flow only in one direction, i.e., the communication is unidirectional. In this mode, a sender can only send data but can not receive it. Similarly, a receiver can only receive data but can not send it.

This transmission mode is not so popular because we cannot perform two-way communication between the sender and receiver in this mode. It is mainly used in the business field as in sales that do not require any corresponding reply. It is similar to a one-way street.

For Example, Radio and TV transmission, keyboard, mouse, etc.

2. Half-Duplex

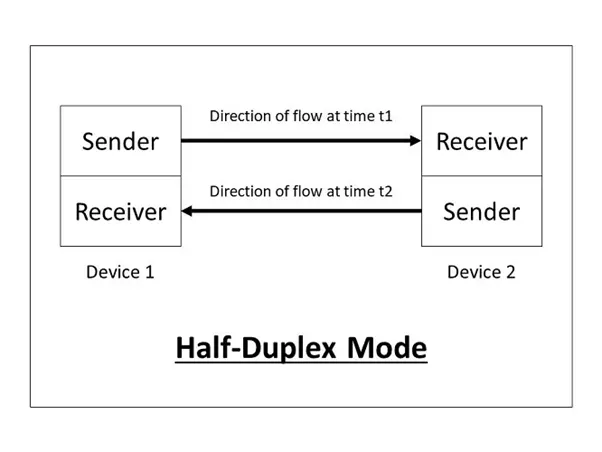

Half-Duplex is the data transmission mode in which the data can flow in both directions but in one direction at a time. It is also referred to as Semi-Duplex. In other words, each station can both transmit and receive the data but not at the same time. When one device is sending the other can only receive and vice-versa.

In this type of transmission mode, the entire capacity of the channel can be utilized for each direction. Transmission lines can carry data in both directions, but the data can be sent only in one direction at a time.

This type of data transmission mode can be used in cases where there is no need for communication in both directions at the same time. It can be used for error detection when the sender does not send or the receiver does not receive the data properly. In such cases, the data needs to be transmitted again by the receiver.

For Example, Walkie-Talkie, Internet Browsers, etc.

3. Full-Duplex

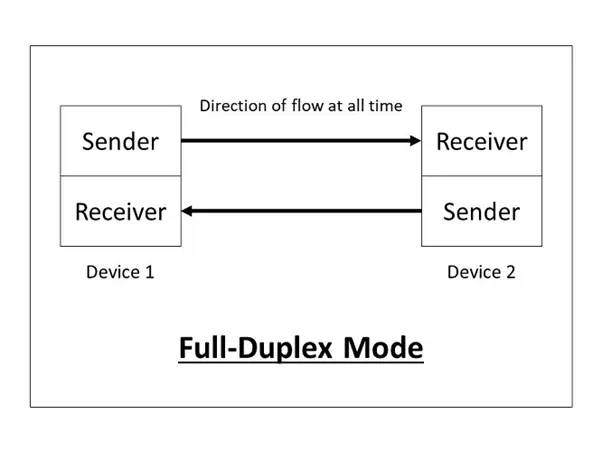

Full-Duplex is the data transmission mode in which the data can flow in both directions at the same time. It is bi-directional in nature. It is two-way communication in which both the stations can transmit and receive the data simultaneously.

Full-Duplex mode has double bandwidth as compared to the half-duplex. The capacity of the channel is divided between the two directions of communication. This mode is used when communication in both directions is required simultaneously.

For Example, a Telephone Network, in which both the persons can talk and listen to each other simultaneously.

According to the synchronization between the transmitter and the receiver:

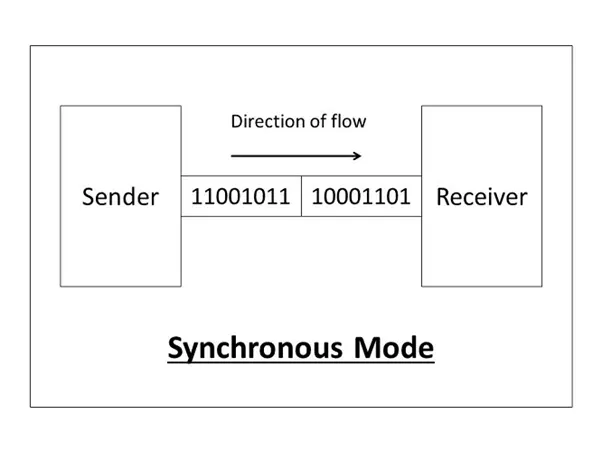

1. Synchronous

The Synchronous transmission mode is a mode of communication in which the bits are sent one after another without any start/stop bits or gaps between them. Actually, both the sender and receiver are paced by the same system clock. In this way, synchronization is achieved.

In a Synchronous mode of data transmission, bytes are transmitted as blocks in a continuous stream of bits. Since there is no start and stop bits in the message block. It is the responsibility of the receiver to group the bits correctly. The receiver counts the bits as they arrive and groups them into eight bits unit. The receiver continuously receives the information at the same rate that the transmitter has sent it. It also listens to the messages even if no bits are transmitted.

In synchronous mode, the bits are sent successively with no separation between each character, so it becomes necessary to insert some synchronization elements with the message, this is called "Character-Level Synchronization".

For Example, if there are two bytes of data, say(10001101, 11001011) then it will be transmitted in the synchronous mode as follows:

For Example, communication in CPU, RAM, etc.



2. Asynchronous

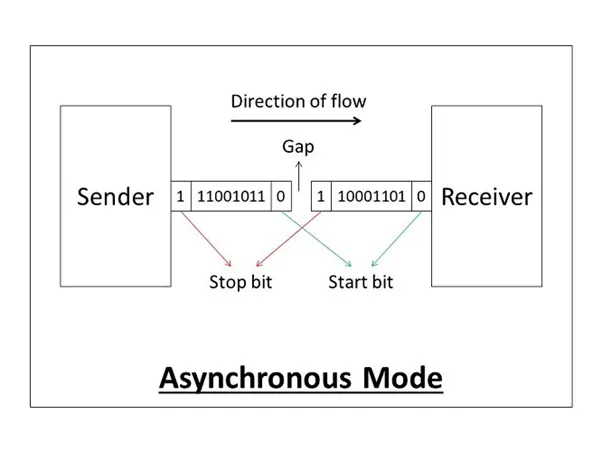

The Asynchronous transmission mode is a mode of communication in which a start and the stop bit is introduced in the message during transmission. The start and stop bits ensure that the data is transmitted correctly from the sender to the receiver.

Generally, the start bit is '0' and the end bit is '1'.Asynchronous here means 'asynchronous at the byte level', but the bits are still synchronized. The time duration between each character is the same and synchronized.

In an asynchronous mode of communication, data bits can be sent at any point in time. The messages are sent at irregular intervals and only one data byte can be sent at a time. This type of transmission mode is best suited for short-distance data transfer.

For Example, if there are two bytes of data, say(10001101, 11001011) then it will be transmitted in the asynchronous mode as follows:

For Example, Data input from a keyboard to the computer.

According to the number of bits sent simultaneously in the network:

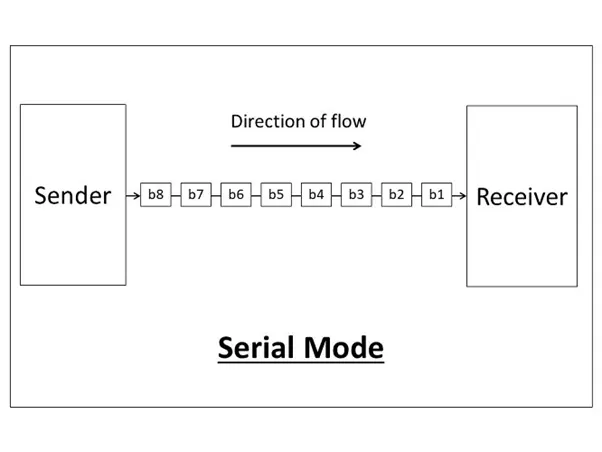

1. Serial

The Serial data transmission mode is a mode in which the data bits are sent serially one after the other at a time over the transmission channel.

It needs a single transmission line for communication. The data bits are received in synchronization with one another. So, there is the challenge of synchronizing the transmitter and receiver.

In serial data transmission, the system takes several clock cycles to transmit the data stream. In this mode, the data integrity is maintained, as it transmits the data bits in a specific order, one after the other.

This type of transmission mode is best suited for long-distance data transfer, or the amount of data being sent is relatively small.

For Example, Data transmission between two computers using serial ports.



2. Parallel

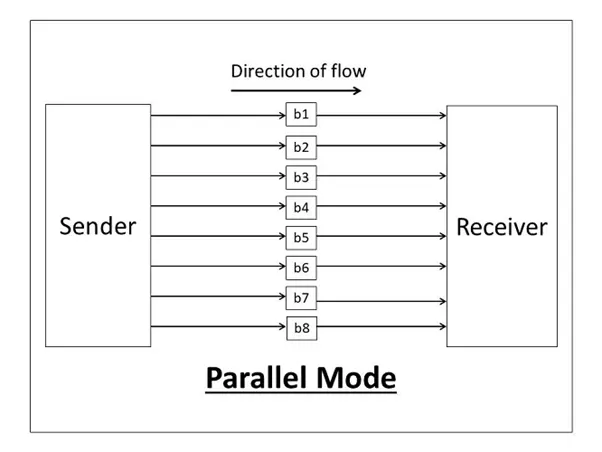

The Parallel data transmission mode is a mode in which the data bits are sent parallelly at a time. In other words, there is a transmission of n-bits at the same time simultaneously.

Multiple transmission lines are used in such modes of transmission. So, multiple data bytes can be transmitted in a single system clock. This mode of transmission is used when a large amount of data has to be sent in a shorter duration of time. It is mostly used for short-distance communication.

For n-bits, we need n-transmission lines. So, the complexity of the network increases but the transmission speed is high. If two or more transmission lines are too close to each other, then there may be a chance of interference in the data, degrading the signal quality.

For Example, Data transmission between computer and printer.



CONCLUSION

Here we have completely studied the micro-controller, learn about the communication in the various systems of the vehicle. Wrote a pseudo code about speed control. Studied the factors affecting the selection of microcontrollers. learned about the architecture of the microcontroller 8051 and different modes of transmission.
