Sketch a G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Sketch G+1 residential plan according to Vaastu Shastra and Calculation of Loads as per IS code

Sketch a G+1 floor residential plan, according to Vastu shastra, and list down the names of the structural drawings required to be provided to the site for construction. Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the member as per IS code.

Project Details

Sketch a G+1 floor residential plan, according to Vastu shastra, and list down the names of the structural drawings required to be provided to the site for construction.

Also, assume the sizes of the structural elements (Column, Beam, Slab, etc.,) and accordingly calculate the individual corresponding loads from the members as per IS code.

Aim of the project:

To sketch a G+1 floor residential plan according to vastu Shastra and to list down the names of structural drawings required to be provided to the site for construction.

To assume the size of structural elements (Column, Beam, slab etc) and to calculate the loads from the members as per IS code.

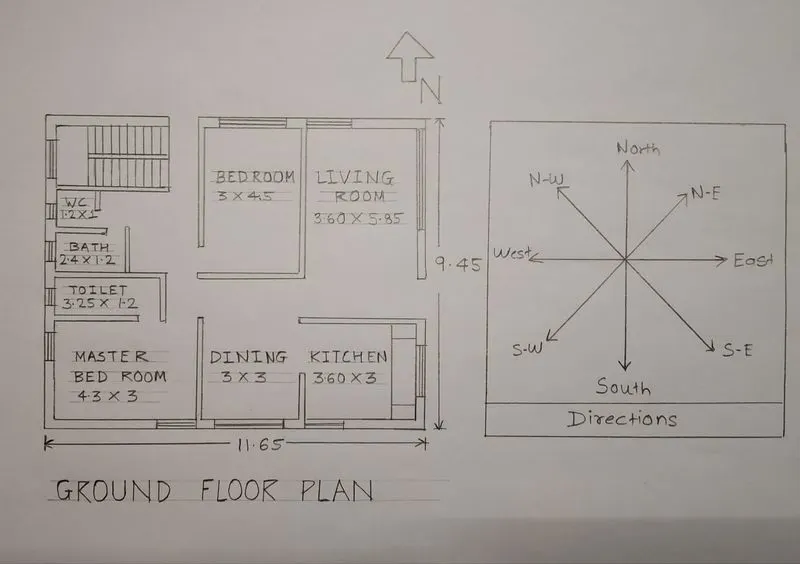

 Ground Floor plan:

 (Dimensions are in Meters)

 Dimensions of Ground Floor plan-

• Living room- 3.60m X 5.85m
• Kitchen room- 3.60m X 3m
• Dining room- 3m X 3m
• Master bedroom- 4.3m X 3m
• Bedroom- 3m X 4.5m
• Toilet- 3.25m X 1.2m
• Bath- 2.4m X 1.2m
• WC- 1.2m X 1m

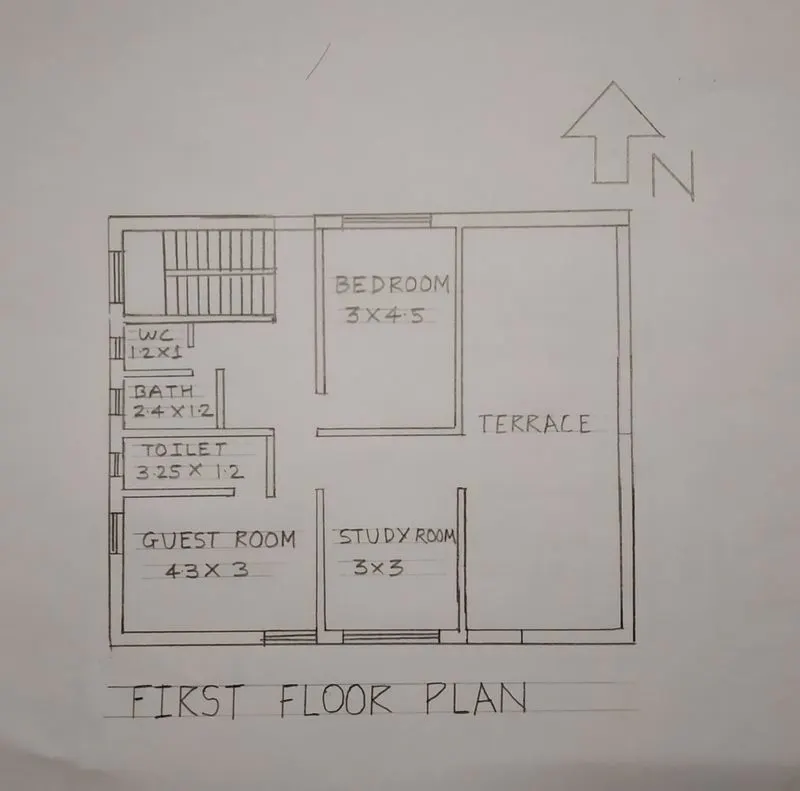

First Floor plan:

 (Dimensions are in Meters)

Dimensions of First Floor Plan-

• Guest room- 4.3m X 3m
• Study room- 3m X 3m
• Bedroom- 3m X 4.5m
• Toilet- 3.25m X 1.2m
• Bath- 2.4m X 1.2m
• WC- 1.2m X 1m

Other dimensions

• -Thickness of internal wall- 0.15m (150mm)
• -Thickness of external wall- 0.23m (230mm)
• -Thickness of slab- 0.25m (250mm)
• -Dimensions of column – 0.3m X 0.3m
• -Dimensions of beam-0.3m X 0.45m
• -Height of the wall of each floor- 3m

Vastu Shastra followed during planning is:

• Entrance of the house is provided in the east direction which is the symbol of progress in life.
• Living room is placed in north east direction.
• Master bedroom is placed in south west position this direction brings good health and prosperity.
• Kitchen is placed in south east direction.
• Study room is placed in east direction.
• Staircase is placed at Northwest corner.
• Bathroom, WC and toilet is placed in West direction.

Concept of Vaastu:

List of drawings provided at the construction project

• -Centre line drawing
• -Footing and column layout with reinforcement details.
• -Column schedule with reinforcement details.
• -Plinth beam layout with reinforcement details.
• -First floor beam layout with reinforcement details.
• -Lift pit and head room reinforcement details.
• -Centre line drawing.
• -Floor plans
• -Foundation plan.
• -Design drawings.
• -Block plan.
• -Roof slab layout.
• -Column layout.
• -Site plans.
• -Column sections.
• -Septic tank design.
• -Overhead water tank design.
• -Plinth beam sections
• -Flooring plan.
• -Furniture plan.
• -Road drainage plan.
• -Setting out plan.
• -Section drawings of buildings.
• -Plumbing details.
• -Electrification details.

Calculation of loads:

(A). Dead load Calculations

Dead load of columns

Dimension of column= 0.3m X 0.3m (300mm X 300mm)

Height of column= (Slab thickness X 2) + (Height of wall for each floor X 2)

= (0.25 X 2) + (3 X 2) = 6.5m

Total volume of concrete = 0.3 X 0.3 X 6.5 = 0.585m3.

Unit weight of RCC= 25KN/m3.

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Dead load of column= 25 X 0.585=14.62KN.

Dead load of beams

Dimension of beam= 0.3m X 0.45m (300mm X 450mm)

Total volume of concrete = 0.3 X 0.45 X 1 = 0.135m3.

Unit weight of RCC= 25KN/m3.

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Dead load of beam= 25 X 0.135=3.375KN

Dead load of slab

Slab is always designed for the span of 1m.

Hence assume size of slab as 1m X 1m

Thickness of slab= 0.25m

Density of RCC= 25KN/m3

Self-weight of slab= 1 X 1 X 0.25 X 25= 6.25KN.

Dead load of walls

Dead load of external wall

Thickness of External wall = 0.23m. (230mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m

Load of wall on beam= 3 X 0.23 X 20= 13.8KN.

Dead load of internal wall

Thickness of Internal wall = 0.15m. (150mm)

Unit weight of brick wall= 20KN/m3

Unit Weight of Building Materials used in construction works as per IS 875 (Part-1)

Height of wall = 3m.

Load of wall on beam= 3 X 0.15 X 20= 9KN.

 (B). Live load calculations:

(According to IS 875 Part 2)

Bed room= 2KN/m2

Living room= 2KN/m2

Bath=2KN/m2

Terrace = 3KN/m2

Toilet= 2KN/m2

Staircase= 3KN/m2

Study room= 2KN/m2

Kitchen= 2KN/m2

(C). Wind load calculation:

Wind load is designed only when the height of the building exceeds 10m.

The height of designed building is 6.5m which is less than 10m.

So, the calculation of wind load is not required.

References and IS codes used for the design-

IS 875:1987, Part 1 for Dead load

IS 875:1987, Part 2 for Live load

IS 875:1987, Part 3 for Wind load

IS 456:2000, for Reinforced Concrete.

Results:

-The plan is prepared by the Vaastu shastra concept considering all the principles and considerations of Vaastu shastra

-The load calculations are done as per the IS code considerations.
