Project 1

Question

Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:

Building Floors : G + 6 +R

Plan Dimension : B = 25m, L = 16m

Storey Height : H = 3.5m

Soil : Hard soil

Use : Residential purpose

Safe Bearing Capacity : 180kN/m²

Maximum Slab Thickness : 150mm

(Assume suitable sections for structural elements. Follow IS456, IS1893 and IS 875.)

Aim: Design the multi story building G + 6 + Roof design by using STAAD Pro with using IS codes

Procedure:

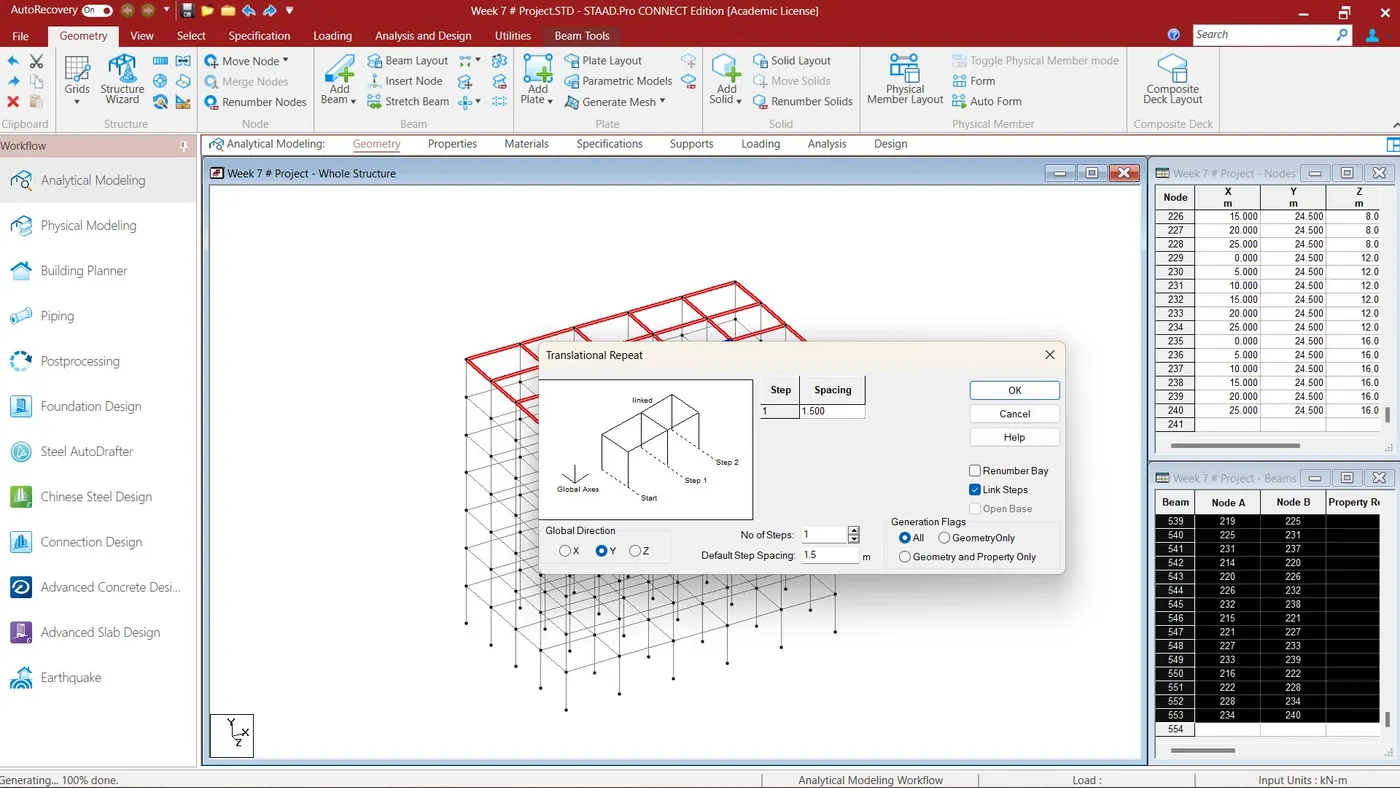

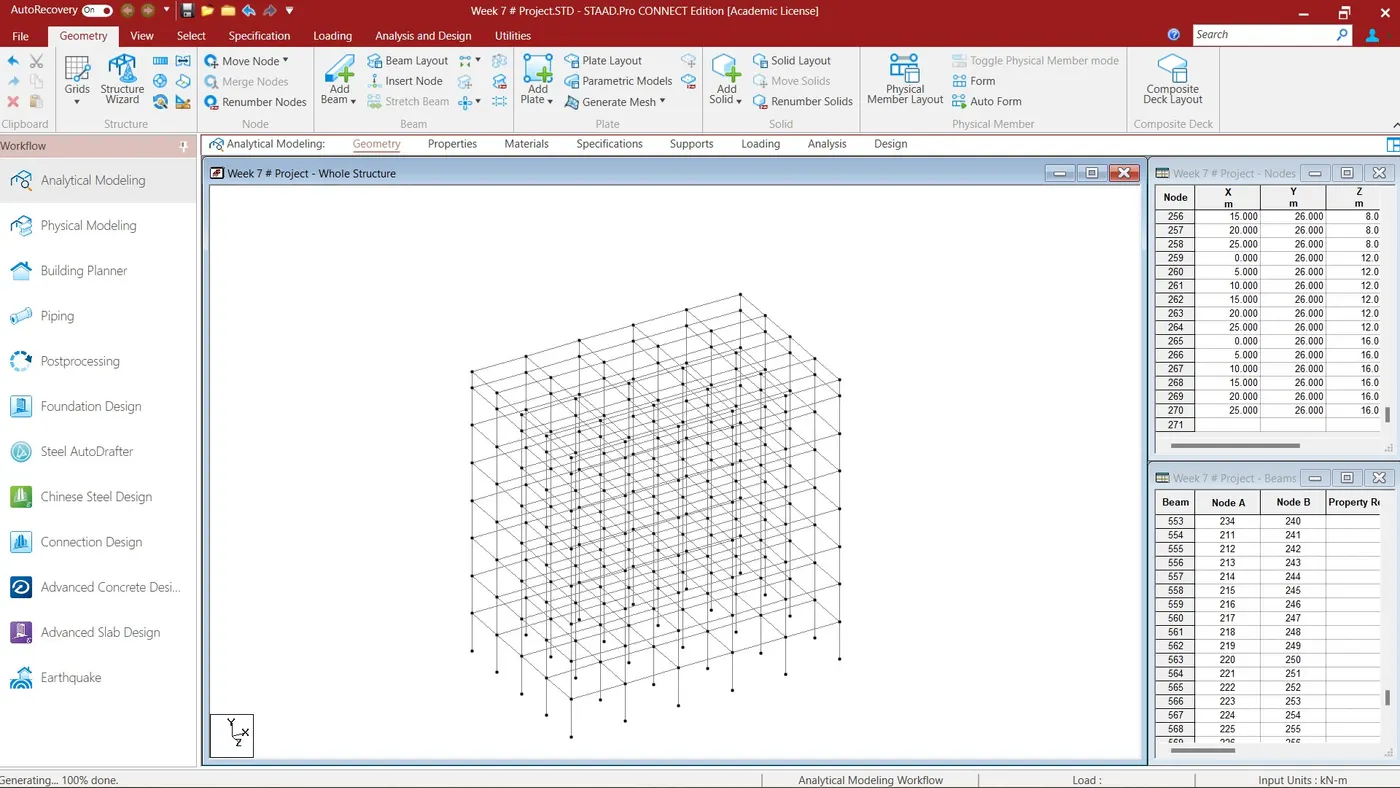

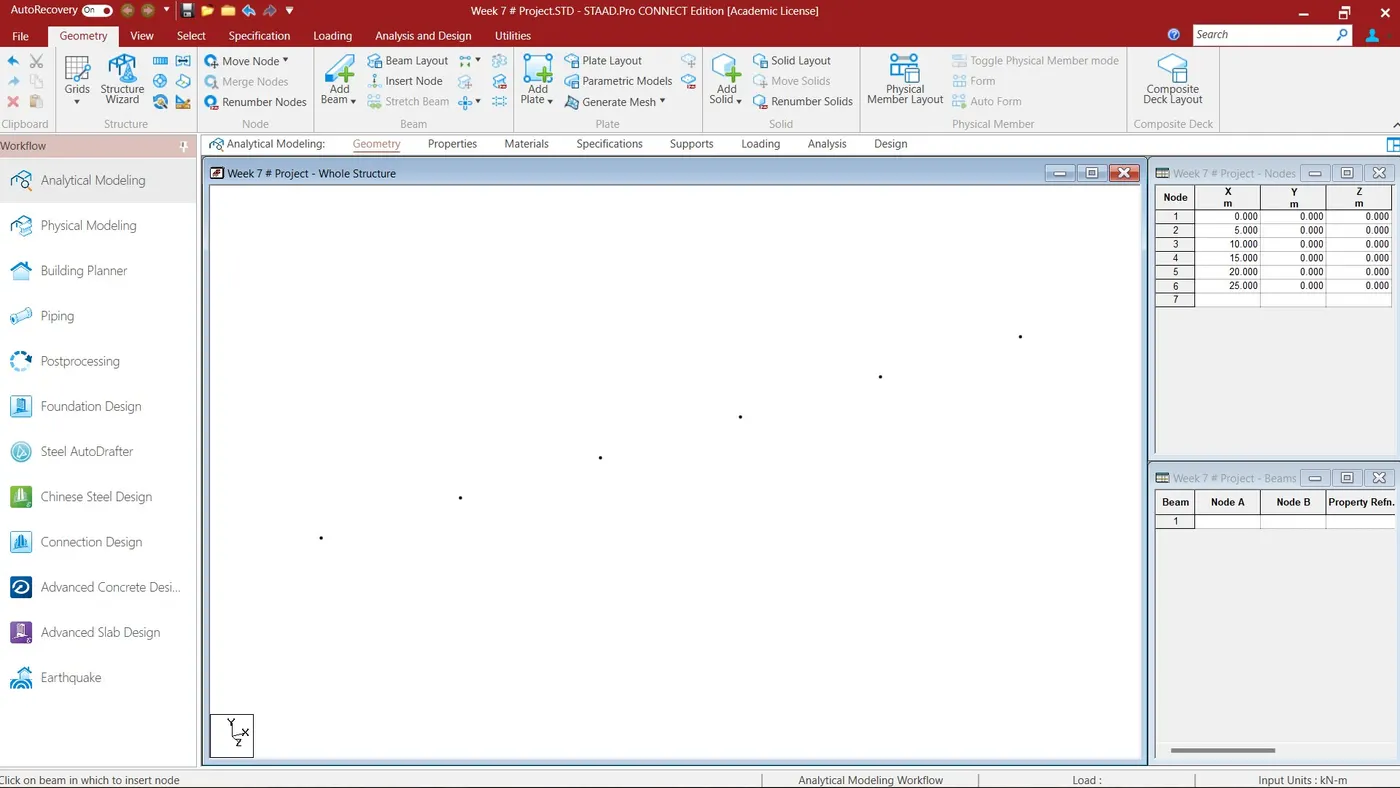

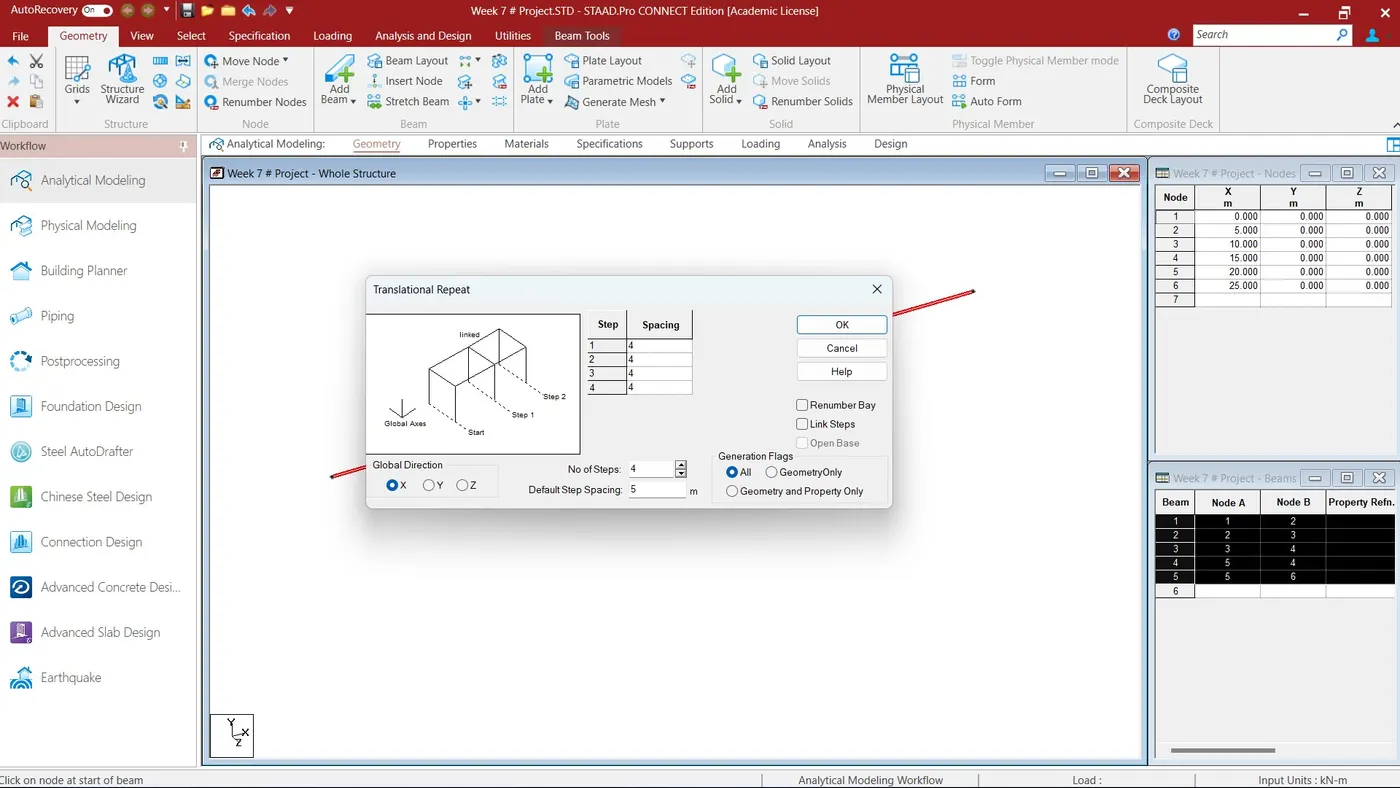

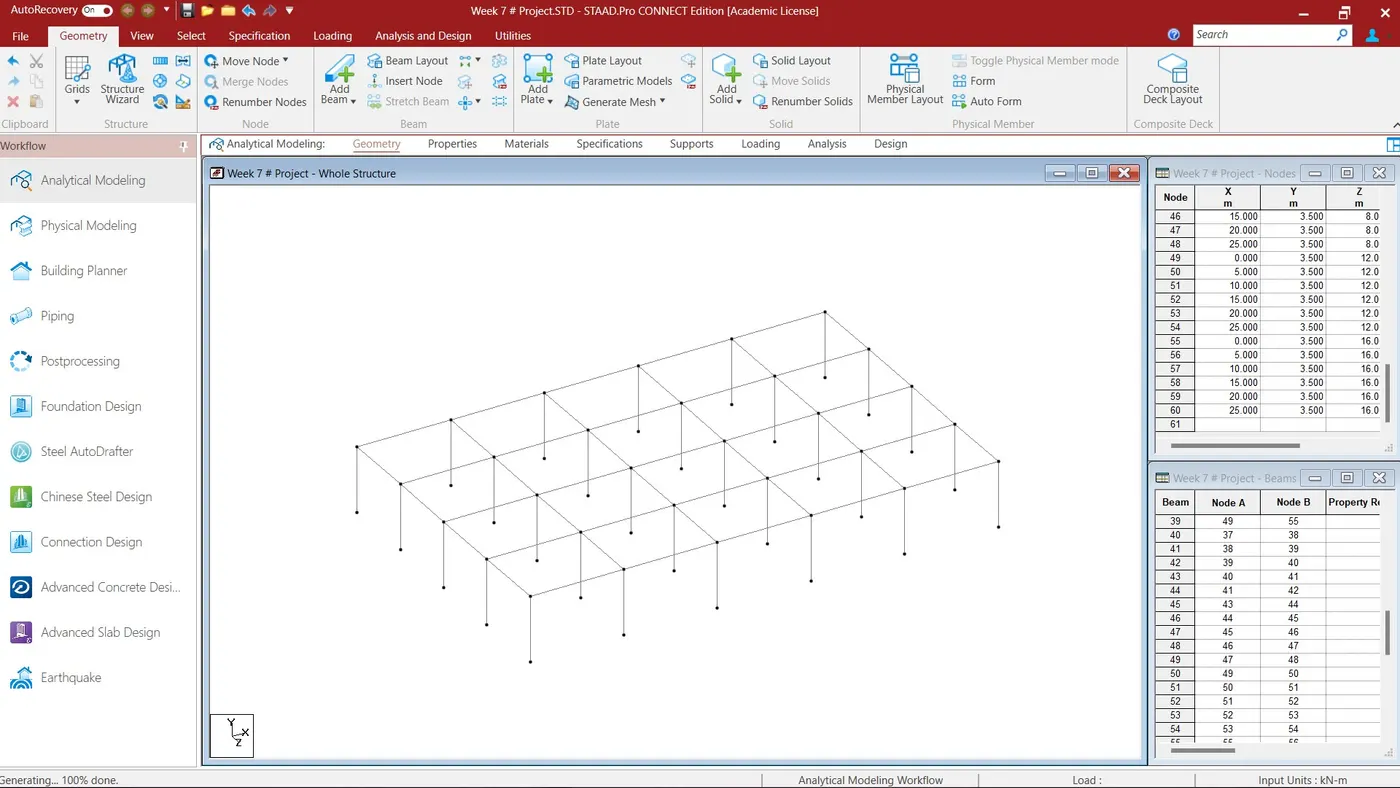

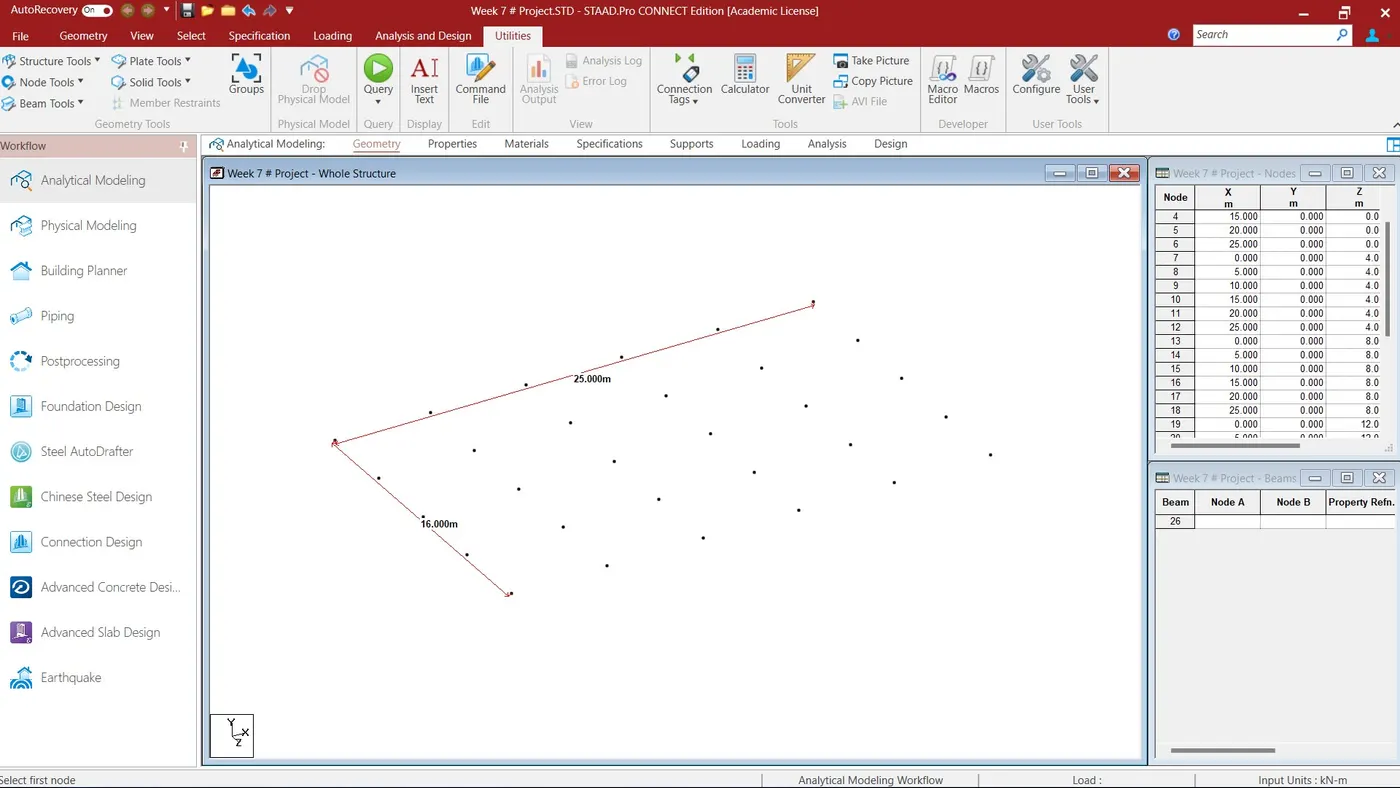

• Nodes and Draw thw Beams at nodes points ,through X axis, Y axis and Z axis Global directions.

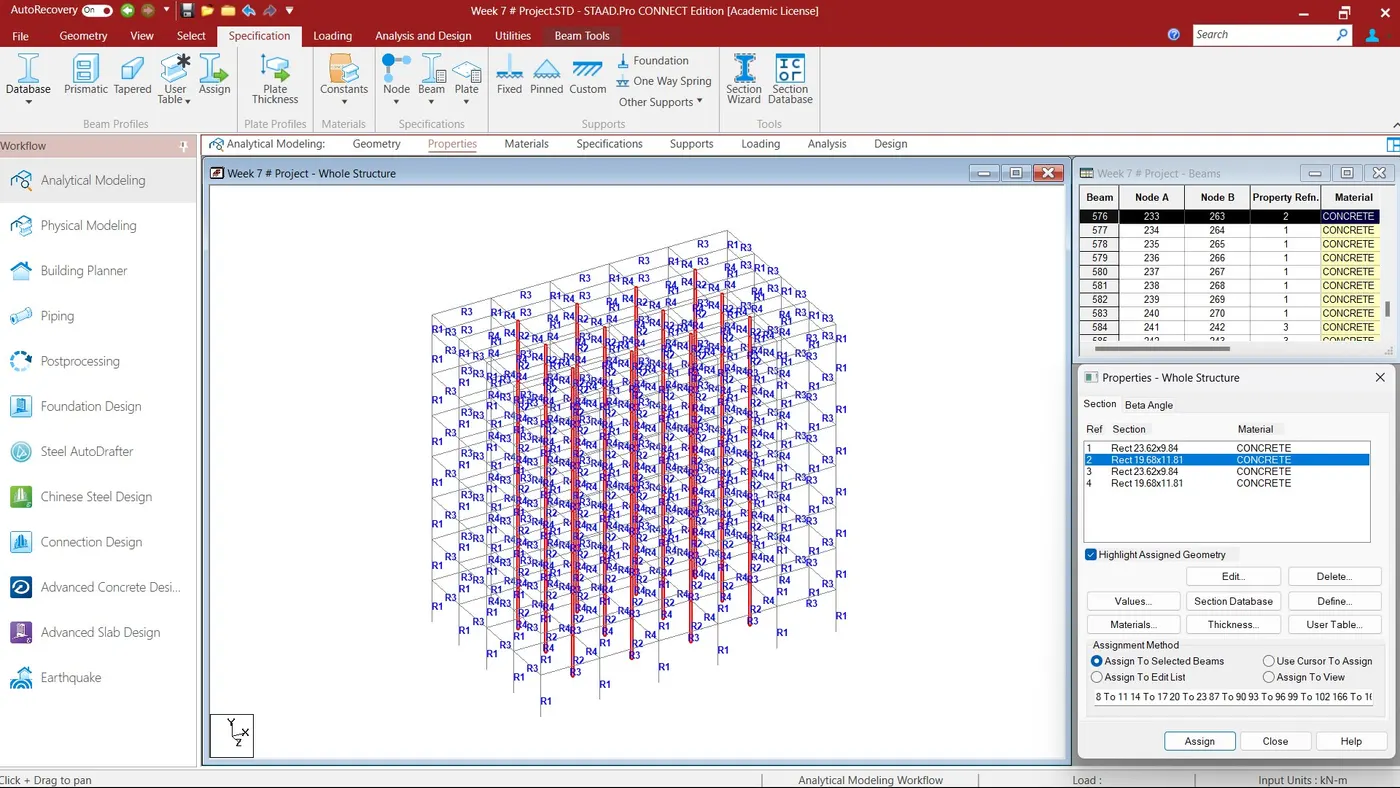

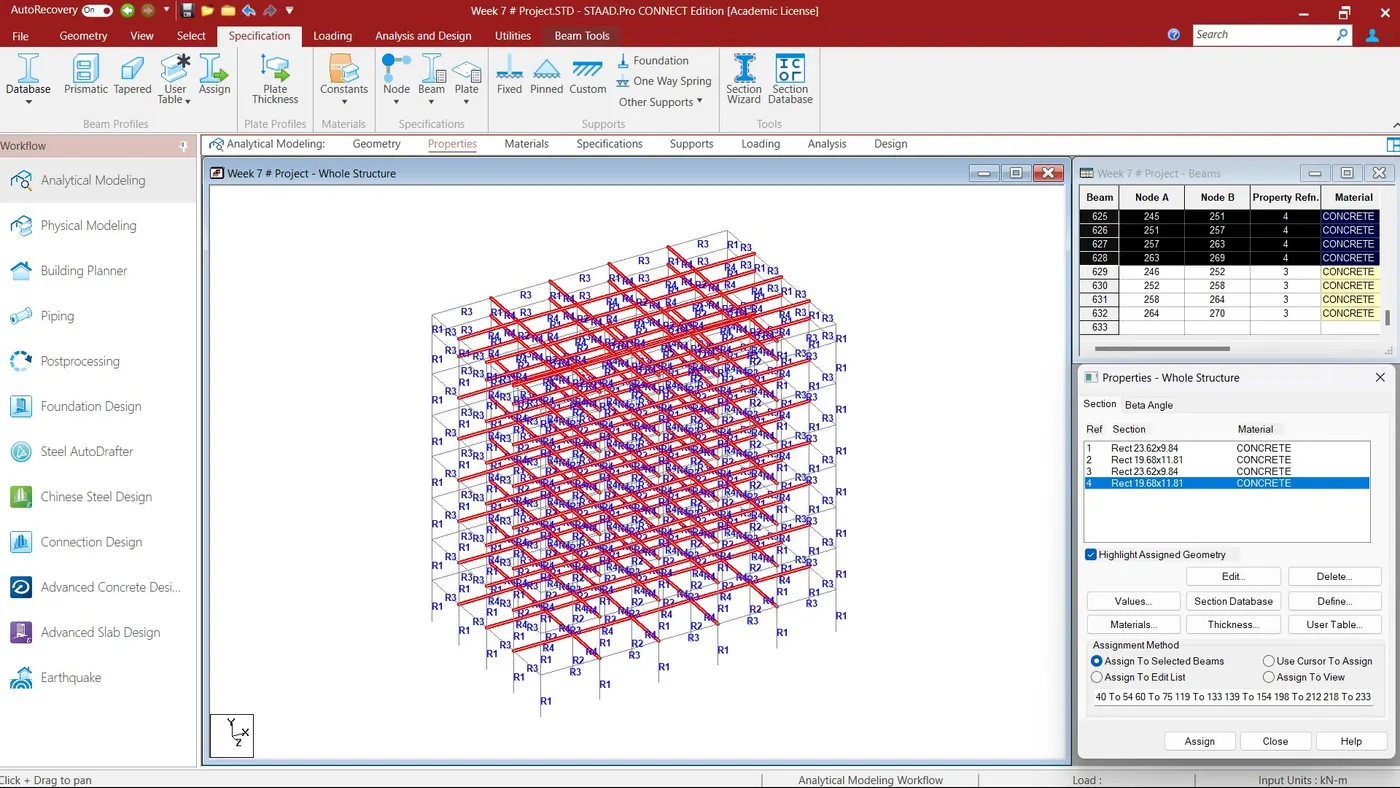

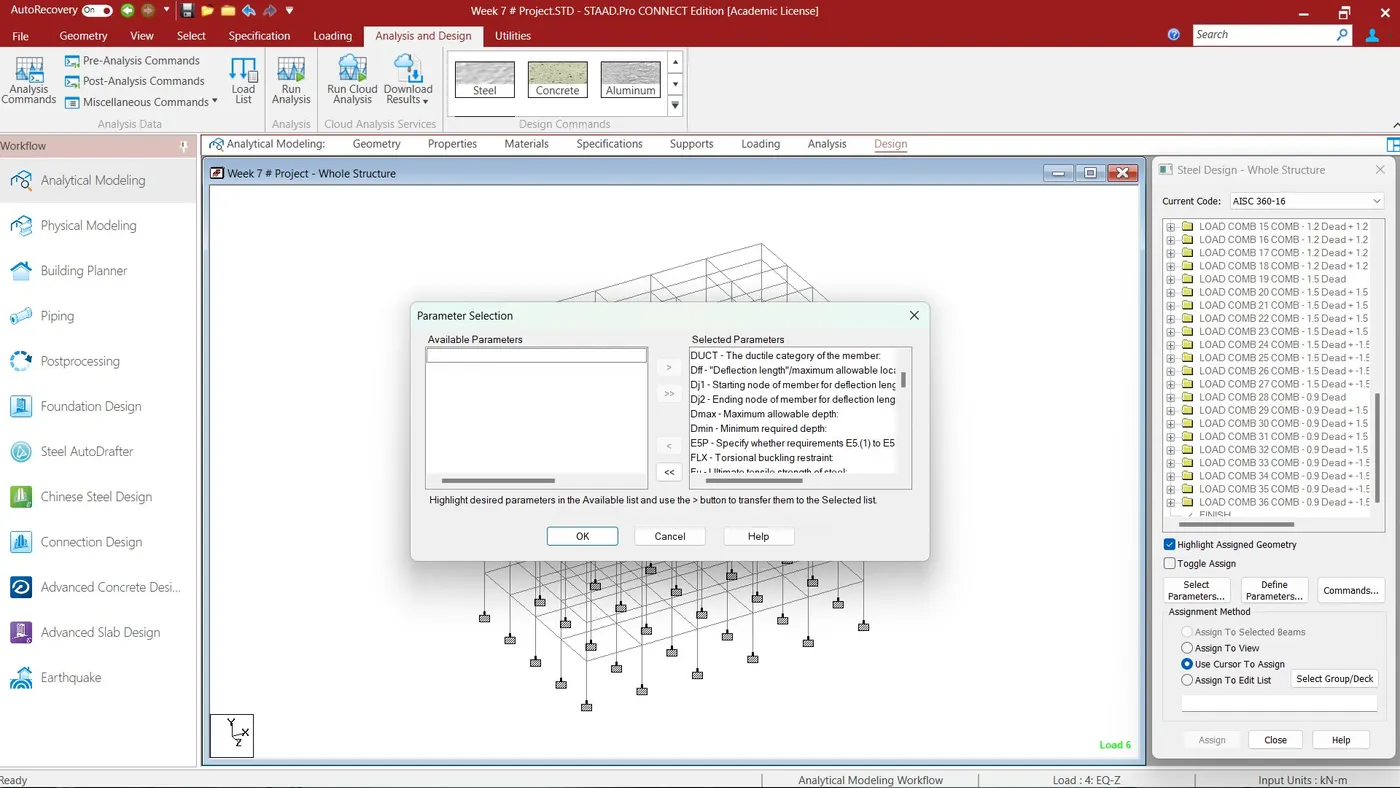

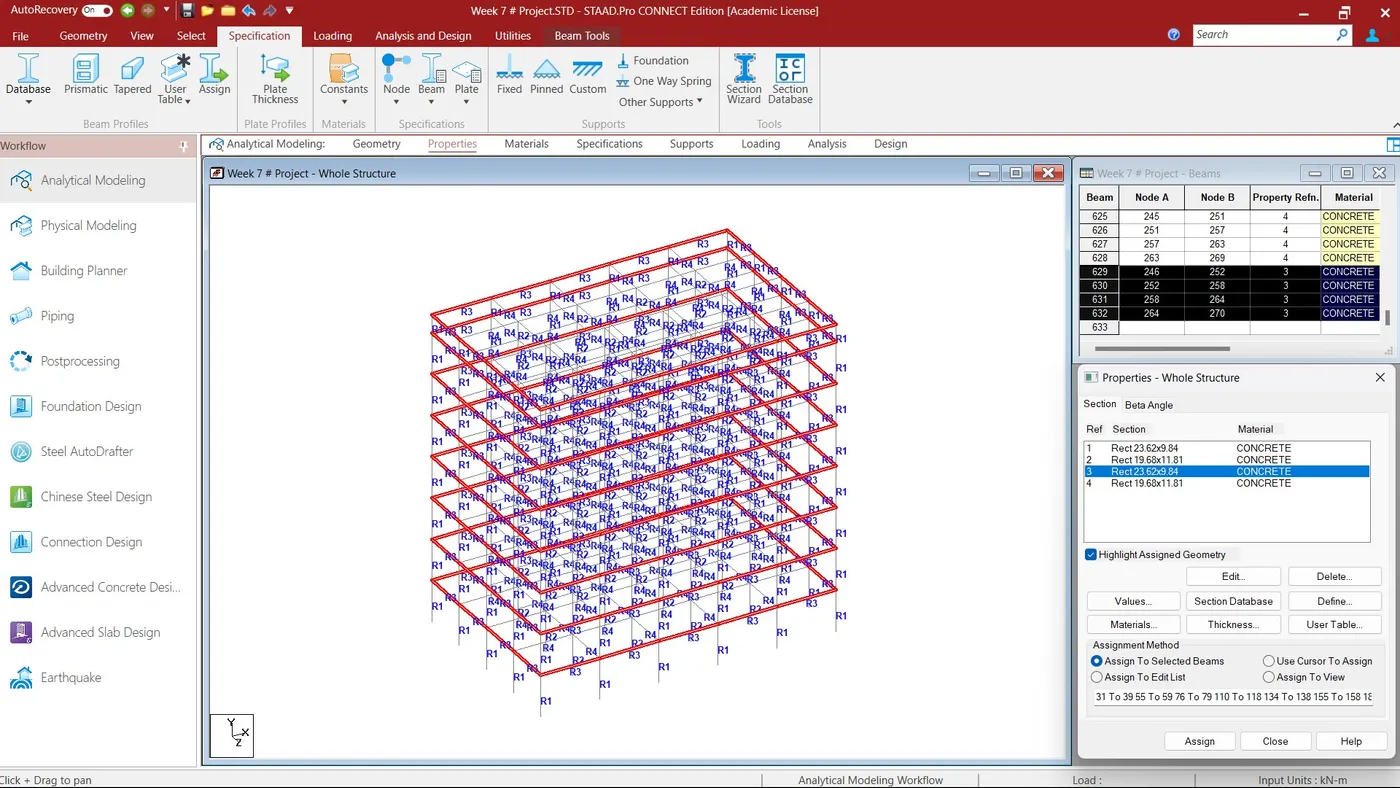

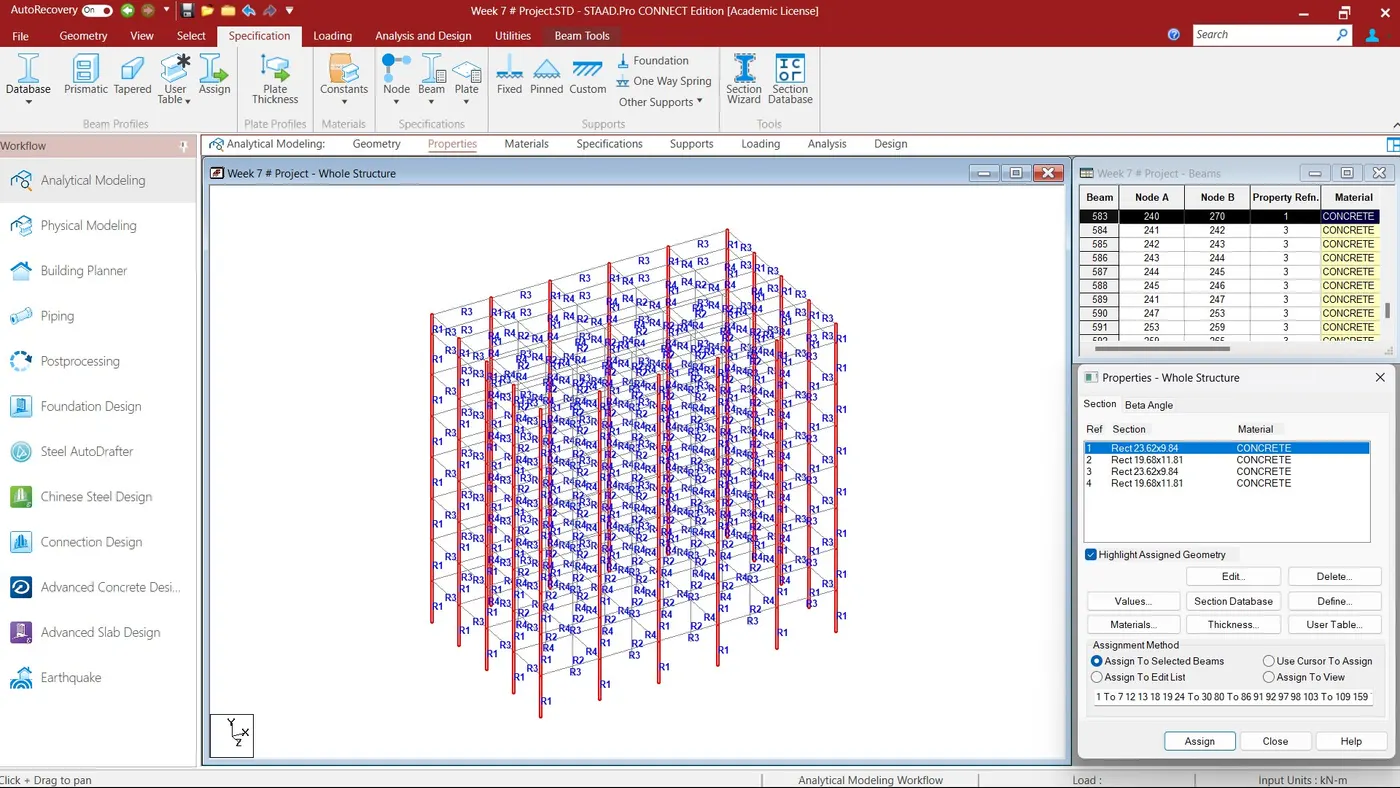

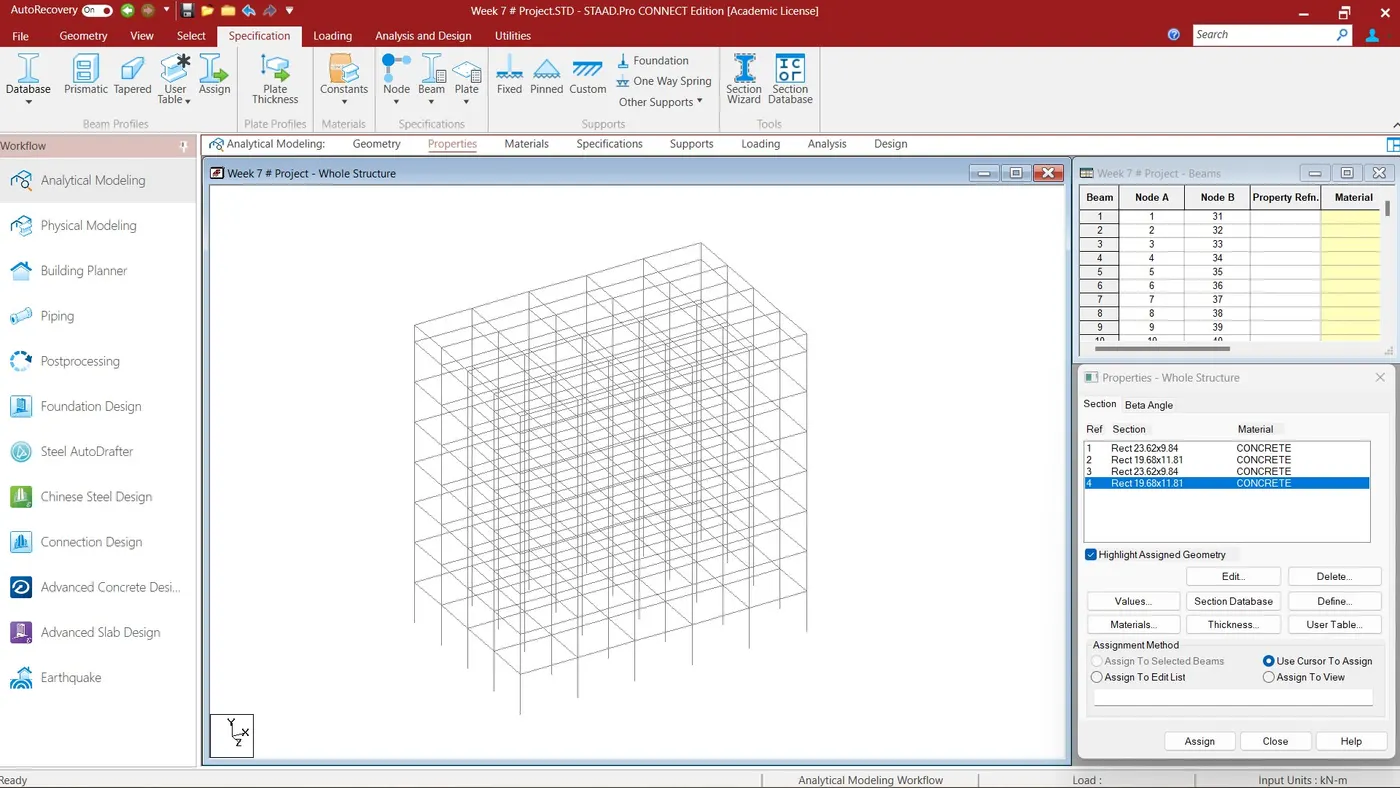

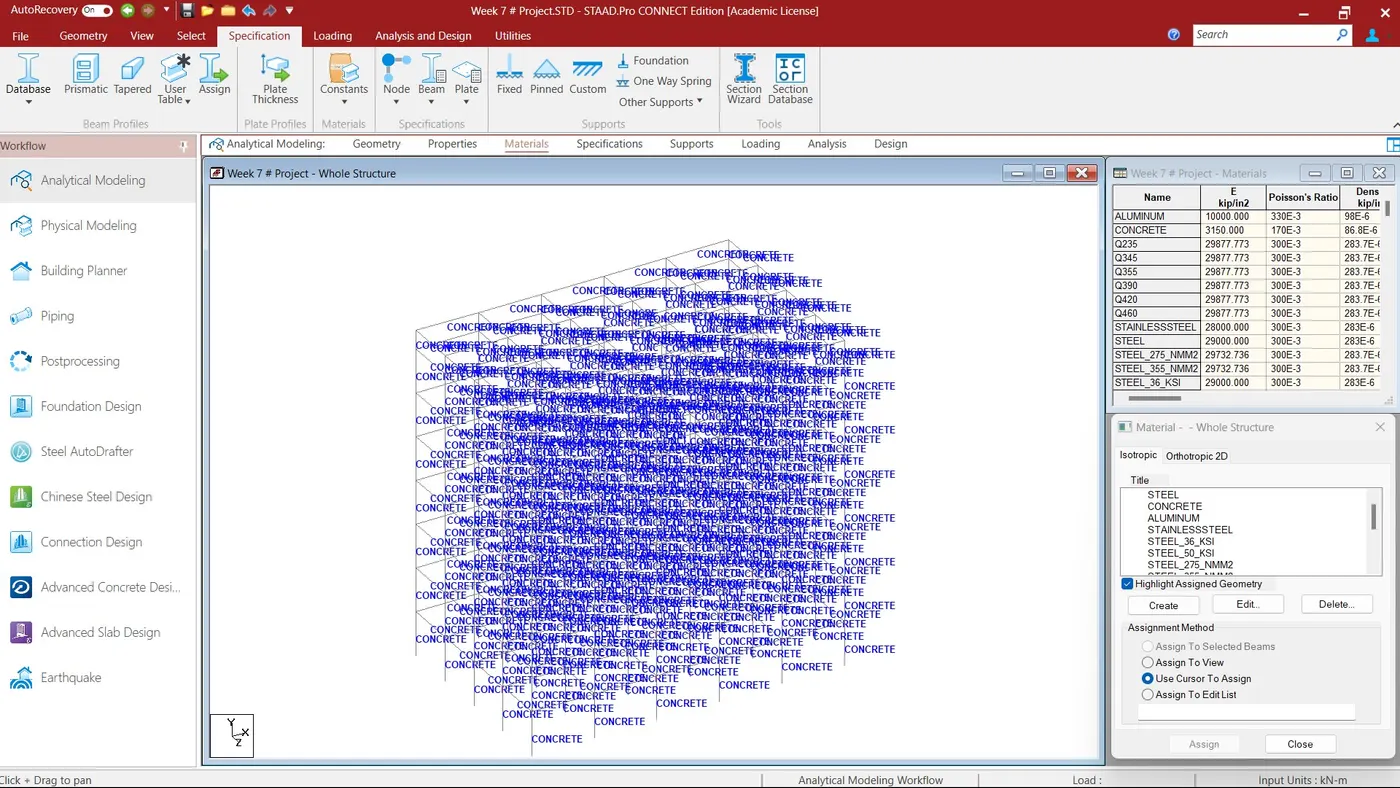

• Making the property and Material

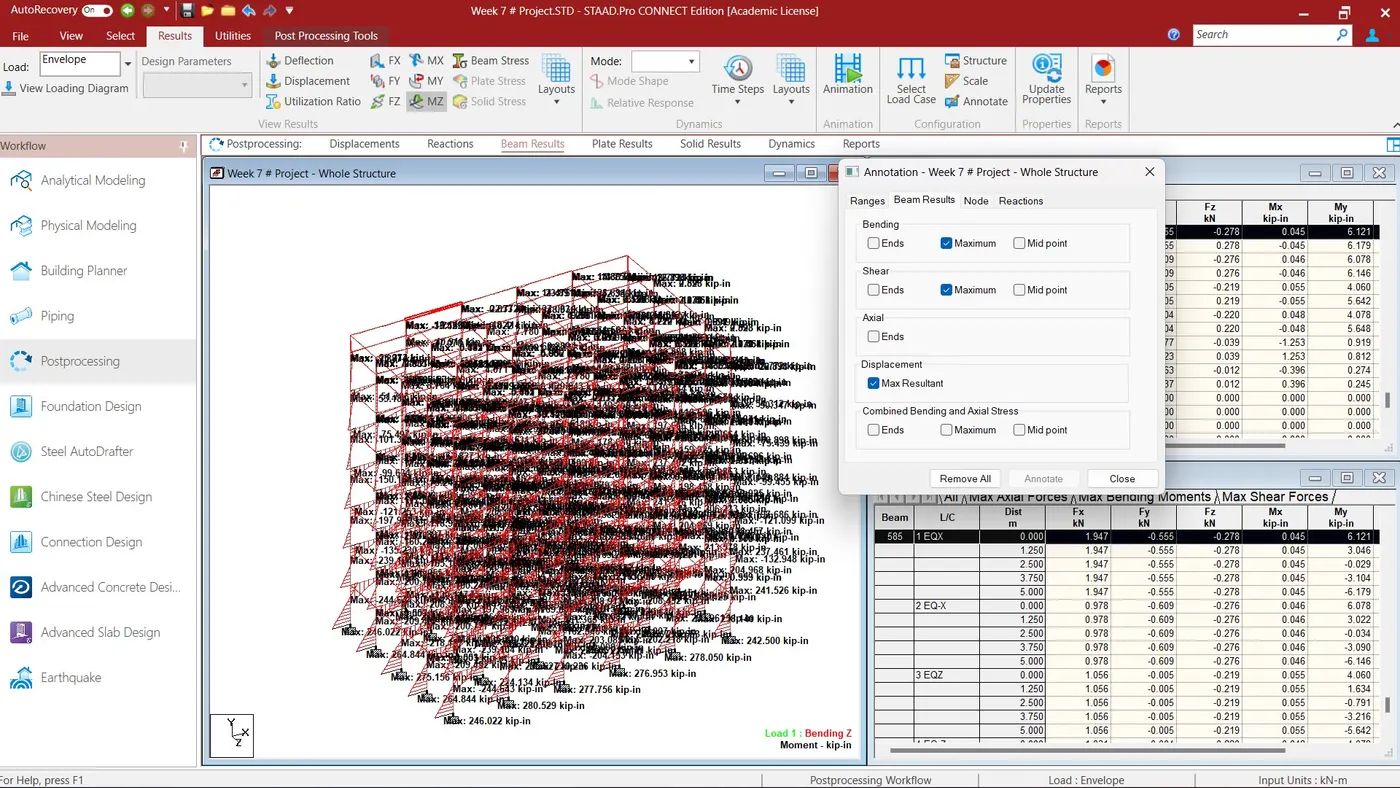

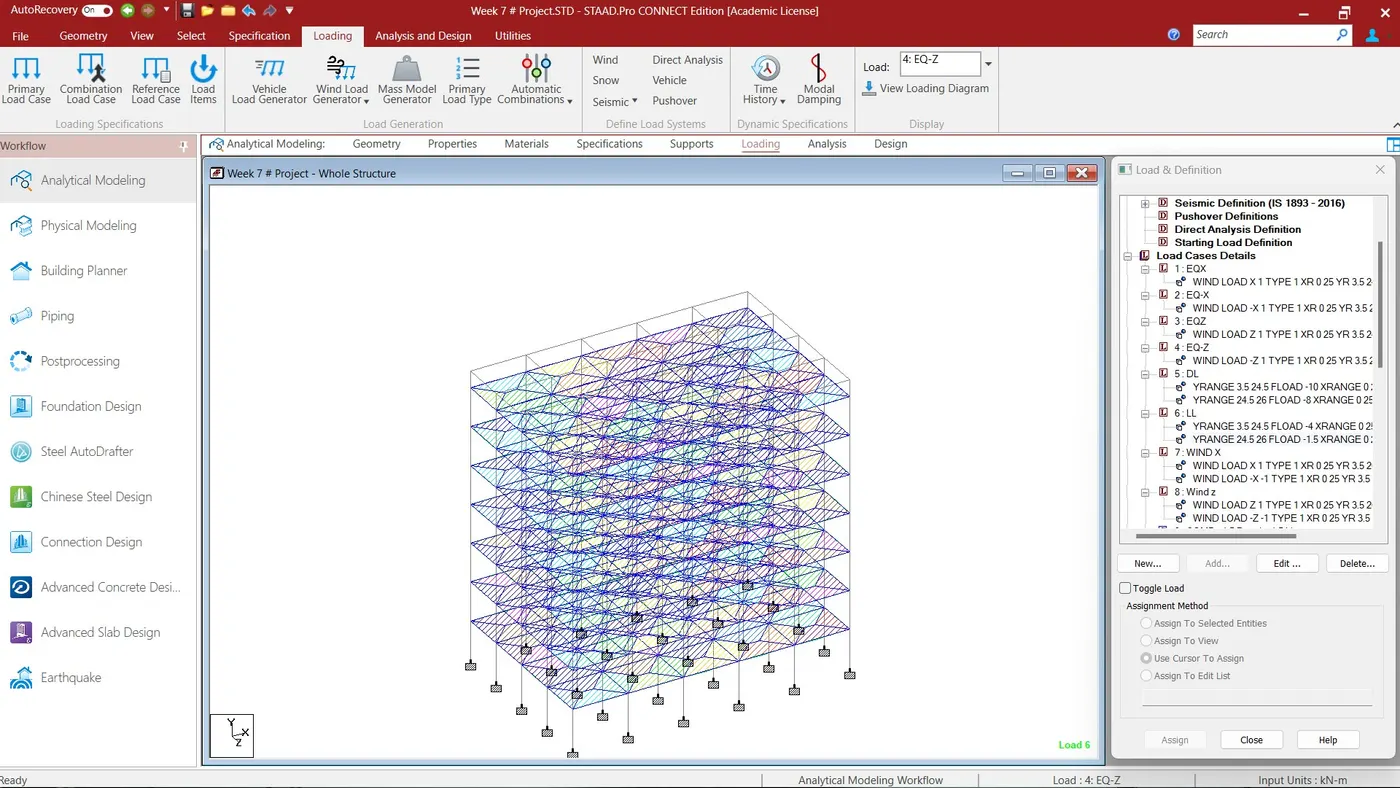

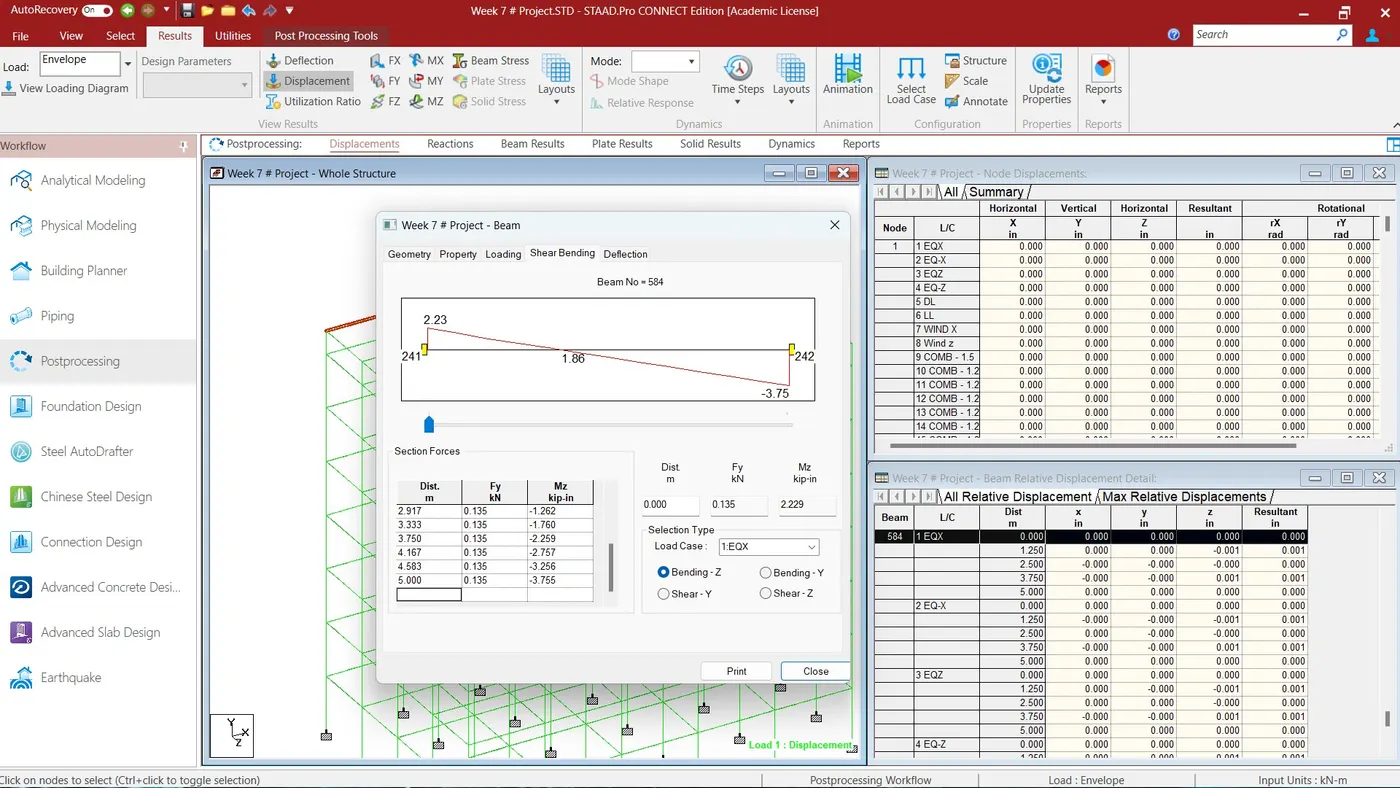

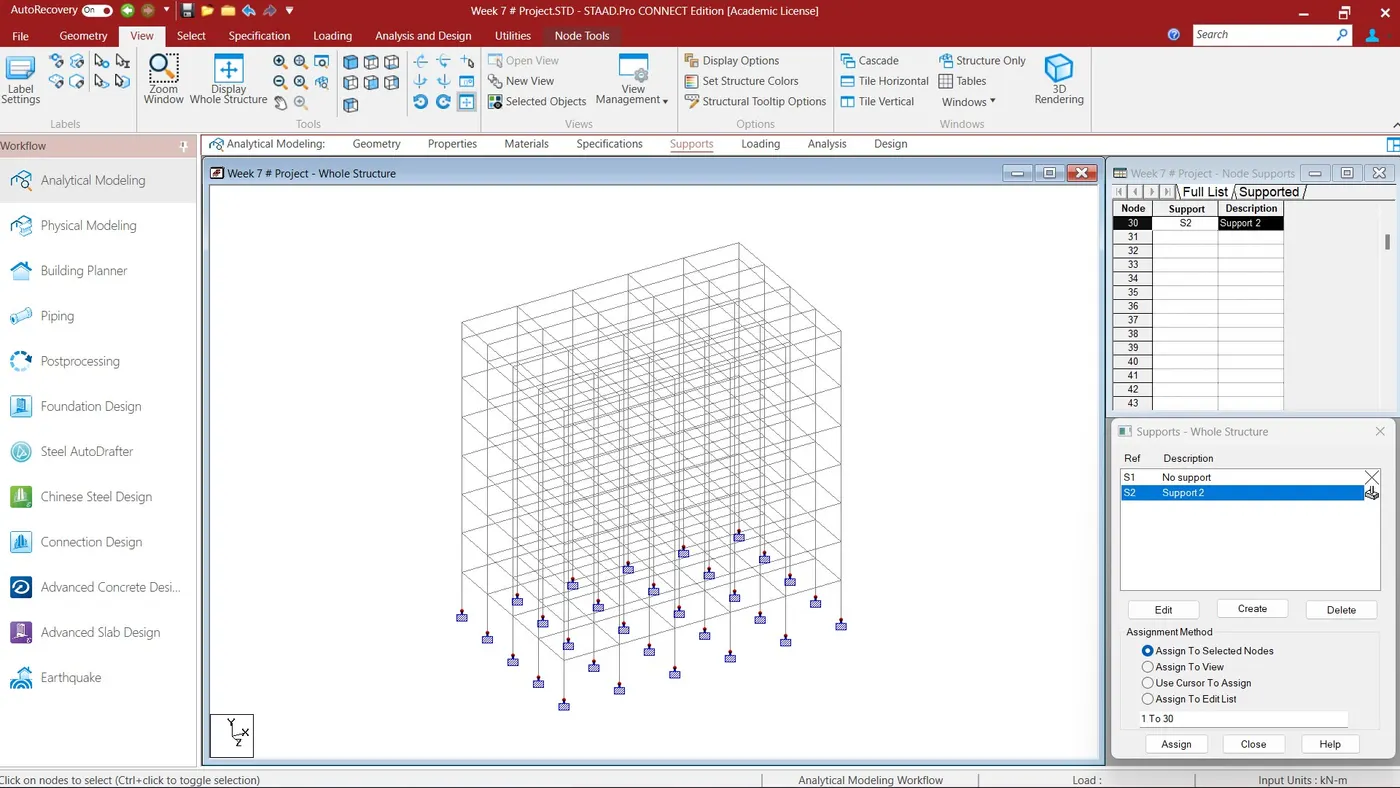

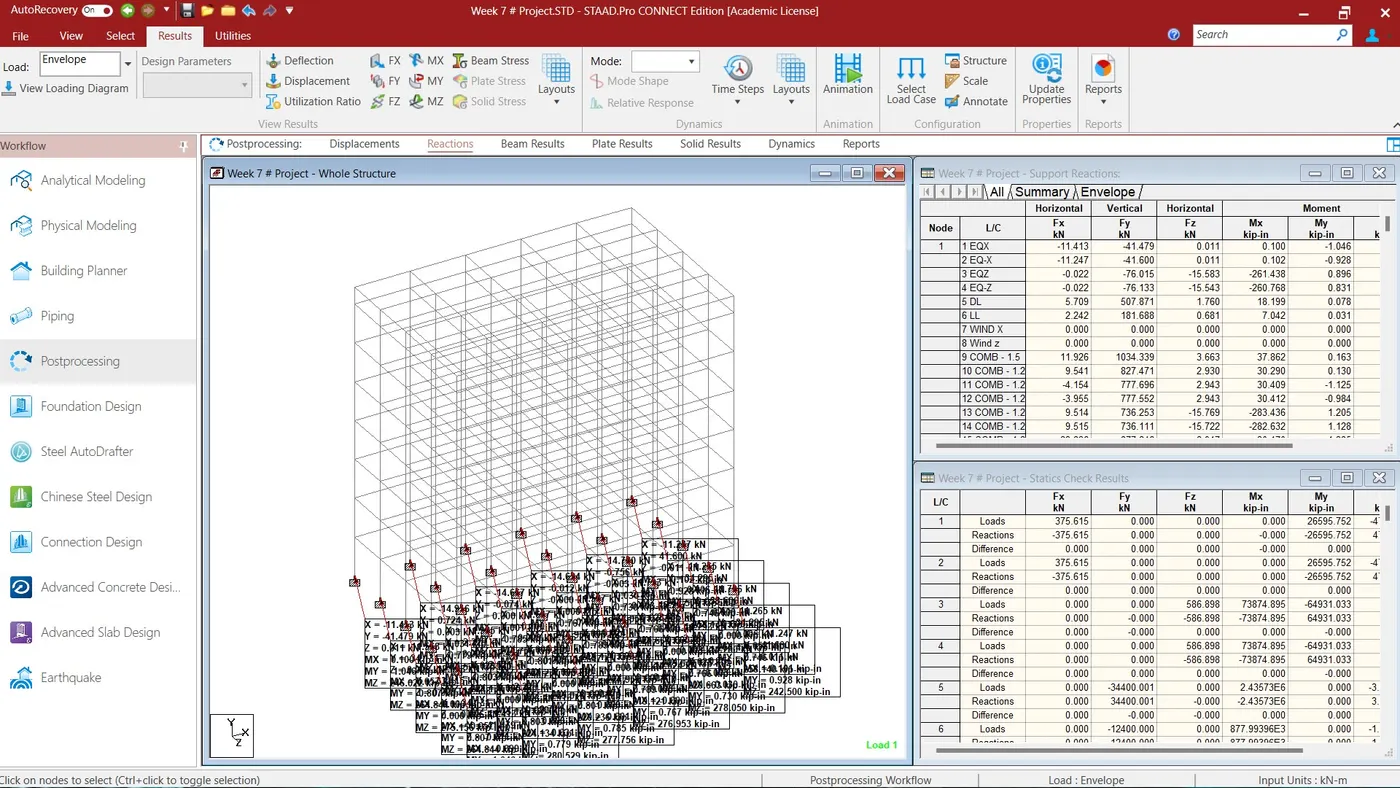

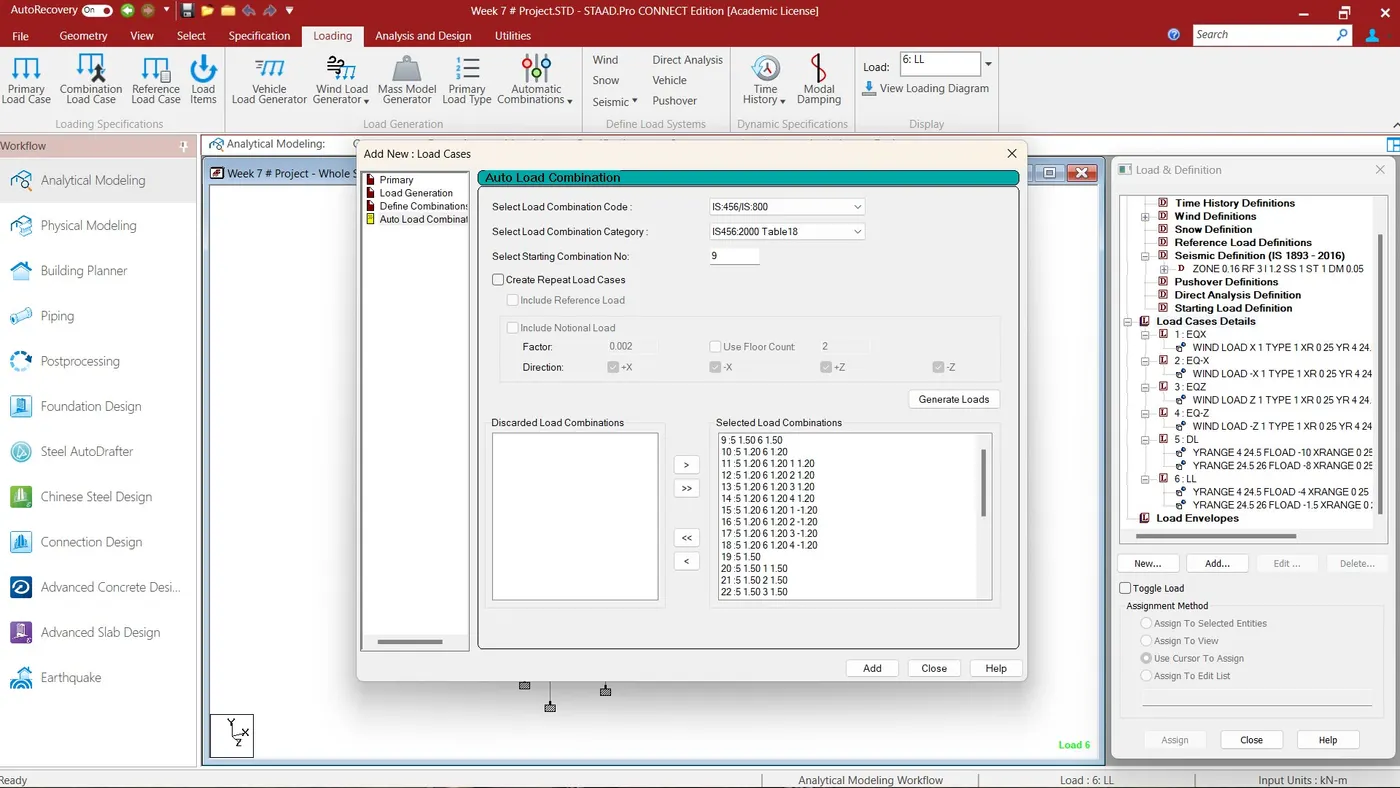

• Supports and loading to model with reactions also displacements as shown in below.

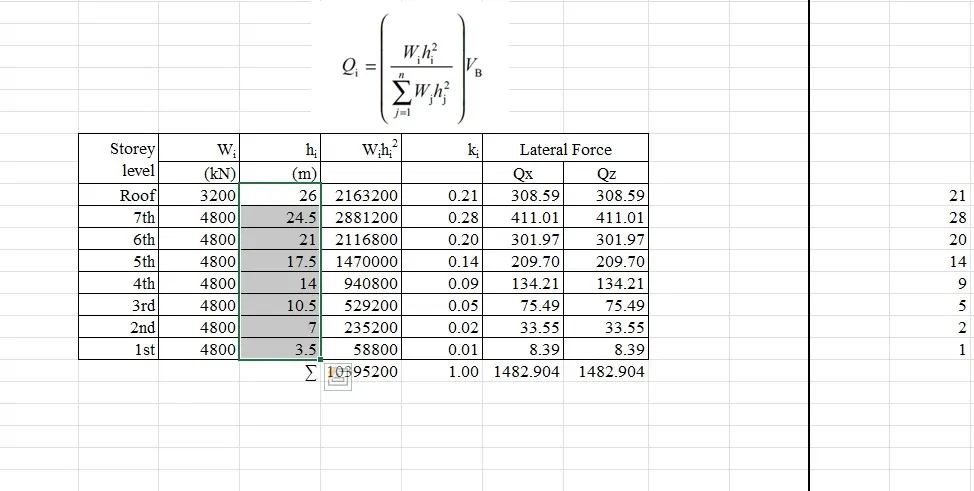

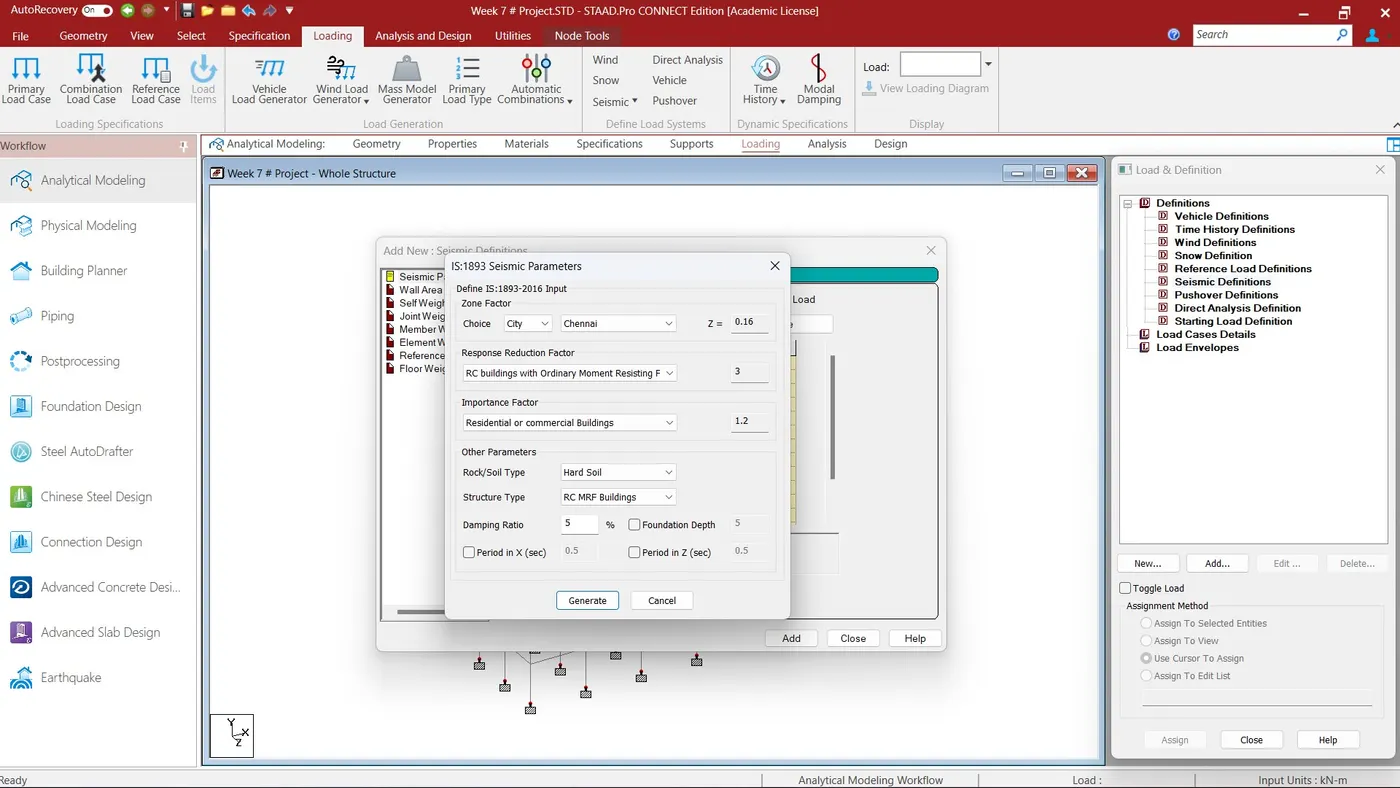

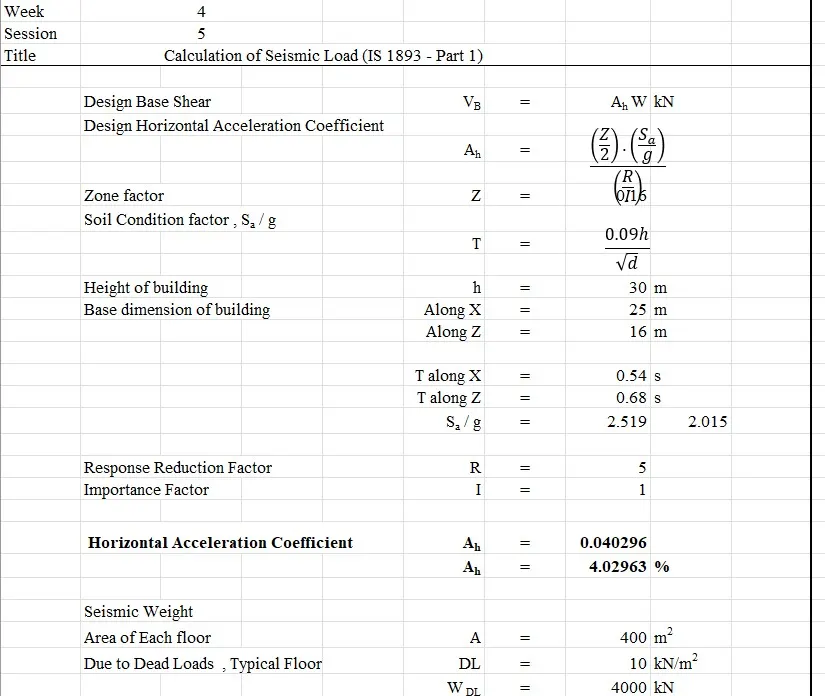

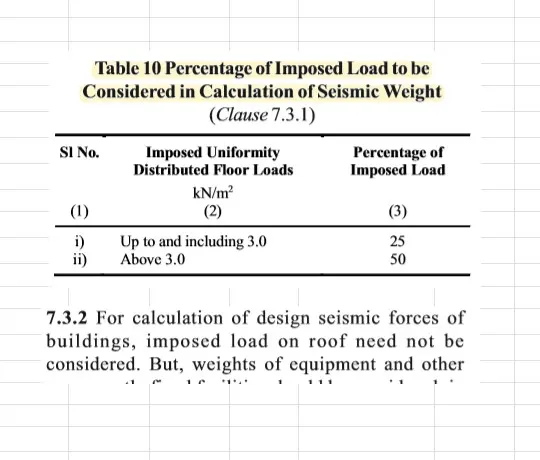

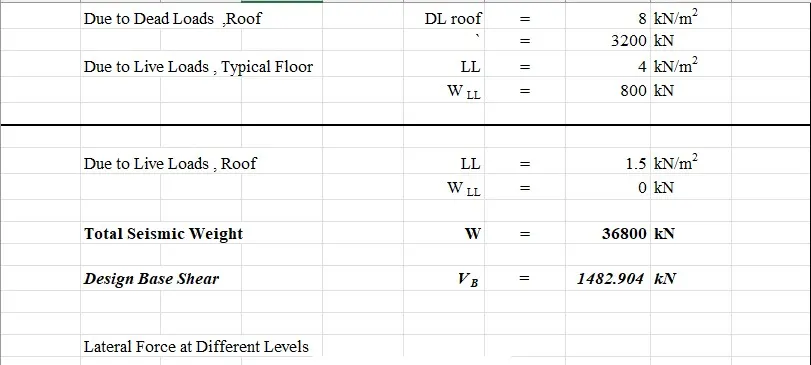

• Prepare DL, LL, WL and EQL load calculations as per IS 875 standards

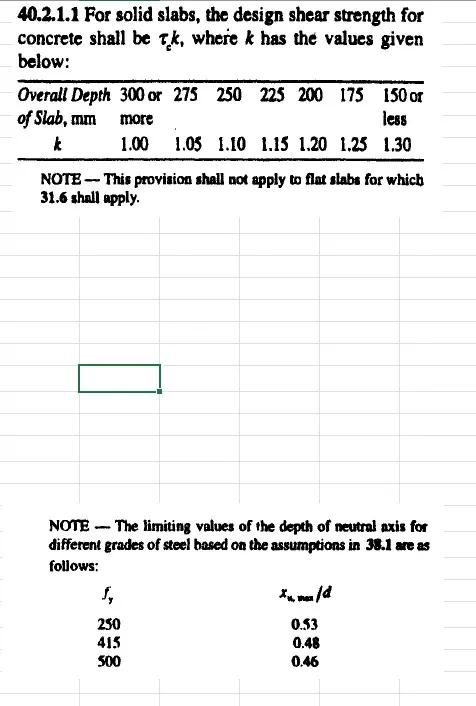

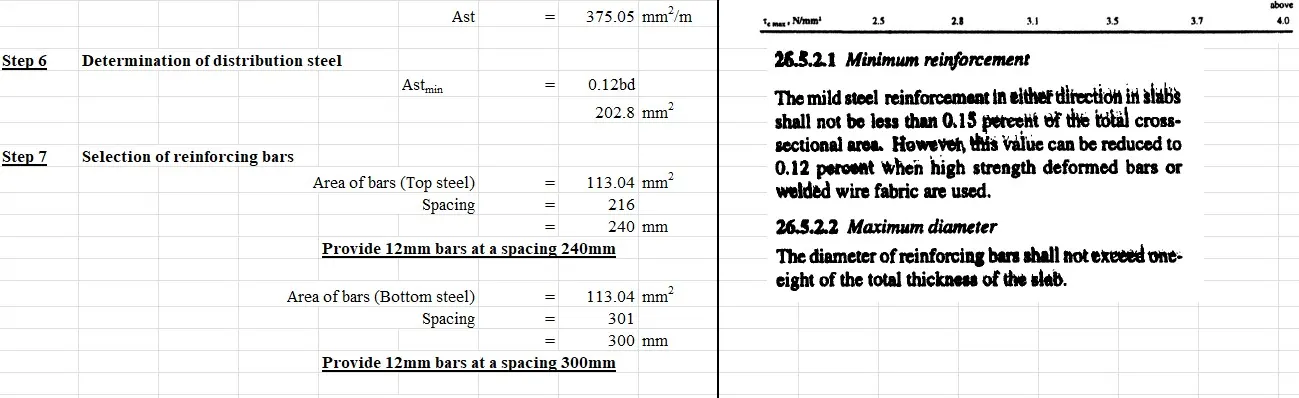

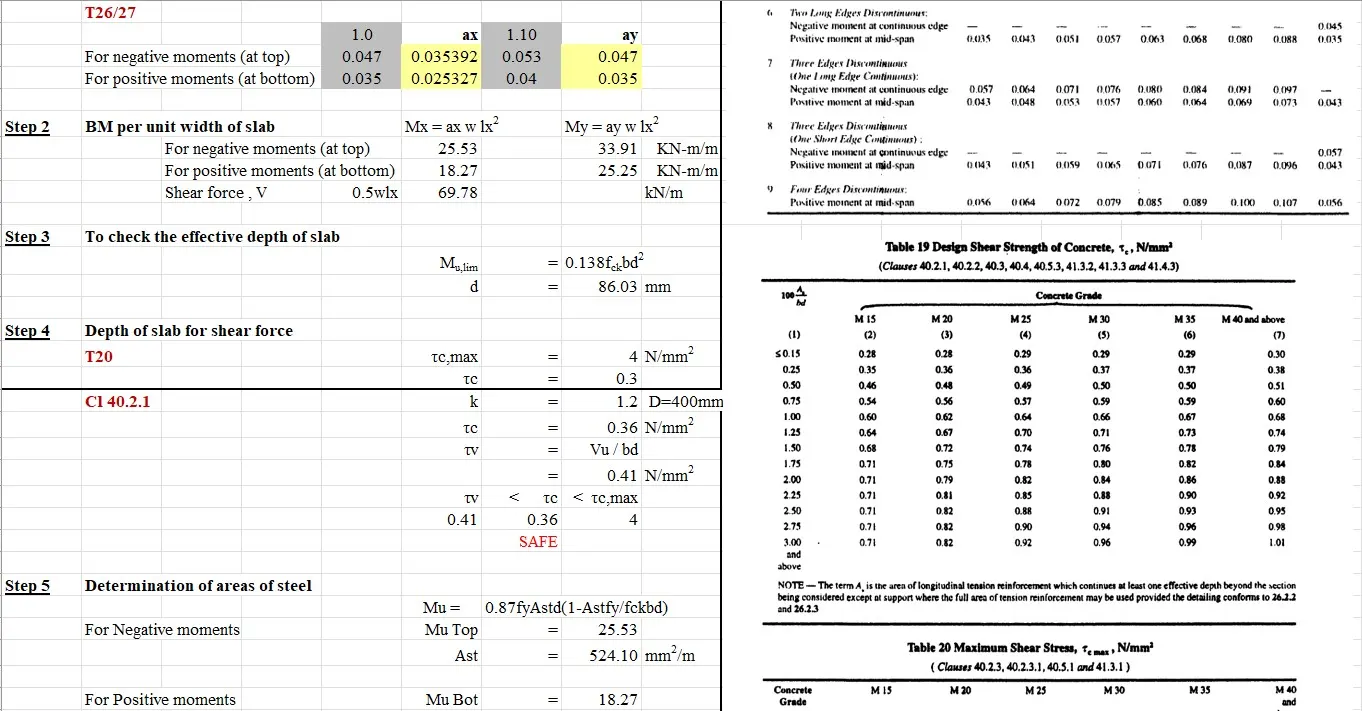

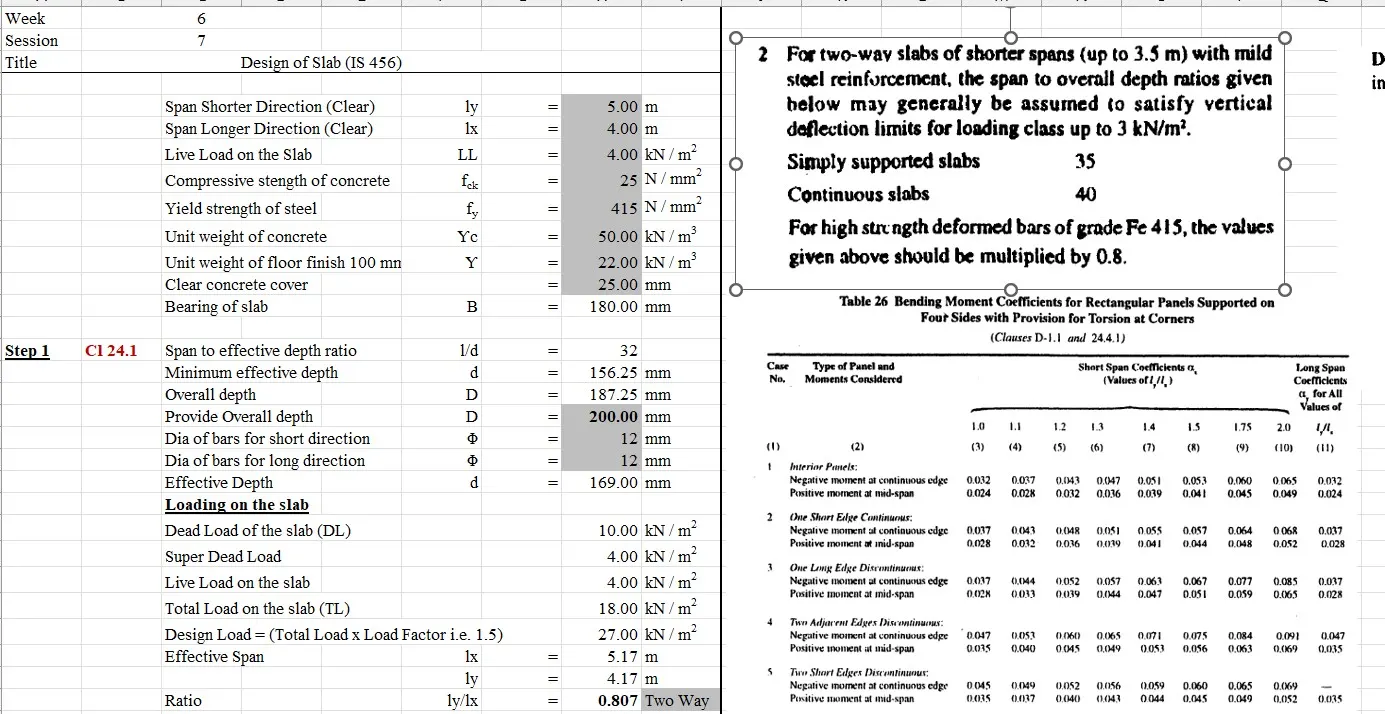

• Slab element using MS – Excel

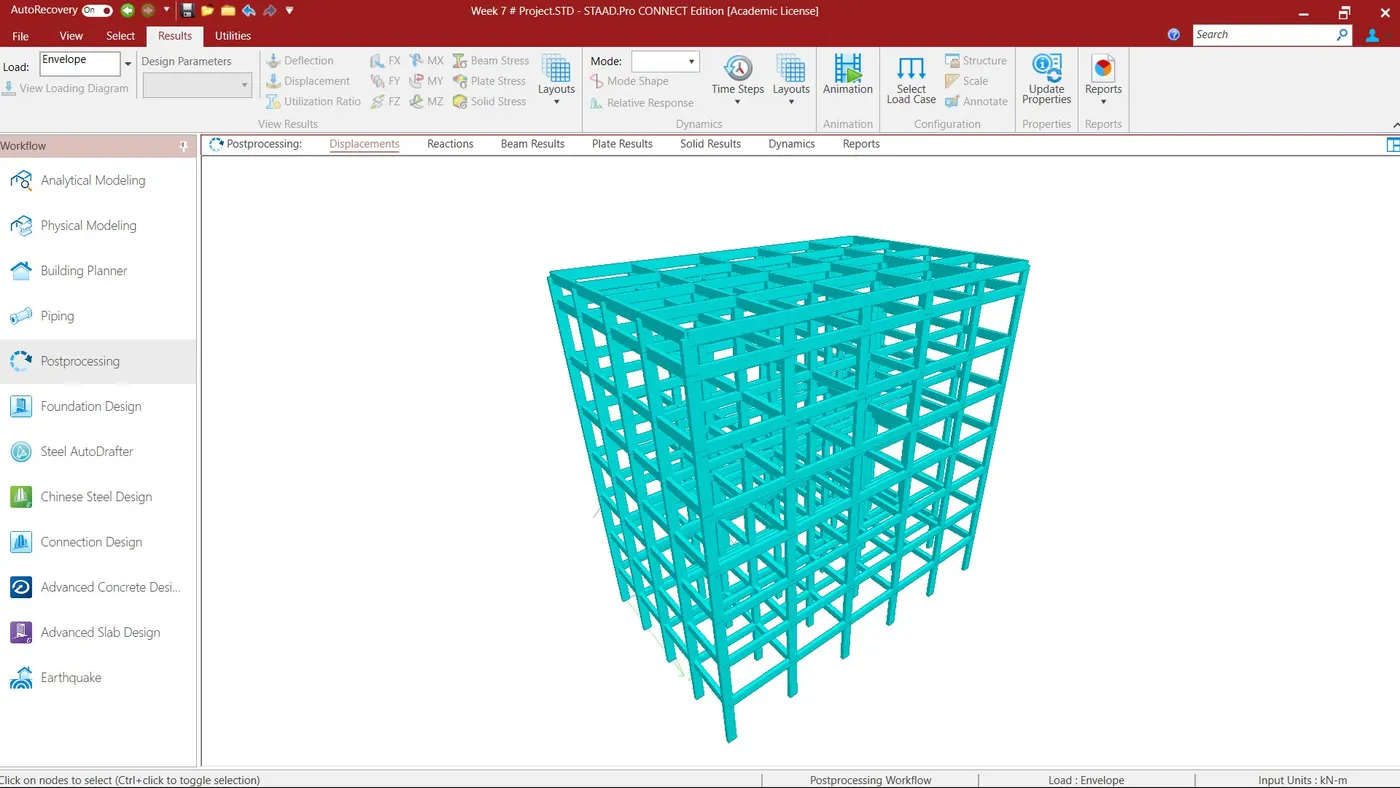

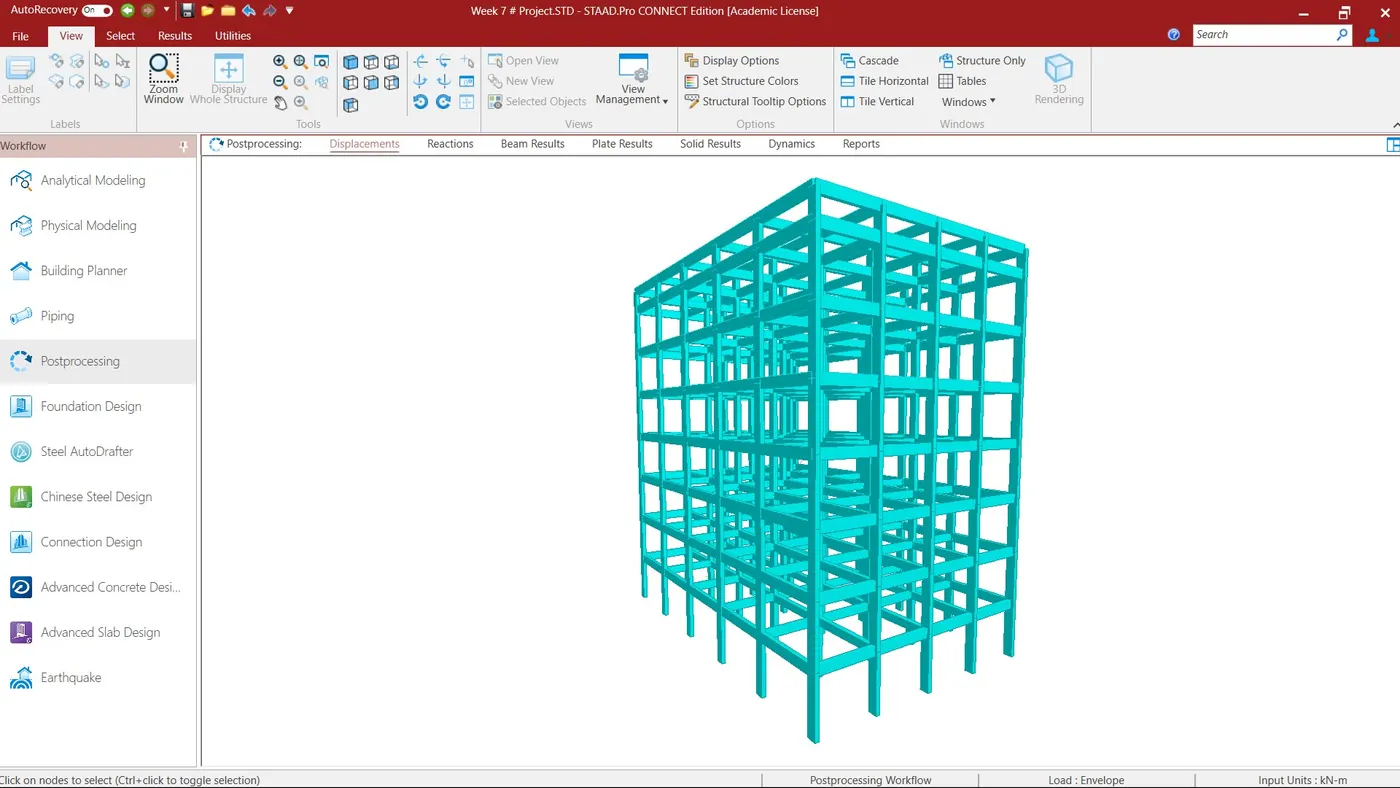

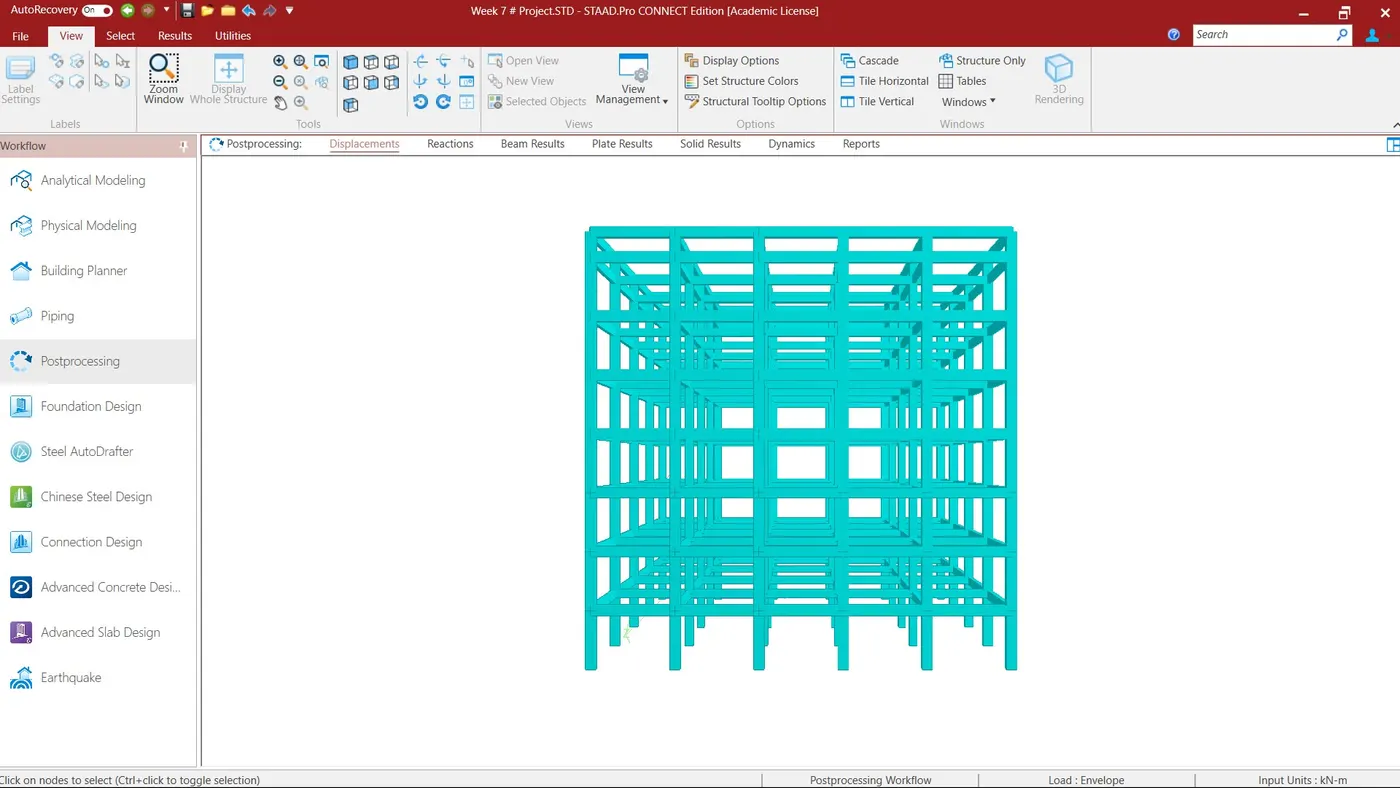

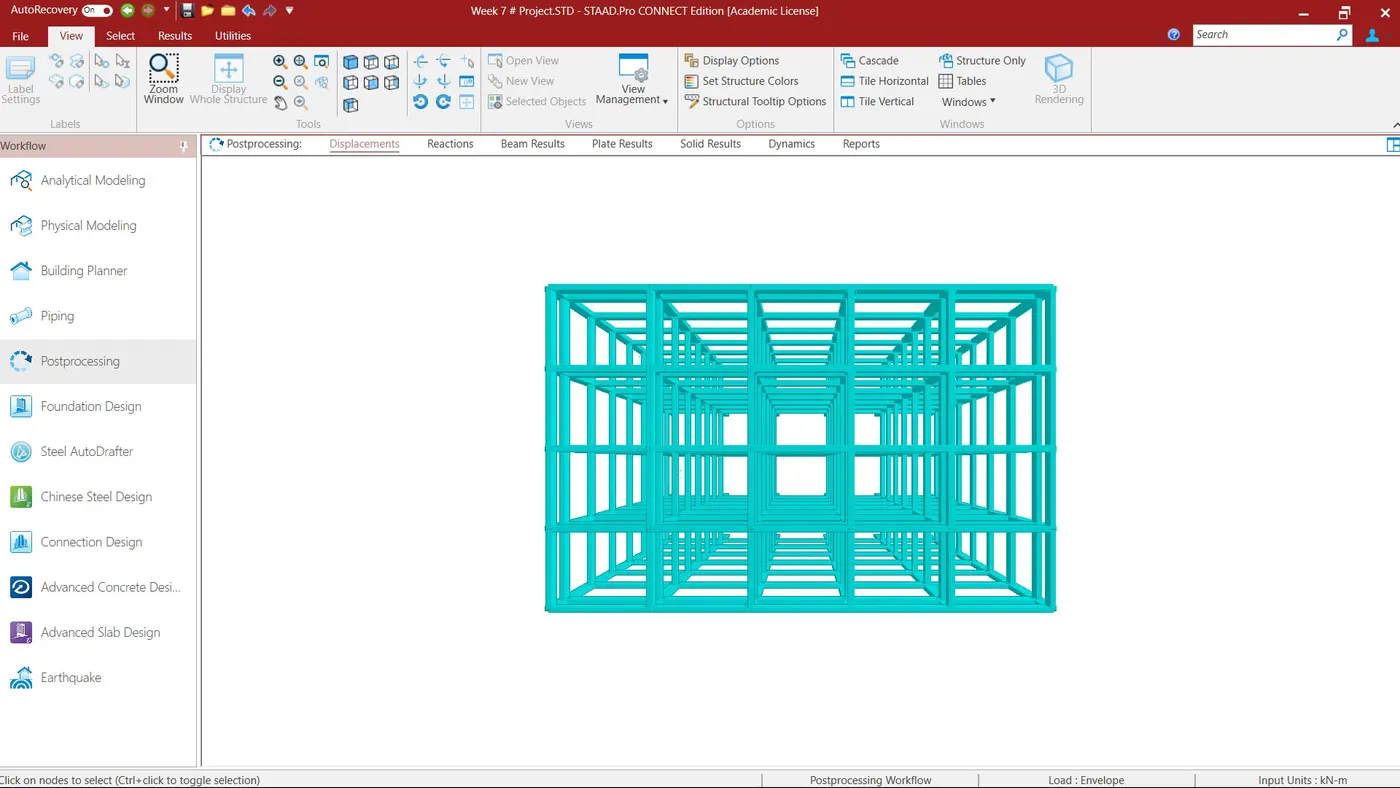

• 3D Rendering Model

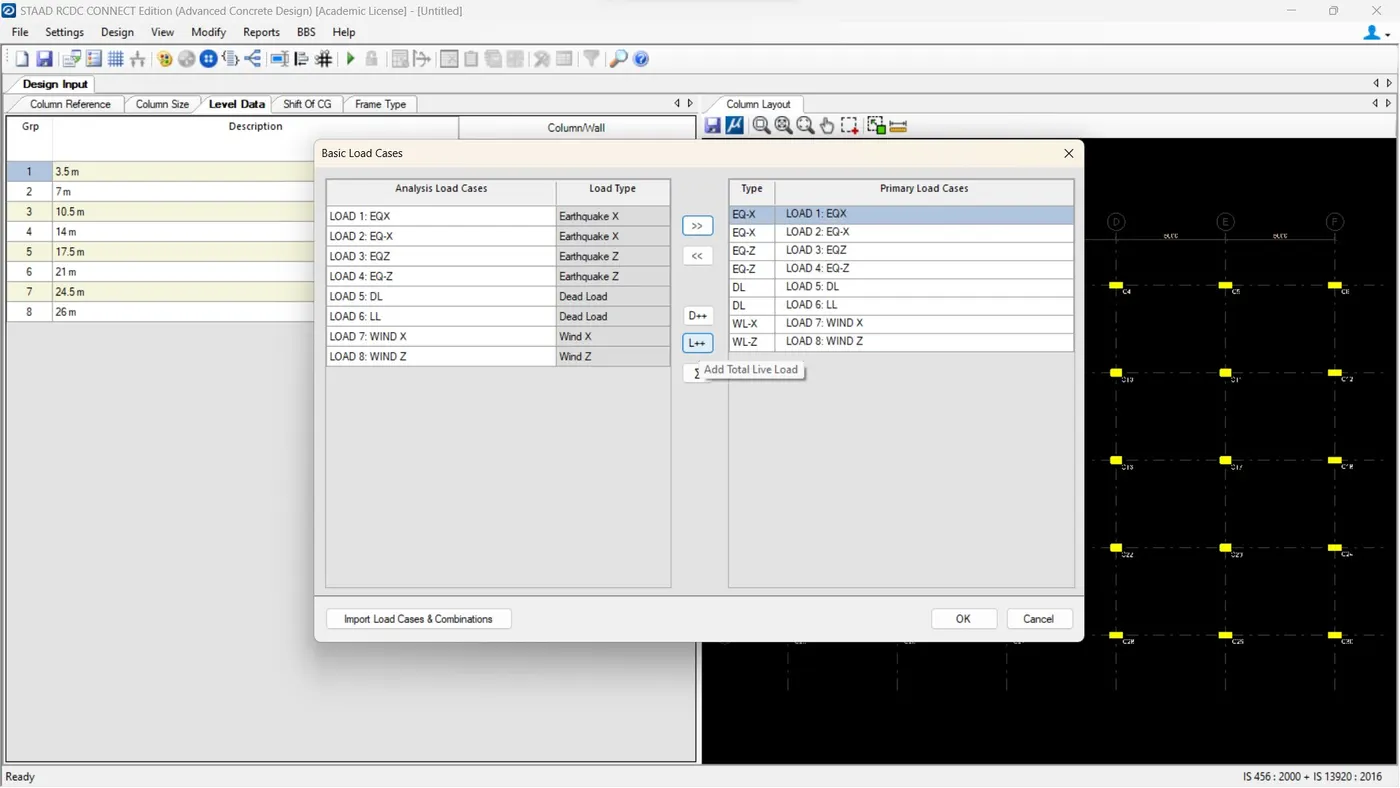

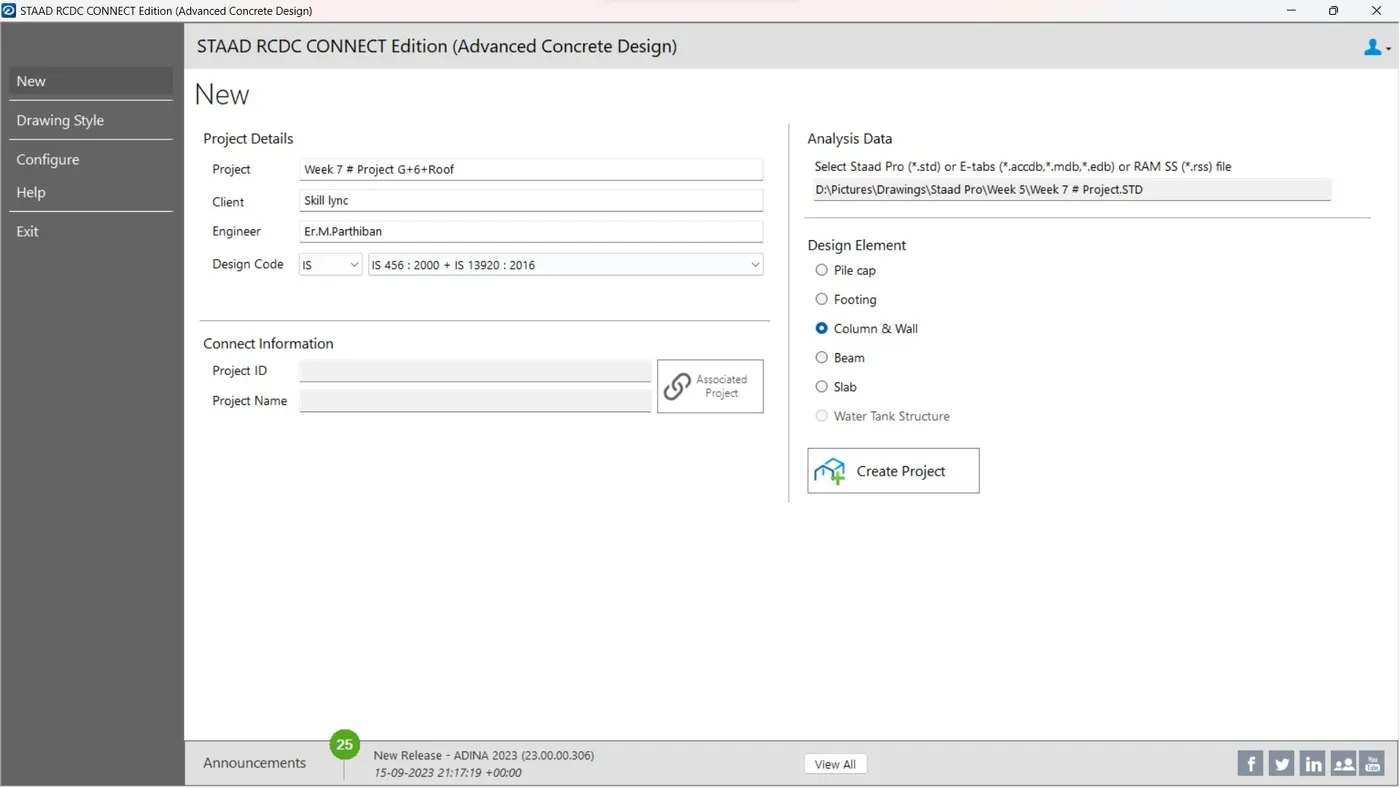

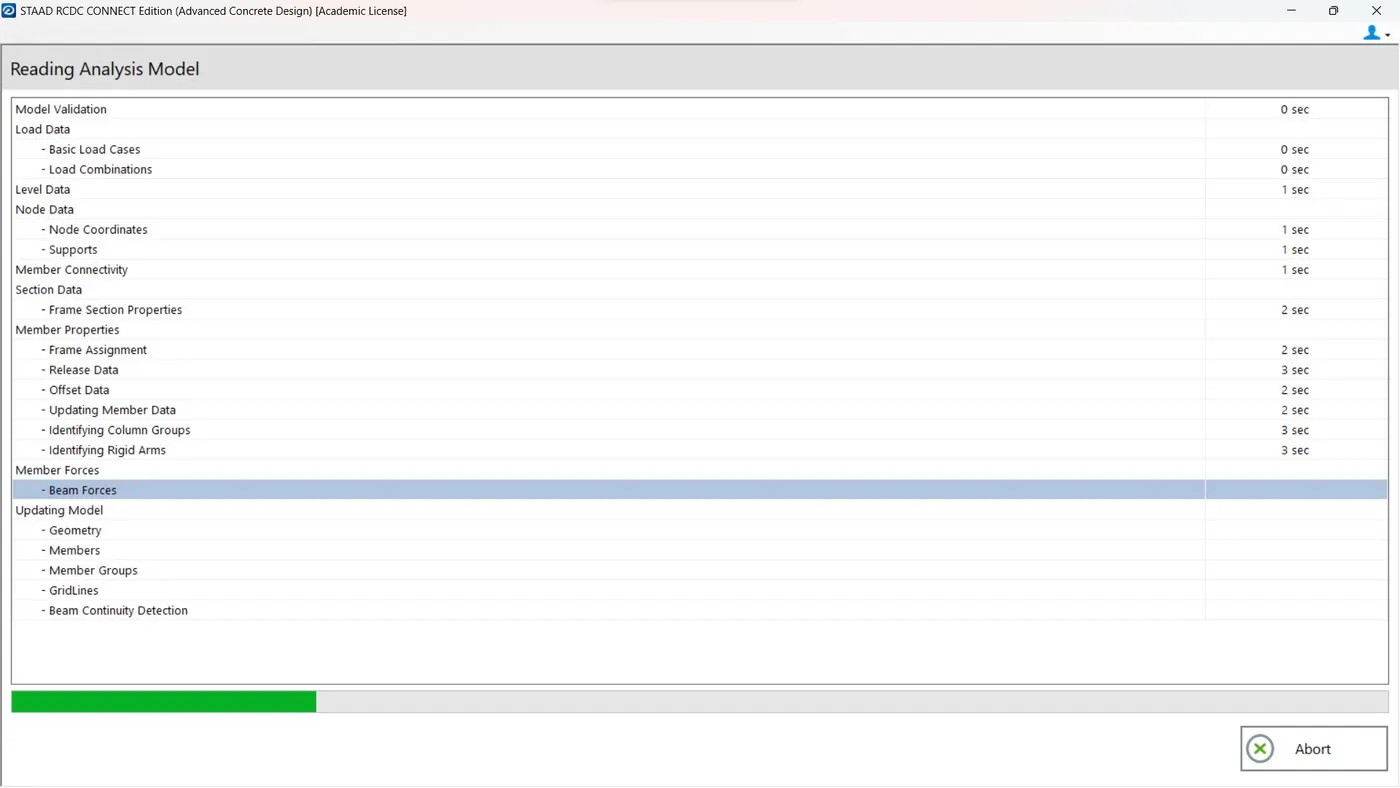

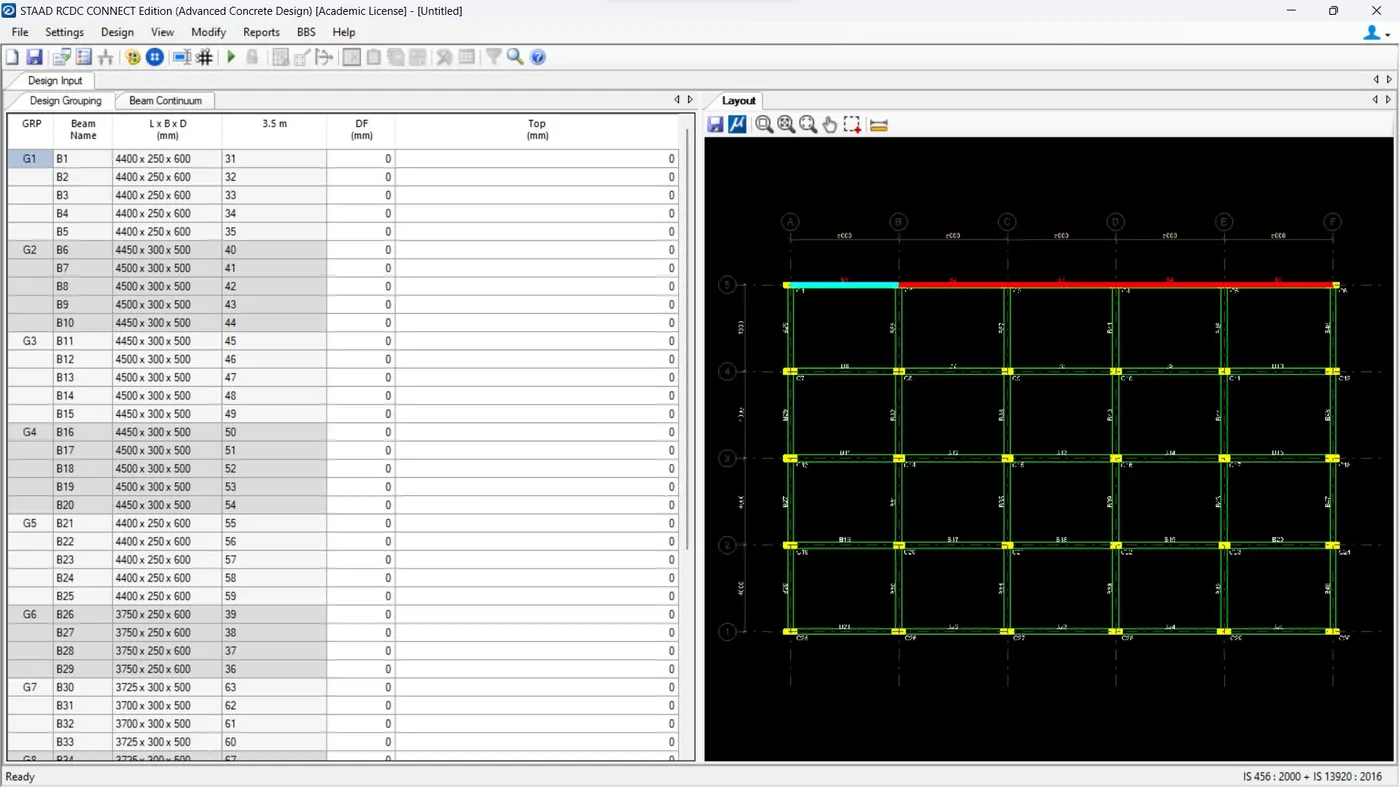

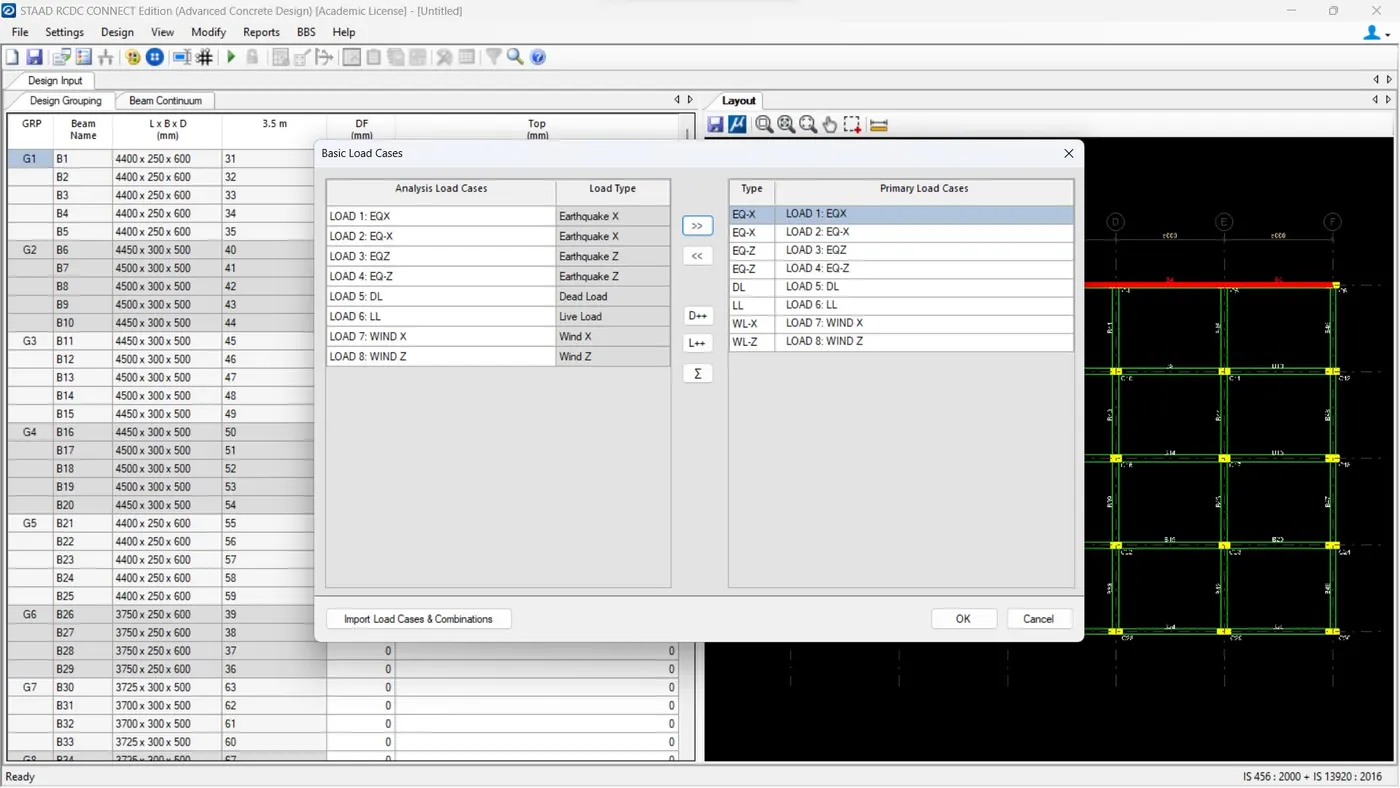

• Now the model will input in RCDC for beam and column design.

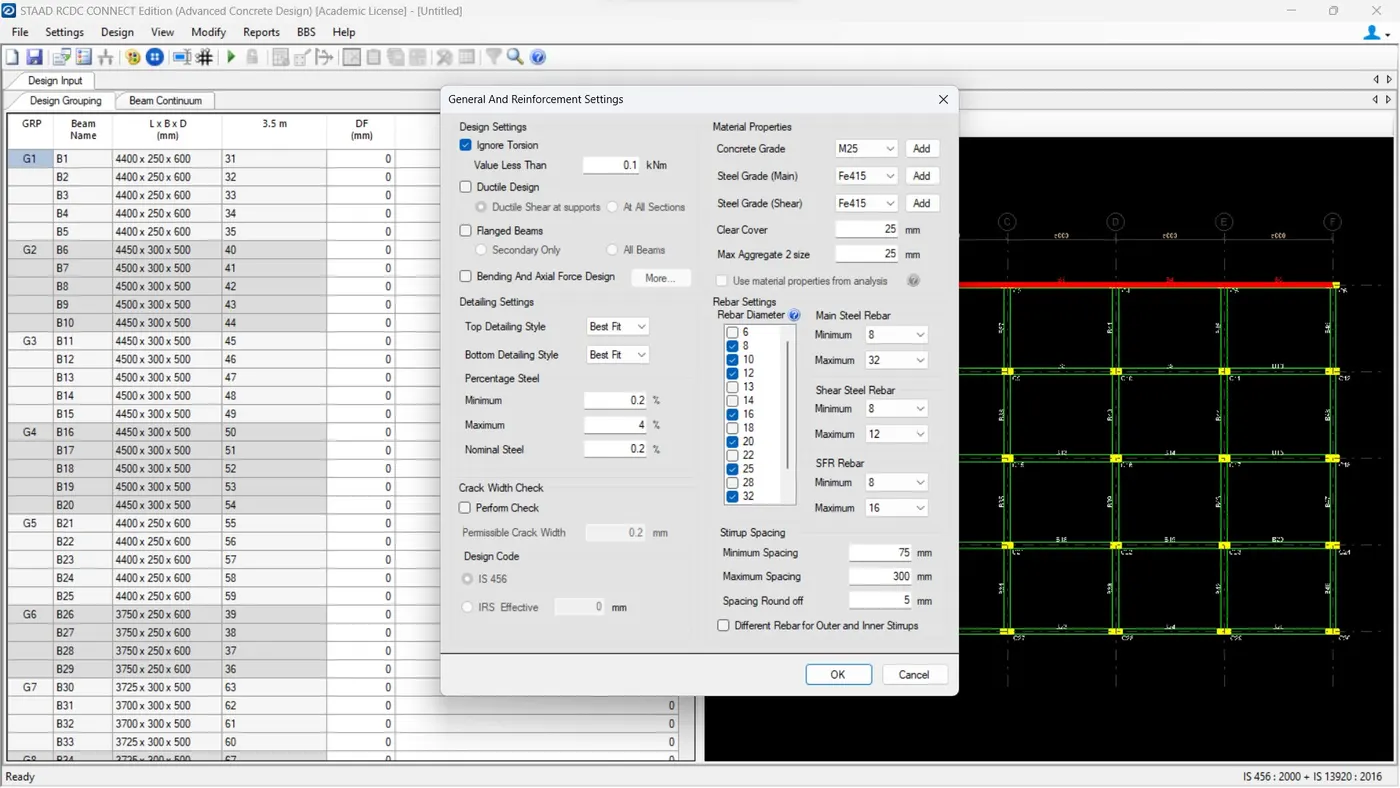

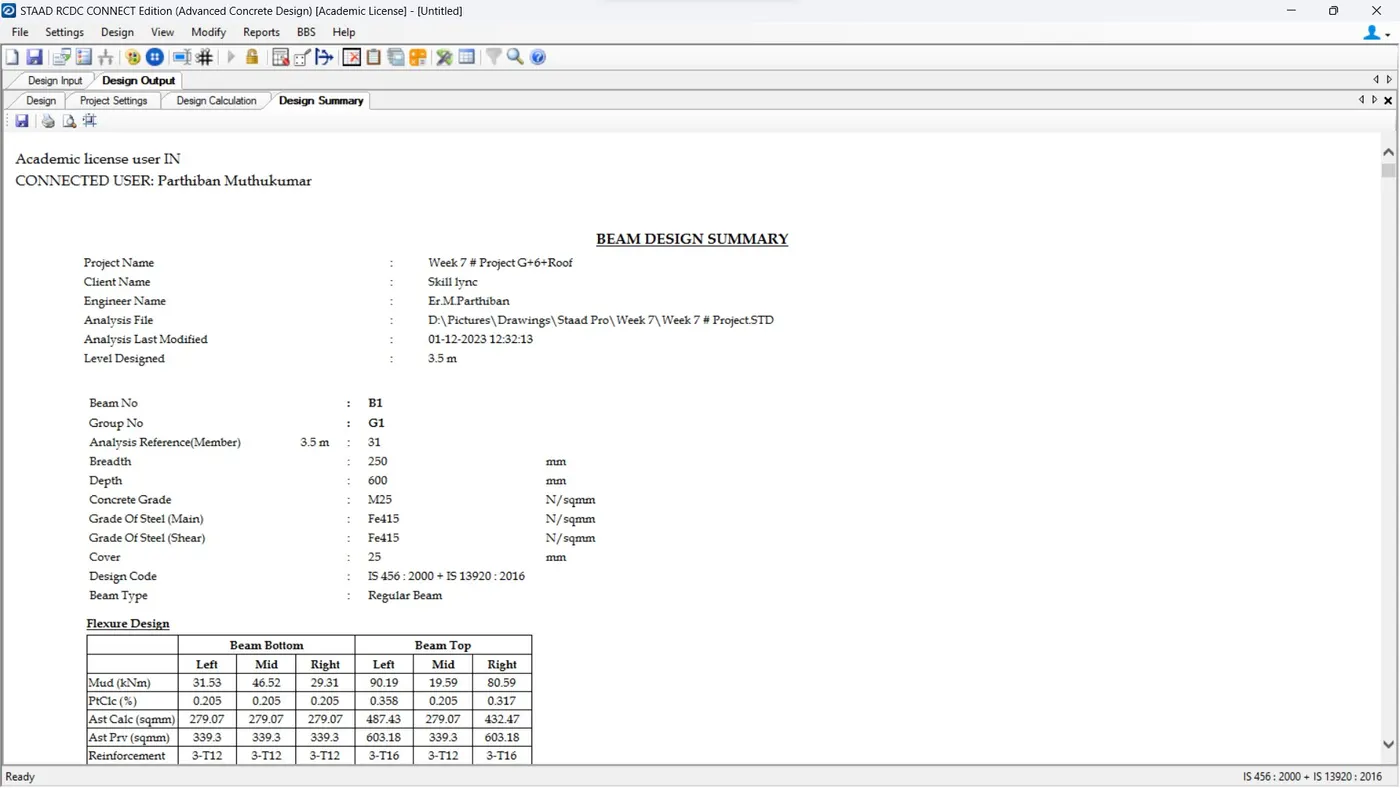

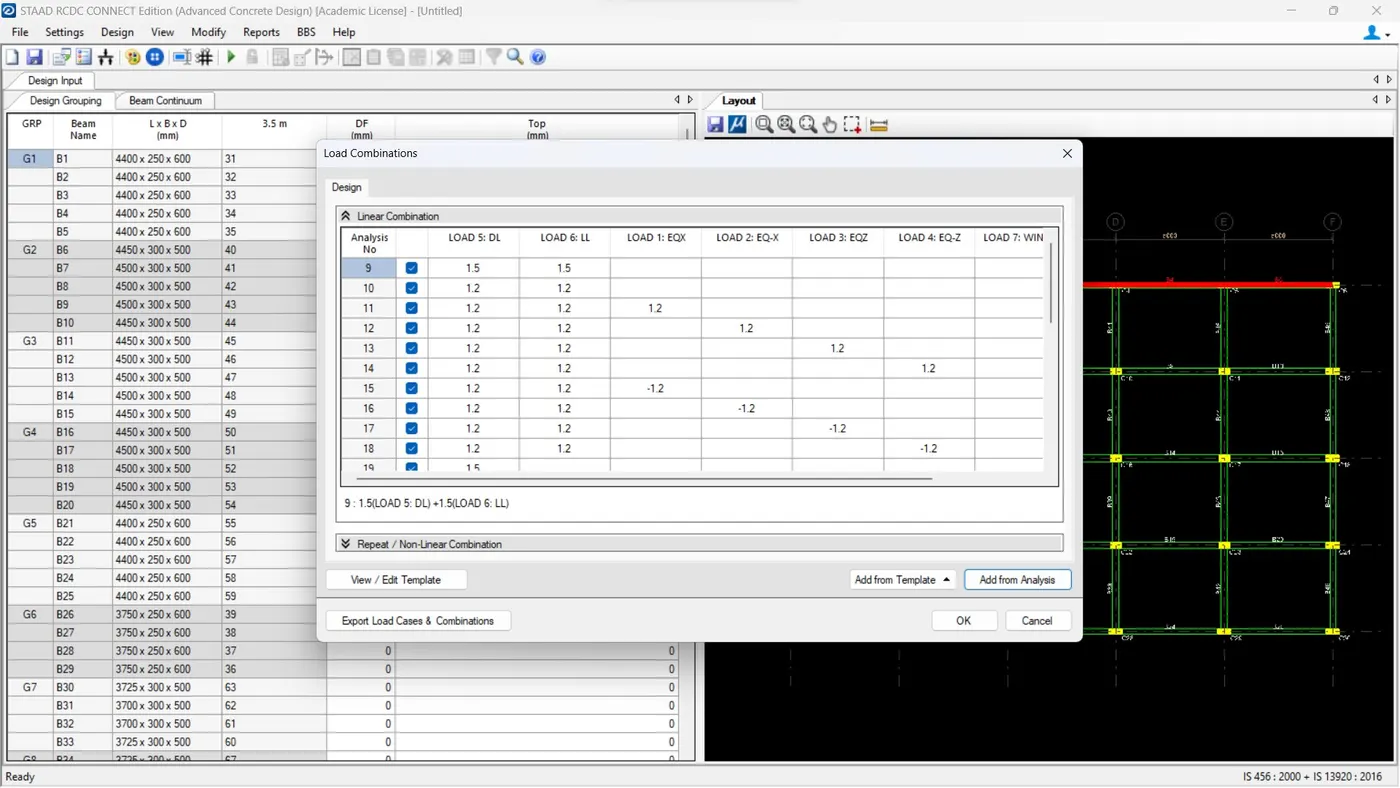

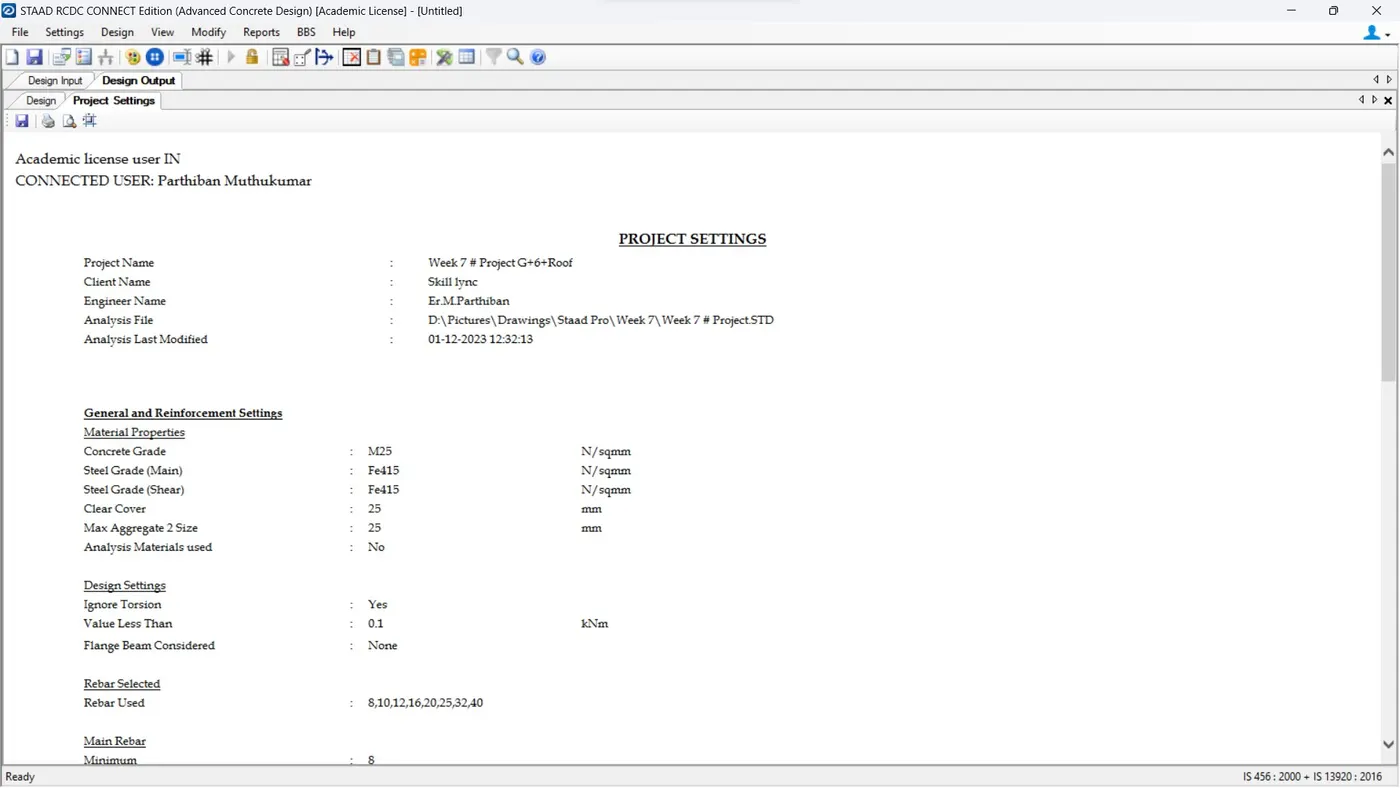

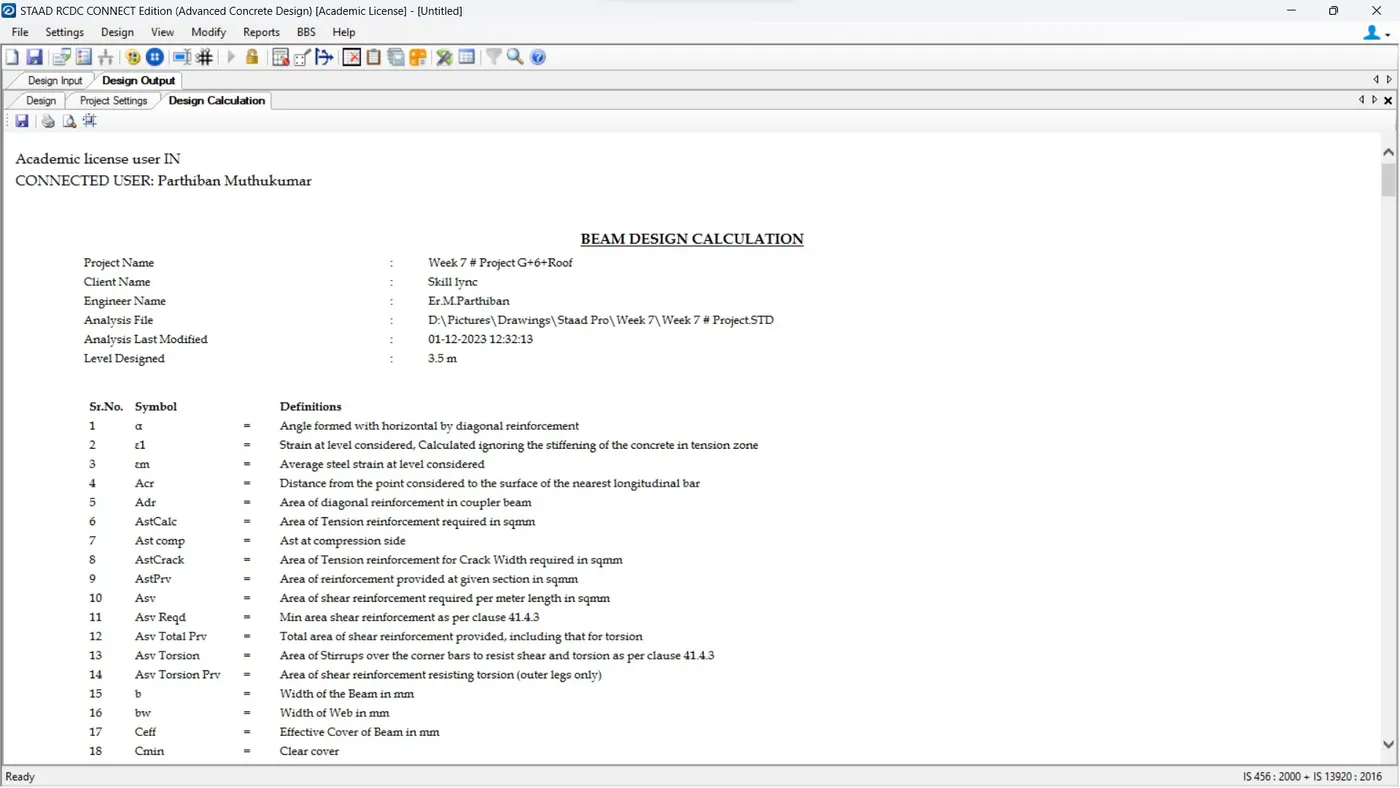

• Design settings in RCDC for beam design

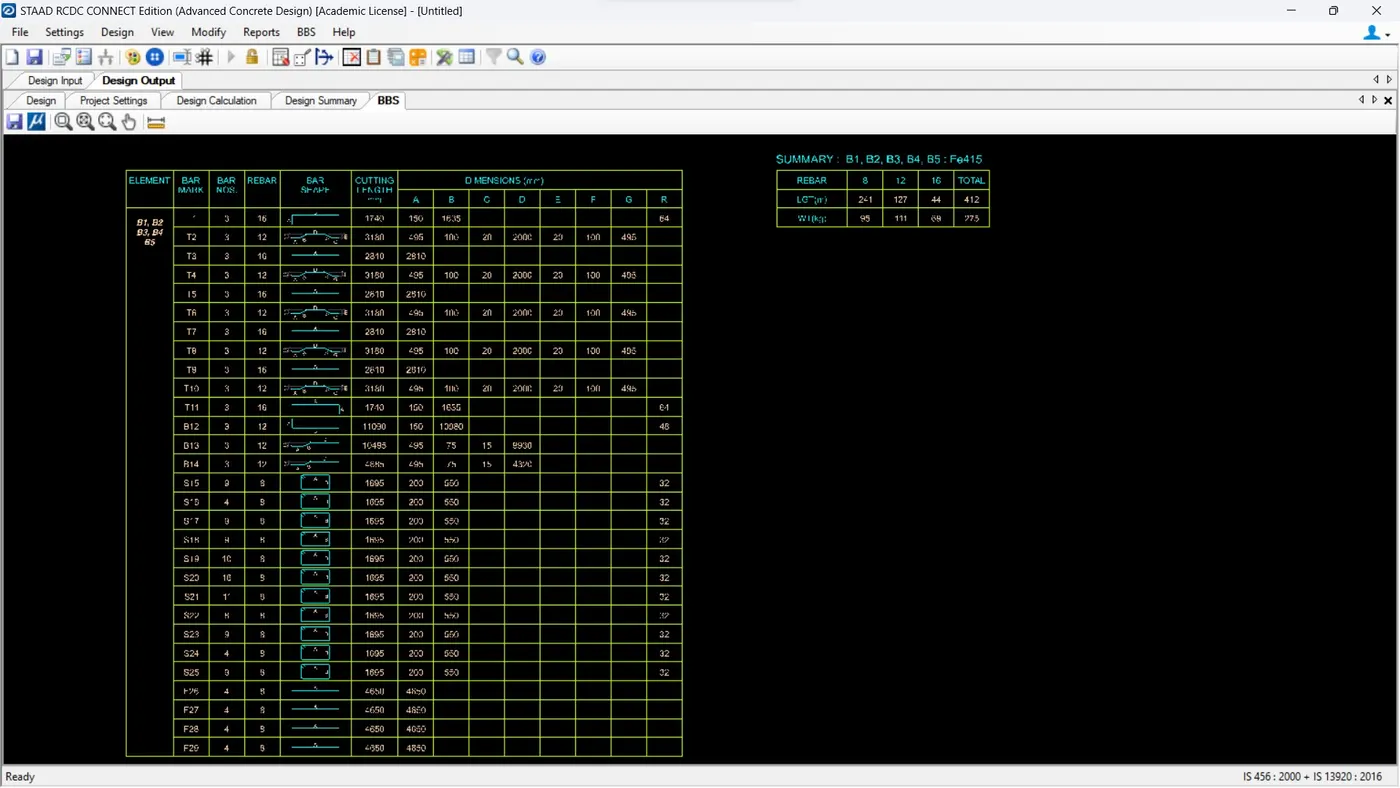

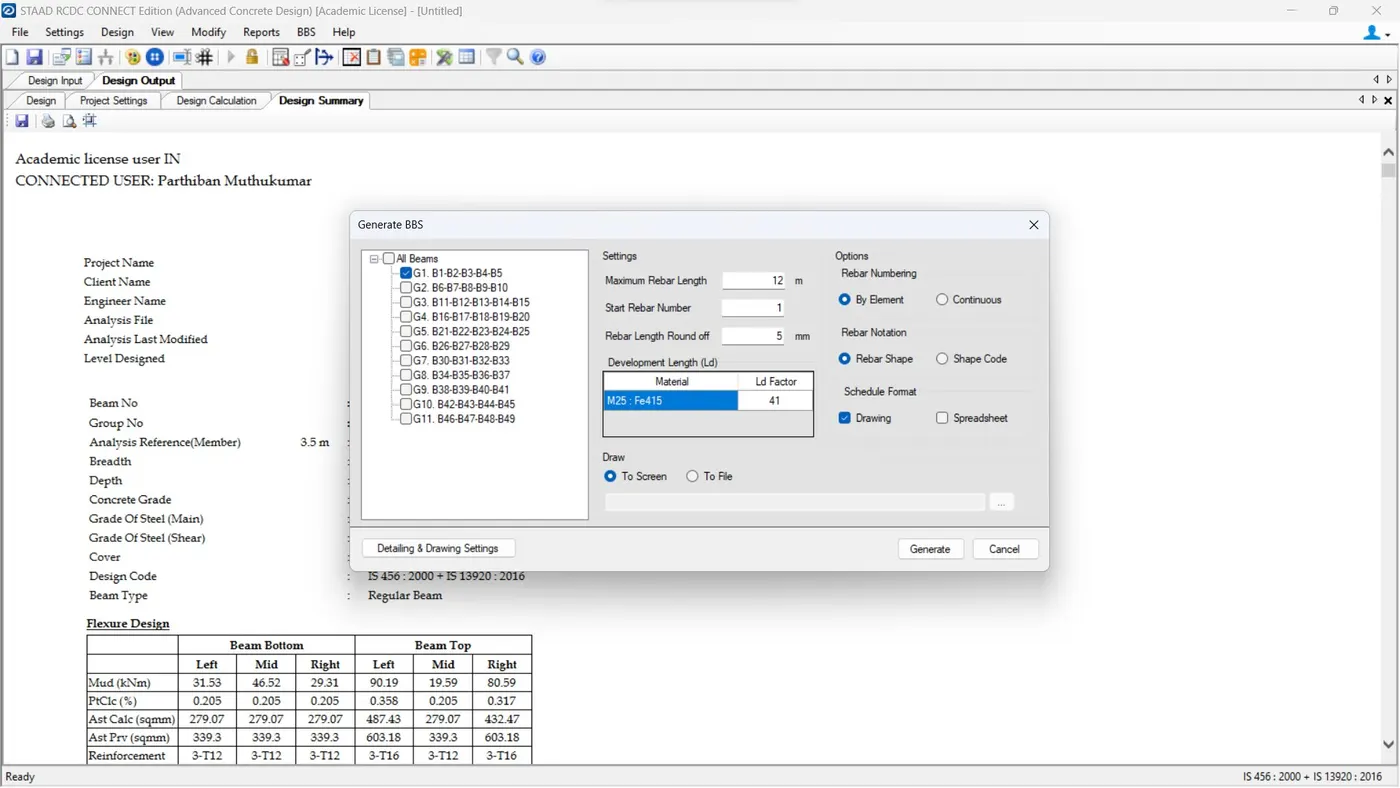

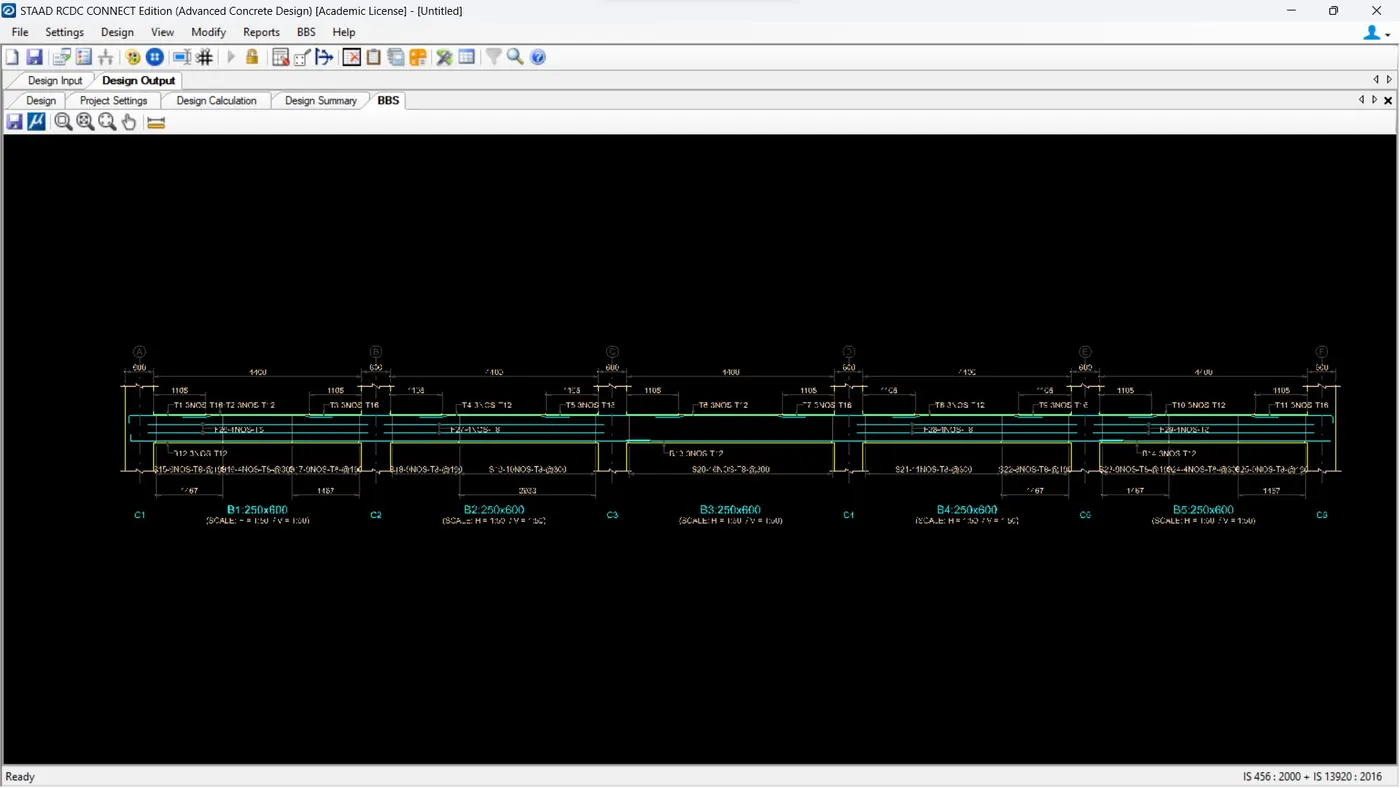

• Bar Bending Schedule

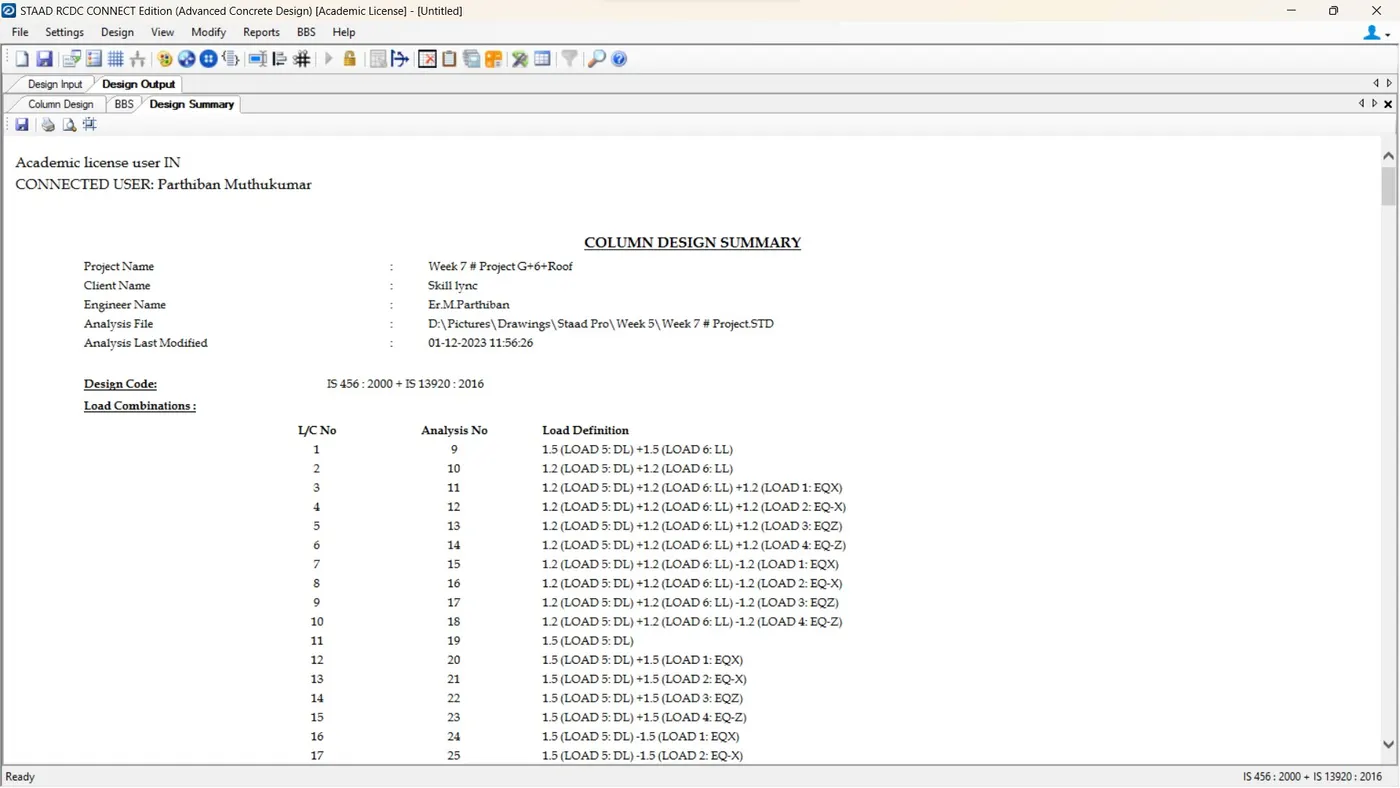

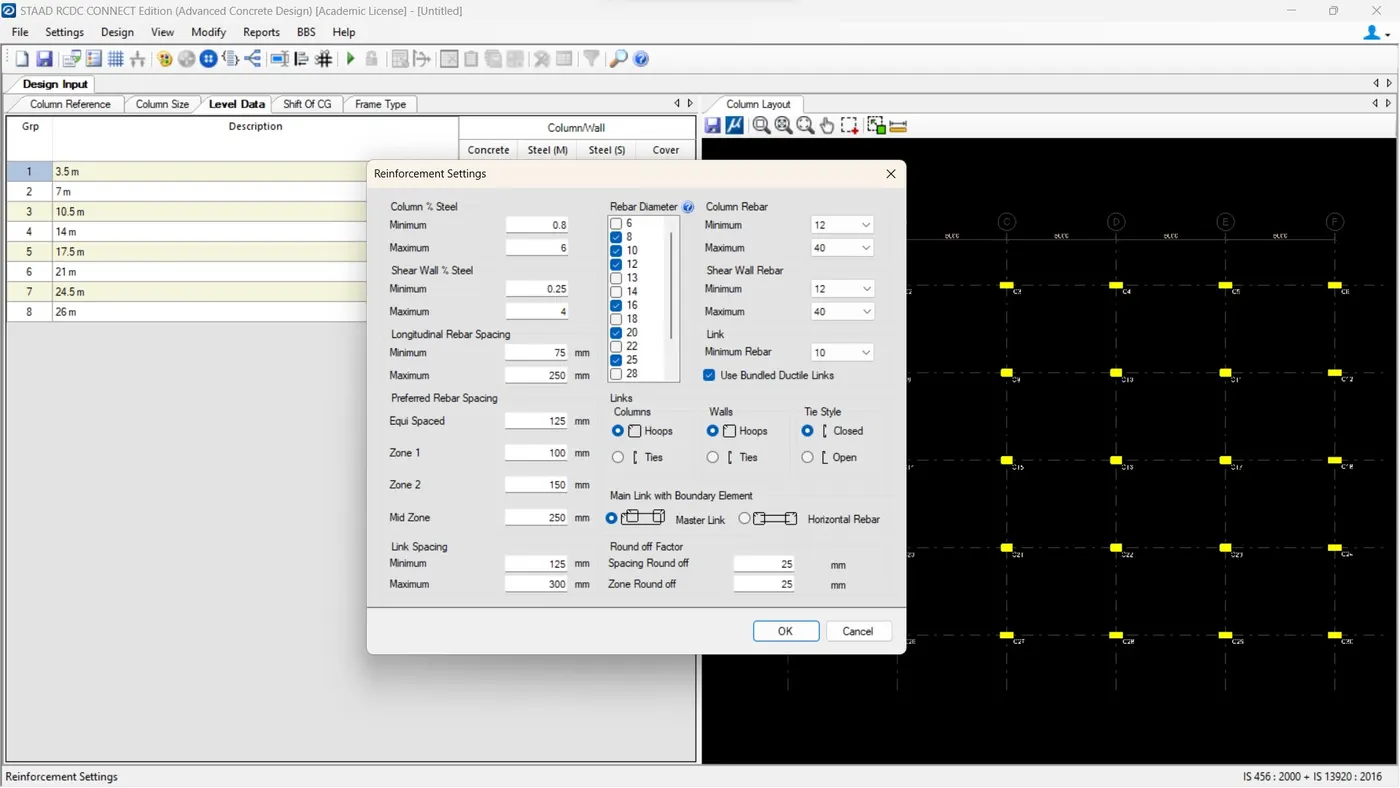

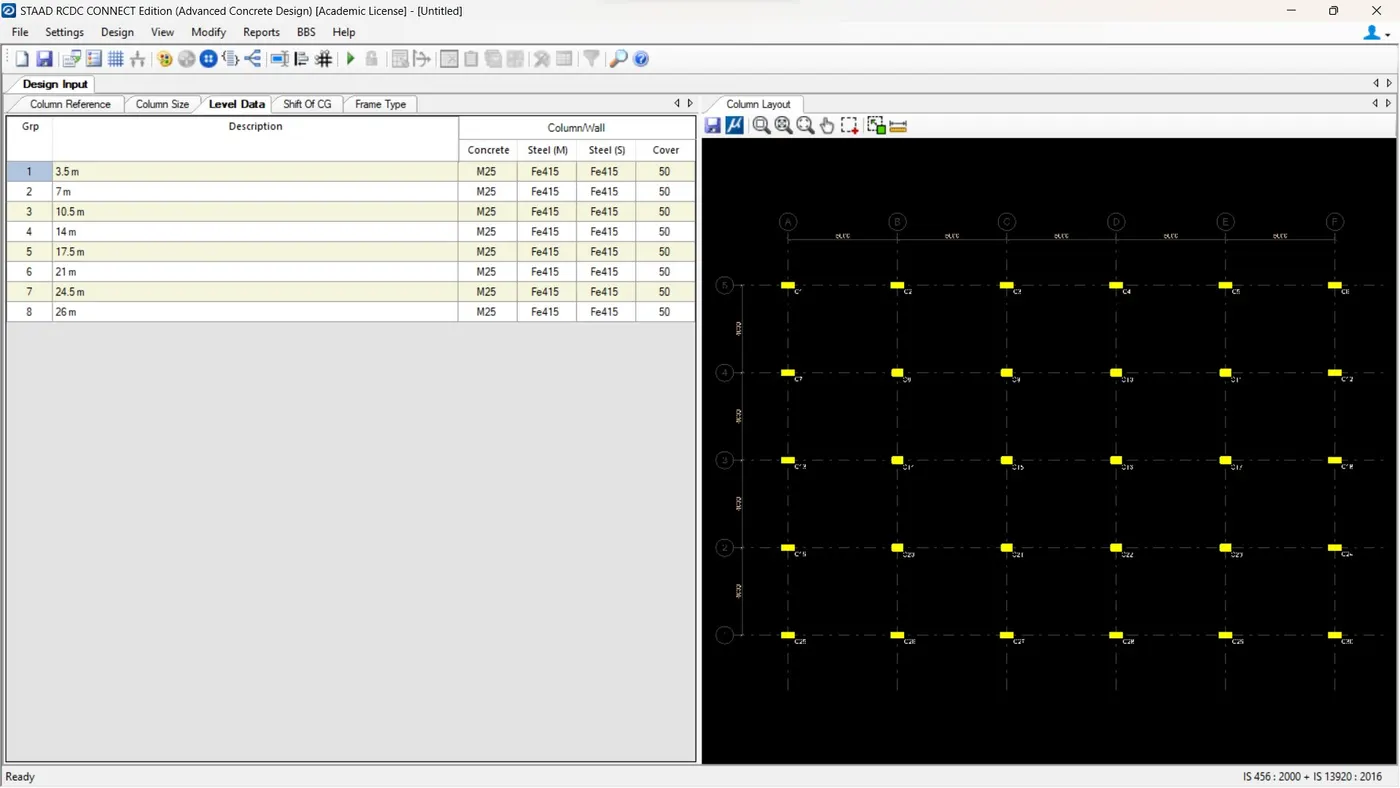

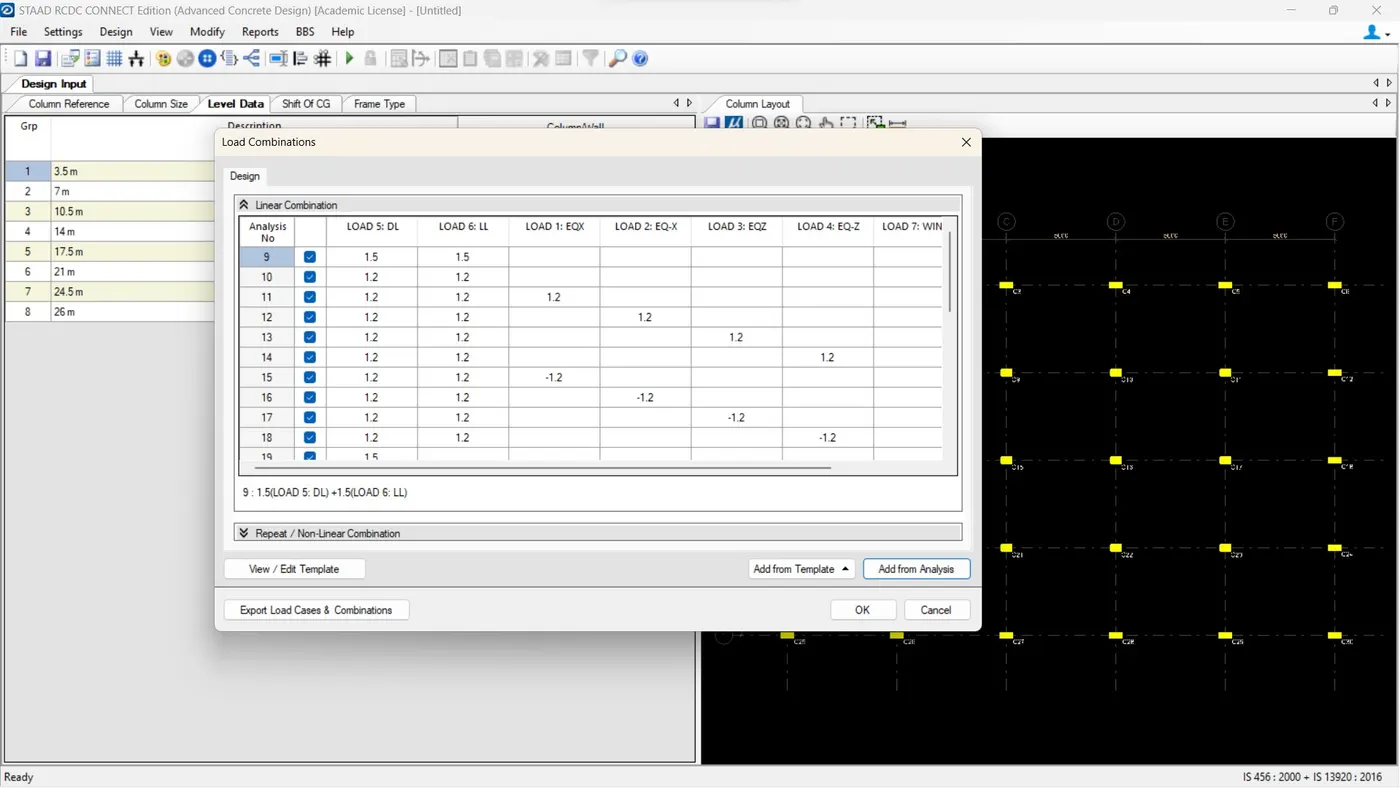

• Column Design in RCDC

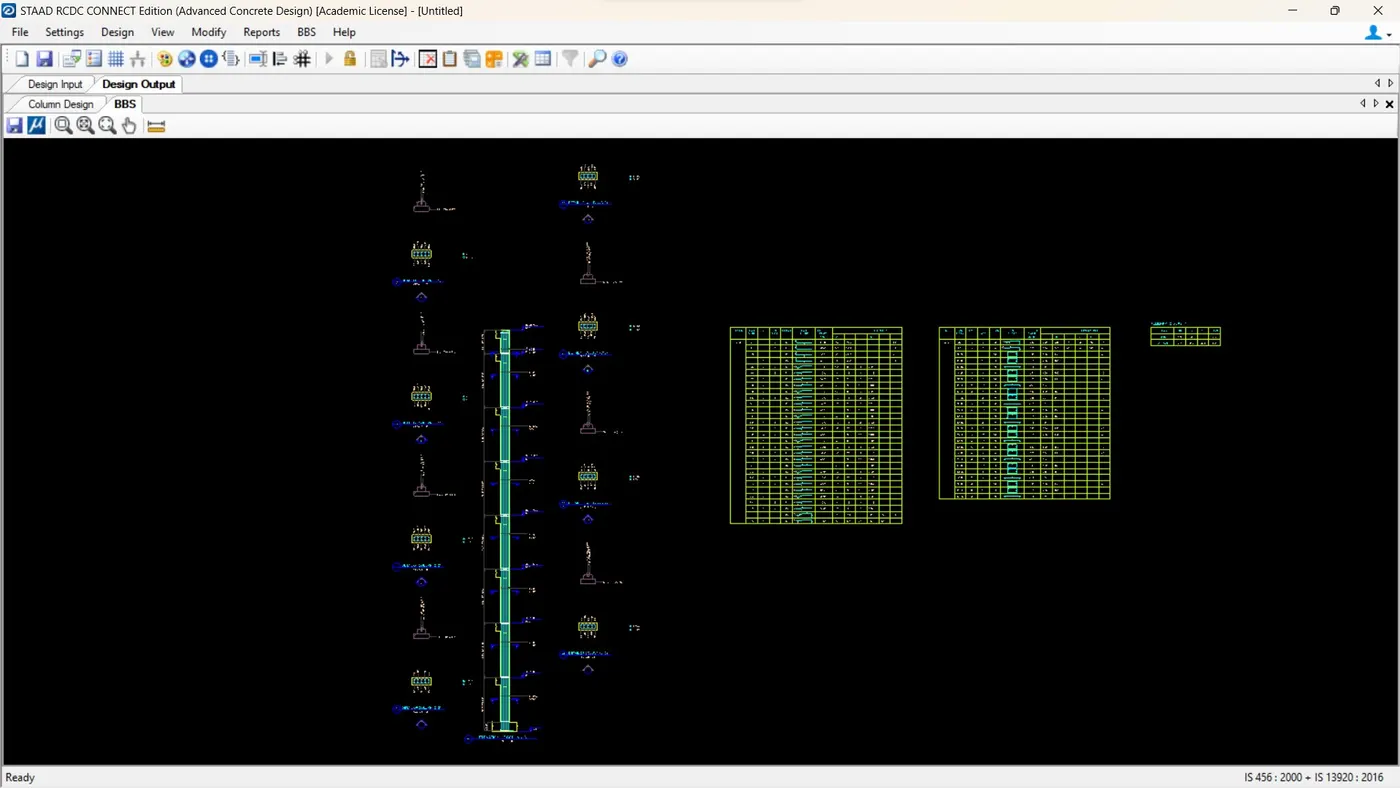

• BBS of column

Note :STAAD Foundation - Footing Design screenshots are added in a pdf file in below...
