Roof Design

                                                                       REPORT WRITING OF BACKDOOR Aim: To design a Backdoor of the car…

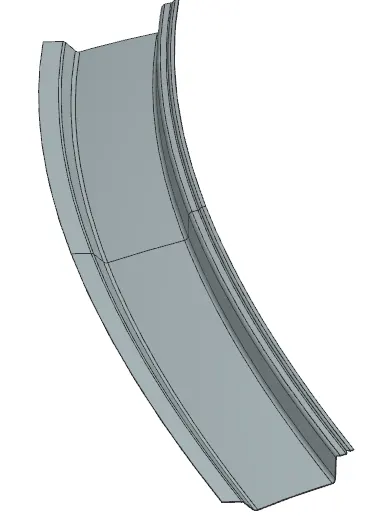

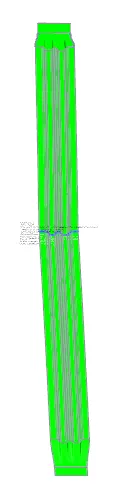

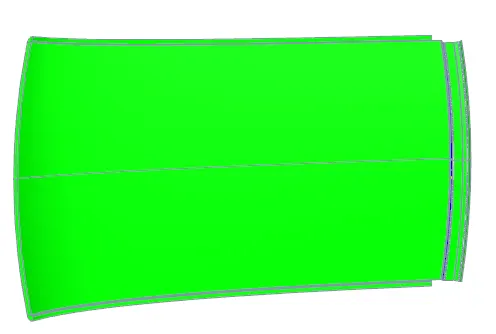

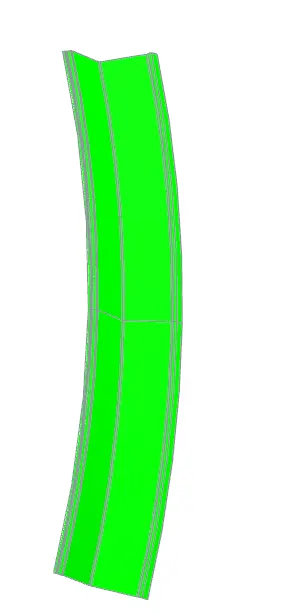

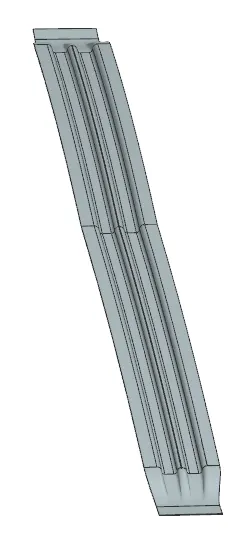

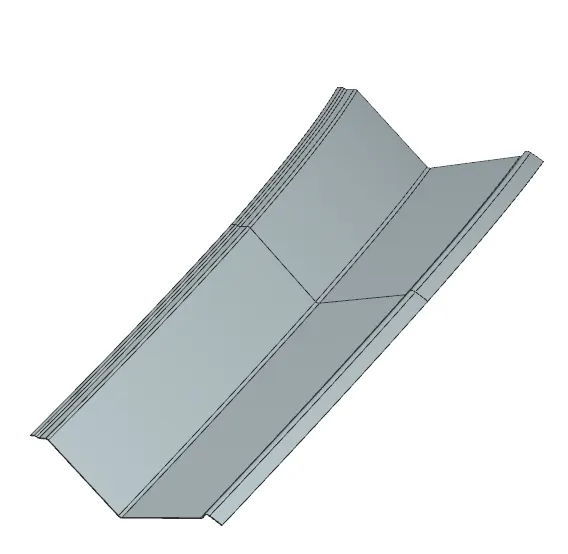

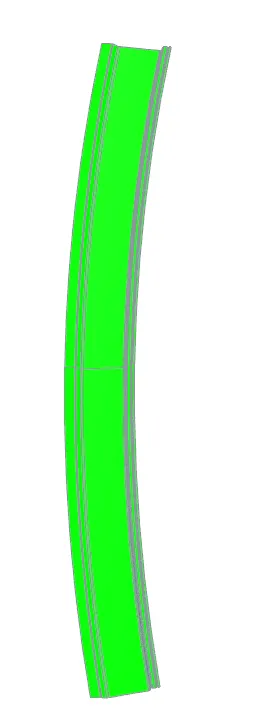

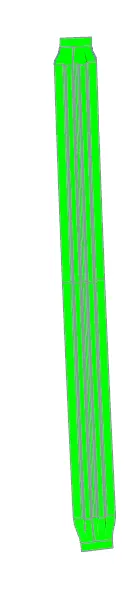

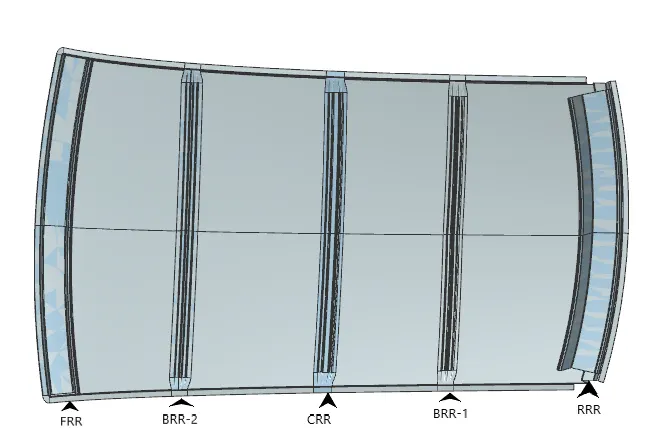

INTRODUCTION   The roof of a car or other vehicle is the top part of it, which protects passengers or goods from the weather. The roof also protects the passenger from any injury when the car gets crashed or is rolled over or something heavy falls on the roof.     OBJECTIVE  …

FENDER DESIGN OBJECTIVE : The main objective of this project is to design various front fender mounting points .   FENDER : The main purpose of the fender is to prevent sand,mud, rocks, liquids and any other road spray from being thrown into the air  by the rotating tire . TYPES OF FENDERS : There are two…

FENDER WHEEL ARCH Wheel Arch is the semi-circular part of the fender positioned above the wheel of the vehicle. The design of the wheel arch of the fender should be such that it must shield wheels and protect both passengers compartment and pedestarians from the projection of water, mud and stones.The wheel arch area of…

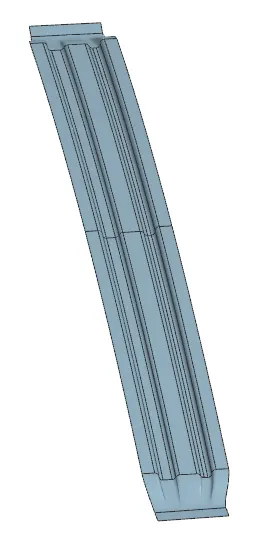

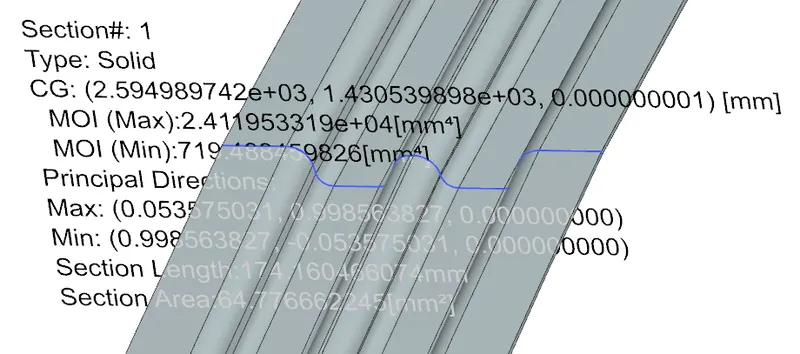

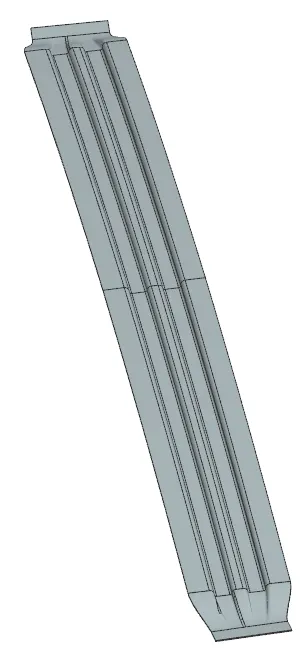

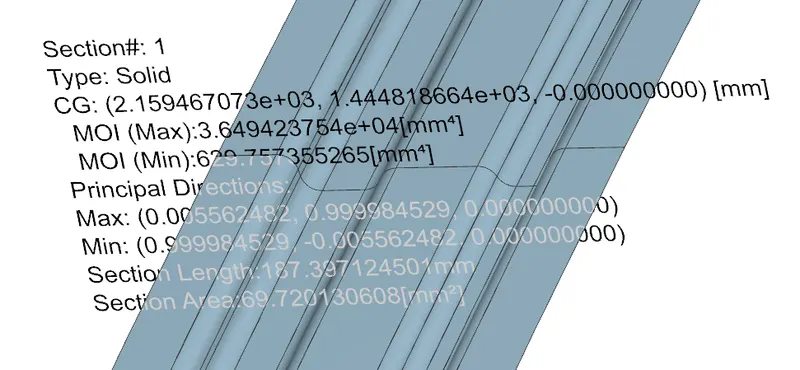

                                               Report On Section Modulus Calculation Of Hood Aim  To calculate the section modulus of the previously designed hood for analyzing its strength and also…

REPORT WRITING FOR HOOD DESIGN :-   Introduction: Hood The Hood is the outer panel covering the front engine of the vehicle. It opens to allow access to the engine compartments for the ease of maintenance or repair of the vehicle. Hood is also considered as another door as it consists of the outer panel, an inner…

UNDERBODY COATING A car’s Underbody is always exposed to dirt, dust, water, big stones and other obstacles in the road. Because it’s not in the plain sight, we often do not see the damage caused to our vehicle.    Due to Indian road conditions, the underbody of any Vehicle gets prone to corrosion.…

AUTOMATIVE BENCHMARKING Benchmarking in the Automobile Industry involves a structural comparison between similar products, services or processes on some dimensions of performance. CASE Mr. D.S. Pughazhyendhii is a married man who lives in Bangalore which is a highly crowded city. His Family comprises five members…

                                                               REPORT WRITING    According to the given assignment, first we need to download all the…

                                                            REPORT WRITING FOR PROJECT-1 According to the given assignment, first we need to download all the CAD data provided,…

REPORT WRITING :- According to the question , i have used the WK-4 Harness Assembly product , changed the uper sub Branch corrugated tubes to cotton tapes .  Then Create New Product file ,Then switch to Electric Harness Flatenning workbench , select "Harness Flatenning Parameters in the Toolbar , a dialogue box will…

REPORT WRITING FOR HARNESS ASSEMBLY A+B ROUTING :- After Downloading all the CAD data provided we need to define them electrically with POINTS & AXIS Geometry and then define their Bundle Entry Point and Connector Connecton Point by the created the Geometry . Then Open a New part Draw a Reference sketch according to…

REPORT WRITING FOR WIRING HARNESS ASSEMBLY:- According to the Question ,first we need to download all the given Connectors given through Tyco Electronics Website ,then we need to follow certains Steps:- After downloading we have to define all the connectors Electrically .  Then for the layout we need to create…

REPORT WRITING FOR P-CLAMP :- According to the given question at first we need to download the CAD files of P-Clamp then using Electrical Part Design workbench we will define it as a Electrical support for that we need to do certain Steps such as:- First we need to do Geometry Parameters such as Entry POINT & PLANE,…

REPORT WRITING FOR CONNECTOR-DEUTSCH (DT)06-08SA :- According to the given question at first we need to download the CAD files in .STP format from Tyco Electronic website as given , then to define DT06-08SA as Electrical connector using Electrical Part Design workbench , we need to do certain Steps such as:- First…
