Q:-1. Search and list out the total weight of various types of aircrafts. Ans:- Aircraft Gross Weight: -As per the federal aviation department, aircraft gross weight is defined as the total weight at any moment during flight or ground operation. -The aircraft's gross weight decreases during the flight due and oil consumption.…
Chandrakumar ADEPU
updated on 05 Aug 2022
Q:-1. Search and list out the total weight of various types of aircrafts.
Ans:-

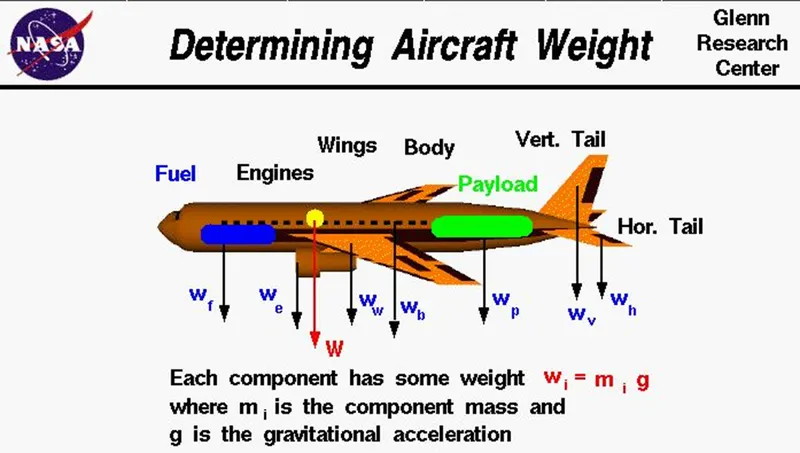

Aircraft Gross Weight:
-As per the federal aviation department, aircraft gross weight is defined as the total weight at any moment during flight or ground operation.
-The aircraft's gross weight decreases during the flight due and oil consumption. In some cases, gross weight (aircraft) may vary due to a drop in payload or inflight refueling, whereas on the other hand when the brakes are released the gross weight will be equal to take-off weight.
-During flight an aircraft's gross weight will be referred to as inflight weight.

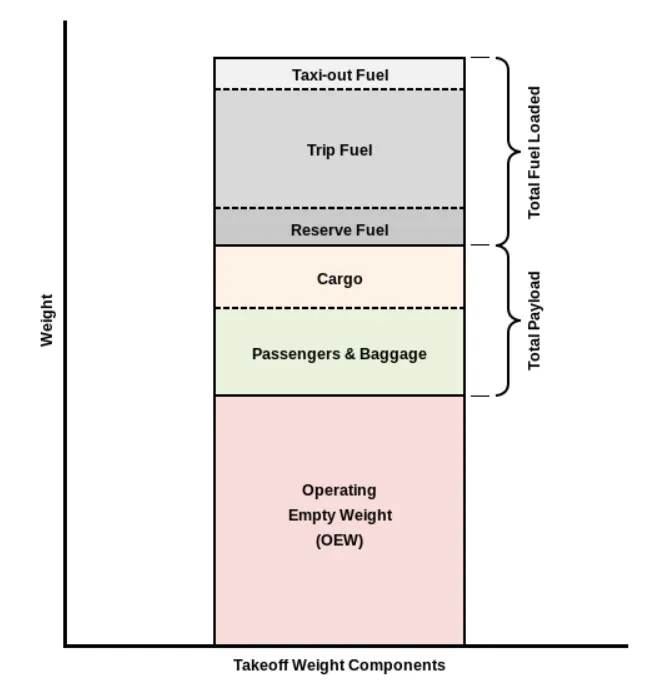

Types of aircraft weights are the following:
1)Manufactures empty weight:
-It includes the weight of the aircraft of the entire flight with its integral working parts but excludes baggage, passenger, and fuels.
2)zero fuel weight:
-It includes the total weight of airplanes including unusable fuels but excludes the total weight of useable fuel at the board.
3)Payload:
-It is the load carrying capacity of an aircraft which includes passengers, cargo, and fuels, But if it is in the case of cargo flight it determines a total load of logistics weight of the container which it needs to transport.
4)Maximum take-off weight:
-This is the maximum weight at which the aircraft would be made to take off.
5)Regulated take-off weight:
-Depending on different factors (flap setting, altitude, length of runway), RTOW varies for each take-off, but can never be high for MTOW.
6)Maximum landing weight:
-It is the maximum weight at which an aircraft is permitted to land.
7)Maximum Ramp weight:
-It is the maximum weight used for maneuvering (towing) aircraft on the ground.
-Listed below are the types of aircraft with its weight.
MTOW-Maximum Take off weight
MLW-Maximum Landing Weight
Type |
MTOW [kg] |
MLW [tons] |
640,000 |
591.7 |
|
589,670 |
|
|
575,000 |
394 |
|
447,700 |
346.091 |
|
443,613 |
306.175 |
|
412,770 |
295.742 |
|
Antonov An-124-100M |
405,060 |
330 |
396,900 |
295.742 |
|
381,000 |
288.417 |
|
377,840 |
285.700 |
|
377,840 |
260.320 |
|
371,950 |
240 |
|
367,400 |
256 |
|
347,800 |
260.816 |
|
351,800 |
251.29 |
|
347,450 |
223.168 |
|
340,200 |
265.300 |
|
308,000 |
233.5 |
|
299,370 |
237.683 |
|
297,550 |
213.00 |
|
276,700 |
190 |
|
273,300 |
185 |
|
270,000 |
175 |
|
270,000 |
195.04 |
|
256,280 |
183 |
|
254,000 |
192.777 |
|
254,000 |
201.849 |
|
253,500 |
181 |
|
250,000 |
175 |
|
242,000 |
185 |
|
242,000 |
180 |
|
231,300 |
166.92 |
|
228,000 |
172.365 |
|
211,400 |
|
|
208,000 |
175 |
|
204,000 |
158.758 |
|
192,000 |
140 |
|
187,000 |
136.08 |
|
185,000 |
111.1 |
|
163,000 |
138 |
|
159,000 |
136.078 |
|
157,000 |
124 |
|
152,000 |
151.9 |
|
151,000 |
97.5 |
|
151,000 |
112.1 |
|
147,000 |
|
|
142,000 |
123 |
|
141,000 |
122 |
|
140,000 |
|
|
125,000 |
|
|
124,000 |
101.6 |
|
117,000 |
86.3 |
|
116,000 |
89.9 |
|
106,000 |
79.5 |
|
104,000 |
79.5 |
|
104,000 |
80 |
|
104,000 |
87.5 |
|
87,500 |
|
|
85,000 |
66.36 |
|
85,000 |
71.35 |
|
84,000 |
70.1 |
|
Airbus A321-100[17] |
83,000 |
77.8 |
79,000 |
65.32 |
|
78,000 |
68.1 |
|
73,000 |
63.28 |
|
72,500 |
62.4 |
|
72,500 |
62.4 |
|
71,000 |
64.41 |
|
70,700 |
|
|
70,000 |
58.06 |
|
Airbus A320-100[17] |
68,000 |
66 |
68,000 |
54.9 |
|
68,000 |
|
|
67,000 |
|
|
66,000 |
54.66 |
|
65,000 |
57.61 |
|
65,000 |
|
|
64,000 |
62.5 |
|
63,000 |
51.7 |
|
60,000 |
49.9 |
|
59,000 |
50.80 |
|
59,000 |
57.5 |
|
55,000 |
47.174 |
|
55,000 |
|
|
54,000 |
|
|
50,000 |
46.265 |
|
50,000 |
|
|
48,600 |
|
|
48,500 |
|
|
48,000 |
43 |
|
46,000 |
|
|
46,000 |
39.95 |
|
44,000 |
|
|
42,000 |
36.74 |
|
39,000 |
|
|
37,500 |
32.8 |
|
36,500 |
33.345 |
|
36,000 |
32.8 |
|
33,000 |
30.39 |
|
33,000 |
|
|
30,400 |
|
|
28,000 |
28.01 |
|
23,000 |
21.319 |
|
22,800 |
22.35 |
|
22,800 |
21.5 |
|
22,000 |
19.3 |
|
18,600 |
18.3 |
|
13,150 |
12.930 |
|
11,500 |
11.25 |
|
10,890 |
10.570 |
|
9,752 |
8.709 |
|
8,300 |
7.665 |
|
8,150 |
7.65 |
|
7,765 |
7.605 |
|
7,761 |
7.103 |
|
7,000 |
|
|
4,800 |
4.43 |
----------------------------------------------***************************-----------------------------------------------------

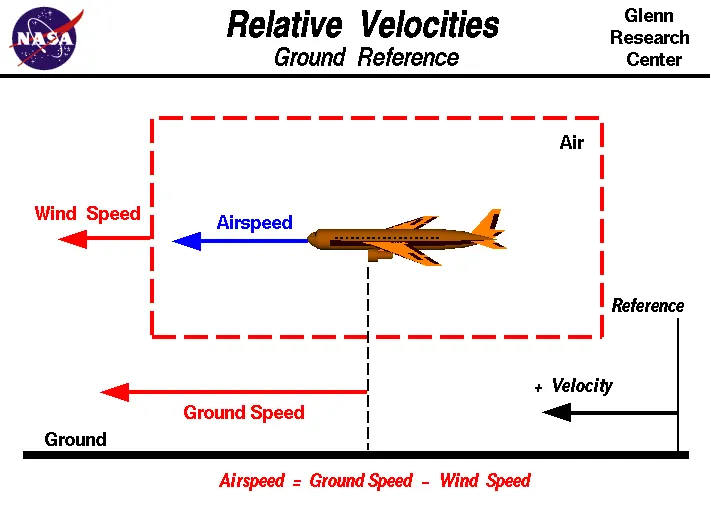

Q:-2. Is there any difference between ground speed and air speed?
Ans:-
Ground Speed | Air speed |
Ground speed is the airplane’s speed relative to the surface of the Earth | Airspeed is the speed relative to the air it is flying in. |
Ground speed is what determines how fast an aircraft will get to its destination | Airspeed is what determines whether there is enough airflow around an aircraft to make it fly |
Ground speed is simply the sum of airspeed and wind speed. | It is independent of ground speed. |
----------------------------------------------**************************------------------------------------------------------
Q:-3. Why is it not recommended to use aircraft engine power to move it on the ground at Airport?
Ans:-

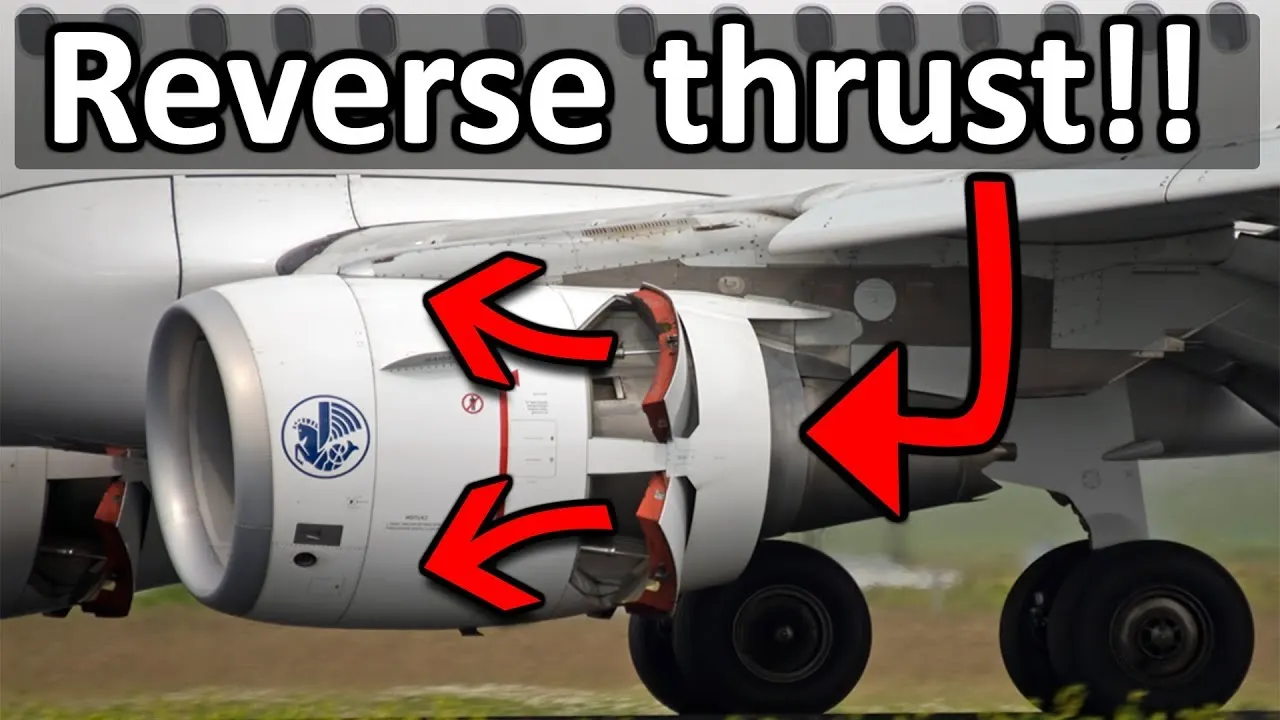

-Generally, most airplanes can move in a reverse manner by making use of reverse thrust technology. But in most of the practical it is not possible because when airplanes start using reverse thrust it will consume lot of fuels as well as causes lot of noise and also hazardous for the people working near by.
-The another for not using reverse thrust is that the jet blast can cause damage to terminal buildings or its equipments.Since the engine is also close to the ground it will blow off the sand and debreis forward and sucks it to the engine and causes damage to it.

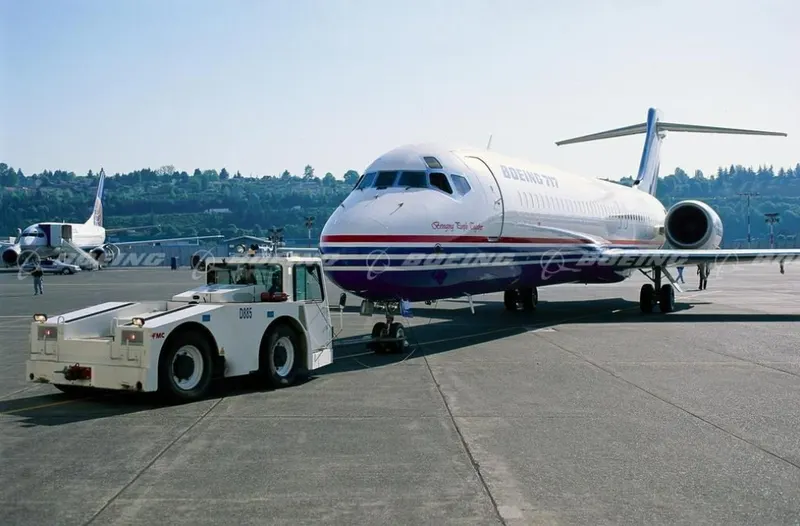

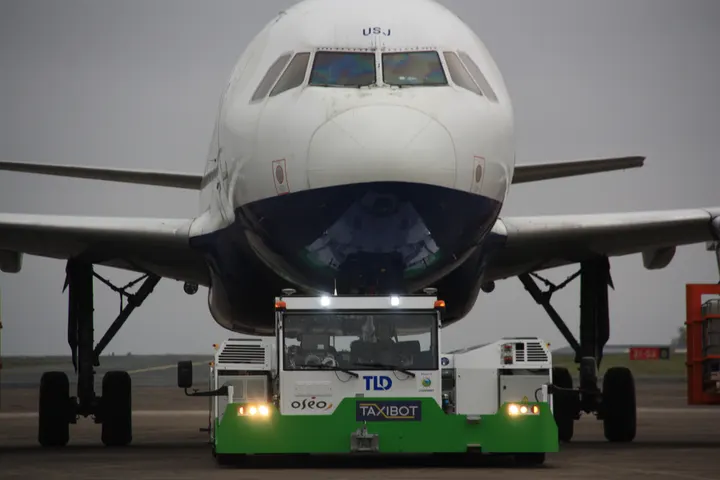

-To solve this kind of issue we use a towing vehicle which helps to tow the vehicle in reverse dierection and it will be tugged until it reaches a safe place and from there onwards airplane will move by itself for further take off.
Towing is coupling two or more objects together so that they may be pulled by a designated power source or sources. The towing source may be a motorized land vehicle, vessel, animal, or human, and the load being anything that can be pulled
Although many aircraft are capable of moving themselves backwards on the ground using reverse thrust (a procedure referred to as a powerback), the resulting jet prop might cause damage to the terminal building or equipment. Engines close to the ground may also blow sand and debris forward and then suck them into the engine, causing damage to the engine. A pushback is therefore the preferred method to move the aircraft away from the gate.
------------------------------------------------**********************---------------------------------------------------------
Q:-4. How an aircraft is pushed to runway when its ready to take off?
Ans:-
In aviation, pushback is an airport procedure during which an aircraftis pushed backwards away from an airport gate by external power. Pushbacks are carried out by special, low-profile vehicles called pushback tractors or tugs.
Although many aircraft are capable of moving themselves backwards on the ground using reverese thrust (a procedure referred to as a powerback), the resulting jetblast or propwash might cause damage to the terminal building or equipment. Engines close to the ground may also blow sand and debris forward and then suck them into the engine, causing damage to the engine. A pushback is therefore the preferred method to move the aircraft away from the gate.
Pushbacks at busy aerodromes are usually subject to ground control clearance to facilitate ground movement on taxiways. Once clearance is obtained, the pilot will communicate with the tractor driver (or a ground handler walking alongside the aircraft in some cases) to start the pushback. To communicate, a headset may be connected near the nose gear.
Since the pilots cannot see what is behind the aircraft, steering is done by the pushback tractor driver and not by the pilots. Depending on the aircraft type and airline procedure, a bypass pin may be temporarily installed into the nose gear to disconnect it from the aircraft's normal steering mechanism.
Once the pushback is completed, the towbar is disconnected, and any bypass pin removed. The ground handler will show the bypass pin to the pilots to make it clear that it has been removed. The pushback is then complete, and the aircraft can taxi forward under its own power.
---------------------------------------------------**********************-----------------------------------------------------
Q:-5. Learn about take off power, tyre design, rolling resistance, tyre pressure, brake forces when landing.
Ans:-
Take-Off Power:
For light aircraft, usually full power is used during takeoff. Large transport category (airliner) aircraft may use a reduced power for takeoff, where less than full power is applied in order to prolong engine life, reduce maintenance costs and reduce noise emissions. In some emergency cases, the power used can then be increased to increase the aircraft's performance. Before takeoff, the engines, particularly piston engines, are routinely run up at high power to check for engine-related problems. The aircraft is permitted to accelerate to rotation speed (often referred to as Vr). The term rotation is used because the aircraft pivots around the axis of its main landing gear while still on the ground, usually because of gentle manipulation of the flight controls to make or facilitate this change in aircraft attitude (once proper air displacement occurs under / over the wings, an aircraft will lift off on its own; controls are to ease that in).
The nose is raised to a nominal 5°–15° nose up pitch attitude to increase lift from the wings and effect liftoff. For most aircraft, attempting a takeoff without a pitch-up would require cruise speeds while still on the runway.
Tyre Design:
Based on the type of plies used the tyres can be:

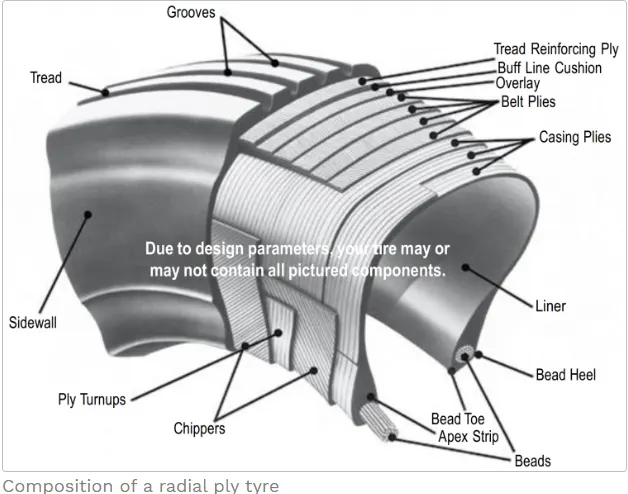

Radial ply tires - these tyres feature a flexible casing which is constructed of rubber-coated ply cords which extend around the beads and are substantially at 90° to the centerline of the tread. The casing is stabilized by an essentially inextensible circumferential belt.

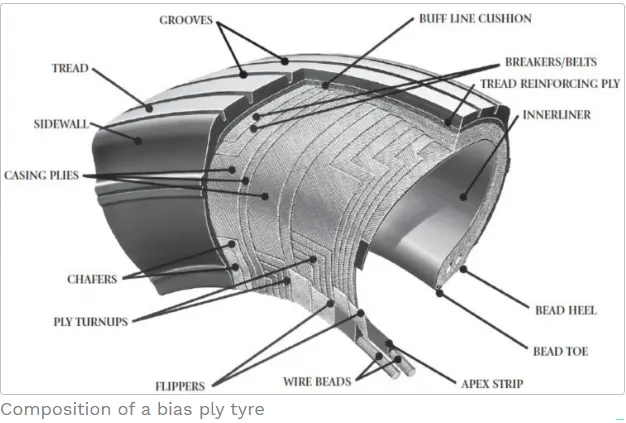

Bias ply tires - these tyres feature a casing which is constructed of alternate layers of rubber-coated ply cords which extend around the beads and are at alternate angles substantially less than 90° to the center line of the tread.
Based on the method for containing the inflation gas the tyres can be:
Rolling Resistance:
The resistance offered by the tyres against motion of vehicle/aircraft is called as rolling resistance, the rolling resistance is produced during take off/landing in the runway.
Tyre Pressure:
Aircraft tires are usually inflated with nitrogen to minimize expansion and contraction from extreme changes in ambient temperature and pressure experienced during flight. Dry nitrogen expands at the same rate as other dry atmospheric gases (normal air is about 80% nitrogen), but common compressed air sources may contain moisture, which increases the expansion rate with temperature.
Tests of airliner aircraft tires have shown that they are able to sustain pressures of maximum 800 psi (55 bar; 5,500 kPa) before bursting. During the tests the tires have to be filled with water, to prevent the test room being blown apart by the energy that would be released by a gas when the tire bursts.
The main landing gear on the Concorde was typically inflated to 232 psi (16.0 bar), whilst its tail bumper gear tires were as high as 294 psi (20.3 bar). The high pressure and weight load on the Concorde tyres were a significant factor in the loss of Air France flight 4590
Brakes Forces When Landing:

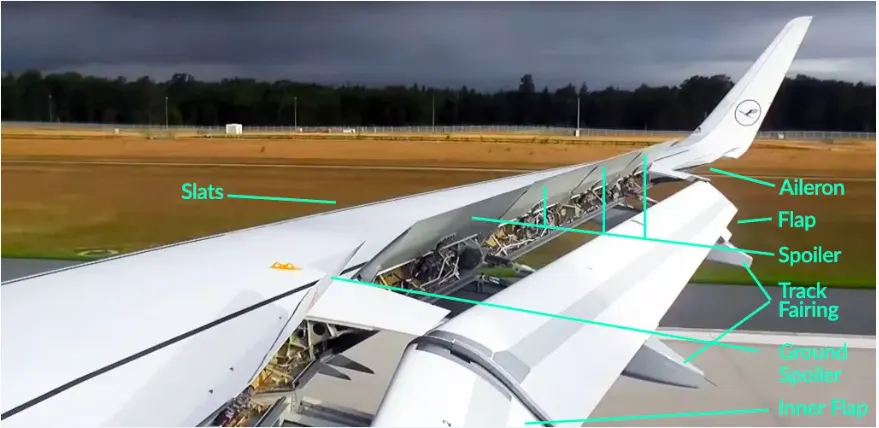

In general, when the wheels touch the ground, a set of spoilers raise up quickly, which kills the lift provided by the wings. (There are two sets seen in the image below: ground spoilers that only deploy on landing, and spoilers that are used in flight as speed brakes as well as on landing.) While the spoilers provide some drag, their primary purpose is to stop the plane from actually flying, putting all of the weight on the landing gear and in turn making the brakes that much more effective.
Aircraft have highly-engineered, multi-disc brakes made of a carbon-steel material. Manufacturers include Honeywell and Goodrich, part of Collins Aerospace. In general, the brakes are composed of discs that rotate with the wheel and separate discs that are fixed. When pressure is applied—and below you see pressure applied from the right fixed disc on all of the discs—the entire assembly compresses to create the braking action. Carbon brakes are standard today; they cool faster than steel brakes (their predecessor) and can weigh up to 700 pounds less. That represents a significant weight saving for airlines.
Auto Brakes:
Wheel brakes are usually selected to engage automatically after landing. These are called “autobrakes”.that all airliners have several levels of autobrake “severity”. The crew will decide which is the most appropriate to use for every landing depending upon factors like the length of runway, if it is wet or dry, or if the pilots want to exit the runway at a particular point. “For a short wet runway you might select autobrake 3, or MED on the Airbus. For a long dry runway you might select autobrake 1 or LOW on the Airbus".
-----------------------------------------*************************----------------------------------------------------------
Q:- 6. A. With necessary assumptions, calculate the force and power required to push / pull an aircraft by a towing vehicle.
Ans:
The forces required to push/ pull an aircraft by a towing are rolling resistance force and areodynamic drag force. 1) Rolling resistance force:- As we have discussed in part-A 5c. It is the force resisting the motion when a body (such as a ball, tire, or wheel) rolls on a surface. Its governing equation is given as
F = CN
F=C*m*g
where,
Crr= Rolling resistance coefficient m=Mass of the body g= acceleration due to gravity

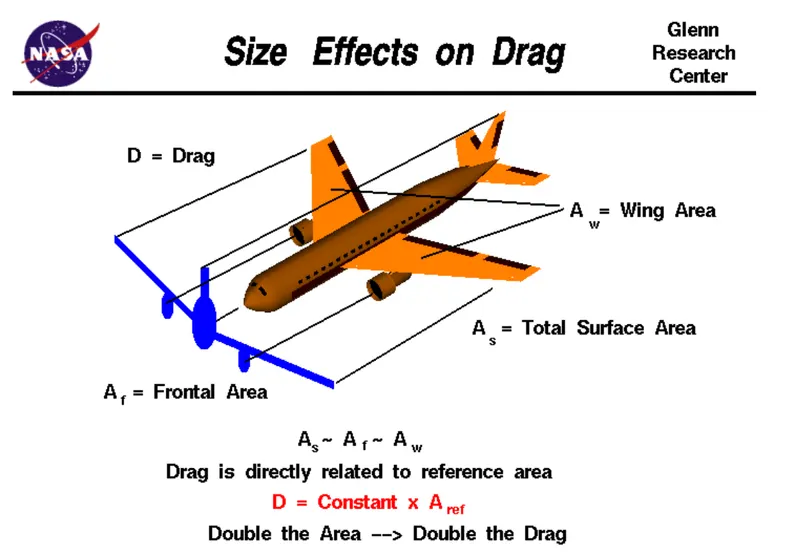

2)Aerodynamic Drag Force:
It is the force opposing the motion of the body. The drag coefficient is a common measure in automotive design as it pertains to aerodynamics, Drag is a force that acts parallel to and in the same direction as the airflow. The drag coefficient of an automobile measures the way the automobile passes through the surrounding air. When automobile companies design a new vehicle, they take into consideration the automobile drag coefficient in addition to the other performance characteristics. Aerodynamic drag increases with the square of speed; therefore, it becomes critically important at higher speeds. Reducing the drag coefficient in an automobile improves the performance of the vehicle as it pertains to speed and fuel efficiency. The governing equation of these force is given as following:
where.
F{D} = dra force
rho = r density of the air
น = flow velocity relative to the object
C{D} = drag coefficient
A = reference area
Calculation:
let us assume that,
Mass of Towing Vehicle= 40,000kg
Mass of aircraft = 155,000kg
Total mass (m)= 40,000+155,000 =195,000kg
Frontal Area of the aircraft (A) =18 m²
Speed of the vehicle (2)=25Kmph
converting it into m/sec
u=25*(1000/3600)=6.9445m/sec
Drag coefficient (Cd) =0.75
Air density (P)=1.225Kg/m³
Calculating Rolling resistance Force (Frr) =Crr*m*g
=0.01*195.000*9.8
= 19.11ON
Calculating Aerodynamic Drag Force (Fd)=0.5*p Cd*A* v^2
=0.5 *1.225 *18* 0.75* (6.9445)2
=398.769N
Therefore the total Force required to push/pull the aircrcraft by the towing vehicle (F) Frr+Fd
=19,110+398.769
=19,508.769 N
Calculating the power (p) =Force*Velocity
= 19508.769* 6.9445
=135.478kW
------------------------------------------------------*********************-------------------------------------------------

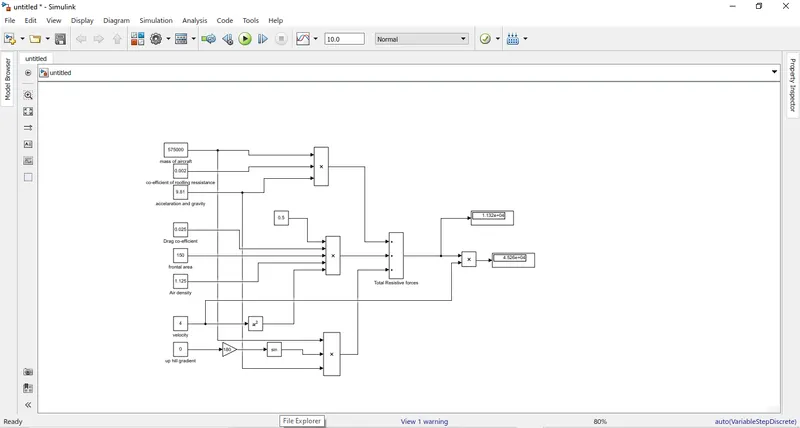

Q:-6.B. Develop the model for the calculated force and power using Simulink.
Ans:
---------------------------------------*****************----------------------------------------------
Q:-7. A. Design an electric powertrain with type of motor, it’s power rating, and energy requirement to fulfill aircraft towing application in Simulink. Estimate the duty cycle range to control the aircraft speed from zero to highest. Make all required assumptions. Prepare a table of assumed parameters. Draw a block diagram of powertrain.
(Hint :DC7 Block)
Ans:-

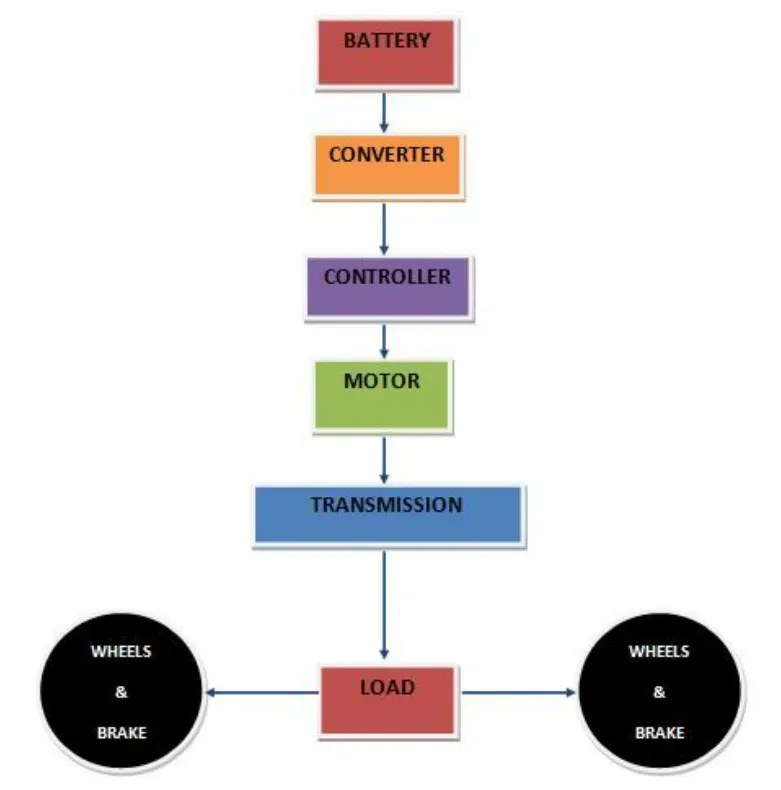

Block Diagram of Powertrain:
Based on the calculations done in 6A.
Force required to push/pull the aircraft =19.508 KN
Power required =135.478 kw
Let us assume,
The Radius of the Tyre for the Tug - 25inches =0.635m
Gear ratio=8
Transmission Effeciency (nt) =87%
Motor Efficiency (nm)=95%
then,
Torque required for the wheels (Tw)=Total Force *Radius in meters
=19.508 *0.635
=12.387KNm
Motor Torque-Wheel torque/(Gear ratio'nt)
=12.387/(8 0.87)
=1.778KNm
For nm =95%. The required motor Torque (Tm)= 1.778/0.95 =1.871 kNm
Similarly. The total power required by the motor considering all the efficiencies (Pt) = 135.478/(0.87*0.95)=163.917Kw
Let us assume the towing operation was done for a 15 minutes (0.25Hrs) duration.
Then, Total Energy consumed = 163.917* 0.25=40.98 KWh
If we consider the battery capacity=220 kw is used by the towing vehicle then. The duty cycle range to control the speed from O to max speed (3m/s) is given as
Duty Cycle (d)= (Required Power)/ (Rated power)= 163.917/220 =0.75
Therefore the controller will be able to provide a duty cycle ranging from 0 to 75% in order to
control the towing speed.

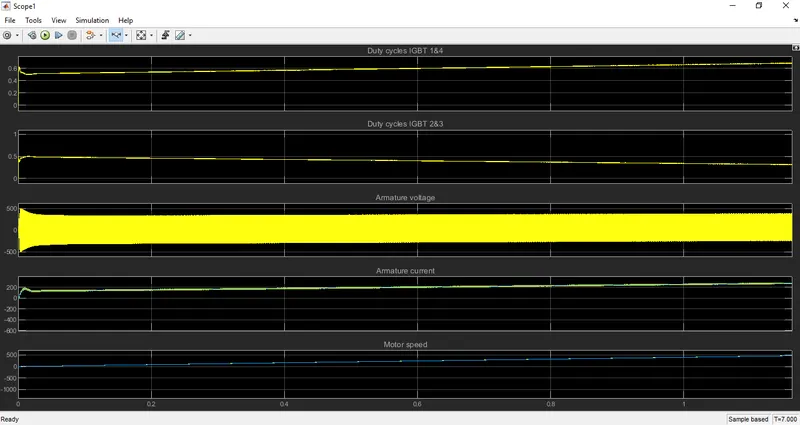

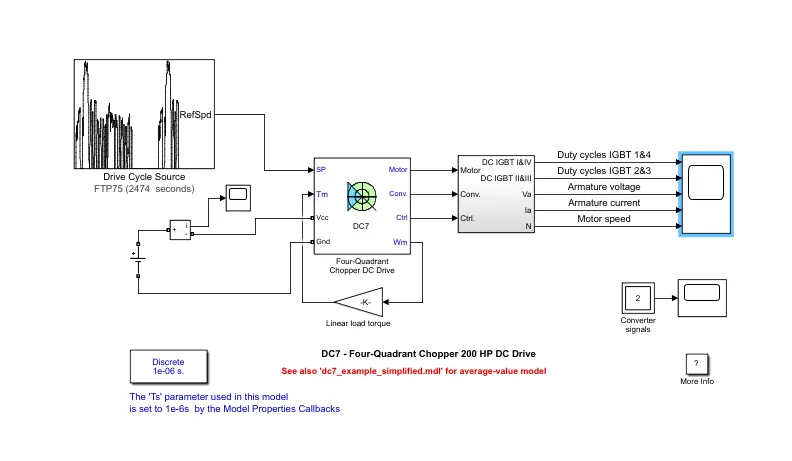

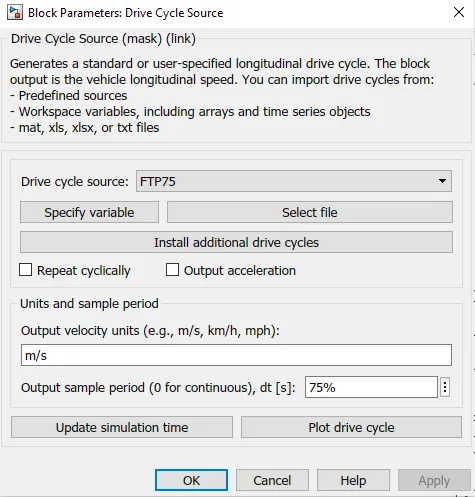

Simulink Diagram of powertrain:
So we can say that to control the Aircraft Speed from Zero to Highest the Duty Cycle Range will be from 0 to 75% respectively.
From the diagram we can see that the Battery is supplying the power to the Motorand that is controlled by the Controller unit which is nothing but the Inverter Circuitry. As automotive batteries generally operates on DC while the grid operates on AC, so a converter is needed to transfer power to the battery. Because of these capability of EV vehicle, the efficiency of them are much more(80-60%) than the conventional IC engine type of vehicle(25-30%). This motor is then responsible for controlling the wheels and the brakes through the Transmission and the Gear System.
------------------------------------******************-------------------------------------------

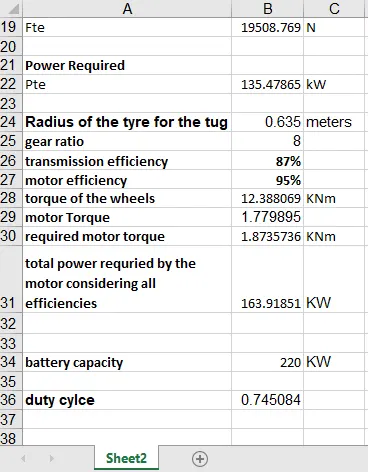

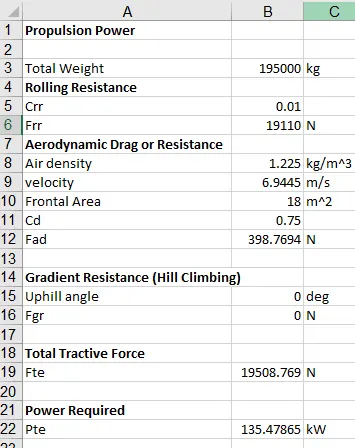

Q:-7.B. Also, Design the parameters in excel sheet.
Ans:
By using the above calculated data i prepared this sheet
the parameters are below
-------------------------------------------------*********************-----------------------------------------------------------
