Project 1 - Parsing NASA thermodynamic data

AIM:To write a codes of a function that extracts the 14 co-efficients of a tharmodynamic data,to calculate the entropy,enthalphy and specific heat by using the matlab.

EXPLANATION:

1.parsing:parsing a file means reading in a data stream of som sort and building a memory model of the content of that data.this aims at facilitating performing some kind of transformation on the data.parsing splits a file or other input into peices of data that can be easily stored or manipulated.

2.specific heat:the quantity of heat required to raise the temperature of one gram of a substance by one celsius degree.here the specific heat is represented as Cp and universal gas constant is represented as R.

3.enthalphy:it is a property of a thermodynamic system,it is the sum of the system's internal energy,E and the products of its pressure,p and volume,V.H=E+PV.according to the law of energy conservation,the cgange in internal energy is equal to the heat transferred,the change in internal energy is equal to the heat transferred to, less the work done by the system.

4.entropy:entropy is the measure of a system's thermal energy per unit temperature that is unavailable for doing useful work.it also defined as the measure of randomness or disorderness of a system.

EXPLANATION OF CODES:1.The fopen command is used to open the file and reading the file by r command.

2.fgetl(fileID) command is used for returns the next line of the specified file,removing the newline characters.

3.string split command is used which is used to split the given global temperature which was in the form of combined data.

4.string is converted into number which the str2num is used to extract the the temperature and other variables should be stored.

5.for loop command is used to repeating the structure of each species .

6.strfind function command is used to find the searches the string for occurance of a shorter string,pattern,and returns the starting index of each occurence.here strfind is used to seperate between constants and combined a part.

7.if-else command is used find the temperatures.

8.plot command ois used to create the plots.

MAIN PROGRAM:

codes of entropy:

function s=entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,lmt)
if T<lmt
    s=(a8*log*T+a9*T+a10*(T.^2)/2+a11*(T.^3)./3+a12*(T.^4)./4+a14)*R;
else
    s=(a1*log(T)+a2*T+a3*(T.^2)./2+a4*(T.^3)./3+a5*(T.^4)/4+a7)*R;
end
end

codes of specific heat:

function cp=Specific_heats(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,T,R,lmt)
if T<lmt
    cp=(a8+a9*T+a10*T.^2+a11*T.^3+a12*T.^4).*R;
else
    cp=(a1+a2*T+a3*T.^2+a4*T.^3+a5*T.^4).*R;
end
end

codes of enthalpy:

function H=enthalphy_H(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,lmt)
if T<lmt
    H=(a8+(a9.*T)/2+(a10*T.^2)/3+(a11*T.^2)/4+(a12*T.^3)/5+a13./T).*R.*T;
else
    H=(a1+(a2.*T)/2+(a3*T.^2)/3+(a4*T.^3)/4+(a5*T.^4)/5+a6./T).*R.*T;
end
end

codes of molecular mass:

function M=molecular_mass(C)
species = upper (C)
constituents = ['H','C','N','O','A'];
atomic_weight = [1.00749 12.0107 14.0067 15.9994 39.948];
M=0;
for i=1:length(species)
    for j=1:length(constituents)
        if strcmp(species(i),constituents(j))
            M=M+atomic_weight(j);
            u=j;
        end
        n=str2double(species(i));
        if n>1
            M=M +atomic_weight(u)*(n-1);
        end
    end
end

codes of all species:

clear all
close all
clc

%reading
f1=fopen('THERMO.dat','r')

%skip header
for i=1:5
    A=fgetl(f1)
end
%read the header
for i=1:53


header=fgetl(f1)
B=strsplit(header,' ')

d=length(B)
C=B{1}
llt=str2double(B{d-3})
lmt=str2double(B{d-1})
lht=str2double(B{d-2})

%reading 1st line

 line1=fgetl(f1);
e=strfind(line1,'E')
a1= str2double(line1(1:e(1)+3))
a2=str2double(line1(e(1)+4:e(2)+3))
a3=str2double(line1(e(2)+4:e(3)+3))
a4=str2double(line1(e(3)+4:e(4)+3))
a5=str2double(line1(e(4)+4:e(5)+3))
% reading 2nd line
line2=fgetl(f1)
e1=strfind(line2,'E')
a6=str2double(line2(1:e1(1)+3))
a7=str2double(line2(e1(1)+4:e1(2)+3))
a8=str2double(line2(e1(2)+4:e1(3)+3))
a9=str2double(line2(e1(3)+4:e1(4)+3))
a10=str2double(line2(e1(4)+4:e1(5)+3))
%reading of 3rd line
line3=fgetl(f1)
e2=strfind(line3,'E')
a11=str2double(line3(1:e2(1)+3))
a12=str2double(line3(e2(1)+4:e2(2)+3))
a13=str2double(line3(e2(2)+4:e2(3)+3))
a14=str2double(line3(e2(3)+4:e2(4)+3))
%assume a array for temperature and universal constant'R'
R= 8.314;
T=linspace (llt,lht,200);
%functions for entrophy
cp=Specific_heats(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,T,R,lmt);
H=enthalphy_H(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,lmt);
s=entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,lmt);
%plotting the point
figure(1)
plot(T,cp,'LineWidth',4,'Color','r')
title(C)
xlabel('temperature')
ylabel('specificheat')

figure(2)
plot(T,H,'linewidth',4,'Color','g')
title(C)
xlabel('temperature')
ylabel('enthalphy')

figure(3)
plot(T,s,'LineWidth',4,'Color','b')
title(C)
xlabel('temperature')
ylabel('entropy')

C=B{1}
mkdir(C)
cd(C)
saveas(1,'specific heat','jpg')
saveas(2,'enthalpy','jpg')
saveas(3,'entropy','jpg')
cd ..
   M= molecular_mass(C)
end
fclose(f1)

PLOTS:

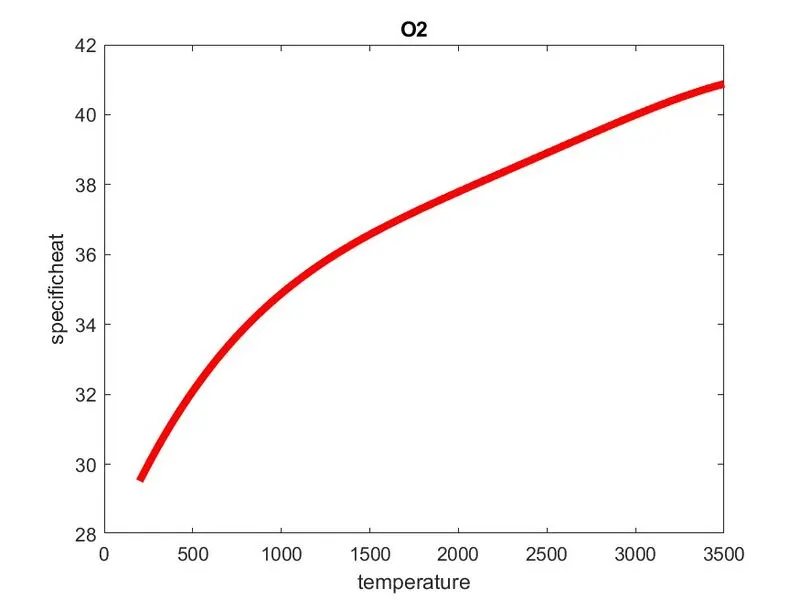

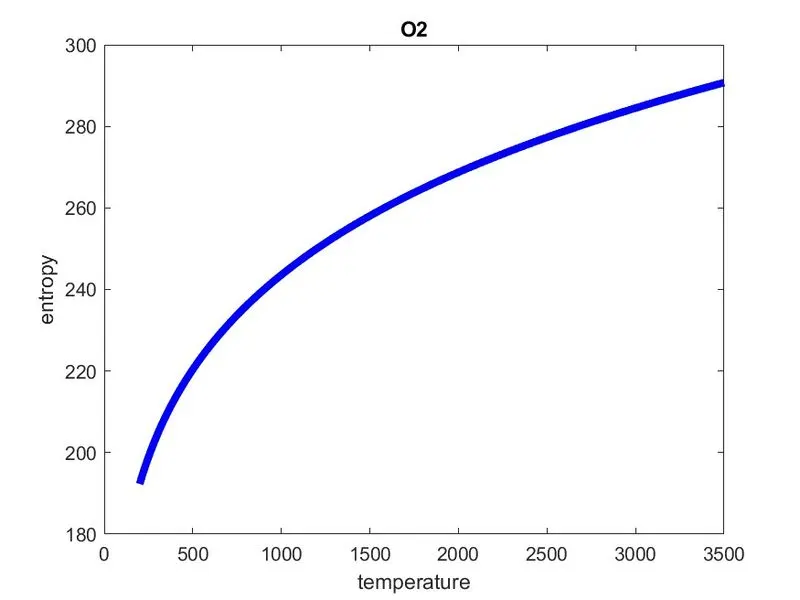

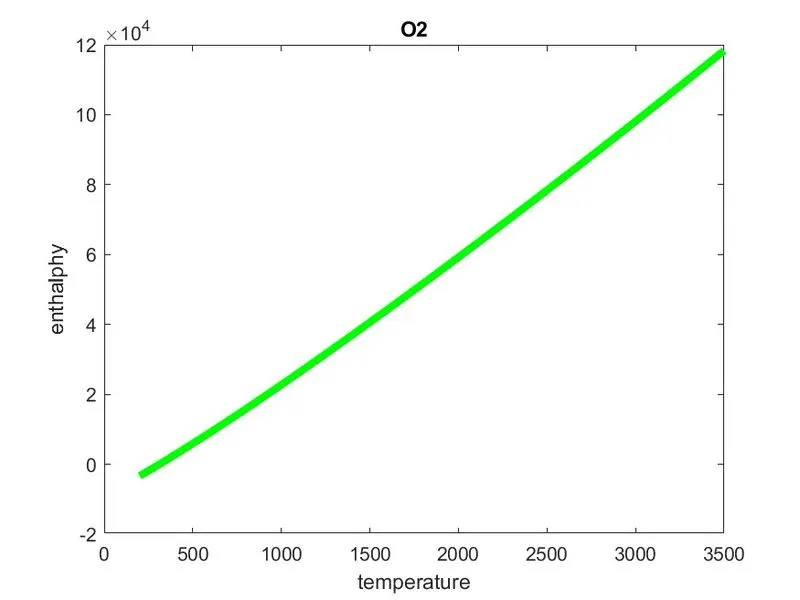

The plot of Element o2(in order of Enthalpy,Entropy,Specific heat)

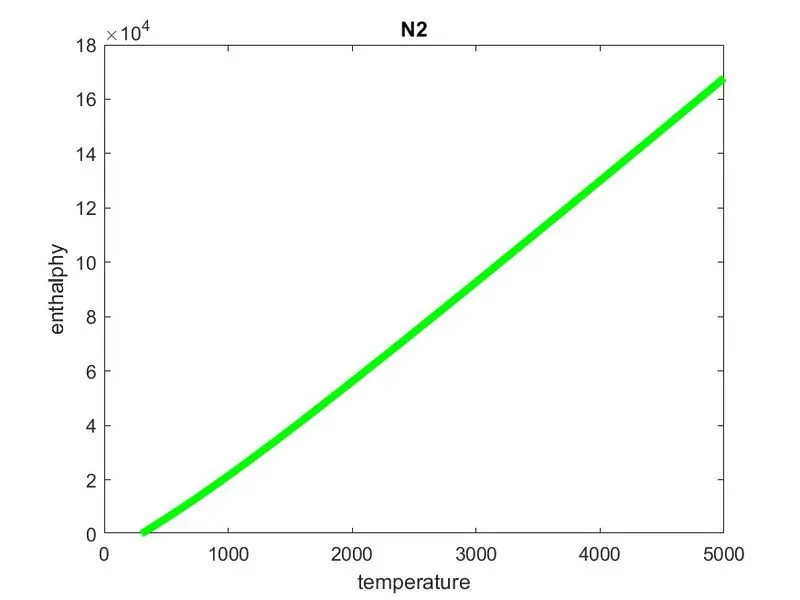

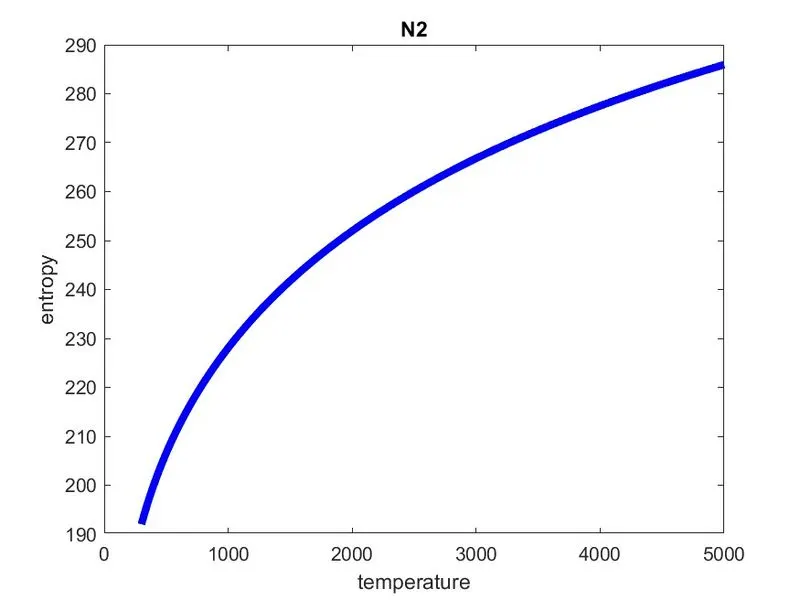

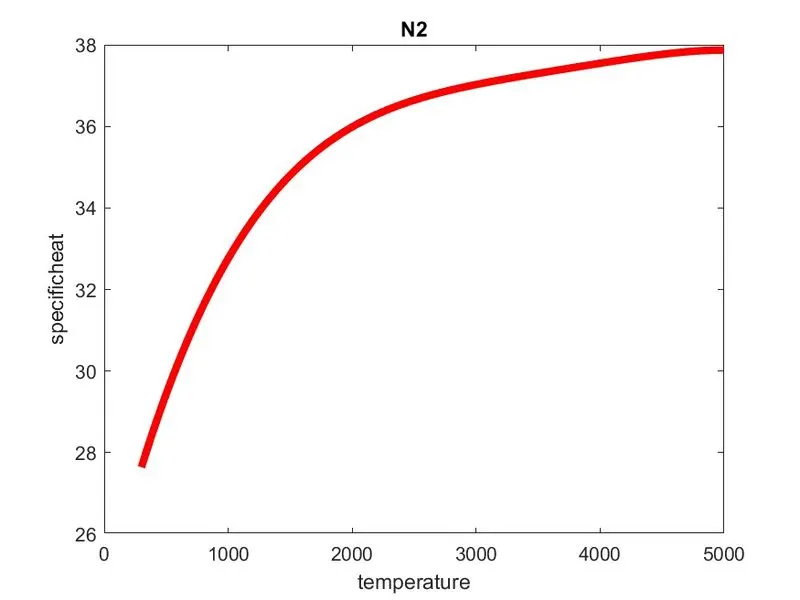

The plot of Element N2(in order of Enthalpy,Entropy,Specific heat)

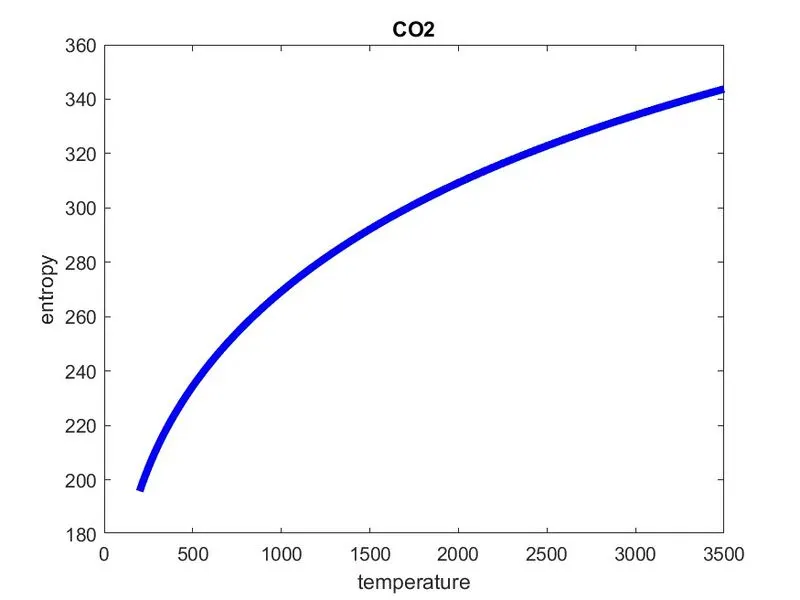

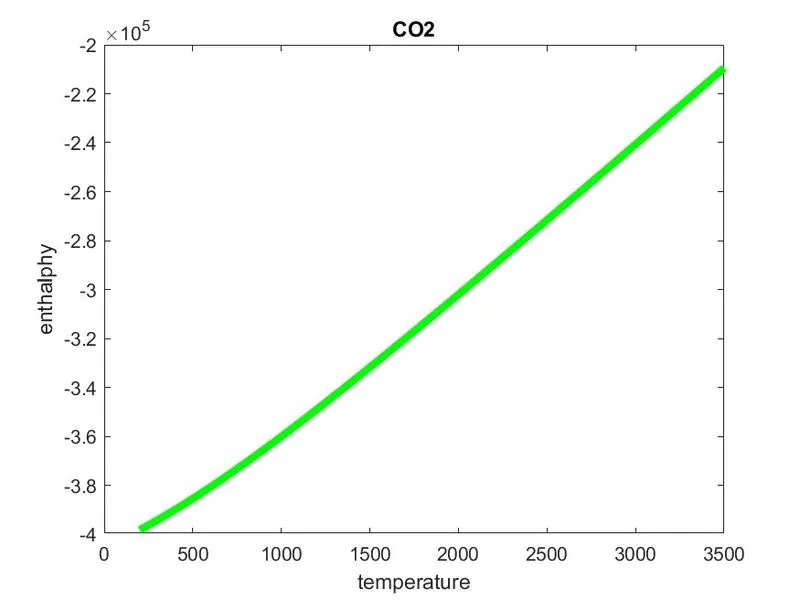

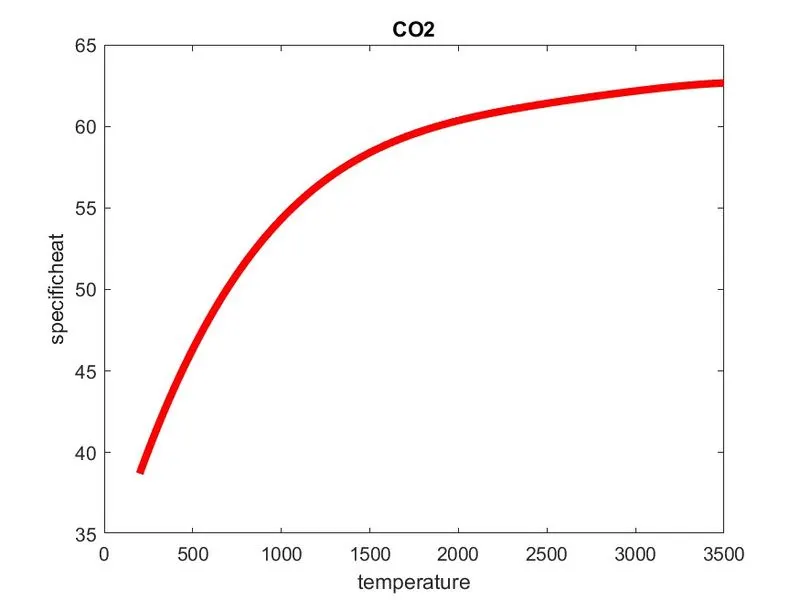

The plot of Element CO2(in order of Enthalpy,Entropy,Specific heat)

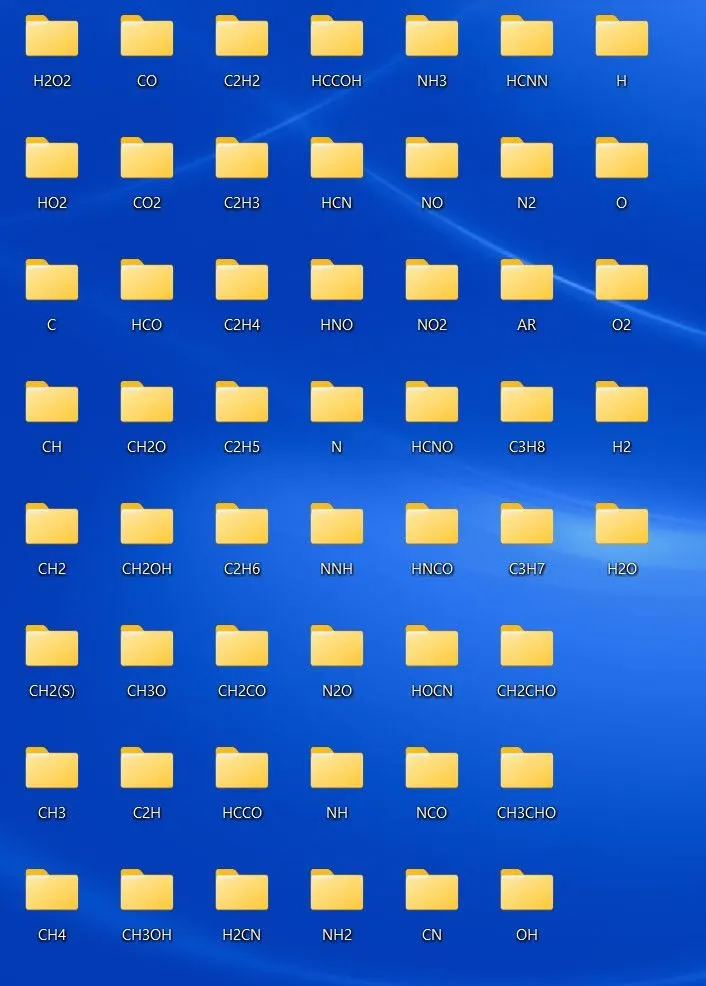

Screenshot of the different folders created:

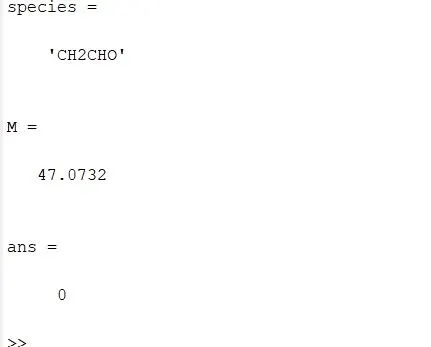

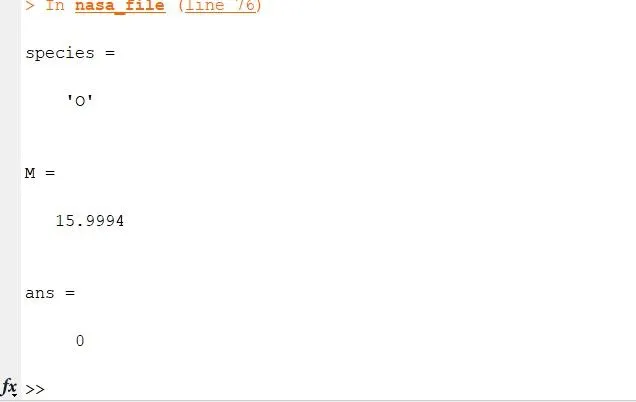

Screenshot of molecular mass(from command window):

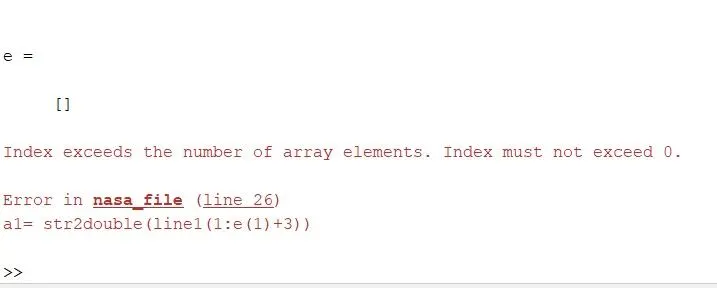

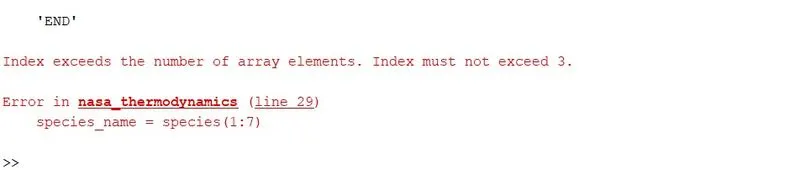

ERRORS:I got a error from all the species folder creation that should be overcome with the help of supportive person.The screenshot is uploaded below.

CONCLUSION:The codes has been created successfully and the folder has been created seperately by using the matlab.
