Aim : To find the maxime value of a function using matlab.
Objective :
1. Knowing how to use ga inbuilt function , and syntax of ga.
2. Information about genetic algorithm.
Theory :
Genetic algorithm is to find the optimum value .
1. At , first let's about some basic information about genetic algorithm.
2. Genetic algorithm also called evolutionary algorithm , as the idea of this algorithm was from darwin
Evolutionary theory.
3. Genetic algorithm steps :
1. Initialization.
2. Selection.
3. Crossover.
4. Mutation.
5.Sorting and selecting best solution.
4. Solutions of a fitness function called chromosomes.
5. Fitness function , the function to find the optimum value.
Steps explanation in gentic algorithm :
1. Initialization : At first , a random solution is created and caluculated it's fitness value .
2. Selected best solution , using different types of selection algorithms like Tournament selection.
3. chromosomes undergoes crosssover for to generate offsprings (advanced over Parents).
4 . Undergoes mutation if required , to modify it's nature.
5 . Sorting and selected best solutions from it .
6. The steps repeated.

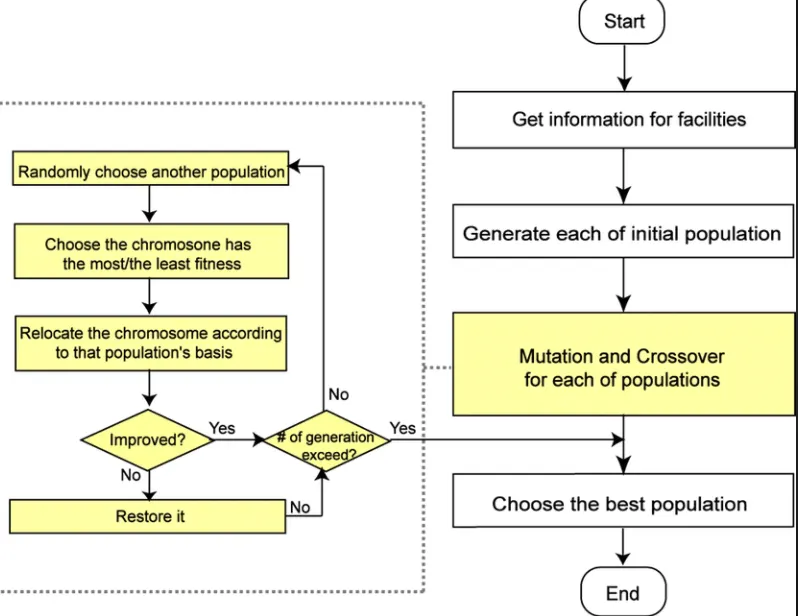

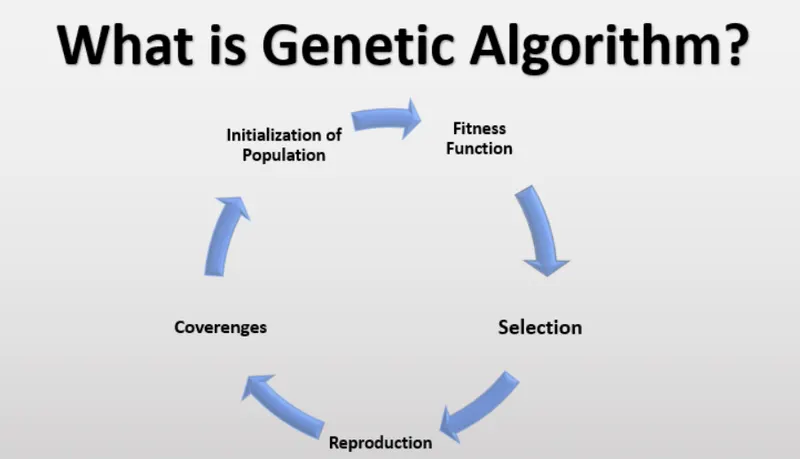

Chart descrinig the Genetic algorithm:
Syntax of 'ga' :
[opt_co,fval,exitflag,output,population,score] = ga(fit_fun,nvar,Aeq,beq,A,B,lb,ub,nonlcon,options)
outputs:
1.opt_co = co-ordinates of the optimum soluitons.
2.fval = optimum soluiton value.
3.exitflag = tells what is the stopping criteria.
4.Outputs - tells information about ga number of iterations , population size and stopping criteria.....
5.population - final population.
6.score - final popualtion fitiness value.
Inputs:
1.fit_fun - fitness function , always must be a handle.
2.nvar - Number of decision variables.
3.Aeq - L.H.S side , containing the coefficients of the linear equality constraints.
4.beq - R.H.S side , containing the numeric value of linear equality constraints.
5.A - Similar to Aeq , but A contains linear inequality constraints.
6. B - similar to B,contains for linear inequality constraints.
7 . lb - Lower bound of decision variables.
8 . ub - upper bound of decision variables.
9 . nonlcon - function handle , contains information non-linear equalities and inequalities constraints.
10. optoins - options used to change default values of ga , if required.
Fitness function:
f1=(sin((5.1⋅π⋅x)+0.5))6f1=(sin((5.1⋅π⋅x)+0.5))6
f2=(sin((5.1⋅π⋅y)+0.5))6f2=(sin((5.1⋅π⋅y)+0.5))6
f3=exp(-4⋅log(2)⋅(x-0.0667)20.64)f3=exp(−4⋅log(2)⋅(x−0.0667)20.64)
f4=exp(-4⋅log(2)⋅((y-0.0667)20.64)f4=exp(−4⋅log(2)⋅((y−0.0667)20.64)
(f=-1⋅f1⋅f2⋅f3⋅f4)(f=−1⋅f1⋅f2⋅f3⋅f4)
Code snippet for fitness function:
function output_func_value = stalgamite(input_vec)
% this function used to get the value of the function at given inputs
% storing the first value in input_vec in x
x = input_vec(1) ;
% storing the second value in input_vec in y
y = input_vec(2) ;
% splitting total function into parts for simplicity
f1 = (sin((5.1*pi*x)+0.5))^6;
f2 = (sin((5.1*pi*y)+0.5))^6;
f3 = exp(-4*log(2)*((x-0.0667)^2)/0.64);
f4 = exp(-4*log(2)*((y-0.0667)^2)/0.64);
% Final equation
% output_func_value , stores the function value at given inputs
% -ve sign for to find the maximum output of the fitness function.
output_func_value = (-1*f1*f2*f3*f4);
end
This snippet for defining the fitness function.
-ve sign used to find the maximum value of the fitness function , as ga only finds the optimum minimum value.
Code snippet:
close all % to clear the figures at present.
clear all % to clear the data in worksapce.
clc % to clear the command window.
% creating the range of x and y axis values
x = linspace(0,0.6,150);
y = linspace(0,0.6,150);
% Creating a 2-D grid for to make the size of x and y equal
[xx,yy] = meshgrid(x,y);
% storing the length of x in variable n
n = 50;
% creating an array to store the function values at all inputs
%f_out = NaN(n,n);
% creating an input array to store the x and y value at the current iterations
%input = NaN(1,2);
% for loop to calculate the function value of the objective function.
for i = 1:length(x)
for j = 1:length(x)
inputs(1) = xx(i,j);
inputs(2) = yy(i,j);
f_out(i,j) = stalgamite(inputs);
end
end
% rng used to create a same random numbers over executions.
% study 1
% this ga gives the global maxima of the objective function , considered no
% bound constraints , non linear/linear inequality and equality
% constraints.
for i = 1:n
[inpu,fval(i)] = ga(@stalgamite,2);
xopt(i) = inpu(1);
yopt(i) = inpu(2);
end
figure(1)
subplot(2,1,1)
surfc(xx,yy,f_out)
hold on
plot3(xopt,yopt,fval,'marker','o','markersize',5,'markerfacecolor','r')
xlabel('x values')
ylabel('y values')
zlabel('f_out values')
title('function values for given inputs')
shading interp
subplot(2,1,2)
plot(-fval)
xlabel('No. of iterations')
ylabel('Function maximum')
title('No.of iterations vs Function maximum')
%% Study 2
% Now , considering the bound constraints of decision variable.
% Lower bound = [0 0]
% Upper bound = [1 1]
% Considering no.of iterations as 50
tic
for j = 1:n
[inpu1,fval1(j)] = ga(@stalgamite,2,[],[],[],[],[0 0],[1 1]);
optimum_coordinate1(j) = inpu1(1);
optimum_coordinate4(j) = inpu1(2);
end
stop_time2 = toc;
figure(2)
subplot(2,1,1)
surfc(xx,yy,f_out)
hold on
plot3(optimum_coordinate1,optimum_coordinate4,fval1,'marker','o','markersize',5,'markerfacecolor','r')
xlabel('x values')
ylabel('y values')
zlabel('f_out values')
title('function values for given inputs')
shading interp
subplot(2,1,2)
plot(-fval1)
xlabel('No. of iterations')
ylabel('Function maximum')
title('No.of iterations vs Function maximum')
%% Study 3
%Changing the population size , using optimoptions
options = optimoptions('ga');
options = optimoptions(options,'PopulationSize',300);
for j = 1:n
[inpu1,fval2(j)] = ga(@stalgamite,2,[],[],[],[],[0 0],[1 1],[],[],options);
optimum_coordinate3(j) = inpu1(1);
optimum_coordinate4(j) = inpu1(2);
end
stop_time3 = toc
figure(3)
subplot(2,1,1)
surfc(xx,yy,f_out)
hold on
plot3(optimum_coordinate3,optimum_coordinate4,fval2,'marker','o','markersize',5,'markerfacecolor','r')
xlabel('x values')
ylabel('y values')
zlabel('f_out values')
title('function values for given inputs')
shading interp
subplot(2,1,2)
plot(-fval2)
xlabel('No. of iterations')
ylabel('Function maximum')
title('No.of iterations vs Function maximum')
Step explanation of code:
1. At first , commands to clean the data on present interface.
2. defining the range of x and y values.
3. using meshgrid , to create a 2-D coordinate or grid of x and y values.
4. used for loop , to find function values for all values of x and y combination values.
5. ga used to find optimum values and returns optimum coordinated and optimum function value.
6. plotted the surf plot , and optimum values in the same plot using subplot command , iterations vs function optimum values in next subplot.
7. This code for without any constraints.
8. Shading interp used for to remove the gridlines on the surf plot.

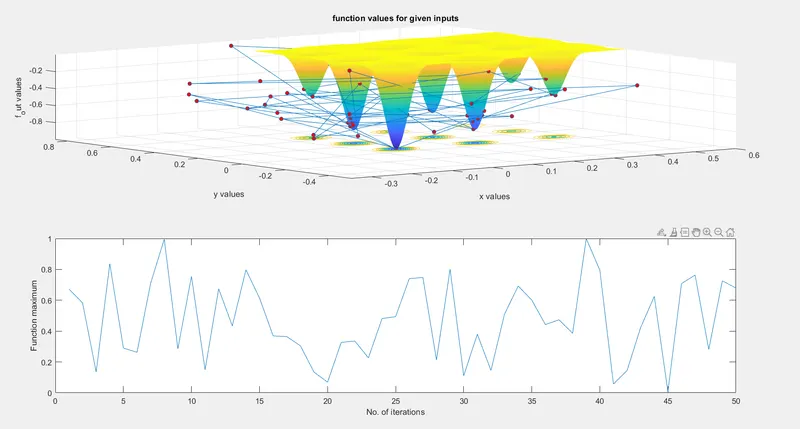

Output :
8. In second study , considered bound constraints.
9 . Lower bound as [ 0 0 ] , Upper bound as [ 1 1 ] , means decrease the range for matlab to work.
10 . code same as with no constraints.

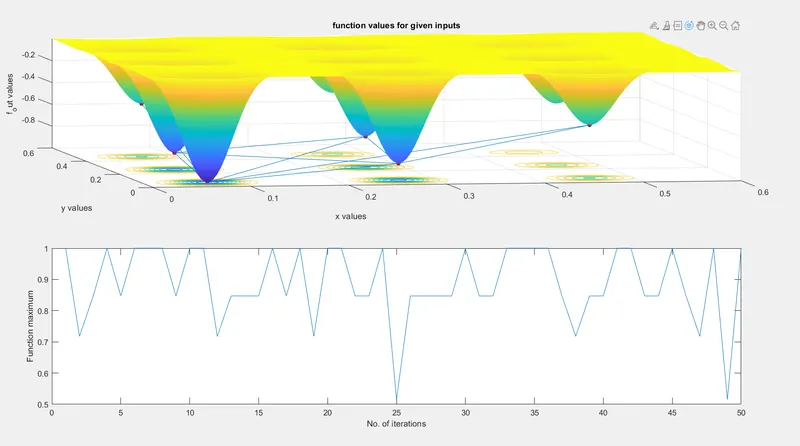

Output :
as can observe that , acuuracy increased to find optimum value.
11. Now , study by increasing the population size.
12. code same.

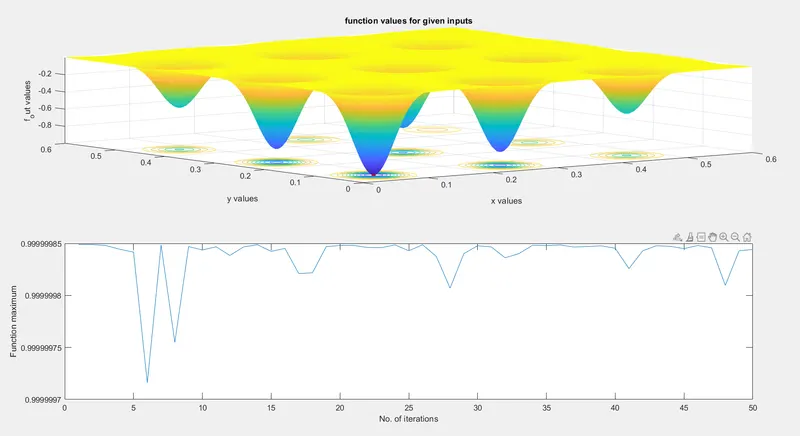

Output:
as you can onserve the red point over the maximum peak , indicating the maximum value.

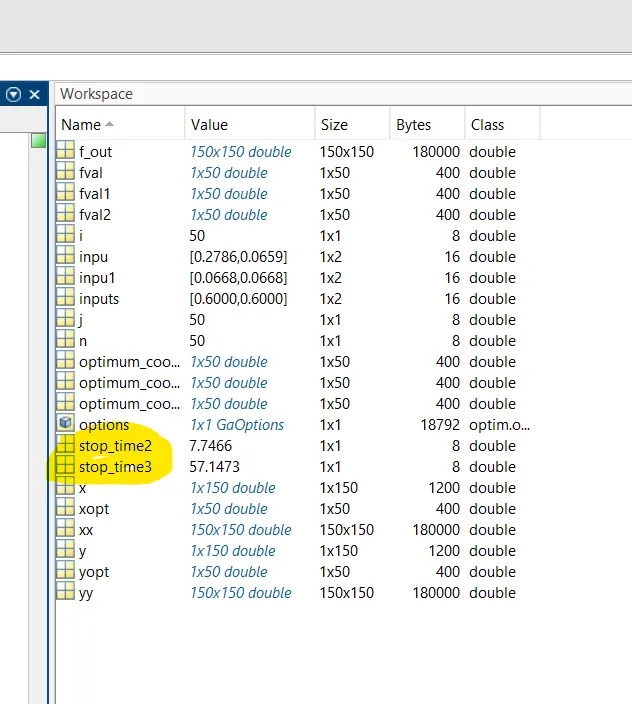

Outputs of code:
Conclusion :
1. Accuracy/precesion increased on by increaing the populaiton size , and totally depends on the constraints.
2. Got a single global maximum value over the defined range.
