Fender Design - Wheel Arch Challenge

Title:- Design Fender- Wheel Arch.

Objective:-

                       In this challenge to Calculate the Wheel Arc area and prove whether the car will pass the standards or Not.

Introduction:-

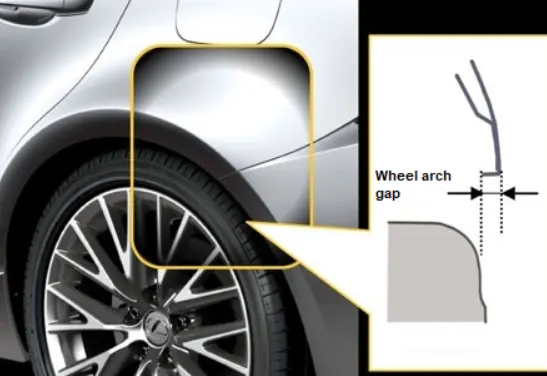

Wheel Arch-

                   It could be a half circle profile over wheels outlined for encasing tire inside the bumper The wheel curve is planned considering all conceivable movements the tire experiences whereas the vehicle is in movement.

The foremost critical body alter was that the front wheel curve was cut higher into the fender.Corrosion had happened around the sprinkle plate at the back of the wheel arch.The car has huge, high-definition headlights that expand to the wheel arch.

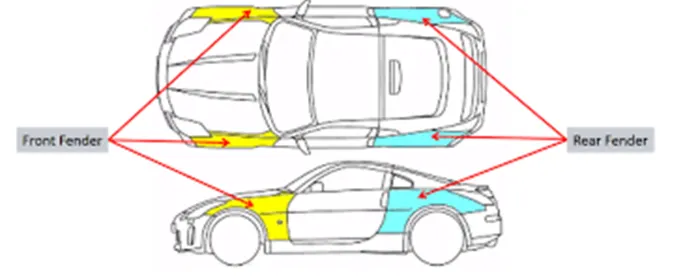

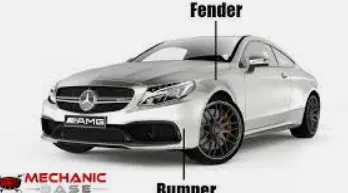

Fender is the portion of a car that secures and outlines its wheels and keeps mud from sprinkling it. Most present day vehicles have bumpers on their front wheels. It is the portion of a car, truck or bike that encompasses the wheel offer. The essential work of a bumper is to anticipate earth and flotsam and jetsam from being tossed into the discuss by the tire. The bumper is found over the wheels of the vehicle. As such, there are four bumpers on a ordinary vehicle: front right, front cleared out, raise right and raise cleared out.

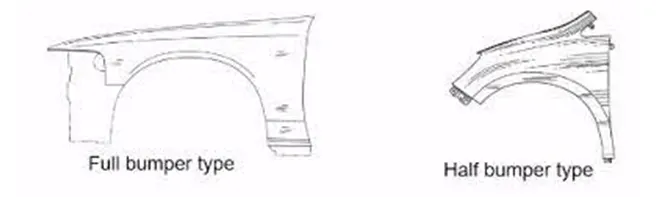

TYPES OF FENDER:

Full fender type

Full fender type is conventional sort of bumper where more fabric utilization is watched. This sort is utilized in ancient plan of automobiles where it increments the by and large weight and in this way decreases execution. The support moreover moderately more due to more surface.

Half fender type

Half fender type is cutting edge plan where less fabric utilization is watched, so efficiency increments by lessening estimate of clear and hence giving more execution. The upkeep too moderately moo compared to full bumper sort.

EUROPEAN REGULATION:

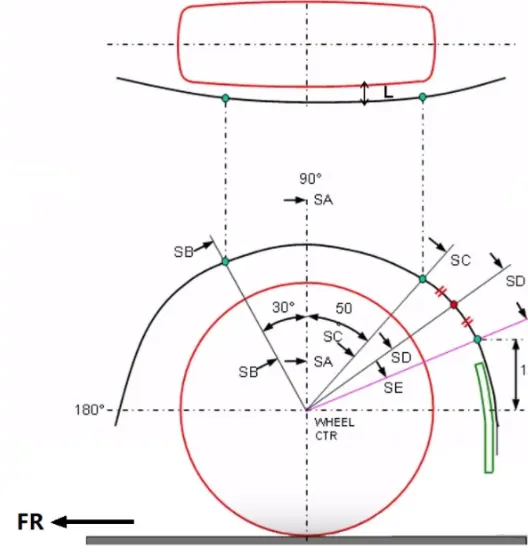

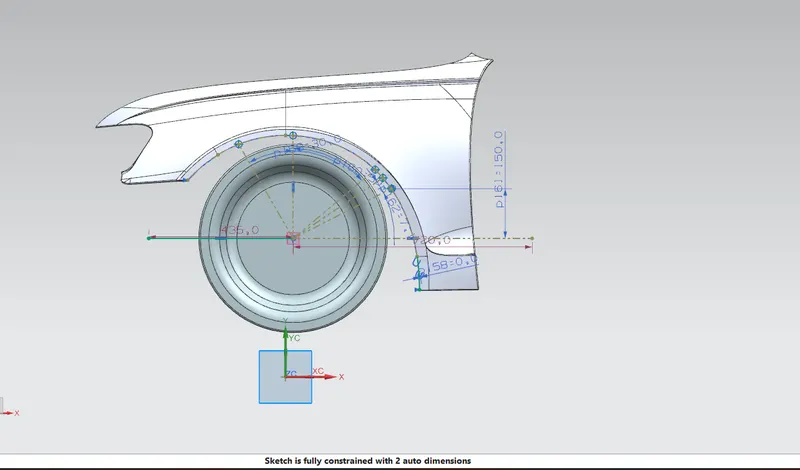

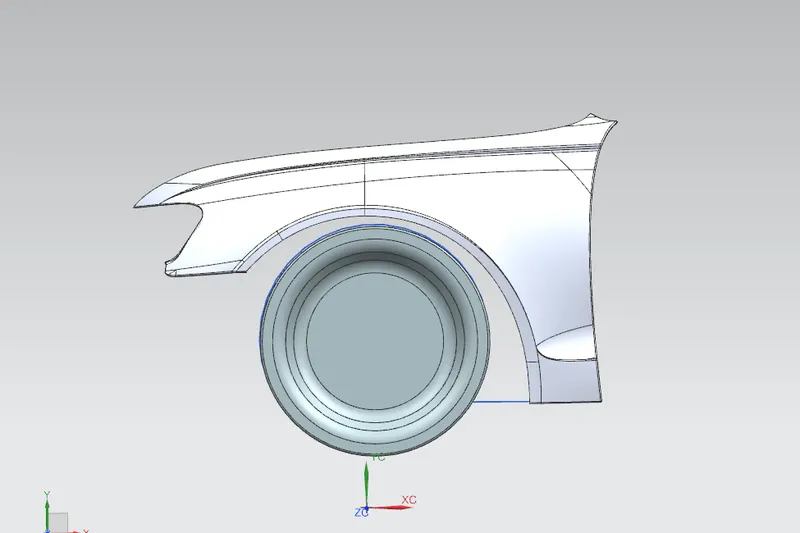

Measure CL L at section SA-SA-SB-SB-SC-SC-SD-SD-SE-SE and produce CL check chart to validate.

1. At all five sections the CL L value should be greater than 10mm to satisfy the European regulations.
2. Wheel guard requirement: the value of ‘a’ shall be more than 5mm at a line 30*forward and 50*rearward from the central vertical axis of axis of wheel.

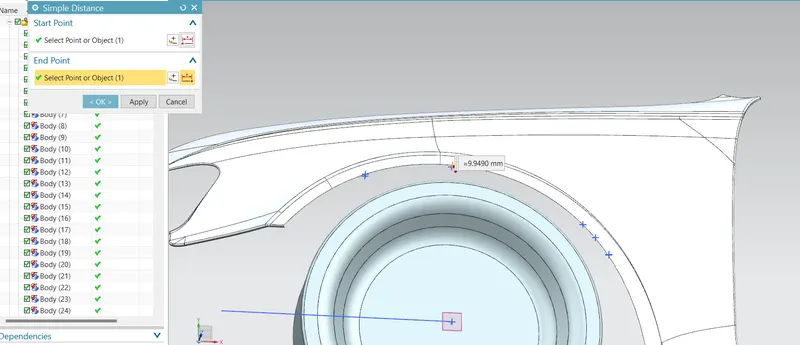

• Measuring "L" for the given Wheel and Fender at SA

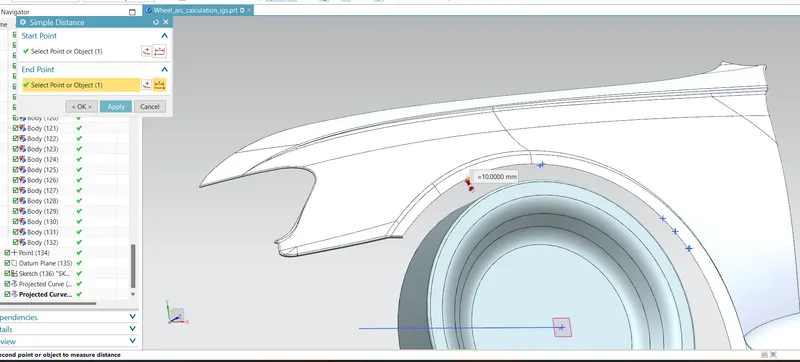

• Measuring "L" for the given Wheel and Fender at SB

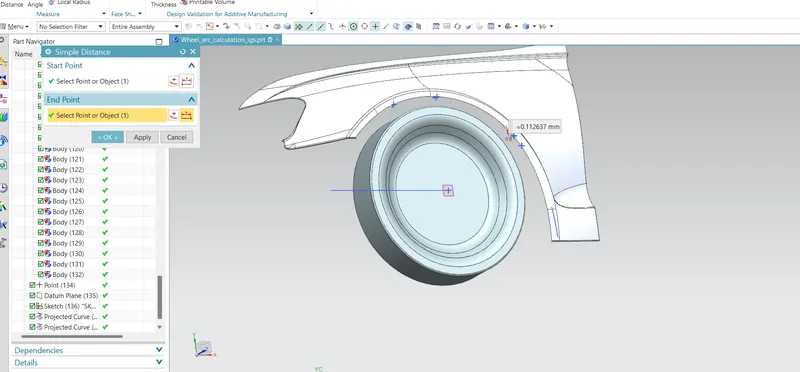

CMeasuring "L" for the given Wheel and Fender at SC

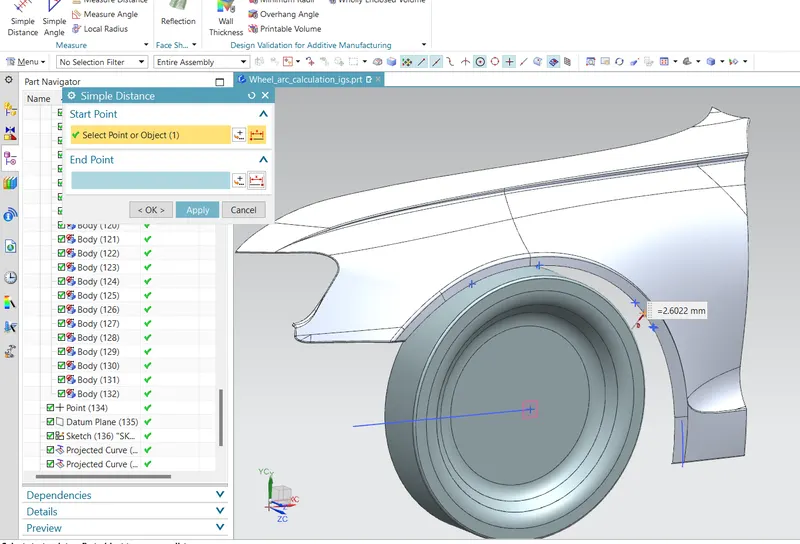

• Measuring "L" for the given Wheel and Fender at SD

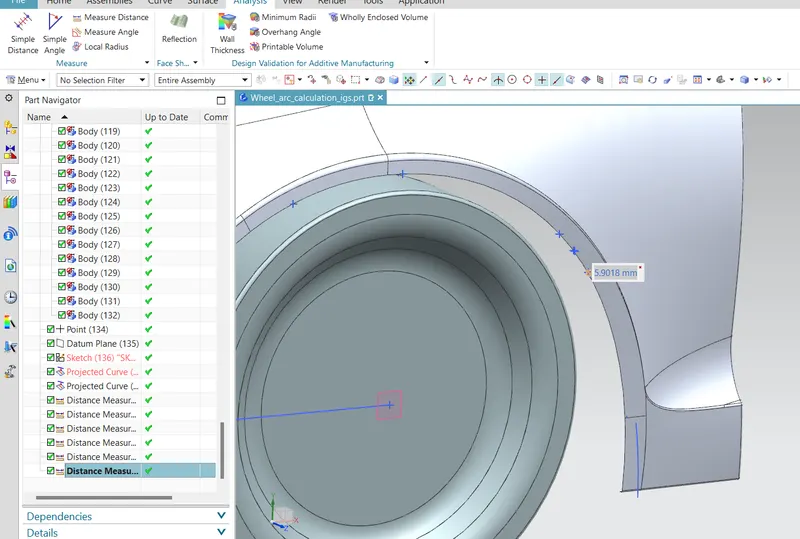

• Measuring "L" for the given Wheel and Fender at SE

TABLE

REGION	REQUIRED CLEARENCE	ACTUAL CLEARENCE	RESULTS
SA	10mm	9.9489mm	fail
SB	10mm	10mm	pass
SC	10mm	0.1126mm	fail
SD	10mm	2.6022mm	fail
SE	10mm	5.9018mm	fail

CONCLUSION

      From the above results we can conclude that the Fender does not pass the European Regulations, as the minimum clearance L between the Fender Wheel Arch and Wheel for vehicle and pedestrian safety is 10mm and this design does not meet the requirement.
