FENDER DESIGN :

AIM : To given fender skin to create a design , Follow the master section to create a drip area.

For the sill,bumper,baffle, and a pillar mounts are create us own design according to the Engineering

standards.

FENDER :

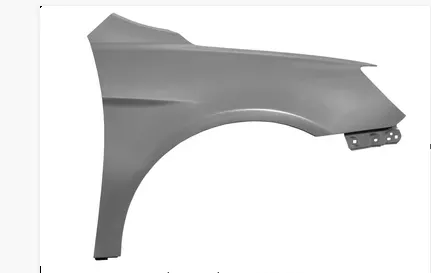

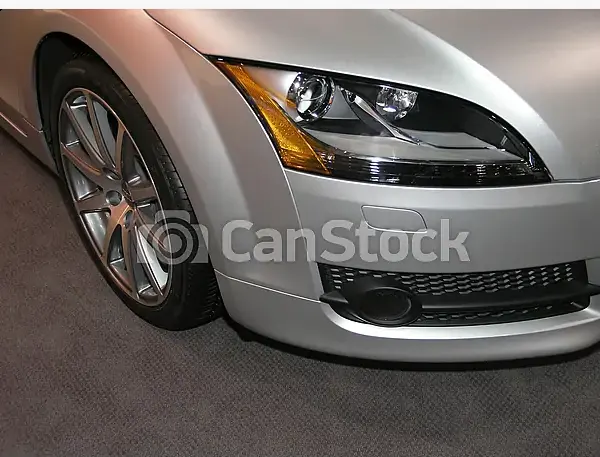

Fender is vechile body that frames a Wheel well (the fender underside). Its primary purpose is to prevent sand,

mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically

rigid and can be damaged by contact with the road surface.

Sticky materials, such as mud, may adhere to the smooth outer tire surface, while smooth loose objects,

such as stones, can become temporarily embedded in the tread grooves as the tire rolls over the ground.

These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy

to the attached objects. For a vehicle moving forward, the top of the tire is rotating upward and forward, and

can throw objects into the air at other vehicles or pedestrians in front of the vehicle.

Fenders are two types :

Full bumper type fender : Full bumper type fender are used in old cars and it is covers a lights also.

Half bumper type fender : Half bumper type fender are used in current market,its reduce sheet of the

material ,to insert a lights also in fender and looks nice fender.

MOUNTINGS :

Bumper :

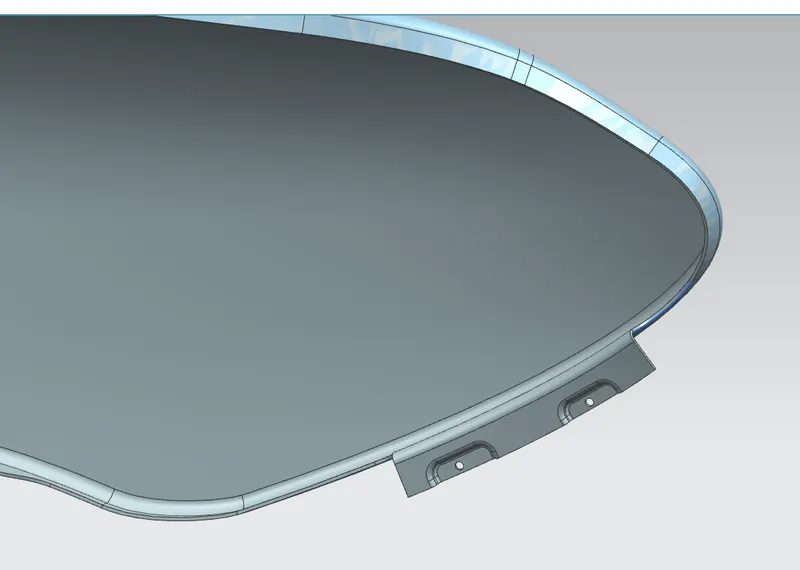

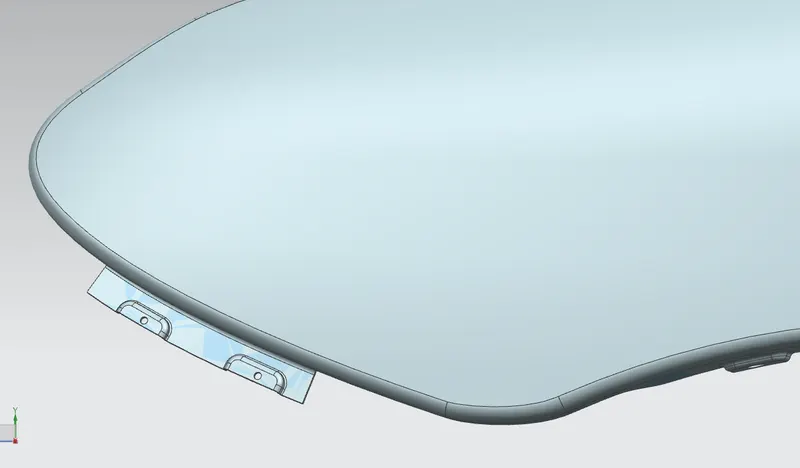

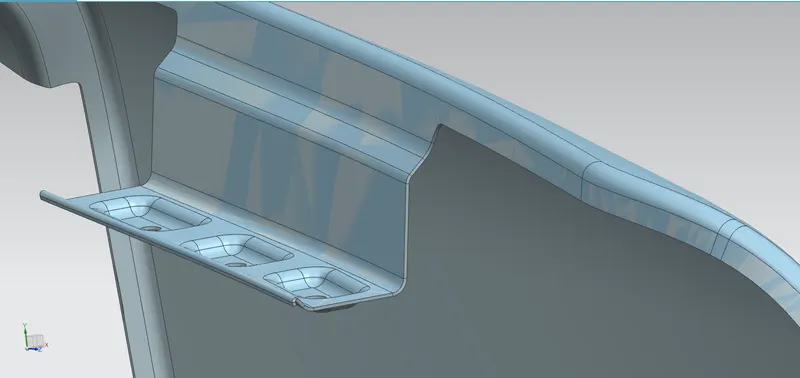

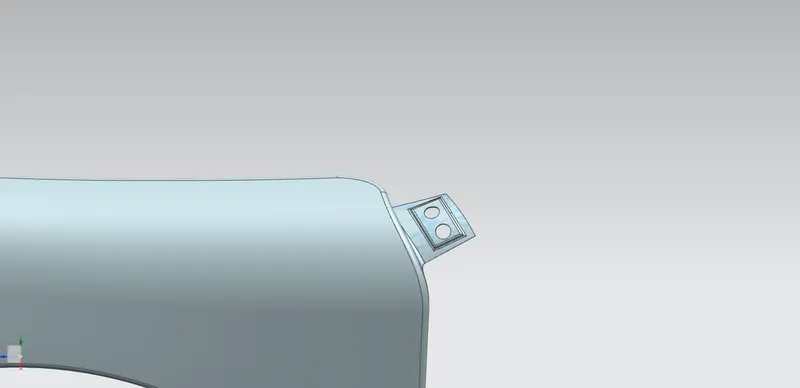

Create of Bumper mount design :

Drip :

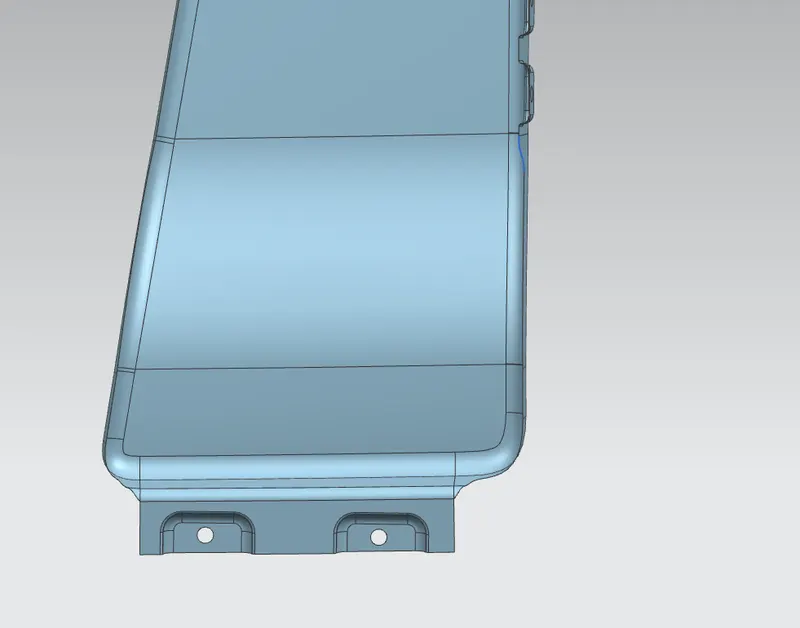

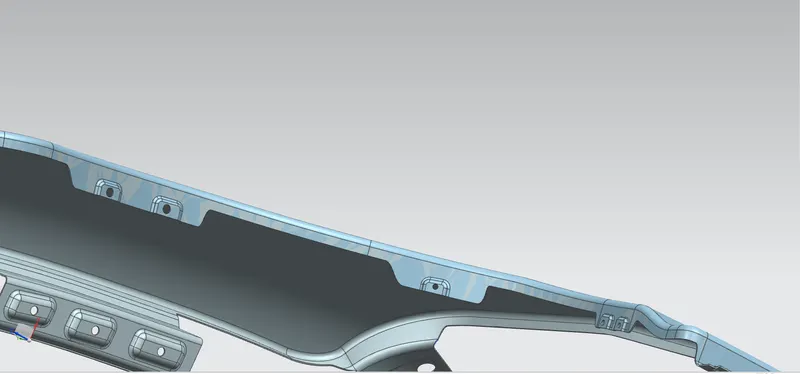

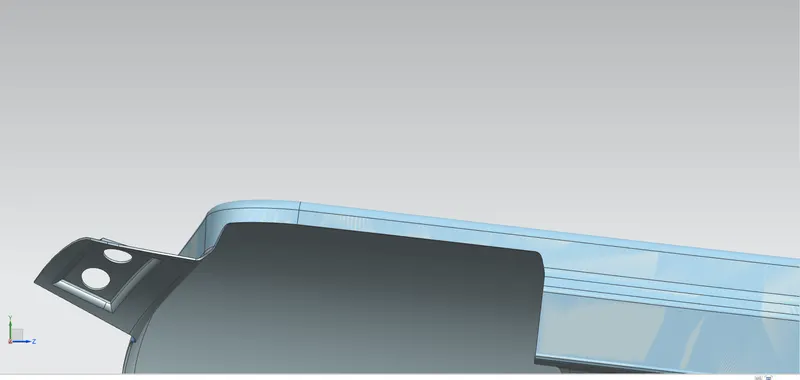

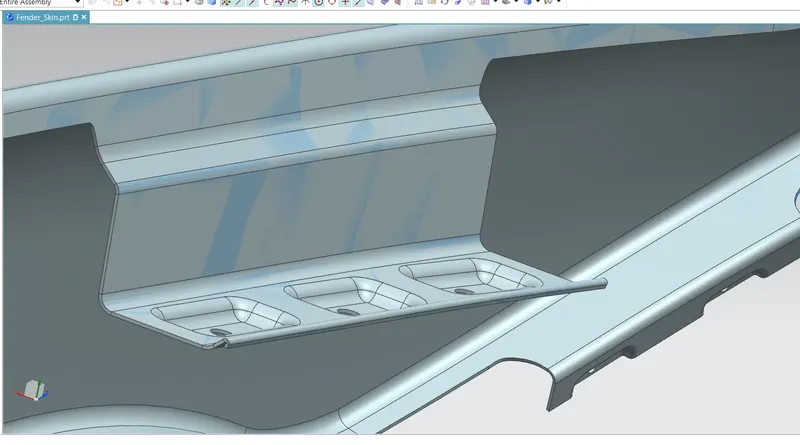

Create of Drip mount design :

A Pillar :

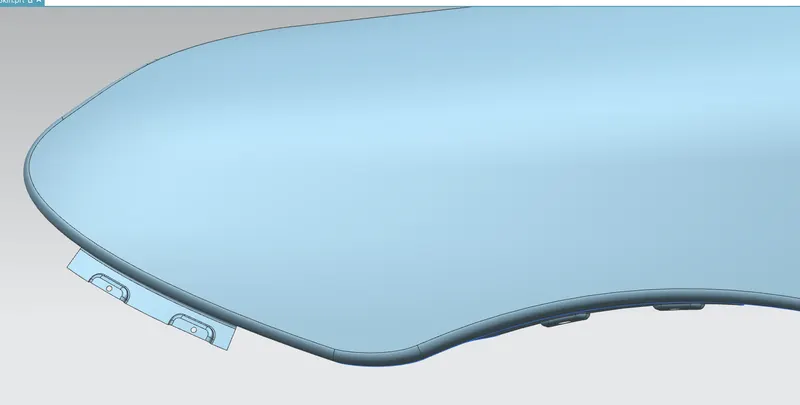

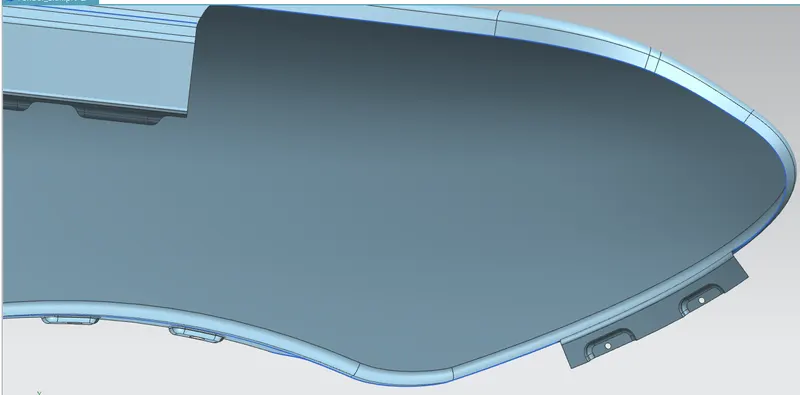

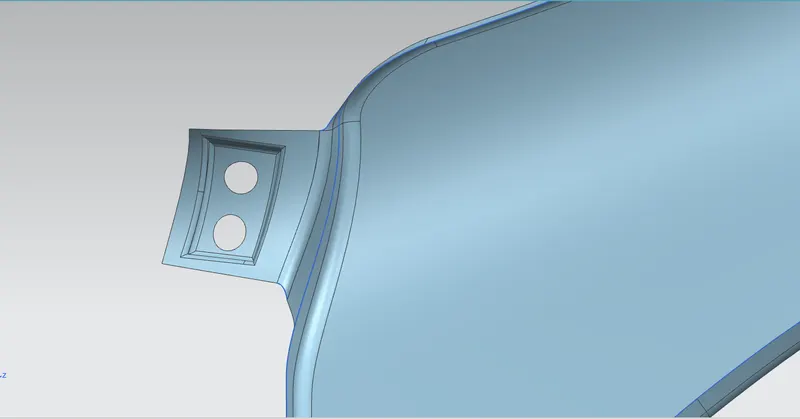

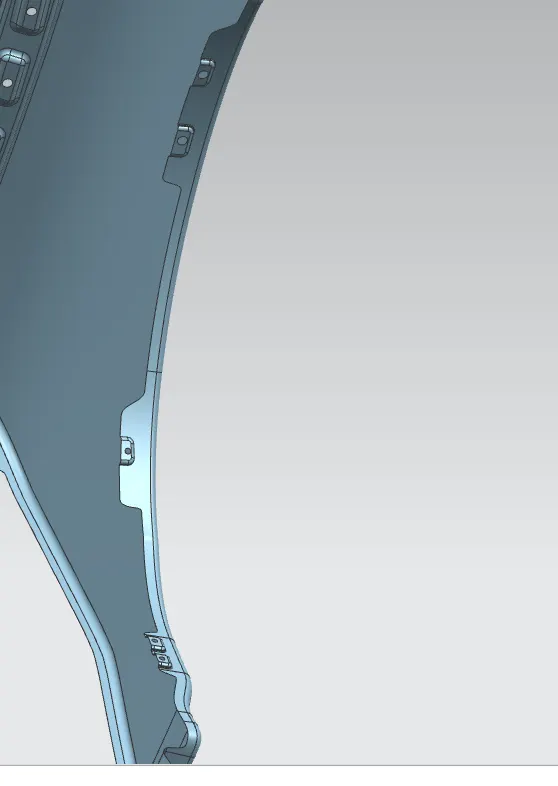

Create of a pillar mount design :

Sill :

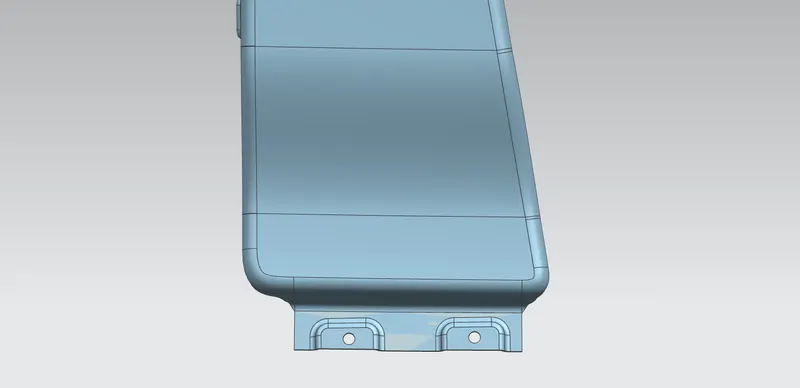

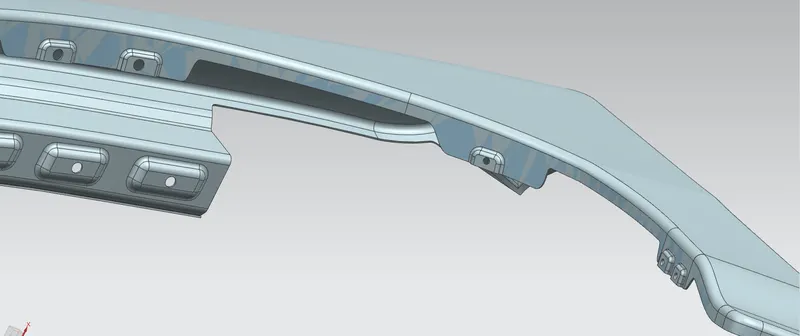

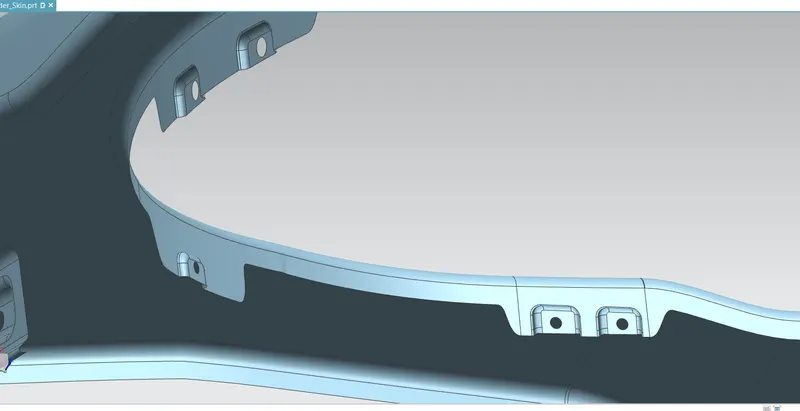

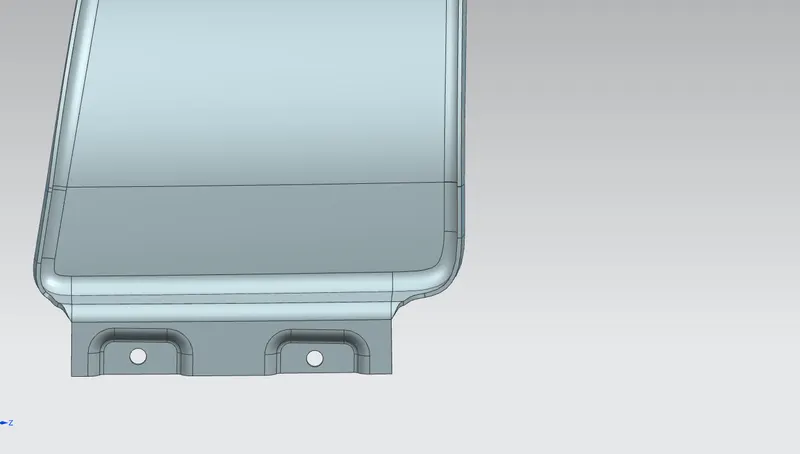

Create of sill mount design :

Cowl :

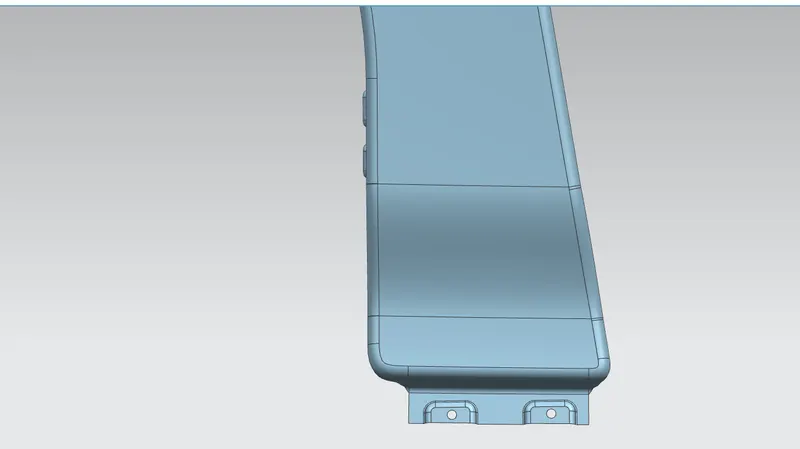

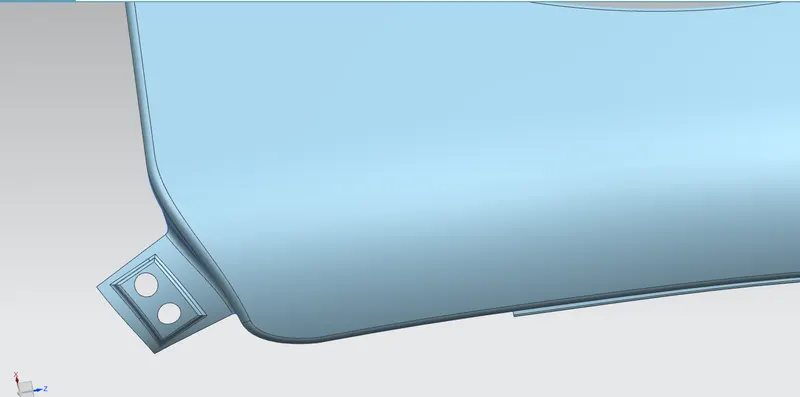

Create of cowl mount design :
