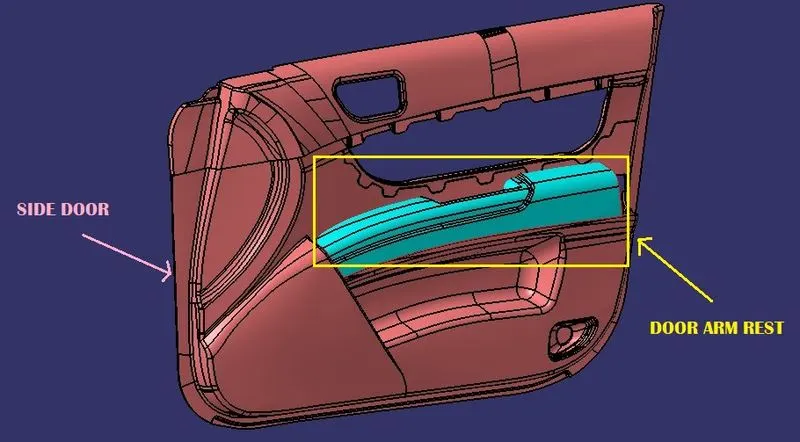

DOOR ARM REST

AIM: Creating the Door Arm Rest component through the given Class-A surface of 2.5 mm thickness with the tooling axis meeting the requirements of the draft angle and at the end performing the Draft analysis on the model.

PROCEDURE REQUIRED DRAFT ANALYSIS:

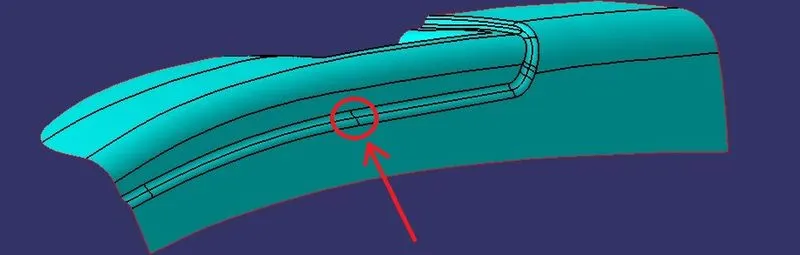

STEP 1: Ensure there is no gap between the two neighbouring surfaces.

Operations>Boundary>definition>select component

STEP 2: Tooling Axis : Tooling axis is the direction in which mold or core and cavity is opened.

We have to check all possible tooling directions in all the three axes. When we are deciding the tooling axis we have to make sure that all the faces should be visible to that tooling axis, no face should be hidden.

For this component the Z axis will be the best tooling axis as we can see all the faces of the component and can be cleared in the x and y axis direction.

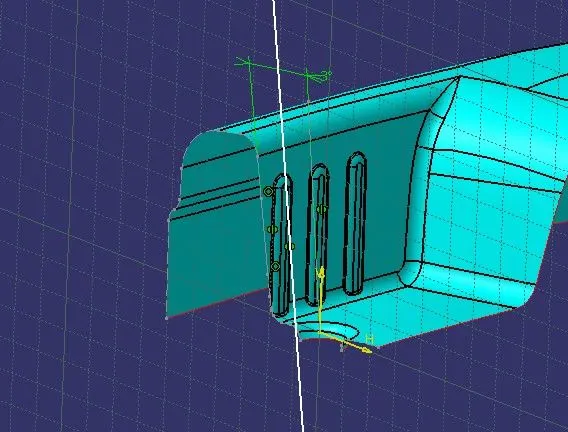

STEP 3: To make tolling axis for this model we have to follow following steps

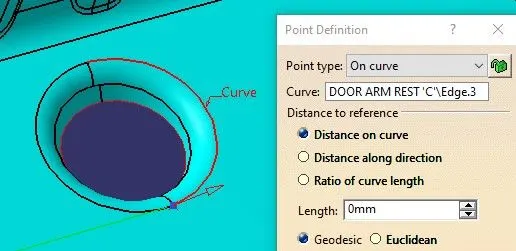

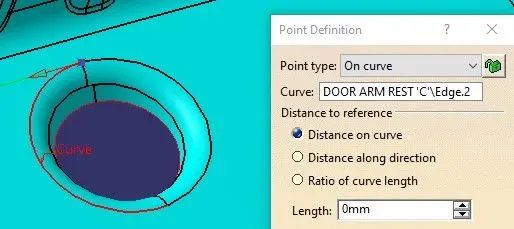

• Create a point on the curve of the circular portion.

• Create another point on the same curve of the circular portion.

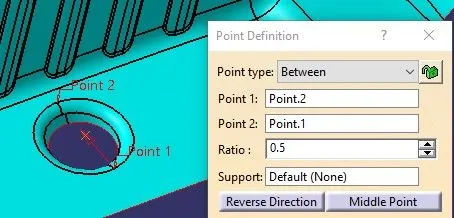

• Create a Mid Point through both points.

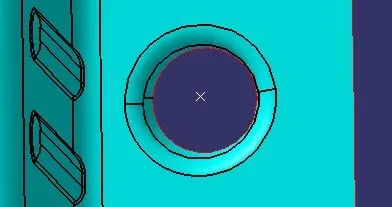

• We can see a midpoint as below

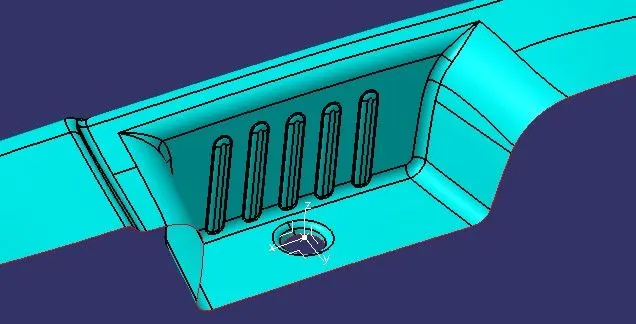

STEP 4: Pace the axis system on that point.

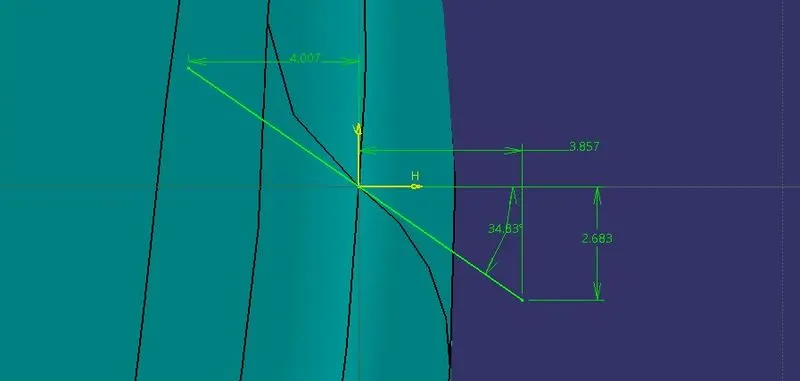

STEP 5 :Sketch for tooling axis along X direction.

STEP 6 :Sketch for tooling axis along Y direction.

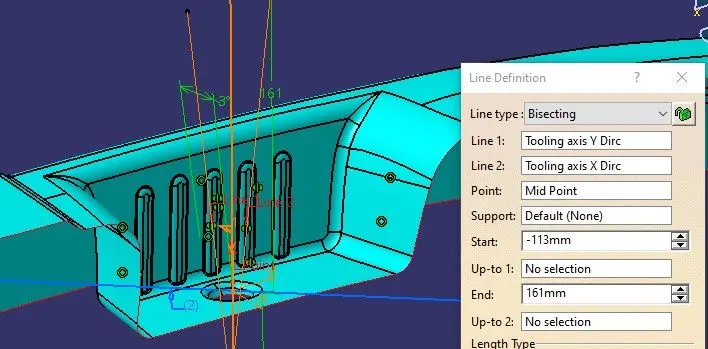

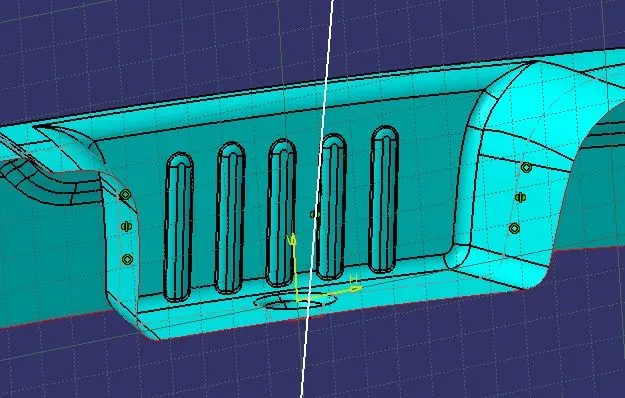

STEP 7 : Bisect tooling axis X and Y to get Component tooling axis.

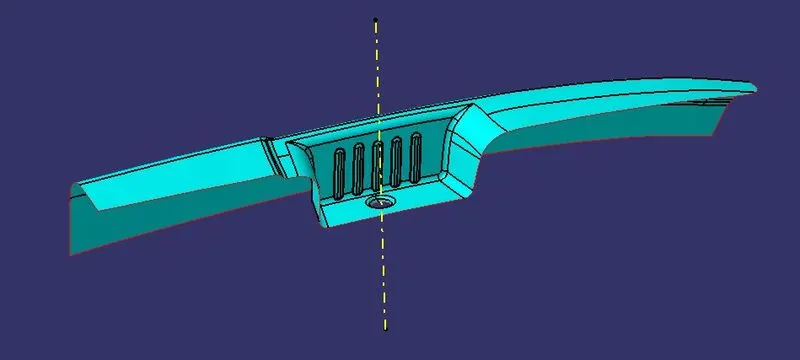

STEP 8 : Rename, change color and give thickness to the tooling axis so that it can be easily identified.

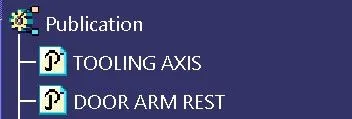

STEP 9: Publish Tooling Axis and Door Arm Rest Component.

Select this two in model tree>Toolbar>tools>publication>ok

PROCEDURE FOR DESIGN:

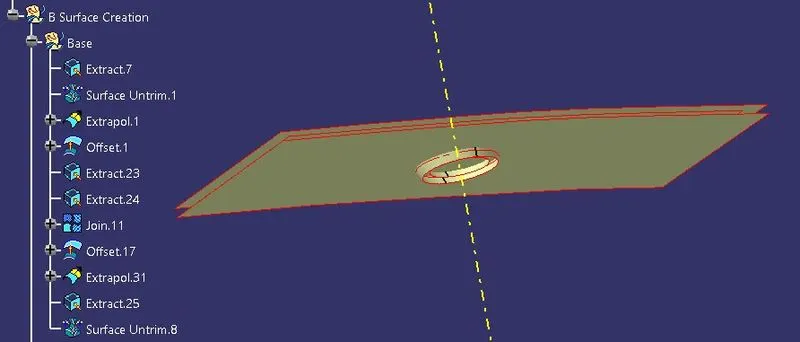

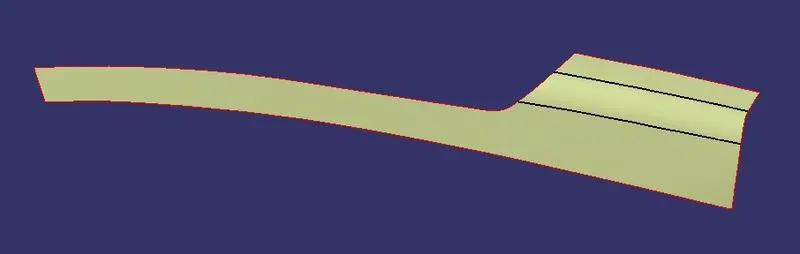

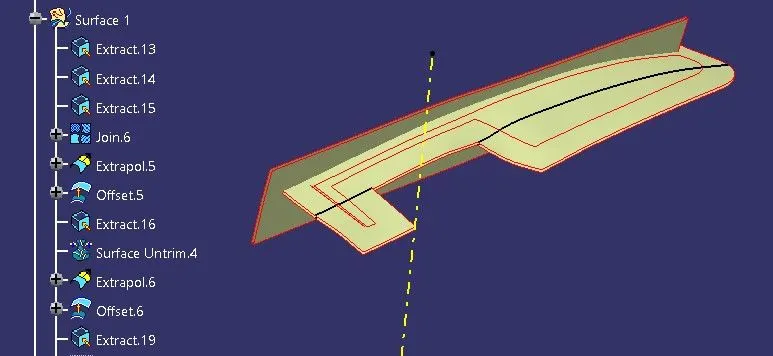

STEP 1: Extracting Surfaces from base of door arm rest.

• Extract the surface
• Untrim that extracted surface
• Trimming surface.
• Offset it inside to 2.5 mm

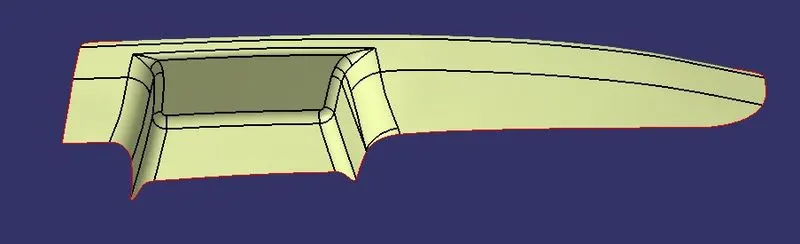

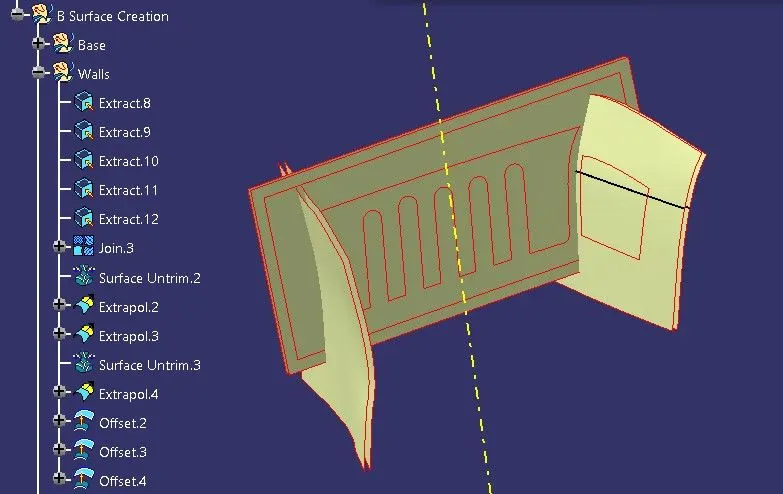

STEP 2: Extracting Surfaces from walls of door arm rest.

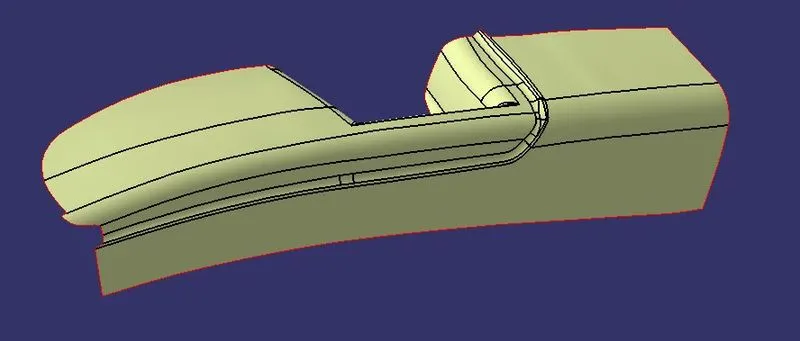

STEP 3: Extracting Surfaces from the first half surface of door arm rest.

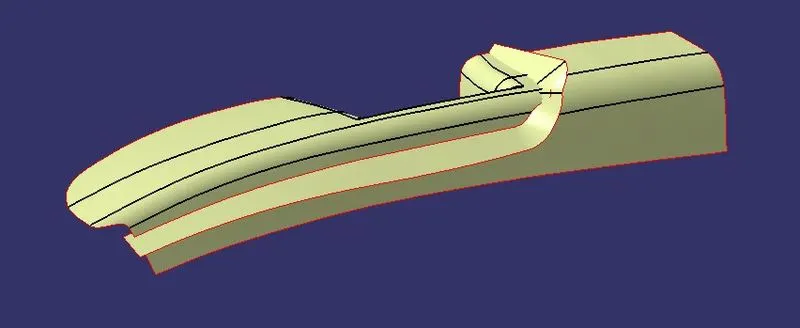

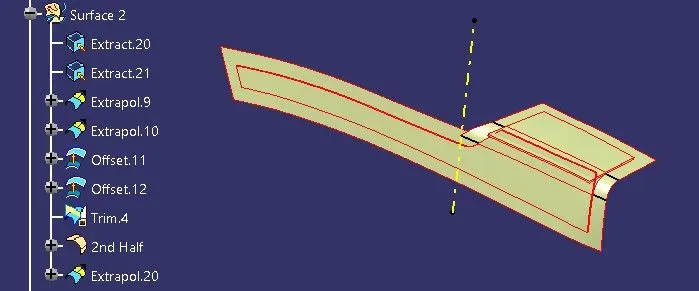

STEP 4: Extracting Surfaces from the second half surface of door arm rest.

STEP 5: Extracting Surfaces from Filleted portion of the component.

• Sketch

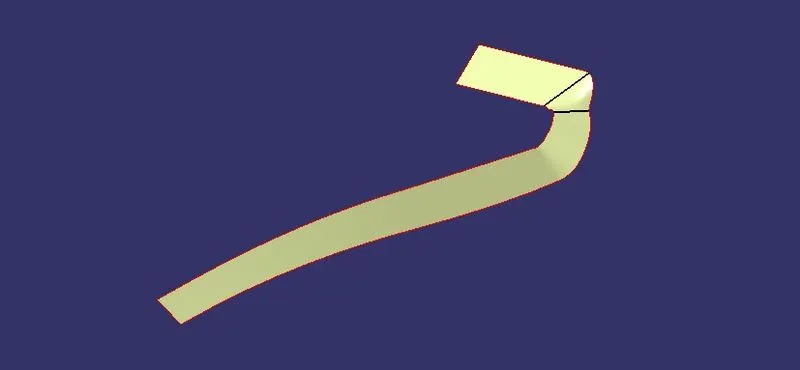

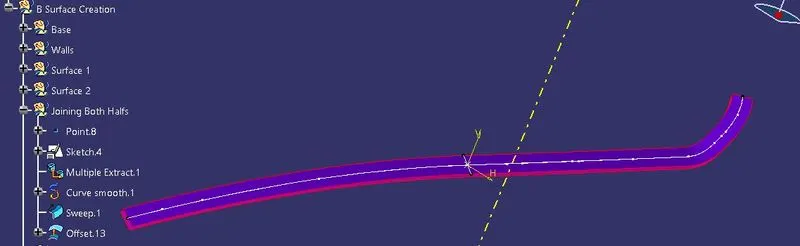

STEP 6: Sweeping Fillet Portion

• Multiple extract edges of the C surface filleted portion.
• Smooth the curve of multiple extracted lines.
• Sweep the sketched line along a smooth curve.
• Offset it to 2.5 mm below.

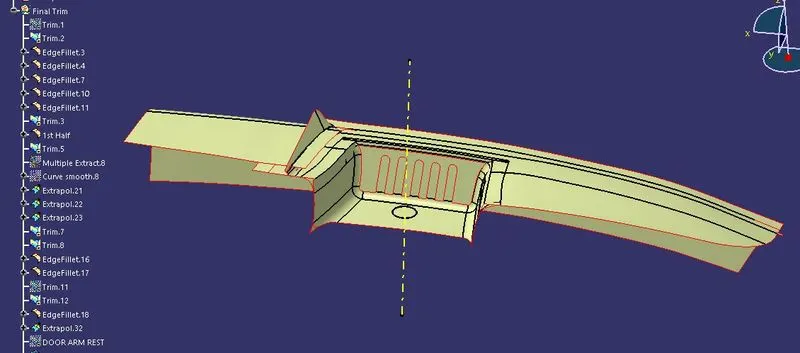

STEP 7: Trimming and giving edges radius in final trim.

STEP 8: Trimming first half, Second Half and Sweeped portion.

• First Half B surface of door arm rest component

• Second Half B surface of door arm rest component

• Sweeped Portion of door arm rest.

• Trimming all three B surfaces.

• Giving outward and inward fillet radius where both half bodies are joining.

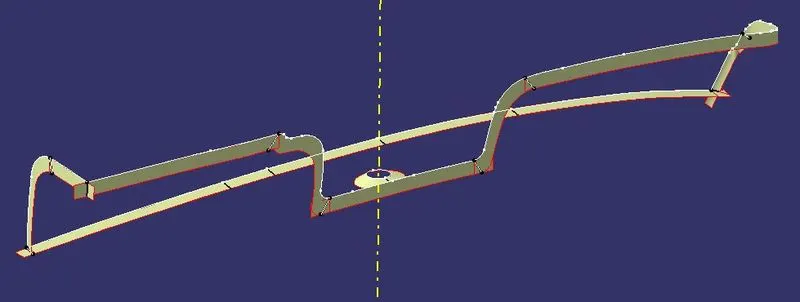

STEP 9: Extracting Sweeps from all the boundaries of A surfaces.

• Multiple extracting edges of A surfaces.
• Smoothing the curve of multiple extracted lines.
• Sweeping smooth curve with sweep with direction panel.
• Extrapolating corner of the edges.
• Trimming it in desired output.
• Joining all sweeps together.

 STEP 10: Join the final trim (sweeped surfaces) and A surface.

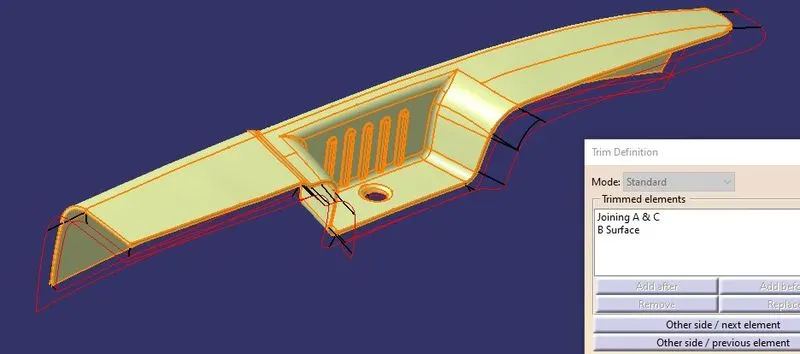

STEP 11: Trim C surface and B surface to get thicken part.

• We can see the thicken C surface after trimming as below -

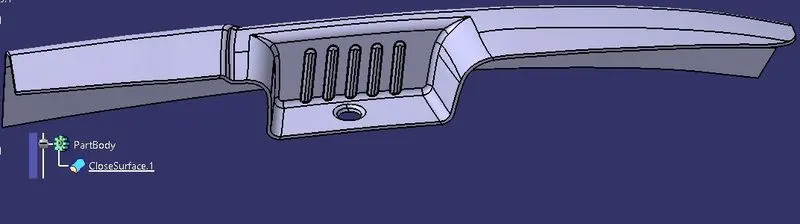

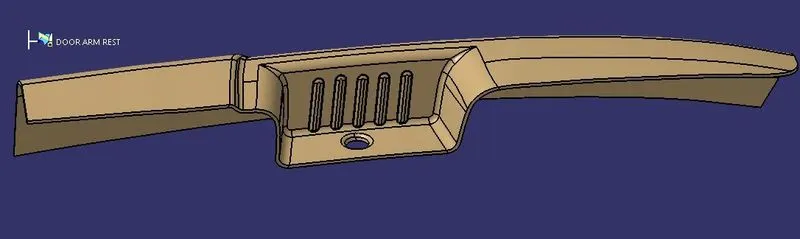

STEP 12 : Switch to Part Design Workbench, Define Part body to make Door Arm Rest C Surface into a solid component by surface panel.

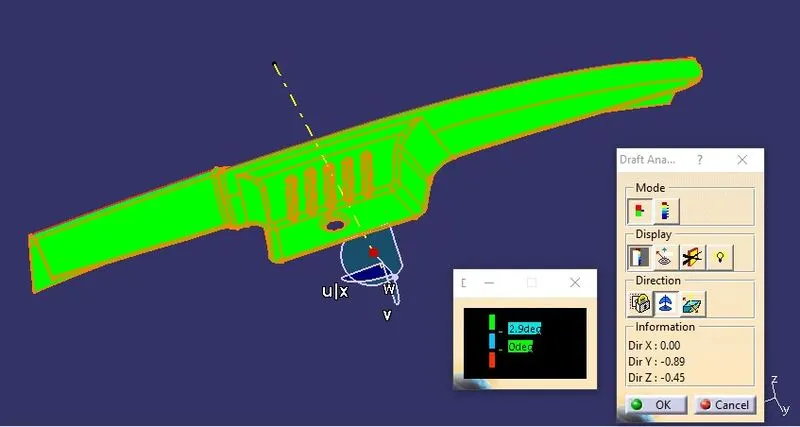

PROCEDURE TO CHECK DRAFT ANALYSIS : Check draft analysis on final part body.

STEP 1: Changing view mode to material.

View mode>view mode customisation>tick material>ok

STEP 2: Calling  Draft Analysis.

Toolbar>Insert>Analysis>Feature Draft Analysis

STEP 3:

• Drag the compass from the draft analysis box on the tooling axis and place it properly.
• Click on locks so the compass will get locked to the tooling axis.
• Click anywhere on the component.
• Click OK.

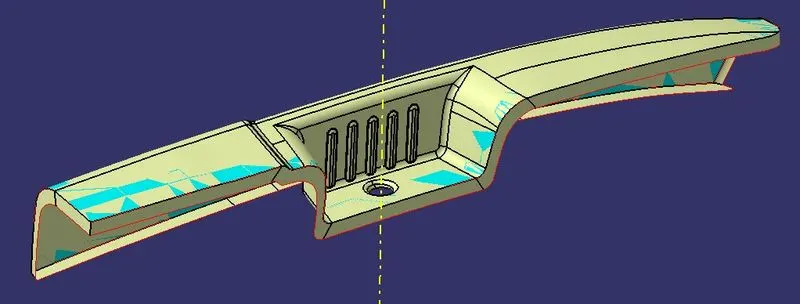

• Analysis the colour of the failing and passing surfaces.

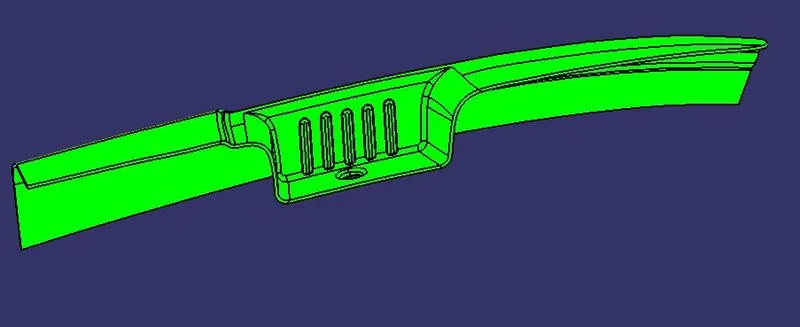

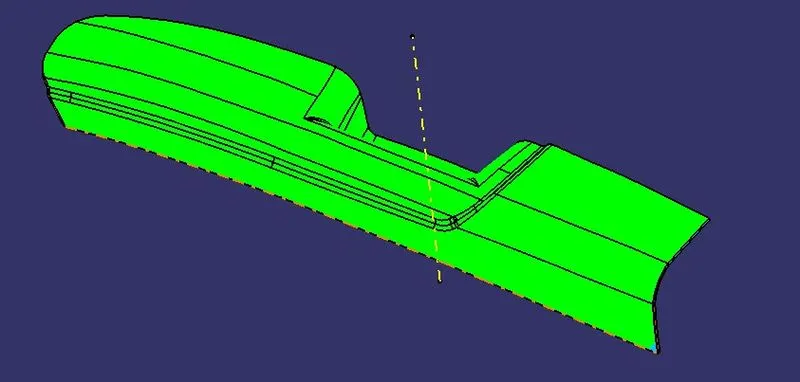

If a component is showing in Green colour that means our component is ready for manufacture.

NOTE : If we find zero degree or negative degree filing colour, we can fix it by changing draft angle, sweep direction, modifying properly tooling axis etc.

• Draft Analysis in Z Axis

• Draft Analysis in Y Axis

LEARNINGS :

• Extracting tooling axis by sketch.
• Inserting Axis system and Publication
• Extract,Multiple Extract, Untrim, Extrapolate, Offset, Trim, Joining the surfaces.
• Giving Fillet radius to inside and outside Offset surfaces.
• Split and Blend Surfaces.
• Extracting Tangential Boundary.
• Smoothing Boundary.
• Sweep with a direction and surface panel.
• Joining A and C surface and trimming it from B surface to get the required thicken body.
• Draft Analysis and fixing errors.
• Concept of Sliders.
