Design of backdoor
Aim : To Design The Back Door.
Objectives :
Use the provided styling surface to come up with a back door design, use appropriate design methodologies, and provide the necessary reinforcements and embosses.
Introduction :
In Generally,
A car door is a type of door opening, typically hinged on its front edge, but sometimes attached by other mechanisms such as tracks, for entering and exiting a vehicle. Doors most often integrate side windows for visibility from inside the car and can be locked to secure the vehicle.
Car doors may be manually operated or with power assist supplied by the vehicle. Powered doors or power doors may be found on minivans, luxury vehicles, or modified cars.
The trunk or luggage compartment is most often at the rear of the vehicle. Early designs had an exterior rack on the rear of the vehicle to attach luggage trunk. Later designs integrated the storage area into the vehicle's body, and eventually became more streamlined. The main storage compartment is normally provided at the end of the vehicle opposite to which the engine is located.
The back door is a hinged door/tailgate at the rear of the vehicle. It may be used for loading and unloading cargo, or to get passengers in and out, in case there are seats present at the rear. The back door comprises of certain components which form the back door assembly together.
Procedure :

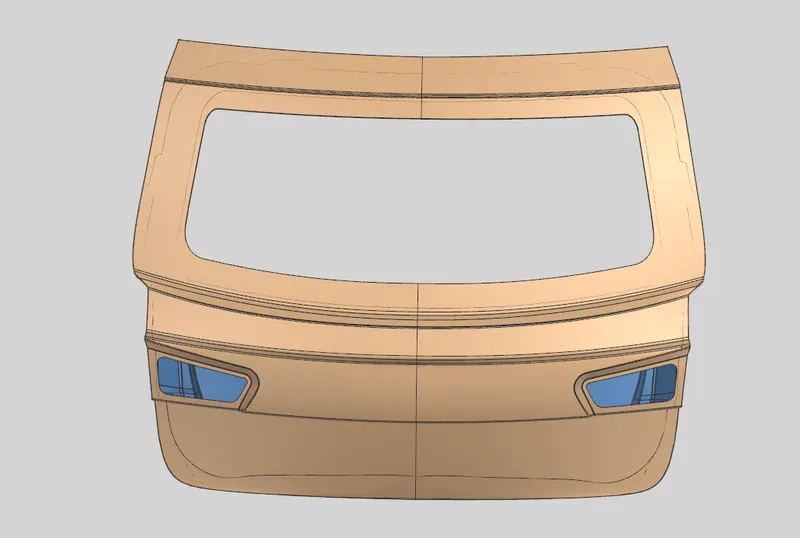

Given Class A Surface :

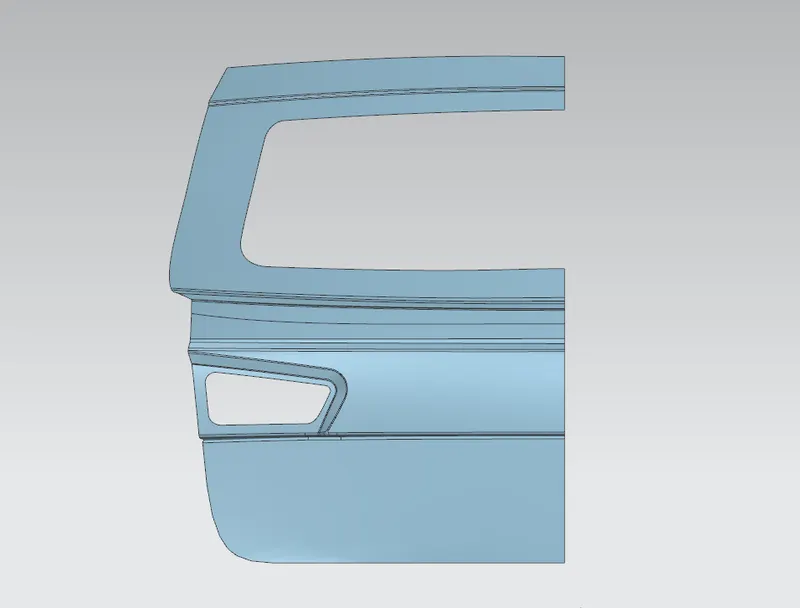

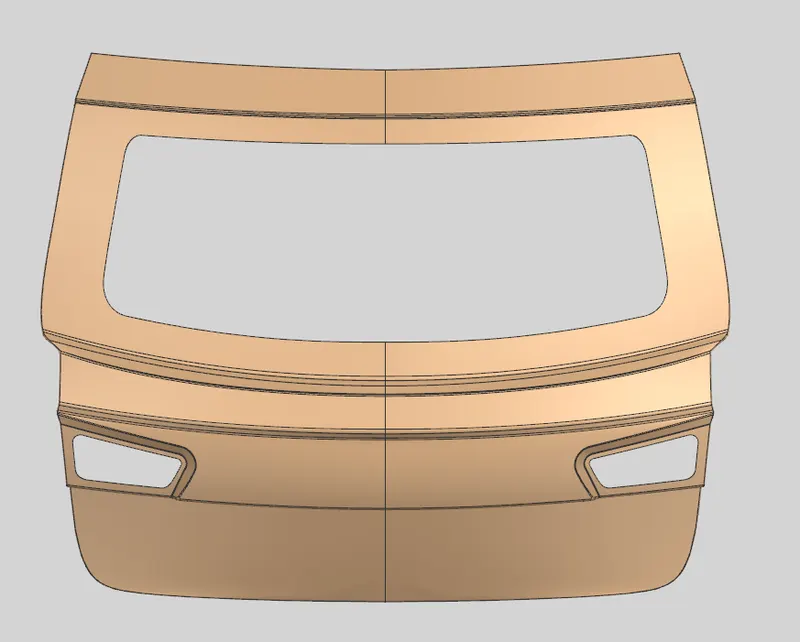

Class A From Given Source As Shown in Figure Given Below.
Inner Panel Construction :

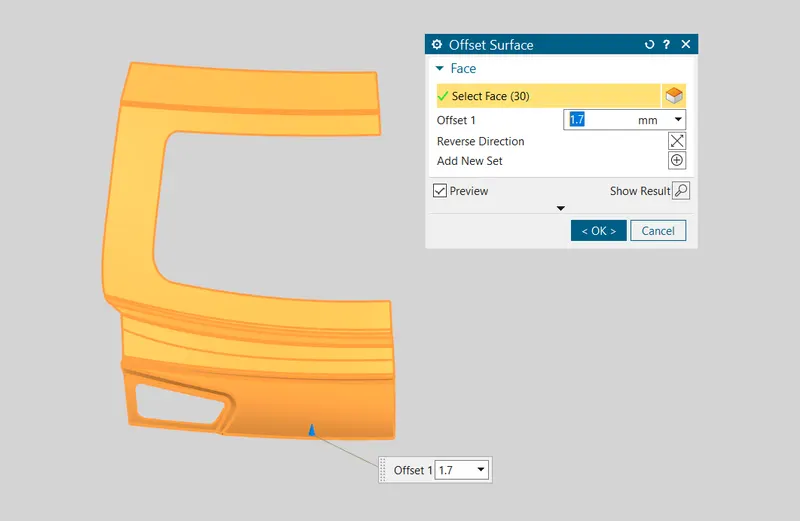

Offset The Given Surface As Shown in Figure Given Below.
Offset in Face :

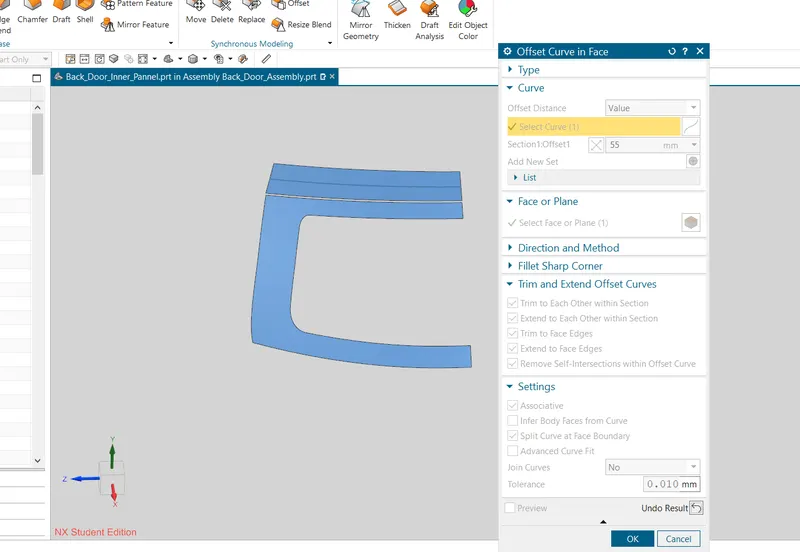

Offset Curve From Given Surface As Shown in Figure Given Below.

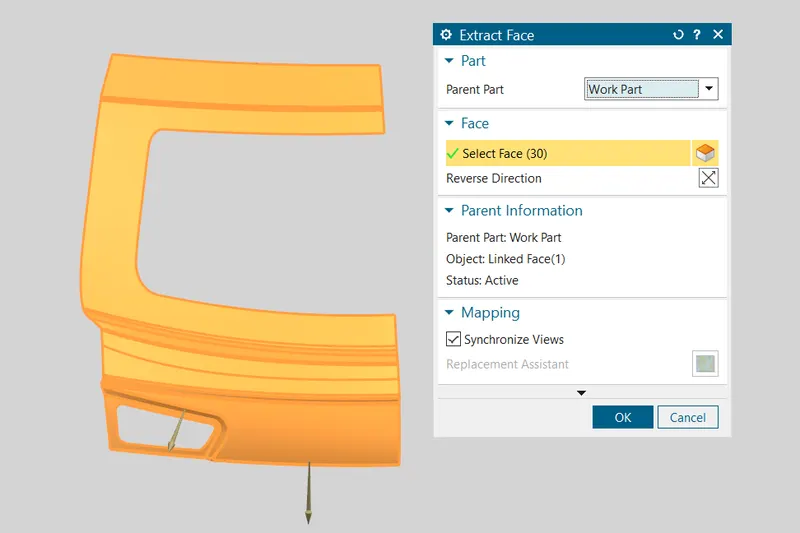

Extracting The Faces :
For Getting No Of Surfaces we need some Extracted Surfaces.
Tooling Axis :

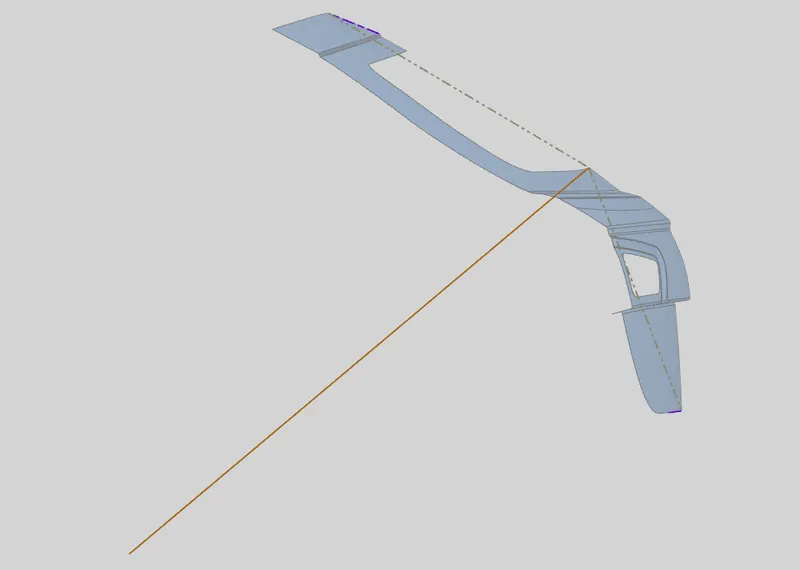

Take A Sketch & Draw The Tooling Axis As Shown in figure given below.
Sealing Flange :

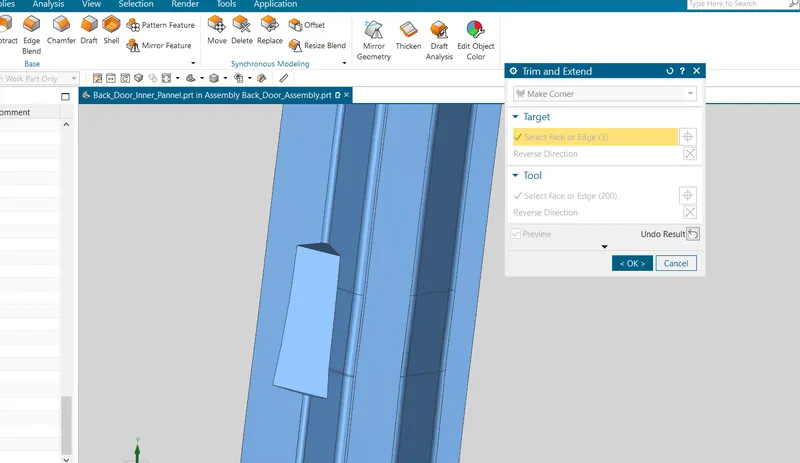

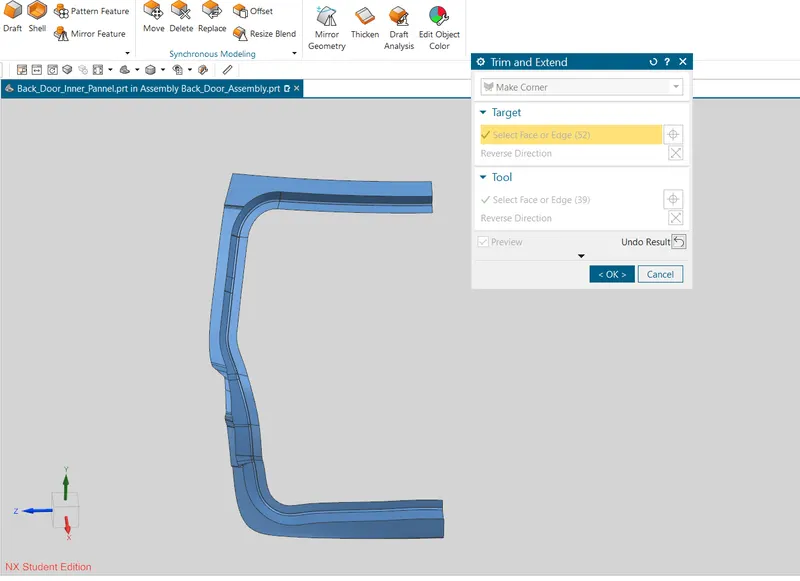

Apply Blends & Trim & Extends For Geeting Sealing Flange As Shown in figure given below.
Reinforcement Emboss :
Take A Sketch & Extend & Trim it properly To Form Emboss As Shown in figure given below.

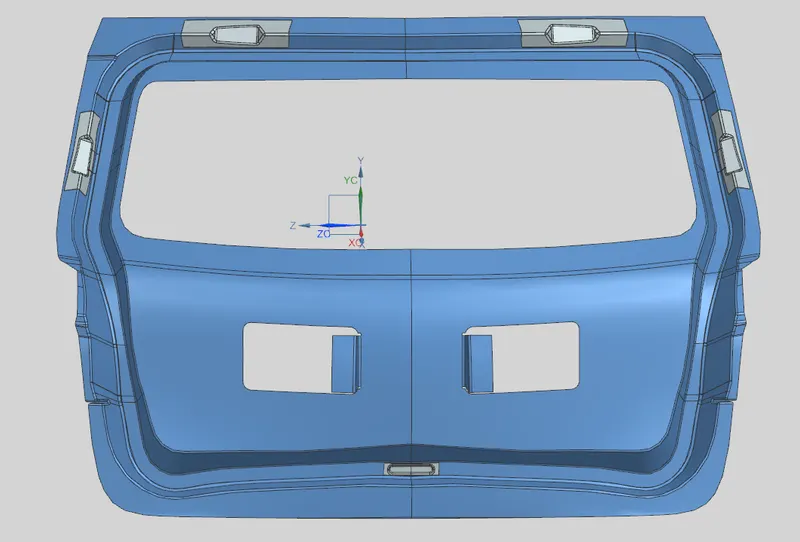

Inner Panel :
Similarly Construct The Lower Inner Pannel & Apply the Embosses, Blends As Shown in figure given below.

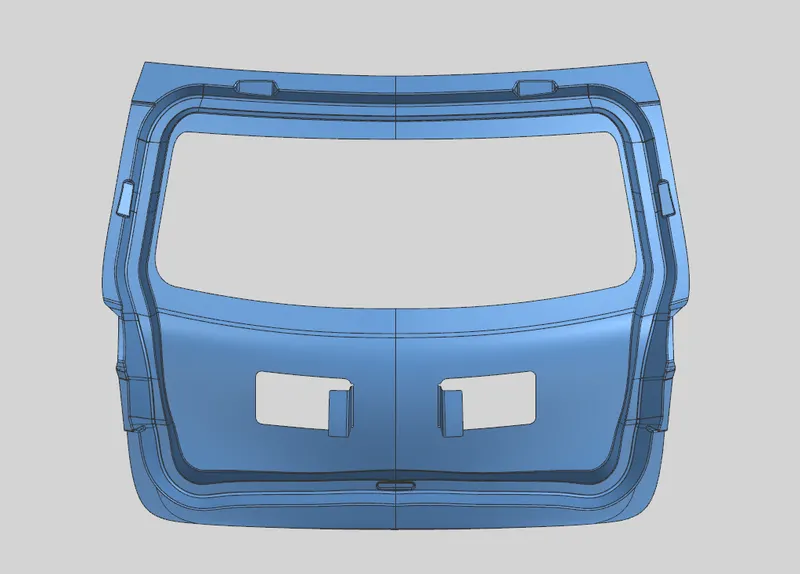

Reinforcements :
Required Embosses As Shown in figure given below.

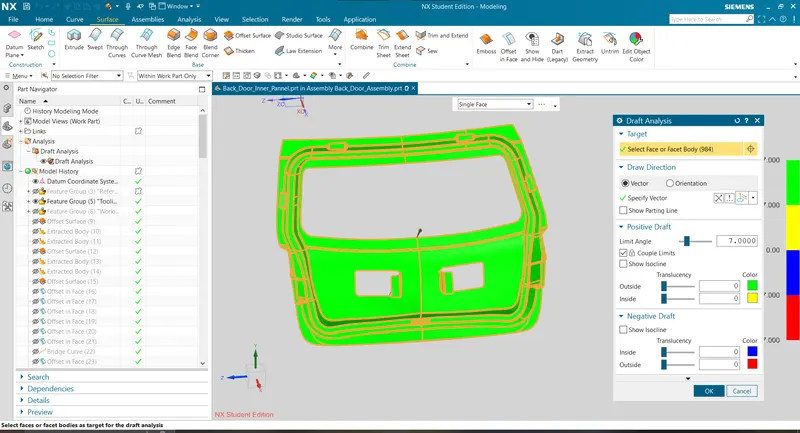

Draft Analysis :
Performing Draft Analysis On Inner Panel As Shown in Figure Given Below.

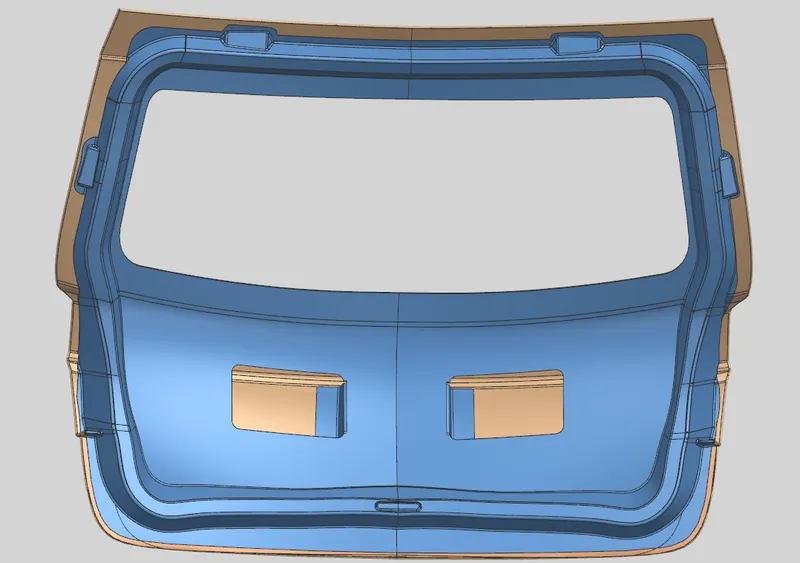

Outerpanel & Hemming :
Hemming is a mechanical joint design which is used for joining inner and outer closure panels as found indoors, hoods, bonnets and lift gates. To increase crash resistance the gap between the hemmed panels is filled with a high-strength adhesive which also prevents from corrosion.
Conclusion :
The Back Door Assembly is designed and developed By Using Nxcad with all the possible design considerations.
