Creation of geometries by Coordinate system methods using AutoCad

1. Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool.Please read the drawings and find out the missing dimensions before working on the sketches. Note: Use the Imperial Template and the Decimal…

    • Vineetha Enukula

      updated on 13 Jul 2022

    1. Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool.
    Please read the drawings and find out the missing dimensions before working on the sketches.

    Note: Use the Imperial Template and the Decimal Units to draft the features. Dimensions are there for
    references.

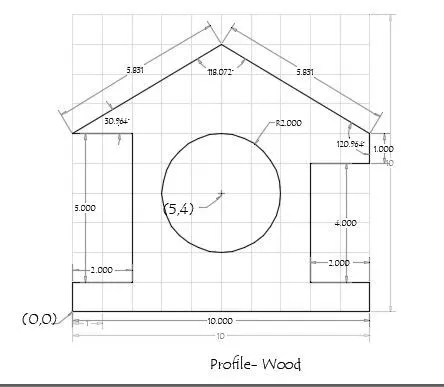

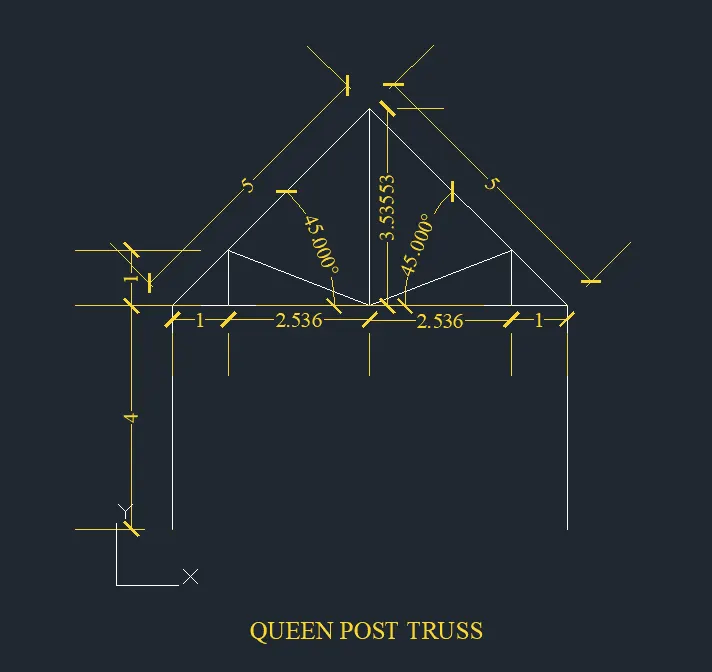

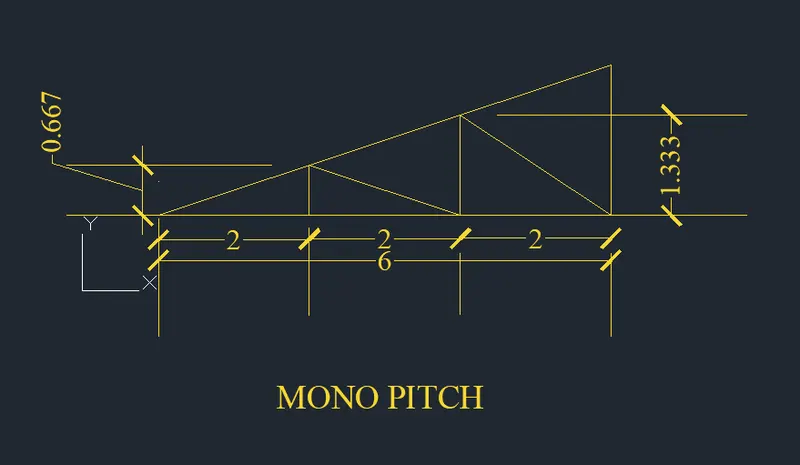

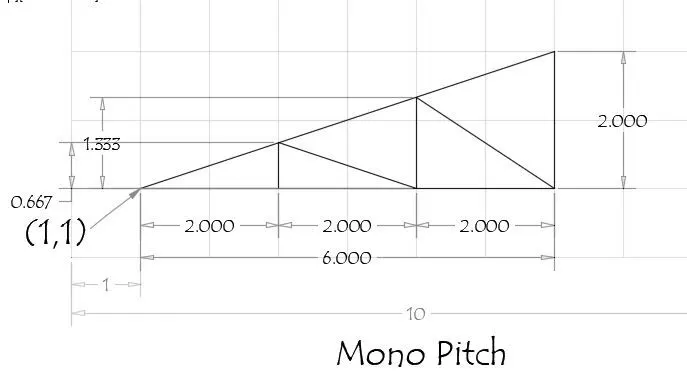

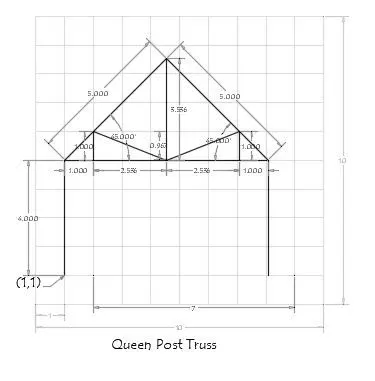

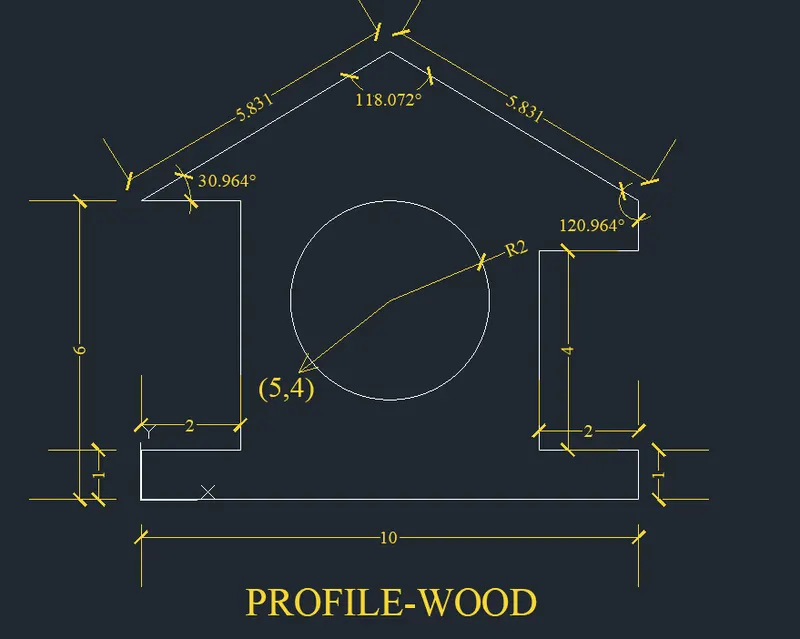

    2. Civil Related Problems, Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

    AIM:

    I. To Create the geometries from P1 to P2 using all the coordinate system methods and P4,P5,P7,P8,P9 and P10 by any one coordinate system.

    II. Civil Related Problems, Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

    INTRODUCTION:

    • The Coordinate system is used to specify  point in a plane, In general we take two mutually perpendicular lines as references. The horizontal line is X-axis and vertical line is Y-axis. The point of intersection of these two axes is called the Origin.
    • There are two coordinate systems i.e., Cartesian Coordinate System and Polar Coordinate System.

    Types of Coordinate System

    • In Autocad, the default origin is located at the lower left corner of the graphics area of the screen. The Autocad uses the following coordinate systems to locate a point in a XY plane:
      1. Absolute Coordinate System (x,y)
      2. Relative Coordinate System
        1. Relative rectangle coordinate system (@x displacement, y-displacement)
        2. Relative polar coordinate system (@distance<angle).
      3. Direct Distance Entry

    Absolute Coordinate System:

    • In these system absolute coordinate system the points are loacted with respect to the origin (0,0).
    • In Autocad the absolute coordinates are specified by entering X and Y coordinates, seperated by a comma.

    Relative Coordinate System:

    • The location of a Relative coordinate is defined by its distance from a reference point.
    • In AutoCAD, when using this system the first point of the drawing/geometry is always absolute, i.e. it is established with respect to origin (0.0), and then all the successive positions are established with respect to their preceding point.

    Relative rectangule coordinates:

    • It is a coordinate system that specifies each point by a pair of numerical coordinates in the x-axis and y-axis.
    • In this system, the points succeeding the first point are typed in as '@x,y' in the command line.

    Relative polar coordinates:

    • This system specifies the distance (length) and angle of a particular point with respect to its previous point.
    • In the Relative polar coordinate system, points are established by typing @distance.

    Direct distance entry method:

    • It is another popular method used for drawing different shapes/geometries in AutoCAD.
    • The direct distance entry method enables the user to draw an object by simply pointing the cursor in the desired direction and entering the required distance in the command line.

    Commands Used:

    • Line Command
    • Dimlinear Command
    • Text Command
    • Circle Command
    • C Enter Command to Close

    PROCEDURE:

    I. To Create the geometries from P1 to P2 using all the coordinate system methods and P4,P5,P7,P8,P9 and P10 by any one coordinate system.

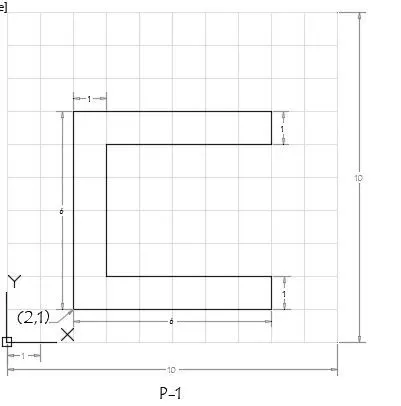

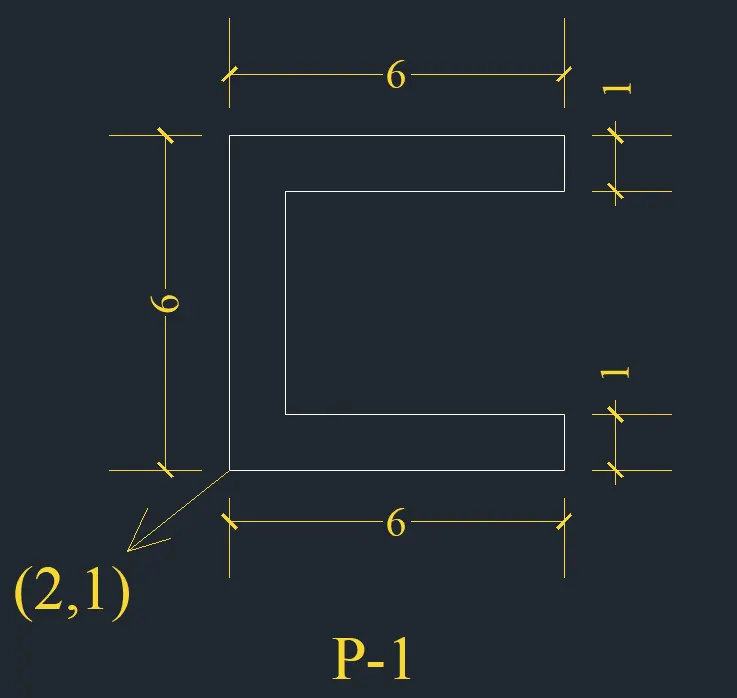

    1. Drafting the geometry for P-1 using all Coordinate system methods:

    1. Absolute Coordinate System:
      1. Syntax - x coordinate, y coordinate
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: 8,1
      5. Specify next point or [Undo]: 8,2
      6. Specify next point or [Close/Undo]: 3,2
      7. Specify next point or [Close/Undo]: 3,6
      8. Specify next point or [Close/Undo]: 8,6
      9. Specify next point or [Close/Undo]: 8,7
      10. Specify next point or [Close/Undo]: 8,7
      11. Specify next point or [Close/Undo]: 2,7
      12. Specify next point or [Close/Undo]: C.
    2. Relative Rectangular Coordinate System:
      1. Syntax - @ x displacement, y displacement
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: @6,0
      5. Specify next point or [Undo]: @0,1
      6. Specify next point or [Close/Undo]: @-5,0
      7. Specify next point or [Close/Undo]: @0,4
      8. Specify next point or [Close/Undo]: @5,0
      9. Specify next point or [Close/Undo]: @0,1
      10. Specify next point or [Close/Undo]: @-6,0
      11. Specify next point or [Close/Undo]: C.
    3. Relative Polar Coordinate System:
      1. Syntax - @distance<angle
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: @6<0
      5. Specify next point or [Undo]: @1<90
      6. Specify next point or [Close/Undo]: @5<180
      7. Specify next point or [Close/Undo]: @4<90
      8. Specify next point or [Close/Undo]: @5<0
      9. Specify next point or [Close/Undo]: @1<90
      10. Specify next point or [Close/Undo]: @6<180
      11. Specify next point or [Close/Undo]: C.
    4. Direct Distance Entry Method:
      1. Specify first point : 2,1 - Based the requirement change the direction of the cursor.
      2. Specify next point or [Undo]: <Ortho on> 6
      3. Specify next point or [Undo]: 1
      4. Specify next point or [Close/Undo]: 5
      5. Specify next point or [Close/Undo]: 4
      6. Specify next point or [Close/Undo]: 5
      7. Specify next point or [Close/Undo]: 1
      8. Specify next point or [Close/Undo]: 6
      9. Specify next point or [Close/Undo]: C.

    Result:

    The given sketch is drafted in autocad and attached below as shown

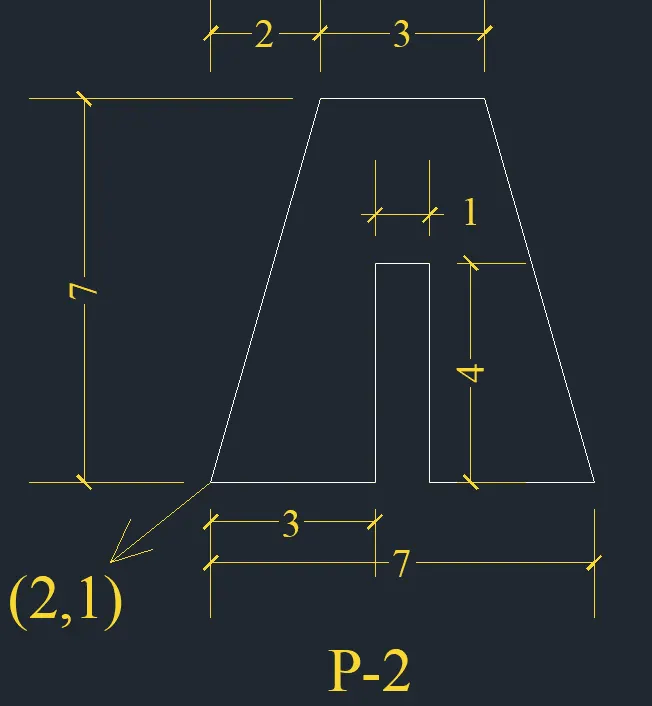

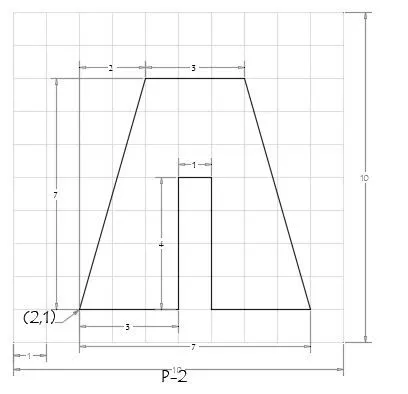

    2. Drafting the geometry for P-2 using all Coordinate system methods:

    1. Absolute Coordinate System:
      1. Syntax - x coordinate, y coordinate
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: 5,1
      5. Specify next point or [Undo]: 5,5
      6. Specify next point or [Close/Undo]: 6,5
      7. Specify next point or [Close/Undo]: 6,1
      8. Specify next point or [Close/Undo]: 9,1
      9. Specify next point or [Close/Undo]: 7,8
      10. Specify next point or [Close/Undo]: 4,8
      11. Specify next point or [Close/Undo]: C.
    2. Relative Rectangular Coordinate System:
      1. Syntax - @ x displacement, y displacement
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: @3,0
      5. Specify next point or [Undo]: @0,4
      6. Specify next point or [Close/Undo]: @1,0
      7. Specify next point or [Close/Undo]: @0,-4
      8. Specify next point or [Close/Undo]: @3,0
      9. Specify next point or [Close/Undo]: @-2,7
      10. Specify next point or [Close/Undo]: @-3,0
      11. Specify next point or [Close/Undo]: C.
    3. Relative Polar Coordinate System:
      1. Syntax - @distance<angle
      2. Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
      3. Specify first point : 2,1
      4. Specify next point or [Undo]: @3<0
      5. Specify next point or [Undo]: @4<90
      6. Specify next point or [Close/Undo]: @1<0
      7. Specify next point or [Close/Undo]: @4<270
      8. Specify next point or [Close/Undo]: @3<0
      9. Specify next point or [Close/Undo]: @7<106
      10. Specify next point or [Close/Undo]: @3<180
      11. Specify next point or [Close/Undo]: C.
    4. Direct Distance Entry Method:
      1. Specify first point : 2,1 - Based the requirement change the direction of the cursor.
      2. Specify next point or [Undo]: <Ortho on> 3
      3. Specify next point or [Undo]: 4
      4. Specify next point or [Close/Undo]: 1
      5. Specify next point or [Close/Undo]: 4
      6. Specify next point or [Close/Undo]: 3
      7. Specify next point or [Close/Undo]: <106
      8. Angle override: 106
      9. Specify next point or [Close/Undo]: 7
      10. Specify next point or [Close/Undo]: 3
      11. Specify next point or [Close/Undo]: C.

    Result:

    The given sketch is drafted in autocad and attached below as shown

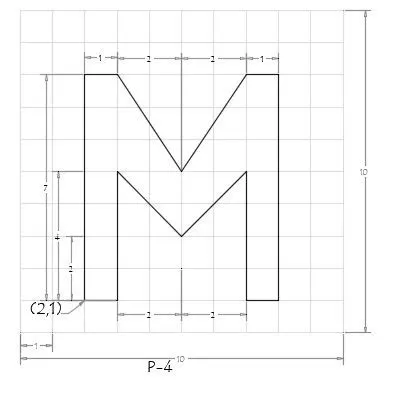

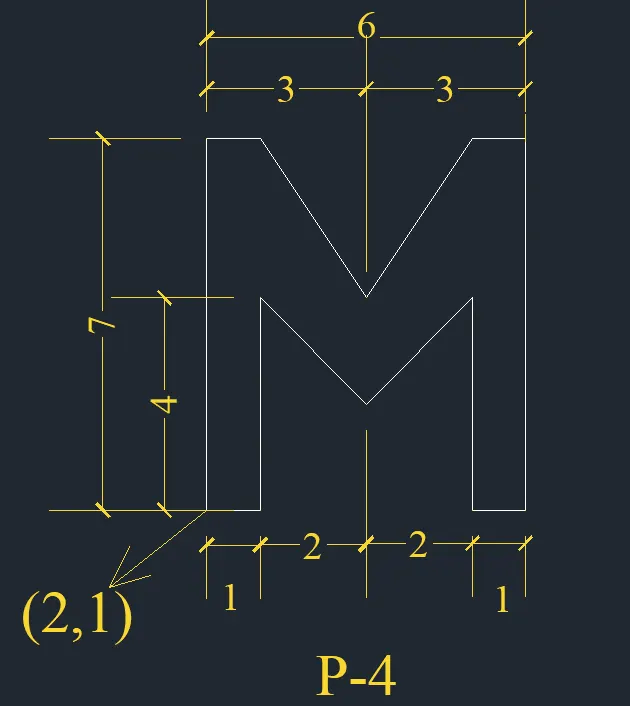

    2. Drafting the geometry for P-4 using Absolute Coordinate system:

    Absolute Coordinate System:

    • Syntax - x coordinate, y coordinate
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 2,1
    • Specify next point or [Undo]: 3,1
    • Specify next point or [Undo]: 3,5
    • Specify next point or [Close/Undo]: 5,3
    • Specify next point or [Close/Undo]: 7,5
    • Specify next point or [Close/Undo]: 7,1
    • Specify next point or [Close/Undo]: 8,1
    • Specify next point or [Close/Undo]: 8,8
    • Specify next point or [Close/Undo]: 7,8
    • Specify next point or [Close/Undo]: 5,5
    • Specify next point or [Close/Undo]: 3,8
    • Specify next point or [Close/Undo]: 2,8
    • Specify next point or [Close/Undo]: C.

    Result:

    The given sketch is drafted in autocad and attached below as shown

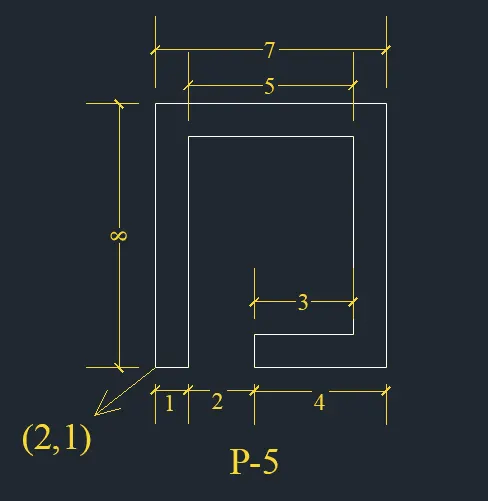

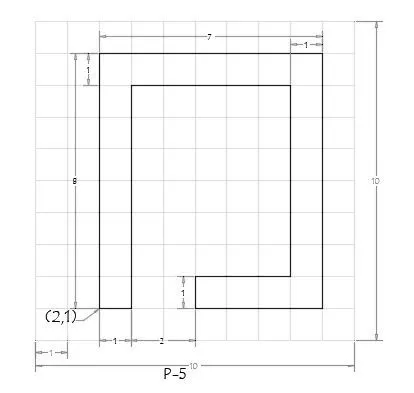

    3. Drafting the geometry for P-5 using Absolute Coordinate system:

    Absolute Coordinate System:

    • Syntax - x coordinate, y coordinate
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 2,1
    • Specify next point or [Undo]: 3,1
    • Specify next point or [Undo]: 3,8
    • Specify next point or [Close/Undo]: 8,8
    • Specify next point or [Close/Undo]: 8,2
    • Specify next point or [Close/Undo]: 5,2
    • Specify next point or [Close/Undo]: 5,1
    • Specify next point or [Close/Undo]: 9,1
    • Specify next point or [Close/Undo]: 9,9
    • Specify next point or [Close/Undo]: 2,9
    • Specify next point or [Close/Undo]: C

    Result:

    The given sketch is drafted in autocad and attached below as shown

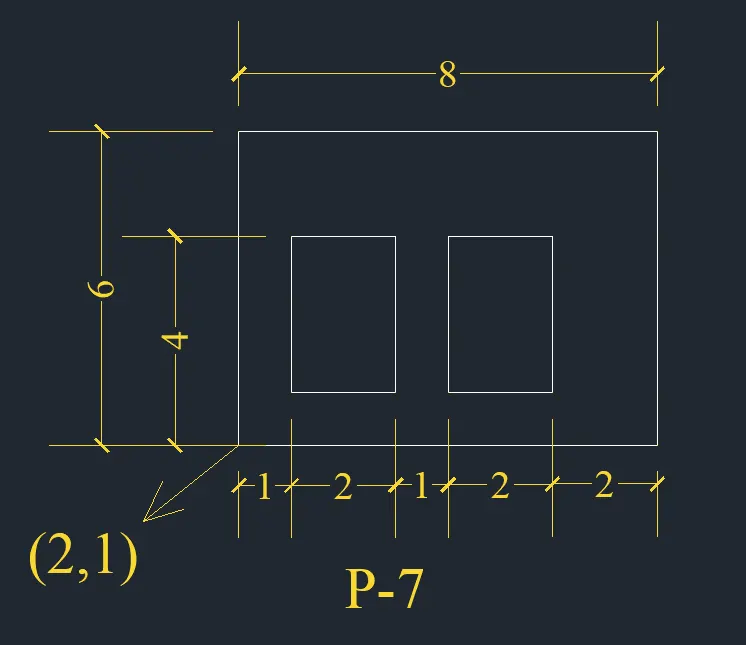

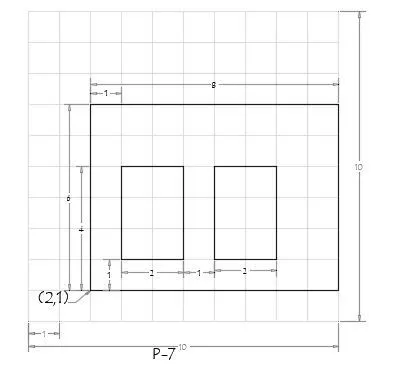

    4. Drafting the geometry for P-7 using Absolute Coordinate system:

    Absolute Coordinate System:

    • Syntax - x coordinate, y coordinate
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 2,1
    • Specify next point or [Undo]: 10,1
    • Specify next point or [Undo]: 10,7
    • Specify next point or [Close/Undo]: 2,7
    • Specify next point or [Close/Undo]: C
    • Command : L (Line)
    • Specify next point or [Close/Undo]: 3,2
    • Specify next point or [Close/Undo]: 5,2
    • Specify next point or [Close/Undo]: 5,5
    • Specify next point or [Close/Undo]: 3,5
    • Specify next point or [Close/Undo]: C
    • Command: L (Line)
    • Specify next point or [Close/Undo]: 6,2
    • Specify next point or [Close/Undo]: 8,2
    • Specify next point or [Close/Undo]: 8,5
    • Specify next point or [Close/Undo]: 6,5
    • Specify next point or [Close/Undo]: C.

    Result:

    The given sketch is drafted in autocad and attached below as shown

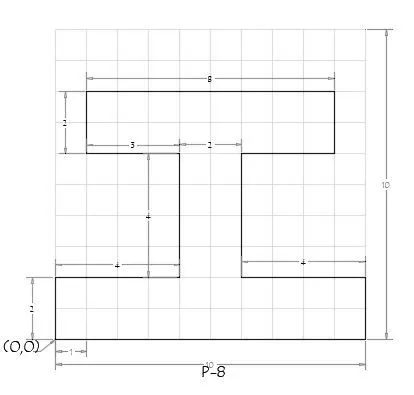

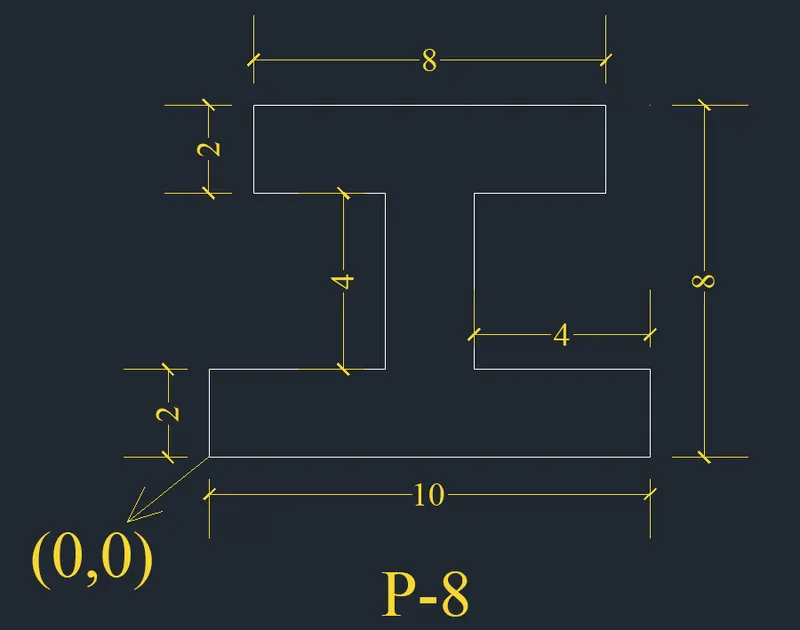

    5. Drafting the geometry for P-8 using Relative Rectangle Coordinate System:

    Relative Rectangle Coordinate System:

    • Syntax - @ x displacement, y displacement
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 0,0
    • Specify next point or [Undo]: @0,2
    • Specify next point or [Undo]: @4,0
    • Specify next point or [Close/Undo]: @0,4
    • Specify next point or [Close/Undo]: @-3,0
    • Specify next point or [Close/Undo]: @0,2
    • Specify next point or [Close/Undo]: @8,0
    • Specify next point or [Close/Undo]: @0,-2
    • Specify next point or [Close/Undo]: @-3,0
    • Specify next point or [Close/Undo]: @0,-4
    • Specify next point or [Close/Undo]: @4,0
    • Specify next point or [Close/Undo]: @0,-2
    • Specify next point or [Close/Undo]: @-10,0.

    Result:

    The given sketch is drafted in autocad and attached below as shown

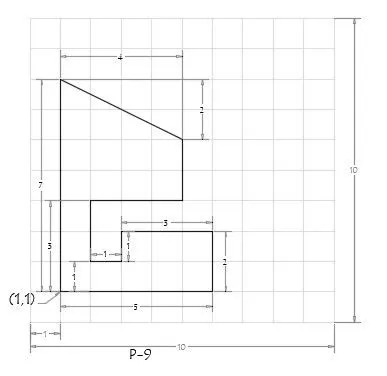

    6. Drafting the geometry for P-9 using Relative Rectangle Coordinate System:

    Relative Rectangle Coordinate System:

    • Syntax - @ x displacement, y displacement
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 1,1
    • Specify next point or [Undo]: @5,0
    • Specify next point or [Undo]: @0,2
    • Specify next point or [Close/Undo]: @-3,0
    • Specify next point or [Close/Undo]: @0,-1
    • Specify next point or [Close/Undo]: @-1,0
    • Specify next point or [Close/Undo]: @0,2
    • Specify next point or [Close/Undo]: @3,0
    • Specify next point or [Close/Undo]: @0,2
    • Specify next point or [Close/Undo]: @-4,2
    • Specify next point or [Close/Undo]: @0,-7.

    Result:

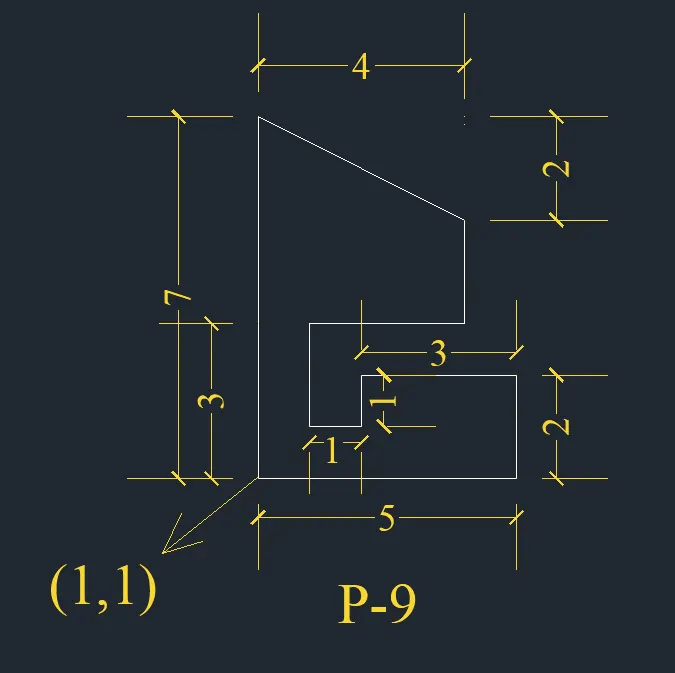

    The given sketch is drafted in autocad and attached below as shown

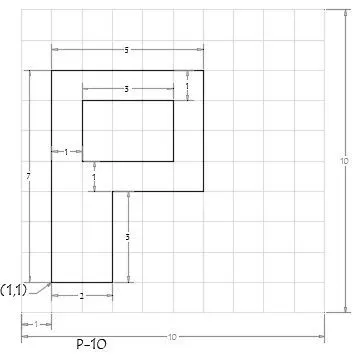

    7. Drafting the geometry for P-10 using Relative Polar Coordinate System:

    Relative Polar Coordinate System:

    • Syntax - @ x displacement, y displacement
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 1,1
    • Specify next point or [Undo]: @2<0
    • Specify next point or [Undo]: @3<90
    • Specify next point or [Close/Undo]: @3<0
    • Specify next point or [Close/Undo]: @4<90
    • Specify next point or [Close/Undo]: @5<180
    • Specify next point or [Close/Undo]: C
    • Command : L (Line)
    • Specify first point : 2,5
    • Specify next point or [Close/Undo]: @3<0
    • Specify next point or [Close/Undo]: @2<90
    • Specify next point or [Close/Undo]: @3<180
    • Specify next point or [Close/Undo]: C

    Result:

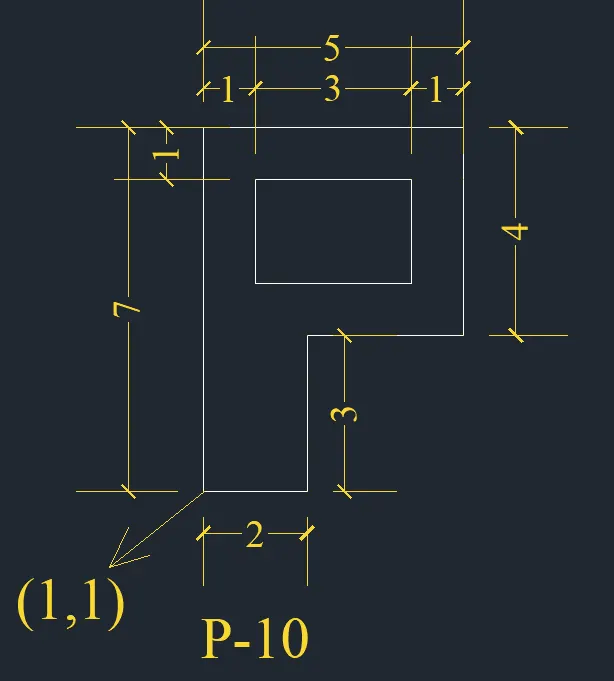

    The given sketch is drafted in autocad and attached below as shown

    _______________________________________________________________________________________________________________________________________________________

    PROCEDURE:

    II. Civil Related Problems, Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references.

    1. Drafting the geometry for Proof-Wood using Direct Distance Coordinate System:

    Direct Distance Entry Method:

    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 0,0 - Based the requirement change the direction of the cursor.
    • Specify next point or [Undo]: <Ortho on> 10
    • Specify next point or [Undo]: 1
    • Specify next point or [Close/Undo]: 2
    • Specify next point or [Close/Undo]: 4
    • Specify next point or [Close/Undo]: 2
    • Specify next point or [Close/Undo]: 1
    • Specify next point or [Close/Undo]: <149.036
    • Angle override: 149
    • Specify next point or [Close/Undo]: 5.831
    • Specify next point or [Close/Undo]: <210.964
    • Angle override: 211
    • Specify next point or [Close/Undo]: 5.831
    • Specify next point or [Close/Undo]: 2
    • Specify next point or [Close/Undo]: 5
    • Specify next point or [Close/Undo]: 2
    • Specify next point or [Close/Undo]: C
    • Command: c (Circle)
    • Specify center point for circle or [3p/2p/Trt (tan tan radius)]: 5,4
    • Specify radius of circle or [Diameter]: 2
    • Escape.

    Result:

    The given sketch is drafted in autocad and attached below as shown



    2. Drafting the geometry for Queen Post Truss using Relative Polar Coordinate System:

    Relative Polar Coordinate System:

    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 1,1
    • Specify next point or [Undo]: @4<90
    • Specify next point or [Undo]: @5<45
    • Specify next point or [Close/Undo]: @5<315
    • Specify next point or [Close/Undo]: @4<270
    • Specify next point or [Close/Undo]: Cancel
    • Command: L (Line)
    • Specify first point : 1,5
    • Specify next point or [Undo]: @1<0
    • Specify next point or [Undo]: @2.53555<0
    • Specify next point or [Close/Undo]: @2.5355<0
    • Specify next point or [Close/Undo]: @1<0
    • Specify next point or [Close/Undo]: Cancel
    • Command: L (Line)
    • Specify first point : 2,5
    • Specify next point or [Close/Undo]: @1<90
    • Specify next point or [Close/Undo]: @2.7256<338
    • Specify next point or [Close/Undo]: @2.7256<22
    • Specify next point or [Close/Undo]: @1<270
    • Specify next point or [Close/Undo]: Cancel
    • Command: L (Line)
    • Specify first point : 4.5,5
    • Specify next point or [Undo]: @3.53571<90
    • Specify next point or [Close/Undo]: Cancel.

    Result:

    The given sketch is drafted in autocad and attached below as shown



    3. Drafting the geometry for Mono Pitch using Relative Absolute Coordinate System:

    Absolute Coordinate System:

    • Syntax - x coordinate, y coordinate
    • Select the line tool from ribbon or from the menu bar there is button called drawing in which there is tab called line or from the shortcut key by entering the line command in the command tab.
    • Specify first point : 1,1
    • Specify next point or [Undo]: 7,1
    • Specify next point or [Undo]: 7,3
    • Specify next point or [Close/Undo]: C
    • Command : L (Line)
    • Specify next point or [Close/Undo]: 3,1
    • Specify next point or [Close/Undo]: 3,1.667
    • Specify next point or [Close/Undo]: 5,1
    • Specify next point or [Close/Undo]: 5,2.333
    • Specify next point or [Close/Undo]: 7,1
    • Specify next point or [Close/Undo]: Cancel.

    Result:

    The given sketch is drafted in autocad and attached below as shown

    ______________________________________________________________________*** THE END***___________________________________________________________________





















    Leave a comment

    Thanks for choosing to leave a comment. Please keep in mind that all the comments are moderated as per our comment policy, and your email will not be published for privacy reasons. Please leave a personal & meaningful conversation.

    Please  login to add a comment

    Other comments...

    No comments yet!
    Be the first to add a comment

    Read more Projects by Vineetha Enukula (34)

    Project 2

    Objective:

    1. Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification must be as follows:      Width  30m Length 50m Eave Height 9m Bay spacing 6m Soil type Medium Safe Bearing Capacity 200 kN/m2 Roof slope 1 in 12 Assume suitable sections for structural elements.…

    calendar

    11 Mar 2023 02:49 PM IST

    • HTML
    Read more

    Project 1

    Objective:

    1. Design a multi-storey Residential Building located in Bangalore using STAAD Pro Connect Edition. The specification must be as follows:  Building floors G + 6 + R Plan dimension B = 25m ,  L = 16m Storey Height h = 3.5m Soil  Hard soil Use Residential Purpose Safe Bearing Capacity 180 kN/m2 Maximum slab…

    calendar

    08 Feb 2023 07:55 AM IST

      Read more

      Week 3 Challenge

      Objective:

      1. 1. State the primary load cases to be considered for design. The primary load cases that are to be considered for design are listed below:- Dead Load (IS 875: Part I) Live Load (IS 875: Part II) Wind Load (IS 875: Part III) Seismic Load (IS 1893: 2016) _________________________________________________________________________________________________________________________________________…

      calendar

      06 Jan 2023 01:48 PM IST

        Read more

        Week 2 Challenge

        Objective:

        1. 1. How will you assign Circular section to column? Go to properties > select define > Inorder to define assign circular section to the column, click on circle and enter the radius of the column > assign the defined circle to the member.  1. 2. How will you assign Unit system to a .std model file?…

        calendar

        30 Dec 2022 06:53 PM IST

          Read more

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          Related Courses

          coursecard

          Design loads considered on bridges

          Recently launched

          10 Hours of Content

          coursecard

          Design of Steel Superstructure in Bridges

          Recently launched

          16 Hours of Content

          coursecard

          Design for Manufacturability (DFM)

          Recently launched

          11 Hours of Content

          coursecard

          CATIA for Medical Product Design

          Recently launched

          5 Hours of Content

          coursecardcoursetype

          Accelerated Career Program in Embedded Systems (On-Campus) Courseware Partner: IT-ITes SSC nasscom

          Recently launched

          0 Hours of Content

          Schedule a counselling session

          Please enter your name
          Please enter a valid email
          Please enter a valid number

          logo

          Skill-Lync offers industry relevant advanced engineering courses for engineering students by partnering with industry experts.

          https://d27yxarlh48w6q.cloudfront.net/web/v1/images/facebook.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/insta.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/twitter.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/youtube.svghttps://d27yxarlh48w6q.cloudfront.net/web/v1/images/linkedin.svg

          Our Company

          News & EventsBlogCareersGrievance RedressalSkill-Lync ReviewsTermsPrivacy PolicyBecome an Affiliate
          map
          EpowerX Learning Technologies Pvt Ltd.
          4th Floor, BLOCK-B, Velachery - Tambaram Main Rd, Ram Nagar South, Madipakkam, Chennai, Tamil Nadu 600042.
          mail
          info@skill-lync.com
          mail
          ITgrievance@skill-lync.com

          Top Individual Courses

          Computational Combustion Using Python and CanteraIntroduction to Physical Modeling using SimscapeIntroduction to Structural Analysis using ANSYS WorkbenchIntroduction to Structural Analysis using ANSYS Workbench

          Top PG Programs

          Post Graduate Program in Hybrid Electric Vehicle Design and AnalysisPost Graduate Program in Computational Fluid DynamicsPost Graduate Program in CADPost Graduate Program in Electric Vehicle Design & Development

          Skill-Lync Plus

          Executive Program in Electric Vehicle Embedded SoftwareExecutive Program in Electric Vehicle DesignExecutive Program in Cybersecurity

          Trending Blogs

          Heat Transfer Principles in Energy-Efficient Refrigerators and Air Conditioners Advanced Modeling and Result Visualization in Simscape Exploring Simulink and Library Browser in Simscape Advanced Simulink Tools and Libraries in SimscapeExploring Simulink Basics in Simscape

          © 2025 Skill-Lync Inc. All Rights Reserved.

                      Do You Want To Showcase Your Technical Skills?
                      Sign-Up for our projects.
