INTRODUCTION:

Blocks:-

• It is includes static blocks, dynamic blocks, white block, redifining blocks, exploring blocks
• A Blocks is a collection of following commands that form a comlex entity that normally represents an object in the real world in the real world eg., door, a chair a womdow, a copluter

• To devolop an Blocks various commands used include:

  • Line: Used to draw different entities like walls windows etc.
  • Offset: This command also used ectensively to develop the same properties' to the copy of another one
  • Trim: This tools is used to remove or erase the unwanted line.
  • Extend: It is used to extend a line to joint the edge of another line or opposite line.
  • Mirror: This tool is used to mirror/flip an object.
  • Hatch: This tool is used to provide the approriate hatching to defferent portions.
  • Fillet: This tool is very much essential in developing corners wherer the radius can be provided as whatever need.
  • Layer: This enable such to assign different properties to different entities in a very easy way.
  • Block: This feature is useing for any kind of material like furnitures, door, window etc., are creat with differend size and  to insert the wherever its need in the plan form directly taken in the Blocks.
  • Annotation: In this command are used for mention the Text and Dimension of the plan.

• Library of blocks can be build up consisting of the parts that you require many times in your workday. These blocks can be stored in a seperated floder and even on a network, so that all drafters have access to them. Eg., plumbing parts, valves elbows etc. as well as electric symbols or furniture.



To Insert A Block:-

1. Click home tab>Block panes>Insert, Find

2. To insert an incom or a bloxkname from the clock definitions displayed in gallery. Click the location for the clock refences.



• Select an icon or a blockname form the block definitions displayed in gallery. Click the location for the block refence.
• Click therecent Blocks option. Front the Blocks Palette, clicki and place the block reference. You can also use the drag-and-drop method for speed but this method doesn't use the settings speciofied under Insertion Options.

3. At the  bottom of the blocks palette. choose one or more options to control the placement, scale, rotation, and automatic repetition.  If you want the object in teh block to be inserted as individual object of as a single block, select Explode.

4. Click OK



Attributes:-

• An attributes ia a label or tag that attaches data to a block.  Examples of data that might be contained inan attribute are part numbers, prices, comments, and owner's names.
• Attributes information extracted from a drawing cabn be used in a spreadsheet or database to produce a parts list or a bill or materialsl.  Toc can associate more that one attribute with a blocks, provided that each attribute ahs a different tag.  When you define an attribute, you specify

• A unique tag that identifies the attrubute by name.
• A prompt that can be displayed as the block is inserted.
• A default value that is used if a variable value is not entered at the prompt.



DEFAULT PROCEDURES:

•  Open the AutoCAD application frommy desktop
• Click file menu select New to creat a New Diagram
• Select Default setting for Metric or Imperial (feet and inches) setting for whatever need for Given diagram
• In default setting click is use a wizard and in that advance setting and set unit as Decimal and precission as 0 Press Enter.
• Set Angle Measurement as EAST
• Set Angle Direction as Counter-Clockwise direction
• Set Area of drawing for as per given diagram size, Because of will Draw the whole drawing for in single page.
• Finish
• And Keep Ortho ON And where its neccesary to off the ortho can off
• Object snap ON
• Enter.



          =*=*=*=*=*==*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*=*



Question:1 - Custom1_titleblock

•

Aim: To creat the titleblock bamed Custom1_titleblock and Custom2_titleblock using block and attributes command in AutoCAD.

Step by Step Procedure:

• Initially set the units of the drawing as decimal (millimeters).
• Now, Set the limits of the drawing
• Specify lowet left corner:(o,o)
• Specify upper righty corner:(20000,7000)
• Choose line command
• Specify first point> anywhere in the diagram
• Specify the next point >440 Keep the cursor upside
• Specify next point >600, Enter
• Choose offset command]
• Specify offset distance >300 for right side viertical line
• Choose Break At Point command to  separate the bottom inside line between the right and left side line
• Now choose the offset command
• Secify offset distance 40
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distacne >30
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 40
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 40
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 60
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 60
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 120
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 30
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 20
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 20
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 40
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 20 Enter
• And separate the cell as per given diagram
• Completed table are given below
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> TITLEBLOCK-1
• Font styled > Arial
• Text Heigth>10
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• All the text can be placed in a proper position by sing move command
• By used Quick Properties to incresed the size of 'TITTLE' text its size of 15
• Provided text figure are given below
•
• Now to give the colours by for text and table by using Layer properties
• Click Layer properties
• Click on New Layer
• Give the Layer name>TITLEBLOCK and TITLEBLOCK TEXT and TITLE BLOCK HEADER TEXT.
• Select for what we given colour
• Layer which are assigned are shown in below fig. the following layer propersties are used by the following diagram of  WAREHOUSE DOOR and SYMBOL LEGENT Diagram.
•
• Now provied the all text and table colour by usign layer properties
• Now completed diagram of Custom_1 titleblock are shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >Custom1_titleblock
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
•
• Hence its Converted to Block is ready.
• Insert Block

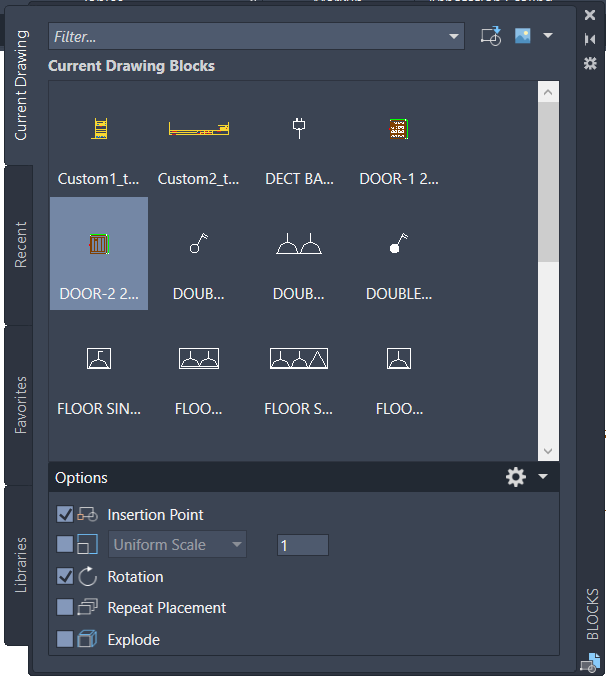

• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the Custom1_tetleblock and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
•



Result:

•







Question:1 - Custom2_titleblock

•

Step by Step Procedure:

• Now to draw the Custom2_titleblock By the follwoing procedures
• Now set the current layer of TITLEBLOCK
• Choose the line command
• Specify first point @anywhere
• Specify next point >530 downwards,  keep cursor to right side horizontally
• Specify next point >2350 And keep the cursor to upside vertically
• Specify next point >530 ,Enter
• Now select the offset command
• Specify offset distance 100
• Specify object > click on the horizontal line and take cursor upside
• Secify offset distance 100
• Specify object > click on the horizontal line and take cursor upside
• Again choose offset command
• Secify offset distance 390 from the rigth side vertical line
• Specify object > click on the vertically line and take cursorleft side
• Secify offset distance 210 from the horizonal line of bootom line
• Now split the cell how given the custom1_titleblock diagram are following below fig.
•
• Now Change the current layer to the text layer of TITLE BLOCK HEADER TEXT
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> TITLEBLOCK-2
• Font styled > TechnicBold
• Text Heigth>25
•
• as same another text layer are TITLEBLOCK 2.1 are used by following diagram
• All the text can be placed in a proper position by using move command
• As per requirement text heigh cb be increase as shown below
• The Template is read as shown below.
•
• Now to Creat BLOCK
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >Custom2_titleblock
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
•
• Hence its Converted to Block is ready.
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the Custom2_tetleblock and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
•



Result:

•



           ****************************************************************************************



Question:2

•

To Creat Door: 1

Aim: To creat the door types for warehouse and to convert the same into blocks.

Step by Step Procedure:

• In the same drawing sheet will draw the WAREHOUSE DOOR 1
• Initial setting are are also same as above the titleblock diagram
• So now click the layer properties
• Give the layer name >DOOR1
• Set the layer DOOR1 as current layer
• Slect the colour as code of 34
• Following DOOR1 and DOOR2 are using the same layer setting to draw
• The layer which are assigned are shown in below
•
• Now choose the Rectangle command to creat the rectangle door frame
• Specify first lower left corner @any where in the one side of page

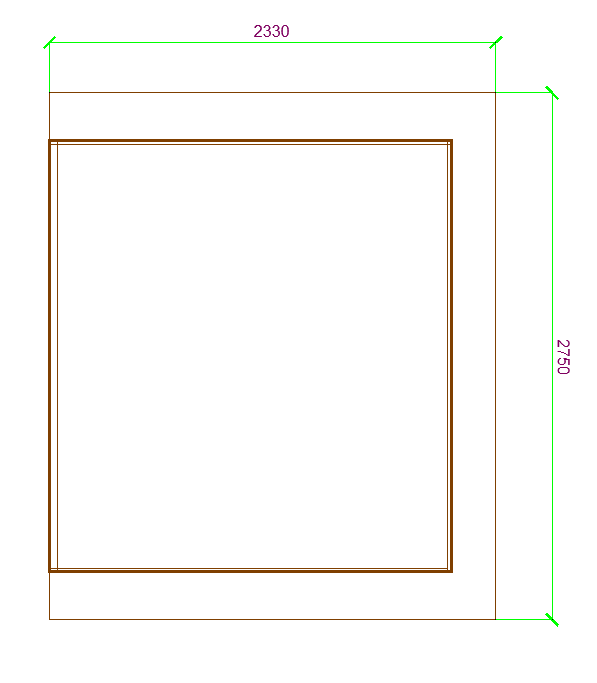

• Specify next right upper corner @2330,2750
• Now choose the EXPLODE commadn to use split the rectangle box to the sinlge line
• Now choose the offset command
• Specify distacne 250 from upper line to the horizontally lower side
• Now choose the offset command
• Specify distacne 230 from right side line to the vertically left  side
• Now choose the offset command
• Specify distacne 250 from bottom side line to the horizontally upper  side
• and used line thickness 30mm to show the darness of the fram like given below diagram.
• To creat the DImenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> WAREHOUSE DOOR
• Slect the text colour code of 224
• And Dimension line, Extension line colou code of 3
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to split the door portion as per given diagram
• Choose Divided command
• Select divide object
• Enter the number of segments >4 vertically portion
• Again Choose Divided command
• Select divide object
• Enter the number of segments >3Horixontal portion
• Now change the current layer to 0 Layer for mention
• Now choose the line command to draw the line by using given node point.
• Then choose the offset command to offset the 20mm to all line inside and outside like given below fig.
•
• All the portion are splited by using line command and offset command like given below digram
•
• Again change the layer to the DOOR1
• Set current layer and select the all inside line to change the DOOR1 layer the colour code of 34.
• Now Choose the trim command to trim the unwandet line. like follwoing fig.
•
• Again choose the offset command to draw the inside rectangle shape door design
• Specify offset distance >20
• Specify object > click on the object to cursor drag the cursor inside
• Again choose the offset command
• Specify offset distance >50
• Specify object > click on the object to cursor drag the cursor inside
• Now draw the line one side end corner to the inside rectangle box corner as shown in below diagram.
•
• Now to draw the Handle
• Choose the rectangle comamnd
• Specify first left corner point @anywhre
• Then drag the cursor to what need size of handle to creat it
• As ame vertical rectanle shape are created
• Choose the ARC command to provide the arc shape at the bothe of ends of rectangle
•
• Now Move the handle to place in proper postion as it show handle as shown in below
• Now Provide the text by using Annotaion option
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-1 2330 X 2750
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-1 2330 X 2750 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-1 2330 X 2750 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
•
• Click ok, Enter
• Final digram are given below



Result:

•



           ---------------------------------------------------------------------------------------------------------------------------



To Creat Door: 2

Aim: To creat the door types foo warehouse and to convert the same into blocks.

Step by Step Procedure:

• In the same drawing sheet will be draw the WAREHOUSE DOOR 1
• Initial setting are are also same as above the titleblock diagram
• So now click the layer properties
• Give the layer name >DOOR1
• Set the layer DOOR1 as current layer
• Slect the colour as code of 34
• Following DOOR2 are using the same layer setting to draw
• The layer which are assigned are shown in below
•
• Now choose the Rectangle command to creat the rectangle door frame
• Specify first lower left corner @any where in the one side of page
• Specify next right upper corner @2330,2750
• Now choose the EXPLODE commadn to use split the rectangle box to the sinlge line
• Now choose the offset command
• Specify distacne 250 from upper line to the horizontally lower side
• Now choose the offset command
• Specify distacne 230 from right side line to the vertically left  side
• Now choose the offset command
• Specify distacne 250 from bottom side line to the horizontally upper  side
• and used line thickness 30mm to show the darness of the fram like given below diagram.
• To creat the DImenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name> WAREHOUSE DOOR
• Slect the text colour code of 224
• And Dimension line, Extension line colou code of 3
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now to split the door portion as per given diagram
• Choose Divided command
• Select divide object
• Enter the number of segments >4 vertically portion
• Now change the current layer to 0 Layer for mention
• Now choose the line command to draw the line by using given node point.
• Then choose the offset command to offset the 20mm to all line inside and outside like given below fig.
•
• Again change the layer to the DOOR1
• Set current layer and select the all inside line to change the DOOR1 layer the colour code of 34.
• Now Choose the trim command to trim the unwandet line. like follwoing fig.
•

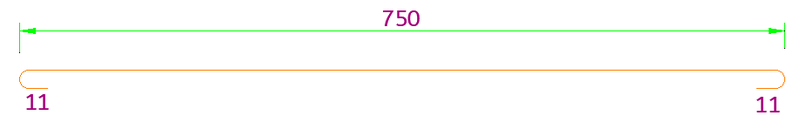

• Now to draw the Handle
• Choose the rectangle comamnd
• Specify first left corner point @anywhre
• Then drag the cursor to what need size of handle to creat it
• As ame vertical rectanle shape are created
• Choose the ARC command to provide the arc shape at the bothe of ends of rectangle
•
• Now Move the handle to place in proper postion as it show handle as shown in below
• Now Provide the text by using Annotaion option
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-2 2330 X 2750
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-2 2330 X 2750 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-2 2330 X 2750 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
•
• Click ok, Enter
• Final digram are given below



Result:

•



           *****************************************************************************************



Question:3

•

Aim: To creat a symbol legend with each symbol as a block eith the name.

Step by Step Procedure:

• Initially set the units of the drawing as decimal (millimeters).
• Now, Set the limits of the drawing
• Specify lowet left corner:(o,o)
• Specify upper righty corner:(20000,7000)

To draw the Single Gange Switch

• Now change the current layer to 0 layer
• Choose circle command to draw the single gange swithc shape of circle
• And chose the line comamnd to dra the line shape
• Single Gnage Switch as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >SINGLE GANG SWITCH
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the SINGLE GANG SWITCH is saved as a block
•
• Press OK, Hence its Converted to Block is ready.

To draw the Double Gange Switch

• Choose circle command to draw the single gange swithc shape of circle
• And chose the line comamnd to dra the line shape
• Single Gnage Switch as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOUBLE GANG SWITCH
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOUBLE GANG SWITCH is saved as a block
•
• Press OK, Hence its Converted to Block is ready.

To draw the Triple Gange Switch

• Choose circle command to draw the single gange swithc shape of circle
• And chose the line comamnd to dra the line shape
• Single Gnage Switch as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TRIPLE GANG SWITCH
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TRIPLE GANG SWITCH is saved as a block
•
• Press OK,  Hence its Converted to Block is ready.

 Similarly all the symbols into block after drafting as given below

•
• Hence all symbol have been converted to blocks.
•



To creat the table

• Choose the rectangle command
• Specify First left corner point @anywhere
• Specify Next upper right corner point @3000,900
• Table will appear on display as shown in below
•
• Now choose Explode command to split the single line
• Now choose offset command to split the Row
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >100
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >50
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >50
• Specify object > click on the horizontal line and take cursor upside
• Enter
• Now Divide the column by using Divide command and Point types
• Choose Divided command
• Select divide object
• Enter the number of segments >3 vertically portion
•
• Now again choose the offset comman to slpit the column
• Specify the offset distance >200
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >200
• Specify object > click on the horizontal line and take cursor upside
• Specify the offset distance >200
• Specify object > click on the horizontal line and take cursor upside
• Hence created the Table as shown in below
•
• Click Layer properties
• Click on New Layer
• Give the Layer name>SYMBOL TABLE and SYMBOL LEGEND HEADER
• Select SYMBOL TABLE colour code is 30 and SYMBOL LEGEND HEADER colour code is 237,31,36
• Layer which are assigned are shown in below fig.
•
• Now to creat the Text
• Here i used same Text syle for TITLE BLOCK2.1
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> TITLEBLOCK-2.1
• Font styled > Arial
• Text Heigth>20
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• All the text can be placed in a proper position by sing move command
• By used Quick Properties to incresed the size of  Wherever necessary
• Provided text figure are given below
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the SINGLE GANG SWITCH and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
•

similarly all the symbols are insert the table as given below

•
• After inserting the block
• Click on insert>Filed Option to provide Names
• It will open a dialouge box
• In dialouge box select field Name>Name Object
• Select Name> SINGLE GANGE SWITCH
• Format > Title Case asshown in below'press OK
•
• Insert name as follwoing diagrame are given below
•
• Similary all the Names are inserted the table as given below diagram
•
• Now to Choose the EXPLODE command to hide the background shade of Text
• Slect the object , Enter
• Hence the Symbol Legent Table are created by the given fig.



Result:

•

•

           ****************************************************************************************



Question:4

Aim: To creat the door types for resisdential building as block ans Save tge bames if the blocks as type.

Step by Step Procedure:

• Initially set the units of the drawing as Architectural (feet and inches)
• Now, SET THE LIMITS OF THE DRAWING
• Specify the lower left corner:(0,0)
• Specify the upper right corner(40',15')

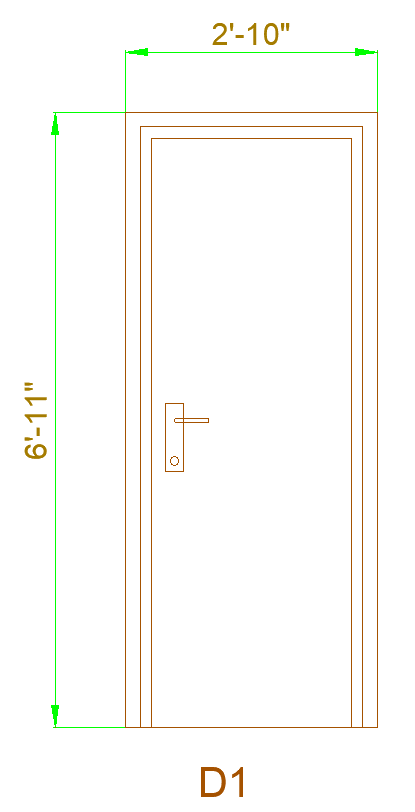

1. D1 :

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer

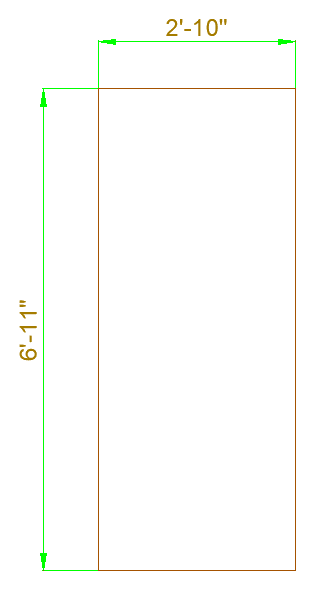

• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@2'10",6'11")
• Enter
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 2" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 1.5" inside from the rectangle door outline as shown in below fig.
• And now trim the bottom unwanted line
•
• Now to draw the Handle
• Choose the rectangle comamnd
• Specify first left corner point @anywhre
• Then drag the cursor to what need size of handle to creat it
• As ame vertical rectanle shape are created
• Then circle command to used to creat the circle view of handle
• Choose the ARC command to provide the arc shape at the bothe of ends of rectangle
• Completed Handle are shown in below
•
• Now Move the handle to place in proper postion as it show handle as shown in below as given below fig.
• Now to creat the Text
• Click Annotation tab>Multi line
  • Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D1 is created as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-1_2'10 X 6'11
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-1_2'10 X 6'11 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-1_2'10 X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
• Click ok, Enter
• Final digram are given below
•



 Result:

•



          ------------------------------------------------------------------------------------------------------------------------------



2. D2 :

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer
• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@3'4",6'11")
• Enter
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 2" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 1" inside from the rectangle door outline
• Again choose thge off set command
• Specify the offset distance of 4" inside of door rectangle outline
• specify offset distance 6" form lower horizontal line to upper side
• Trim the unwanted line by using trim command
• Now the door out line are  reated as shown in below
•
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 2" to moving cursor inside the door of centre design
• as same method to useing to creat the bottom rectangle design of the door
• Now Choose the DIVIDE commadn to split the 3X4  part and centre rectangle portion as shown in below
•
• And choose offset command to draw the center design of the door shape
• Now Trim the unwanted line b y using trim command
• Then drawn the circle shape of design in door by used circle command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D2 is created as shown in below
• And now trim the bottom unwanted line
•
  • Now to Creat Block
  • Choose BLOCK command by entering 'B' in command prompt.
  • Dialouge bow eill be open Name >DOOR-2 3'4 X 6'11
  • Next click on> pick point
  • Block specify insertion base point> click on any one corner of the table
  • Slect object> take a cross window and select whole template
  • Block select object> enter
  • Click on> Retain
  • Scale uniform >Mark it by clicking through curser
  • Allow exploding> Mark it by click through cursor as shown below
  • Click ok now the DOOR-2 3'4 X 6'11 is saved as a block
  • Hence its Converted to Block is ready.
  •
  • Insert Block
  • Now insert the block by using Command Entering 'i' in command prompt
  • Now block window are appear on display
  • Slect Current Drawing or Recent tab
  • Slect the DOOR-2 3'4 X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
  • Click ok, Enter

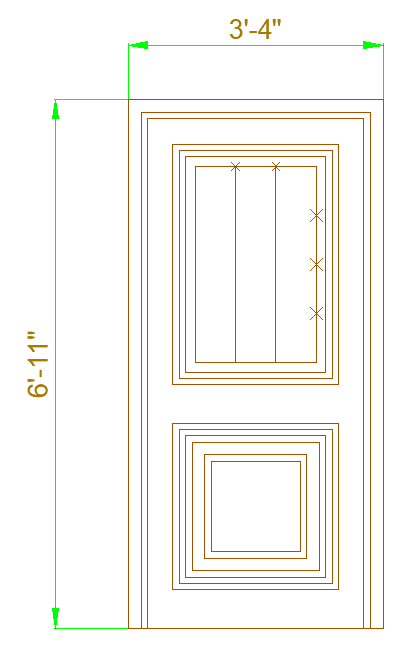

  • Final digram are given below
  •





Result:

•



          ------------------------------------------------------------------------------------------------------------------------------



3. D3 :

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer
• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@2'9",6'11")
• Enter
• To creat the DImenaion style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 1" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 2" inside from the rectangle door outline
• Agiain take offset command
• Specify the offset distance 1" inside from the rectangle door outline
• Agiain take offset command
• Specify the offset distance 1.5" inside from the rectangle door outline
• And now trim the bottom unwanted line as shown in below
•
• To creat the door grill portion
• Chose rectangle command to specify the value of @1'4",11"
• The offset the grill portion to inside specify the offset distance of 1"
• Now To Hatch the portion of grill By using HATCH command
• Choose the HATCH command in command prompt
• Following properties and hatch type s are used
•
• Now to draw the Handle
• Choose the rectangle comamnd
• Specify first left corner point @anywhre
• Then drag the cursor to what need size of handle to creat it
• As ame vertical rectanle shape are created
• Then circle command to used to creat the circle view of handle
• Choose the ARC command to provide the arc shape at the bothe of ends of rectangle
• Completed Handle are shown in below
•
• Now Move the handle to place in proper postion as it show handle as shown in below as given below fig.
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D3 is created as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-3 2'9X 6'11
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-3 2'9X 6'11 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-3 2'9X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
• Click ok, Enter
• Final digram are given below
•





Result:

•



          -------------------------------------------------------------------------------------------------------------------------------



4 D4 :

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer
• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@3'4",6'11")
• Enter
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 2" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 1" inside from the rectangle door outline
• Again choose thge off set command
• Specify the offset distance of 4" inside of door rectangle outline
• specify offset distance 6" form lower horizontal line to upper side
• Trim the unwanted line by using trim command
• Now the door out line are  reated as shown in below
•
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• as same method to useing to creat the bottom rectangle design of the door
• Now Choose the DIVIDE commadn to split the 3x4  and 3x3 part and centre rectangle portion as shown in below
•
• And choose offset command to draw the center design of the door shape
• Now Trim the unwanted line b y using trim command
•
• Now Choose the line command to draw the reference line for to cread the ARC portion of th door
• Choose the ARC command
• TO finished the arc portion for how given the digram as show in below fig.
•
• Then trim the unwanted command
•
• AgainChoose the ARC command
• TOcreat the top side of  arc portion for how given the digram as show in below fig.
•
• Again trim the unwanted line by given below fig.
• Choose the circle command to creat circle design in te cen
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D4 is created as shown in below
•

  • Now to Creat Block
  • Choose BLOCK command by entering 'B' in command prompt.
  • Dialouge bow eill be open Name >DOOR-4 3'4X 6'11
  • Next click on> pick point
  • Block specify insertion base point> click on any one corner of the table
  • Slect object> take a cross window and select whole template
  • Block select object> enter
  • Click on> Retain
  • Scale uniform >Mark it by clicking through curser
  • Allow exploding> Mark it by click through cursor as shown below
  • Click ok now the DOOR-4 3'4X 6'11 is saved as a block
  • Hence its Converted to Block is ready.
  •
  • Insert Block
  • Now insert the block by using Command Entering 'i' in command prompt
  • Now block window are appear on display
  • Slect Current Drawing or Recent tab
  • Slect the DOOR-4 3'4X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
  • Click ok, Enter
  • Final digram are given below
  •





Result:

•



          ------------------------------------------------------------------------------------------------------------------------------



5. D5 :

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer
• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@3'4",6'11")
• Enter
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 2" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 1" inside from the rectangle door outline
• Again choose thge off set command
• Specify the offset distance of 4" inside of door rectangle outline
• specify offset distance 6" form lower horizontal line to upper side
• Trim the unwanted line by using trim command
• Now the door out line are  reated as shown in below
•
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• as same method to useing to creat the bottom rectangle design of the door
• Now Choose the DIVIDE commadn to split the 3x4  and 3x3 part and centre rectangle portion as shown in below
•
• And choose offset command to draw the center design of the door shape
• Now Trim the unwanted line b y using trim command
•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D5 is created as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-5 3'4X 6'11
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-5 3'4X 6'11 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-5 3'4X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
• Click ok, Enter
• Final digram are given below
•





 Result:

•



          ------------------------------------------------------------------------------------------------------------------------------



6. D6:

• Click the layer properties to creat the door layer with colour
• Click New layer>Give the layer name>DOOR
•  Slect the colour of the door layer is 32
• Set the current layer
• Now rectangle comand
• Specify the lower eft corner (0,0)
• Specify the upper right corener (@3'4",6'11")
• Enter
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  CHLNG 9 DOORS
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
•
• Now choose the offset command
• Specify the offset distance is 2" inside the rectangle door Outliine
• Agiain take offset command
• Specify the offset distance 1" inside from the rectangle door outline
• Again choose thge off set command
• Specify the offset distance of 4" inside of door rectangle outline
• specify offset distance 6" form lower horizontal line to upper side
• Trim the unwanted line by using trim command
• Now the door out line are  reated as shown in below
•
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 1" to moving cursor inside the door of centre design
• Again choose the offset command
• Specify the offset distance 2" to moving cursor inside the door of centre design
• as same method to useing to creat the bottom rectangle design of the door
• Now Choose the DIVIDE commadn to split the 3X4  part and centre rectangle portion as shown in below
•
• And choose offset command to draw the center design of the door shape
• Now Trim the unwanted line b y using trim command
• Again Choose the line command to draw the reference line for to cread the ARC portion of th door
• Choose the ARC command
• TO finished the arc portion for how given the digram as show in below fig.
• Then trim the unwanted command
• Then drawn the circle shape of design in door by used circle command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DOOR CHLNG 9
• Font styled > Arial Baltic
• Text Heigth> 4"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence D6 is created as shown in below
• And now trim the bottom unwanted line
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >DOOR-6 3'4 X 6'11
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the DOOR-6 3'4 X 6'11 is saved as a block
• Hence its Converted to Block is ready.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the DOOR-6 3'4 X 6'11 and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
• Click ok, Enter
• Final digram are given below
•





Result:

•



          ****************************************************************************************



Question:5

Aim: To creat each shape as a block as shown in the figure and insert these blocks into the table as shown below

Step by Step Procedure:

• Initially set the unit of the drawing as Decimal(mm)
• Now, set the limits of teh drawing
• Specify the lower left corner(0,0)
• Specify the upper right corner(3500,2000)
• To Creat the Reinforcement Bar:



Type A(20mm) Bar:

• Choose the line command
• Specify the first point @any wherever
• Specify next point >750
• Now to creat the hook by using circle command
• Specify the center point @ anywhere
• Specify the Radius of circle > 18mm
• And Again take line command to extent the hook
• Specify the first point  @ arc of hook mid point
• Specify next point >9mm
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  DIAGRAM 5
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now provide the dimensions as shown in below
• And trim the unwanted line by using TRIM command



•
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 BAR'S Font styled > Dubai
• Text Heigth>20"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• HenceType A 20(mm) Bar is created as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TYPE-A (20 MM)
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TYPE-A (20 MM) is saved as a block
• Hence its Converted to Block is ready.
•
• Hence Type-A (20mm) bars are created as shown in below



Result:

•



          -------------------------------------------------------------------------------------------------------------------------------



Type B (20mm) Bar:

• Choose the line command
• Specify the first point @any wherever
• Specify next point >139
• Specify the next point>@41>315
• Specify the next point>390
• Specify the next point>@41>45
• Specify the next point>139, ENTER



•



• Now to creat the hook by using circle command
• Specify the center point @ anywhere
• Specify the Radius of circle > 18mm
• And Again take line command to extent the hook
• Specify the first point  @ arc of hook mid point
• Specify next point >14.5mm
•



• To creat the Dimention style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  DIAGRAM 5
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now provide the dimensions as shown in below
• And trim the unwanted line by using TRIM command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 BAR'S Font styled > Dubai
• Text Heigth>20"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence Type B (16MM) Bar is created as shown in below





•



• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TYPE-B (16 MM)
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TYPE-B (16 MM)is saved as a block
• Hence its Converted to Block is ready.
•
• Hence TYPE-B (16 MM) bars are created as shown in below



Result:

•



          -----------------------------------------------------------------------------------------------------------------------



Type C (16 mm) Bar:

• Choose the line command
• Specify the first point @any wherever
• Specify next point >180
• Specify the next point>@41>315
• Specify the next point>210
• Specify the next point>@41>45
• Specify the next point>180, ENTER



•



• Now to creat the hook by using circle command
• Specify the center point @ anywhere
• Specify the Radius of circle > 18mm
• And Again take line command to extent the hook
• Specify the first point  @ arc of hook mid point
• Specify next point >14.4mm
• To creat the Dimention style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  DIAGRAM 5
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now provide the dimensions as shown in below
• And trim the unwanted line by using TRIM command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 BAR'S Font styled > Dubai
• Text Heigth>20"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence Type C(16MM) Bar is created as shown in below





•



• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TYPE-C (16 MM)
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TYPE-C (16 MM)is saved as a block
• Hence its Converted to Block is ready.
•
• Hence TYPE-C (16 MM) bars are created as shown in below





Result:

•





           ------------------------------------------------------------------------------------------------------------------------------



Type D (12 mm) Bar:

• Choose the line command
• Specify the first point @any wherever
• Specify next point >750
•
• Now to creat the hook by using circle command
• Specify the center point @ anywhere
• Specify the Radius of circle > 18mm
• And Again take line command to extent the hook
• Specify the first point  @ arc of hook mid point
• Specify next point >11mm
•
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  DIAGRAM 5
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now provide the dimensions as shown in below
• And trim the unwanted line by using TRIM command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 BAR'S Font styled > Dubai
• Text Heigth>20"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• HenceType D 20(mm) Bar is created as shown in below
•
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TYPE-D (12 MM)
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TYPE-D (12 MM) is saved as a block
• Hence its Converted to Block is ready.
•
• Hence Type-D (12mm) bars are created as shown in below



Result:

•



          ------------------------------------------------------------------------------------------------------------------------------



Type E (10 mm) Bar:

• Choose the Rectangle command
• Specify the lower let corner @ anywhere
• Specify the upper right corner @23,43
• Now Choose FILLET commant to create the cureve shape of corner
• Choose Fillent Command in command prompt
• Slect specify the point
• Enter R for Radius
• Specify the Radius Valueof >5mm
• Slect the objet , nwo created the cureve shape of corner by used FILLET command
•
• Now to creat the hook by using circle command
• Specify the center point @ anywhere
• Specify the Radius of circle > 18mm
• And Again take line command to extent the hook
• Specify the first point  @ arc of hook mid point
• Specify next point >12mm
•
• To creat the Dimension style
• Click Annotation tab
• Click Dimension >Manage dimension style
• Style name>  DIAGRAM 5
• Slect the text colour code of 42
• And Dimension line, Extension line colou code of 3
• Text height >3"
• Select the linear dimension to provide the linear dimension as given below diagranm
• And similar way to provide the all dimension wherever necessary  as shown below
•
• Now provide the dimensions as shown in below
• And trim the unwanted line by using TRIM command
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 BAR'S Font styled > Dubai
• Text Heigth>20"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• HenceType E 10(mm) Bar is created as shown in below
• Now to Creat Block
• Choose BLOCK command by entering 'B' in command prompt.
• Dialouge bow eill be open Name >TYPE-E (10 MM)
• Next click on> pick point
• Block specify insertion base point> click on any one corner of the table
• Slect object> take a cross window and select whole template
• Block select object> enter
• Click on> Retain
• Scale uniform >Mark it by clicking through curser
• Allow exploding> Mark it by click through cursor as shown below
• Click ok now the TYPE-E (10 MM) is saved as a block
• Hence its Converted to Block is ready.
•
• Hence TYPE-E (10 MM) bars are created as shown in below



Result:

•
• Now yo creat Table column:
• Since the blocks have been created, now create the table from the annotation tab having 6 rows, and 7 columns.
•
• Now to provide the necessasry text in the table by using Annotation method
• Now to creat the Text
• Click Annotation tab>Multi line
• Mnage textile >New>Style Name> DIG 5 TABLE Font styled > Arial
• Text Heigth>30"
•
• Now choose thge Multiline text to provied all the Text for wherever required in diagram
• Hence Table is created with Necessasry text are provided as shown in below fig.
•
• Insert Block
• Now insert the block by using Command Entering 'i' in command prompt
• Now block window are appear on display
• Slect Current Drawing or Recent tab
• Slect the TYPE-A (20MM) and drag the cursor to move the diagram page to provide wherever necessary place as given below diargam
• Click ok, Enter
• Final digram are given below
•
•
•
• Similarly all the Blocks are placed by using Insert opetion as shown in complete diagram below.



Result:

•
• Hence, it is completed.



         **********************************************************************************************



ALL DIAGRAM RESULT:

1. Two templates created are given below:

I. Custom1_titleblock:

•



          ------------------------------------------------------------------------------------------------------------------------------



II. Custom2_titleblock:

•



         -------------------------------------------------------------------------------------------------------------------------------



2. The door type for warehouse has been created as below:

Door 1:

•



         -----------------------------------------------------------------------------------------------------------------------------



Door 2:

•



         -------------------------------------------------------------------------------------------------------------------------------



3. Symbol Legend created is as follows:

•



          ------------------------------------------------------------------------------------------------------------------------------



4. Different door type for residential building is created as below:

D1:

•



          ------------------------------------------------------------------------------------------------------------------------------



D2:

•



           -----------------------------------------------------------------------------------------------------------------------------



D3:

•



          ----------------------------------------------------------------------------------------------------------------------------



D4:

•



          -------------------------------------------------------------------------------------------------------------------------------



D5:

•



          ---------------------------------------------------------------------------------------------------------------------



D6:

•



            --------------------------------------------------------------------------------------------------------------------



5. The Bar Bending schedule created using the blocks concept:

•





                     *************************************************************************************
