Creating a Floor plan, Footing detail and Isometric view using AutoCad

Q:-Create a floor plan, footing detail and isometric view using Autocad.

AIM:-

To Create a floor plan, footing detail and isometric view using Autocad.

INTRODUCTION:-

• The main objective to create a floor plan, footing details and isometric view using Autocad. To get hand on experience in usage of basic commands in autocad. That is Line, Rectangle, Polyline and thereby some modification tools like copy, move, offset and working with different views of isometric.
• Different images are attached to sketch the same in autocad. Those are named as follows:
  1. C. S. of Load bearing wall over spread footing.
  2. C. S. Isolated footing.
  3. Line diagram of a two bedroom building.
  4. C. S. of Load bearing wall showing foundation details.
  5. Isometric view of steps.
  6. Isometric view of gable wall.
• For reference different alphabets are assigned to make it clear in understanding.
• Step by step procedure is given below.

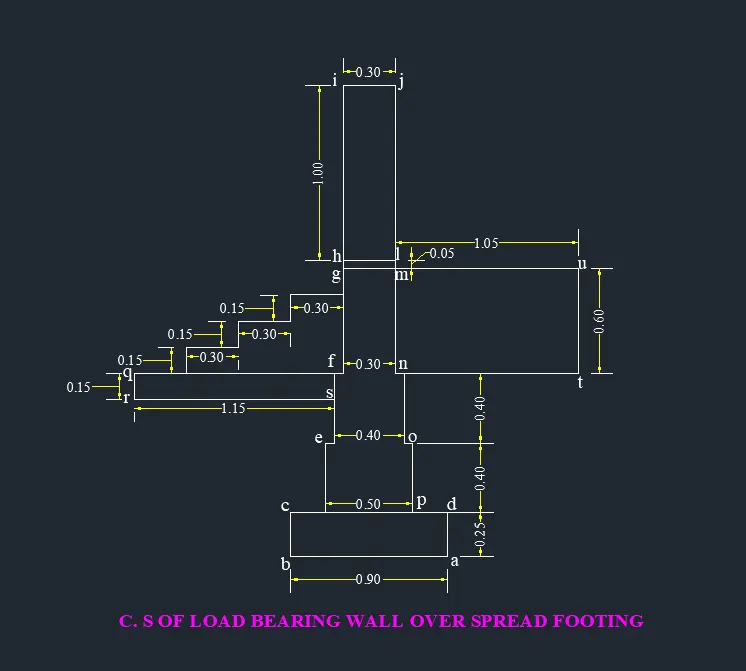

1. C. S of Load bearing wall over spread footing.

AIM:- To Create a C. S of Load bearing wall over spread footing using Autocad.

COMMAND USED:- Line, Rectangle, offset, dimlinear, Dimsty.

PROCEDURE:-

STEP1:-

• Create rectangle by typing "REC" in command box.
• Specify the corner point as (1,1)
• Specify the length of the rectangle = 0.9 units in command box
• Specify the width of the rectangle = 0.25 units in command box
• Label the rectangle as abcd using Mtext command.

STEP2:-

• Type the L command and specify the cursor at c.
• Specify the next point : @0.2,0 (using relative rectangle method)
• Specify the next point : @0,0.40
• Specify the next point : @0.05,0
• Specify the next point : @0,0.40
• Specify the next point : @0.05,0
• Specify the next point : @0,0.40
• Specify the next point : @0.05,0
• Specify the next point : @0,0.6
• Specify the next point : @0,0.05
• Specify the next point : @0,1
• Specify the next point : @0.3,0
• Specify the next point : @0,-1
• Specify the next point : @0,-0.05
• Specify the next point : @0,-0.06
• Specify the next point : @0.05,0
• Specify the next point : @0,-0.40
• Specify the next point : @0.05,0
• Specify the next point : @0,-0.40
• Press Esc to come out the command.

STEP3:-

• Type the L command and specify the cursor at f.
• Specify the next point : @-1.15,0
• Specify the next point : @0,1.15
• Specify the next point : @0,1.15
• Press Esc to come out the command.

STEP4:-

• Type the L command and specify the cursor at q.
• Specify the next point : @0.3,0
• Specify the next point : @0,0.15
• Specify the next point : @0.3,0
• Specify the next point : @0,0.15
• Specify the next point : @0.3,0
• Specify the next point : @0,0.15
• Specify the next point : @0.3,0
• Press Esc to come out the command.

STEP4:-

• Type the L command and specify the cursor at n.
• Specify the next point : @1.05,0
• Specify the next point : @0,0.6
• Specify the next point : @-1.05,0
• Specify the next point : @0.3,0
• Press Esc to come out the command.
• Type the O command and specify the cursor at gm line
• Specify the next point to offset : 0.05.

STEP5:-

• Type Mtext command and specify the alphabets at each corner as per requirement and include the title.
• Type D command to specify dimension.
• Type Dimsty command and based on requirement change the specifications.

RESULT:

The given sketch is plotted in autocad as shown below using the procedure as mentioned above:

_______________________________________________________________________________________________________________________________________________________

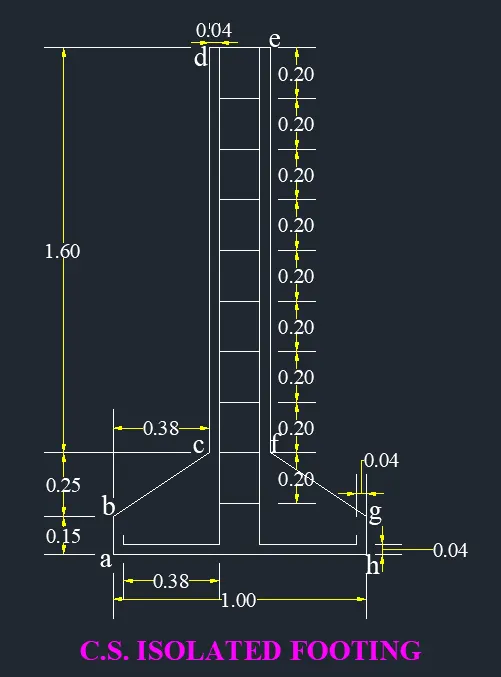

2. C. S Isolated Footing

AIM:- To Create a Cross Section Of Isolated Footing.

COMMAND USED:- Line, Rectangle, offset, dimlinear, Dimsty, Trim, Extend.

PROCEDURE:

STEP1:-

• Create rectangle by typing "REC" in command box.
• Specify the corner point as (1,1)
• Specify the length of the rectangle = 1 units in command box
• Specify the width of the rectangle = 0.4 units in command box
• Type the cha (chamfer) in command box.
• Specify first chamfer distance : 0.25
• Specify second chamfer distance : 0.38
• Click on both corners top side of rectangle to get chamfer.
• Label the trapezoidal shape figure as abcfgh using Mtext command.

STEP2:-

• Type the L command and specify the cursor at c.
• Specify the next point : @0,1.60 (using relative rectangle method)
• Specify the next point : @0.40,0
• Specify the next point : @0.16,0
• Specify the next point : @0.40,0
• Specify the next point : @0,-1.60
• Press Esc to come out the command.

STEP3:-

• Type the O command and specify the cursor at dc line that is offset object
• Specify the next point to offset : 0.04
• Specify the next point to offset : 0.16
• Here we need to select the line de with a small square cursor.
• Move the cursor inside place the line and continue till required.
• Press Esc to come out the command.

STEP4:-

• Type the O command and specify the cursor at de line that is offset object
• Specify the next point to offset : 0.20
• Here we need to select the line de with a small square cursor.
• Move the cursor inside place the line and continue till required.
• Press Esc to come out the command.

STEP3:-

• Type the O command and specify the cursor at ah line that is offset object
• Specify the next point to offset : 0.04
• Type the L command and specify the cursor at inner part of a
• Specify the next point : 0.075
• Do the same on both sides.
• Type the Ex double enter command and specify the object to extend
• Extend the vertical line as required
• Trim the same as per the requirement.

STEP4:-

• Type Mtext command and specify the alphabets at each corner as per requirement and include the title.
• Type D command to specify dimension.
• Type Dimsty command and based on requirement change the specifications.

RESULT:

The given sketch is plotted in autocad as shown below using the procedure as mentioned above:

_______________________________________________________________________________________________________________________________________________________

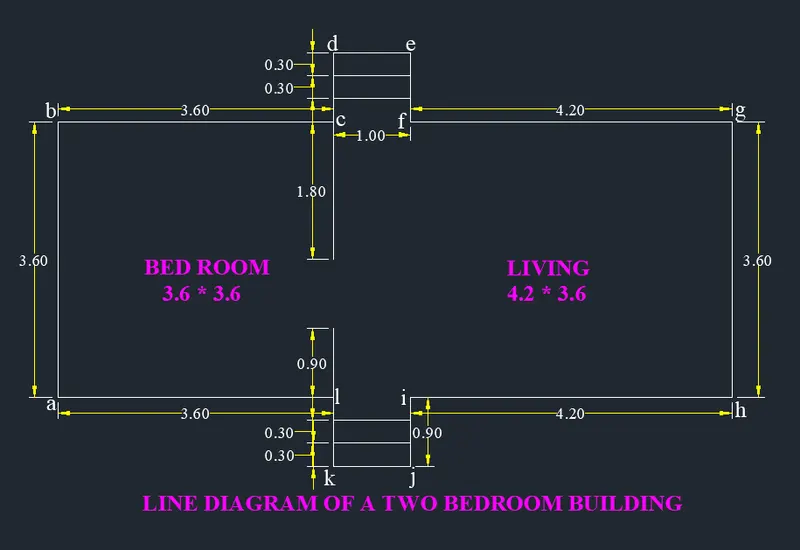

3. Line diagram of 2 bedroom building

AIM:- To Create a Line diagram of 2 bedroom building

COMMAND USED:- Line, Rectangle, offset, dimlinear, Dimsty, Trim, Extend, Explode.

PROCEDURE:

STEP1:-

• Create rectangle by typing "REC" in command box.
• Specify the corner point as (1,1)
• Specify the length of the rectangle = 8.2 units in command box
• Specify the width of the rectangle = 3.6 units in command box
• Use the command "Explode" and select the rectangle. That is to disjoint the rectangle.

STEP2:-

• Draw an offset using the command "O".
• In the command line enter "O" and specify the distance of 3.6 units from the left bottom end.
• Draw an offset using the command "O" at a distance of 4.2 unit from the right bottom end.

STEP3:-

• Extend two line at top and bottom as well.
• Draw an offset at a distance of 0.3 between the two line to bottom side.
• Repeat the same step and create two offset.
• Trim the unwanted lines.
• Using the line command draw a line at a distance of 3.2 units from the left bottom end to up wards 0.9 units
• Using line command draw a line at a distance of 3.2 units from the left top end to downwards 1.8 units.

STEP4:-

• Type Mtext command and specify the alphabets at each corner as per requirement and include the tilte.
• Type D command to specify dimension.
• Type Dimsty command and based on requirement change the specifications.

RESULT:-

The given sketch is plotted in autocad as shown below using the procedure as mentioned above:

_______________________________________________________________________________________________________________________________________________________

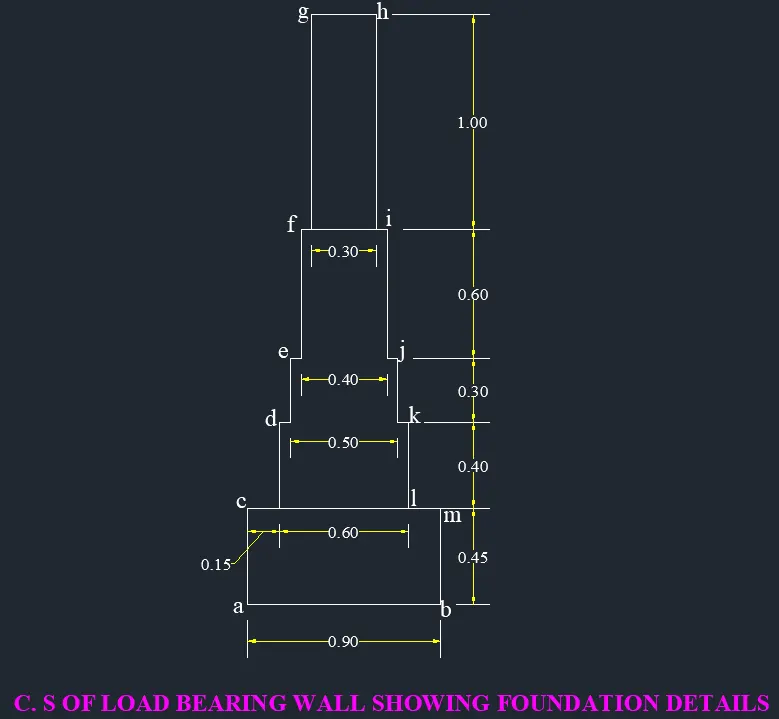

 4. C. S of Load bearing wall showing foundation details.

AIM:- To Create a C. S of Load bearing wall showing foundation details. using Autocad.

COMMAND USED:- Line, Rectangle, offset, dimlinear, Dimsty.

PROCEDURE:

STEP1:-

• Create rectangle by typing "REC" in command box.
• Specify the corner point as (1,1)
• Specify the length of the rectangle = 0.9 units in command box
• Specify the width of the rectangle = 0.45 units in command box
• Label the rectangle as abcd using Mtext command.

STEP2:-

• Type the L command and specify the cursor at c.
• Specify the next point : @0.15,0 (using relative rectangle method)
• Specify the next point : @0,0.40
• Specify the next point : @0.05,0
• Specify the next point : @0,0.30
• Specify the next point : @0.05,0
• Specify the next point : @0,0.60
• Specify the next point : @0.05,0
• Specify the next point : @0,1
• Specify the next point : @0.30.0
• Specify the next point : @0,-1
• Specify the next point : @0.05,0
• Specify the next point : @0,-0.60
• Specify the next point : @0.05,0
• Specify the next point : @0,-0.30
• Specify the next point : @0.05,0
• Specify the next point : @0,-0.40
• Press Esc to come out the command.

STEP5:-

• Type Mtext command and specify the alphabets at each corner as per requirement and include the tilte.
• Type D command to specify dimension.
• Type Dimsty command and based on requirement change the specifications.

RESULT:

The given sketch is plotted in autocad as shown below using the procedure as mentioned above:

_______________________________________________________________________________________________________________________________________________________

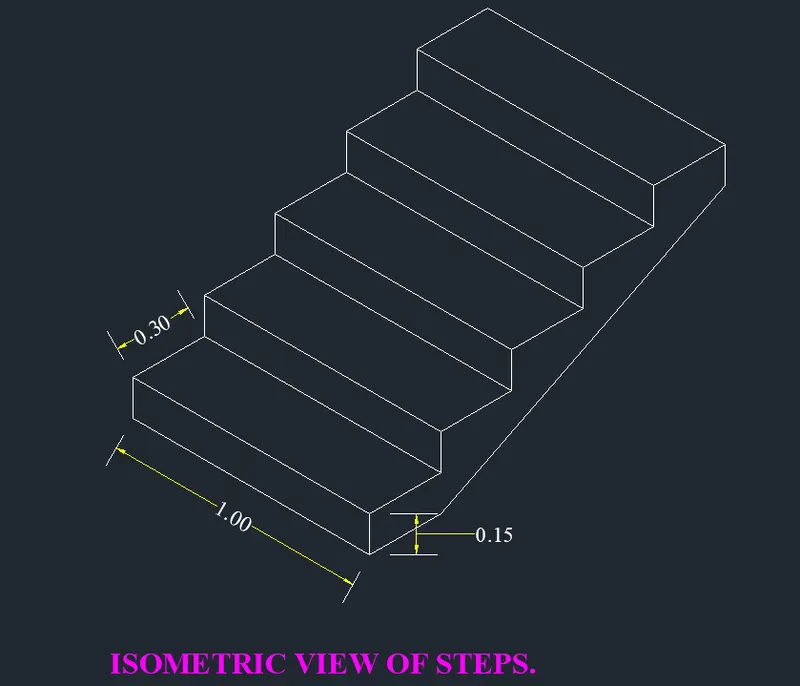

5. Isometric view of steps

AIM:- To Create a Isometric view of steps

COMMAND USED:- Line, Isometric Plane, dimlinear, Dimsty.

PROCEDURE:

STEP1:-

• To word with isometric view. Type "ds" command to get dynamic settings.
• Pick off the buttons called snap and grid.
• After those are deselected then pick up option called isometric snap.
• Thereby the grid lines will be inclined and cursor will be inclined as well.
• Make sure ortho mode is on (F8)
• Based the sketch given opt the drafting plane either left, right or etc.
• The given figure shows it is an iso-plane left select it.

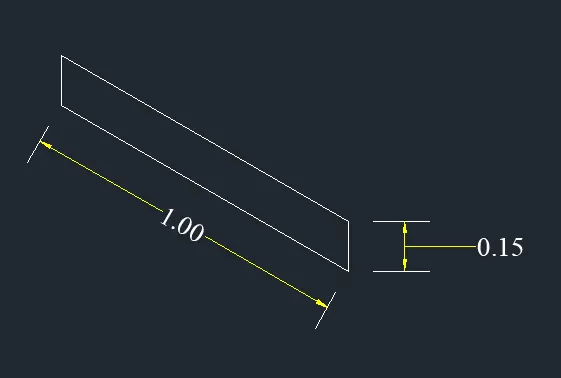

• Given the command "L" and move the cursor towards -ve x-direction that is left give 1 unit.
• Move the cursor towards +ve y direction (top), give 0.15 units.
• Moving the cursor to +x direction again 1 unit and cursor to -y direction (diownwards) give 0.15 units.

STEP2:-

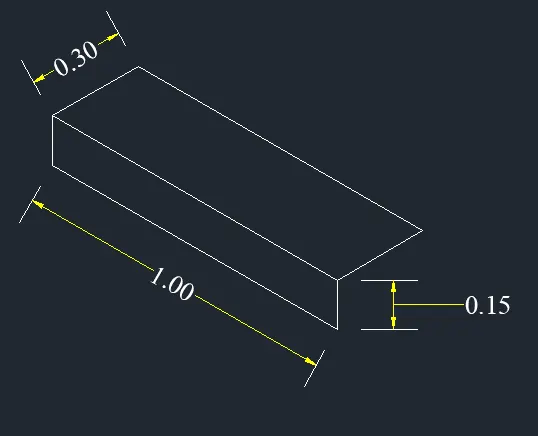

• Change the isometric drafting to iso-plane top
• Move the cursor to back and give 0.3 units from the last drawn point.
• Move the cursor to right direction and give 1 unit.
• Move the cursor to front and give 0.3 unit.

STEP3:-

• Change the isometric drafting to iso-plane right
• Copy the object drawn, ortho off
• Command "co" and specify the base point and place it to new point.
• Repeat it until 4 steps are formed.
• With iso-plane right join the two ends with ortho off.

RESULT:

The final sketch is plotted in autocad and the procedure is elborated as shown above.

_______________________________________________________________________________________________________________________________________________________

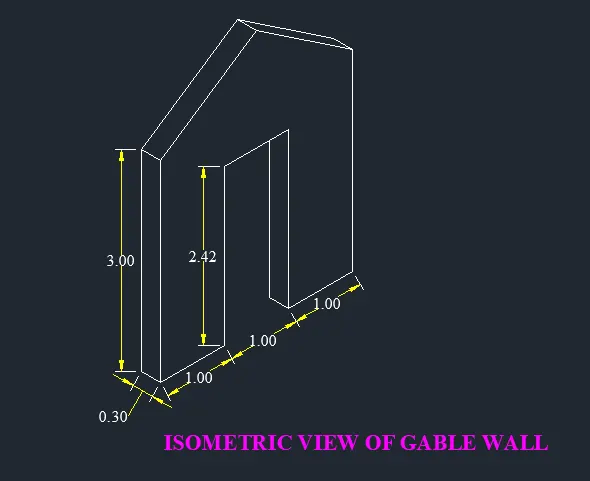

5. Isometric view of gable wall

AIM:- To Create a Isometric view of gable wall

COMMAND USED:- Line, Isometric Plane, dimlinear, Dimsty.

PROCEDURE:

STEP1:-

• To word with isometric view. Type "ds" command to get dynamic settings.
• Pick off the buttons called snap and grid.
• After those are deselected then pick up option called isometric snap.
• Thereby the grid lines will be inclined and cursor will be inclined as well.
• Make sure ortho mode is on (F8)
• Based the sketch given opt the drafting plane either left, right or etc.
• The given figure shows it is an iso-plane left select it.

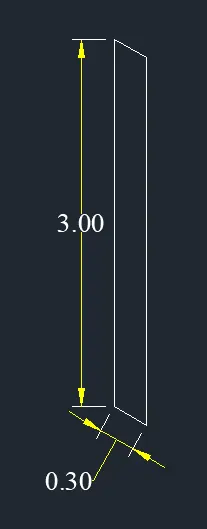

• Give command "L" and move the cursor to right give 1 unit.
• Pointing the cursor upwards give 3 units.
• Draw 0.3 units of left and 3 units downwards and 0.3 units left

STEP2:-

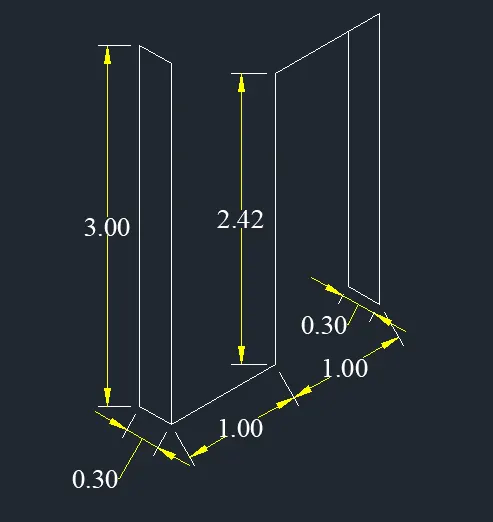

• Using isometric right, take line command and draw line upwards of 2.42 units the starting point of step1.
• Draw 1 unit towards thr right and 2.42 units downwards.
• Using isometric left again, using line command draw 0.3 units to left side and draw a line which intersects the top line.

STEP3:-

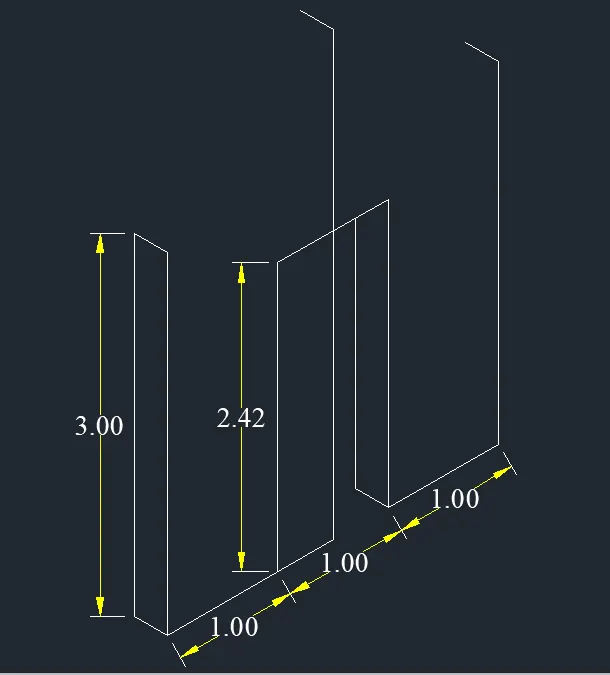

• Using iso-metric right with the line command draw 1.0 unit to right side and 3.0 unit upwards.
• By using the line command draw a line from bottom left corner @1.5 units and extend the line 4 units upwards i.e., total 3.25 units from bottom.

STEP4:-

• With ortho off, draw a line between the corner of left side and the projected line done in step 4.
• Draw it to the other side also till it meets the right corner,.

RESULT:

The final sketch is plotted in autocad and the procedure is elborated as shown above.

_______________________________________________________________________________________________________________________________________________________
