Objective : To investigate convergence rate of steady and Unsteady methods:
Matlab code for steady convergence rate :
close all
clear all
clc
nx = 20;
ny = 20;
nt = 1000;
x = linspace(0,1,nx);
y = linspace(0,1,ny);
d_x = x(2) - x(1);
d_y = y(2) - y(1);
y1 = 1;
error = 9e9;
tolerance = 1e-4;
dt = 1e-4;
T_L = 400;
T_R = 800;
T_T = 600;
T_B = 900;
T = 300*ones(nx,ny);
T(2:ny-1,1) = T_L;
T(2:ny-1,nx) = T_R;
T(1,2:nx-1) = T_T;
T(ny,2:ny-1) = T_B;
T(1,1) = (T_L + T_T)/2;
T(nx,ny) = (T_R + T_B)/2;
T(1,ny) = (T_T + T_R)/2;
T(nx,1) = (T_L + T_B)/2;
k = 2*((d_x^2 + d_y^2)/(d_x^2*d_y^2));
k1 = (1.6*dt)/d_x^2;
k2 = (1.6*dt)/d_y^2;
term1 = (1/(1+2*k1+2*k2));
term2 = (k1*term1);
term3 = (k2*term1);
w_opt = 1.4;
kj = 1;
kc = 0;
T_new2 = T;
T1 = T;
T2 = T;
T_new1 = T;
T_new = T;
kl = 1;
while error > 1e-4
for i=2:nx-1
for j = 2:ny-1
T_new(i,j) = (1/k)*(((T(i-1,j) + T(i+1,j))/d_x^2) + ((T(i,j-1) + T(i,j+1))/d_x^2));
T_new1(i,j) = (1/k)*((T_new1(i-1,j)+T1(i+1,j))/d_x^2) + (1/k)*((T_new1(i,j-1) + T1(i,j+1))/d_y^2);
T_new2(i,j) = (1-w_opt)*T2(i,j) + w_opt*(((1/k)*((T_new2(i-1,j)+T2(i+1,j))/d_x^2) + (1/k)*((T_new2(i,j-1) + T2(i,j+1))/d_y^2)));
end
end
error = max(max(abs(T_new - T)));
error1 = max(max(abs(T_new1 - T1)));
error2 = max(max(abs(T_new2 - T2)));
if kj == 1
fg = error;
fg1 = error1;
fg2 = error2;
end
if kj>=2
loglog([kj-1,kj],[fg,error],'color','r')
axis([0 1000 1e-4 400])
hold on
loglog([kj-1,kj],[fg1,error1],'color','b')
loglog([kj-1,kj],[fg2,error2],'color','cyan')
legend('jacobi','Gauss-siedel','SOR-g-s')
pause(0.0000000000001)
title('convergence rate of iterative methods for steady conuction equation',kj)
xlabel('log(iterations)')
ylabel('log(error)')
end
fg = error;
fg1 = error1;
fg2 = error2;
kj = kj +1;
kc = kc+1;
T = T_new;
T1 = T_new1;
T2 = T_new2;
end

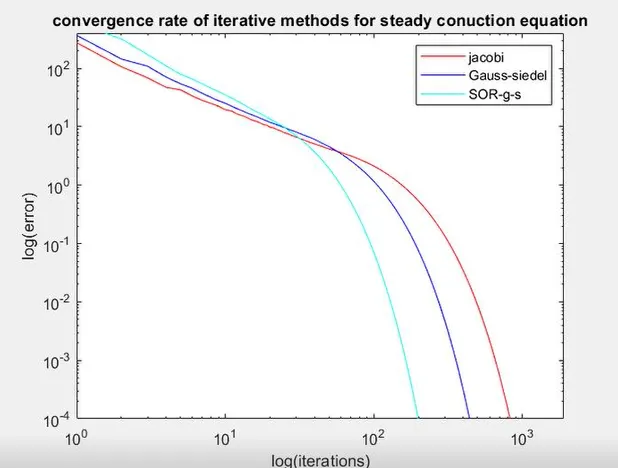

Results :
Observations :
1. SOR takes less iterations than jacobi and gauss siedel.
2. plotted using loglog command , so it would be easy to visualize.
Matlab code for both steady and unsteady methods :
close all
clear all
clc
nx = 20;
ny = 20;
nt = 1000;
x = linspace(0,1,nx);
y = linspace(0,1,ny);
d_x = x(2) - x(1);
d_y = y(2) - y(1);
y1 = 1;
error = 9e9;
tolerance = 1e-4;
dt = 1e-4;
T_L = 400;
T_R = 800;
T_T = 600;
T_B = 900;
T = 300*ones(nx,ny);
T(2:ny-1,1) = T_L;
T(2:ny-1,nx) = T_R;
T(1,2:nx-1) = T_T;
T(ny,2:ny-1) = T_B;
T(1,1) = (T_L + T_T)/2;
T(nx,ny) = (T_R + T_B)/2;
T(1,ny) = (T_T + T_R)/2;
T(nx,1) = (T_L + T_B)/2;
k = 2*((d_x^2 + d_y^2)/(d_x^2*d_y^2));
k1 = (1.6*dt)/d_x^2;
k2 = (1.6*dt)/d_y^2;
term1 = (1/(1+2*k1+2*k2));
term2 = (k1*term1);
term3 = (k2*term1);
w_opt = 1.5;
kj = 1;
kc = 0;
T_new = T;
T_prev=T;
kl = 1;
fprintf('Solver 1 : Steady n Solver 2 : Unsteady n ' )
Solver = input('enter the number you want to select the solver :')
fprintf(' method 1 : Jacobi n method 2 : Gauss siedel n method 3 : SOR-g-s ')
method = input('enter the number you want to select the method :')
tic
while error > 1e-4
for i=2:nx-1
for j = 2:ny-1
if solver == 1
if method == 1
T_new(i,j) = (1/k)*(((T(i-1,j) + T(i+1,j))/d_x^2) + ((T(i,j-1) + T(i,j+1))/d_x^2));
elseif method == 2
T_new(i,j) = (1/k)*((T_new(i-1,j)+T(i+1,j))/d_x^2) + (1/k)*((T_new(i,j-1) + T(i,j+1))/d_y^2);
elseif method == 3
T_new(i,j) = (1-w_opt)*T(i,j) + w_opt*(((1/k)*((T_new(i-1,j)+T(i+1,j))/d_x^2) + (1/k)*((T_new(i,j-1) + T(i,j+1))/d_y^2)));
end
end
if solver ==2
if method == 1
T_new(i,j) = ((term1)*T_prev(i,j)) + ((term2)*(T(i+1,j) + T(i-1,j))) + ((term3)*(T(i,j+1) + T(i,j-1)));
elseif method == 2
T_new(i,j) = ((term1)*T_prev(i,j)) + ((term2)*(T_new(i-1,j) + T(i+1,j))) + ((term3)*(T_new(i,j-1) + T(i,j+1)));
elseif method == 3
T_new(i,j) = (1-w_opt)*T(i,j) + w_opt*(((term1)*T_prev(i,j)) + ((term2)*(T(i+1,j) + T(i-1,j))) + ((term3)*(T(i,j+1) + T(i,j-1))));
end
end
end
end
error = max(max(abs(T_new - T)))
if kj == 1
fg = error;
end
if kj>=2
loglog([kj-1,kj],[(fg),(error)],'color','r')
axis([0 10000 1e-4 10000])
hold on
if method == 1
legend('jacobi')
elseif method == 2
legend('Gauss-siedel')
else
legend('SOR-g-s')
end
title('convergence rate of iterative methods for Unsteady conuction equation time @ Iteration @',[toc kj])
xlabel('log(iterations)')
ylabel('log(error)')
end
fg = error;
kj = kj +1;
kc = kc+1;
pause(0.00000000001)
T = T_new;
T_prev = T_new;
end
Results :

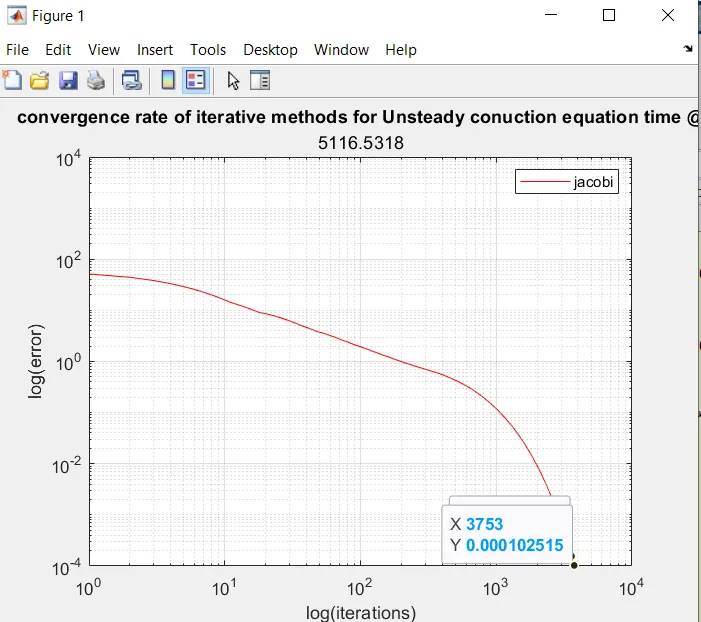

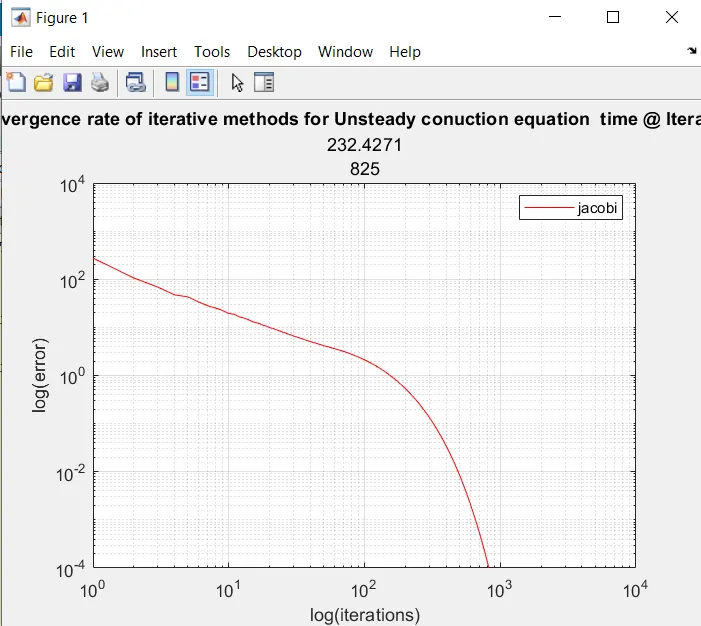

Jacobi steady and unsteady :

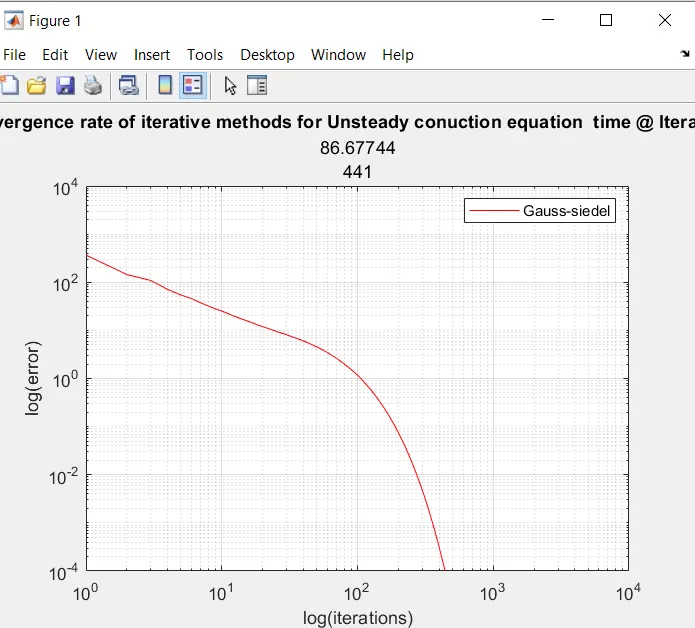

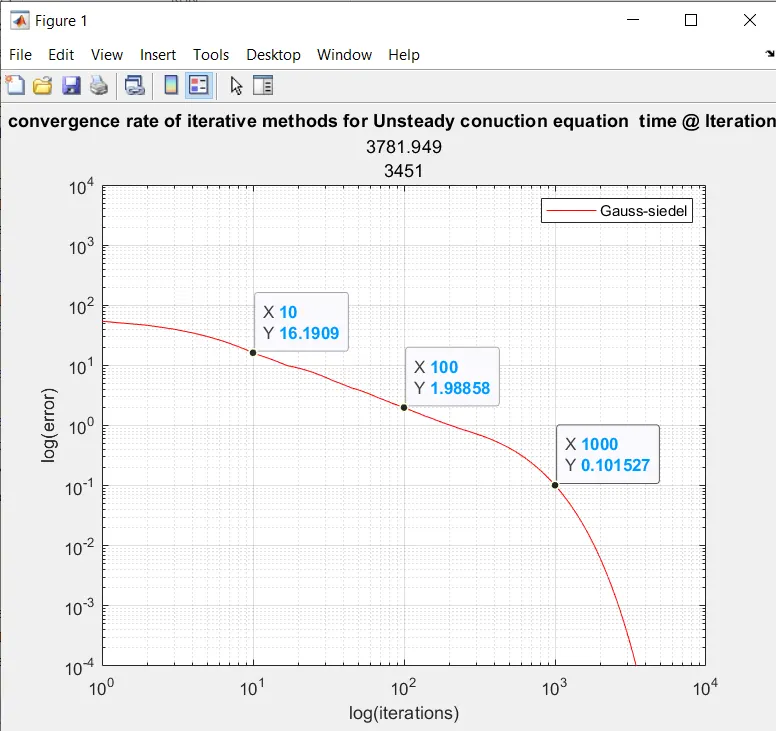

Gauss siedel steady and unsteady :

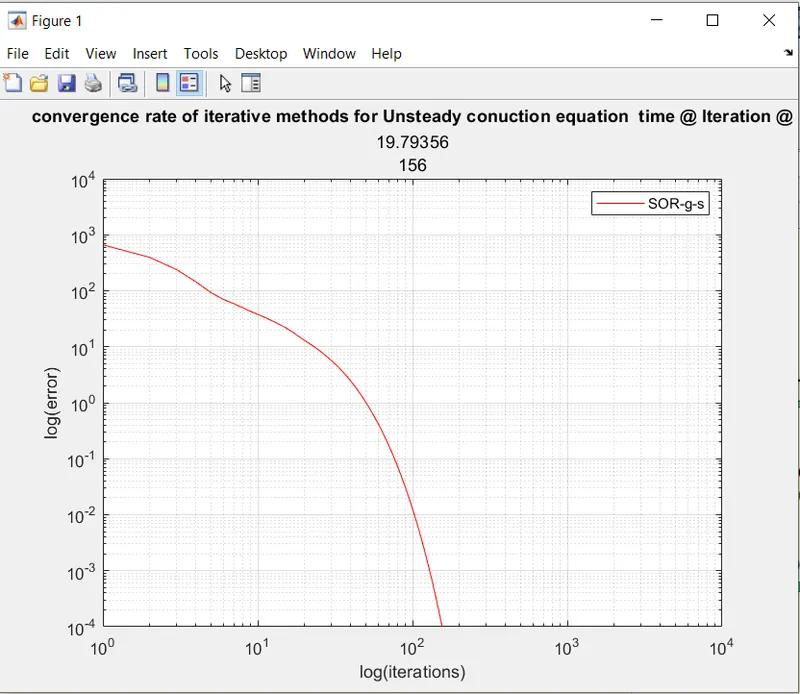

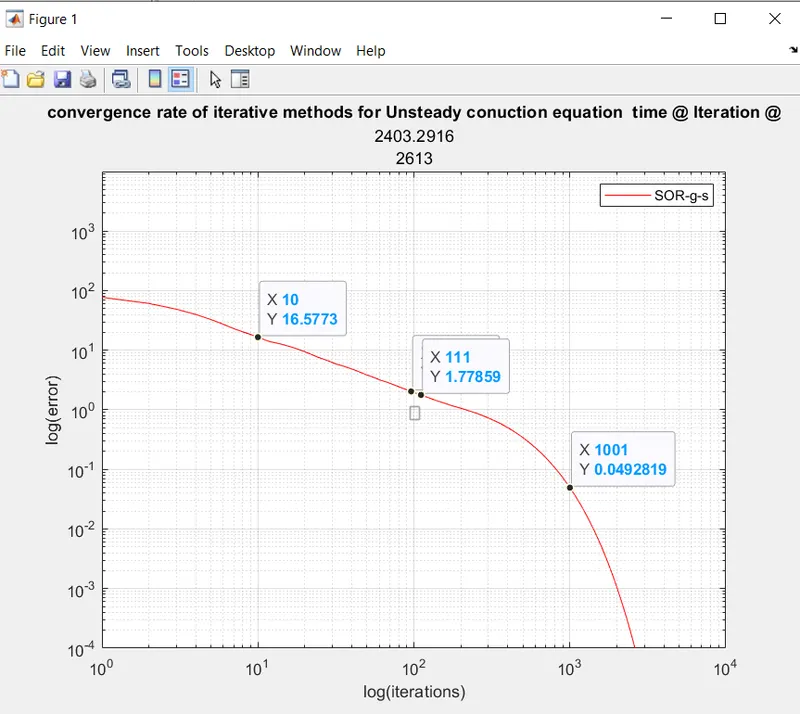

SOR steady and unsteady :
Transient Explicit Results :
Number of Iterations : 1436.
Note :
Using function defination this execution would be simpler.
Observations :
1. Succcessive over relaxation method is faster than other two methods.
2. Explicit Transient takes less iterations than Implicit successive over relaxation.
3. Implicit approach takes more iterations and more time to execute.
