3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q1.Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level. AIM: To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION: The creation of Ceilings within…

MAYUR KOKANI
updated on 07 Jan 2022

Q1.Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

AIM: To model a Ceiling from the architecture tab above the walls at the first-floor level.

INTRODUCTION: The creation of Ceilings within Revit is a very similar process to that of Floors and Roofs- ie you can let Revit do most of the work and "guess" where you want the boundaries to be,Or you can enter "Sketch Mode and literally sketch out the boundary of the ceiling yourself.

The main thing to remember is to be in the Correct Ceiling Plan View before you start. Revit "will" let you place Ceilings in Floor Plan Views, but I would not advise this as you cannot readily see what you have created.

PROCEDURE

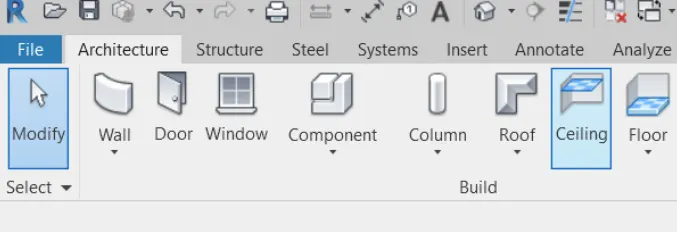

Step:-1 First we open the revit sofware, and select the ceiling option from the architecture toolbar.

Step:-2

After selecting the ceiling option, then select the cach room one by one.

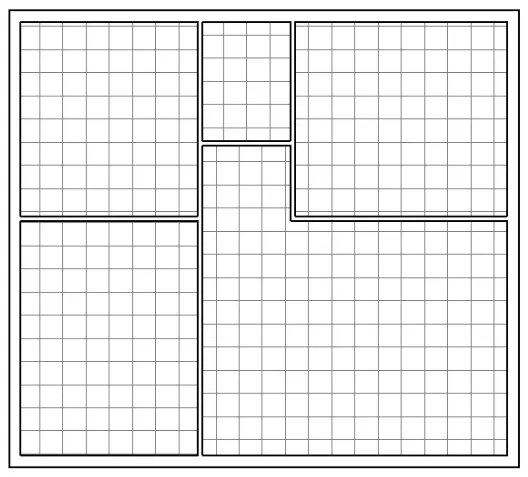

Then the ceiling will be created, as shown in the below figure.

Step:-3

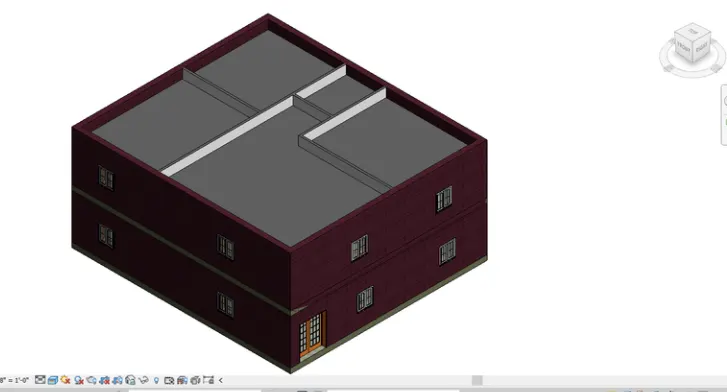

Here we can the ceiling in the three dimensional view as shown in the below figure.

RESULT:

The ceiling has been modeled successfully from the architecture tab above the walls at the first floor level

Q2. Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

AIM- To model a roof above the ceiling by selecting the footprints of the ceiling.

INTRODUCTION:

Roof, covering of the top of a building, serving to protect against rain, snow, sunlignt wind, and extremes of temperature.
Roofs have been constructed in a wide variety of forms flat, pitched, vaulted, domed, or in combinations as dictated by technical economic, or aesthetic considerations The earliest roofs constructed by man were probably thatched roofs that were made of straw. leaves, branches, or reeds, they were usually set at a slope, or pitch, so that rainfall could drain off them.
Conical thatched roofs are a good example of this type and are still widely used in the rural areas of Africa and elsewhere.
Thicker branches and timbers eventually came to be used to span a roof, with clay or some other relatively impermeable substance pressed into the interstices between them.
Gabled and flat roofs were possible with these materials. With the invention of brick and cut stone for building, the basic roof forms of the dome and vault appeared.

PROCEDURE

Step:-1

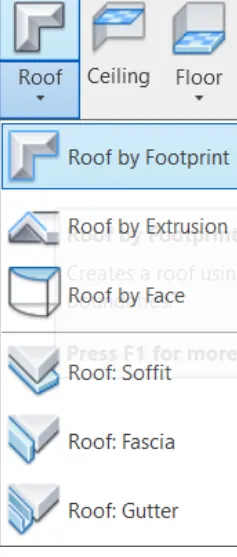

Open the architecture toolbar, and select the Roof by Footprint option as shown in the below figure.

Step:-2

Next we select the roof and adjust the roof to 10 degrees by selecting it, as shown in the figure.

Step:-3

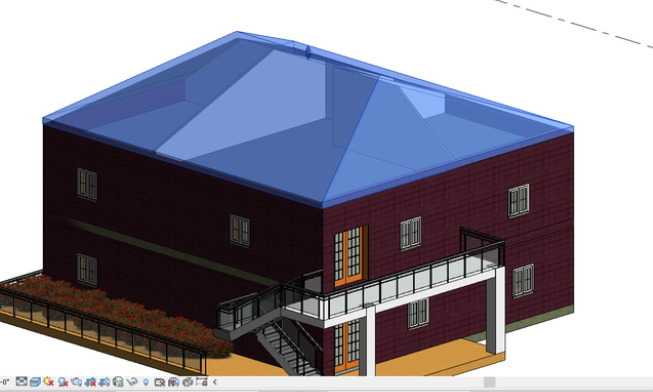

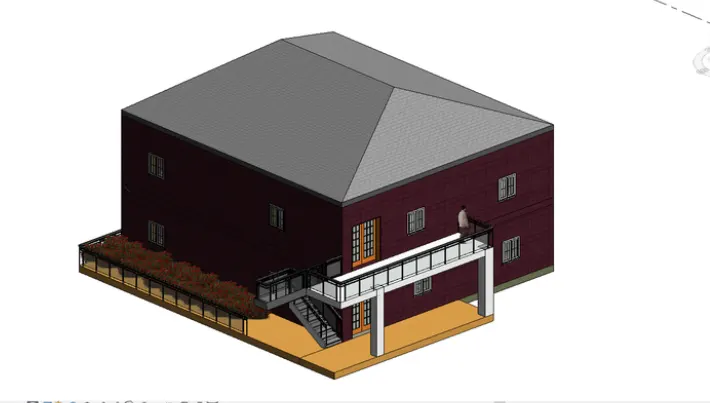

The roof has been created as shown below.

RESULT

Q3. Using the file saved from weeks 2 to 4, create plan views for ground floor level and first floor level including all the walls, floors, and components. Separate them to architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building

b. Structure plan must have details of only walls, floors, and columns

AIM:-To create plan views for ground floor level and first-floor level including all the walls, floors, and components.

And to Separate them to architecture and structural plans.

INTRODUCTION:

The structural plan view is the default view when you start a new project using a structural template.
Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
The floor plan view is the default view in a new architectural project.
Most projects include at least one floor plan.
Floor plan views are created automatically as you add new levels to your project.

PROCEDURE:

Step:-1

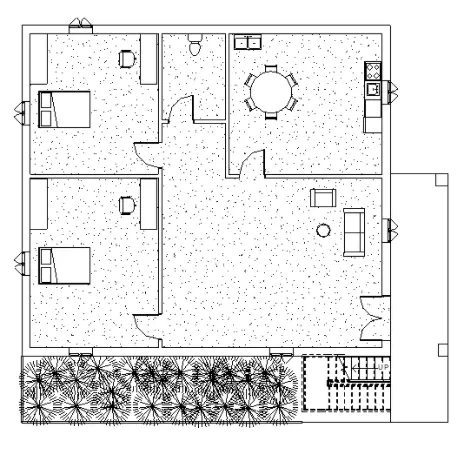

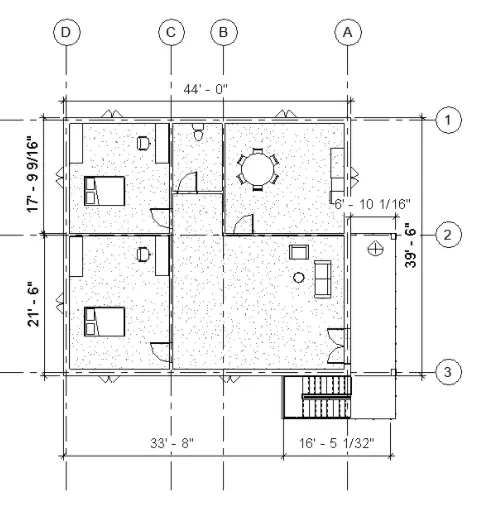

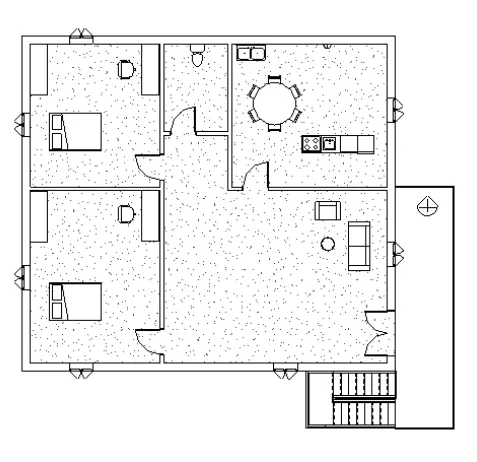

First we draw the architectural pains of first floor and second floor as shown below

Step:-2

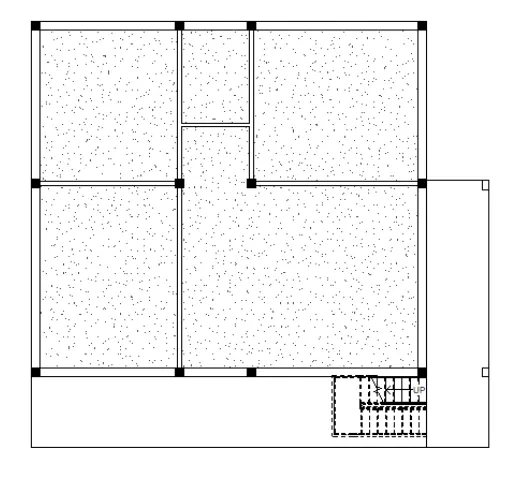

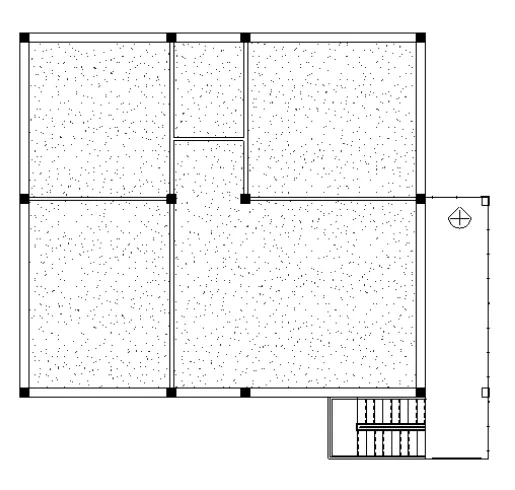

Next we draw structural plans of the first floor and second floor as shown below

RESULT

Q4.Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids.

Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

INTRODUCTION:

The structural plan view is the default view when you start a new project using a structural template. .
Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels project. You can create multiple structural plan view types. include at least one floor plan
The floor plan view is the default view in a new architectural project. Most projects
Floor plan views are created automatically as you add new levels to your project.

PROCEDURE:

Step:-1

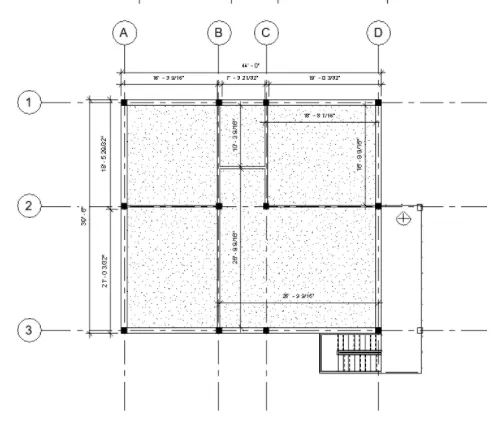

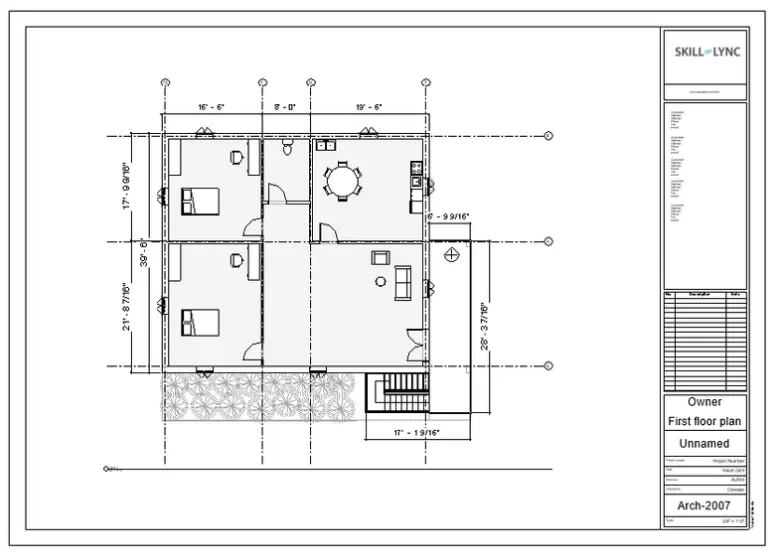

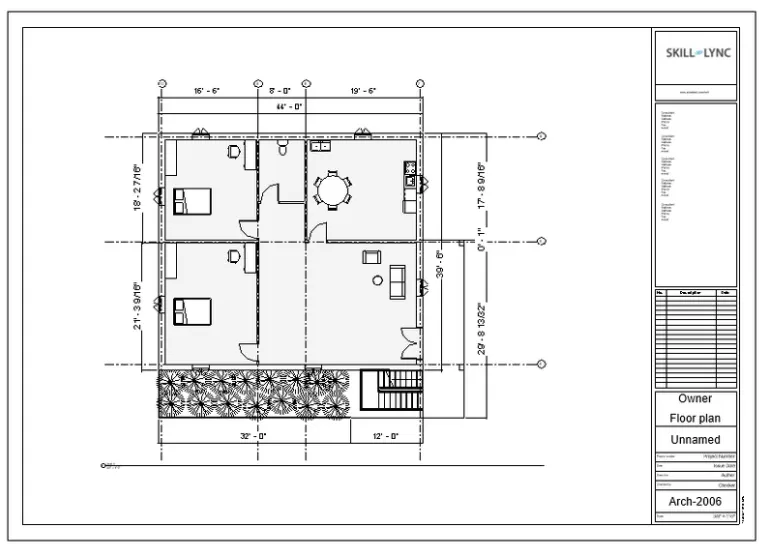

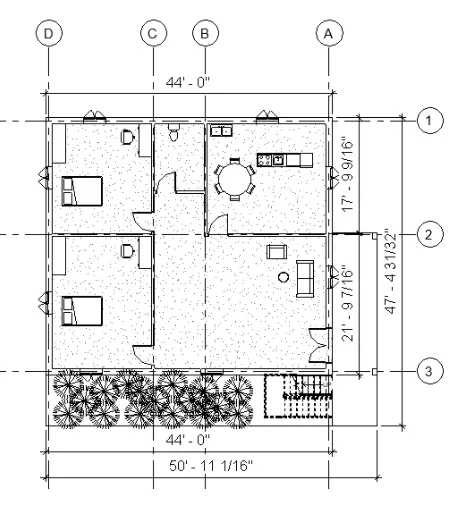

Here we drawn the longitudinal and transverse grids to the architectural floor plans as shown below. . And add the dimensions to the architectural plans as shown below.

Step:-2

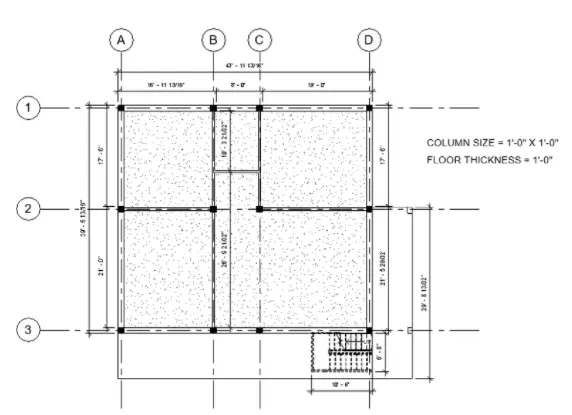

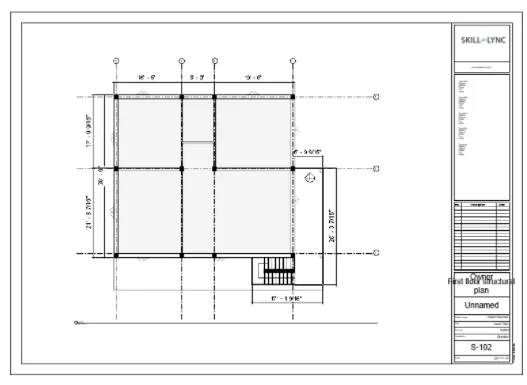

Next we draw the longitudinal and transverse grids to the Structural floor plans as shown below. • And add the dimensions to the Structural plans as shown below.

RESULT

Q5.Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views. AIM:-To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

INTRODUCTION:

Create views on a project template before you start building the model to streamline the project documentation process. . When creating a project template, you can include sheets in the template. Start with a blank project file, and create the standard views and levels that each project should include.

Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets using the desired title blocks.

Add views to the sheets, using the desired viewport templates and view title types.

Then save the empty project as a project template.

When you create a project using this project template, all of the views and sheets are already created and listed in the Project Browser.

As you start to draw the building model in the project views, the views on the sheets update automatically. • This technique streamlines the project documentation process and maintains organizational standards.

PROCEDURE:

Step:-1

First we click on the sheet option from the view toolbar, as shown below.

After clicking the sheet. Thhe new tab will be visible on the screen.

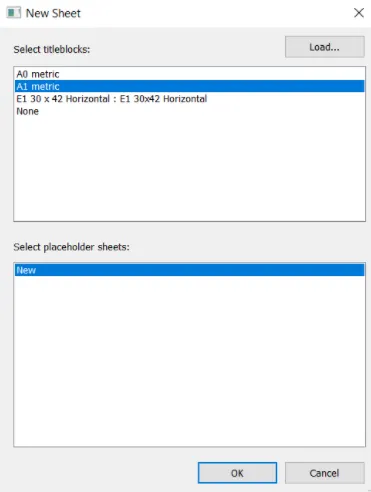

In that new tab we select the Al metric, then the sheet template will be displayed.

Step:-2

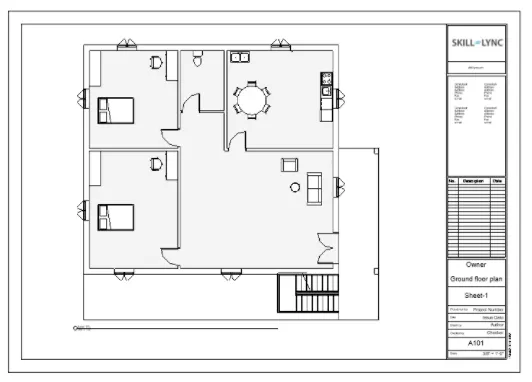

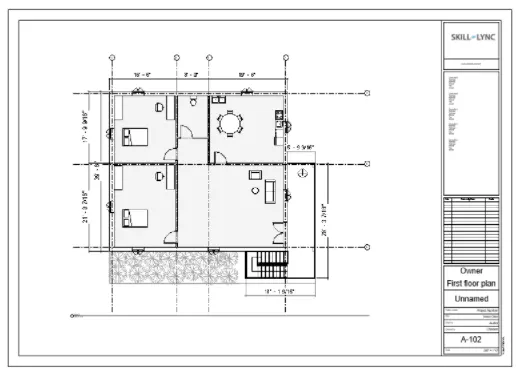

In the sheet template we insert the first floor plan and second floor plan separately as shown below.

Next edit the Project name and the sheet number as shown in the below figures.

RESULT-

Q6.Using the elevation tab create the elevation views, looking at your building from East, North, South, and West AIM:-To create the elevation views, looking at your building from East, North, South, and West using the elevation tab

INTRODUCTION:

An elevation is a view of a building seen from one side, a flat representation of one view. . This is the most common view used to describe the external appearance of a building.

Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.

PROCEDURE:

Step:-1

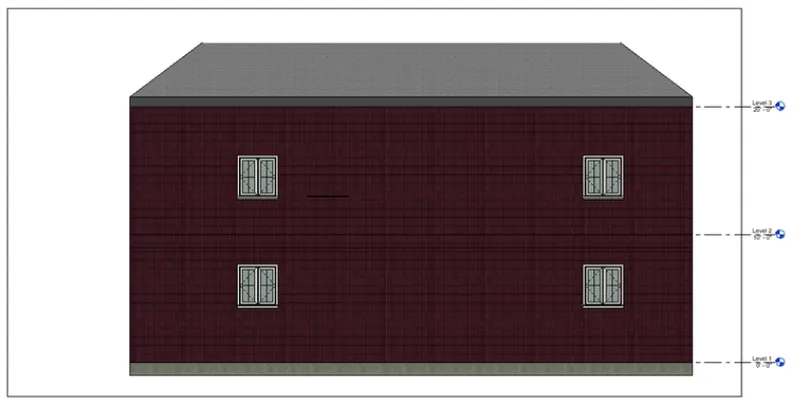

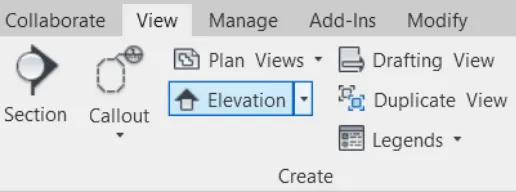

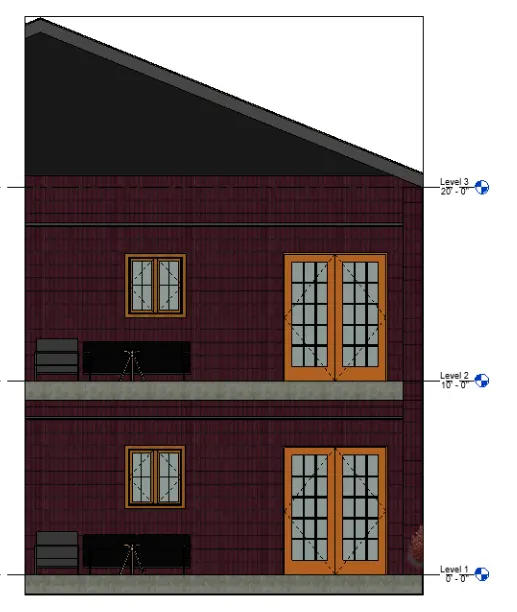

First we click on the elevation option from the view toolbar, as shown below.

Step: 2

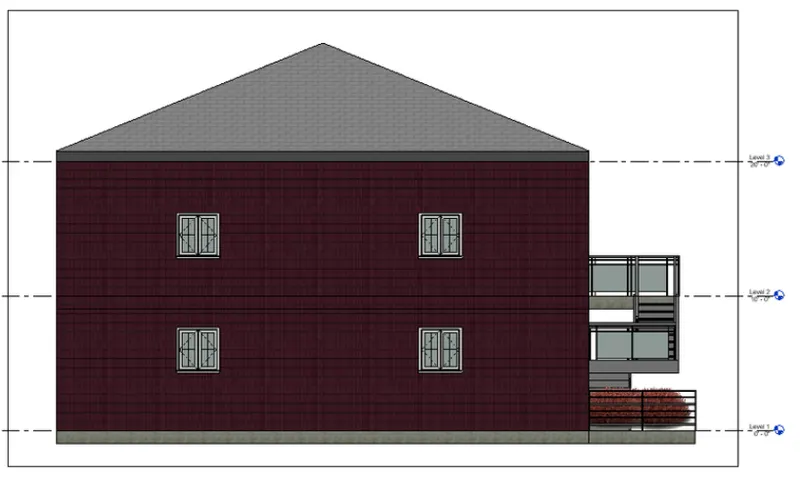

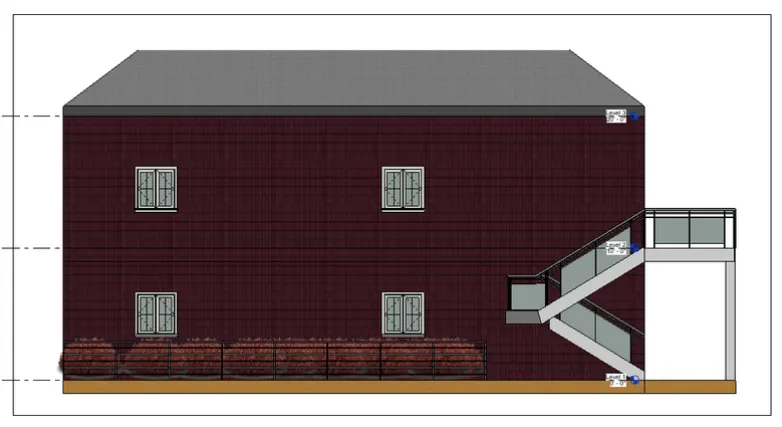

Next the elevation from the East will be visible, as shown below.

Step: 3

Next the elevation from the South will be visible, as shown below.

Step: 4

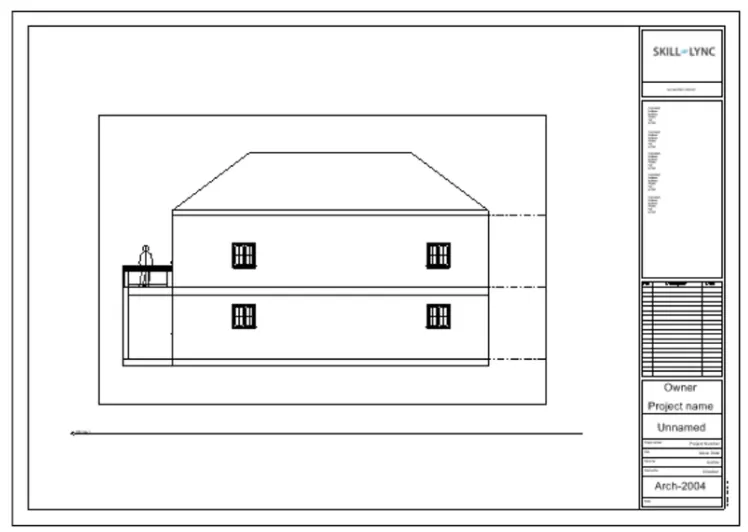

Next the elevation from the North will be visible, as shown below.

Step: 5

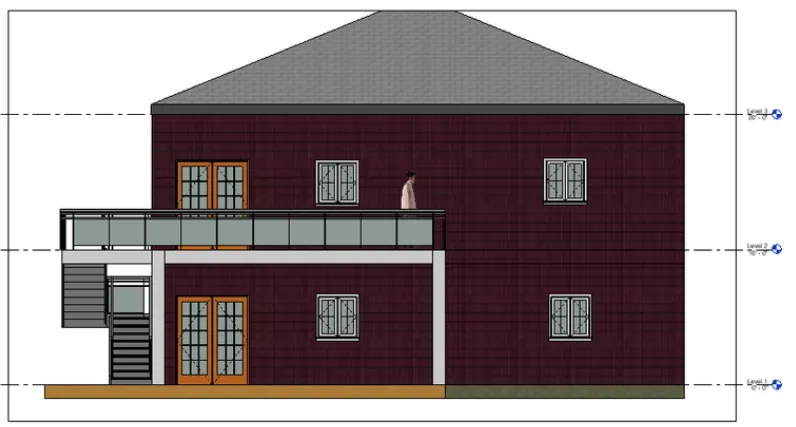

Next the elevation from the west will be visible, as shown below.

Q7.Produce section cut through each room either cutting across longitudinally or in a transverse direction.

AIM: To produce section cut through each room either cutting across longitudinally or in a transverse direction.

INTRODUCTION:

Sectional views reveal hidden details in a mechanical drawing.
These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
Sectional views are used in engineering and architectural drawings.
They help civil engineers, architects, and airplane designers communicate their ideas to their peers.

PROCEDURE:

Step:-1

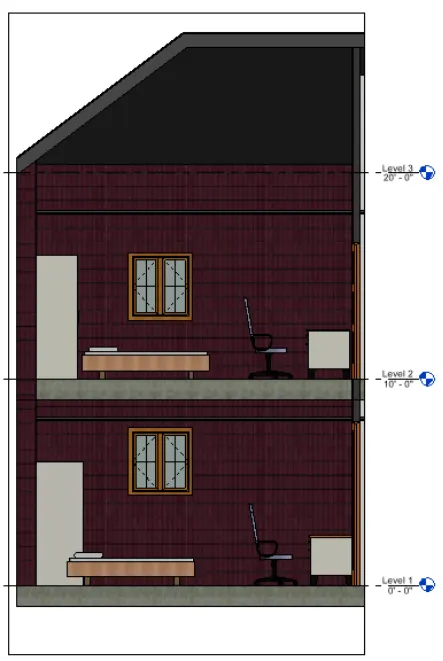

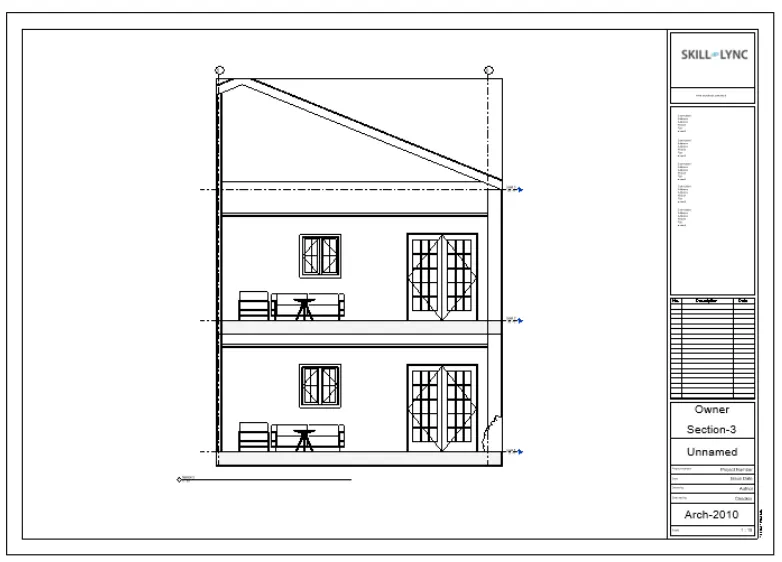

First we click on the section option from the view toolbar, as shown below.

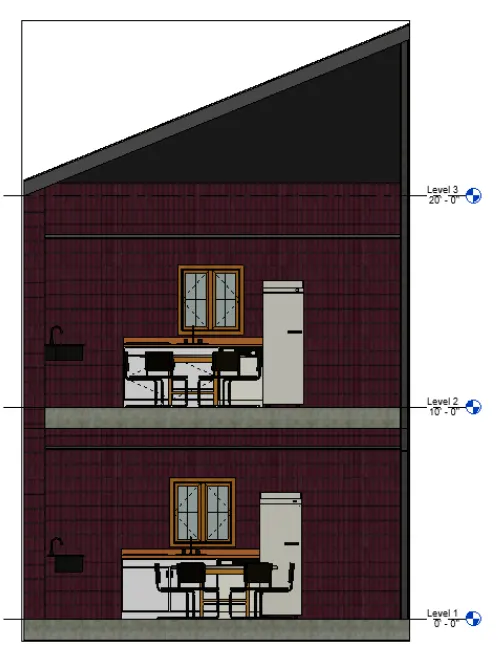

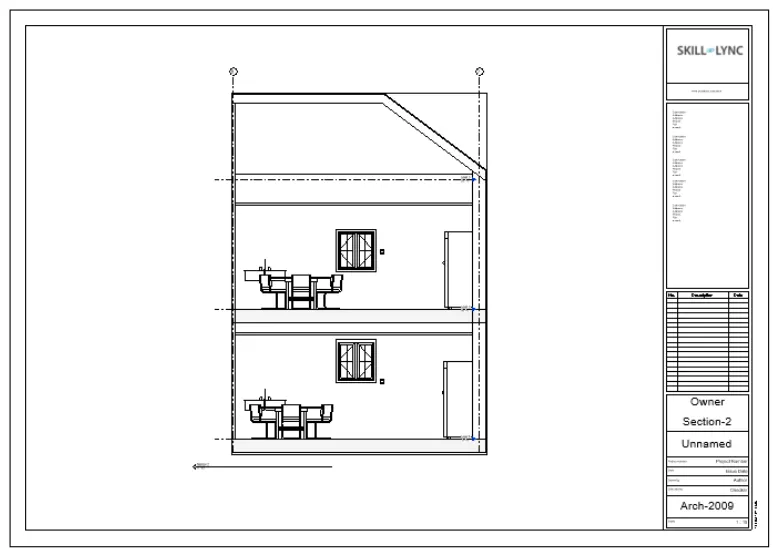

Next we produce the section view of the bed room as shown in the below figure.

Step:2

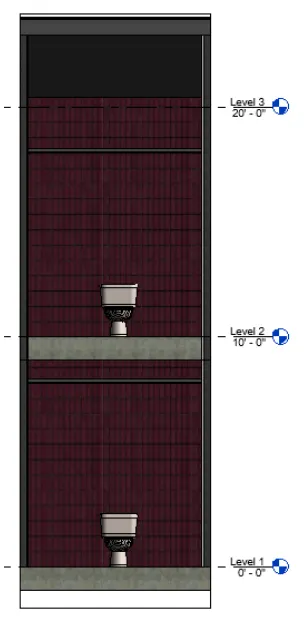

Next we produce the section view of the Toilet as shown in the below figure.

Step:3

Next we produce the section view of the Living room as shown in the below figure.

Step:4

Next we produce the section view of the Kitchen as shown in the below figure.

Q8.Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties

browser.

AIM:- To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties

browser.

INTRODUCTION:

The structural plan view is the default view when you start a new project using a structural template. Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types
The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan
Floor plan views are created automatically as you add new levels to your project. . Sectional views reveal hidden details in a mechanical drawing
These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
Sectional views are used in engineering and architectural drawings. • They help civil engineers, architects, and plane designers communicate their ideas to their peers
An elevation is a view of a building seen from one side, a flat representation of one view This is the most common view used to describe the external appearance of a building
Each elevation is labelled in relation to the compass direction it faces, eg looking toward the north you would be seeing the southem elevation of the building

PROCEDURE

Step 1

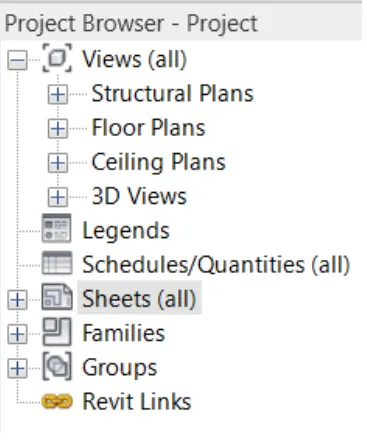

Fast we opon the pret browser, the views Plan View Section Views and Elevation wees are ble is that portba shown below

Now we set these plans one by one in the sheets poly

Step 2

First we insert the front elevation in the sheet template, as shown the below figure.

Step 3

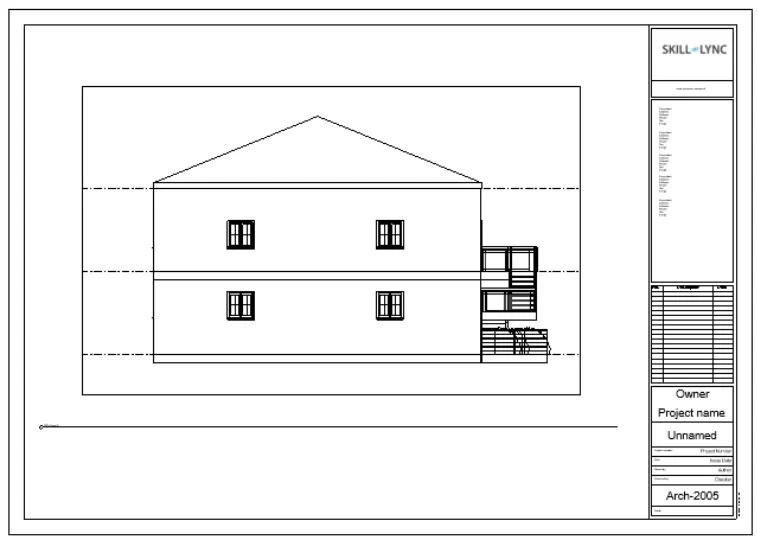

Next we insert the left sute olevation in the shood serplate as shown in the ber hel

Step:-4

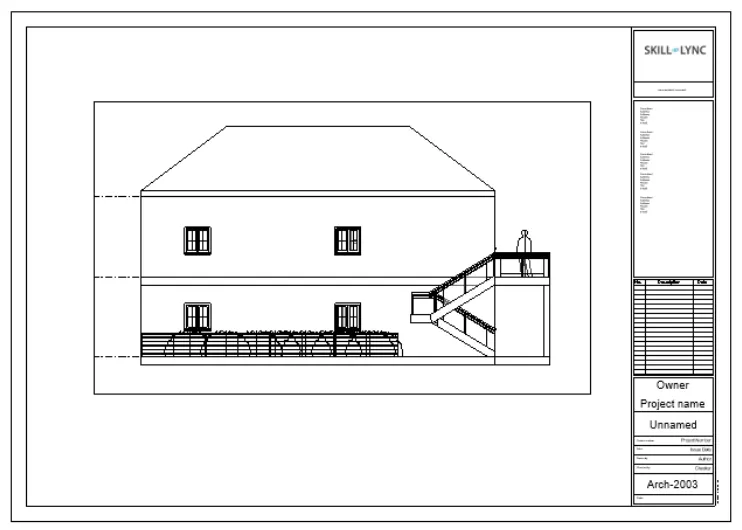

Next we insert the right side elevation in the sheet template, as shown in the below figure.

Step:-5

Next we insert the back side elevation in the sheet template, as shown in the below figure.

Step:-6

Next we insert the ground floor plan in the sheet template, as shown in the below figure.

Step: 7

Next we insert the first floor plan in the sheet template, as shown in the below figure.

Step:-8

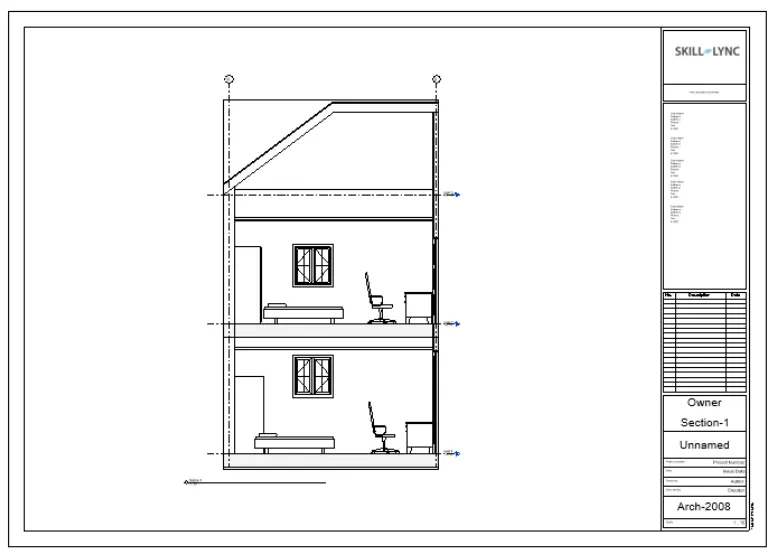

Next we insert the section-1 in the sheet template, as shown in the below figure.

RESULT

Q9. Using the sheet template produced create multiple sheets as follows

a. A 101-Ground Floor Architecture Plan

b. A 102- First Floor Architecture Plan

c. A 103-Roof Plan

d. S 101-Ground Floor Structural Plan

e. S 102-First Floor Structural Plan

f. S103-Roof Framing Plan

g.A-201-North-South Elevations

h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM: To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.

INTRODUCTION:

Create views on a project template before you start building the model to streamline the project documentation process .
When creating a project template, you can include sheets in the template. Start with a blank project file, and create the standard views and levels that each project should include.
Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets usingthe desired title blocks.
Add views to the sheets, using the desired viewport templates and view title types
Then save the empty project as a project template.
When you create a project using this project template, all of the views and sheets are already created and listed in the Project Browser.
As you start to draw the building model in the project views, the views on the sheets update automatically.
This technique streamlines the project documentation process and maintains organizational standards

PROCEDURE

Step: 1

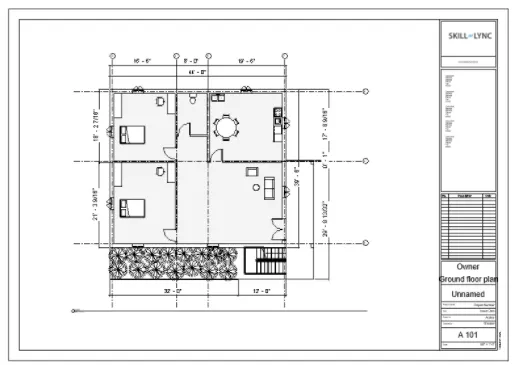

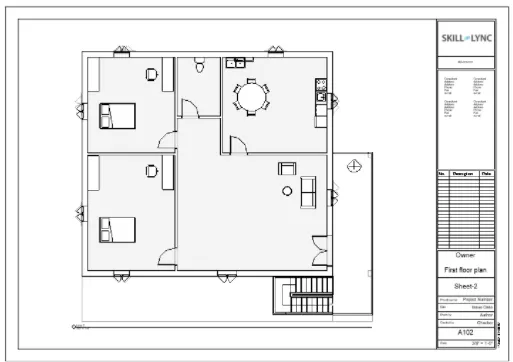

First we produce the Ground floor architectural plan in the sheet template A-101 as shown in the below figure

Step: 2

we produce the first floor architectural plan in the sheet template A-102 as shown in the below figure

Step: 3

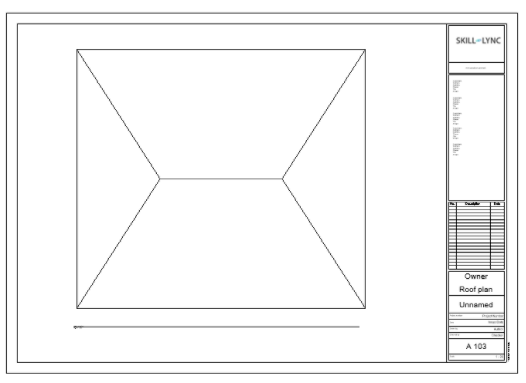

we produce the roof plan in the sheet template A-103 as shown in the below figure

Step: 4

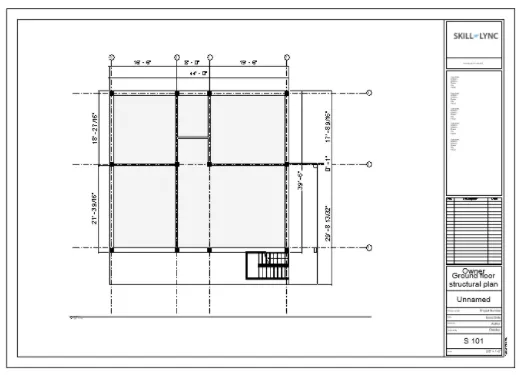

we produce the Ground floor structural plan in the sheet template S-101 as shown in the below figure

Step: 5

we produce the first floor structural plan in the sheet template S-101 as shown in the below figure

Step: 6

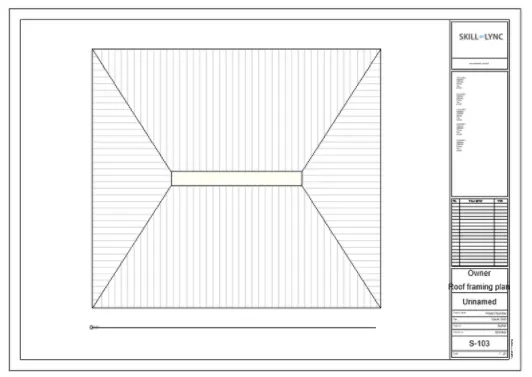

we produce the roof framing plan in the sheet template S-101 as shown in the below figure

Step: 7

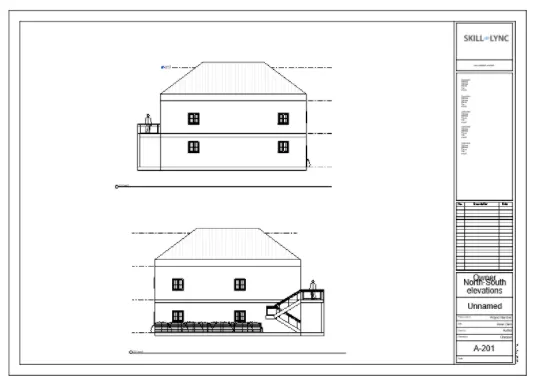

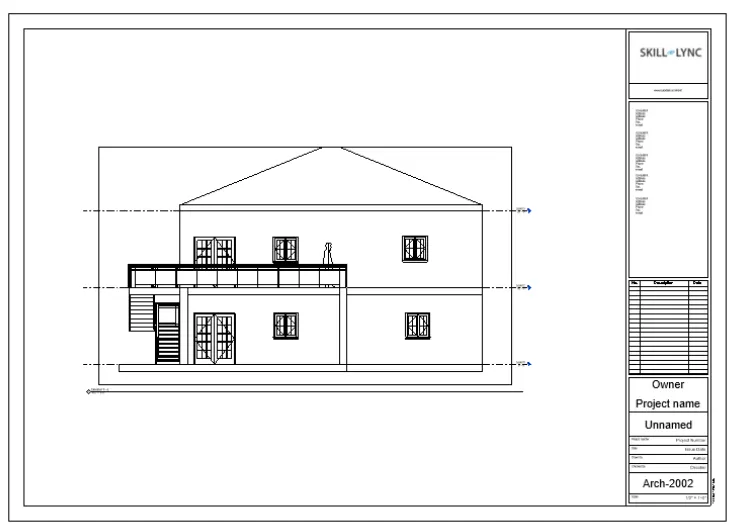

we produce the north south elevation plan in the sheet template A-201 as shown in the below figure

Step: 8

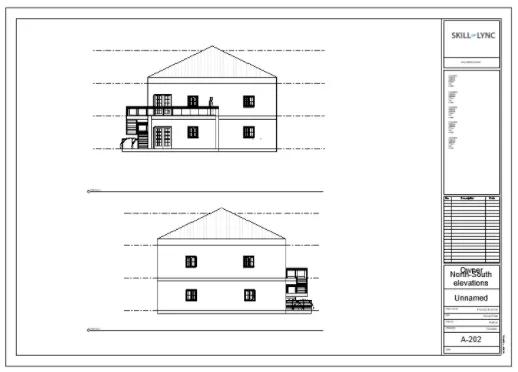

we produce the east west elevation plan in the sheet template A-201 as shown in the below figure

RESULT

Q.10Create a camera-specific view or a 3D view in each room (living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM: To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

INTRODUCTION:

Camera Views are really useful in Revit.

They allow us to view what we would actually see if we were standing at any given location in our design. . This can be invaluable for both understanding and communicating the nature of a space before we go to the expensive lengths of actually constructing it for real.

PROCEDURE:

Step:-1

First we take the sheet and name it as A-501.

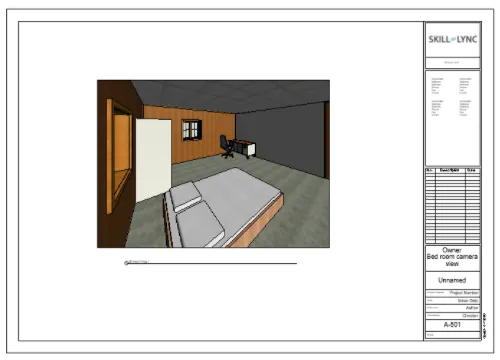

Next go to the floor plan and place the camara in the bed room, and the camera view of bed room will be shown below

Step:-2

Next we take the sheet and name it as A-502.

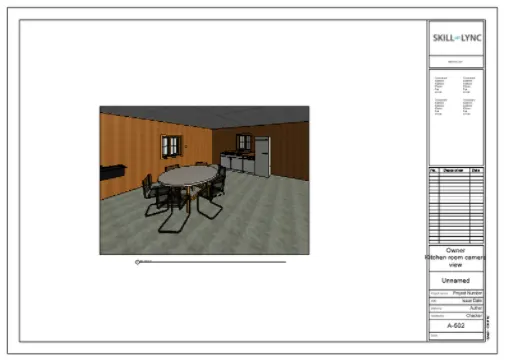

Next go to the floor plan and place the camara in the Kitchen room, and the camera view of kitchen room will be shown below.

Step:-3

Next we take the sheet and name it as A-503.

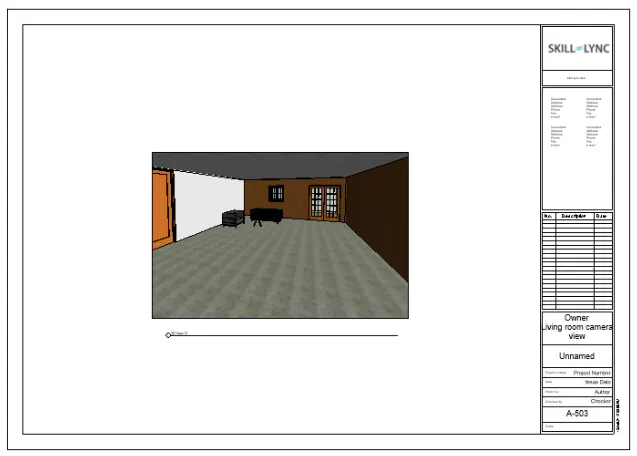

Next go to the floor plan and place the camara in the Living room, and the camera view of Living room will be shown below.

RESULT
