Design of simple cooling system
Design a simple cooling system based on the given inputs.
Electrical · Course
Battery Cooling System using GT Suite
Battery Cooling System using Ansys Fluent and GT Suite
- Content
- 16 hours
- Projects
- 2
OverviewWhat you'll
What you'll
be able to do.
Tools you'll use
ANSYS FluentGT-SUITE
Curriculum12 modules,
12 modules,
built with industry.
01Battery Cooling System using GT Suite
- Overview of Cooling of Electronic Components & Energy storage devicesW01
The following are the topics covered in this week:
- Cooling of electronic components - What & Why?
- Cooling of energy storage devices - What & Why?
- Various components used in the cooling system
- Basic cooling system layout (Automotive & Computational systems)
- Types of cooling mechanism
- Overview of the design process
- Overview of simulation and calculation tools
- Engineering principles of cooling system design – Hydraulic W02
The following are the topics covered in this week:
- Flow through pipes
- Pressure drop estimation in pipe flow
- Frictional losses in pipe flow
- Flow through channels (For Electronic cooling)
- Pressure drop estimation in channel flow
- Losses in channel flow
- Fundamentals of Coolant fluids
- Permeability value calculation for pipes
- Application of hydraulic principles in circuit design
- Hydraulic principles in a centrifugal pump
- Engineering principles of cooling system design – ThermalW03
The following are the topics covered in this week:
- Types of heat transfer mechanism
- Conduction heat transfer in solid bodies
- Convective heat transfer between liquid and solid
- Fundamentals of heat exchangers
- Heat generation mechanism in batteries
- Heat generation E-Motors
- Heat generation in computational systems
- Fundamentals of the refrigeration system (Expanded to automotive and computing system)
- Application of thermal principles in system design
- Cooling system components – Working Principle – Part 1W04
The following are the topics covered in this week:
- Battery cooling plates & Thermal pads
- Thermal parameters in battery
- Working of Electric Water Pump
- Design & Performance characteristics of EWP
- Design & Working of Heating systems
- PTC heaters
- Automotive cabin heaters
- Thermoplungers
- Cooling system components – Working Principle – Part 2W05
The following are the topics covered in this week:
- Working principle of radiator
- Design & performance characteristics of the radiator
- Working principle of chiller
- Design & working principle of a cooling fan
- Design & working principle of immersion cooling
- Design & working principle of degassing tank
- Working principle of electro-valves
- Design of hoses
- Design of channels
- Thermal conduction modules
- Design & working principle of a heat sink
- Sizing & selection of cooling system components W06
The following are the topics covered in this week:
- Sizing of battery cooling plates
- Sizing of EWP
- Sizing of radiator
- Sizing of chiller
- Sizing of a cooling fan
- Sizing of hoses
- Sizing of channels
- Selection of cooling fluid
- Application of CFD for Thermal-hydraulic designThermo-hydraulic design of battery cooling plate
Pressure drop estimation in hoses - Thermo-hydraulic analysis of heat exchangers
- Thermo-hydraulic analysis of electronic system
- Cooling Circuit Design – Part 1W07
The following are the topics covered in this course:
- Cooling component & system integration
- Introduction to vehicle drive profiles
- Estimation of heat generation in battery
- Selection of heat rejection mechanism
- O Case Study For Air Cooling
- Air / Coolant flow rate estimation
- Application of an air-cooled battery pack
- Cooling Circuit Design – Part 2W08
The following are the topics covered in this course:
- Cooling circuit analysis – Circuit with Radiator
- Cooling circuit analysis – Circuit with Chiller
- Cooling circuit analysis – Hybrid circuit
- Comparing different cooling circuits
- Thermal Management Design Process
- Cooling system control strategies
- Design parameters in the cooling system
- Introduction to GT SuiteW09
The following are the topics covered in this course:
- Introduction to GT-Suite
- Cooling and Thermal library in GT-Suite
- Basic modelling methods
- Modelling of straight pipes
- Modelling of pipes with bends
- Modelling of a simple hydraulic circuit
- Modelling of Cooling System – Part 1W10
The following are the topics covered in this week:
- Introduction to Thermal Library
- Modelling of Thermal Mass
- Modelling of Conduction Heat Transfer
- Modelling of Convection Heat Transfer
- Modelling of Thermal Network
- Cooling Capacity Estimation
- Modelling of the Cooling system – Part 2W11
The following are the topics covered in this week:
- Modelling of Air Cooling System
- Radiator Modelling
- Chiller Modelling
- Modelling of flow control system
- Hybrid circuit modelling
- Modelling of heating components
- Cooling circuit and cooling component validationW12
The following are the topics covered in this week:
- Development loop of component & system
- General validation logic
- Cooling system validation methods
- Concept design of cooling circuit
- Tuning of 1D circuit
- Common failure modes
- Overview of Cooling of Electronic Components & Energy storage devicesW01
Industry projects2 projects
2 projects
you'll ship.
Our projects are designed by experts in the industry to reflect industry standards. By working through our projects, Learners will gain a practical understanding of what they will take on at a larger-scale in the industry. In total, there are 2 Projects that are available in this program.

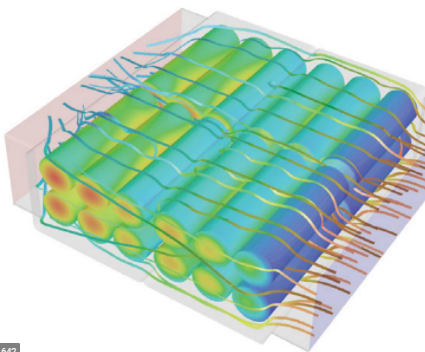

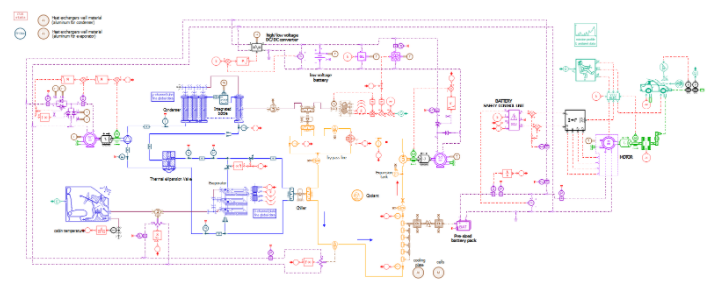

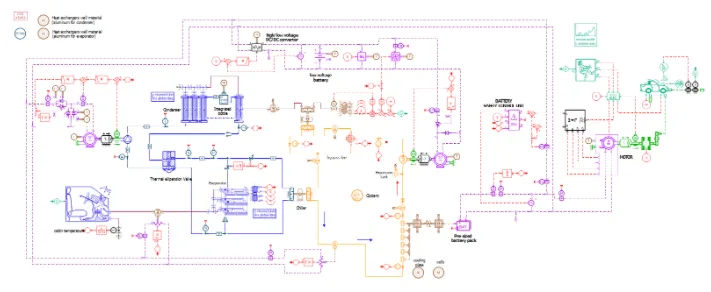

Simulation & analysis of cooling circuit
Create an optimum cooling circuit and choose the right sizing of all the components with the given inputs. Justify the design with simulation and analysis.
