Wiring harness routing & packaging Rules Week 3 Challenge

(1.)

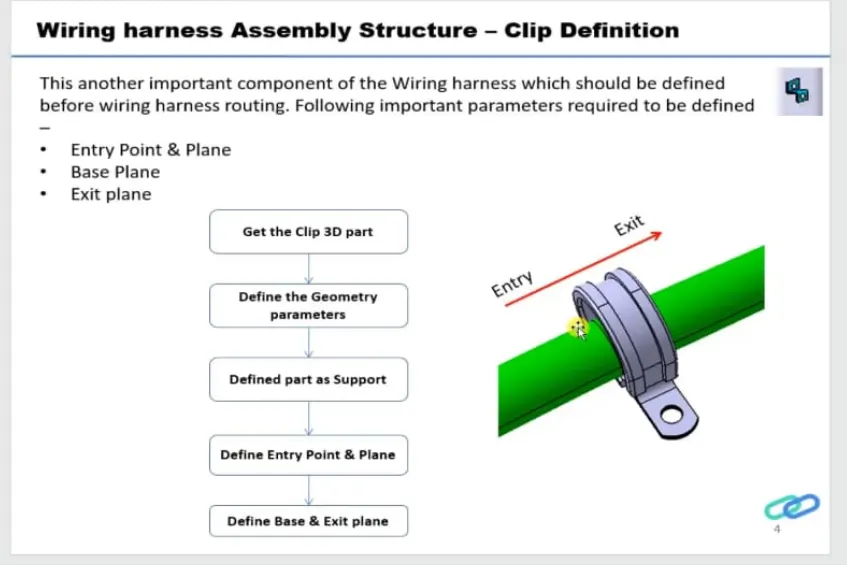

process:

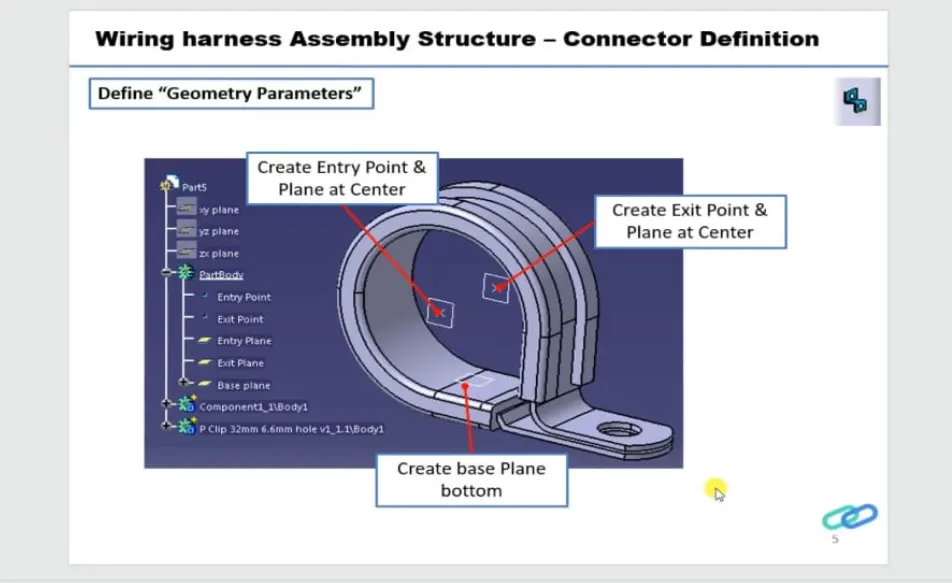

. create two points one as the entry and other as exit point.

. create planes at two points and another at base.

. switch to electrical part design

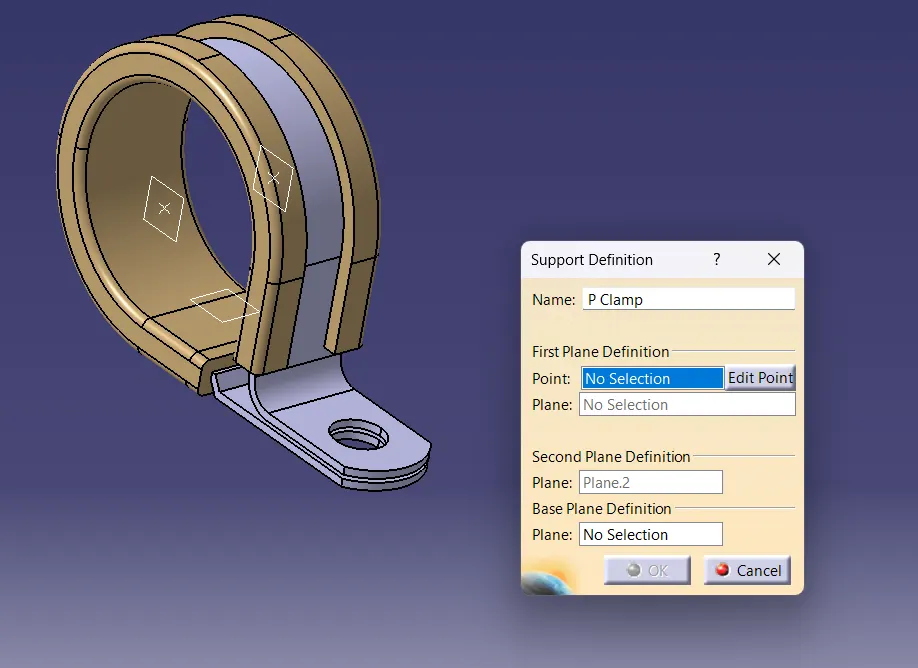

.click on support definition - select part - select entry point - select entry plane exit and base plane.

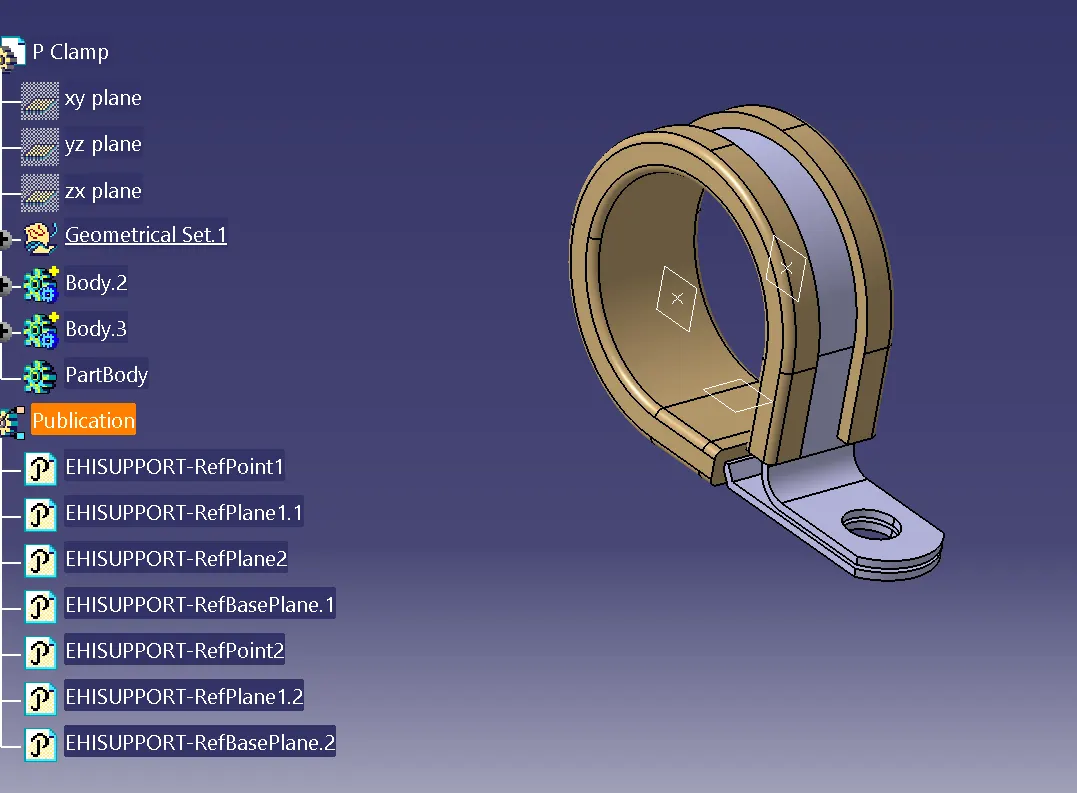

. again click on support definition - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken

Q2.



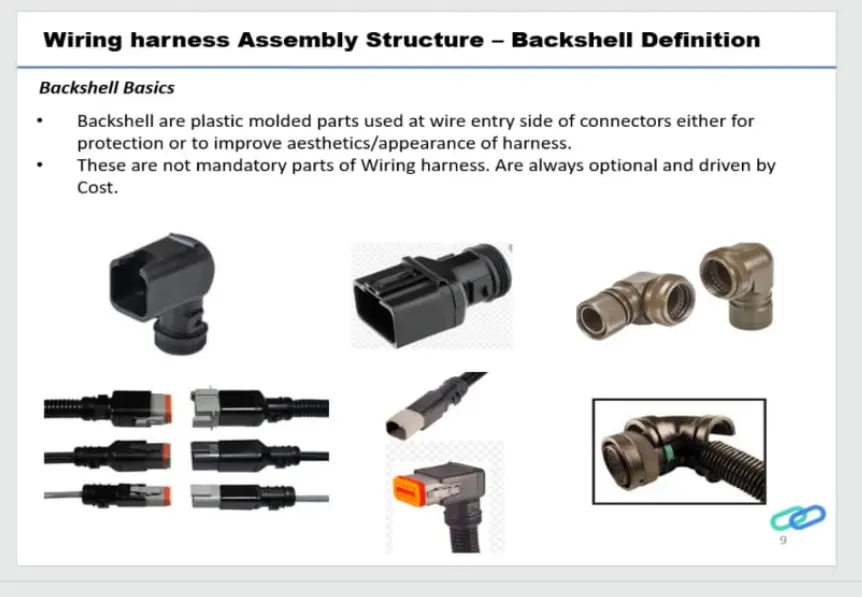

process:

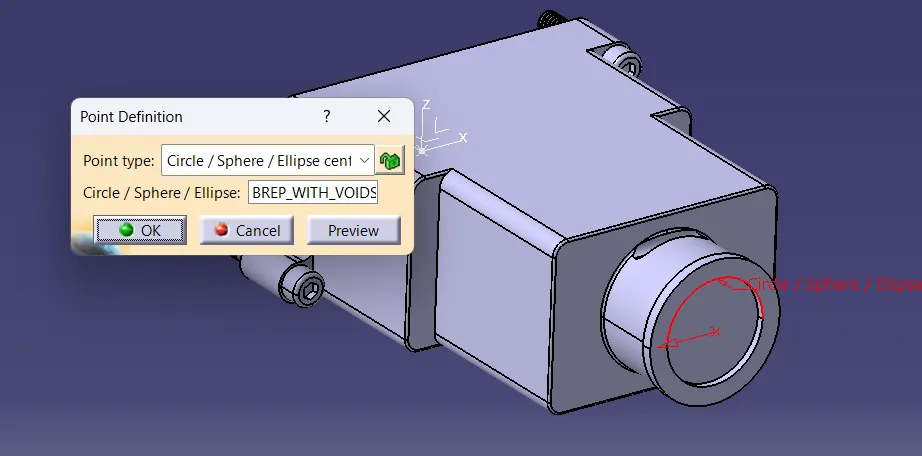

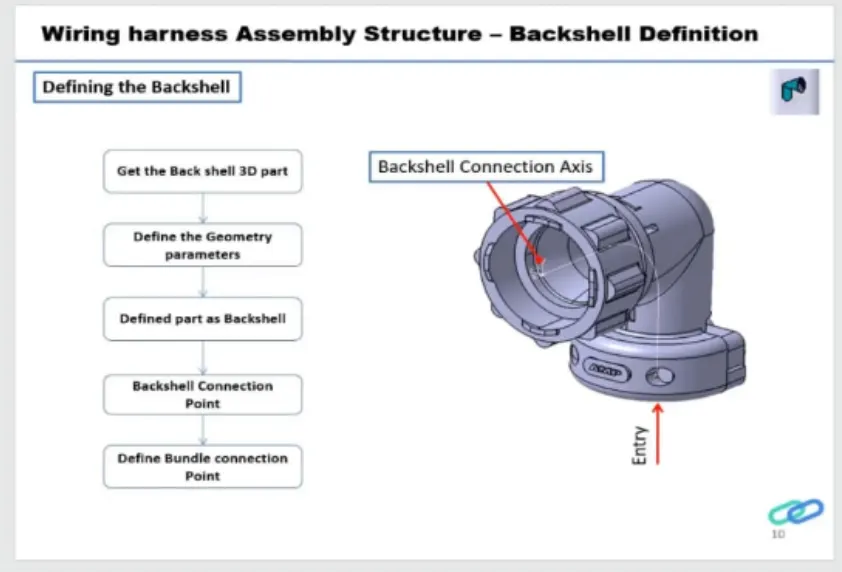

. create back shell entry point.

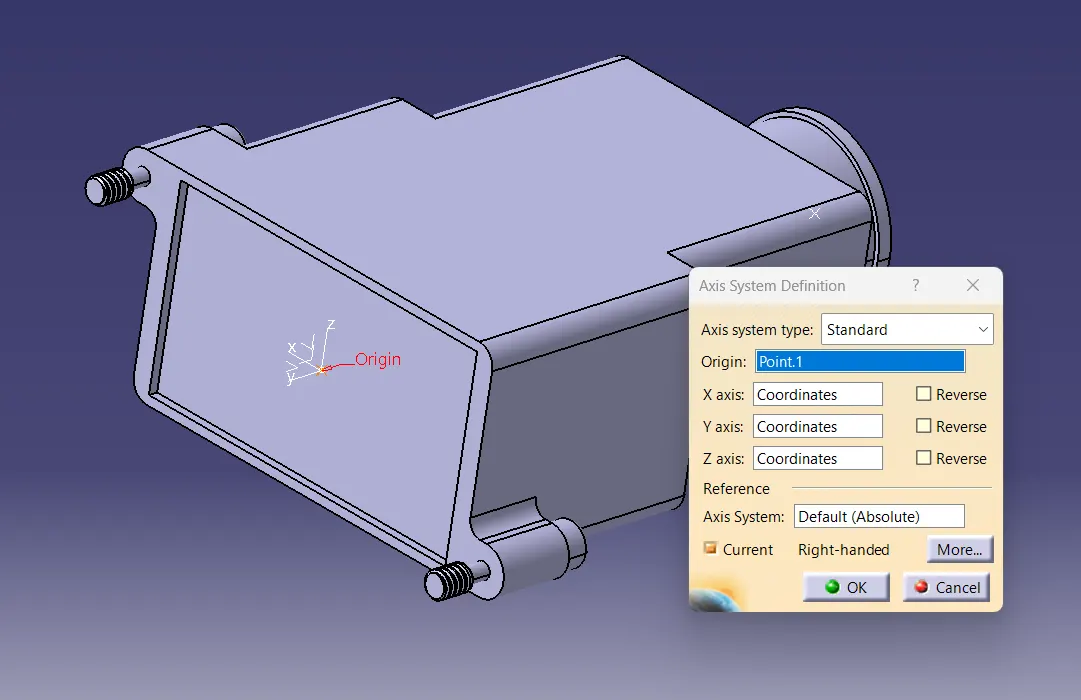

. create axis system for back shell entry.

. create bundle connection point.

. switch to electrical part design.

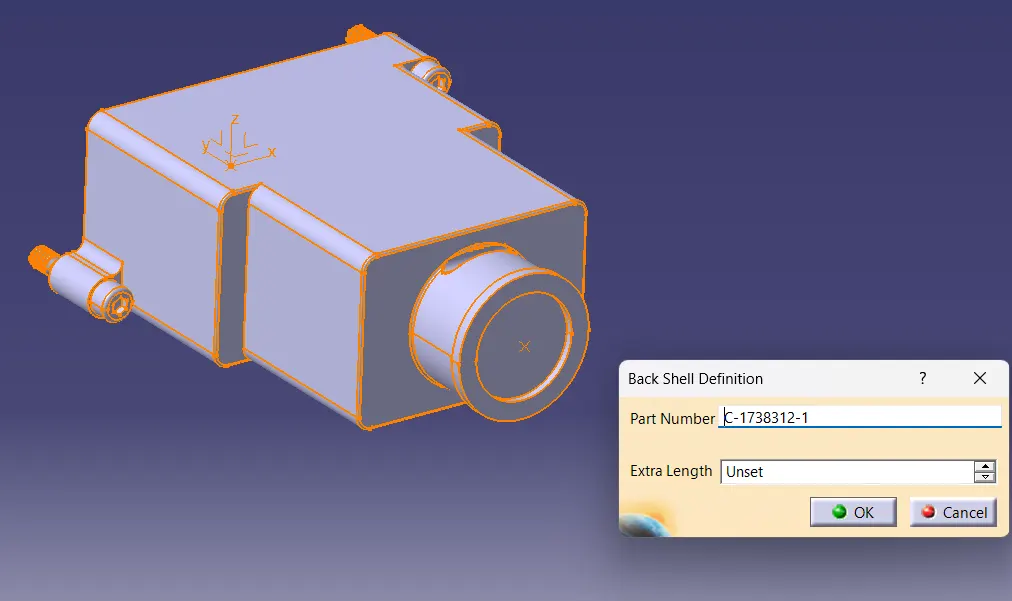

. define part electrically as back shell.

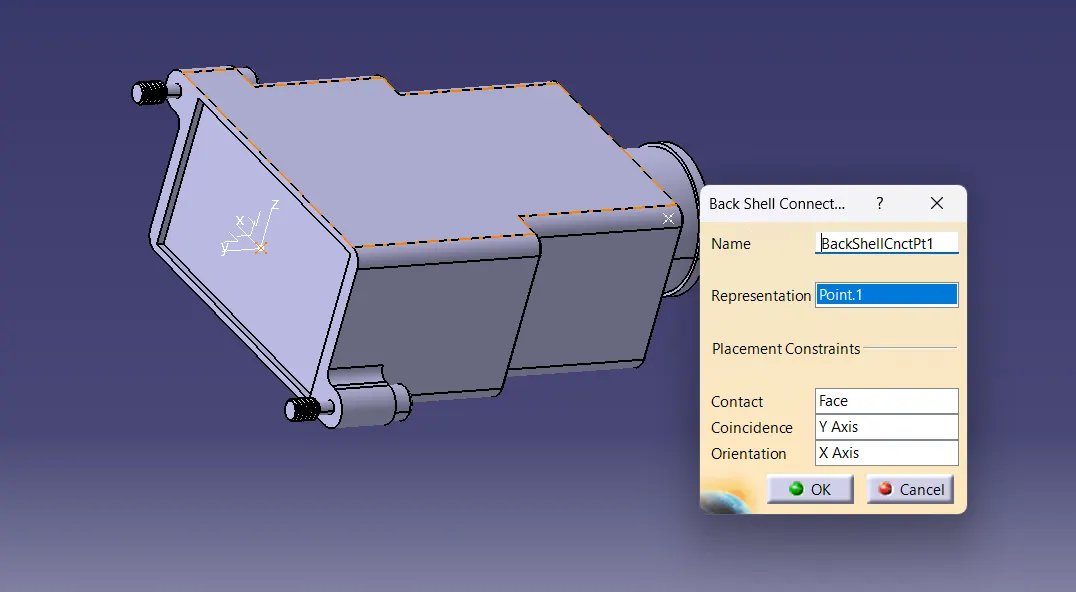

. define back shell connection point.

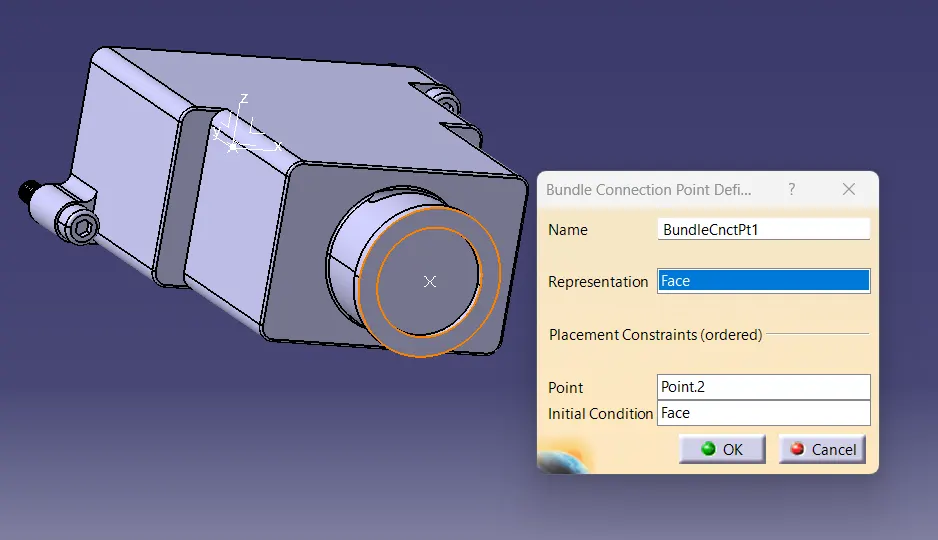

. define bundle connection point.

Q3.

PROCESS:

. switch to electrical part design.

. select define protection part

. click on part.

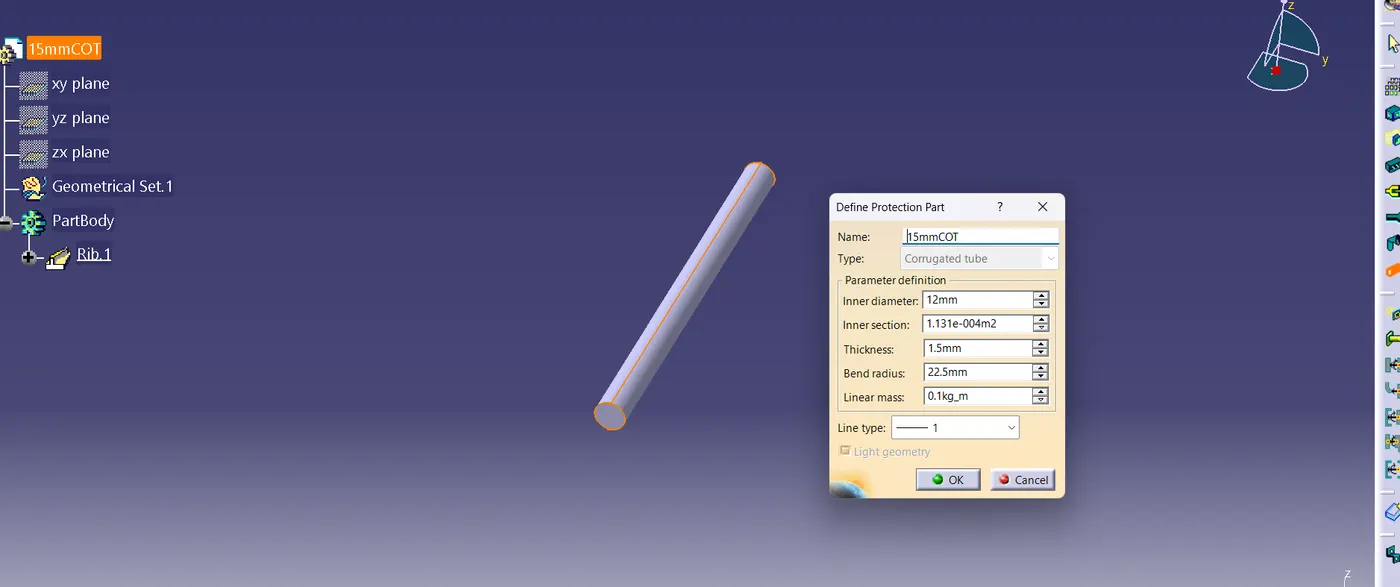

. provide given parametersand bend radius as '1.5 * outer dia '.

CATALOGUE CREATION :

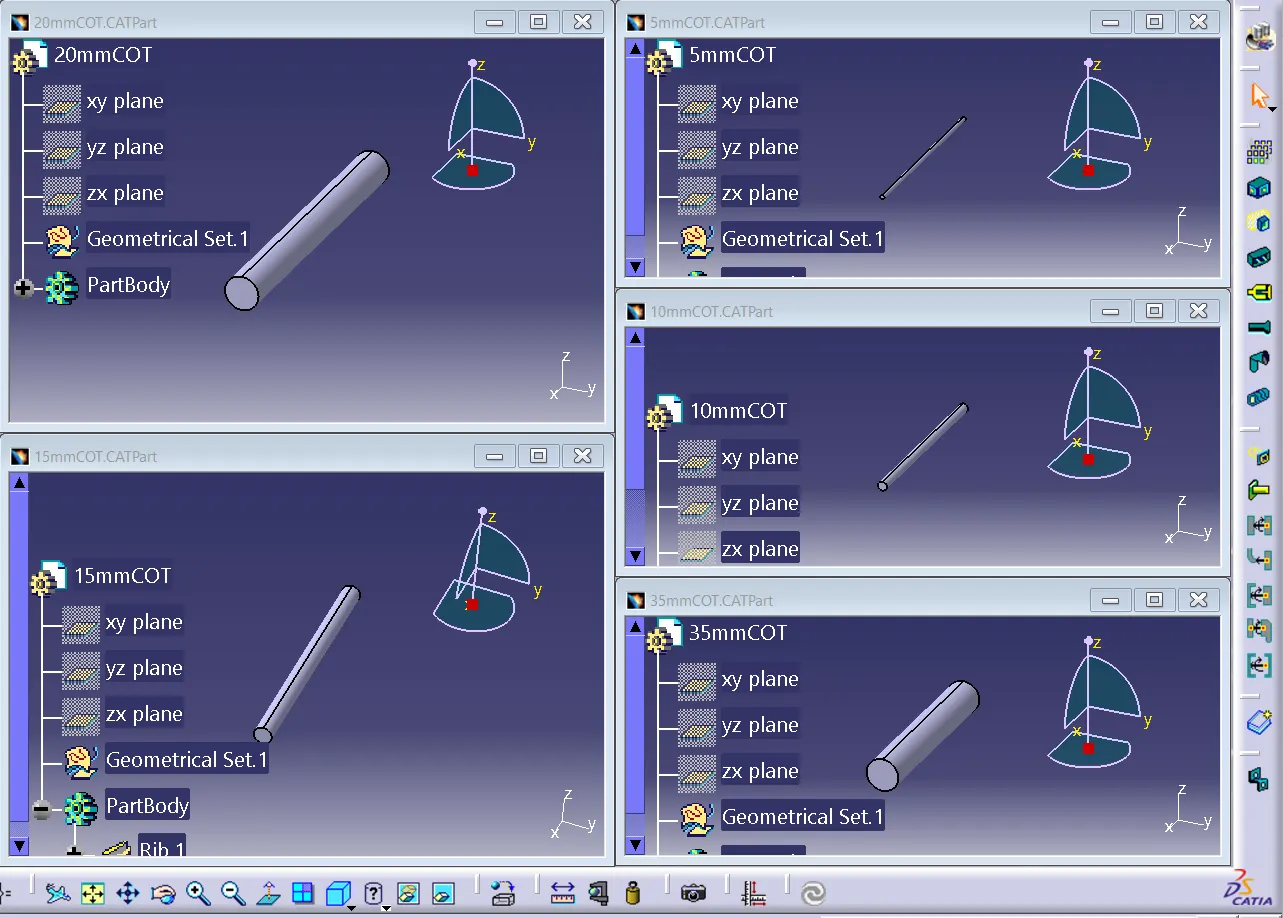

. new part - catalogue document - add family - give name - type - select conduit - save.

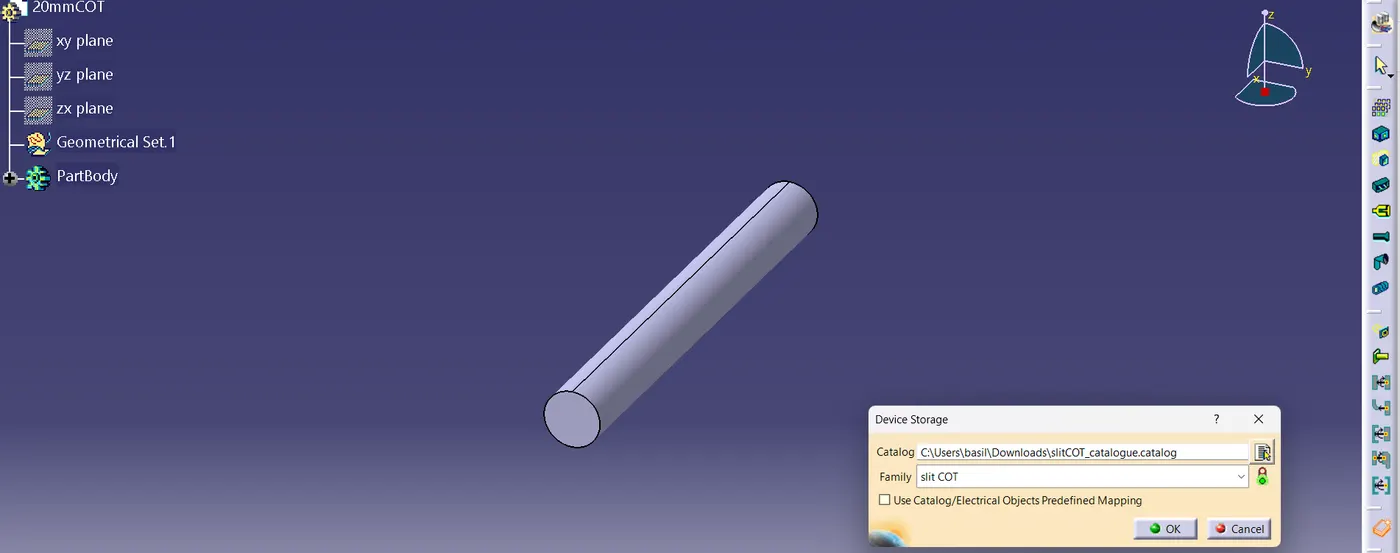

. open part to add the catalogue - store device command - select catalogue - family - slitCOT - OK.
