Week 9 - Challenge 3 - Bumper

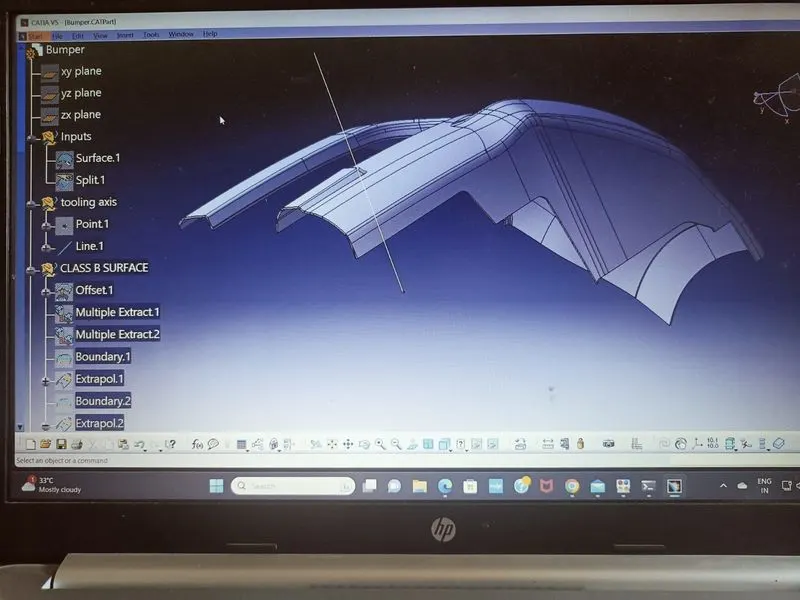

1. TOOLING AXIS

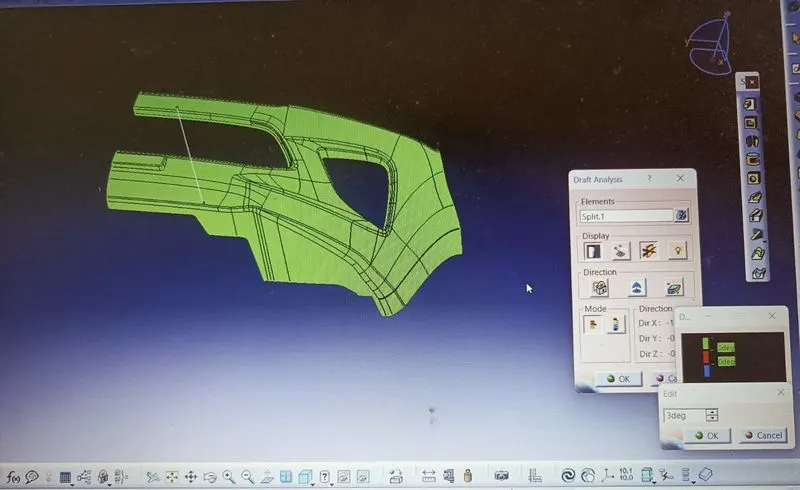

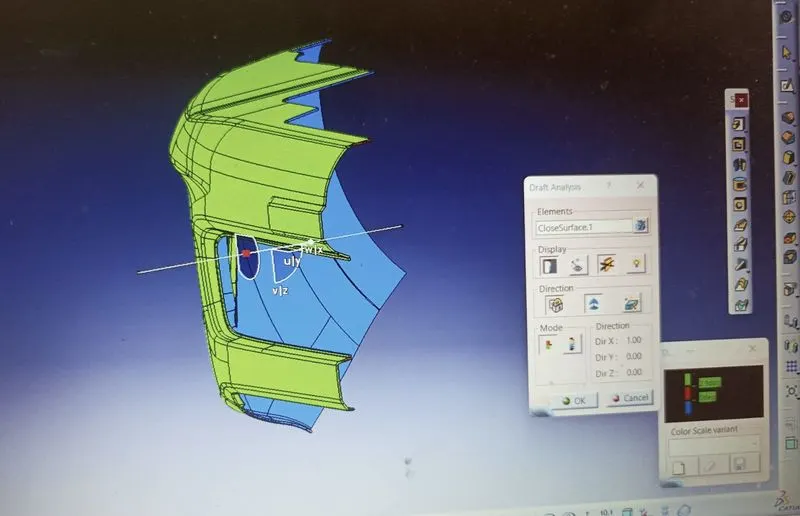

initially a point is created in a random surface curve in the A surface and a line is drawn through the point . draft analysis is utilised to check the curve surface , it obeys the drafting rule and it is taken as tooling axis of the A surface and the operations are done as per the tooling axis given . the tooling axis obeys the 3 degree minimum drafting rule .

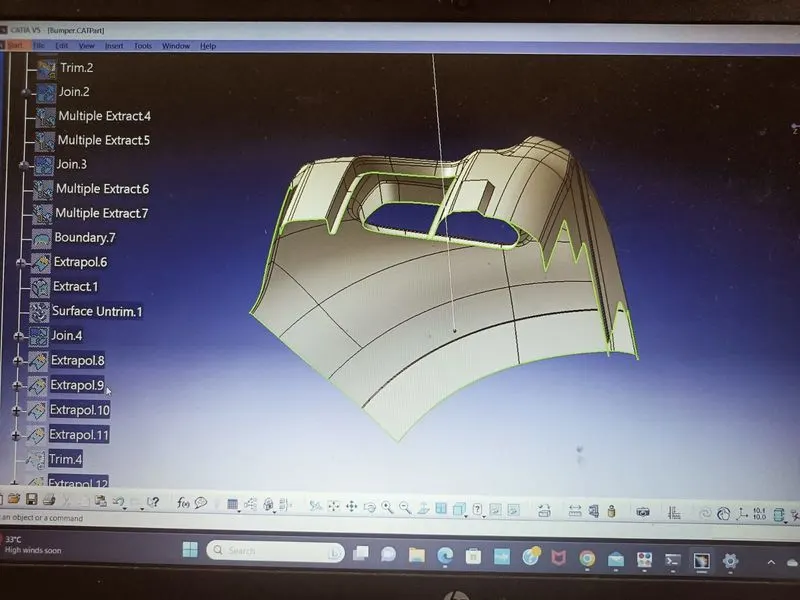

tooing axis in closed surface

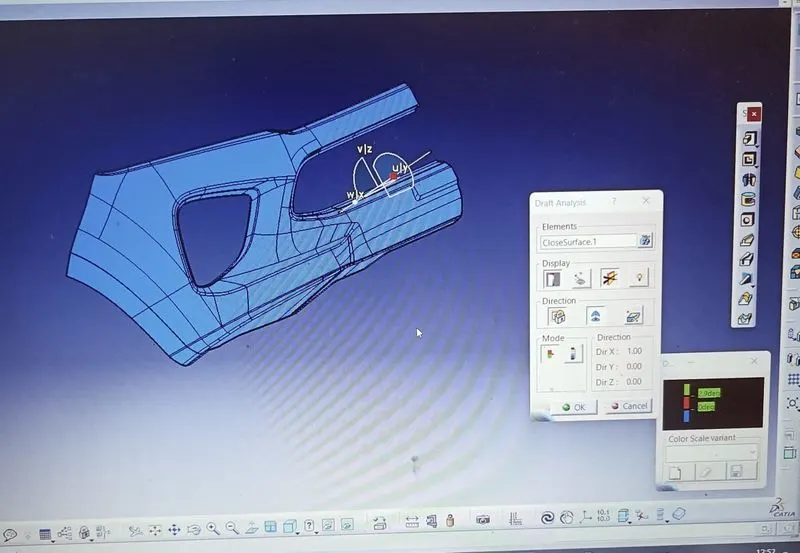

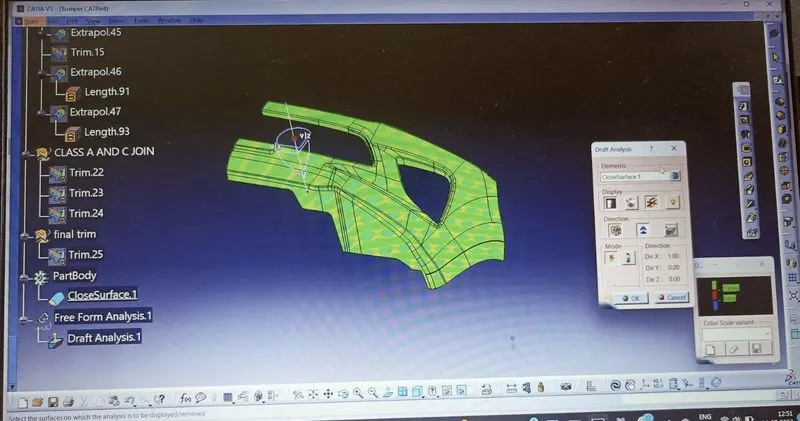

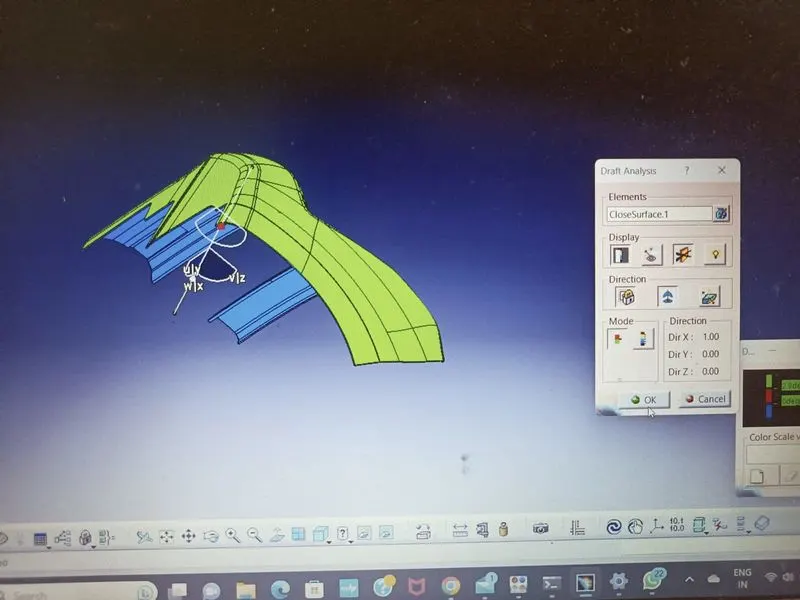

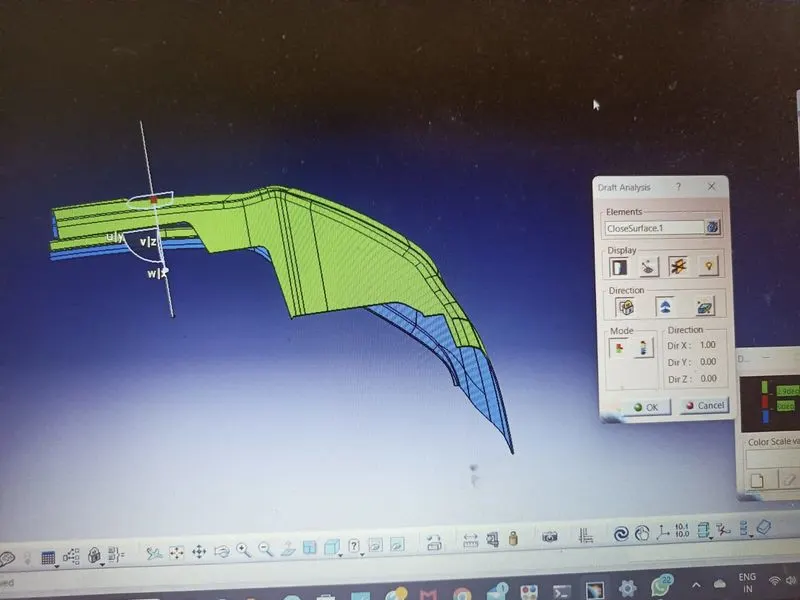

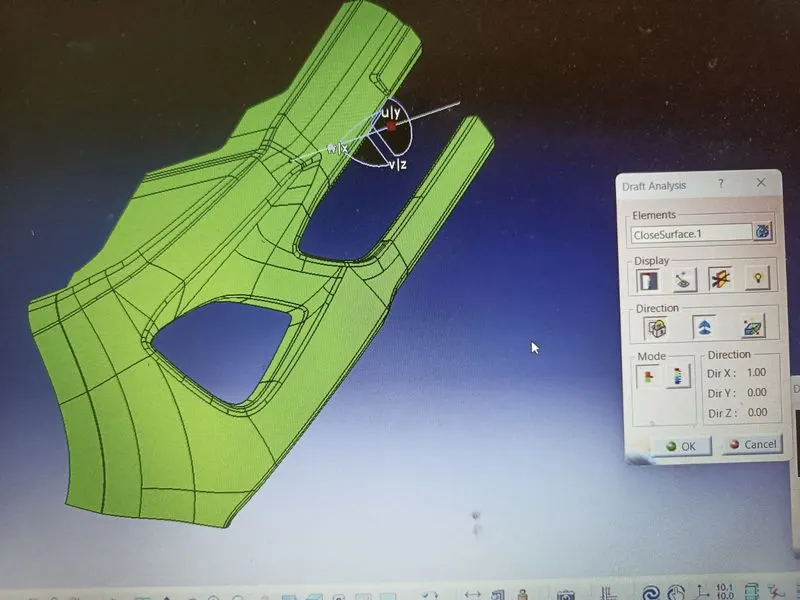

draft analysis is taken to closed surface and the drafting angle is given as 2.9 degree .in 2.9 degree the drafting is right on both the surface .

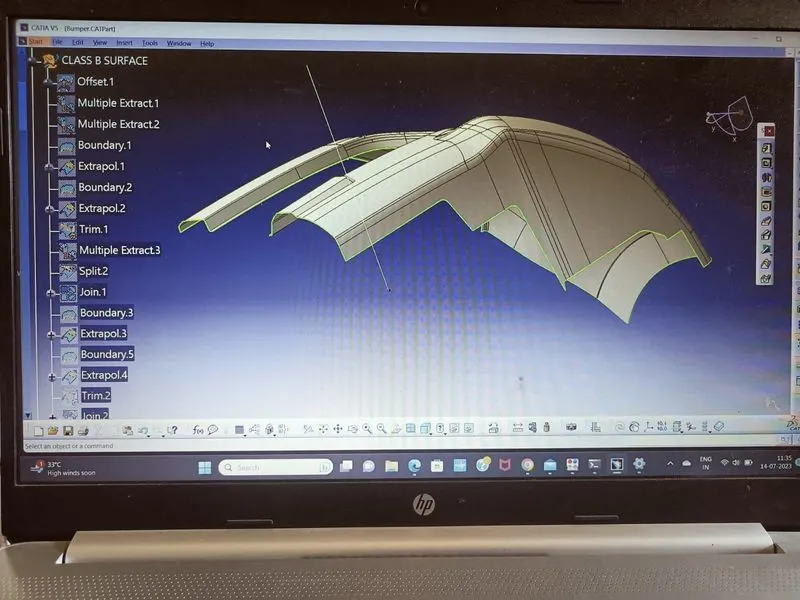

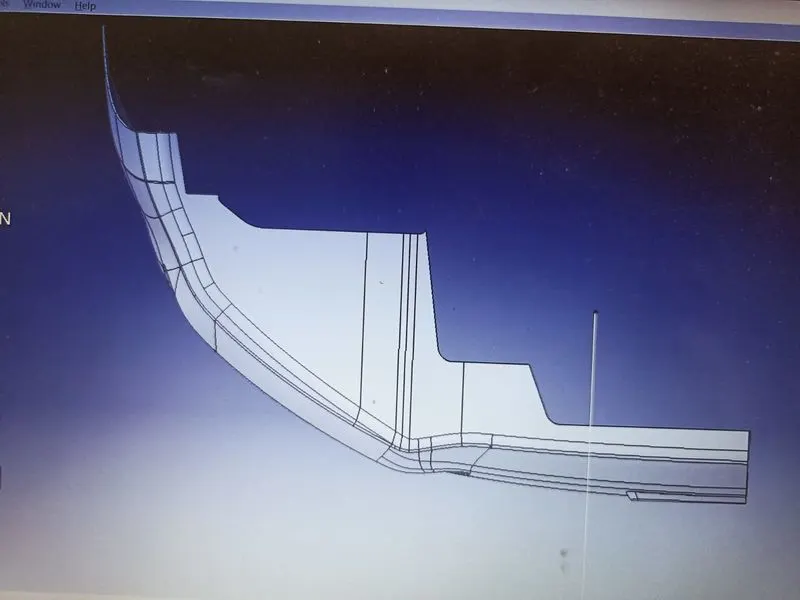

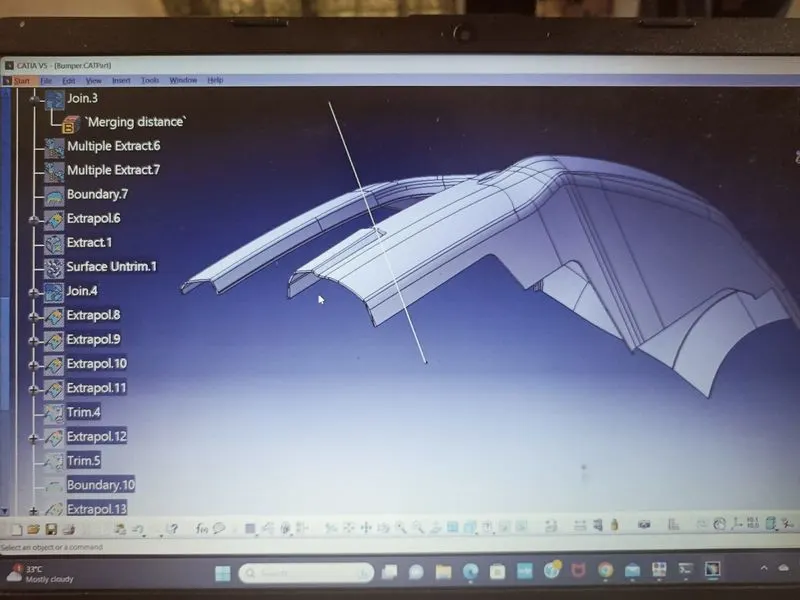

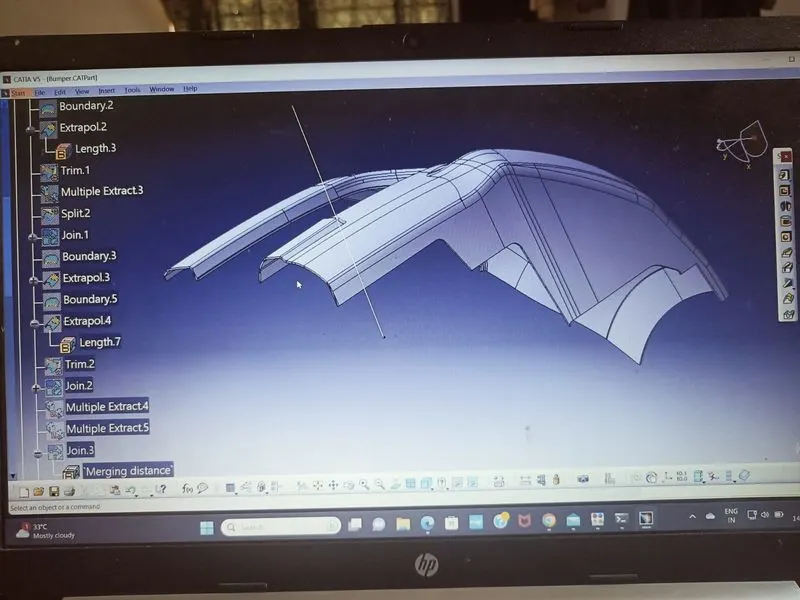

class B surface

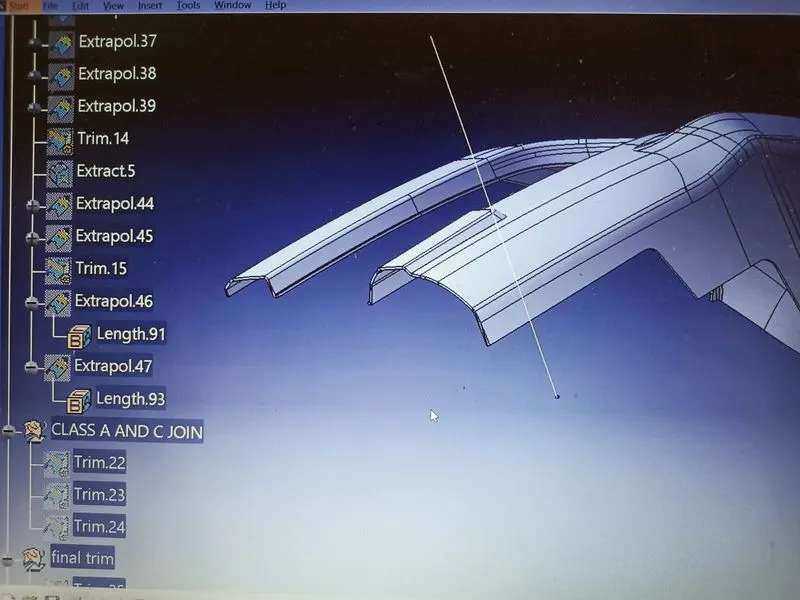

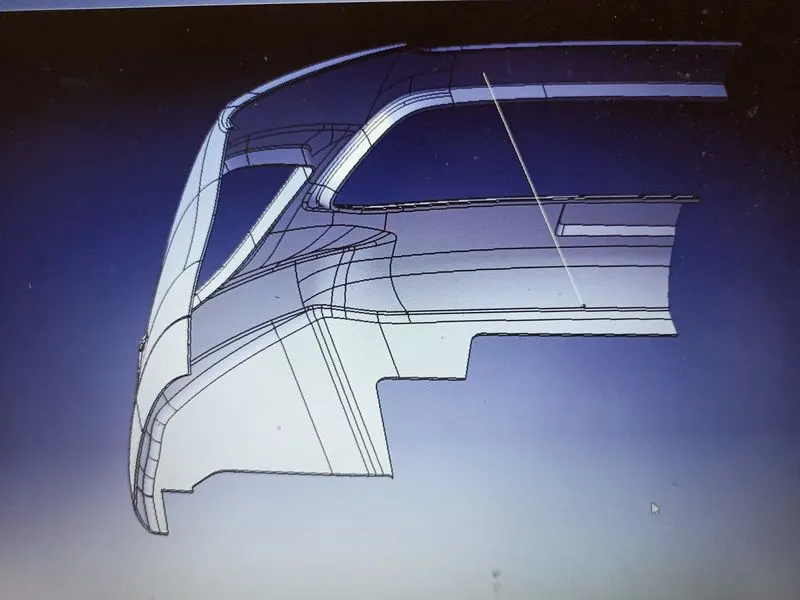

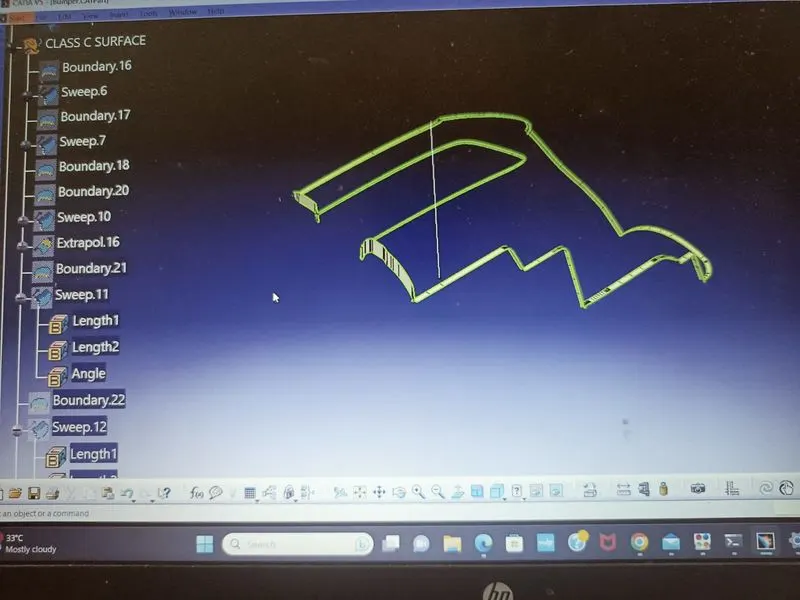

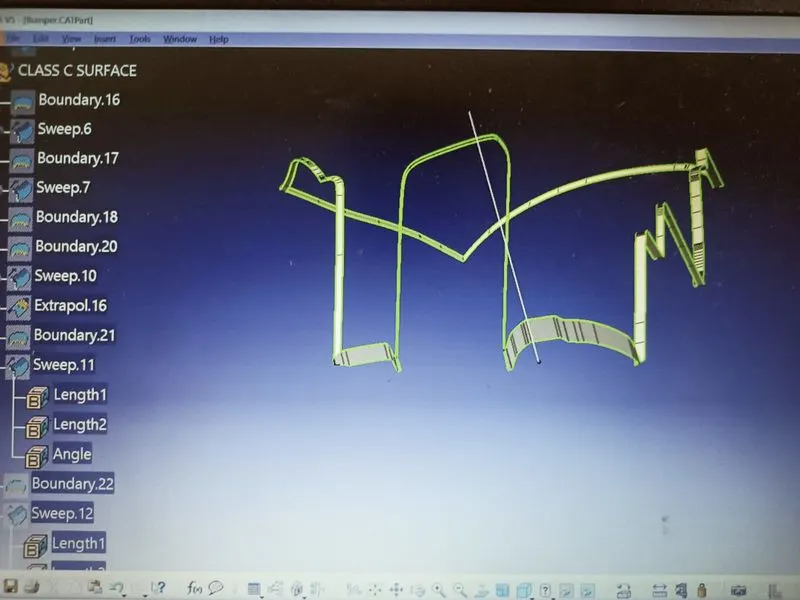

C suface

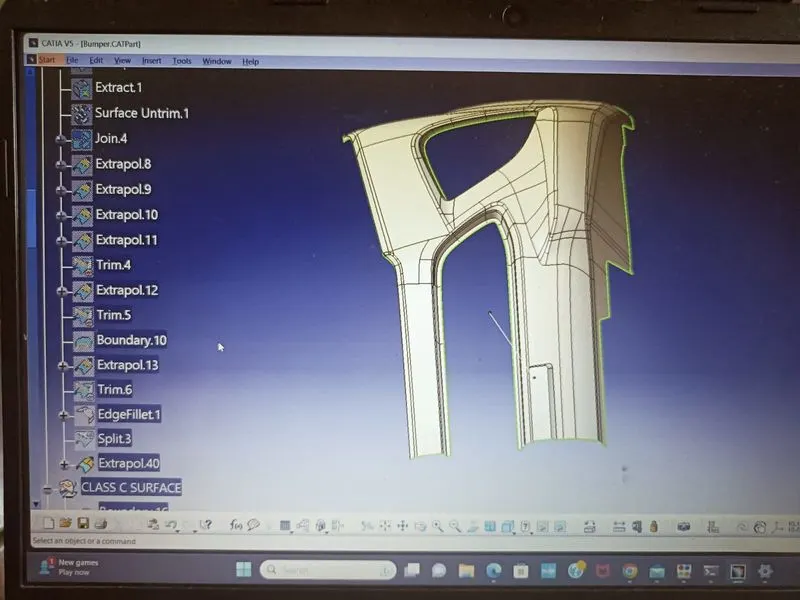

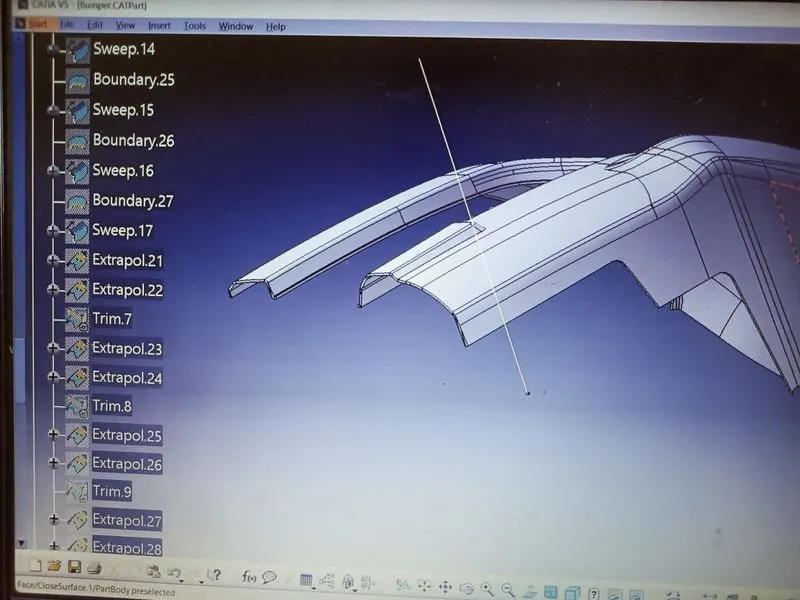

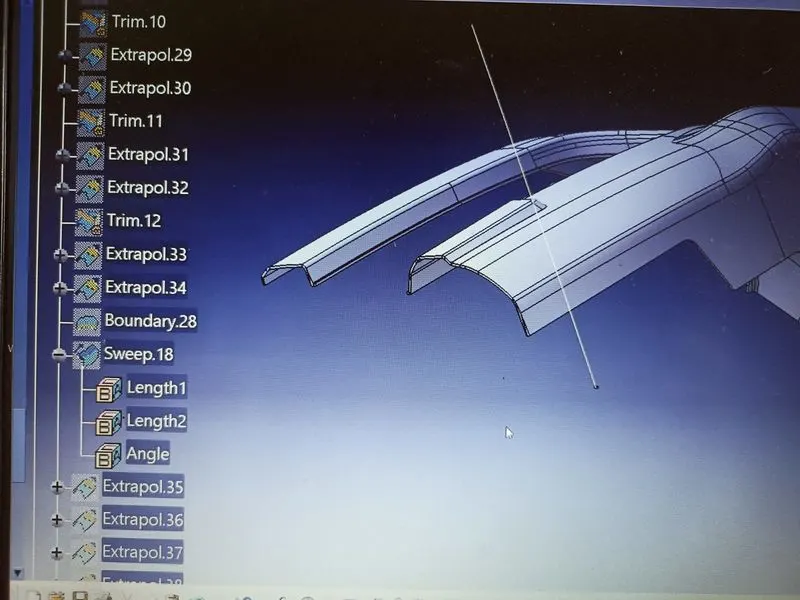

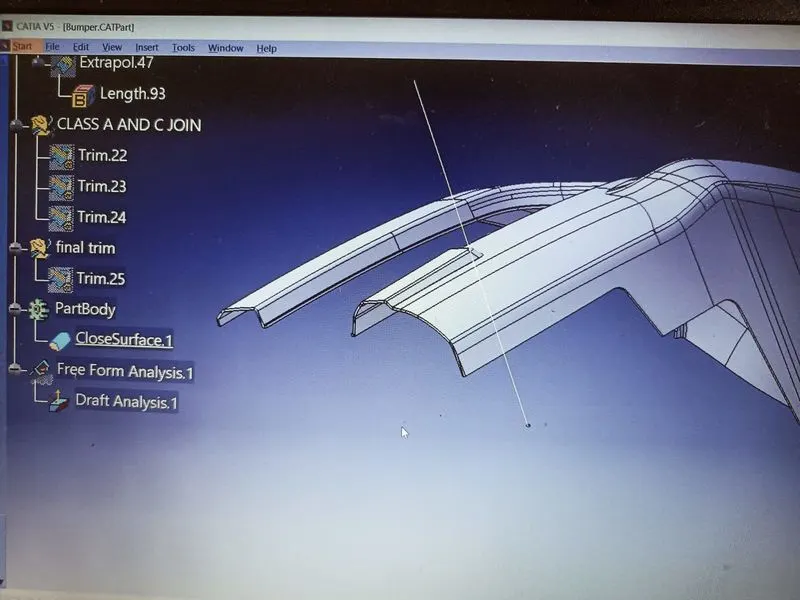

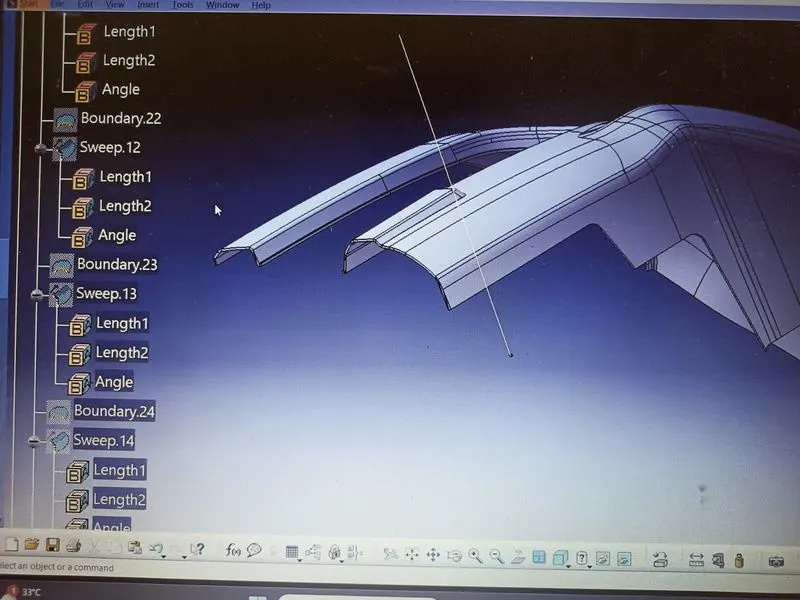

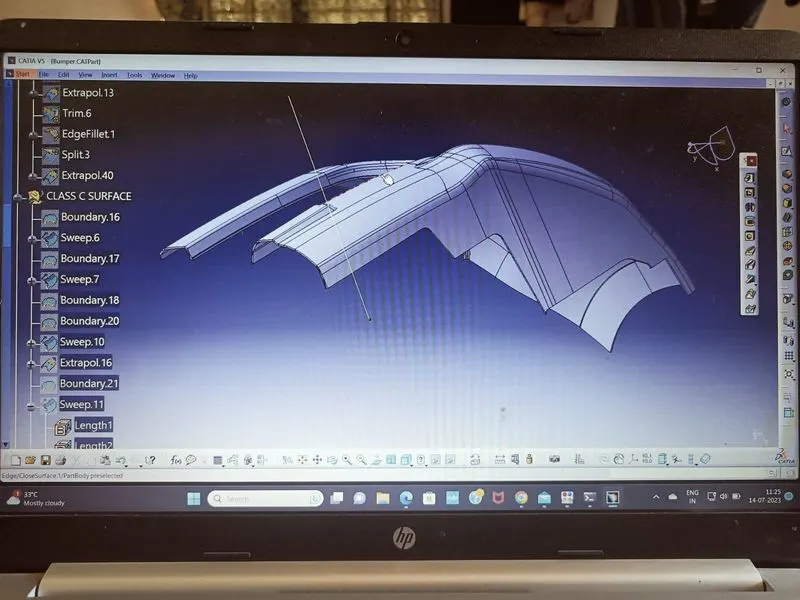

TREE STRUCTURE

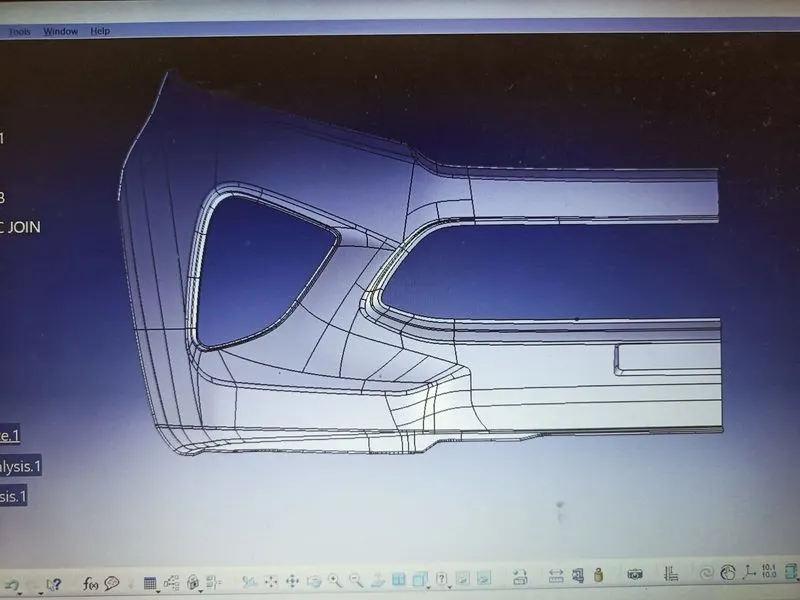

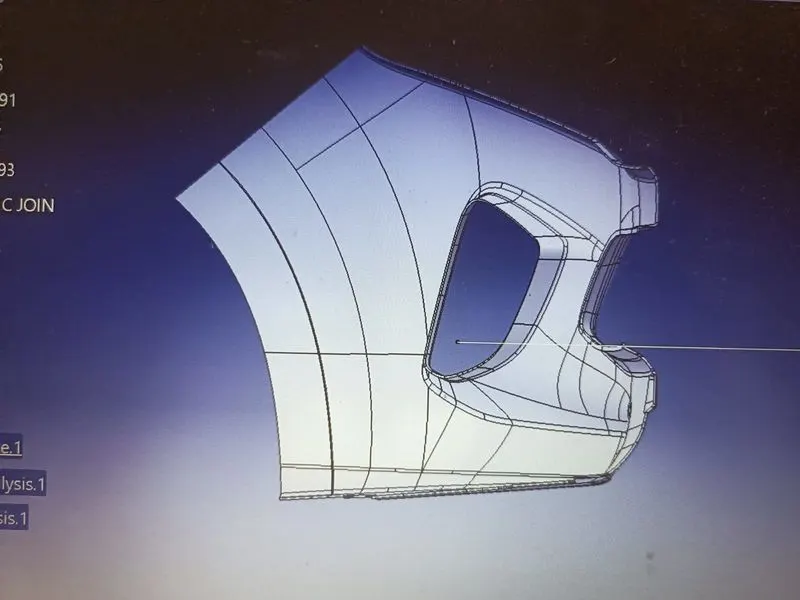

CLOSED SURFACE

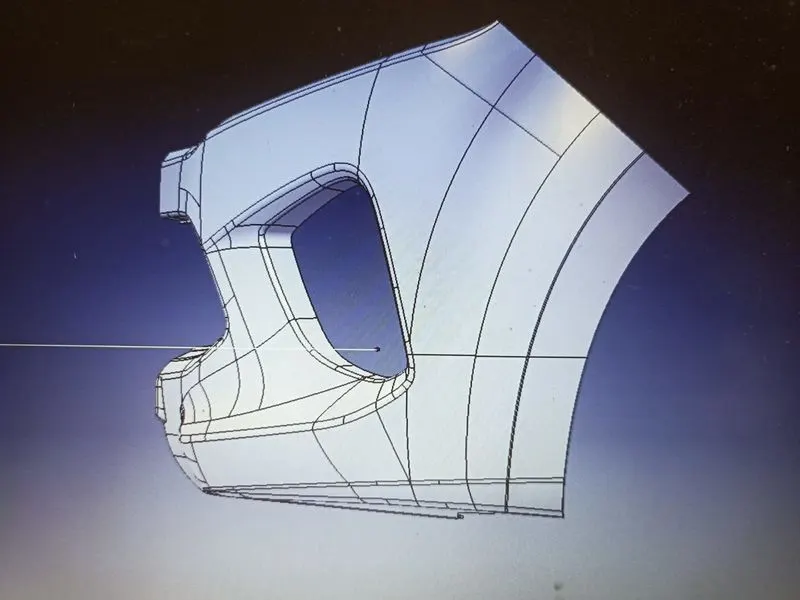

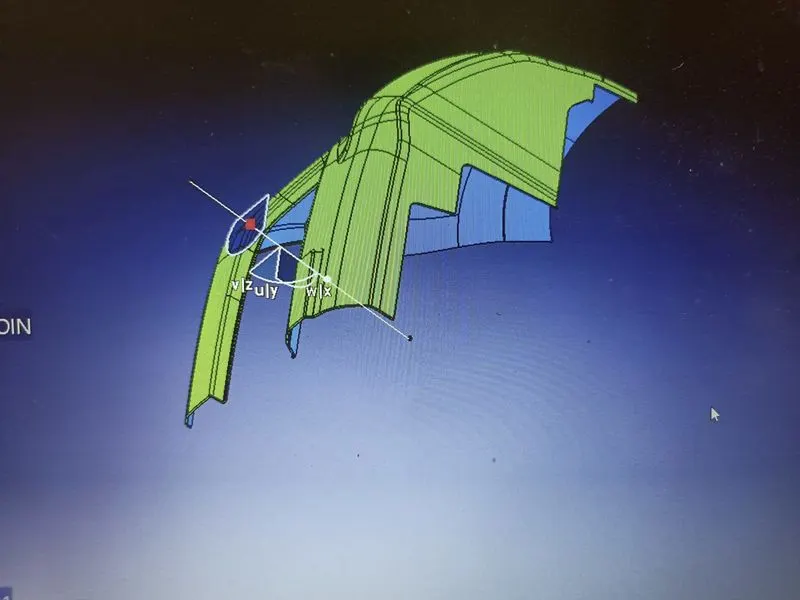

drafted closed body
