Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

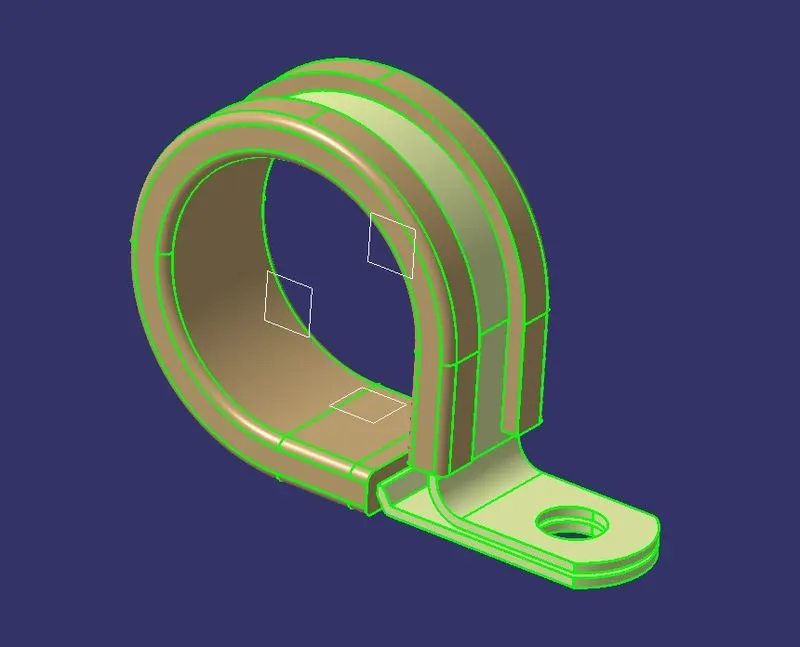

Pic.1 ( Defined P Clamp)

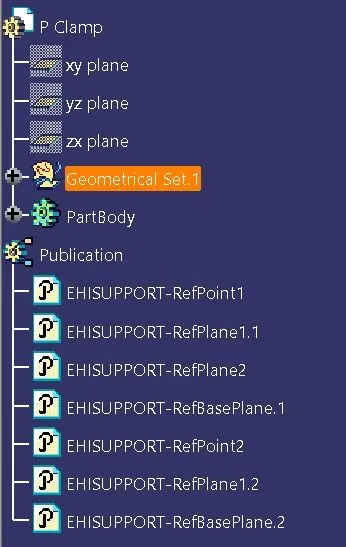

Pic.2 ( Tree Structure)
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

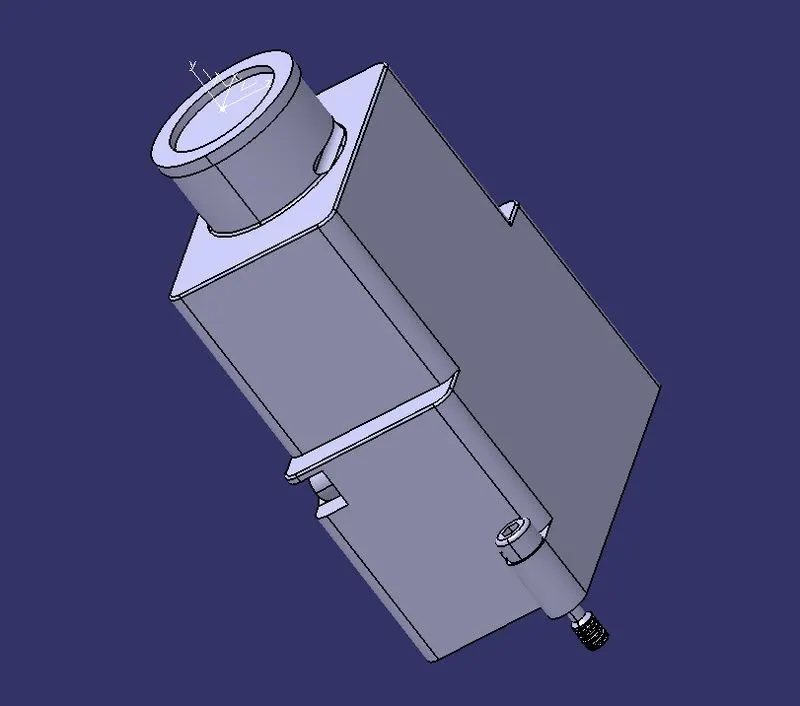

Pic.3 (Defined Backshell)

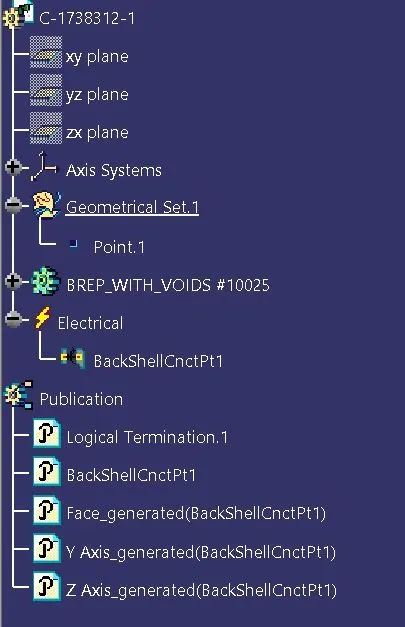

Pic.4 (Tree Strucuture)
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

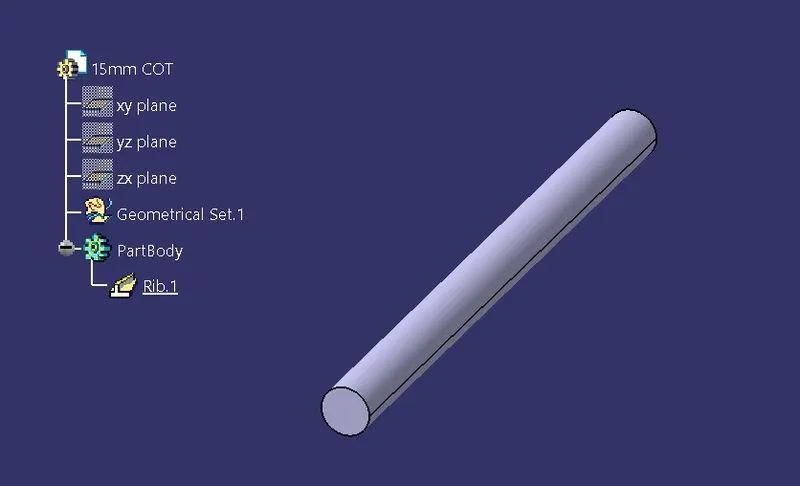

Pic.5 (15mm COT)

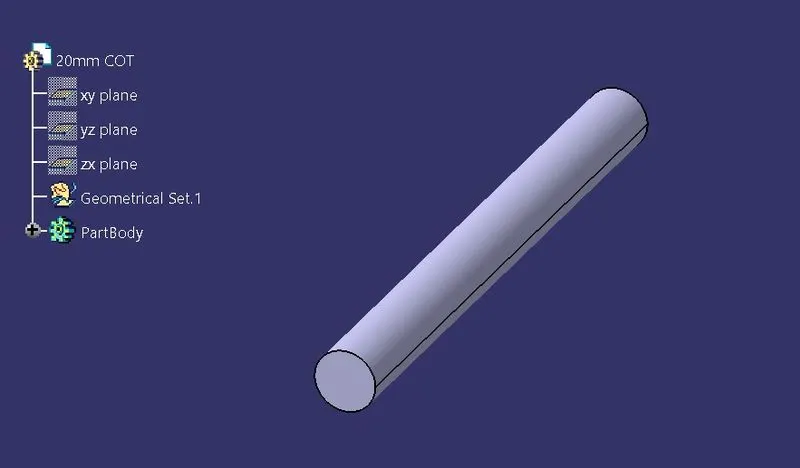

Pic.6 (20mm COT)

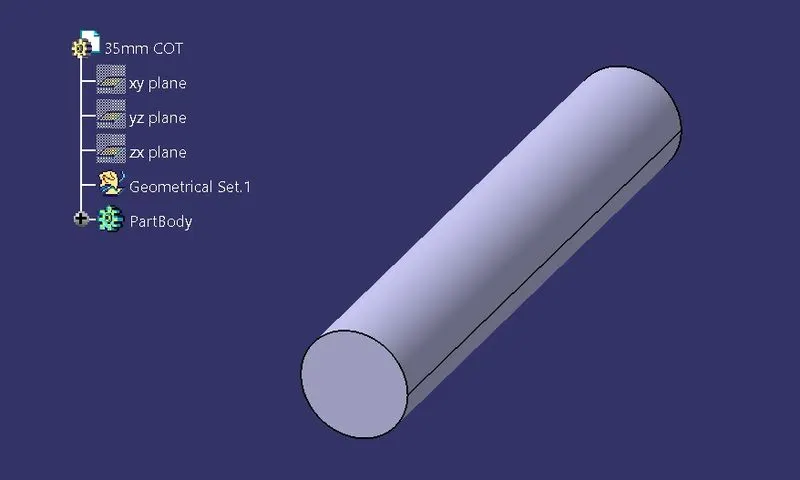

Pic.7 (35mm COT)

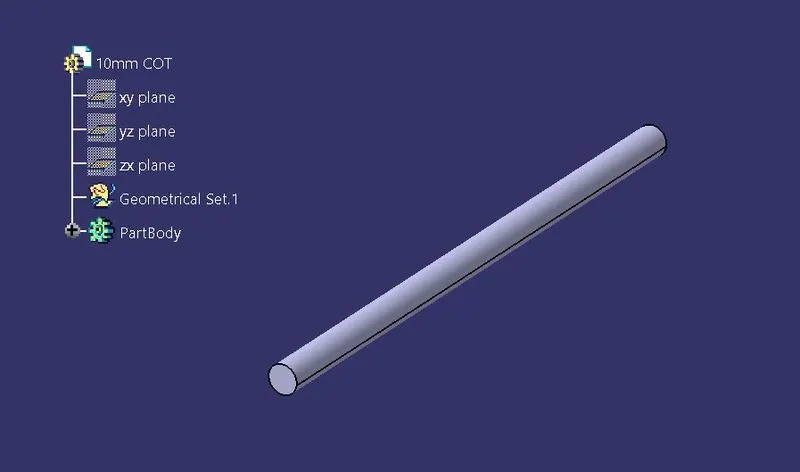

Pic.8 (10mm COT)

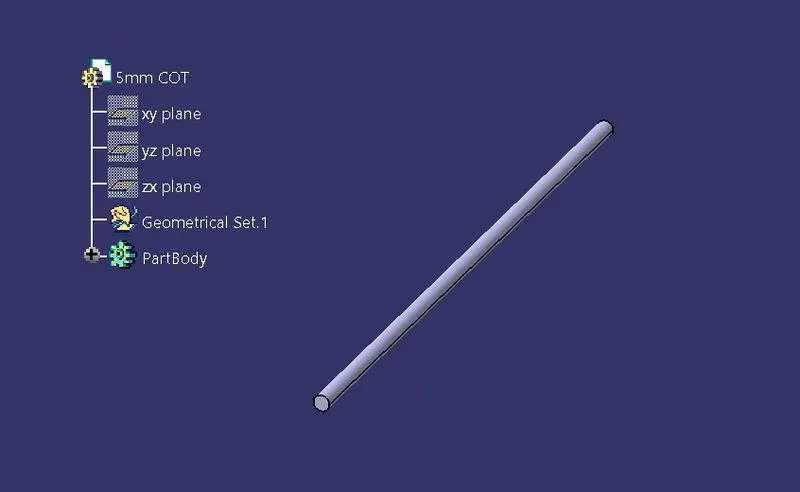

Pic.9 (5mm COT)
