Wiring harness routing & packaging Rules Week 3 Challenge
1. Downloading P clam cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

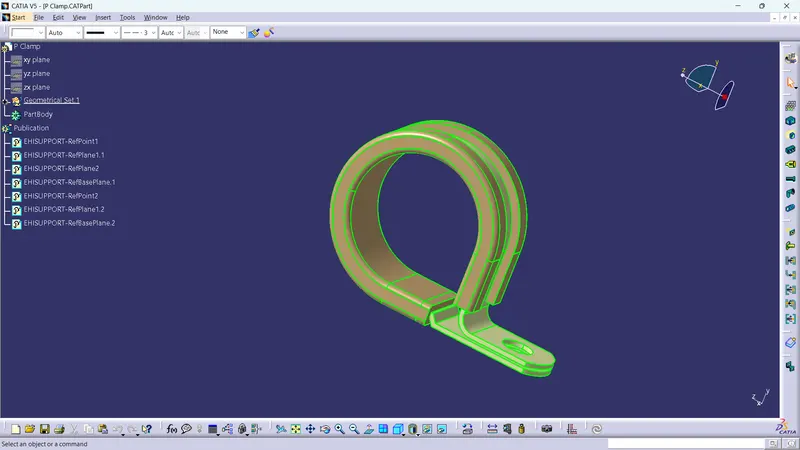

P clam:
- Defining this as an support part and giving the entry and exit path
2. Downloading Back shell(Tyco 1738312-1) cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Back shell(Tyco 1738312-1)

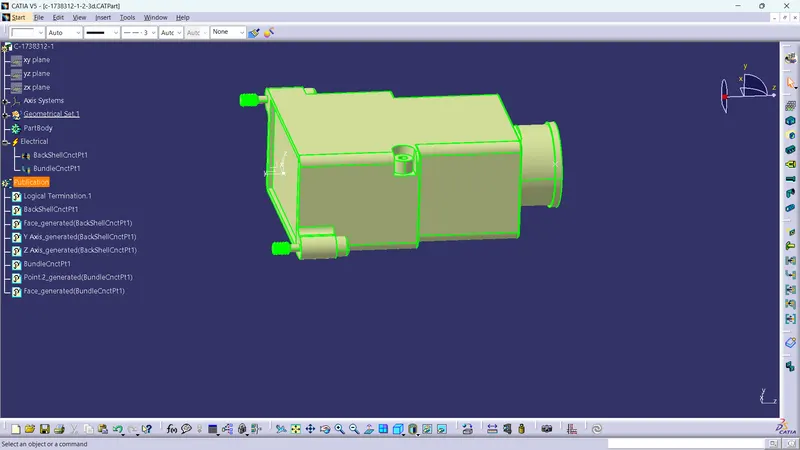

- Defining this as an back shell

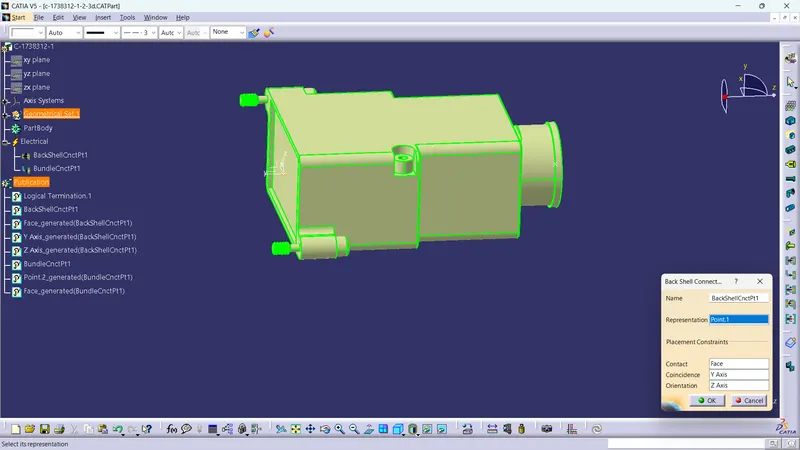

- Defining back shell connecting points

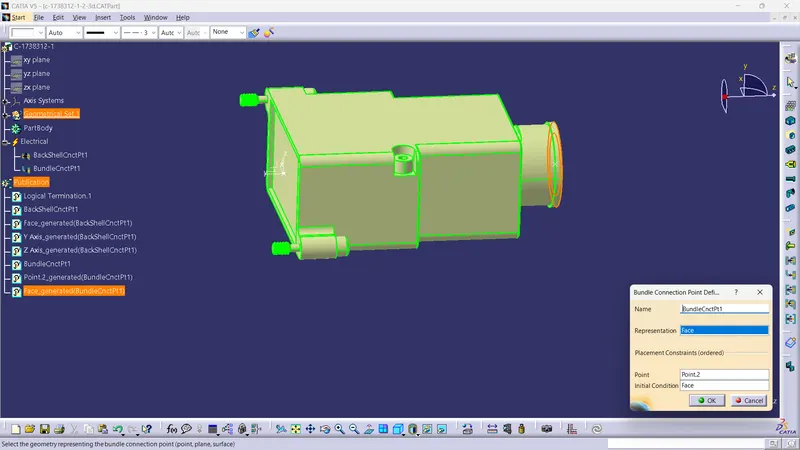

- Defining bundle connection point
3. Creating Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

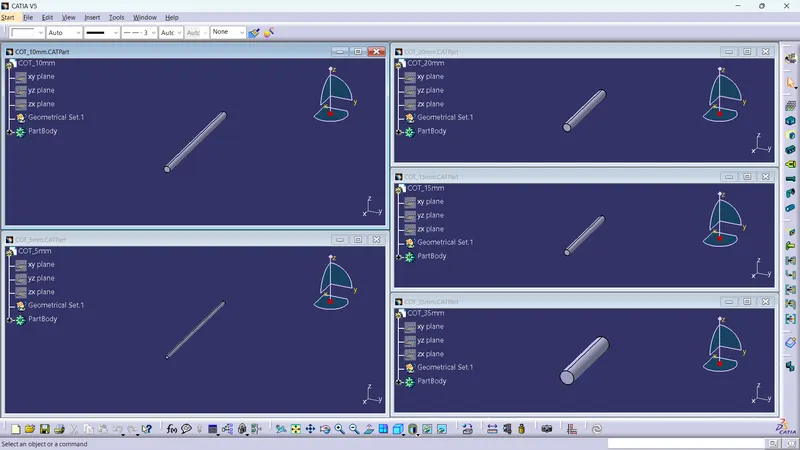

- The corrugated tube is created and they added to the catalogue called Slit COT
