Week 8 - Challenge 5 - Door Trim Lower

AIM

Create the Door Trim Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

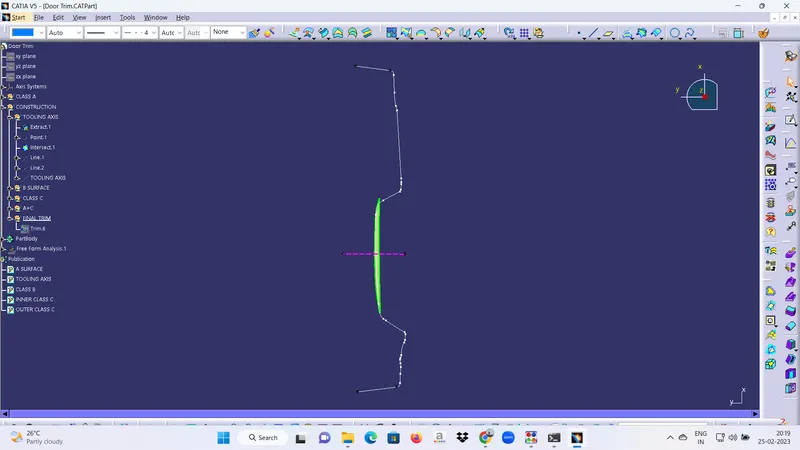

TOOLING AXIS:

• First we need to cheack the surface in all direction a for the make the tool axis
• In this part the tooling axis can be created in the y direction
• But the i used the bisecting method for it the tooling axis is created by use of the side walls

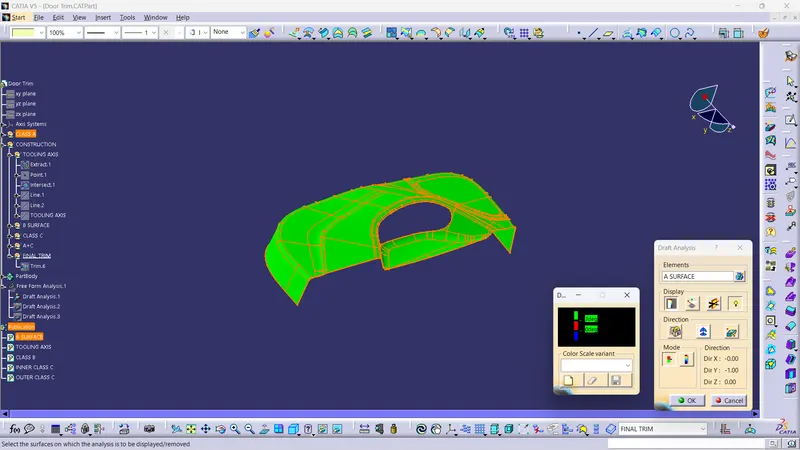

DRAFT ANALYSIS IN CLASS A

• Draft analysis is done in the class a

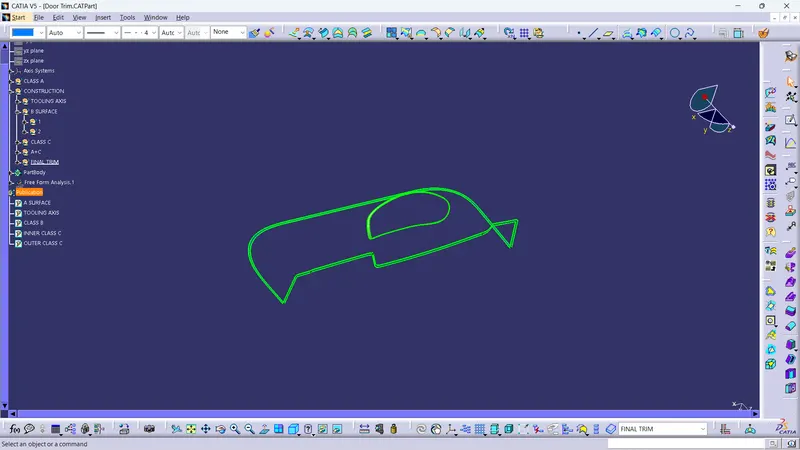

CLASS B

• The class b is simply offseted from the class a for 2.5mm
• Then the fillet patches cleared using jion,extrapolate and trim

CLASS C

• The class c is created by using draft direction and reference surface in sweep command and the sweeps are trimed together

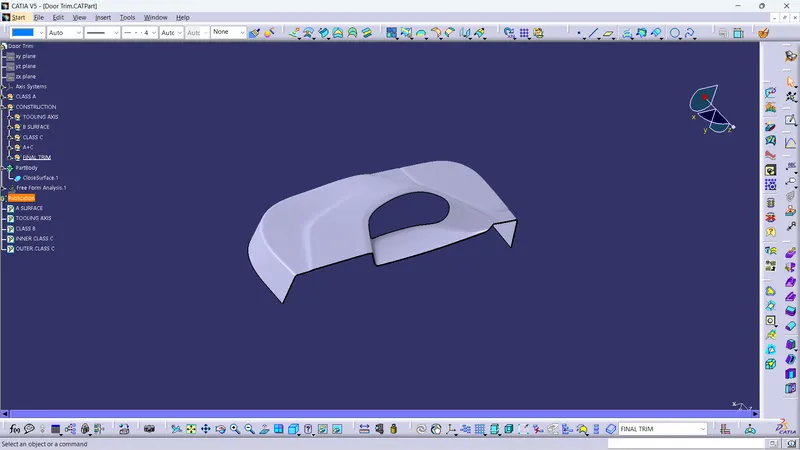

CLASS A+C

• The class a and c were joined together if it is creating a open surface then we need to extrapolated them and trim it together

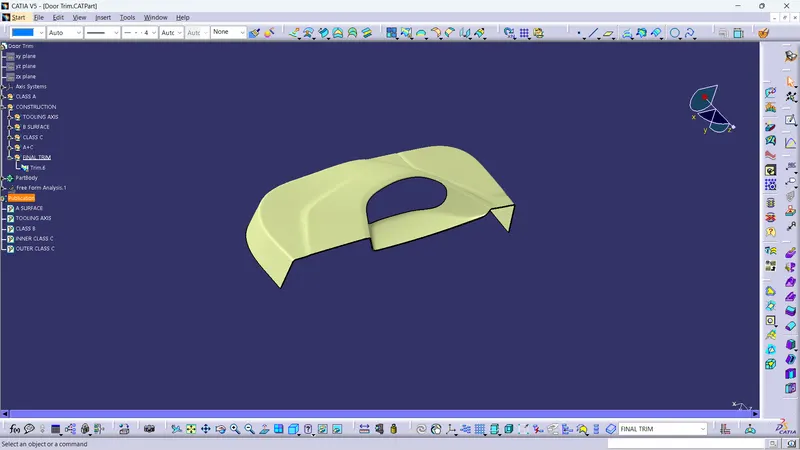

FINAL TRIM

• In final trim the A+C surface is trimed to B surface

SOLID PART

• The solid body is created by the close surface command

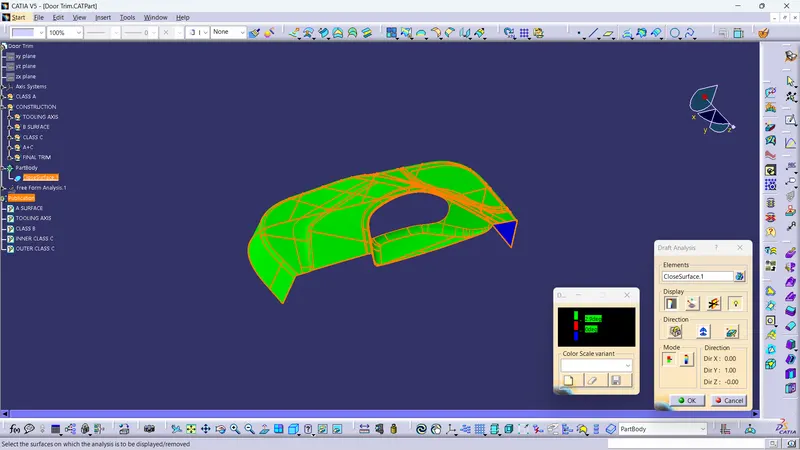

DRAFT ANALYSIS IN THE SOLID BODY

• Draft analysis is done to the part body it will be cleared in 2.9 degree

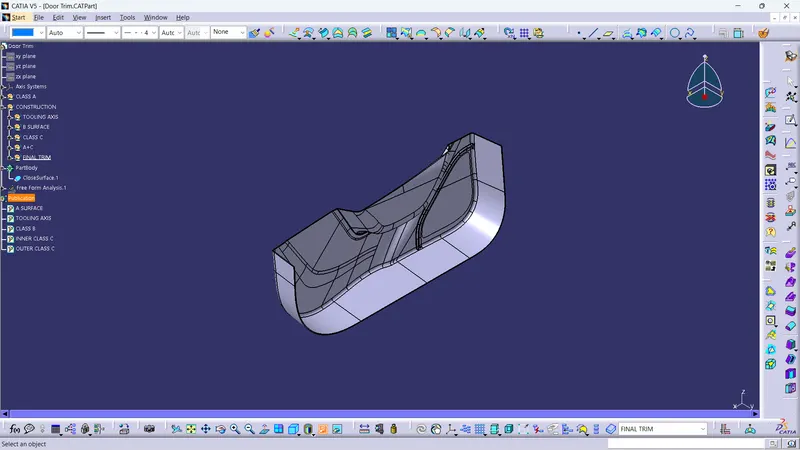

ISO VIEW

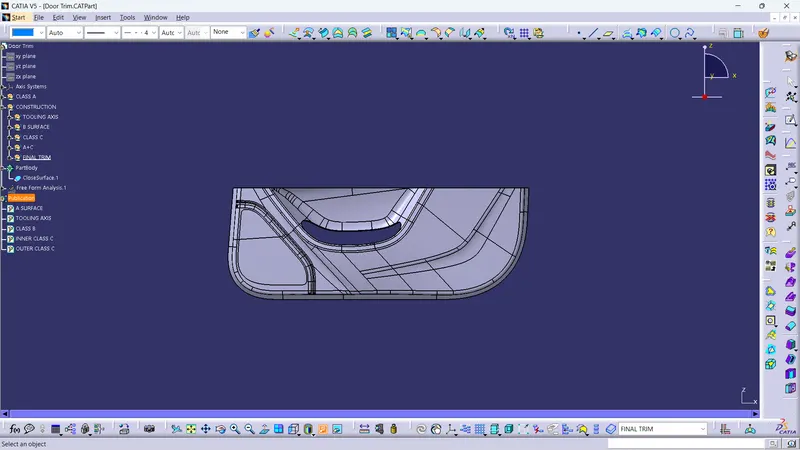

FRONT VIEW

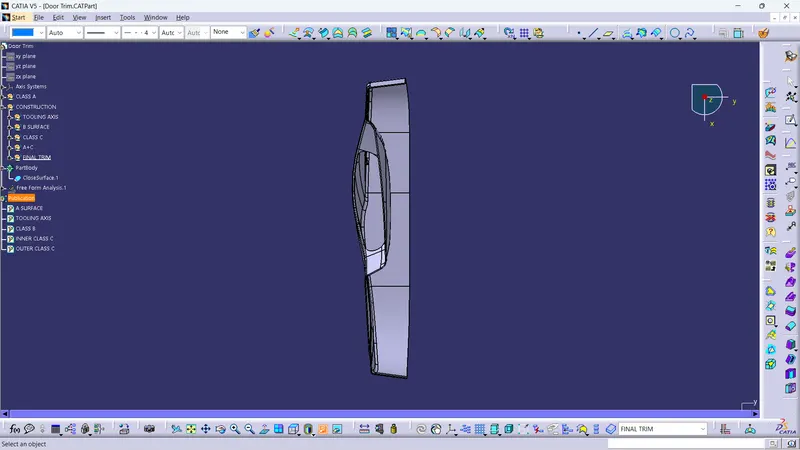

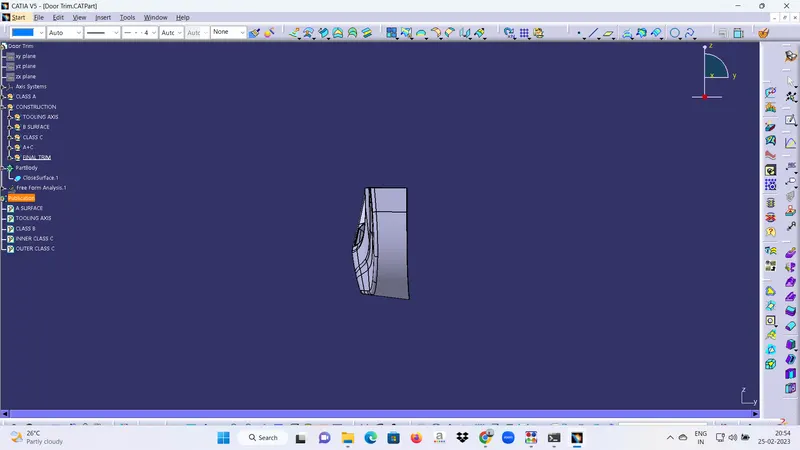

SIDE VIEW

TOP VIEW

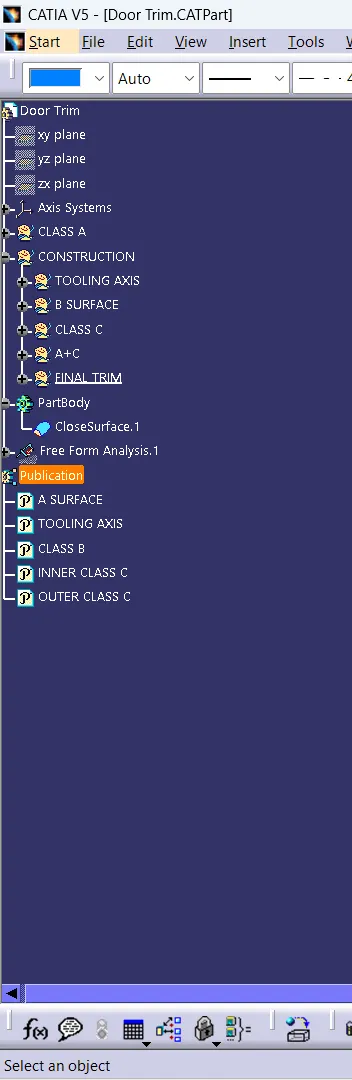

TREE STRUCTURE
