Week 8 - Challenge 3 - Coin Holder Design
COIN HOLDER
AIM:
Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

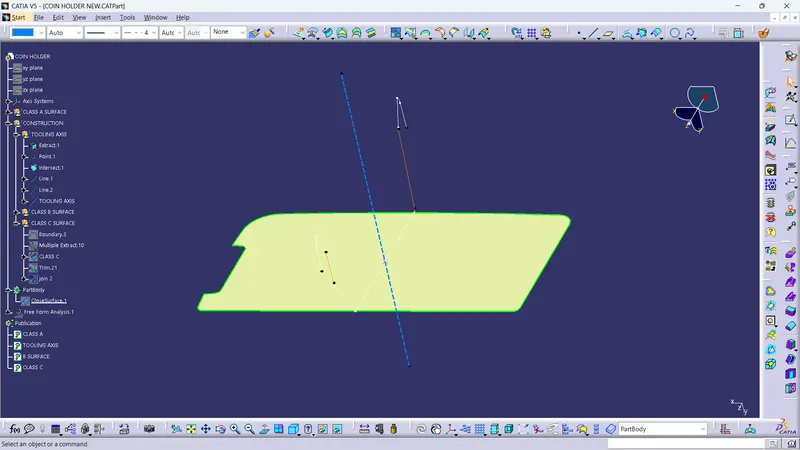

TOOLING AXIS:
- For creating then the tooling axis we need to see visually for the correct axis
- In this surface the intersection is made to check the CLASS A is with angle or not
- This surface is with 3 degree so we need to create the dummy line for bisecting line
- The bisected line is tooling axis and it is used for draft analysis

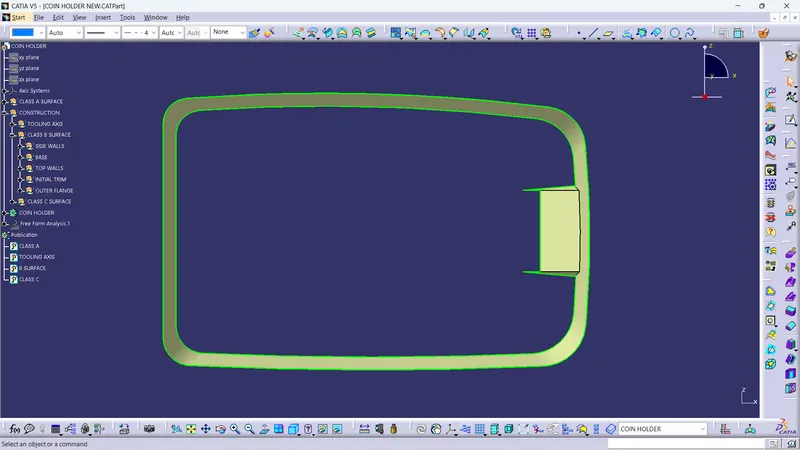

CLASS B SURFACE
- The side walls are extracted and it was untrimed then it is offset to 2.5mm

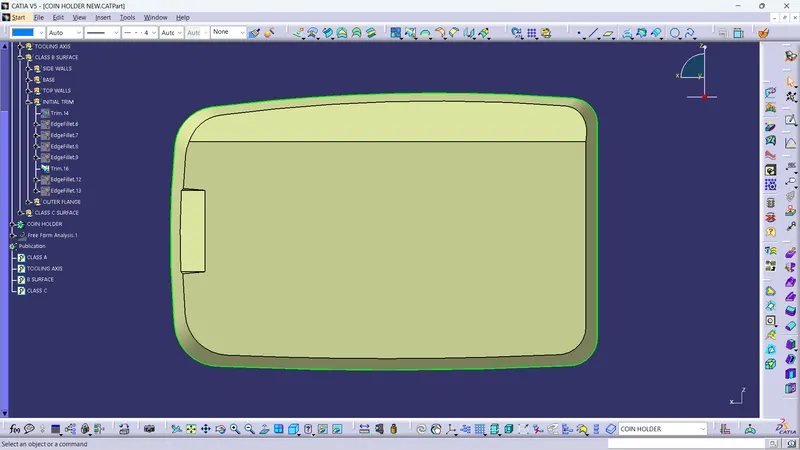

- Then the 4 walls are got trimed and fillets is given to it
- Next the base was extracted and offset to the requied distance then got trimed with the side walls
- The top wall,outer flange both extracted and offseted then got trimed together

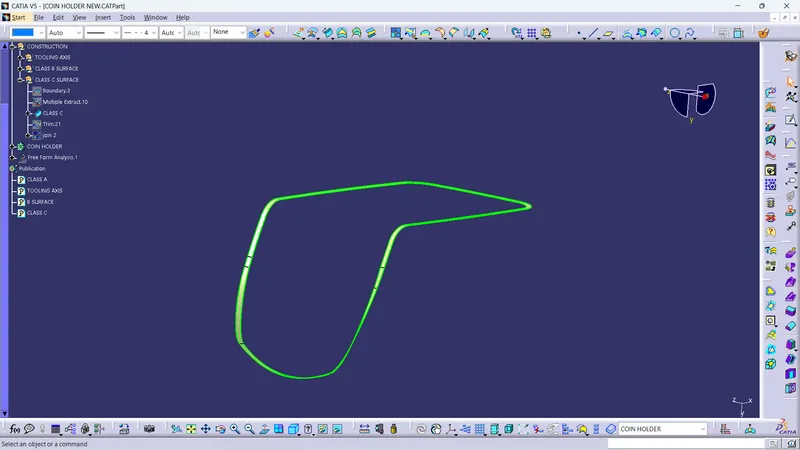

CLASS C SURFACE

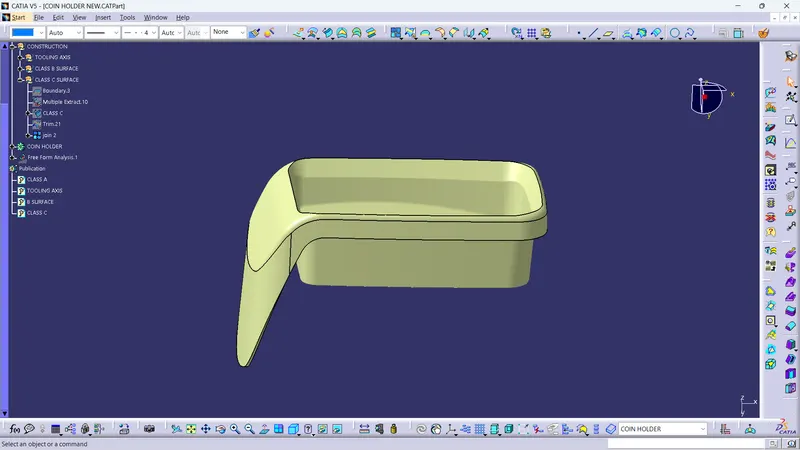

FINAL TRIM

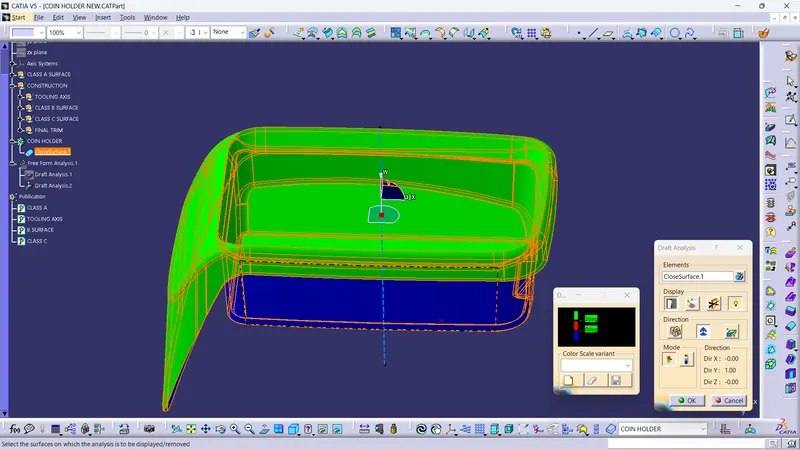

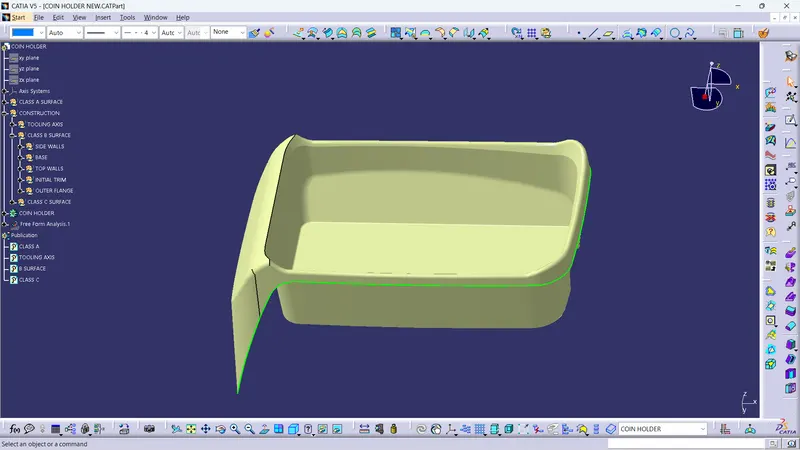

DRAFT ANALYSIS IN CLOSE SURFACE
- Draft analysis is done in the close surface and 3 degree angle is given
- The surface in green color so the tooling axis is in correct
SOLID BODY

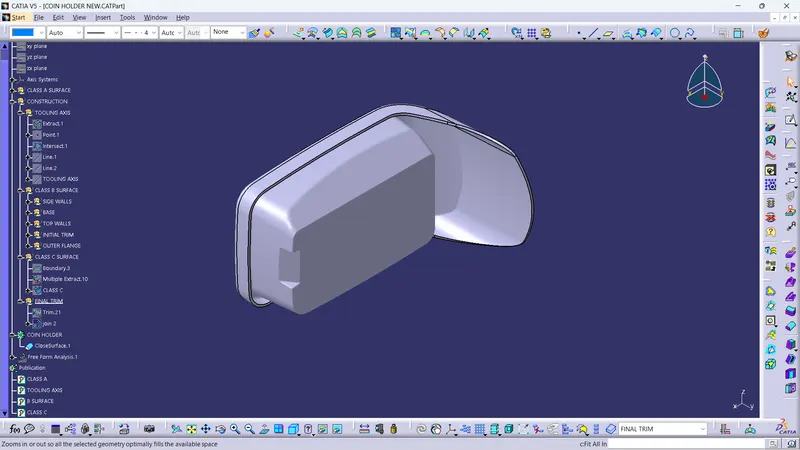

ISO VIEW

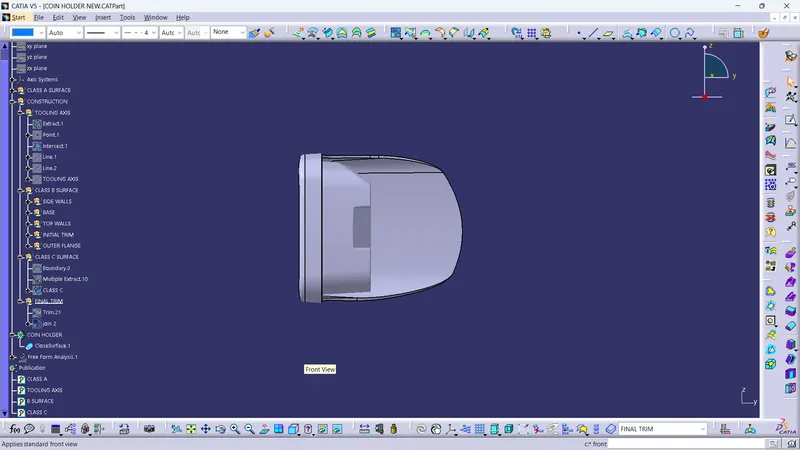

FRONT VIEW

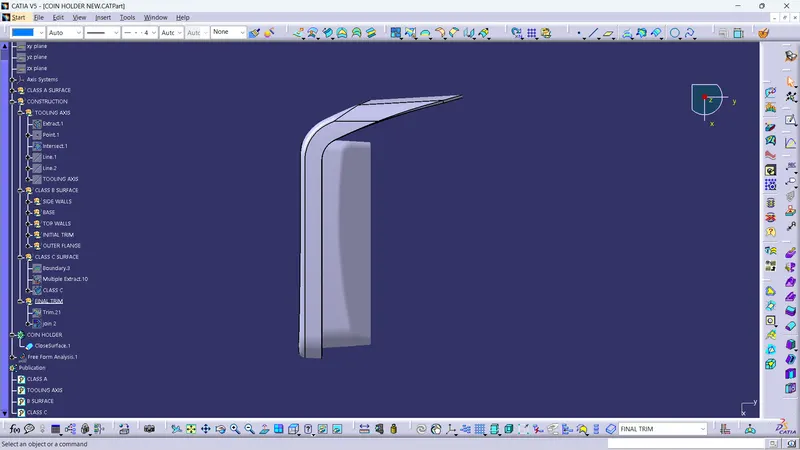

SIDE VIEW

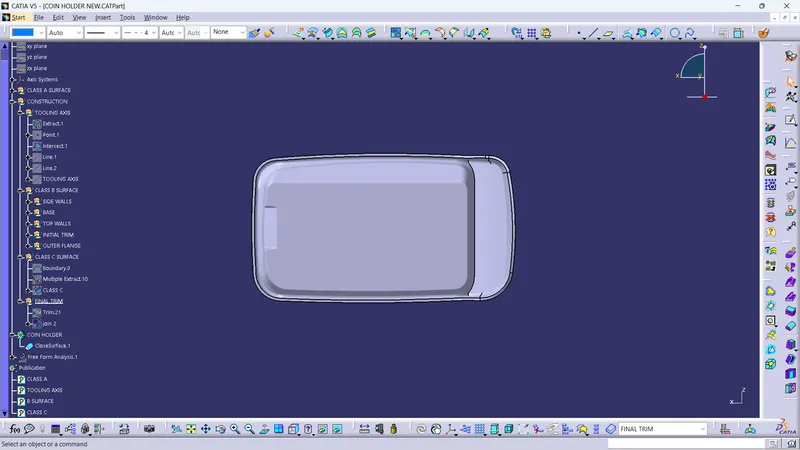

TOP VIEW

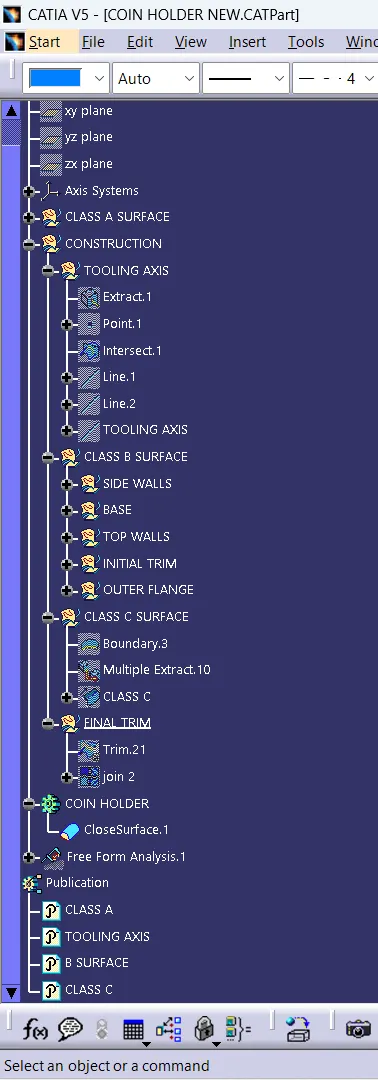

TREE STRUTURE
