WEEK-3_CHALLENGE_WIRING HARNESS ROUTING & PACKAGING RULES
OBJECTIVE:
To create and define it as Electrical part by Using Elecrtical Part Design Workbench. And define all the necessary properties of the following components,
1) P CLAMP
2) BACKSHELL
3) CORRUGATED TUBE
GIVEN:
By using the given link to download all the CAD data like P-clamp, Backshell & given Corrugated tube as per its required dimension.
TOOL USED: CATIA V5
ELECTRICAL PART DESIGN AND PROPERTY DEFINITIONS:
1_P CLAMP:
A P Clip, commonly known as a P Clamp; is a one-piece solution used for the securing of cables, hoses and other tubing or pipes, temporarily or permanently. And the followings are defining P-clamp,
STEP_1: Create/Download the CAD data from the given link.

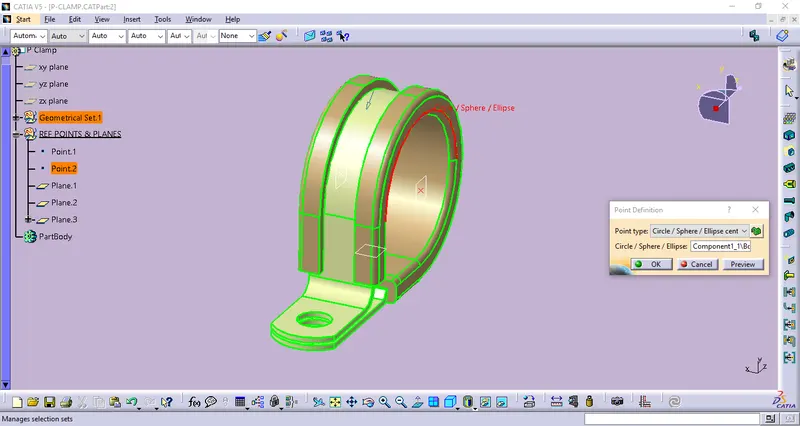

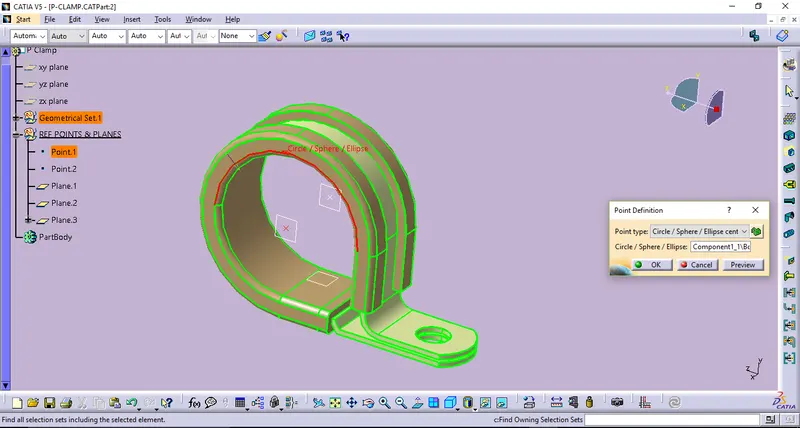

STEP_2: Creating points.

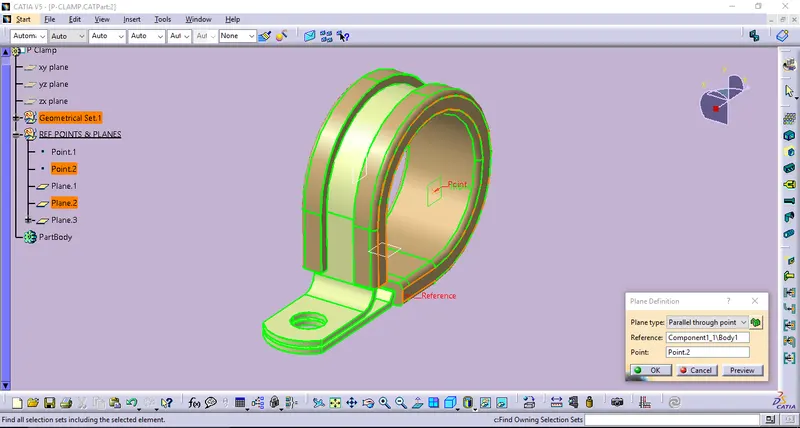

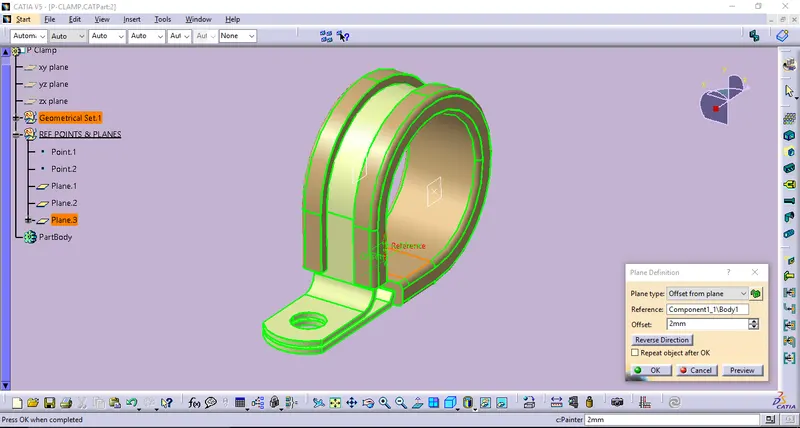

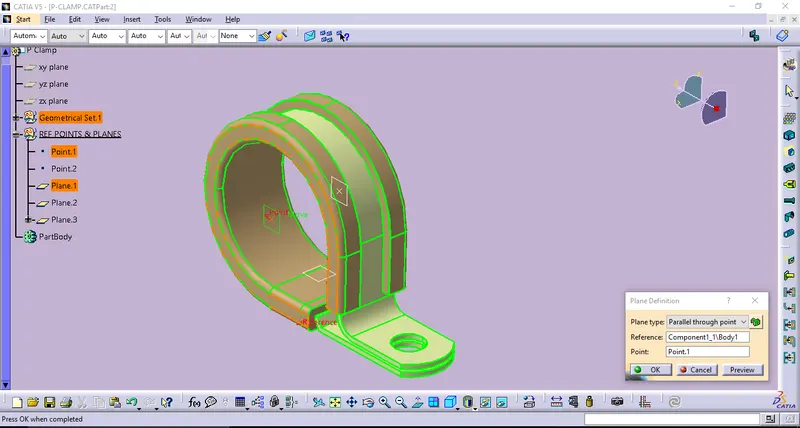

STEP_3: Creating required planes like Entry, Exit & Base plane.

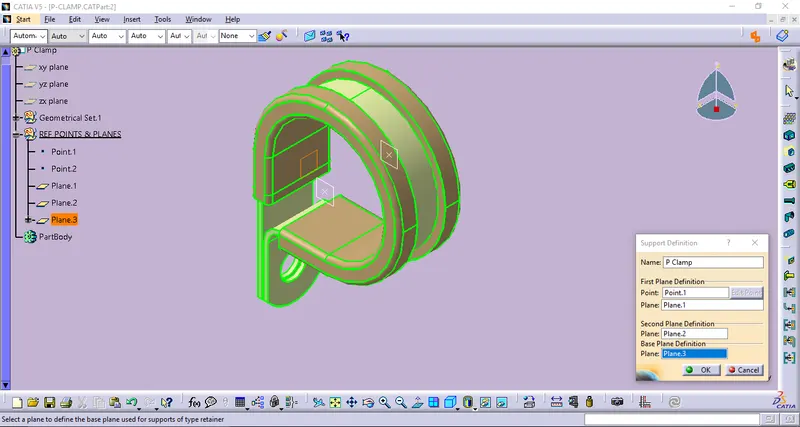

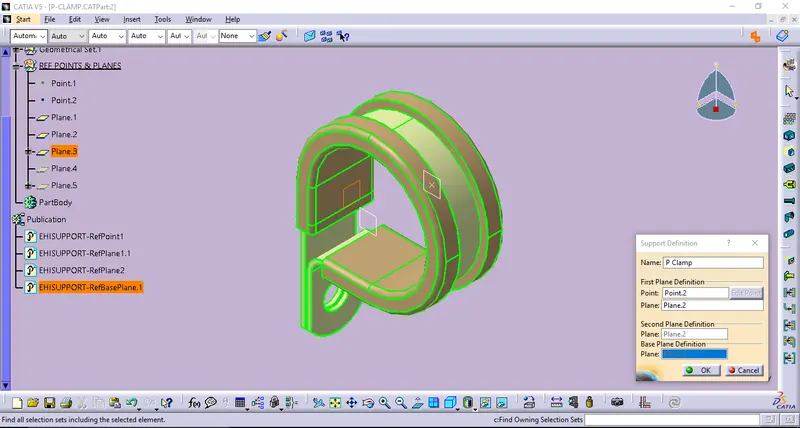

STEP_4: By using define support definition will ensure that Entry and Exits of the following P-clamp and define it as becomes Electrical Support Part.
Defining Entry side_1.
Defining Entry side_2.

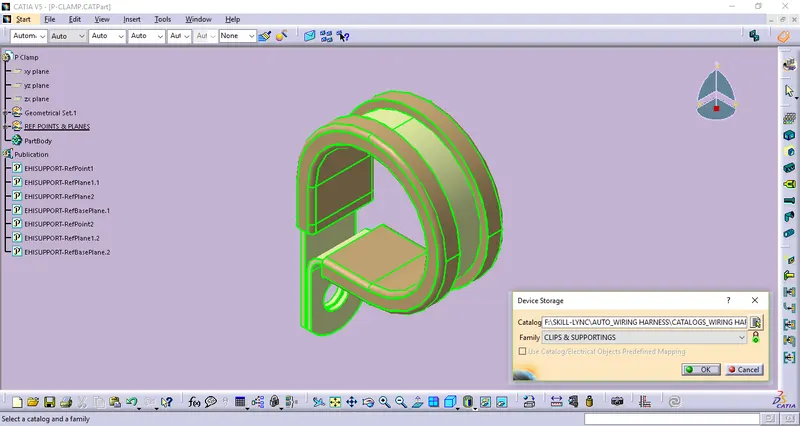

STEP_5: Then store data by using Store device definition it added into CLIPS & SUPPORTINGS family in Wiring Harness catalog.

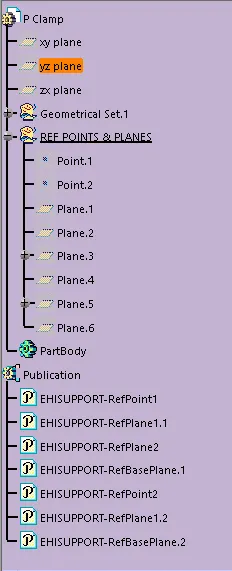

TREE STRUCTURE:
2_BACKSHELL:
A backshell is a mechanical device threaded into the rear of an electrical connector. The more popular backshells are strain relief, cable clamps and adaptors. And the followings are define Bachshell,
STEP_1: Create/Download the CAD data from the given link.

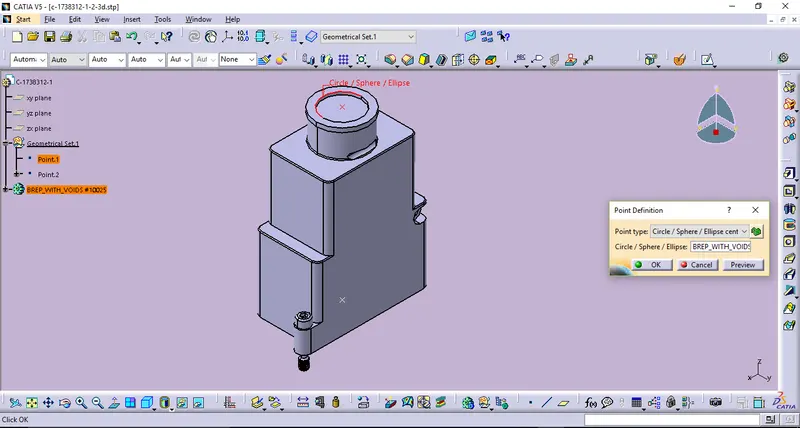

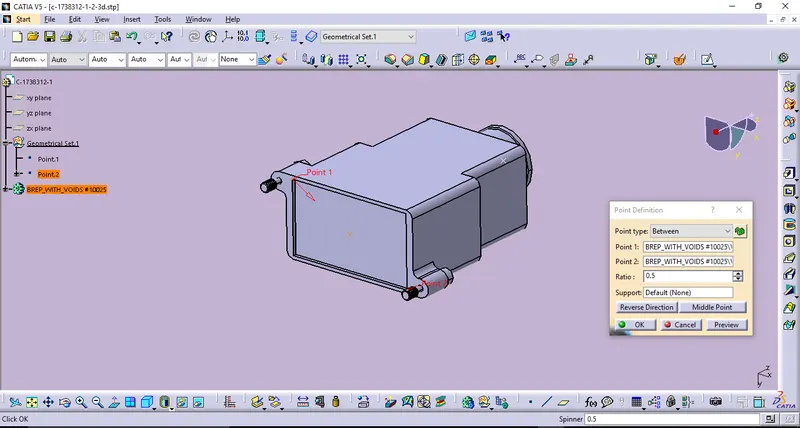

STEP_2: Creating points.

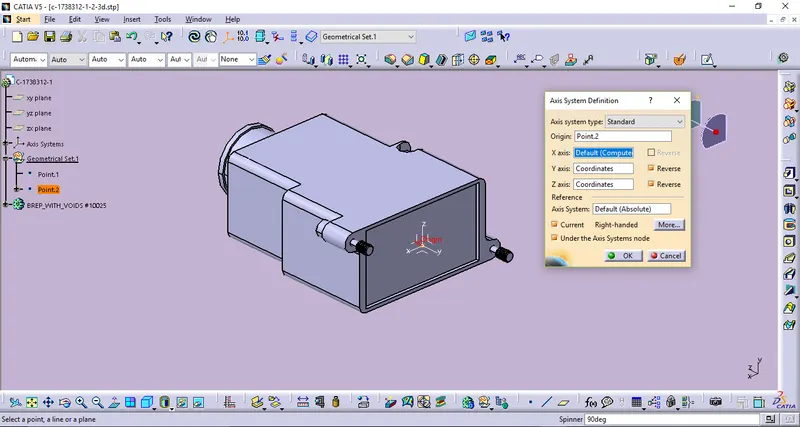

STEP_3: Creating Axis system.

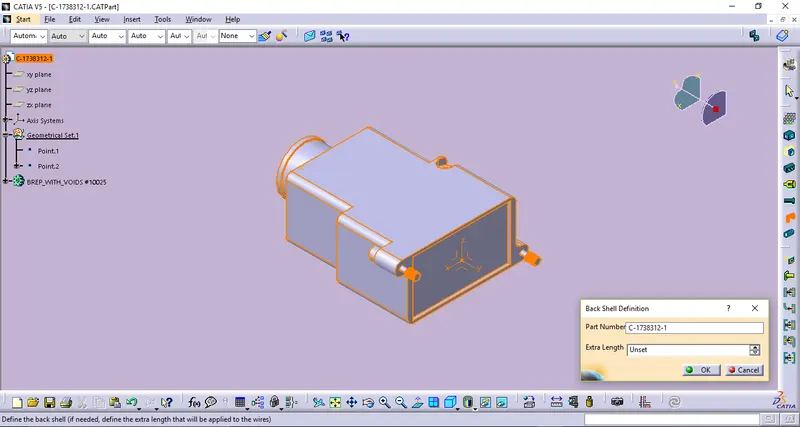

STEP_4: Defining Backshell.

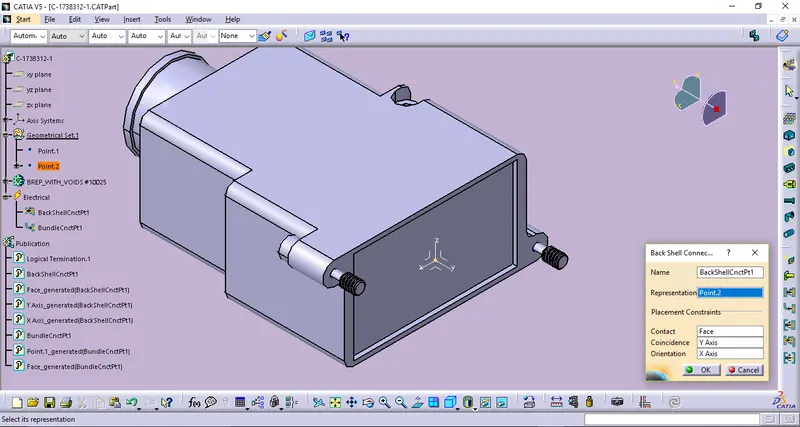

STEP_5: Defining Back shell connection definition.

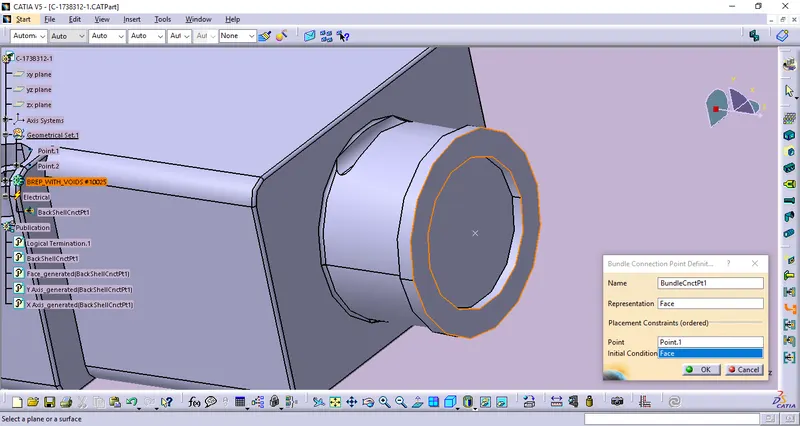

STEP_6: Defining Bundle Connection point definition.

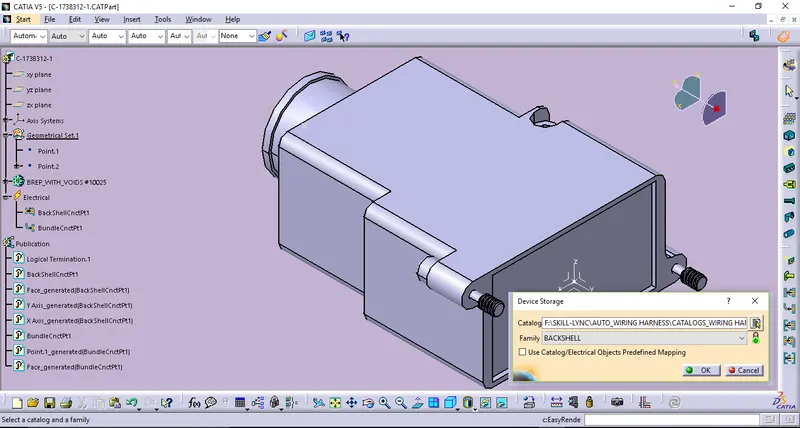

STEP_7: Then store data by using Store device definition it added into BACKSHELL family in Wiring Harness catalog.

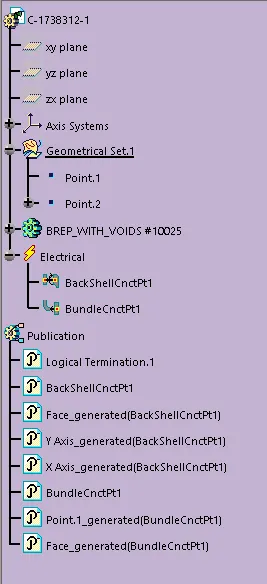

TREE STRUCTURE:
3_CORRUGATED TUBES:
The corrugated conduit is a thin wall corrugated tubing that is moisture-resistant and flame retardant. It is pliable such that it can be bent by hand and not threaded due to its corrugated shape. And the followings are defined as per given required dimensions,

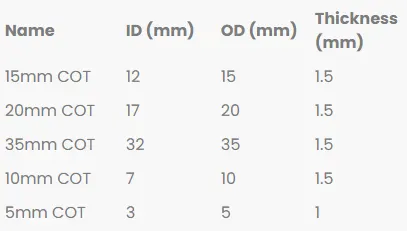

GIVEN:

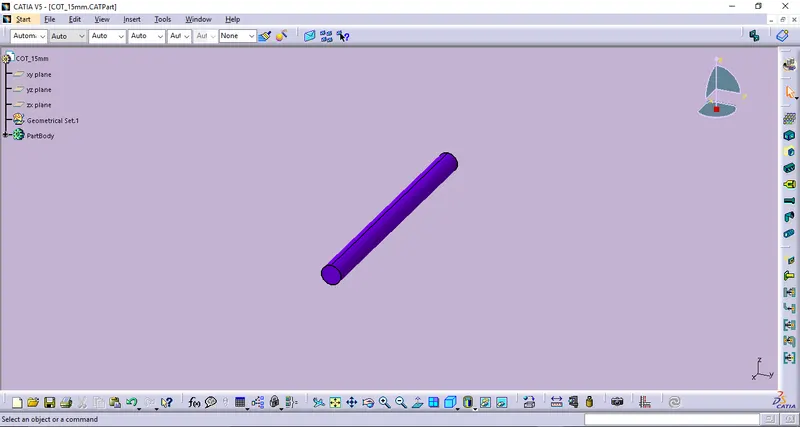

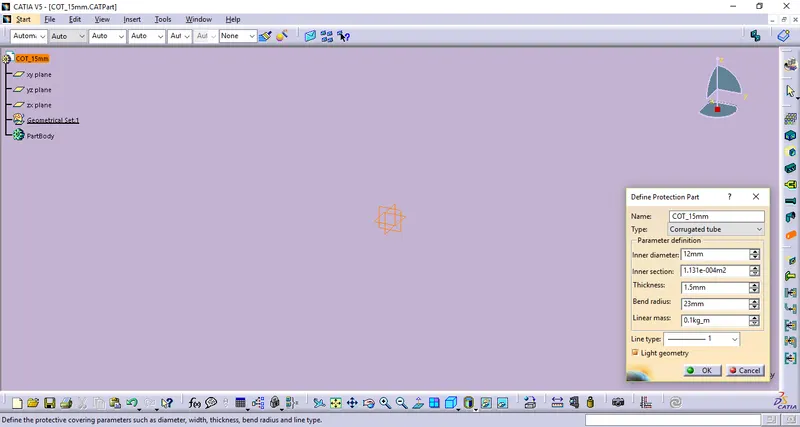

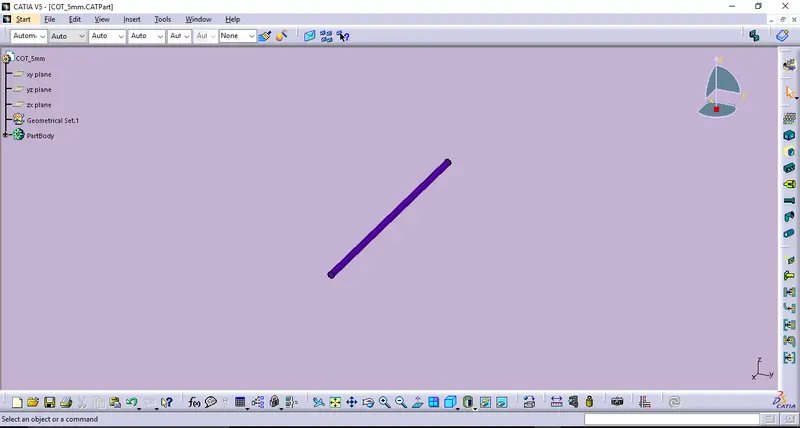

COT_15mm

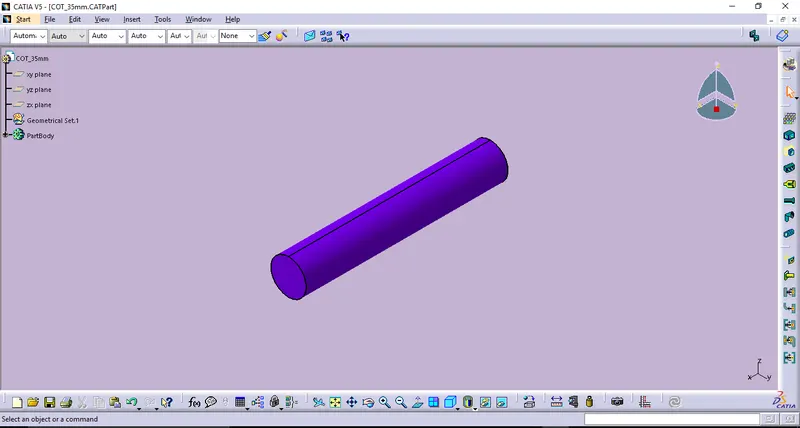

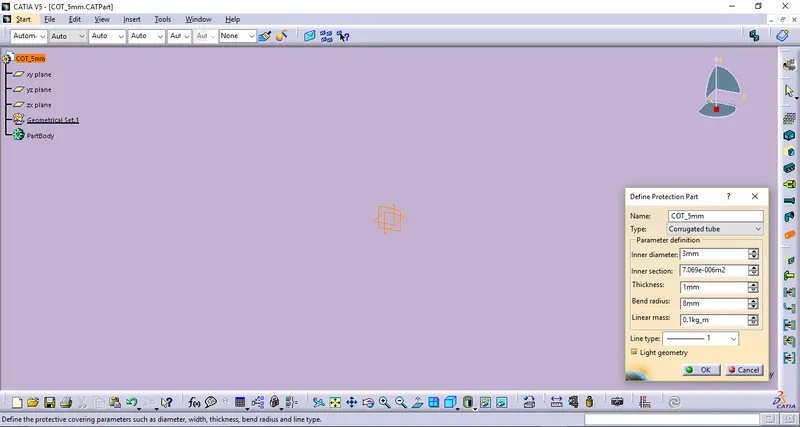

Defining Protection part definition.

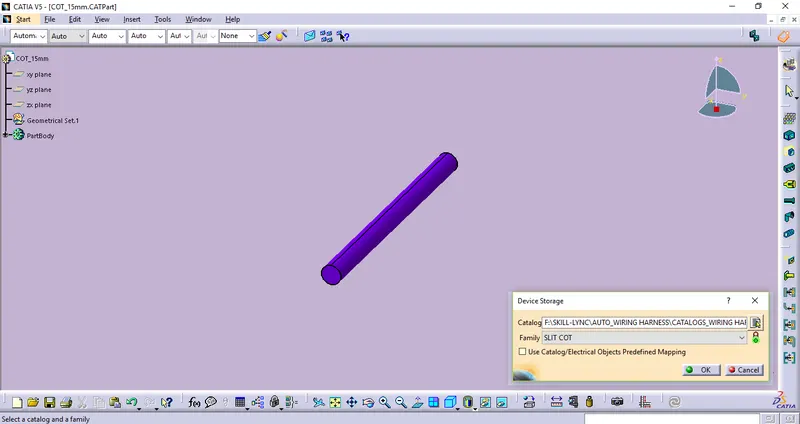

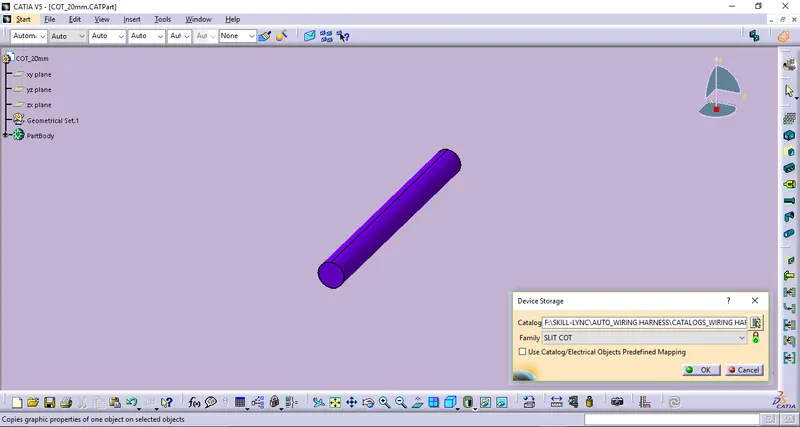

Defining thus the part as become sotred into Slit COT family in Wiring Harness catalog.
COT_20mm
Defining Protection part definition.
Defining thus the part as become sotred into Slit COT family in Wiring Harness catalog.

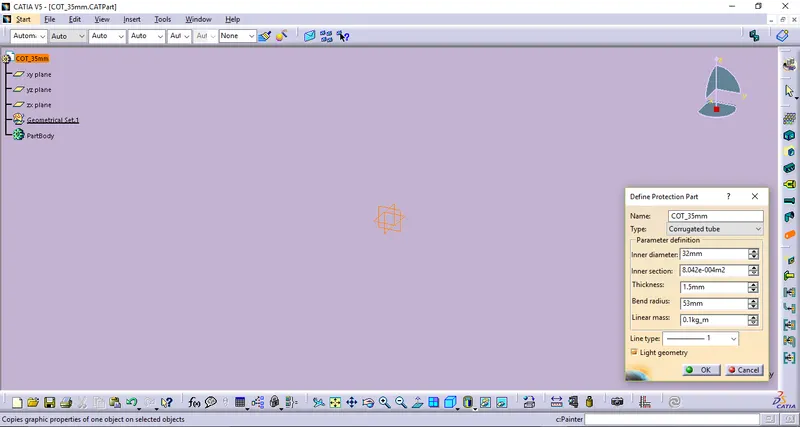

COT_35mm
Defining Protection part definition.

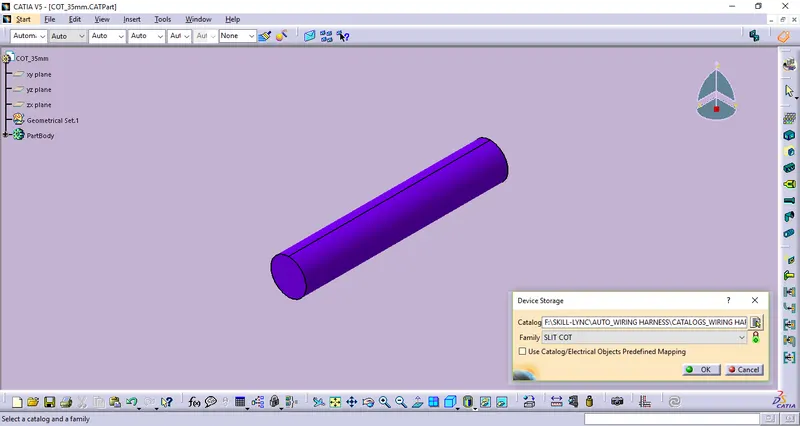

Defining thus the part as become sotred into Slit COT family in Wiring Harness catalog.
COT_10mm
Defining Protection part definition.

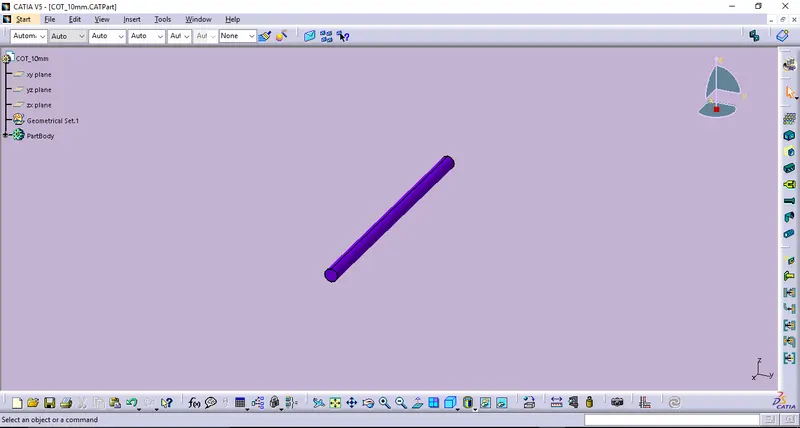

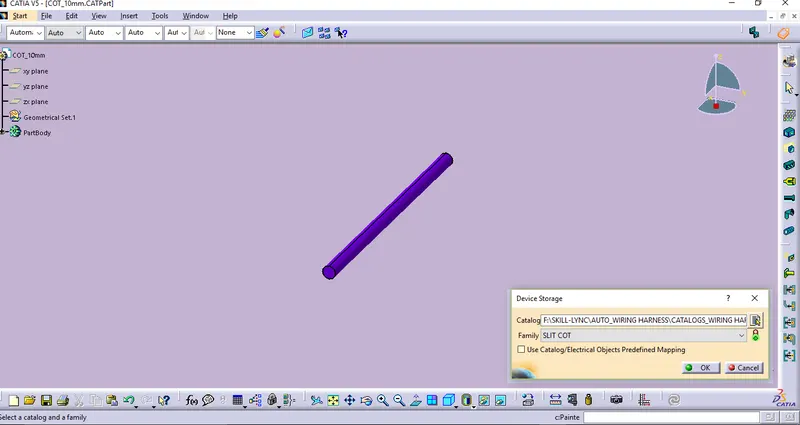

Defining thus the part as become sotred into Slit COT family in Wiring Harness catalog.
COT_5mm
Defining Protection part definition.

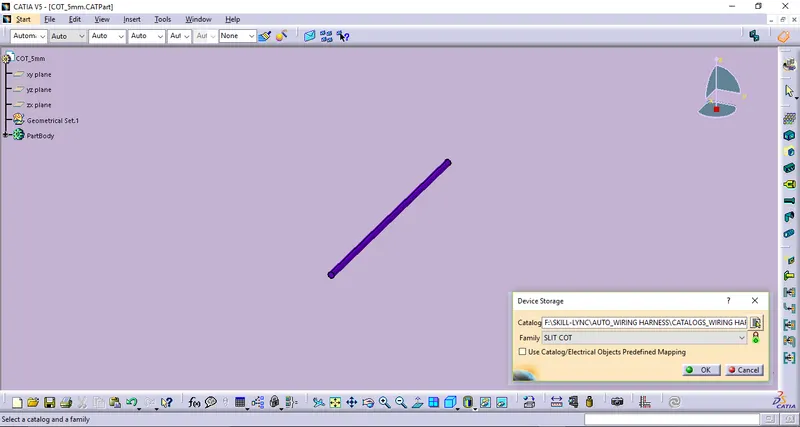

Defining thus the part as become sotred into Slit COT family in Wiring Harness catalog.

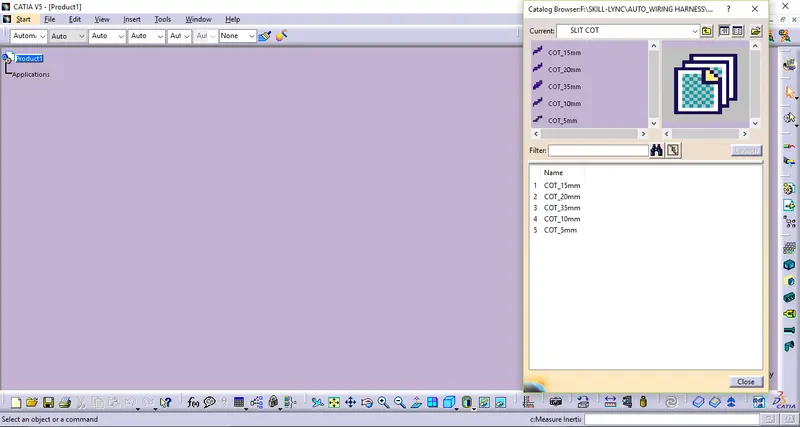

CATALOG BROWSER:
CONCLUSION:
Thus all the given components are definined as Electrical parts and its properties also defined by using Electrical Part design Workbench in CATIA V5.
