Wiring harness routing & packaging Rules Week 3 Challenge

                                                                              REPORT ROUTING & PCKING RULE

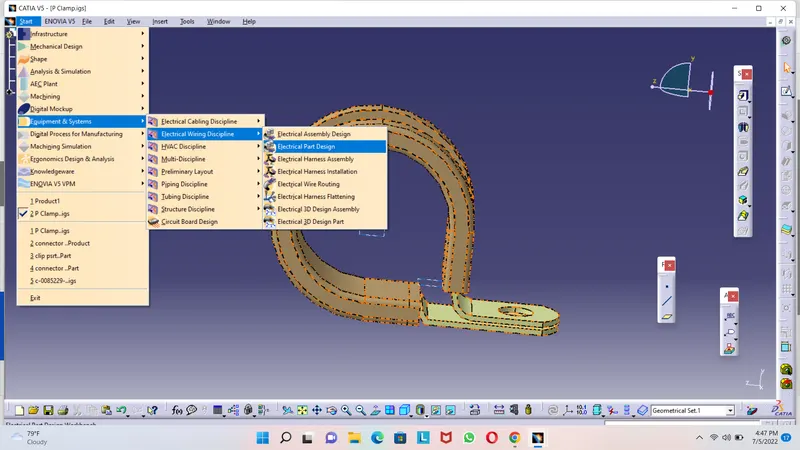

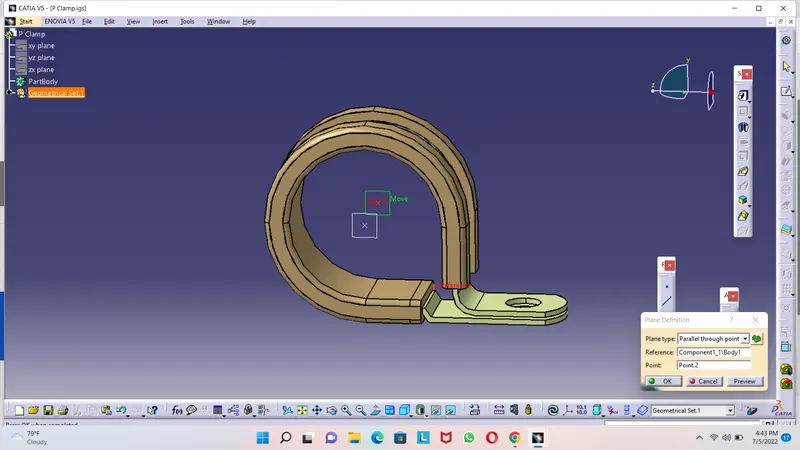

1. The given clip was downloaded and opened as a part file.

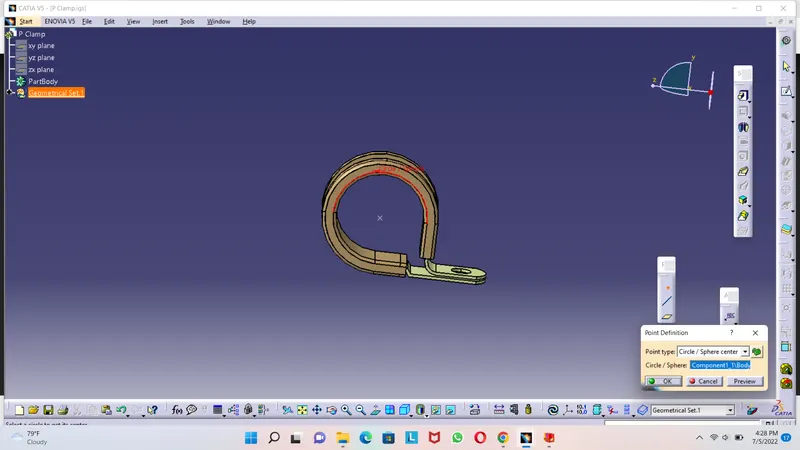

2. I have to define two points that will be used as entry and exit points.

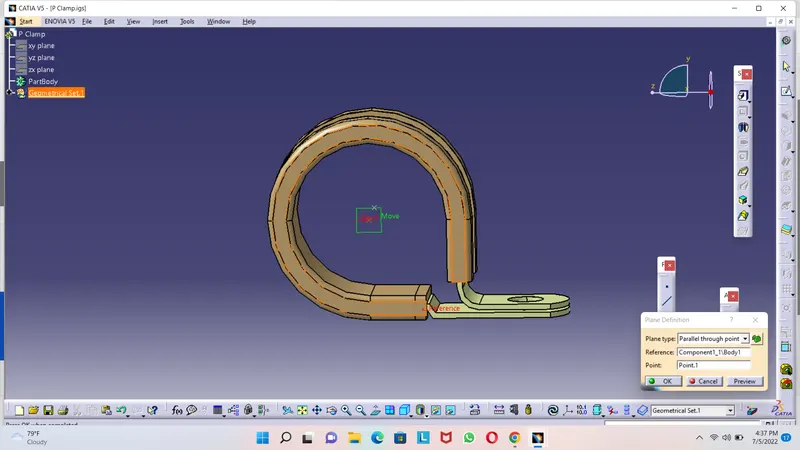

3. Then a plane has to be defined at the points.

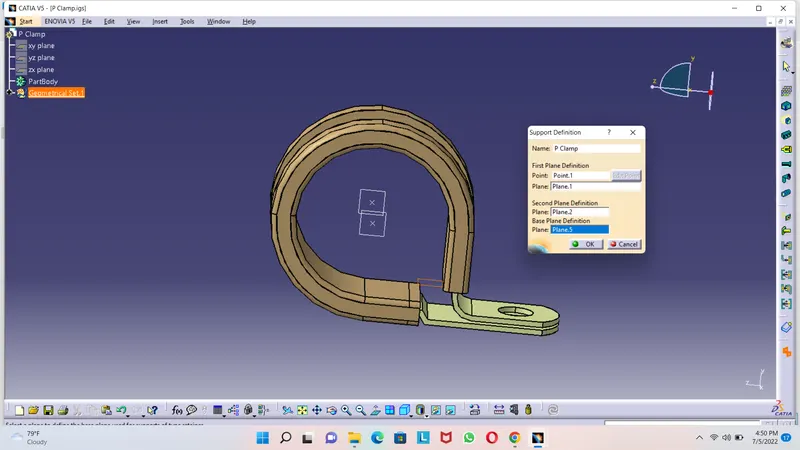

4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

•
•
•

Q2

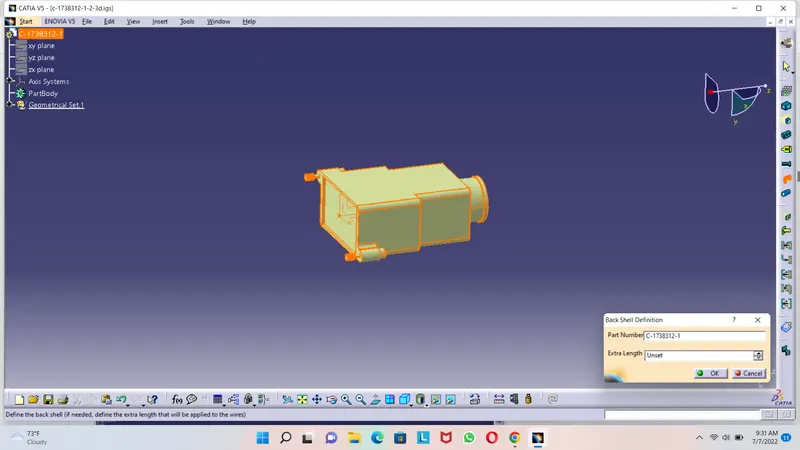

• The backshell data was downloaded from the website.

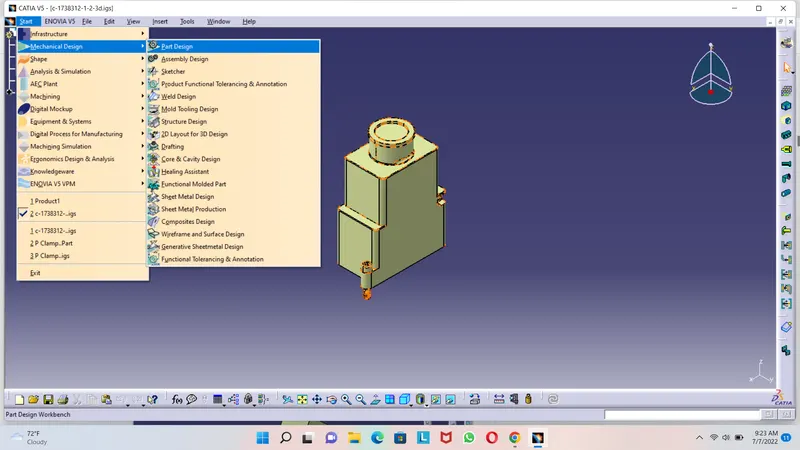

• We define the points in the part workbench.

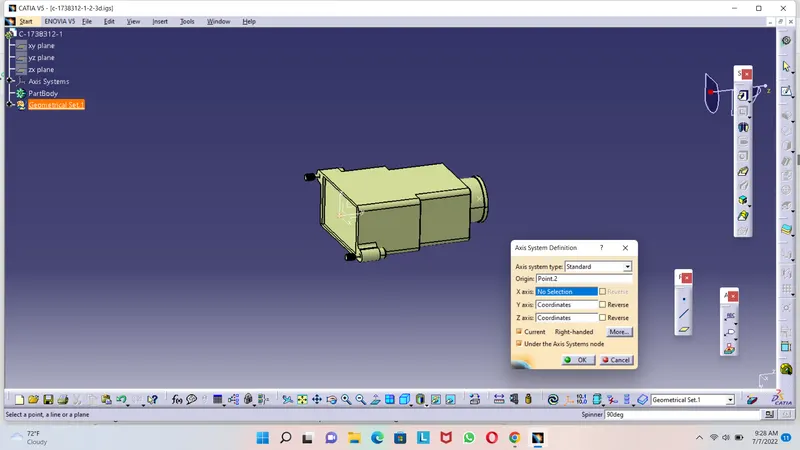

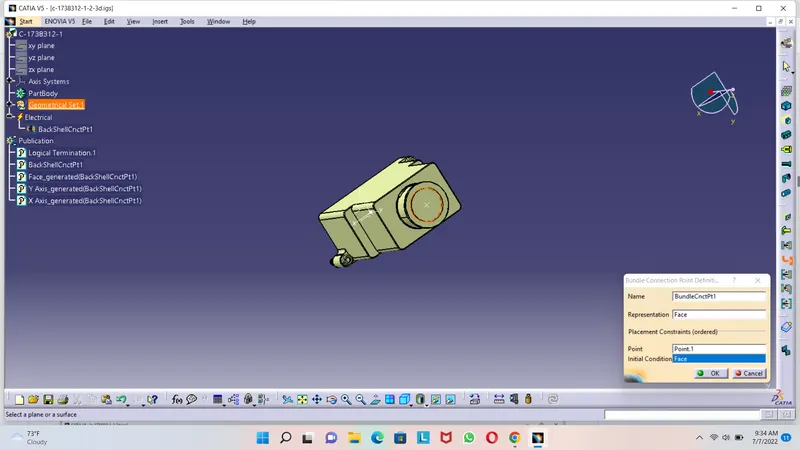

• An Axis system with the correct axis orientation is placed at the backshell connection point.

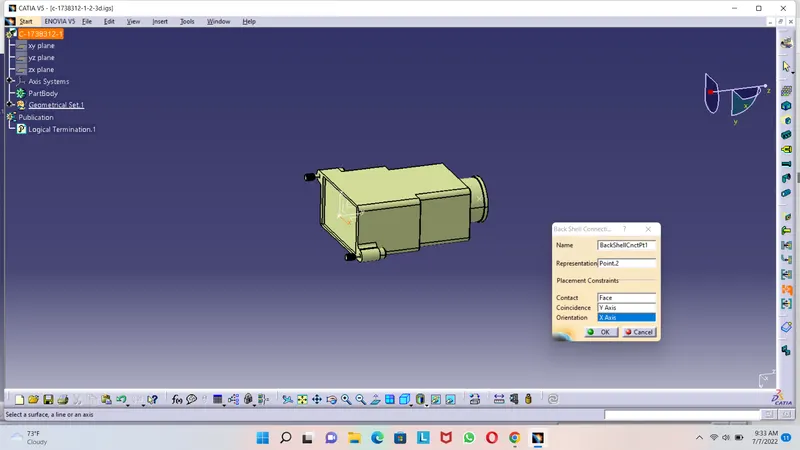

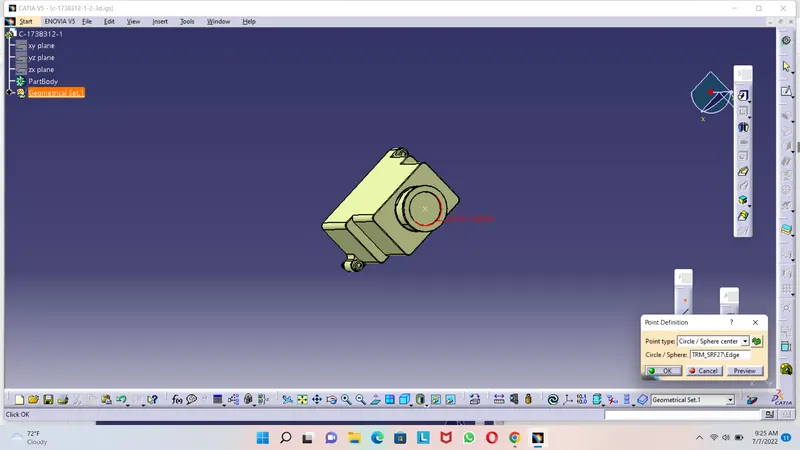

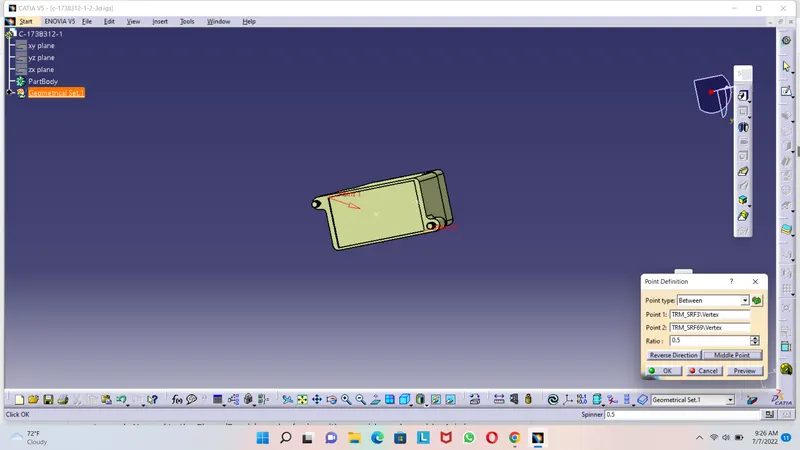

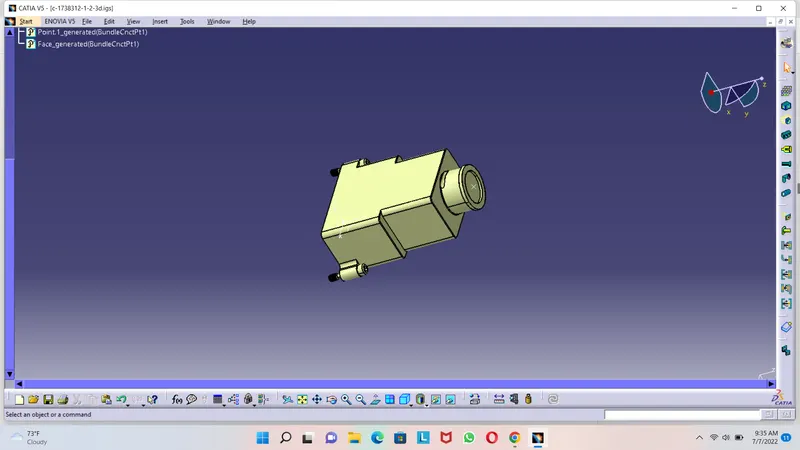

• The points have to be defined as the backshell connection and bundle connection points.

•

Q3

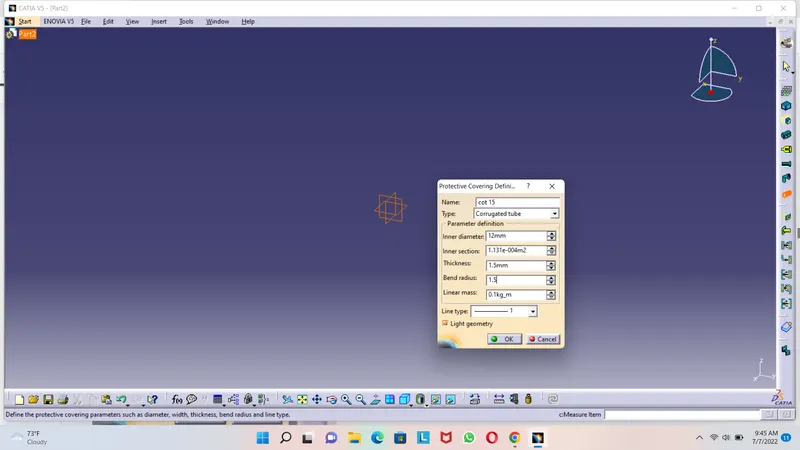

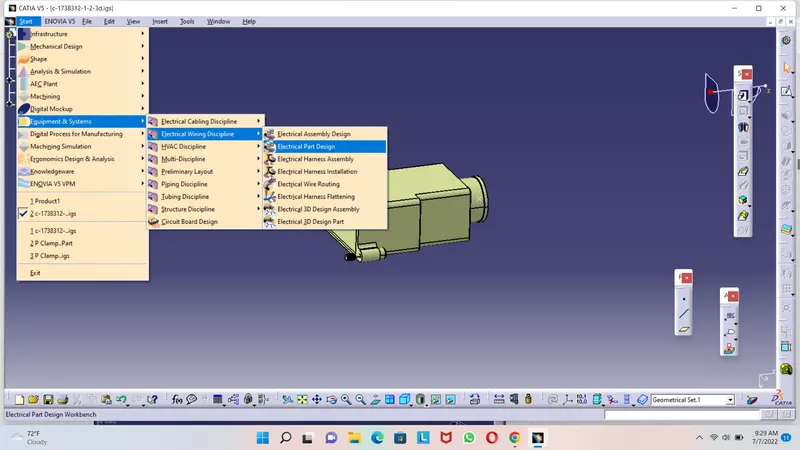

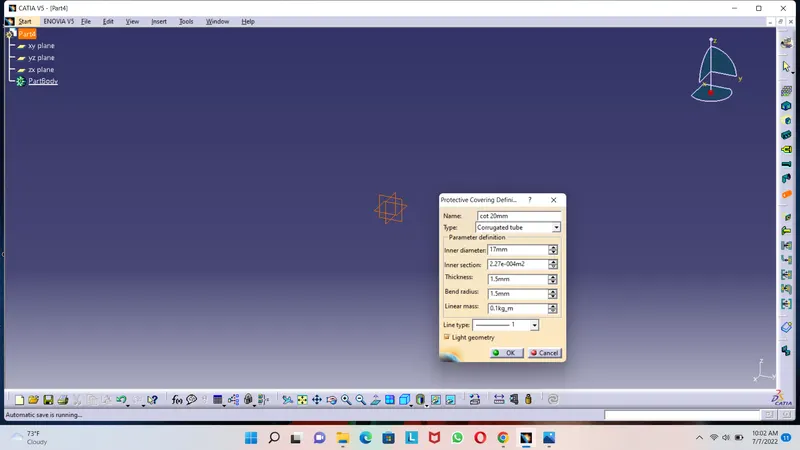

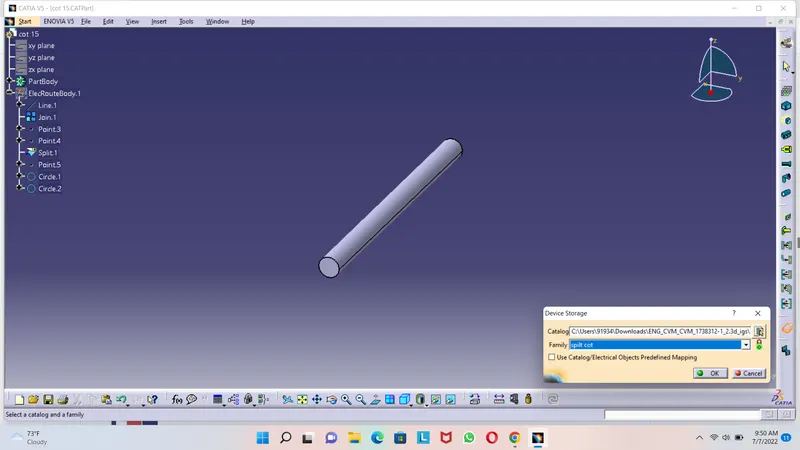

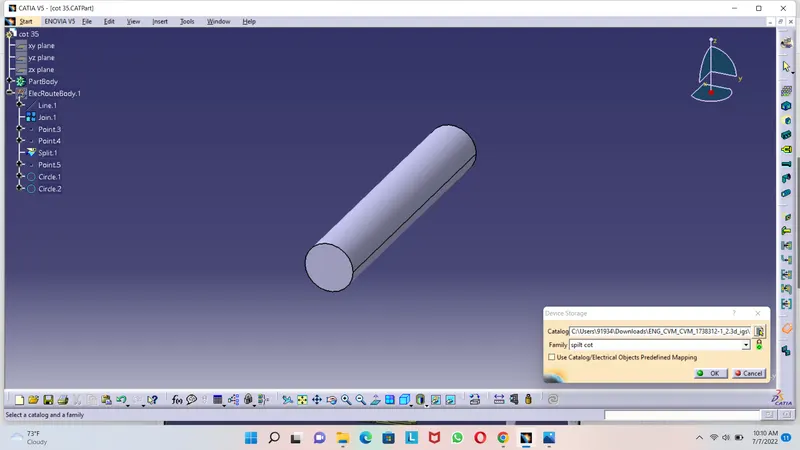

• we define the cot tubes in the electrical part workbench.
• the inner dia & thickness are given as the inputs.

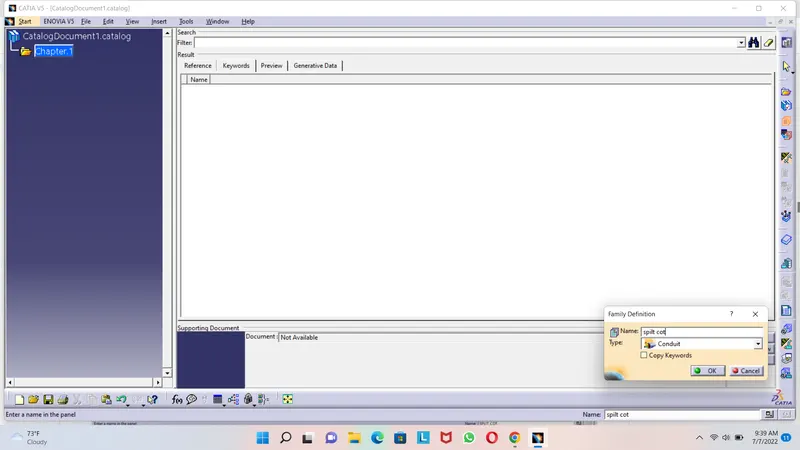

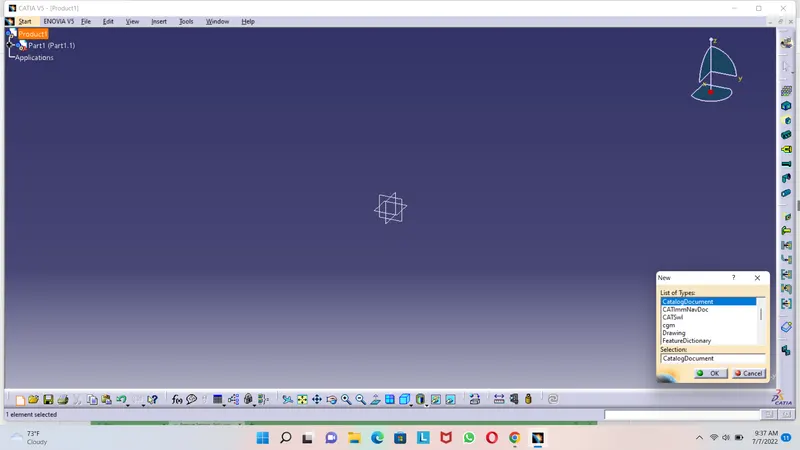

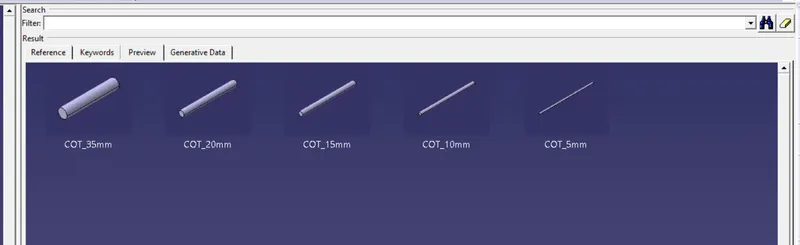

• a catalog was created for the cot tubes.

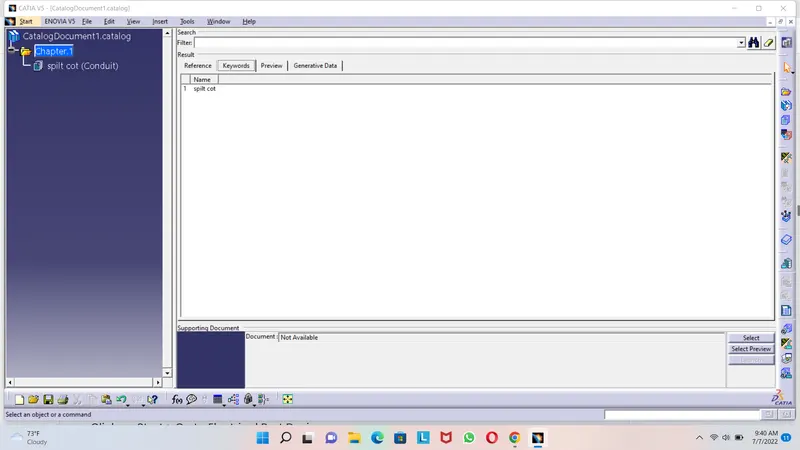

• all the cot tubes were saved in the catalog.

•
