Wiring harness routing & packaging Rules Week 3 Challenge

AIM:

The aim of this project is to create an electrical support for the given P clamp and to define electrical characterstics.

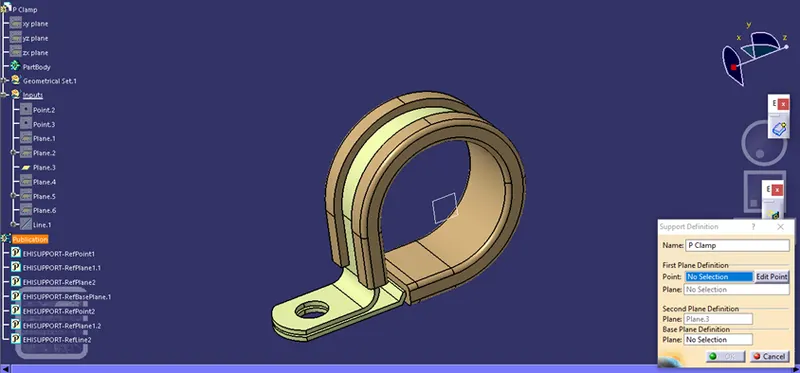

Steps involved to define support:

1. Download STEP/IGES fine of the P Clamp
2. Create geometrical parameters like points and planes required for the electrical support.
3. Define entry points and exit points on both sides.

BACK SHELL

AIM:

The aim of this project is to create an backshell for the given connector and to define electrical characterstics.

Steps involved to define back shell:

1.Download STEP/IGES file of the back shell

2. create geometrical parameters like points and axis system required for the back shell.

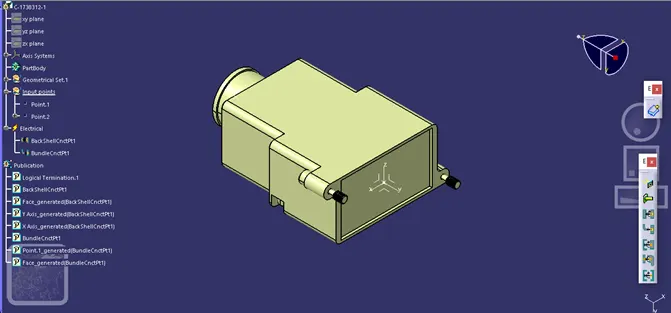

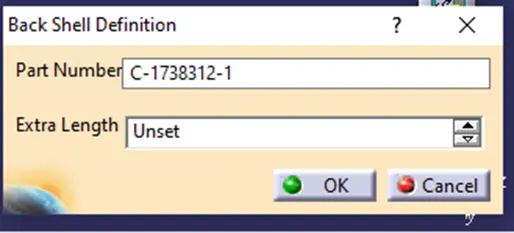

3. define part model as an electrical component by defining back shell

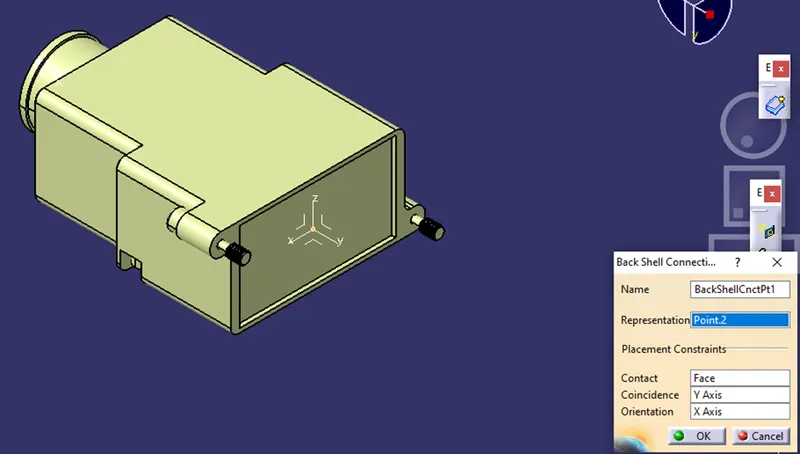

4.Define the back shell connecting point

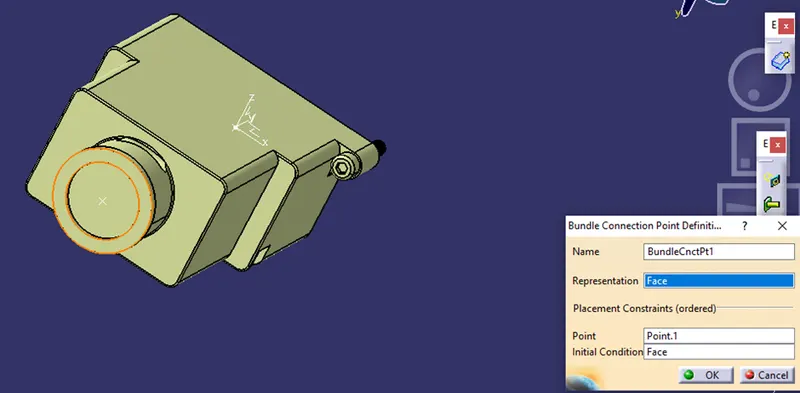

5.Define bundle connection point

PROTECTIVE COVERINGS:

AIM:

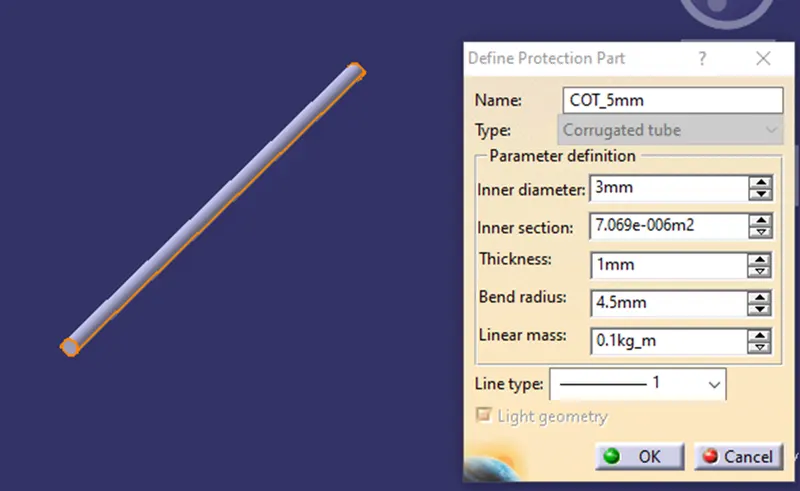

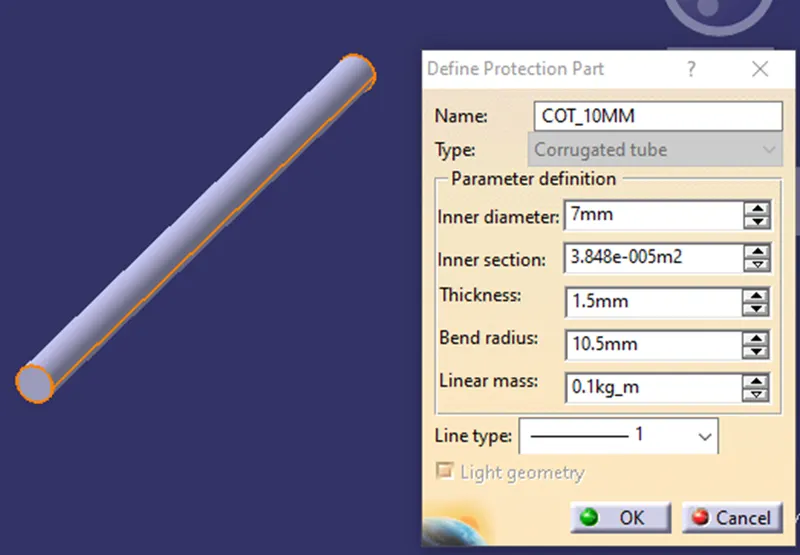

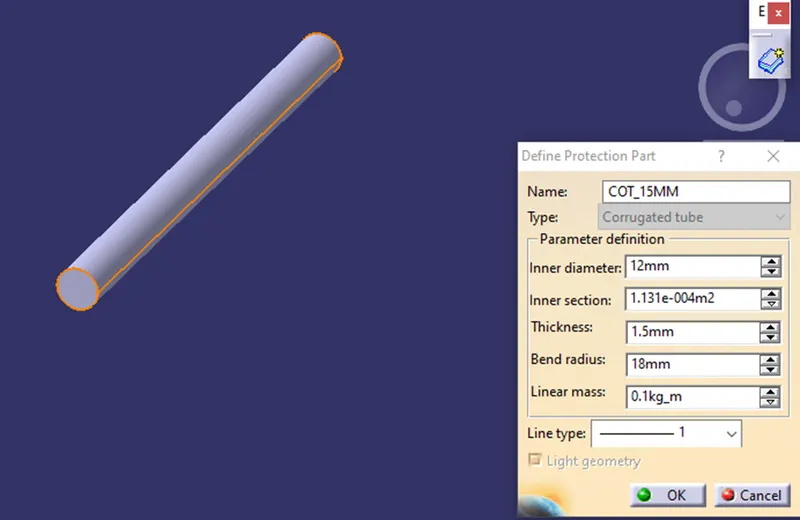

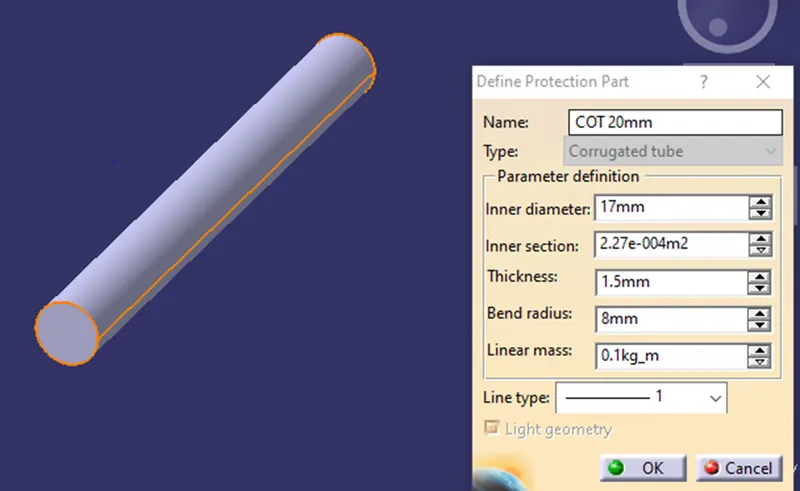

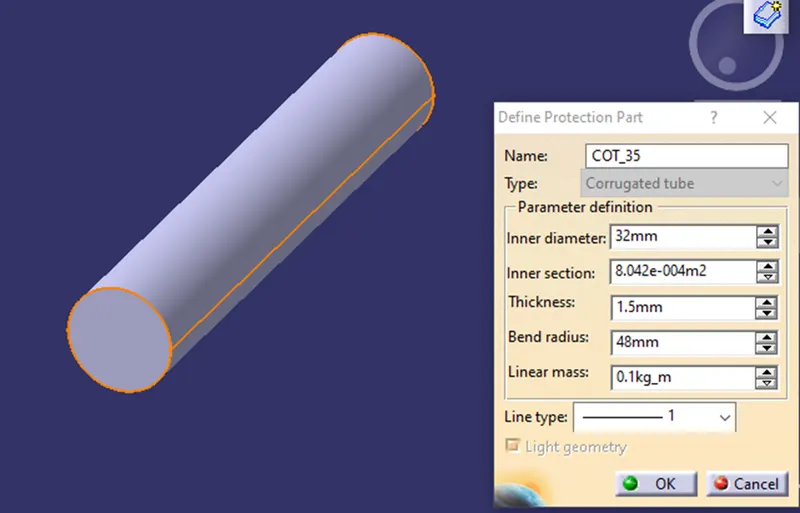

The aim of this project is to create cot tubes with standard dimensions and add the CAD models into COT TUBES catalogue.

• Cot tubes is a covering part created by using define protection point in electrical part design work bench
• Add the CAD model into COT TUBE catalogue

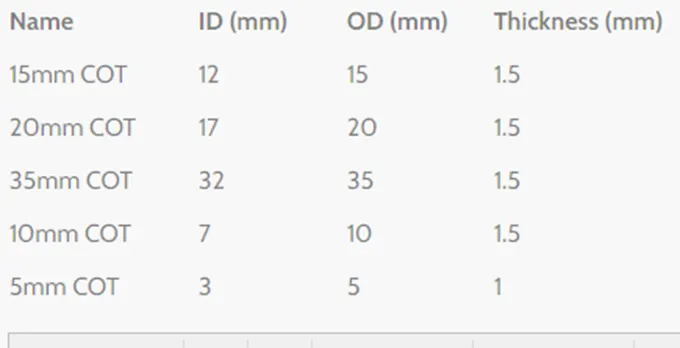

• Cot tubes are created by following standards.

35MM

COT 15MM

COT 10MM

COT 5MM

COT 20MM

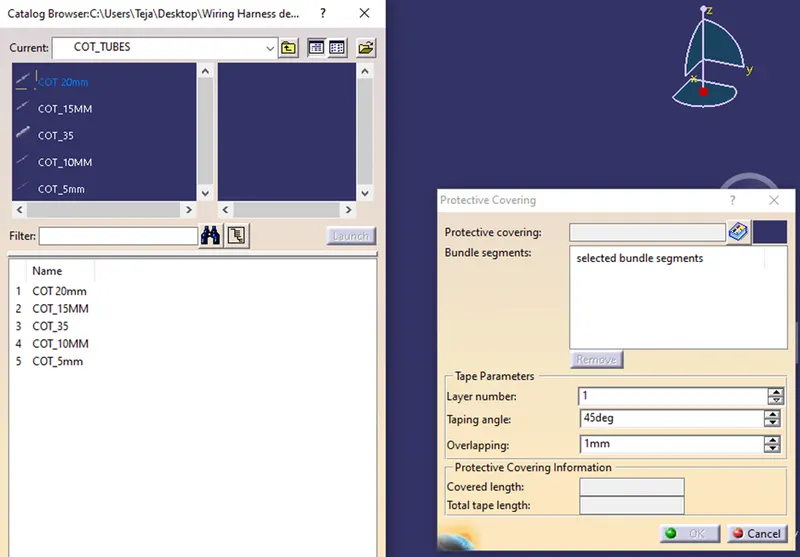

Created COT TUBES are added into COT TUBES catalogue
