Challenge

Wiring harness routing & packaging Rules Week 3 Challenge

AIM:

  1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties for P clamp.

  2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
  3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

    Name

    ID (mm)

    OD (mm)

    Thickness (mm)

    15mm COT

    12

    15

    1.5

    20mm COT

    17

    20

    1.5

    35mm COT

    32

    35

    1.5

    10mm COT

    7

    10

    1.5

    5mm COT

    3

    5

    1

SOLUTION METHODOLOGY:

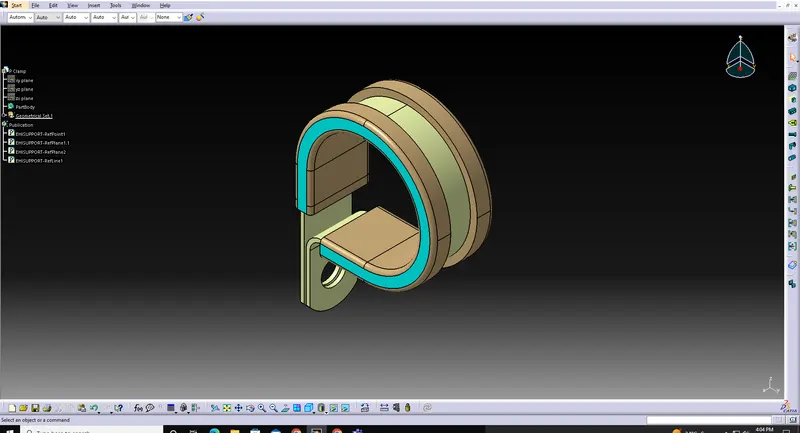

1. P - CLAMP:

  • P-Clamp is an Electrical Support equipment which provides support to the wire bundle to remain fixed to the automobile or any components or parts.
  • The wire bundle can enter and exit from any side as it is a bi-directional equipment.
  • So, we need to specify the Entry and Exit points from both the sides.
  • To define the P-Clamp as Electrical Support equipment we need to follow the below steps:

Step - 1:

  • First download the CAD part and open it using the CATIA V5 software.

Step - 2:

  • Now we have to define the geometry parameters.
  • In order to define the geometry parameters, we need to navigate to the Part Workbench.
  • Then we need to create points and select planes at the entry and exit points.

Step - 3:

  • Now in order to define the P-Clamp as a Electrical support we have to navigate to the Electrical Part design Workbench.
  • Now using the 'Define support part' option we can define the P-Clamp Entry and Exit points.

2. BACKSHELL

  • A backshell is an accessory that mounts to the rear threads of a connector to enhance its operational characteristics. The primary function of a backshell is to provide strain relief, which minimizes stress from the cable, on the junction where the wires terminate to the contacts.
  • Backshells come in a variety of finishes, materials, and angle configurations. For material compatibility and aesthetics, backshells and connectors should have a matching material and finish. And to provide simple cable management, most backshells may be ordered in 45º and 90º angles.
  • To define the Electrical properties of the backshell we need to follow the below steps:

Steps:

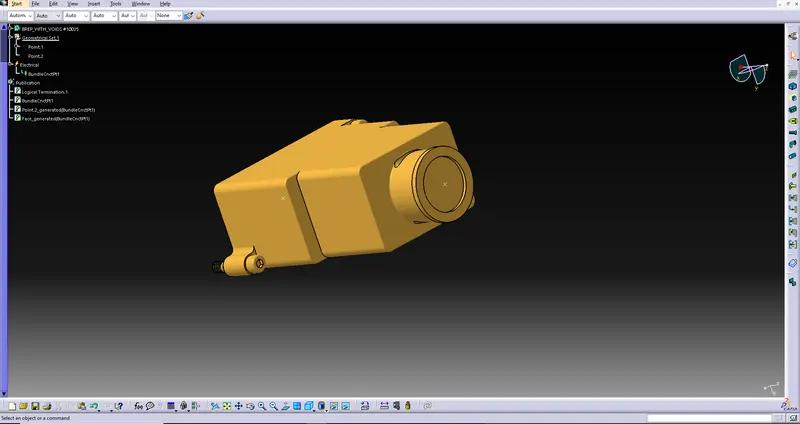

  • First download the 3-D CAD part of the backshell and open it using the CATIA V5 software.
  • Identify from which side the bundle will enter and the side which will mate with the connector.
  • Create mid-point at the bundle entry side.
  • Create mid-point at the connector mating side.
  • Create an Axis system at the Connector mating side.
  • The axis system should be created at the center of the mating surface.
  • The axis must be defined as defined for the connectors show that it will connect easily.
  • To define the Electrical properties, we need to navigate to the Electrical Part design workbench.
  • There we need to define the component as the 'Backshell'.
  • Define the Backshell connection point.
  • Then define the Bundle connection point.

3. Corrugated Tubes

  • Creating the following corrugated tubes as per the dimensions given in the table and storing in the Slit COT family catalogue document.

Name

ID (mm)

OD (mm)

Thickness (mm)

15mm COT

12

15

1.5

20mm COT

17

20

1.5

35mm COT

32

35

1.5

10mm COT

7

10

1.5

5mm COT

3

5

1

STEPS:

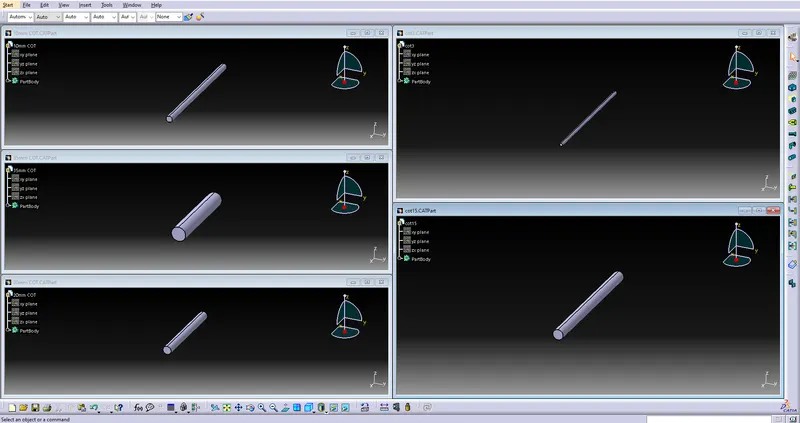

  • First, we have to open part workbench, i.e., Electrical part design.
  • Here, choose Define Protection part, in the above workbench.
  • Then set the parameters for tube such as inner diameter, thickness etc.
  • Then press OK
  • Likewise we can make all the different tubes with different parameters.

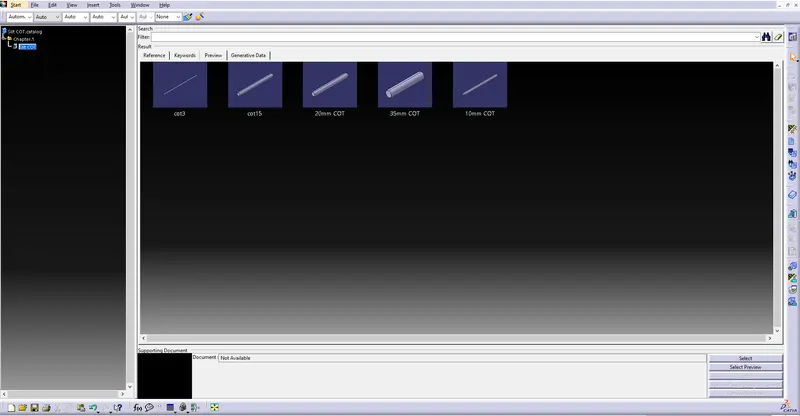

  • Then make Catalogue for the created tubes.
  • go to START > INFRASTRUCTURE > CATALOGUE EDITOR.
  • Then, double click the chapter , select ADD Family
  • Then, double click the family, select add component.
  • Choose component by browsing the folder, and select it.
  • likewise, we can add all the tubes as component to the created family

CONCLUSION:

  • From the above assignment we learnt how to define the Electrical support for a P-Clamp and also define its Electrical properties.
  • We also learnt how to Electrical Backshell for a Backshell component and also define its Electrical properties.
  • We also learnt how to make Corrugated Tubes of different diameters and also save them in the respective families in the Corrugated Tubes catalogues.
