Wiring harness routing & packaging Rules Week 3 Challenge

1-  Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

PROCESS

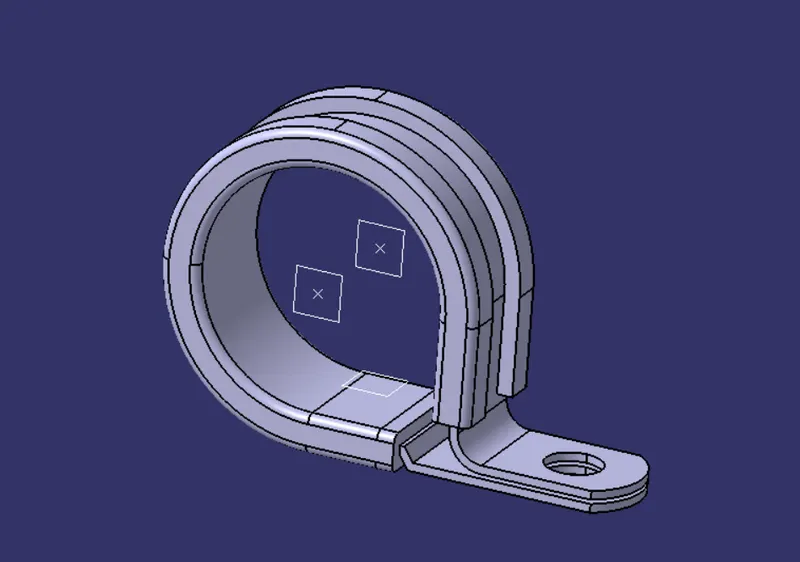

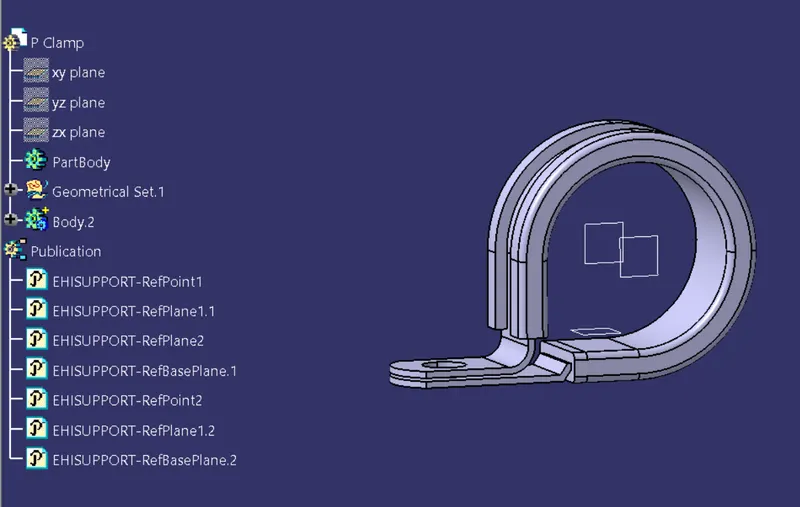

1- Create geometric parameter of the P CLAMP, Create center point and plane on the middle of both side and create a base plane. These 2 planes defines the entry and exit point for bundle

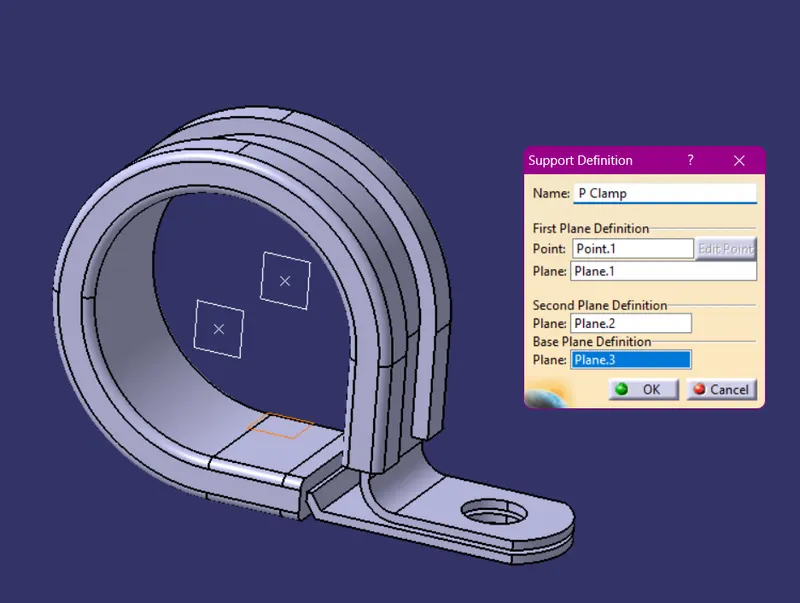

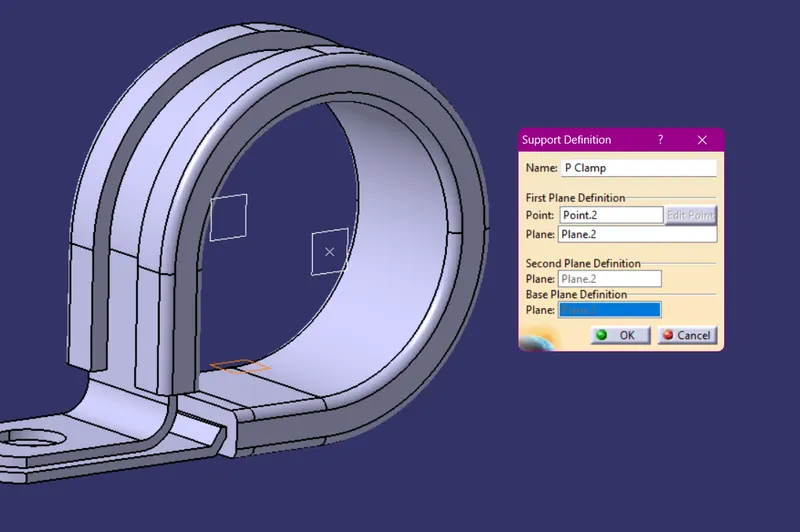

2- Define support for both side using command ' Define Support Part '

2- Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

PROCESS

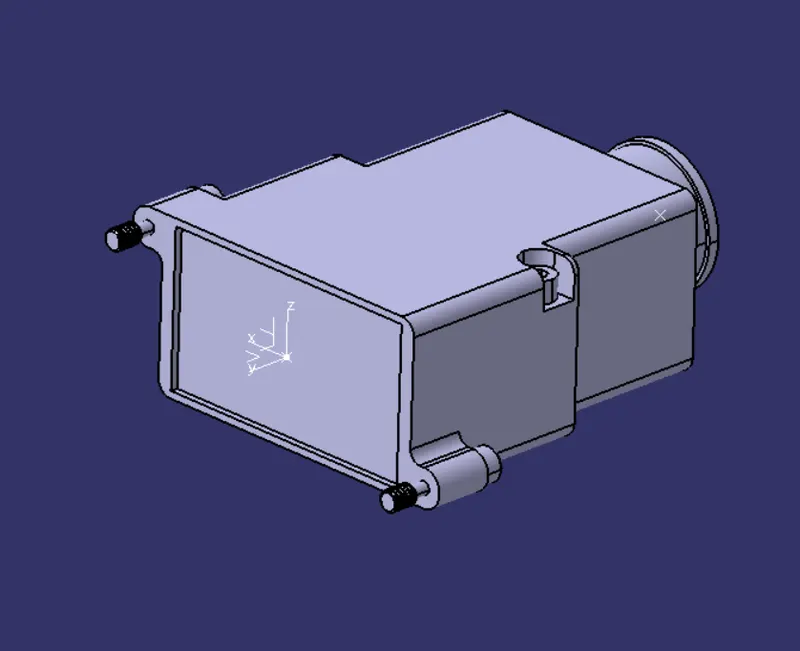

1- Create required Geometrical parameter. Create 2 points on the middle of both ends of the part and Create a axis system on the mating face. Put Y axis to the other Mating part and X axis towards the Locking system.

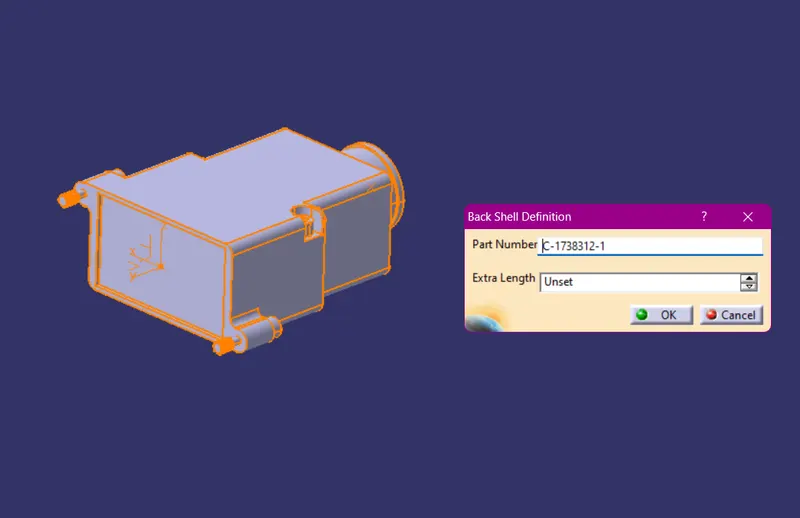

2- Define part as Backshell Using command ' Define Back shell '

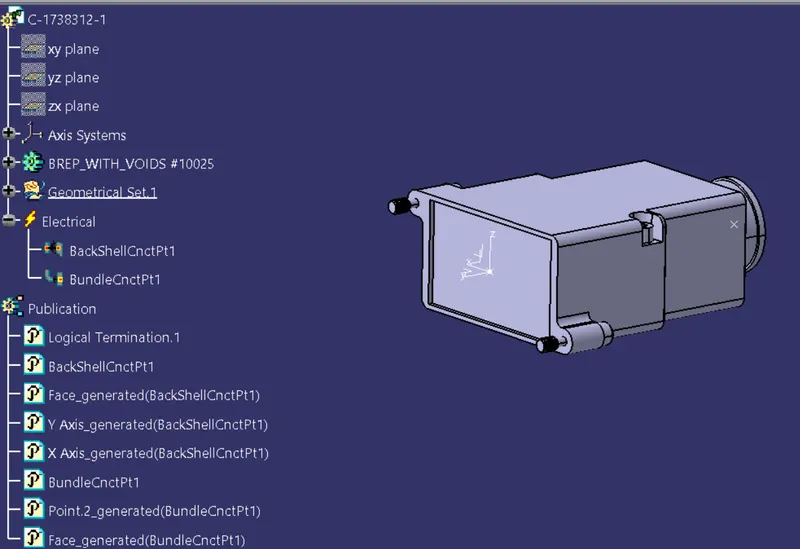

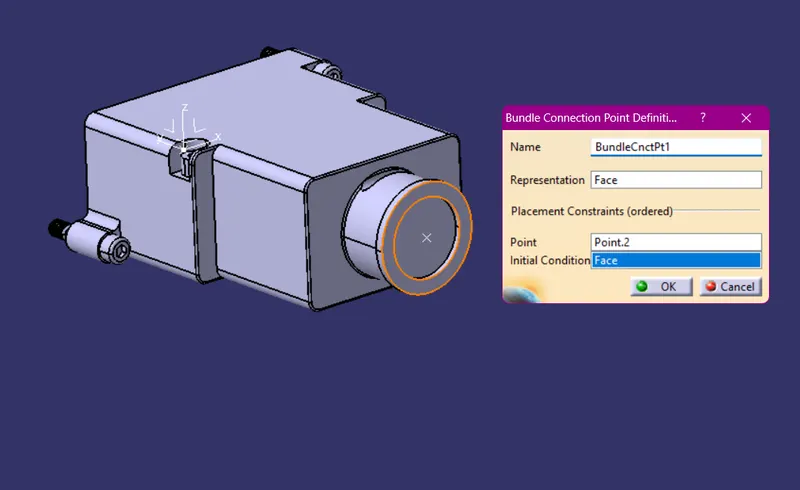

3-  Define " Bundle Connection Point "

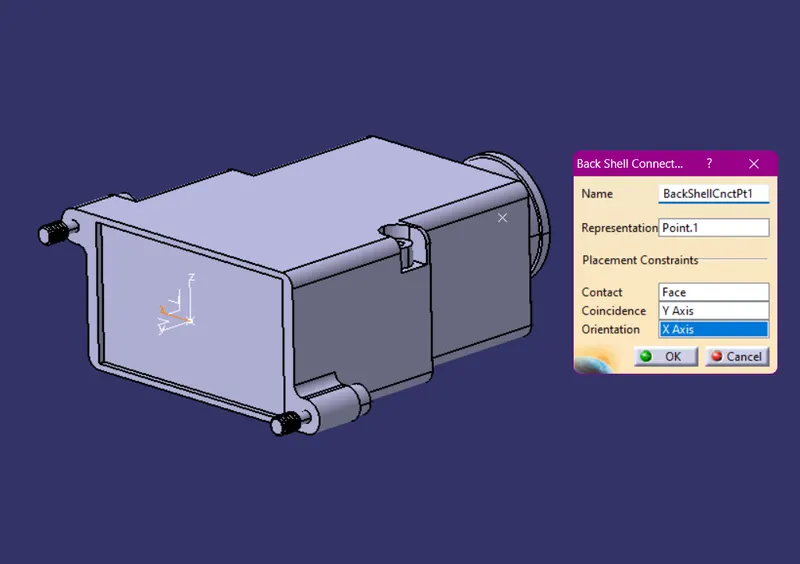

4- Define " Back shell Connection Point "

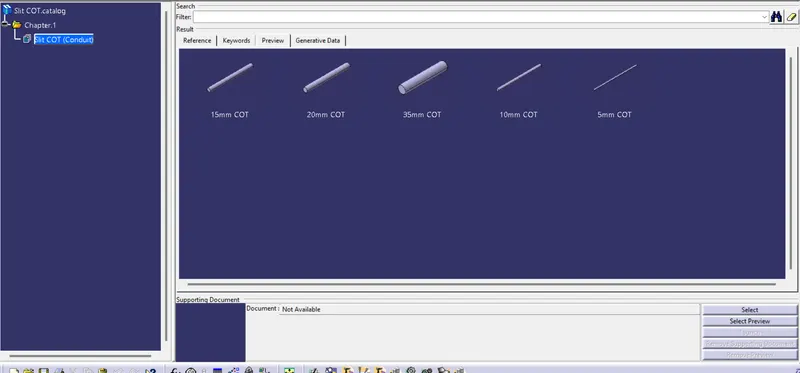

3- Corrugated tubes
