Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Define given 'P-Clamp' as an Electrical Connector and add their necessary properties using Electrical Part design workbench in CATIA V5

The objective of this project is to first, download the given files from TE.com then define them as an electrical connector or equipment and lastly give all the required electrical properties to them using the electrical part design workbench on CATIA V5.

These are the steps required to do in this project-

1. Create the required geometrical parameters for the part
2. Create entry point and entry plane
3. Create exit plane and base plane
4. Define part as electrical support

The given component is as follows:

This is a part which is called as P-Clamp.

P-Clamp

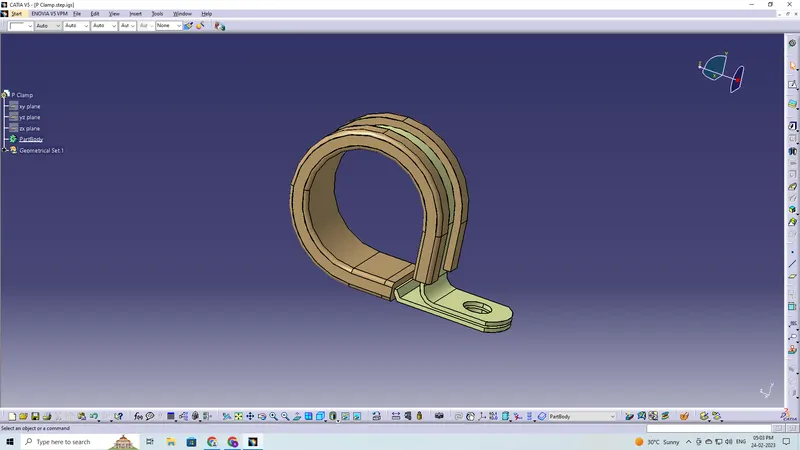

Defining the Geometrical Parameter to the part

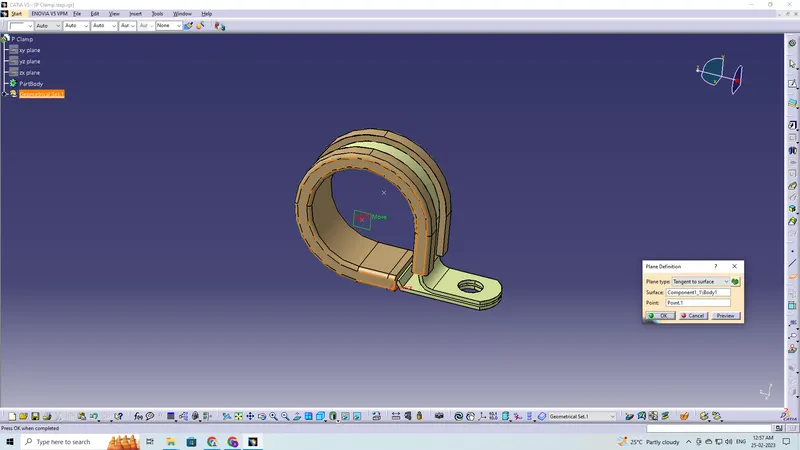

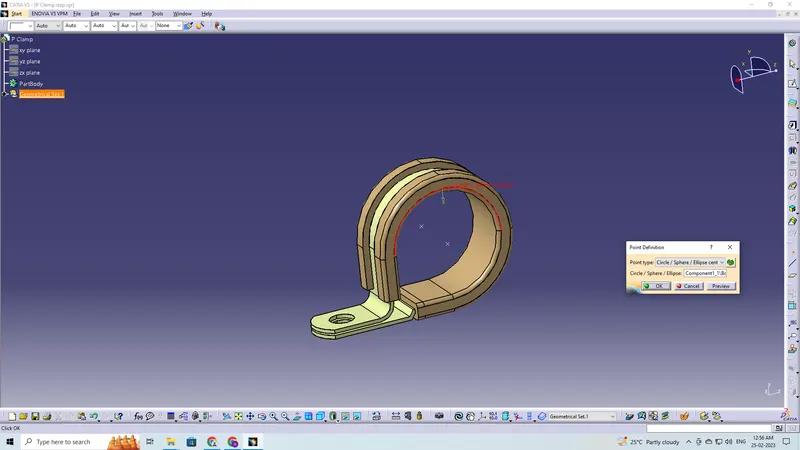

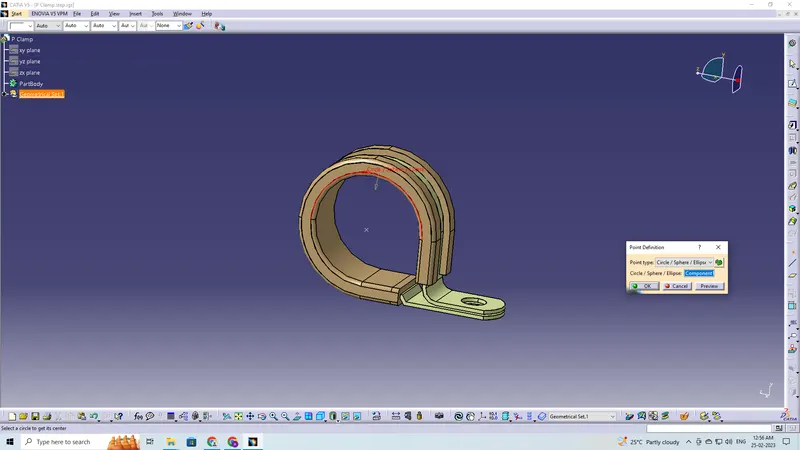

Create entry point and entry plane

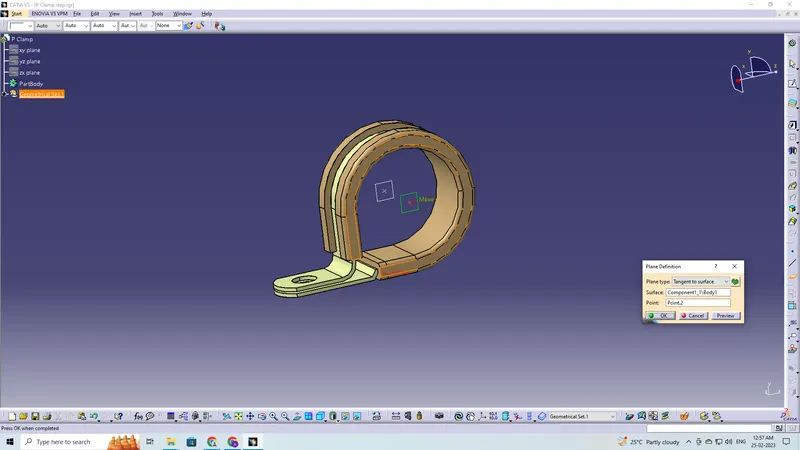

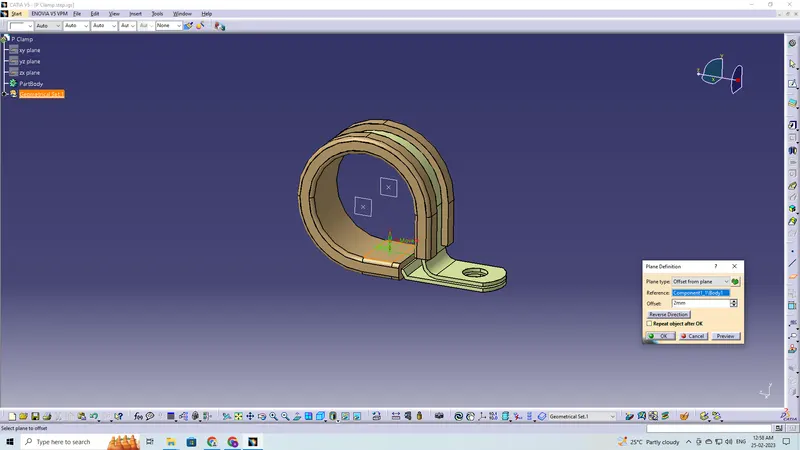

Create exit plane and base plane

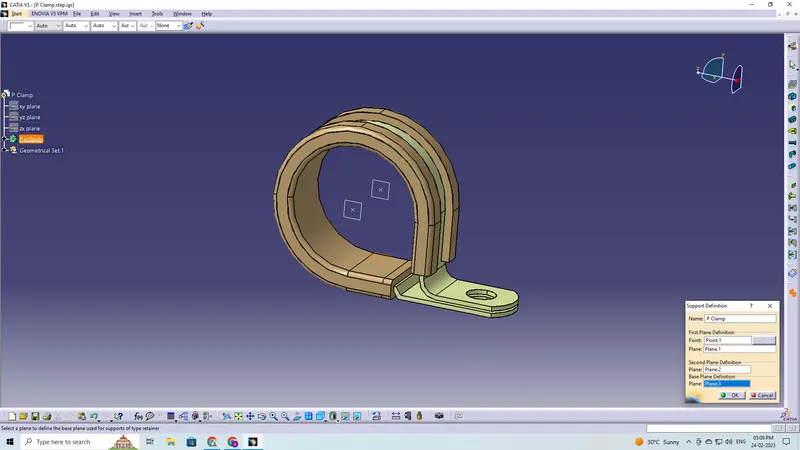

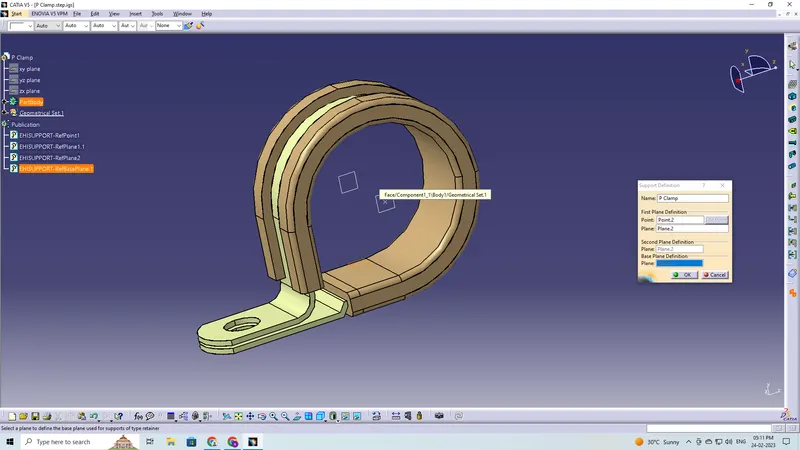

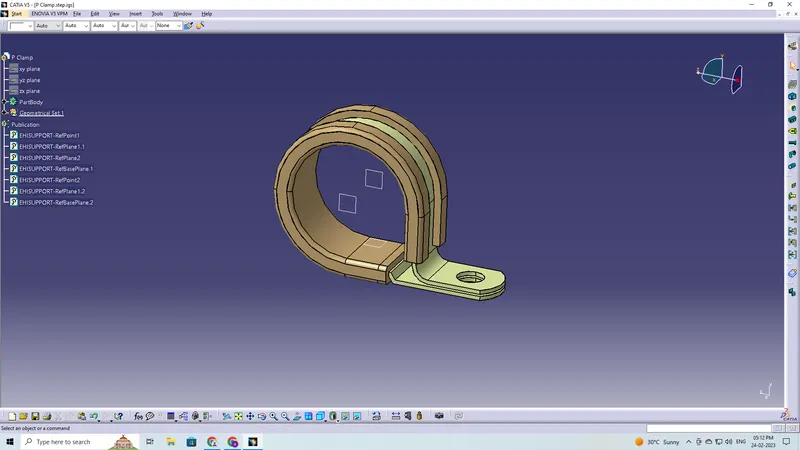

Define part as electrical support

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Define given 'Tyco 1738312-1' as an Electrical Connector and add their necessary properties using Electrical Part design workbench in CATIA V5

The objective of this project is to first, download the given files from TE.com then define them as an electrical connector or equipment and lastly give all the required electrical properties to them using the electrical part design workbench on CATIA V5.

These are the steps required to do in this project-

1. Create the required geometrical parameters for the part
2. Define the part as backshell
3. Create backshell connection point
4. Create bundle connection point

The given component is as follows:

This is a part which is called as Tyco 1738312-1.

Tyco 1738312-1

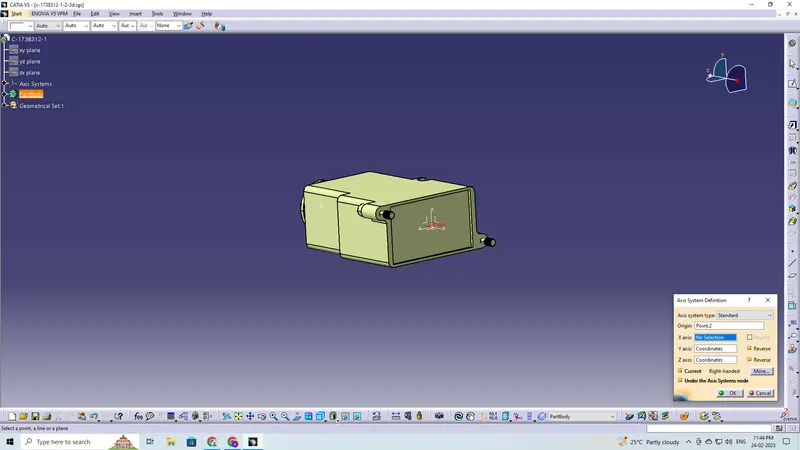

Create the required geometrical parameters for the part

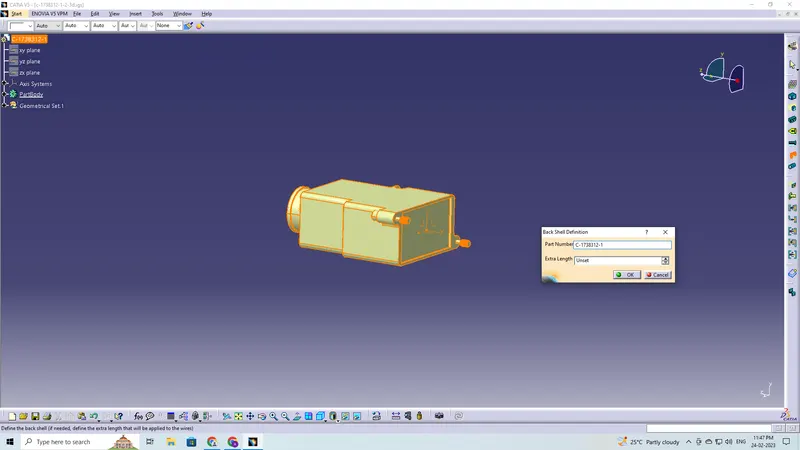

Define the part as backshell

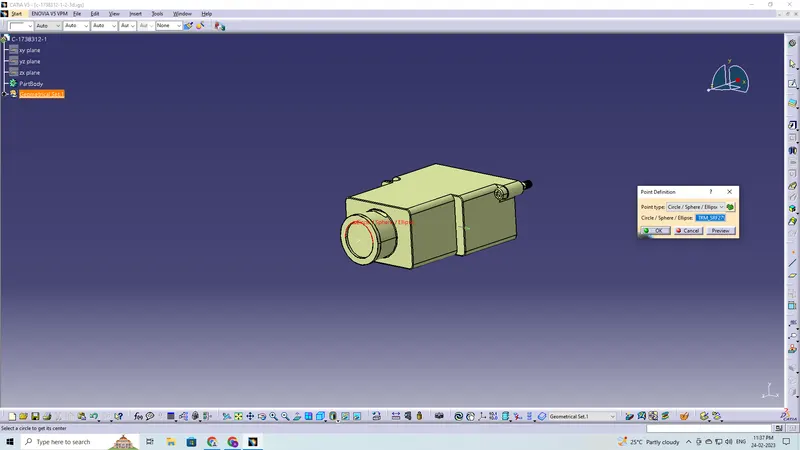

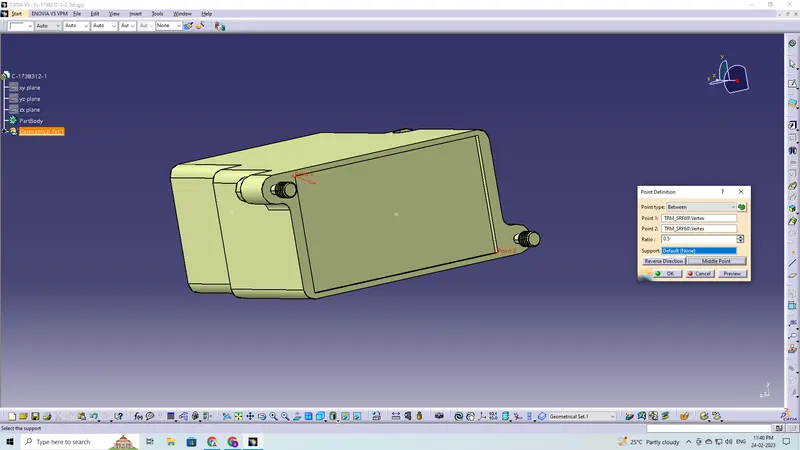

Create backshell connection point

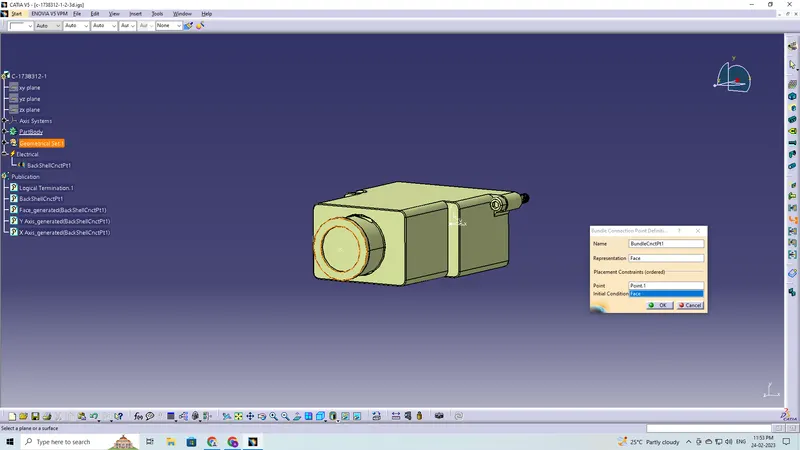

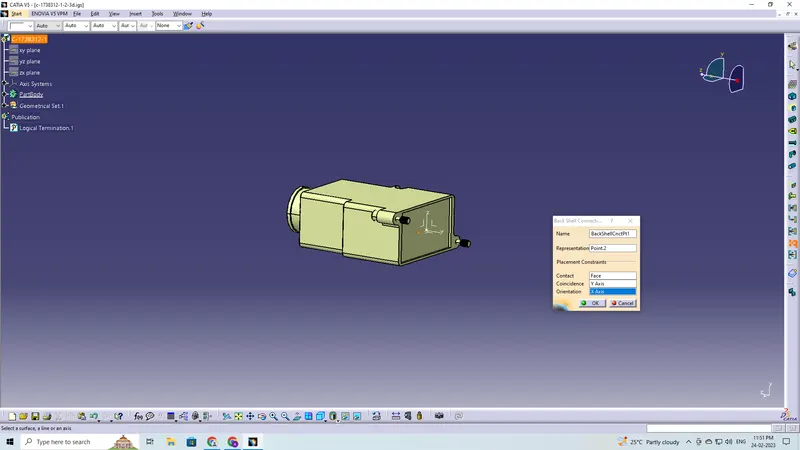

Create bundle connection point

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

These are the steps required to do in this project-

1. Create the required covering 3D part by Define Protection Part
2. Create catalogue family named 'Slit COT' for coverings
3. Add the new part in catalogue under 'Slit COT' family
4. Apply covering on harness bundles from catalogue

The given component is as follows:

This is a part which is called as Corrugated Tubes.

Corrugated Tubes

15mm

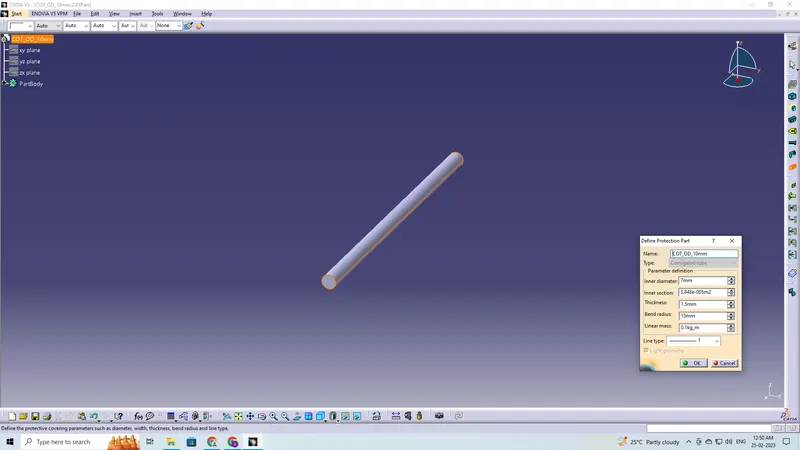

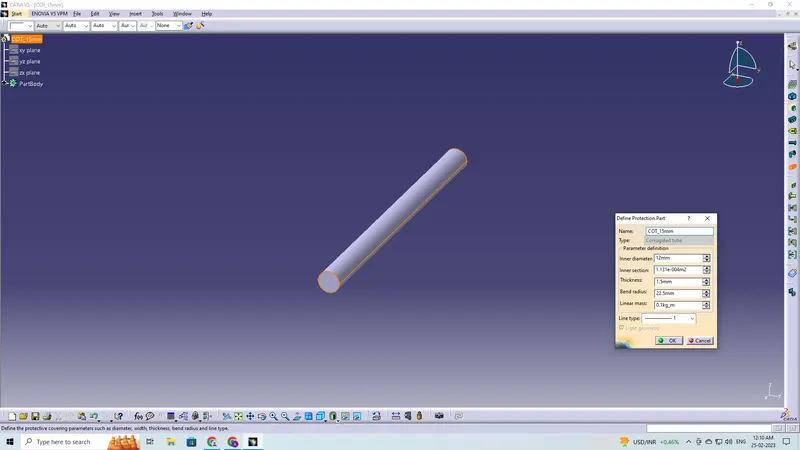

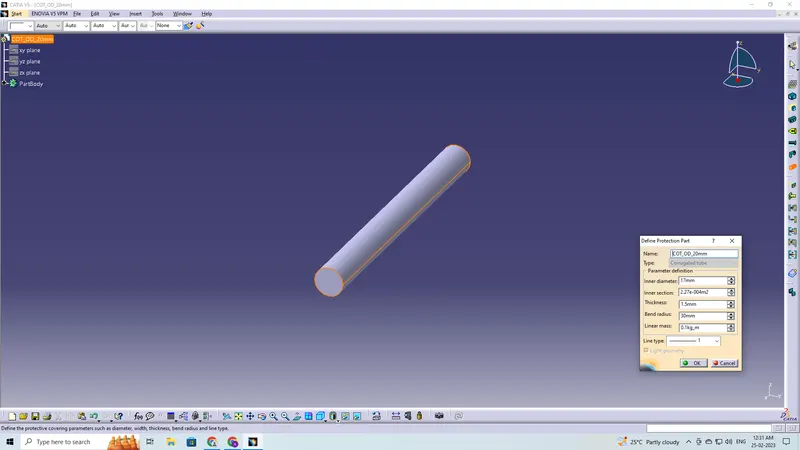

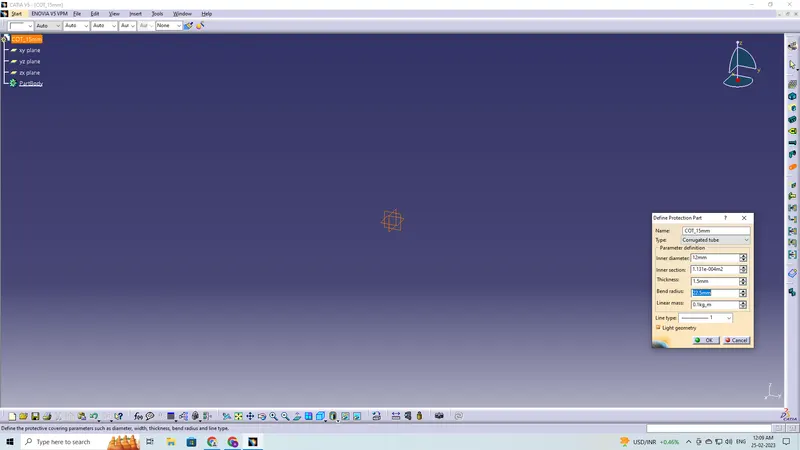

Create the required covering 3D part by Define Protection Part

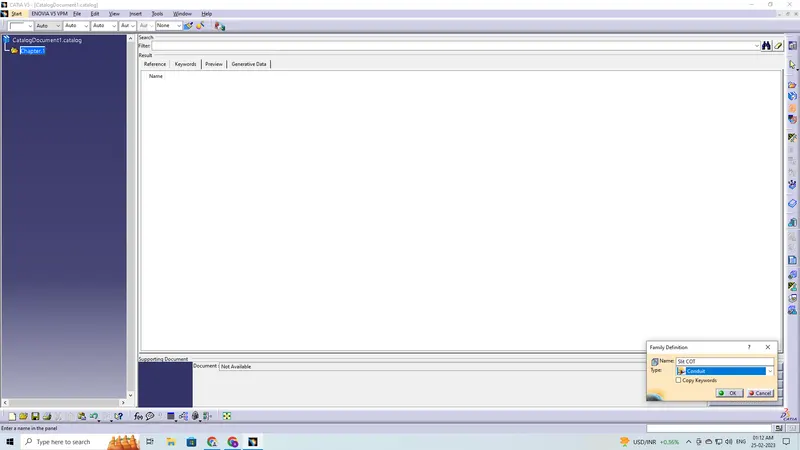

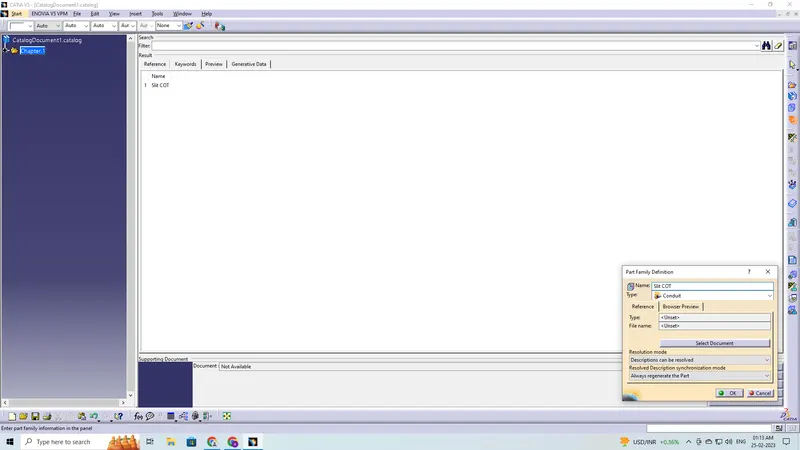

Create catalogue family named 'Slit COT' for coverings

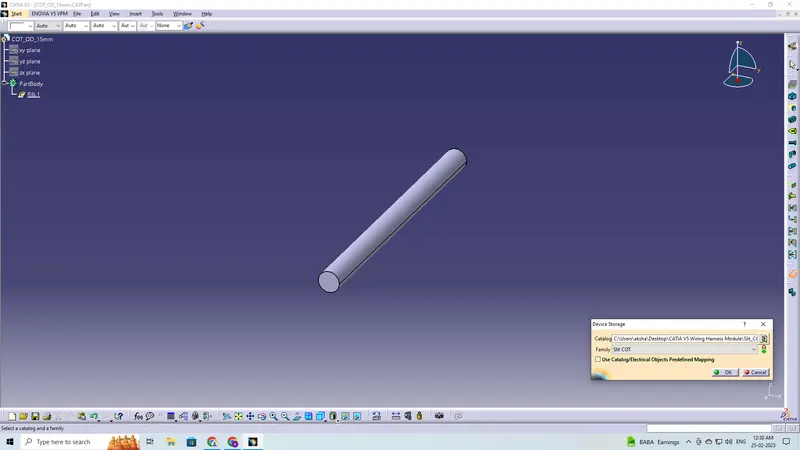

Add the new part in catalogue under 'Slit COT' family

20mm

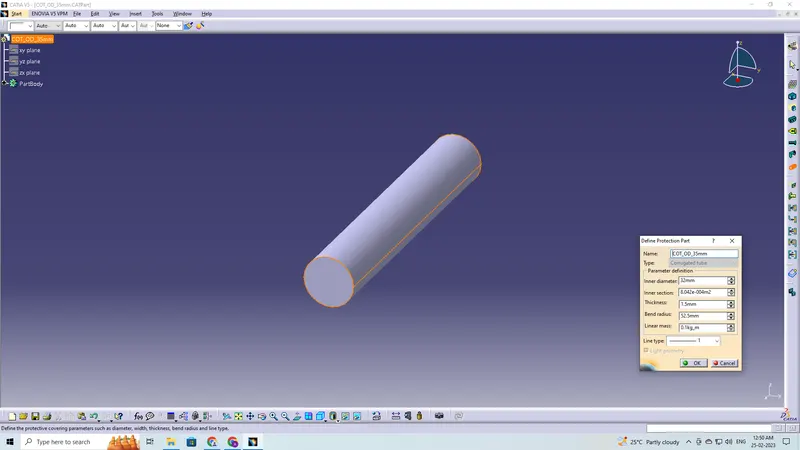

35mm

10mm

5mm
