Project - Data Handling and Interpolation

Project - Data Handling and Interpolation

Aim:

In this project, we are going to read the excel file into the MATLAB program as well as perform the interpolation in the given range of -17.3:0.1:0.9, finally generate the interactive plot for the interpolated data and store them in a text file.

Matlab Code:

data= xlsread('VI.xlsx');

V=data(:,1);

I=data(:,2);

x=-17.3:0.1:0.9;

ya1=interp1(V,I,x);

ya2=interp1(V,I,x,'spline');

figure(1)

plot(V,I,'o',x,ya1,': .');

title('Linear Interpolation');

xlabel('Voltage(V)');

ylabel('Current(I)');

legend('Actual Value','Interpolated Value');

grid;

figure(2)

plot(V,I,'s',x,ya2,'b: .');

title('Spline Interpolation');

xlabel('Voltage(V)');

ylabel('Current(I)');

legend('Actual Value','Interpolated Value');

grid;

output=fopen('VOLTAGE AND CURRENT_result.txt','w');

fprintf(output,'Voltage Current\n');

fprintf(output,'%3.3f %4.3f\n',x,ya2);

fclose(output);

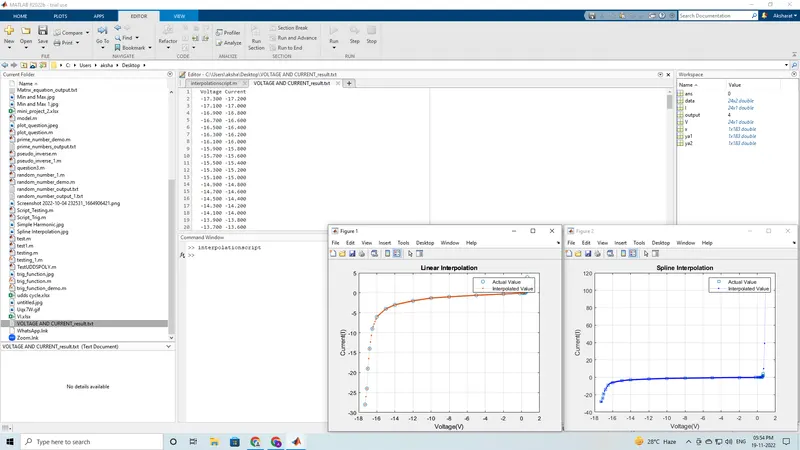

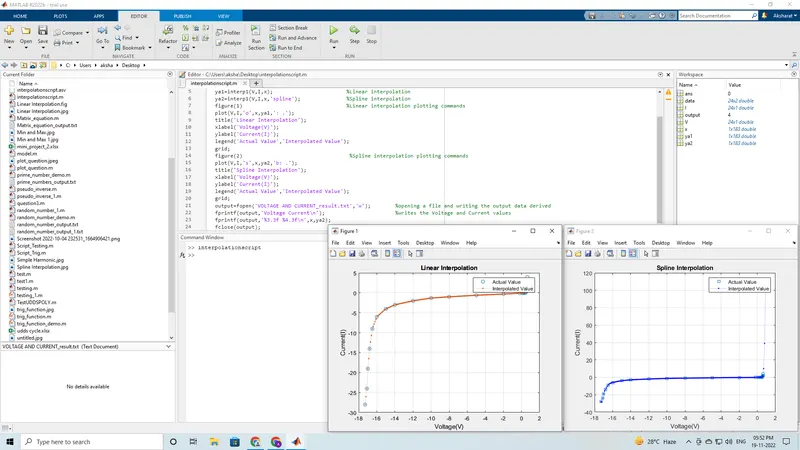

Full View Window:

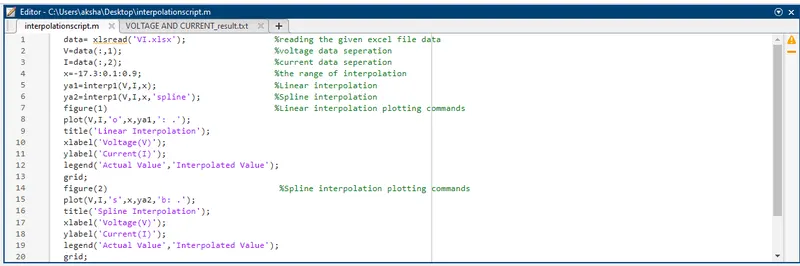

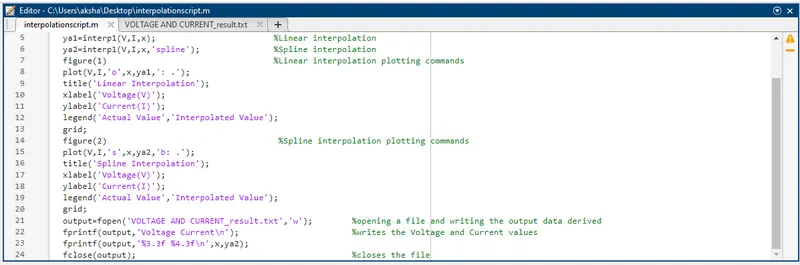

Comments:

Output:

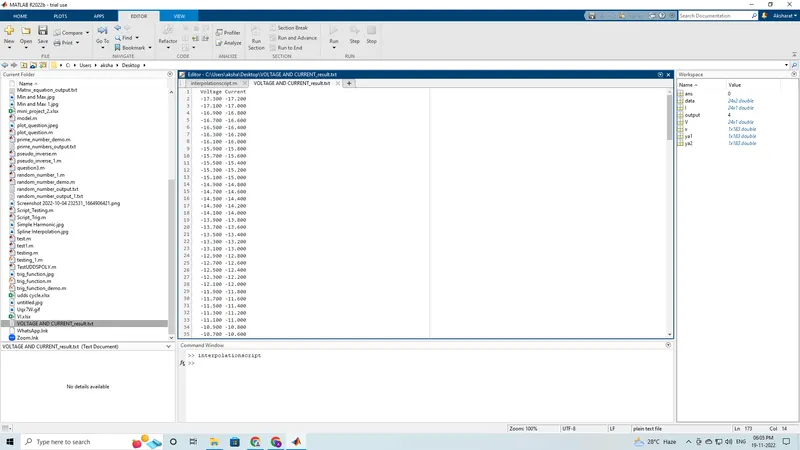

VOLTAGE AND CURRENT_result

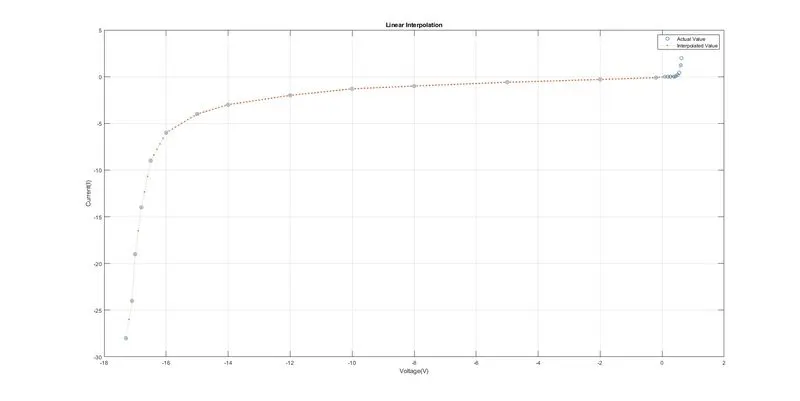

Linear Interpolation

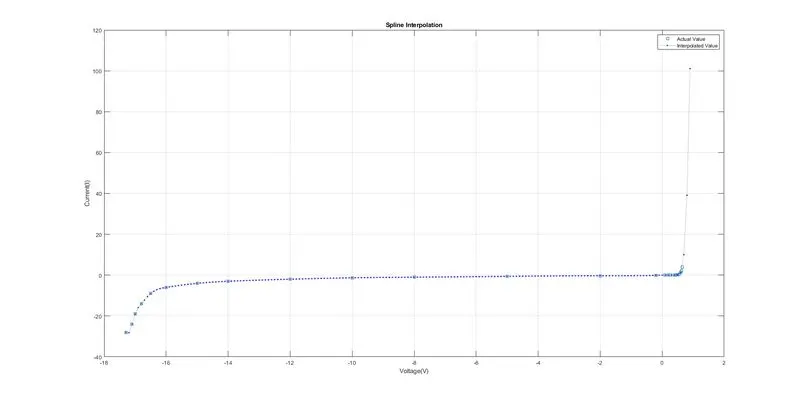

Spline Interpolation
