Question 1 : Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties ?
Answer :
Procedure :

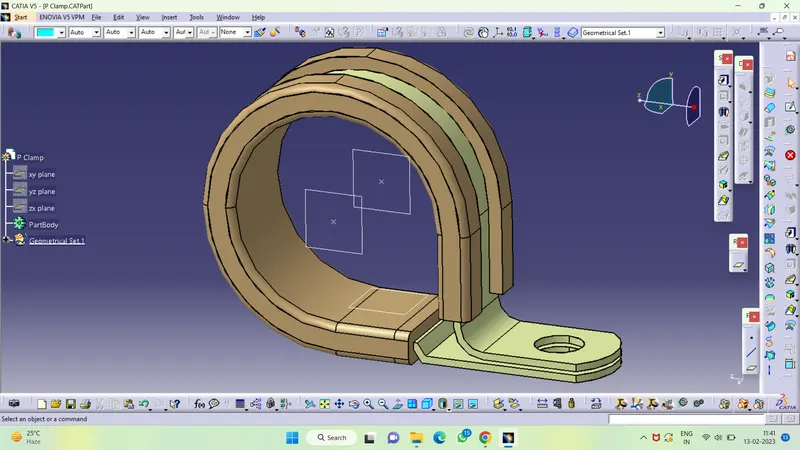

- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

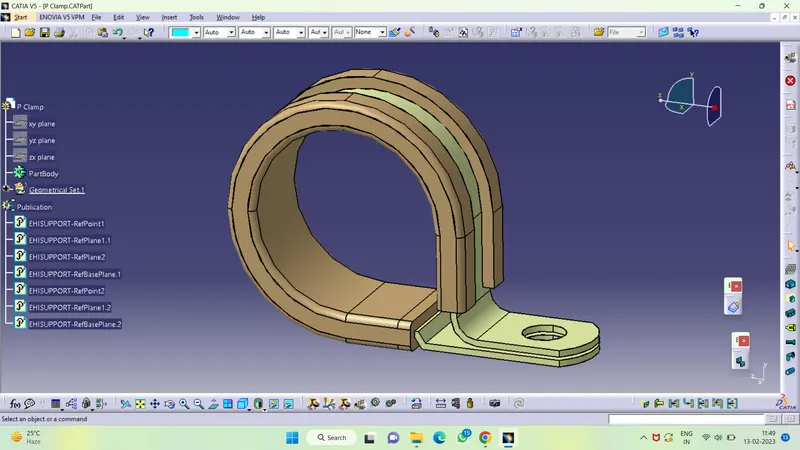

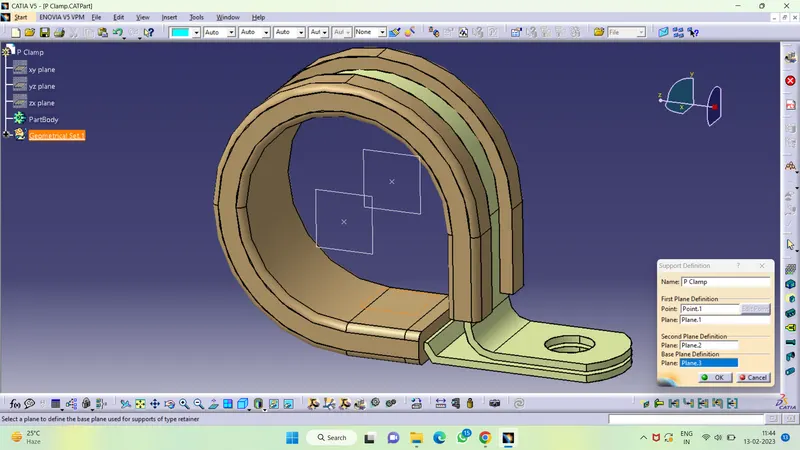

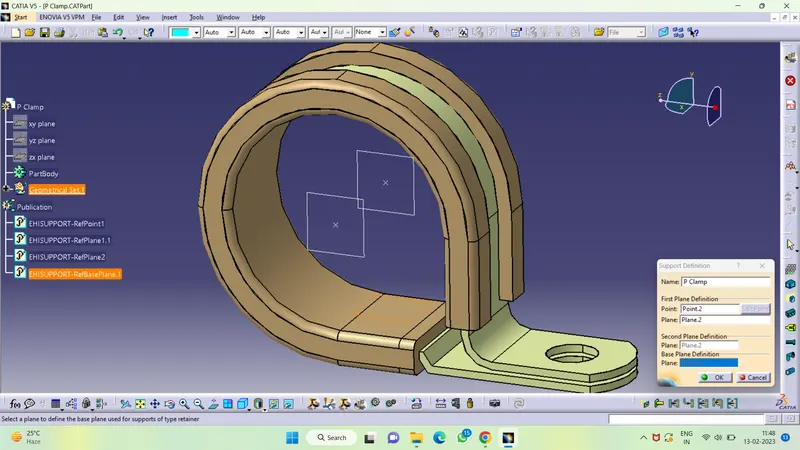

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.
Question 2 : Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties ?
Answer :
Procedure :

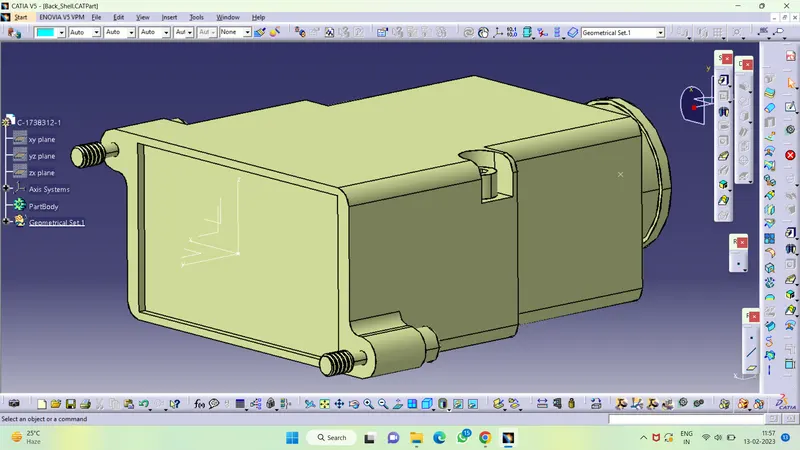

- create Back shell entry point.
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.

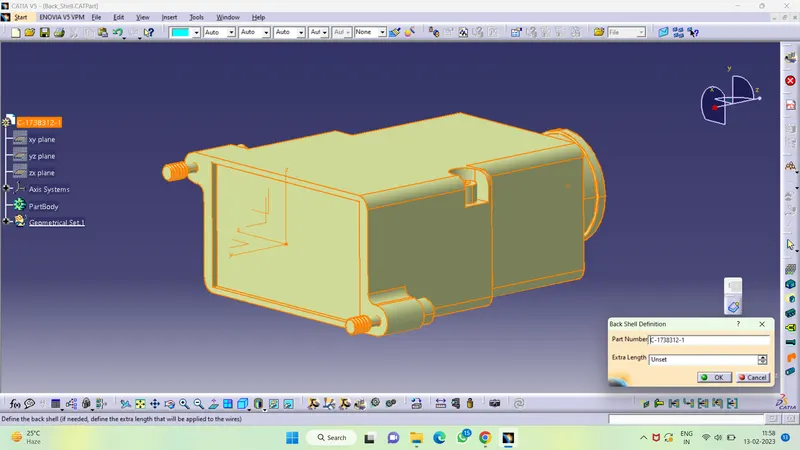

- Define part electricaly as back shell.

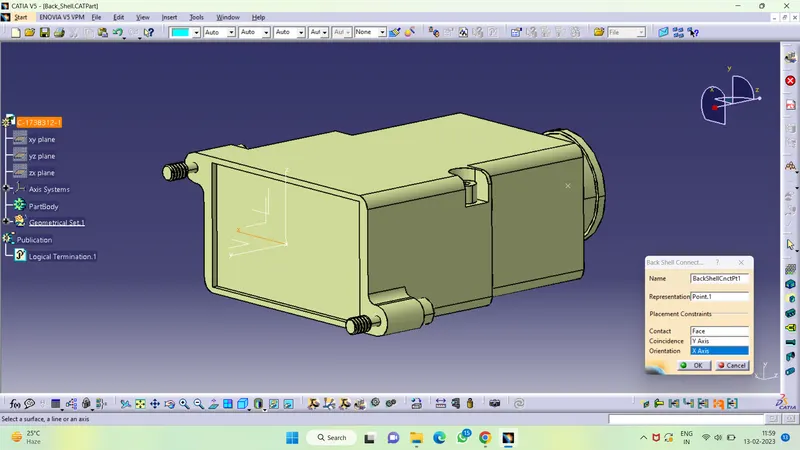

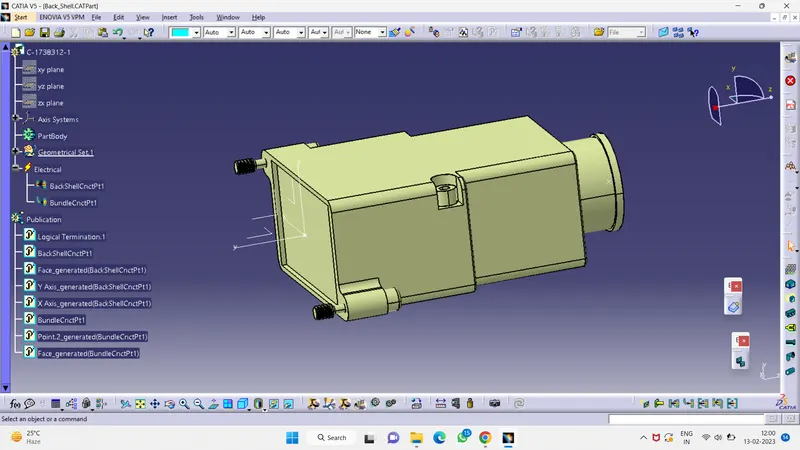

- Then define Back shell connection point.

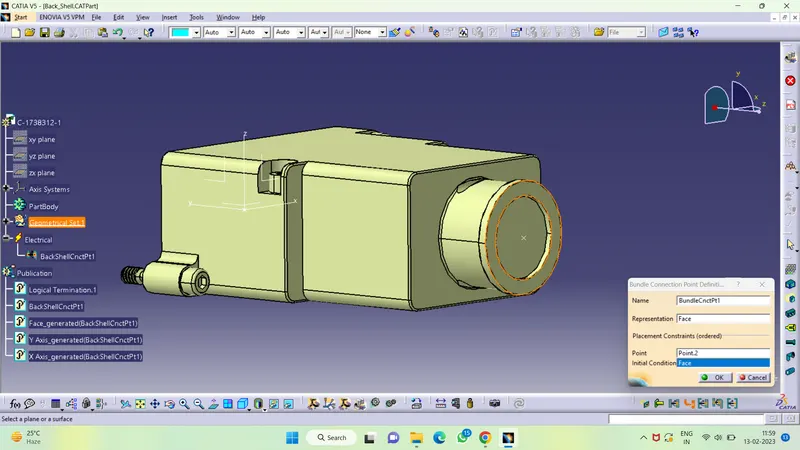

- Define bundle connection point.
Question 3 : Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family ?
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Answer :
Catalogue Cretation :

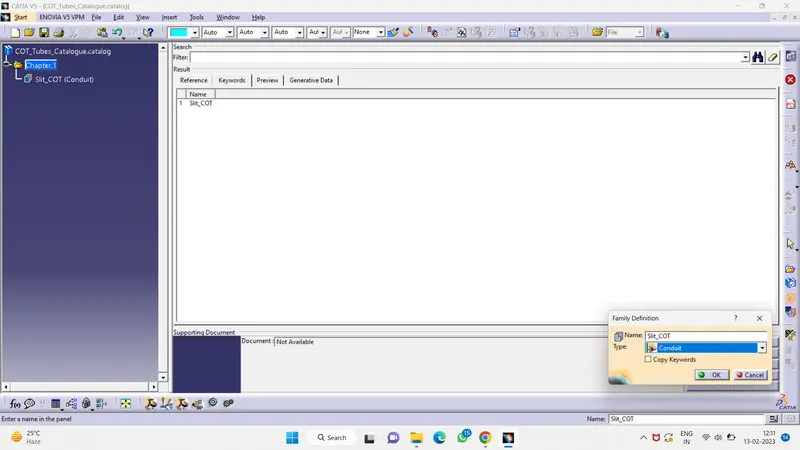

- new part - catalogue document - add family - give name - type - select Conduit - save.

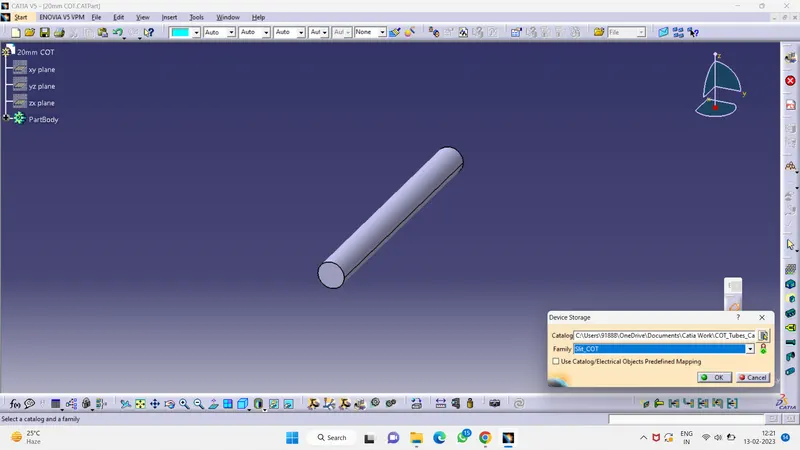

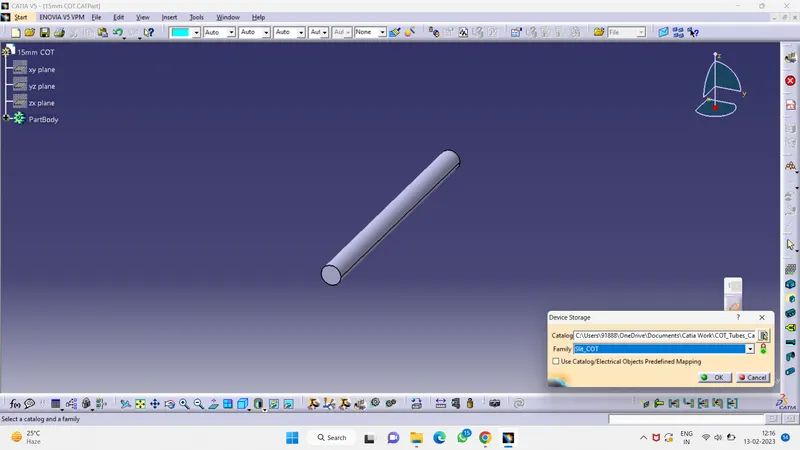

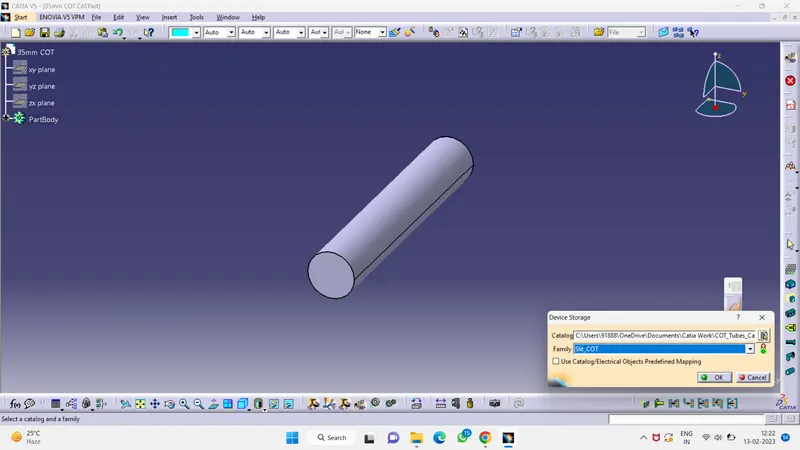

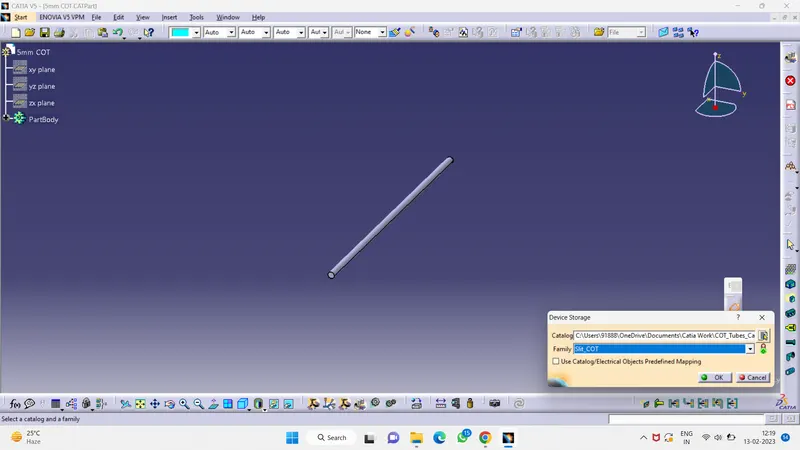

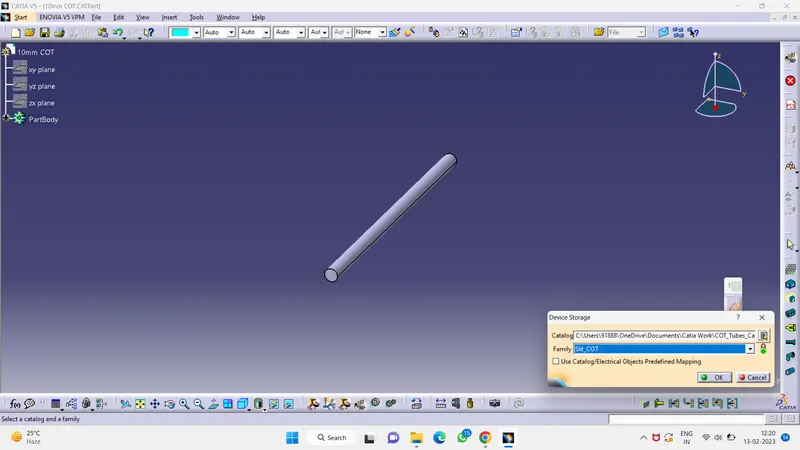

- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
Procedure :
- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Conclusion :
I solve all three above questions as per given instructions with the help of CATIA V5 in which Electrical Part Design Module.
