Wiring harness routing & packaging Rules Week 3 Challenge

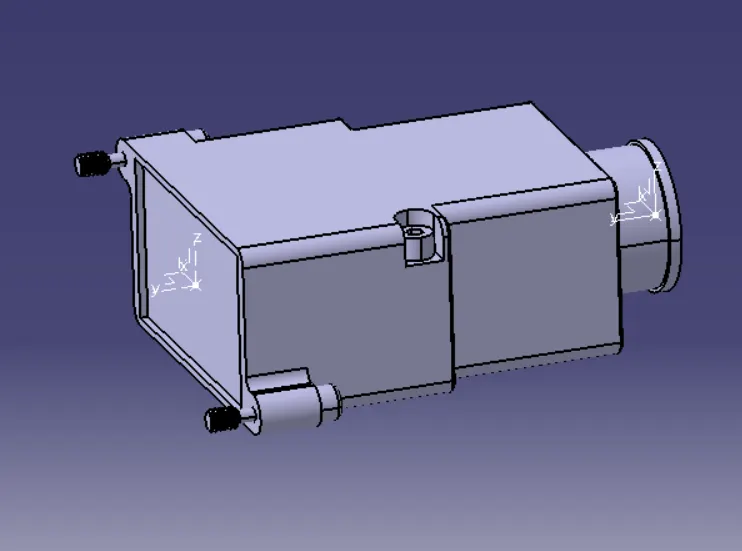

Back shell cad_1738312

Command Use in part Modeling

1. Create cavity axis point
2. create axis system in which y-axis along mating directon and x-axis along right to left.
3. Defind bundle Entery point and axis system

Command Use in Electrical part Modeling

1. Define part as a back shell using back shell command in electrical part desing
2. Define back shell connection point
3. Define bundle connection point

Corrigated tube

Command Use in Part & Electrical part Modeling

1. Create a new part and define the name

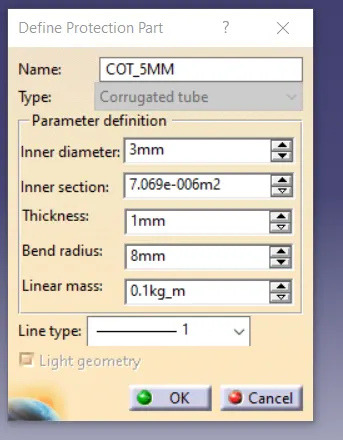

2. Define the protection part and save it with diameter wise name
3. Add part into the catalog

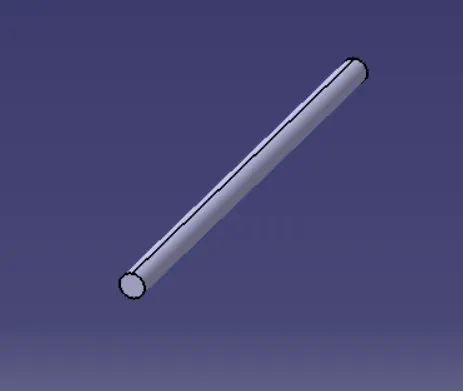

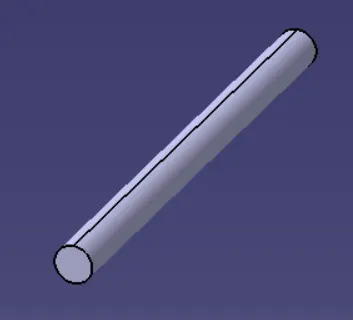

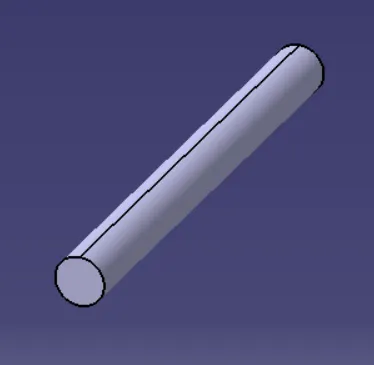

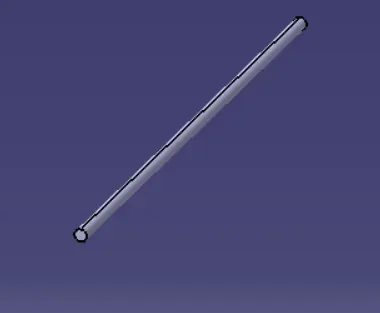

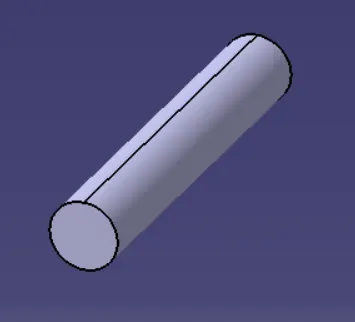

Cot_35mm

Cot_20mm

Cot_15mm

Cot_10mm

Cot_5mm
