Wiring harness routing & packaging Rules Week 3 Challenge
Hellarmann Tyton – 21160129
process:

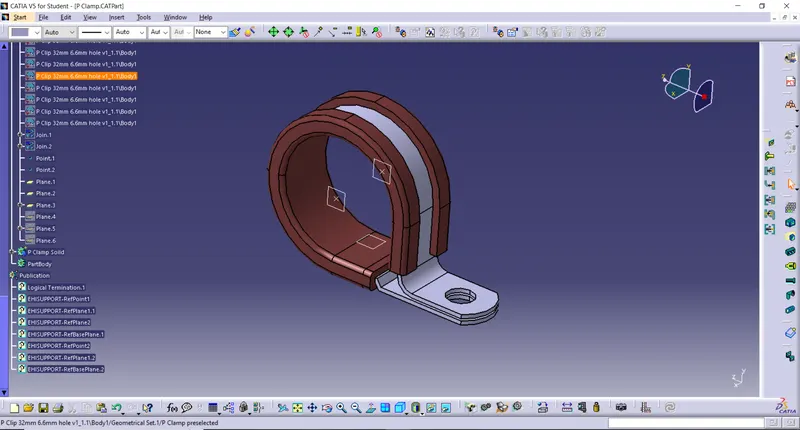

- Create two points one as entry and another as exit point.
- create planes at two points and another at base.
- Switch to Electric part desgn

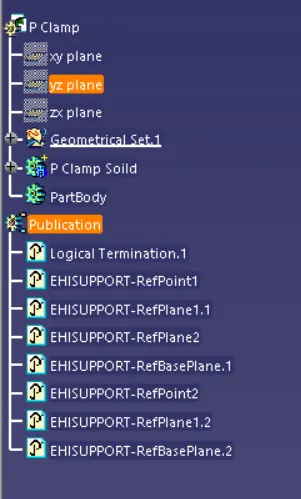

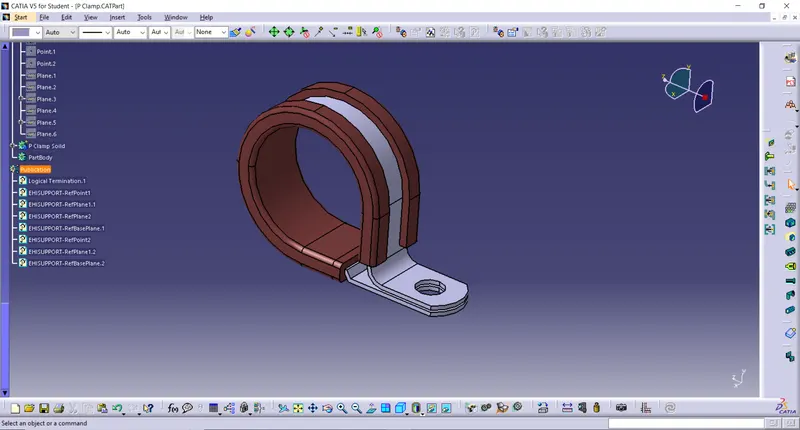

- Click on support defination - select part - select entry point - select entry plane, exit and base plane.
- Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

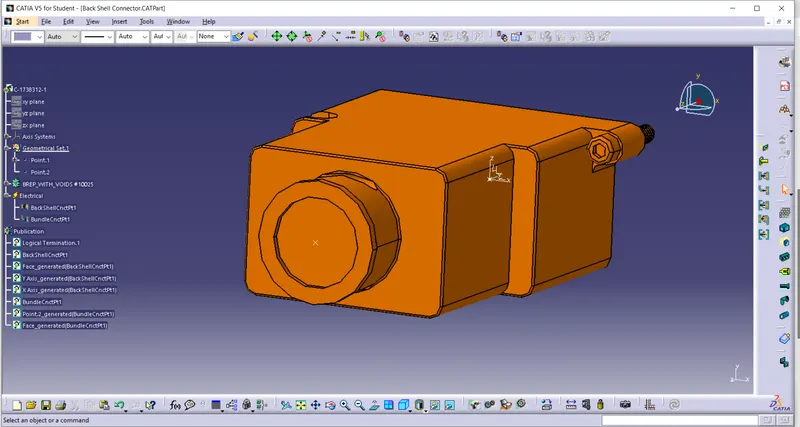

BACK SHELL CONNECTOR DEFINE AS ELECTRICAL PART
- The backshell data was downloaded from the website.
- We define the points in the part workbench.

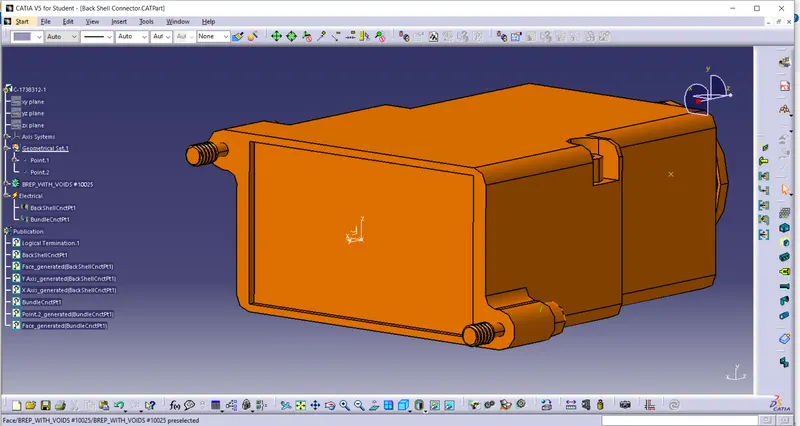

- An Axis system with the correct axis orientation is placed at the backshell connection point.
- The points have to be defined as the backshell connection and bundle connection points.
Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

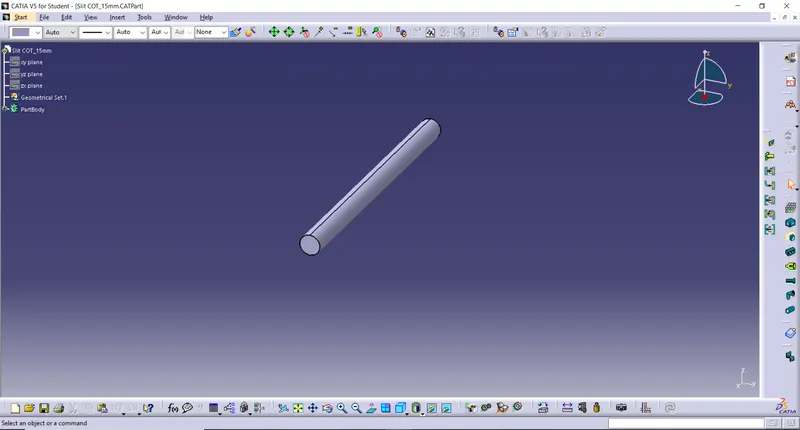

15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|

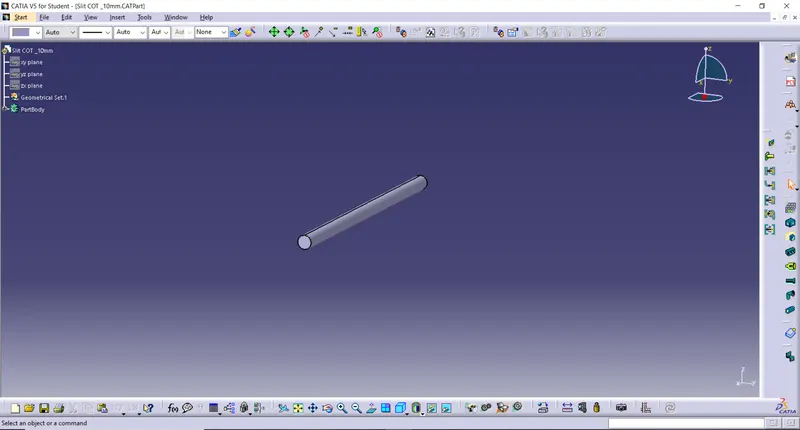

10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

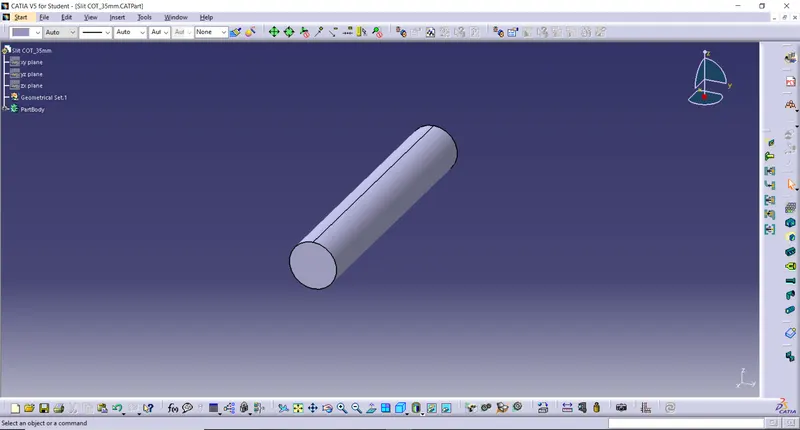

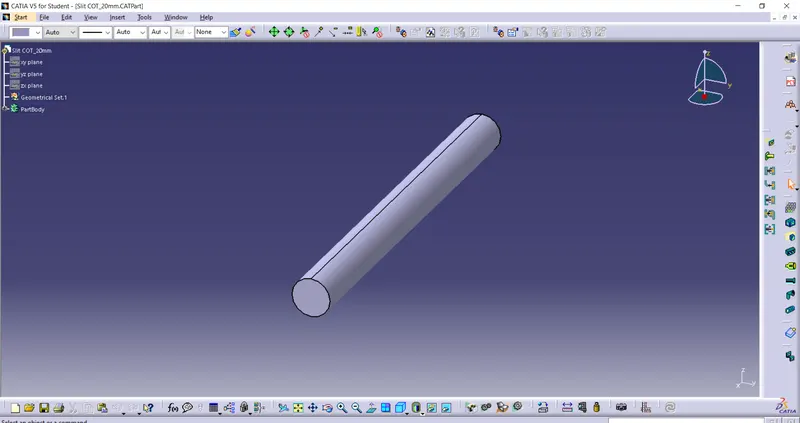

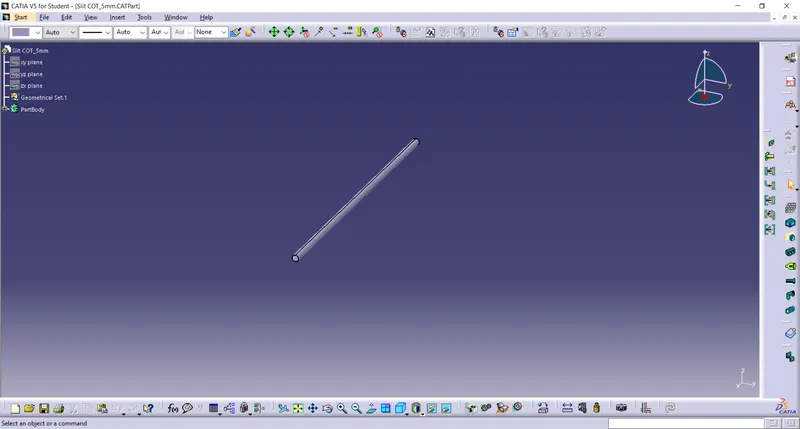

- we define the cot tubes in the electrical part workbench.
- the inner dia & thickness are given as the inputs.

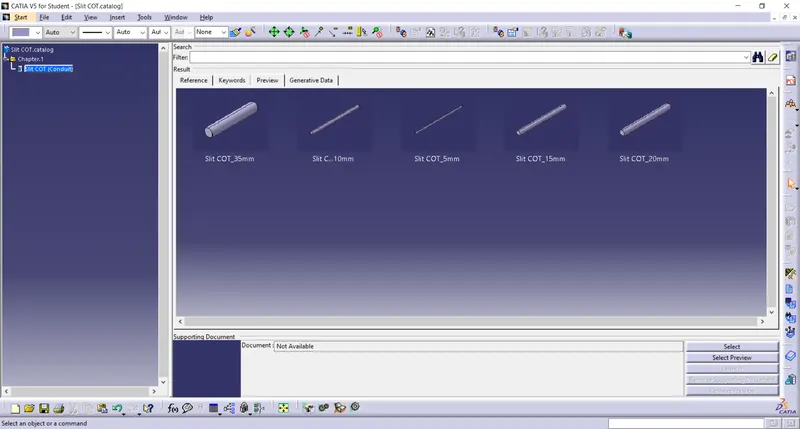

- a catalog was created for the cot tubes.
- all the cot tubes were saved in the catalog.
