Wiring harness routing & packaging Rules Week 3 Challenge

AIM:-ANSWER THE FOLLOWING QUESTION IN THE WIRING HARNESS USING CATIA V5.

Q1

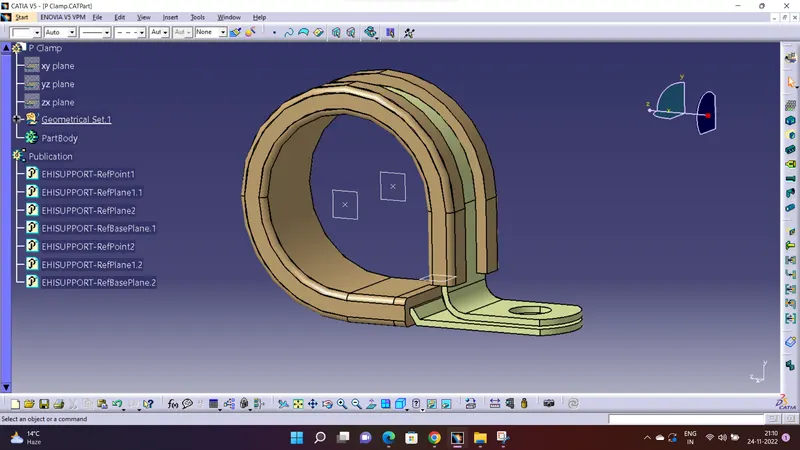

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

Q2

• The backshell data was downloaded from the website.
• We define the points in the part workbench.

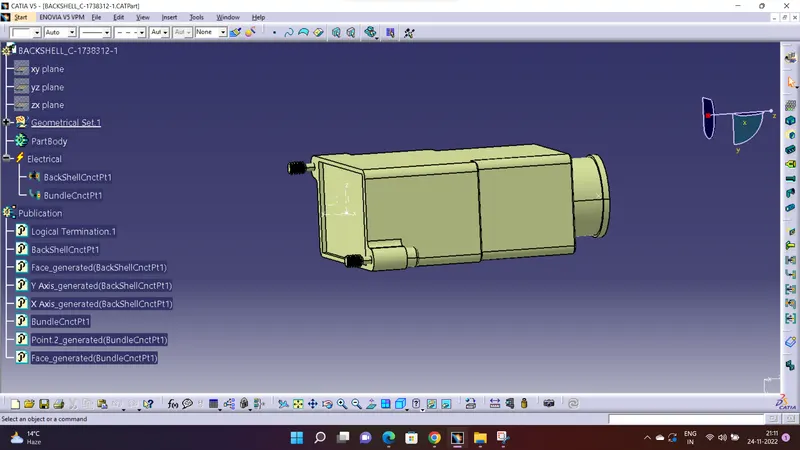

• An Axis system with the correct axis orientation is placed at the backshell connection point.

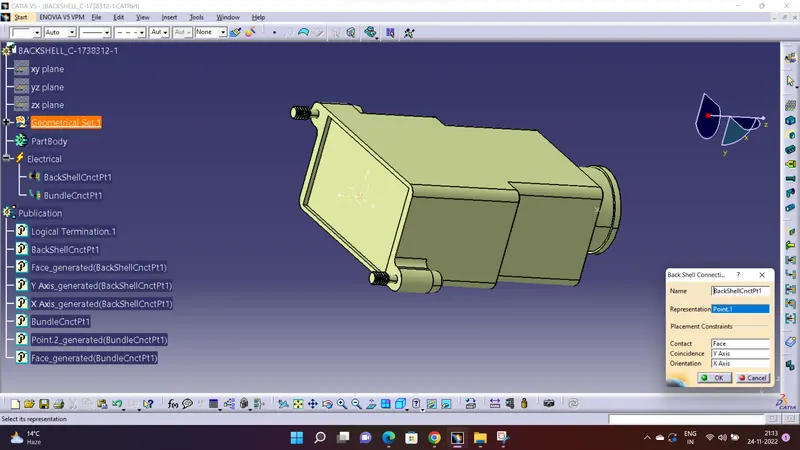

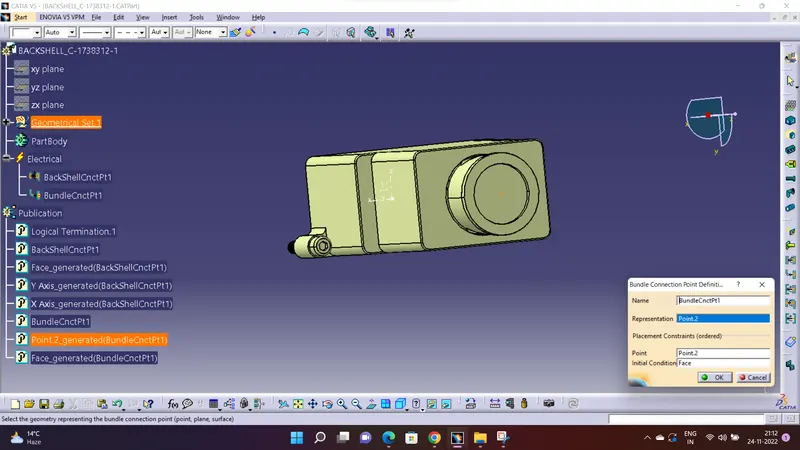

• The points have to be defined as the backshell connection and bundle connection points.

Q:-3

• we define the cot tubes in the electrical part workbench.
• the inner dia & thickness are given as the inputs.

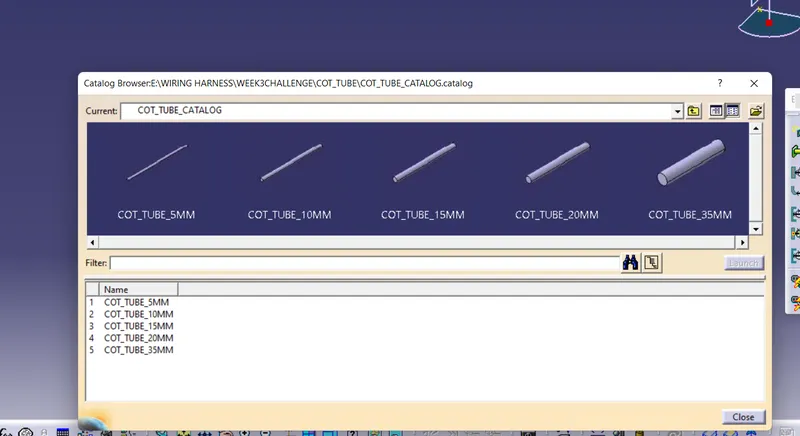

• a catalog was created for the cot tubes.
• all the cot tubes were saved in the catalog.
