Project 1 - Parsing NASA thermodynamic data

RRumman Khan5 Jan 2022

Parsing NASA thermodynamic data
Aim: To write a code in Matlab to parse the NASA thermodynamic data file and then calculate the thermodynamic properties of various gas
species.
Objective:
1. To write a function that extracts the 14 coefficients and calculates the enthalpy, entropy, and specific heats for all the species in the NASA
thermodynamic data file "Thermo.dat"
The NASA poly porials have the form as shown below.
Cp/R = al + a2 T + a3 T^2 + a4 T^3 + a5 T^4
H/RT = al + a2 T /2 + a3 T^2 /3 + a4 T^3 /4 + a5 T^4 /5 + a6/T
S/R = al InT + a2 T + a3 T^2 /2 + a4 T^3 /3 + a5 T^4 /4 + a7
Where R is the universal gas constant, T is the temperature
2. To calculate the molecular weight of each species and display it in the command window.
3. To plot the Cp, Enthalpy, and Entropy for the local temperature range (low temperature: high temperature) specific for each species.
4. To save the plots as images with appropriate names and dump them in separate folders for each species with suitable name
automatically.

FILE PARSING:

File parsing refers to how information can be read from a particular text file or any type of file and how that information can be used in a
computer program.
Step 1 - Define the functionStep 2 - Create an InputParser objectStep 3 - Add inputs to the scheme.
Step 4 - Set properties to adjust parsing.-Step 5 - Parse the inputs. Step 6 - Use the inputs in function.Step 7 - Calling function.
NASA Thermodynamic File
THERMO.dat file is a data file containing 14 coefficients for 53 different elements given by NASA. These coefficients are utilized to calculate
the specific heat, enthalpy & entropy for a particular element. Each element has its own range of local temperature. Below screenshot of the
THERMO.dat file is displayed.

LIST OF 53 ELEMENT CONTAINED IN FILE THERMO.dat:

AR
C
C2H
C2H2
C2H5
C2H6
C3H7
C3H8
CH2(S)
CH2CHO
CH2CO
CH2O
CH3CHO
CH3O
CH3OH
CH4
C02
H
H2
H2CN
HCCO
CCOH

HCNN
HNCO
HNO
HO2
HOCN
C2H3
CH
CH2OH
CN
H2O
HCNO
N
C2H4
CH2
CH3
CO
H202
HCO
N2

ENTHALPY,ENTROPYNSPECIFIC HEAT:

Enthalpy, entropy, and specific heat, of various species values at different temperatures are required extensively to analyze the
thermodynamic process.
For example, if the combustion process is considered during this, these quantities are required to observe how the combustion is going on
and how efficient it will be. It eventually allows seeking the scope of improvement in the process. Similarly in the other processes like
refrigeration, air conditioning. *hemical kinetics, nozzle flow, detonation process, etc, these quantities are widely involved to observe the
phenomenon.
NASA came up with polynomials that can be used to evaluate thermodynamic properties such as Cp, H, and S. They have documented the
coefficients that are required to evaluate these polynomials for 1000+ species.
The NASA polynomials have the form:
Cp/R = a1 + a2 T + a3 T^2+ a4 T^3 + a5 T^4
H/RT = al + a2 T /2 + a3 T^2 /3 + a4 T^3 /4 + a5 T^4 /5 + a6/T
S/R= at InT + a2 T+ a3 T^2 /2 + a4 T^3 /3 + a5 T^4 /4 + a7
Where R is the universal gas constant, T is the temperature and at, a2, a3, a4, a5, a6, and a7 are the numerical coefficients supplied in the
thermodynamic file. The FIRST 7 coefficients are HIGH-temperature coefficients (above 1000 K) and the SECOND 7 coefficients are LOW-
temperature coefficients (below 1000 K).

CODING FUNCTIONS:

1. Specific Heat:
It is the amount of energy that must be added, in the form of heat, to one unit of mass of the substance in order to cause an increase of one
unit in its temperature.
Cp = (af + a2 T + a3 T^2 + a4 T^3 + a5 T^4)*R
Function for Specific heat
% Specific heat calculation function
function Cp = Specificheat (a1, a2, a3, a4, a5, a8, a9, a10, a11, a12, Temp, R, global_medium_temp)
% Comparing with global temperature
% If less than global temperature - minimum coefficients are taken
if Temp <= global medium_temp
Cp = R*(a8 + (a9*Temp) + (a10*(Temp).^2) + (a11*(Temp). ^3) + (a12*(Temp).^4));
else
Cp = R* (a1 + (a2*Temp) + (a3*(Temp). ^2) + (a4*(Temp). ^3) + (a5*(Temp). ^4)) ;
* Else maximum coefficients are taken
end

2. Entropy:
Entropy, the measure of a system's thermal energy per unit temperature that is unavailable for doing useful work. Because work is obtained
from ordered molecular motion, the amount of entropy is also a measure of the molecular disorder, or randomness, of a system. The
concept of entropy provides deep insight into the direction of spontaneous change for many everyday phenomena.
S= (at InT + a2 T + a3 T^2 /2 + 24 T^3 /g- aS T^A /4 + a7)"R
Function for Entropy:
* Entropy Calculation function
function S = Entropy_calc(a1, a2, a3, a4, a5, a7, a8, a9, a10,a11, a12, a14, Temp, R, global_medium_te
& Comparing with global temperature
% If less than global temperature - minimum coefficients are taken
if Temp <= global_ medium_temp
S= R.(a8.*log (Temp) + (a9.*Temp) + (a10((Temp).^2)/2) + (a11*((Temp). ^3) /3)
else
* Else - maximum coefficients are taken
5 = R.(a1.*log (Temp) + (a2.*Temp) + (a3((Temp). ^2) /2) + (a4*((Temp). ^3)/3) + (a...

end

ENTHALPY:

Enthalpy, a property of a thermodynamic system, is equal to the system's internal energy plus the product of its pressure and volume. in a
system enclosed so as to prevent the mass transfer, for processes at constant pressure, the heat absorbed or released equals the change in
enthalpy.
H= (at + a2 T /2 + a3 T^2 /3 + 24 T^3 /4 + aS T^4 /5 + a6/T)°R*T
Function for Enthalpy.
* Enthalpy Calculation function
function H = Enthalpy(a1, a2, a3,a4, a5, a6, a8, a9,a10,a11, a12, a13, Temp, R, global_medium_temp)
% Comparing with global temperature
* If less than global temperature - minimum coefficients are taken
if Temp <= global_medium_temp
H = R*Temp.(a8 + ((a9*Temp) /2) + ((a10(Temp).^2)/3) + ((a11*(Temp).^3)/4) + ((a
else
* Else maximum coefficients are taken

H = R*Temp.*(a1 + ((a2*Temp)/2) + ((a3(Temp). ^2)/3) + ((a4*(Temp).^3)/4) + ((a5*

end

4. Molecular Weight:
The molecular mass is the mass of a given molecule: it is measured in daltons. Different molecules of the same compound may have
different molecular masses because they contain different isotopes of an element.

Function for Molecular Weight:
% Molecular Weight Calculation function

function Molecularweight = Molecular_weight (Species_SP)
& Standard - Atomic Name
atomic_name = ('H','C', 'O', 'N', 'A'l;
* Hydrogen, Carbon, Oxygen, Nitrogen, Argon

fprintf ('Molecular Weight of ");
fprintf(Species_SP);
fprintf(* : *);
& Standard Atomic Number
Atomic_Weight = (1.008 12.011 15.999 14.007 39.948];
% Starting Range of Molecule
Molecularweight = 0;

% Adding Atomic number to obtain particular value
for 1 = 1: length (Species_SP)
for j = 1: length(atomic name)

if strempi(Species_SP(i) ,atomic_name (j))
Molecularweight = Molecularweight +Atomic _Weight (j);
position = j;
end
end
n = str2num(Species_SP(i));
if n>1
Molecularweight = Molecularweight + Atomic _Weight (position)*(n-1) ;
end
end
fprintf( 'molecular weight %S :', Species_SP);
fprintf("%d' ,Molecularweight);
disp(' ');

end

MAIN CODE:

clear all

close all

clc

%Make directory

mkdir 'C:UsersrummankhanDocumentsMATLABNASAFILEPARSING'

%Reading Data File-NASA Thermodynamics

%Open a file & 'r' open the file for reading

f1=fopen('THERMO.dat','r');

gt=fgetl(f1);

%obtaining temprature -by reading Header information

global_temp=fgetl(f1);

%Splitting

t=strsplit(global_temp);

%converting string cell to numbers using str2num;

global_low_temp=str2num(t{2});

global_medium_temp=str2num(t{3});

global_high_temp=str2num(t{4});

%Temprature range & gas constant

%Temprature Range assumed

Temp=linspace(global_low_temp,global_high_temp,1000);

%universal gas constant J/(mol-K)

R=8.314;

%skipping three comment lines in the file

for i=1:3

gt=fgetl(f1);

end

for i=1:53

gt=fgetl(f1);

A=strsplit(gt,' ');

Species_SP=(A{1});

Line_1=fgetl(f1);

a=strfind(Line_1,'E');

%Extracting higher and lower temprature coefficient

%%Extracting first 7 coefficient i.e High_temp_coefficient

a1=Line_1(1:a(1)+3);

a1=str2num(a1); %1

a2=Line_1(a(1)+4:a(2)+3);

a2=str2num(a2); %2

a3=Line_1(a(2)+4:a(3)+3);

a3=str2num(a3); %3

a4=Line_1(a(3)+4:a(4)+3);

a4=str2num(a4); %4

a5=Line_1(a(4)+4:a(5)+3);

a5=str2num(a5); %5

Line_2=fgetl(f1);

b=strfind(Line_1,'E');;

a6=Line_2(1:b(1)+3);

a6=str2num(a6); %6

a7=Line_2(a(1)+4:b(2)+3);

a7=str2num(a7); %7

%Extracting second 7 coefficient Low_temprature_coefficient

a8=Line_2(b(2)+4:b(3)+3);

a8=str2num(a8); %8

a9=Line_2(b(3)+4:b(4)+3) ;

a9=str2num(a9); %9

a10=Line_2(b(4)+4:b(5)+3);

a10=str2num(a10); %10

Line_3=fgetl(f1);

c=strfind(Line_1,'E');

a11=Line_3(1:c(1)+3);

a11=str2num(a11); %11

a12=Line_3(c(1)+4:c(2)+3);

a12=str2num(a12); %12

a13=Line_3(c(2)+4:c(3)+3);

a13=str2num(a13); %13

a14=Line_3(c(3)+4:c(4)+3);

a14=str2num(a14); %14

% %Specific heat calculation

cp=specificheat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,Temp,R,global_medium_temp);

%Enthalpy Calculation

H=Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,Temp,R,global_medium_temp);

%Entropy Calculation

S=Entropy_Calc(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,Temp,R,global_medium_temp);

%Calculation molecular weight of Species

Molecular_weight_array(i)=Molecular_weight(Species_SP);

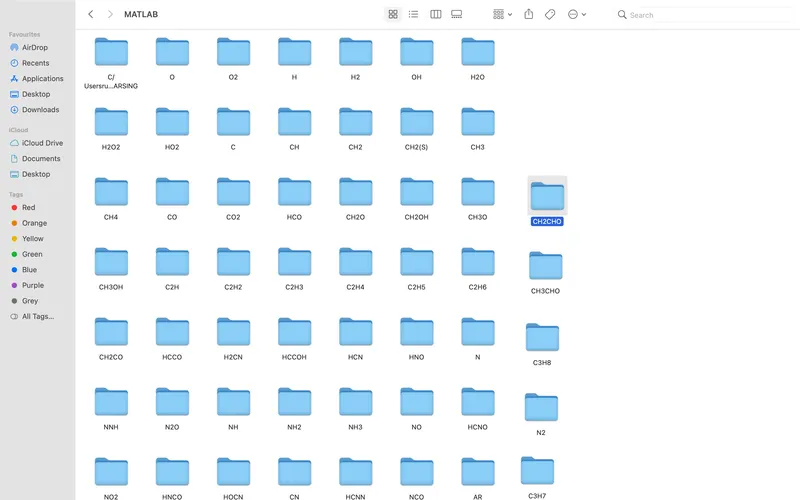

cur_dir=pwd

mkdir(Species_SP);

cd(Species_SP);

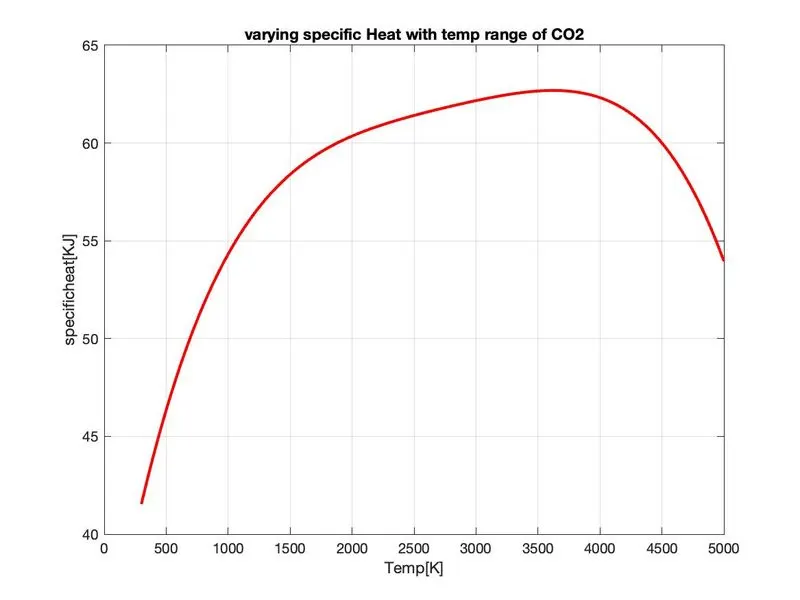

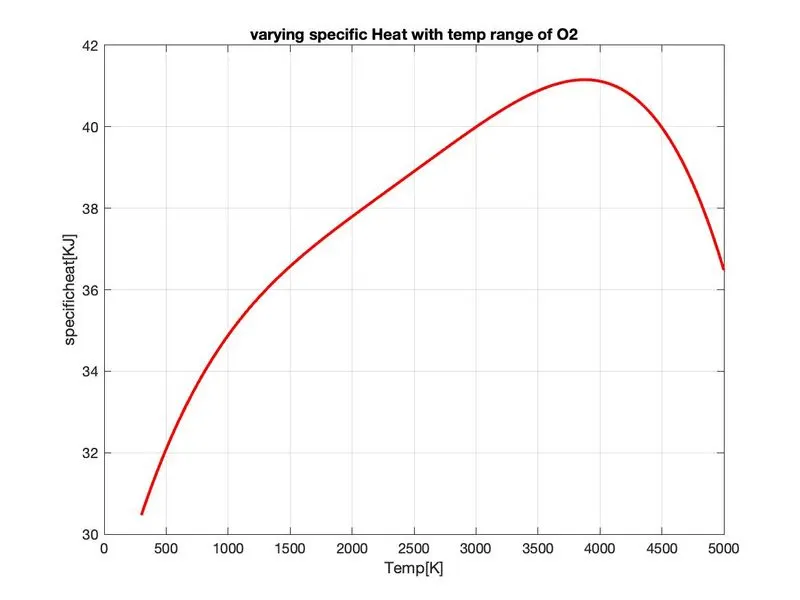

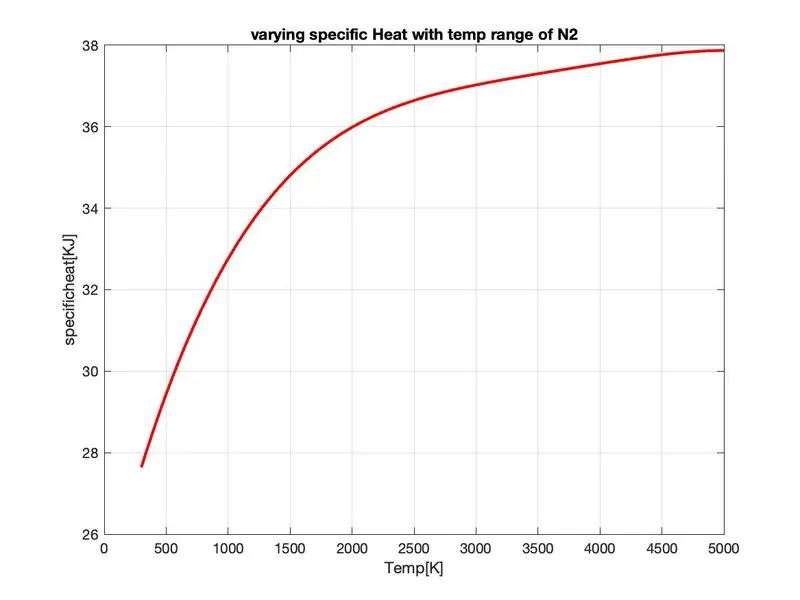

%plot1, Specific heat(cp) vs temp range (Temp)

figure(1)

plot(Temp,cp,'linewidth',2,'color','r');

xlabel('Temp[K]');

ylabel('specificheat[KJ]');

title(sprintf('varying specific Heat with temp range of %s',Species_SP));

grid on

saveas(figure(1),'specific Heat.jpg');

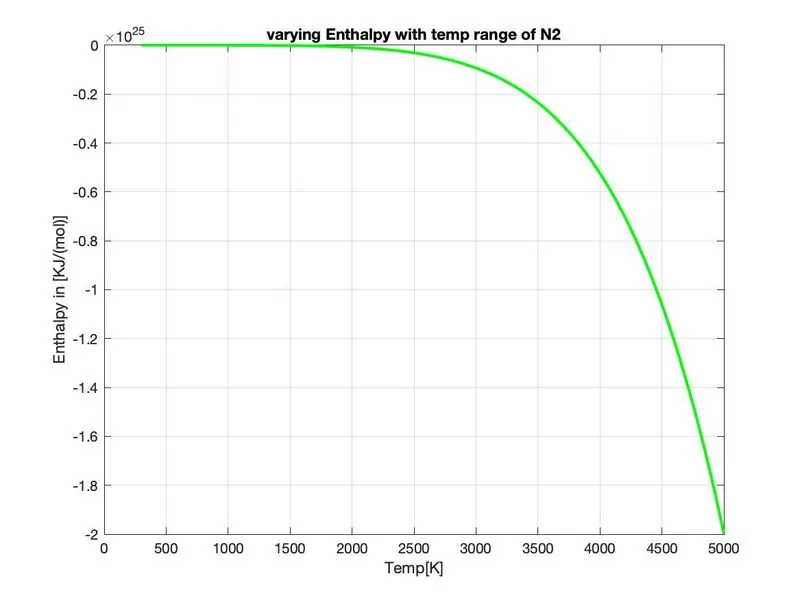

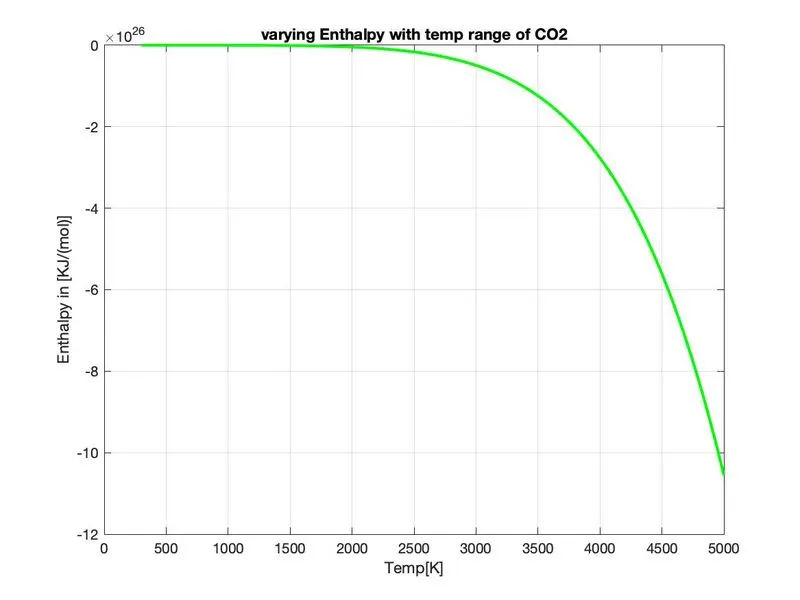

%plot2, Enthalpy(H) vs temp range (Temp)

figure(2)

plot(Temp,H,'linewidth',2,'color','g');

xlabel('Temp[K]');

ylabel('Enthalpy in [KJ/(mol)]');

title(sprintf('varying Enthalpy with temp range of %s',Species_SP));

grid on

saveas(figure(2),'Enthalpy.jpg');

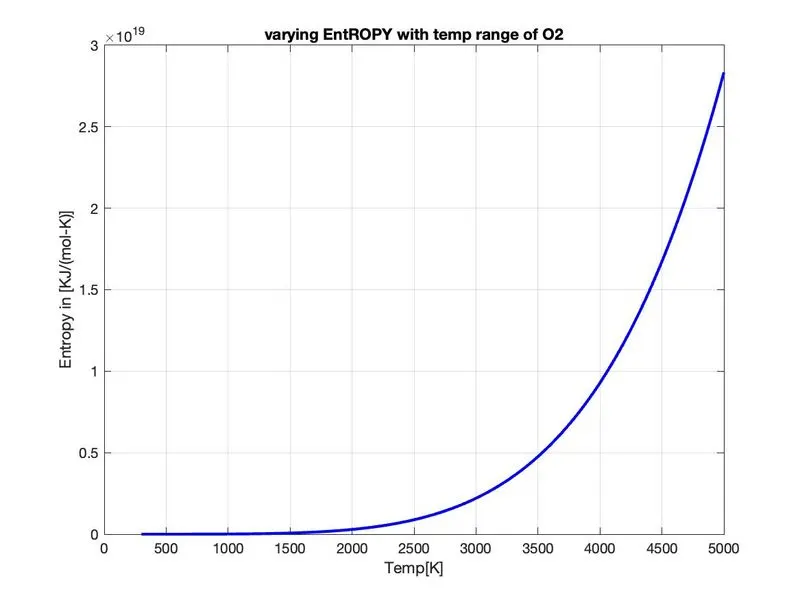

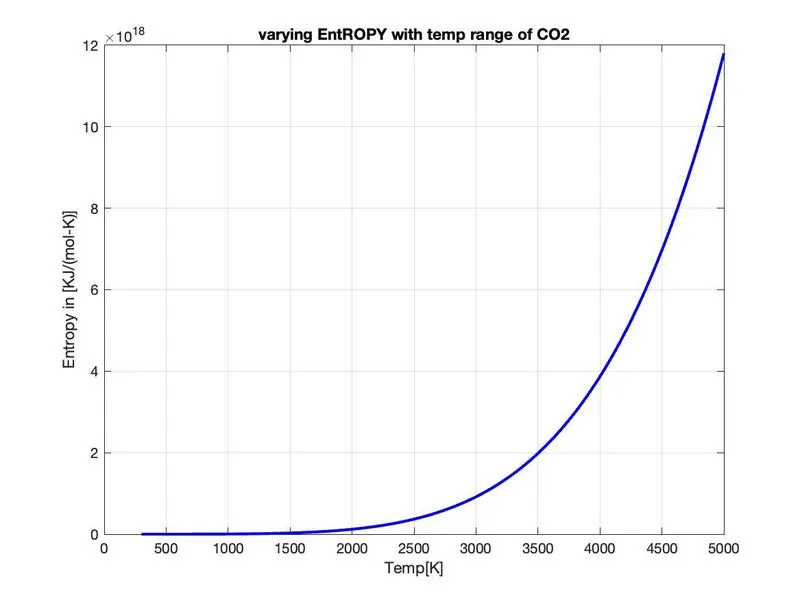

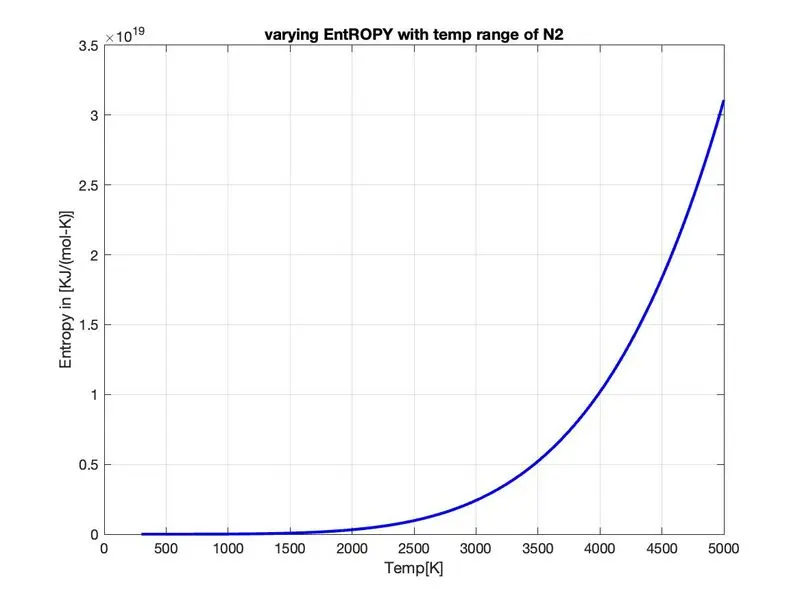

%plot3, Entropy(S) vs temp range (Temp)

figure(3)

plot(Temp,S,'linewidth',2,'color','b');

xlabel('Temp[K]');

ylabel('Entropy in [KJ/(mol-K)]');

title(sprintf('varying EntROPY with temp range of %s',Species_SP));

grid on

saveas(figure(3),'Entropy.jpg');

cd(cur_dir);

end

%Read&Write molecular list

% Molecular_list=fopen('Molecular_weight.txt','a+');

% fprintf(Molecular_list,'Molecular_weight of %s is %d n',Species_SP,Molecular_weight);

% fclose(Molecular_list);

%plotting(cp,H,S,Temp,Species_SP)

%Saving as a folder

%Molecular weight

M= Molecular_weight(Species_SP)

f2=fopen('molecular mass','w');

fprintf('%s n %s n %f n','species','molecular mass',M)

fclose(f2)

Code Explanation:
1. clear all' - clear all the variables in the workspace,
"close all' - closes all the plots and figures and
"dIe' - clears the command window.
2. Making a directory using 'mkdir' with location address.
3. After that, reading the text file Thermo.dat' file and opening it by using 'fopen' and r' as reading command.
4. For reading the line in a text file using 'fgett.
5. To obtain the temperature range from the Thermo.dat file, using 'strsplit' to split the temperature into a particular string cell.
6. Used 'str2num' for converting string cell to numbers.
7. Divided the temperature into a string and then converted to a number so that temperature values can be used separately to solve the
NASA thermodynamics.
8. Using for & end' loops to skip the next three comment lines in the text file.
9. Reading all the 53 species to plot specific heat (cp), enthalpy(H), and entropy(S), with temperature values, and to find the molecular
weights.
10. Used for loop to read 53 species.
11. Used 'strfind' to find string,
12. Using linspace' specified the temperature range from low to high.
13. Adding universal gas constant value "R.
14. Extracted higher and lower temperature coefficient by reading line by line from the species.
15. Calling specific heat, enthalpy, entropy function codes
16. Calculating Molecular weight.

SYNTEX USED DURING CODING:

Fopen:
Open a file or obtain information about open files
"r:
Open the file for reading
fgetl:
Read line from file
strsplit:
Split string or character vector at specified delimiter
str2num:
Convert character array or string to numeric array
strfind:
Find one string within another
linspace:
Generate linearly spaced vectors
fprintf:
Write formatted data to file
pwd:
Identify current directory
mkdir:
Make new directory
cd:
Change working directory

OUTPUT:

Columns 531 through 540

0.1525 0.1541 0.1556 0.1572 0.1588 0.1604 0.1620 0.1637 0.1653 0.1669

Columns 541 through 550

0.1686 0.1703 0.1720 0.1737 0.1754 0.1772 0.1789 0.1807 0.1825 0.1843

Columns 551 through 560

0.1861 0.1879 0.1897 0.1916 0.1935 0.1954 0.1973 0.1992 0.2011 0.2031

Columns 561 through 570

0.2050 0.2070 0.2090 0.2110 0.2130 0.2151 0.2172 0.2192 0.2213 0.2234

Columns 571 through 580

0.2256 0.2277 0.2299 0.2320 0.2342 0.2364 0.2387 0.2409 0.2432 0.2455

Columns 581 through 590

0.2478 0.2501 0.2524 0.2548 0.2572 0.2595 0.2620 0.2644 0.2668 0.2693

Columns 591 through 600

0.2718 0.2743 0.2768 0.2794 0.2819 0.2845 0.2871 0.2897 0.2924 0.2950

Columns 601 through 610

0.2977 0.3004 0.3031 0.3059 0.3086 0.3114 0.3142 0.3170 0.3199 0.3228

Columns 611 through 620

0.3256 0.3286 0.3315 0.3344 0.3374 0.3404 0.3434 0.3465 0.3495 0.3526

Columns 621 through 630

0.3557 0.3589 0.3620 0.3652 0.3684 0.3716 0.3749 0.3782 0.3815 0.3848

Columns 631 through 640

0.3881 0.3915 0.3949 0.3983 0.4017 0.4052 0.4087 0.4122 0.4158 0.4193

Columns 641 through 650

0.4229 0.4265 0.4302 0.4338 0.4375 0.4413 0.4450 0.4488 0.4526 0.4564

Columns 651 through 660

0.4603 0.4642 0.4681 0.4720 0.4760 0.4800 0.4840 0.4880 0.4921 0.4962

Columns 661 through 670

0.5003 0.5045 0.5087 0.5129 0.5172 0.5215 0.5258 0.5301 0.5345 0.5389

Columns 671 through 680

0.5433 0.5477 0.5522 0.5568 0.5613 0.5659 0.5705 0.5751 0.5798 0.5845

Columns 681 through 690

0.5893 0.5940 0.5988 0.6037 0.6085 0.6134 0.6184 0.6233 0.6283 0.6334

Columns 691 through 700

0.6384 0.6435 0.6486 0.6538 0.6590 0.6643 0.6695 0.6748 0.6802 0.6855

Columns 701 through 710

0.6910 0.6964 0.7019 0.7074 0.7129 0.7185 0.7242 0.7298 0.7355 0.7413

Columns 711 through 720

0.7470 0.7528 0.7587 0.7646 0.7705 0.7765 0.7825 0.7885 0.7946 0.8007

Columns 721 through 730

0.8069 0.8131 0.8193 0.8256 0.8319 0.8383 0.8446 0.8511 0.8576 0.8641

Columns 731 through 740

0.8706 0.8772 0.8839 0.8906 0.8973 0.9041 0.9109 0.9177 0.9246 0.9316

Columns 741 through 750

0.9386 0.9456 0.9527 0.9598 0.9669 0.9741 0.9814 0.9887 0.9960 1.0034

Columns 751 through 760

1.0108 1.0183 1.0258 1.0334 1.0410 1.0487 1.0564 1.0641 1.0719 1.0798

Columns 761 through 770

1.0877 1.0956 1.1036 1.1117 1.1198 1.1279 1.1361 1.1443 1.1526 1.1610

Columns 771 through 780

1.1694 1.1778 1.1863 1.1948 1.2034 1.2121 1.2208 1.2295 1.2383 1.2472

Columns 781 through 790

1.2561 1.2650 1.2740 1.2831 1.2922 1.3014 1.3106 1.3199 1.3292 1.3386

Columns 791 through 800

1.3481 1.3576 1.3671 1.3768 1.3864 1.3962 1.4059 1.4158 1.4257 1.4356

Columns 801 through 810

1.4456 1.4557 1.4658 1.4760 1.4863 1.4966 1.5070 1.5174 1.5279 1.5384

Columns 811 through 820

1.5490 1.5597 1.5704 1.5812 1.5921 1.6030 1.6139 1.6250 1.6361 1.6472

Columns 821 through 830

1.6585 1.6698 1.6811 1.6925 1.7040 1.7156 1.7272 1.7389 1.7506 1.7624

Columns 831 through 840

1.7743 1.7862 1.7983 1.8103 1.8225 1.8347 1.8470 1.8593 1.8718 1.8842

Columns 841 through 850

1.8968 1.9094 1.9221 1.9349 1.9477 1.9606 1.9736 1.9867 1.9998 2.0130

Columns 851 through 860

2.0263 2.0396 2.0530 2.0665 2.0801 2.0937 2.1074 2.1212 2.1351 2.1490

Columns 861 through 870

2.1630 2.1771 2.1913 2.2055 2.2198 2.2342 2.2487 2.2632 2.2779 2.2926

Columns 871 through 880

2.3073 2.3222 2.3372 2.3522 2.3673 2.3825 2.3977 2.4131 2.4285 2.4440

Columns 881 through 890

2.4596 2.4753 2.4911 2.5069 2.5229 2.5389 2.5550 2.5711 2.5874 2.6038

Columns 891 through 900

2.6202 2.6367 2.6533 2.6700 2.6868 2.7037 2.7207 2.7377 2.7549 2.7721

Columns 901 through 910

2.7894 2.8068 2.8243 2.8419 2.8596 2.8774 2.8953 2.9132 2.9313 2.9494

Columns 911 through 920

2.9676 2.9860 3.0044 3.0229 3.0415 3.0603 3.0791 3.0980 3.1170 3.1361

Columns 921 through 930

3.1553 3.1746 3.1939 3.2134 3.2330 3.2527 3.2725 3.2924 3.3124 3.3325

Columns 931 through 940

3.3527 3.3730 3.3933 3.4138 3.4344 3.4552 3.4760 3.4969 3.5179 3.5390

Columns 941 through 950

3.5602 3.5816 3.6030 3.6246 3.6462 3.6680 3.6899 3.7118 3.7339 3.7561

Columns 951 through 960

3.7784 3.8008 3.8234 3.8460 3.8688 3.8916 3.9146 3.9377 3.9609 3.9842

Columns 961 through 970

4.0076 4.0312 4.0548 4.0786 4.1025 4.1265 4.1507 4.1749 4.1993 4.2237

Columns 971 through 980

4.2483 4.2730 4.2979 4.3228 4.3479 4.3731 4.3984 4.4239 4.4494 4.4751

Columns 981 through 990

4.5009 4.5269 4.5529 4.5791 4.6054 4.6319 4.6584 4.6851 4.7119 4.7389

Columns 991 through 1,000

4.7660 4.7932 4.8205 4.8479 4.8755 4.9033 4.9311 4.9591 4.9872 5.0155

Molecular Weight ofNO2 : MolecularWeight NO2:4.600500e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001

Columns 101 through 110

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 111 through 120

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 121 through 130

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 131 through 140

0.0001 0.0001 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 141 through 150

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0003

Columns 151 through 160

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 161 through 170

0.0003 0.0003 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004

Columns 171 through 180

0.0004 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0006

Columns 181 through 190

0.0006 0.0006 0.0006 0.0006 0.0006 0.0006 0.0007 0.0007 0.0007 0.0007

Columns 191 through 200

0.0007 0.0007 0.0008 0.0008 0.0008 0.0008 0.0008 0.0008 0.0009 0.0009

Columns 201 through 210

0.0009 0.0009 0.0010 0.0010 0.0010 0.0010 0.0010 0.0011 0.0011 0.0011

Columns 211 through 220

0.0011 0.0012 0.0012 0.0012 0.0012 0.0013 0.0013 0.0013 0.0014 0.0014

Columns 221 through 230

0.0014 0.0014 0.0015 0.0015 0.0015 0.0016 0.0016 0.0016 0.0017 0.0017

Columns 231 through 240

0.0017 0.0018 0.0018 0.0018 0.0019 0.0019 0.0020 0.0020 0.0020 0.0021

Columns 241 through 250

0.0021 0.0022 0.0022 0.0022 0.0023 0.0023 0.0024 0.0024 0.0025 0.0025

Columns 251 through 260

0.0026 0.0026 0.0027 0.0027 0.0028 0.0028 0.0029 0.0029 0.0030 0.0031

Columns 261 through 270

0.0031 0.0032 0.0032 0.0033 0.0033 0.0034 0.0035 0.0035 0.0036 0.0037

Columns 271 through 280

0.0037 0.0038 0.0039 0.0039 0.0040 0.0041 0.0042 0.0042 0.0043 0.0044

Columns 281 through 290

0.0045 0.0045 0.0046 0.0047 0.0048 0.0049 0.0049 0.0050 0.0051 0.0052

Columns 291 through 300

0.0053 0.0054 0.0055 0.0056 0.0057 0.0058 0.0059 0.0060 0.0061 0.0062

Columns 301 through 310

0.0063 0.0064 0.0065 0.0066 0.0067 0.0068 0.0069 0.0070 0.0071 0.0072

Columns 311 through 320

0.0074 0.0075 0.0076 0.0077 0.0078 0.0080 0.0081 0.0082 0.0084 0.0085

Columns 321 through 330

0.0086 0.0088 0.0089 0.0090 0.0092 0.0093 0.0095 0.0096 0.0098 0.0099

Columns 331 through 340

0.0101 0.0102 0.0104 0.0105 0.0107 0.0109 0.0110 0.0112 0.0114 0.0115

Columns 341 through 350

0.0117 0.0119 0.0120 0.0122 0.0124 0.0126 0.0128 0.0130 0.0132 0.0134

Columns 351 through 360

0.0135 0.0137 0.0139 0.0141 0.0144 0.0146 0.0148 0.0150 0.0152 0.0154

Columns 361 through 370

0.0156 0.0159 0.0161 0.0163 0.0165 0.0168 0.0170 0.0172 0.0175 0.0177

Columns 371 through 380

0.0180 0.0182 0.0185 0.0187 0.0190 0.0193 0.0195 0.0198 0.0201 0.0203

Columns 381 through 390

0.0206 0.0209 0.0212 0.0215 0.0218 0.0221 0.0223 0.0226 0.0230 0.0233

Columns 391 through 400

0.0236 0.0239 0.0242 0.0245 0.0248 0.0252 0.0255 0.0258 0.0262 0.0265

Columns 401 through 410

0.0269 0.0272 0.0276 0.0279 0.0283 0.0286 0.0290 0.0294 0.0298 0.0301

Columns 411 through 420

0.0305 0.0309 0.0313 0.0317 0.0321 0.0325 0.0329 0.0333 0.0338 0.0342

Columns 421 through 430

0.0346 0.0350 0.0355 0.0359 0.0364 0.0368 0.0373 0.0377 0.0382 0.0387

Columns 431 through 440

0.0391 0.0396 0.0401 0.0406 0.0411 0.0416 0.0421 0.0426 0.0431 0.0436

Columns 441 through 450

0.0441 0.0447 0.0452 0.0457 0.0463 0.0468 0.0474 0.0479 0.0485 0.0491

Columns 451 through 460

0.0496 0.0502 0.0508 0.0514 0.0520 0.0526 0.0532 0.0538 0.0545 0.0551

Columns 461 through 470

0.0557 0.0564 0.0570 0.0577 0.0583 0.0590 0.0597 0.0604 0.0610 0.0617

Columns 471 through 480

0.0624 0.0631 0.0638 0.0646 0.0653 0.0660 0.0668 0.0675 0.0683 0.0690

Columns 481 through 490

0.0698 0.0706 0.0713 0.0721 0.0729 0.0737 0.0745 0.0754 0.0762 0.0770

Columns 491 through 500

0.0779 0.0787 0.0796 0.0804 0.0813 0.0822 0.0831 0.0839 0.0848 0.0858

Columns 501 through 510

0.0867 0.0876 0.0885 0.0895 0.0904 0.0914 0.0924 0.0933 0.0943 0.0953

Columns 511 through 520

0.0963 0.0973 0.0984 0.0994 0.1004 0.1015 0.1025 0.1036 0.1047 0.1057

Columns 521 through 530

0.1068 0.1079 0.1091 0.1102 0.1113 0.1125 0.1136 0.1148 0.1159 0.1171

Columns 531 through 540

0.1183 0.1195 0.1207 0.1219 0.1232 0.1244 0.1257 0.1269 0.1282 0.1295

Columns 541 through 550

0.1308 0.1321 0.1334 0.1347 0.1361 0.1374 0.1388 0.1401 0.1415 0.1429

Columns 551 through 560

0.1443 0.1457 0.1472 0.1486 0.1501 0.1515 0.1530 0.1545 0.1560 0.1575

Columns 561 through 570

0.1590 0.1606 0.1621 0.1637 0.1652 0.1668 0.1684 0.1700 0.1717 0.1733

Columns 571 through 580

0.1749 0.1766 0.1783 0.1800 0.1817 0.1834 0.1851 0.1869 0.1886 0.1904

Columns 581 through 590

0.1922 0.1940 0.1958 0.1976 0.1994 0.2013 0.2032 0.2050 0.2069 0.2089

Columns 591 through 600

0.2108 0.2127 0.2147 0.2167 0.2186 0.2206 0.2227 0.2247 0.2267 0.2288

Columns 601 through 610

0.2309 0.2330 0.2351 0.2372 0.2394 0.2415 0.2437 0.2459 0.2481 0.2503

Columns 611 through 620

0.2526 0.2548 0.2571 0.2594 0.2617 0.2640 0.2664 0.2687 0.2711 0.2735

Columns 621 through 630

0.2759 0.2783 0.2808 0.2832 0.2857 0.2882 0.2907 0.2933 0.2958 0.2984

Columns 631 through 640

0.3010 0.3036 0.3063 0.3089 0.3116 0.3143 0.3170 0.3197 0.3224 0.3252

Columns 641 through 650

0.3280 0.3308 0.3336 0.3365 0.3393 0.3422 0.3451 0.3481 0.3510 0.3540

Columns 651 through 660

0.3570 0.3600 0.3630 0.3661 0.3692 0.3722 0.3754 0.3785 0.3817 0.3849

Columns 661 through 670

0.3881 0.3913 0.3945 0.3978 0.4011 0.4044 0.4078 0.4111 0.4145 0.4179

Columns 671 through 680

0.4214 0.4248 0.4283 0.4318 0.4353 0.4389 0.4425 0.4461 0.4497 0.4533

Columns 681 through 690

0.4570 0.4607 0.4644 0.4682 0.4720 0.4758 0.4796 0.4834 0.4873 0.4912

Columns 691 through 700

0.4951 0.4991 0.5031 0.5071 0.5111 0.5152 0.5193 0.5234 0.5275 0.5317

Columns 701 through 710

0.5359 0.5401 0.5444 0.5486 0.5529 0.5573 0.5616 0.5660 0.5705 0.5749

Columns 711 through 720

0.5794 0.5839 0.5884 0.5930 0.5976 0.6022 0.6069 0.6116 0.6163 0.6210

Columns 721 through 730

0.6258 0.6306 0.6354 0.6403 0.6452 0.6501 0.6551 0.6601 0.6651 0.6702

Columns 731 through 740

0.6752 0.6804 0.6855 0.6907 0.6959 0.7012 0.7065 0.7118 0.7171 0.7225

Columns 741 through 750

0.7279 0.7334 0.7389 0.7444 0.7499 0.7555 0.7611 0.7668 0.7725 0.7782

Columns 751 through 760

0.7840 0.7898 0.7956 0.8015 0.8074 0.8133 0.8193 0.8253 0.8314 0.8375

Columns 761 through 770

0.8436 0.8498 0.8560 0.8622 0.8685 0.8748 0.8811 0.8875 0.8940 0.9004

Columns 771 through 780

0.9069 0.9135 0.9201 0.9267 0.9333 0.9401 0.9468 0.9536 0.9604 0.9673

Columns 781 through 790

0.9742 0.9811 0.9881 0.9951 1.0022 1.0093 1.0165 1.0237 1.0309 1.0382

Columns 791 through 800

1.0455 1.0529 1.0603 1.0678 1.0753 1.0828 1.0904 1.0980 1.1057 1.1134

Columns 801 through 810

1.1212 1.1290 1.1369 1.1448 1.1527 1.1607 1.1688 1.1768 1.1850 1.1931

Columns 811 through 820

1.2014 1.2096 1.2180 1.2263 1.2348 1.2432 1.2517 1.2603 1.2689 1.2776

Columns 821 through 830

1.2863 1.2950 1.3038 1.3127 1.3216 1.3306 1.3396 1.3486 1.3577 1.3669

Columns 831 through 840

1.3761 1.3854 1.3947 1.4040 1.4135 1.4229 1.4325 1.4420 1.4517 1.4614

Columns 841 through 850

1.4711 1.4809 1.4907 1.5006 1.5106 1.5206 1.5307 1.5408 1.5510 1.5612

Columns 851 through 860

1.5715 1.5819 1.5923 1.6027 1.6132 1.6238 1.6344 1.6451 1.6559 1.6667

Columns 861 through 870

1.6776 1.6885 1.6995 1.7105 1.7216 1.7328 1.7440 1.7553 1.7666 1.7780

Columns 871 through 880

1.7895 1.8010 1.8126 1.8243 1.8360 1.8478 1.8596 1.8715 1.8835 1.8955

Columns 881 through 890

1.9076 1.9198 1.9320 1.9443 1.9567 1.9691 1.9816 1.9941 2.0067 2.0194

Columns 891 through 900

2.0322 2.0450 2.0579 2.0708 2.0838 2.0969 2.1101 2.1233 2.1366 2.1500

Columns 901 through 910

2.1634 2.1769 2.1905 2.2041 2.2178 2.2316 2.2455 2.2594 2.2734 2.2875

Columns 911 through 920

2.3016 2.3158 2.3301 2.3445 2.3589 2.3735 2.3880 2.4027 2.4174 2.4323

Columns 921 through 930

2.4471 2.4621 2.4771 2.4923 2.5074 2.5227 2.5381 2.5535 2.5690 2.5846

Columns 931 through 940

2.6002 2.6160 2.6318 2.6477 2.6637 2.6797 2.6959 2.7121 2.7284 2.7448

Columns 941 through 950

2.7612 2.7778 2.7944 2.8111 2.8279 2.8448 2.8618 2.8788 2.8959 2.9131

Columns 951 through 960

2.9304 2.9478 2.9653 2.9829 3.0005 3.0182 3.0361 3.0540 3.0720 3.0900

Columns 961 through 970

3.1082 3.1265 3.1448 3.1633 3.1818 3.2004 3.2191 3.2379 3.2568 3.2758

Columns 971 through 980

3.2949 3.3141 3.3333 3.3527 3.3721 3.3917 3.4113 3.4310 3.4509 3.4708

Columns 981 through 990

3.4908 3.5109 3.5311 3.5514 3.5719 3.5924 3.6130 3.6337 3.6545 3.6753

Columns 991 through 1,000

3.6963 3.7174 3.7386 3.7599 3.7813 3.8028 3.8244 3.8461 3.8679 3.8899

Molecular Weight ofHCNO : MolecularWeight HCNO:4.301500e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+25 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 91 through 100

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 101 through 110

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 111 through 120

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 121 through 130

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 131 through 140

-0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0004 -0.0004 -0.0004 -0.0004

Columns 141 through 150

-0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005

Columns 151 through 160

-0.0005 -0.0005 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0007 -0.0007

Columns 161 through 170

-0.0007 -0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0009 -0.0009

Columns 171 through 180

-0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010 -0.0011 -0.0011 -0.0011 -0.0011

Columns 181 through 190

-0.0012 -0.0012 -0.0012 -0.0013 -0.0013 -0.0013 -0.0014 -0.0014 -0.0014 -0.0015

Columns 191 through 200

-0.0015 -0.0015 -0.0016 -0.0016 -0.0016 -0.0017 -0.0017 -0.0018 -0.0018 -0.0018

Columns 201 through 210

-0.0019 -0.0019 -0.0020 -0.0020 -0.0021 -0.0021 -0.0021 -0.0022 -0.0022 -0.0023

Columns 211 through 220

-0.0023 -0.0024 -0.0024 -0.0025 -0.0026 -0.0026 -0.0027 -0.0027 -0.0028 -0.0028

Columns 221 through 230

-0.0029 -0.0030 -0.0030 -0.0031 -0.0032 -0.0032 -0.0033 -0.0034 -0.0034 -0.0035

Columns 231 through 240

-0.0036 -0.0037 -0.0037 -0.0038 -0.0039 -0.0040 -0.0040 -0.0041 -0.0042 -0.0043

Columns 241 through 250

-0.0044 -0.0045 -0.0046 -0.0046 -0.0047 -0.0048 -0.0049 -0.0050 -0.0051 -0.0052

Columns 251 through 260

-0.0053 -0.0054 -0.0055 -0.0056 -0.0057 -0.0058 -0.0060 -0.0061 -0.0062 -0.0063

Columns 261 through 270

-0.0064 -0.0065 -0.0067 -0.0068 -0.0069 -0.0070 -0.0072 -0.0073 -0.0074 -0.0076

Columns 271 through 280

-0.0077 -0.0078 -0.0080 -0.0081 -0.0083 -0.0084 -0.0086 -0.0087 -0.0089 -0.0090

Columns 281 through 290

-0.0092 -0.0094 -0.0095 -0.0097 -0.0099 -0.0100 -0.0102 -0.0104 -0.0106 -0.0107

Columns 291 through 300

-0.0109 -0.0111 -0.0113 -0.0115 -0.0117 -0.0119 -0.0121 -0.0123 -0.0125 -0.0127

Columns 301 through 310

-0.0129 -0.0131 -0.0133 -0.0136 -0.0138 -0.0140 -0.0142 -0.0145 -0.0147 -0.0149

Columns 311 through 320

-0.0152 -0.0154 -0.0157 -0.0159 -0.0162 -0.0164 -0.0167 -0.0170 -0.0172 -0.0175

Columns 321 through 330

-0.0178 -0.0181 -0.0184 -0.0186 -0.0189 -0.0192 -0.0195 -0.0198 -0.0201 -0.0204

Columns 331 through 340

-0.0208 -0.0211 -0.0214 -0.0217 -0.0221 -0.0224 -0.0227 -0.0231 -0.0234 -0.0238

Columns 341 through 350

-0.0241 -0.0245 -0.0249 -0.0252 -0.0256 -0.0260 -0.0264 -0.0268 -0.0271 -0.0275

Columns 351 through 360

-0.0279 -0.0284 -0.0288 -0.0292 -0.0296 -0.0300 -0.0305 -0.0309 -0.0314 -0.0318

Columns 361 through 370

-0.0323 -0.0327 -0.0332 -0.0336 -0.0341 -0.0346 -0.0351 -0.0356 -0.0361 -0.0366

Columns 371 through 380

-0.0371 -0.0376 -0.0381 -0.0387 -0.0392 -0.0397 -0.0403 -0.0408 -0.0414 -0.0420

Columns 381 through 390

-0.0425 -0.0431 -0.0437 -0.0443 -0.0449 -0.0455 -0.0461 -0.0467 -0.0473 -0.0480

Columns 391 through 400

-0.0486 -0.0493 -0.0499 -0.0506 -0.0512 -0.0519 -0.0526 -0.0533 -0.0540 -0.0547

Columns 401 through 410

-0.0554 -0.0561 -0.0569 -0.0576 -0.0583 -0.0591 -0.0599 -0.0606 -0.0614 -0.0622

Columns 411 through 420

-0.0630 -0.0638 -0.0646 -0.0654 -0.0662 -0.0671 -0.0679 -0.0688 -0.0696 -0.0705

Columns 421 through 430

-0.0714 -0.0723 -0.0732 -0.0741 -0.0750 -0.0759 -0.0769 -0.0778 -0.0788 -0.0797

Columns 431 through 440

-0.0807 -0.0817 -0.0827 -0.0837 -0.0847 -0.0857 -0.0868 -0.0878 -0.0889 -0.0900

Columns 441 through 450

-0.0910 -0.0921 -0.0932 -0.0943 -0.0955 -0.0966 -0.0977 -0.0989 -0.1001 -0.1012

Columns 451 through 460

-0.1024 -0.1036 -0.1048 -0.1061 -0.1073 -0.1086 -0.1098 -0.1111 -0.1124 -0.1137

Columns 461 through 470

-0.1150 -0.1163 -0.1176 -0.1190 -0.1204 -0.1217 -0.1231 -0.1245 -0.1259 -0.1274

Columns 471 through 480

-0.1288 -0.1303 -0.1317 -0.1332 -0.1347 -0.1362 -0.1377 -0.1393 -0.1408 -0.1424

Columns 481 through 490

-0.1440 -0.1456 -0.1472 -0.1488 -0.1504 -0.1521 -0.1538 -0.1555 -0.1572 -0.1589

Columns 491 through 500

-0.1606 -0.1624 -0.1641 -0.1659 -0.1677 -0.1695 -0.1713 -0.1732 -0.1750 -0.1769

Columns 501 through 510

-0.1788 -0.1807 -0.1827 -0.1846 -0.1866 -0.1885 -0.1905 -0.1926 -0.1946 -0.1966

Columns 511 through 520

-0.1987 -0.2008 -0.2029 -0.2050 -0.2072 -0.2093 -0.2115 -0.2137 -0.2159 -0.2182

Columns 521 through 530

-0.2204 -0.2227 -0.2250 -0.2273 -0.2296 -0.2320 -0.2344 -0.2368 -0.2392 -0.2416

Columns 531 through 540

-0.2441 -0.2465 -0.2490 -0.2516 -0.2541 -0.2567 -0.2592 -0.2619 -0.2645 -0.2671

Columns 541 through 550

-0.2698 -0.2725 -0.2752 -0.2779 -0.2807 -0.2835 -0.2863 -0.2891 -0.2920 -0.2948

Columns 551 through 560

-0.2977 -0.3007 -0.3036 -0.3066 -0.3096 -0.3126 -0.3156 -0.3187 -0.3218 -0.3249

Columns 561 through 570

-0.3281 -0.3312 -0.3344 -0.3376 -0.3409 -0.3442 -0.3475 -0.3508 -0.3541 -0.3575

Columns 571 through 580

-0.3609 -0.3643 -0.3678 -0.3713 -0.3748 -0.3783 -0.3819 -0.3855 -0.3891 -0.3928

Columns 581 through 590

-0.3965 -0.4002 -0.4039 -0.4077 -0.4115 -0.4153 -0.4191 -0.4230 -0.4269 -0.4309

Columns 591 through 600

-0.4349 -0.4389 -0.4429 -0.4470 -0.4511 -0.4552 -0.4594 -0.4636 -0.4678 -0.4720

Columns 601 through 610

-0.4763 -0.4807 -0.4850 -0.4894 -0.4938 -0.4983 -0.5028 -0.5073 -0.5118 -0.5164

Columns 611 through 620

-0.5210 -0.5257 -0.5304 -0.5351 -0.5399 -0.5447 -0.5495 -0.5544 -0.5593 -0.5642

Columns 621 through 630

-0.5692 -0.5742 -0.5793 -0.5844 -0.5895 -0.5946 -0.5998 -0.6051 -0.6103 -0.6157

Columns 631 through 640

-0.6210 -0.6264 -0.6318 -0.6373 -0.6428 -0.6484 -0.6539 -0.6596 -0.6652 -0.6709

Columns 641 through 650

-0.6767 -0.6825 -0.6883 -0.6942 -0.7001 -0.7061 -0.7121 -0.7181 -0.7242 -0.7303

Columns 651 through 660

-0.7365 -0.7427 -0.7489 -0.7552 -0.7616 -0.7680 -0.7744 -0.7809 -0.7874 -0.7940

Columns 661 through 670

-0.8006 -0.8072 -0.8140 -0.8207 -0.8275 -0.8344 -0.8412 -0.8482 -0.8552 -0.8622

Columns 671 through 680

-0.8693 -0.8764 -0.8836 -0.8908 -0.8981 -0.9054 -0.9128 -0.9203 -0.9277 -0.9353

Columns 681 through 690

-0.9428 -0.9505 -0.9582 -0.9659 -0.9737 -0.9815 -0.9894 -0.9974 -1.0053 -1.0134

Columns 691 through 700

-1.0215 -1.0297 -1.0379 -1.0461 -1.0545 -1.0628 -1.0713 -1.0798 -1.0883 -1.0969

Columns 701 through 710

-1.1056 -1.1143 -1.1230 -1.1319 -1.1408 -1.1497 -1.1587 -1.1678 -1.1769 -1.1861

Columns 711 through 720

-1.1953 -1.2046 -1.2140 -1.2234 -1.2329 -1.2424 -1.2520 -1.2617 -1.2714 -1.2812

Columns 721 through 730

-1.2910 -1.3010 -1.3109 -1.3210 -1.3311 -1.3413 -1.3515 -1.3618 -1.3722 -1.3826

Columns 731 through 740

-1.3931 -1.4036 -1.4143 -1.4250 -1.4357 -1.4466 -1.4575 -1.4684 -1.4795 -1.4906

Columns 741 through 750

-1.5018 -1.5130 -1.5243 -1.5357 -1.5472 -1.5587 -1.5703 -1.5820 -1.5937 -1.6055

Columns 751 through 760

-1.6174 -1.6294 -1.6414 -1.6535 -1.6657 -1.6780 -1.6903 -1.7027 -1.7152 -1.7277

Columns 761 through 770

-1.7404 -1.7531 -1.7659 -1.7788 -1.7917 -1.8047 -1.8178 -1.8310 -1.8443 -1.8576

Columns 771 through 780

-1.8711 -1.8846 -1.8981 -1.9118 -1.9256 -1.9394 -1.9533 -1.9673 -1.9814 -1.9956

Columns 781 through 790

-2.0098 -2.0241 -2.0386 -2.0531 -2.0676 -2.0823 -2.0971 -2.1119 -2.1269 -2.1419

Columns 791 through 800

-2.1570 -2.1722 -2.1875 -2.2029 -2.2184 -2.2339 -2.2496 -2.2653 -2.2812 -2.2971

Columns 801 through 810

-2.3131 -2.3292 -2.3454 -2.3617 -2.3781 -2.3946 -2.4112 -2.4279 -2.4447 -2.4615

Columns 811 through 820

-2.4785 -2.4956 -2.5127 -2.5300 -2.5474 -2.5648 -2.5824 -2.6001 -2.6178 -2.6357

Columns 821 through 830

-2.6537 -2.6717 -2.6899 -2.7082 -2.7265 -2.7450 -2.7636 -2.7823 -2.8011 -2.8200

Columns 831 through 840

-2.8390 -2.8581 -2.8773 -2.8966 -2.9161 -2.9356 -2.9553 -2.9750 -2.9949 -3.0149

Columns 841 through 850

-3.0350 -3.0552 -3.0755 -3.0959 -3.1165 -3.1371 -3.1579 -3.1788 -3.1998 -3.2209

Columns 851 through 860

-3.2421 -3.2635 -3.2849 -3.3065 -3.3282 -3.3500 -3.3720 -3.3940 -3.4162 -3.4385

Columns 861 through 870

-3.4609 -3.4835 -3.5061 -3.5289 -3.5518 -3.5749 -3.5980 -3.6213 -3.6447 -3.6682

Columns 871 through 880

-3.6919 -3.7157 -3.7396 -3.7636 -3.7878 -3.8121 -3.8365 -3.8611 -3.8858 -3.9106

Columns 881 through 890

-3.9356 -3.9606 -3.9859 -4.0112 -4.0367 -4.0623 -4.0881 -4.1140 -4.1400 -4.1662

Columns 891 through 900

-4.1925 -4.2189 -4.2455 -4.2722 -4.2991 -4.3261 -4.3532 -4.3805 -4.4080 -4.4355

Columns 901 through 910

-4.4632 -4.4911 -4.5191 -4.5473 -4.5755 -4.6040 -4.6326 -4.6613 -4.6902 -4.7192

Columns 911 through 920

-4.7484 -4.7777 -4.8072 -4.8369 -4.8667 -4.8966 -4.9267 -4.9569 -4.9873 -5.0179

Columns 921 through 930

-5.0486 -5.0795 -5.1105 -5.1417 -5.1730 -5.2045 -5.2362 -5.2680 -5.3000 -5.3321

Columns 931 through 940

-5.3645 -5.3969 -5.4296 -5.4624 -5.4953 -5.5284 -5.5617 -5.5952 -5.6288 -5.6626

Columns 941 through 950

-5.6966 -5.7307 -5.7650 -5.7995 -5.8342 -5.8690 -5.9040 -5.9392 -5.9745 -6.0100

Columns 951 through 960

-6.0457 -6.0816 -6.1176 -6.1538 -6.1903 -6.2268 -6.2636 -6.3005 -6.3377 -6.3750

Columns 961 through 970

-6.4125 -6.4501 -6.4880 -6.5260 -6.5643 -6.6027 -6.6413 -6.6801 -6.7191 -6.7582

Columns 971 through 980

-6.7976 -6.8371 -6.8769 -6.9168 -6.9569 -6.9972 -7.0378 -7.0785 -7.1194 -7.1605

Columns 981 through 990

-7.2018 -7.2433 -7.2850 -7.3269 -7.3690 -7.4113 -7.4538 -7.4965 -7.5394 -7.5825

Columns 991 through 1,000

-7.6258 -7.6693 -7.7131 -7.7570 -7.8011 -7.8455 -7.8901 -7.9348 -7.9798 -8.0250

Molecular Weight ofHOCN : MolecularWeight HOCN:4.301500e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 91 through 100

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 101 through 110

-0.0000 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 111 through 120

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 121 through 130

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 131 through 140

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 141 through 150

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 151 through 160

-0.0002 -0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 161 through 170

-0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004

Columns 171 through 180

-0.0004 -0.0004 -0.0004 -0.0004 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005

Columns 181 through 190

-0.0005 -0.0005 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0007

Columns 191 through 200

-0.0007 -0.0007 -0.0007 -0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008

Columns 201 through 210

-0.0008 -0.0009 -0.0009 -0.0009 -0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010

Columns 211 through 220

-0.0011 -0.0011 -0.0011 -0.0011 -0.0011 -0.0012 -0.0012 -0.0012 -0.0013 -0.0013

Columns 221 through 230

-0.0013 -0.0013 -0.0014 -0.0014 -0.0014 -0.0015 -0.0015 -0.0015 -0.0015 -0.0016

Columns 231 through 240

-0.0016 -0.0016 -0.0017 -0.0017 -0.0017 -0.0018 -0.0018 -0.0019 -0.0019 -0.0019

Columns 241 through 250

-0.0020 -0.0020 -0.0020 -0.0021 -0.0021 -0.0022 -0.0022 -0.0023 -0.0023 -0.0023

Columns 251 through 260

-0.0024 -0.0024 -0.0025 -0.0025 -0.0026 -0.0026 -0.0027 -0.0027 -0.0028 -0.0028

Columns 261 through 270

-0.0029 -0.0029 -0.0030 -0.0030 -0.0031 -0.0032 -0.0032 -0.0033 -0.0033 -0.0034

Columns 271 through 280

-0.0035 -0.0035 -0.0036 -0.0037 -0.0037 -0.0038 -0.0039 -0.0039 -0.0040 -0.0041

Columns 281 through 290

-0.0041 -0.0042 -0.0043 -0.0044 -0.0044 -0.0045 -0.0046 -0.0047 -0.0047 -0.0048

Columns 291 through 300

-0.0049 -0.0050 -0.0051 -0.0052 -0.0052 -0.0053 -0.0054 -0.0055 -0.0056 -0.0057

Columns 301 through 310

-0.0058 -0.0059 -0.0060 -0.0061 -0.0062 -0.0063 -0.0064 -0.0065 -0.0066 -0.0067

Columns 311 through 320

-0.0068 -0.0069 -0.0070 -0.0072 -0.0073 -0.0074 -0.0075 -0.0076 -0.0078 -0.0079

Columns 321 through 330

-0.0080 -0.0081 -0.0083 -0.0084 -0.0085 -0.0086 -0.0088 -0.0089 -0.0091 -0.0092

Columns 331 through 340

-0.0093 -0.0095 -0.0096 -0.0098 -0.0099 -0.0101 -0.0102 -0.0104 -0.0105 -0.0107

Columns 341 through 350

-0.0108 -0.0110 -0.0112 -0.0113 -0.0115 -0.0117 -0.0119 -0.0120 -0.0122 -0.0124

Columns 351 through 360

-0.0126 -0.0127 -0.0129 -0.0131 -0.0133 -0.0135 -0.0137 -0.0139 -0.0141 -0.0143

Columns 361 through 370

-0.0145 -0.0147 -0.0149 -0.0151 -0.0153 -0.0156 -0.0158 -0.0160 -0.0162 -0.0164

Columns 371 through 380

-0.0167 -0.0169 -0.0171 -0.0174 -0.0176 -0.0179 -0.0181 -0.0184 -0.0186 -0.0189

Columns 381 through 390

-0.0191 -0.0194 -0.0196 -0.0199 -0.0202 -0.0204 -0.0207 -0.0210 -0.0213 -0.0216

Columns 391 through 400

-0.0219 -0.0221 -0.0224 -0.0227 -0.0230 -0.0233 -0.0236 -0.0240 -0.0243 -0.0246

Columns 401 through 410

-0.0249 -0.0252 -0.0256 -0.0259 -0.0262 -0.0266 -0.0269 -0.0272 -0.0276 -0.0280

Columns 411 through 420

-0.0283 -0.0287 -0.0290 -0.0294 -0.0298 -0.0301 -0.0305 -0.0309 -0.0313 -0.0317

Columns 421 through 430

-0.0321 -0.0325 -0.0329 -0.0333 -0.0337 -0.0341 -0.0346 -0.0350 -0.0354 -0.0358

Columns 431 through 440

-0.0363 -0.0367 -0.0372 -0.0376 -0.0381 -0.0385 -0.0390 -0.0395 -0.0400 -0.0404

Columns 441 through 450

-0.0409 -0.0414 -0.0419 -0.0424 -0.0429 -0.0434 -0.0439 -0.0444 -0.0450 -0.0455

Columns 451 through 460

-0.0460 -0.0466 -0.0471 -0.0477 -0.0482 -0.0488 -0.0494 -0.0499 -0.0505 -0.0511

Columns 461 through 470

-0.0517 -0.0523 -0.0529 -0.0535 -0.0541 -0.0547 -0.0553 -0.0560 -0.0566 -0.0572

Columns 471 through 480

-0.0579 -0.0585 -0.0592 -0.0599 -0.0605 -0.0612 -0.0619 -0.0626 -0.0633 -0.0640

Columns 481 through 490

-0.0647 -0.0654 -0.0662 -0.0669 -0.0676 -0.0684 -0.0691 -0.0699 -0.0706 -0.0714

Columns 491 through 500

-0.0722 -0.0730 -0.0738 -0.0746 -0.0754 -0.0762 -0.0770 -0.0778 -0.0787 -0.0795

Columns 501 through 510

-0.0804 -0.0812 -0.0821 -0.0830 -0.0839 -0.0847 -0.0856 -0.0866 -0.0875 -0.0884

Columns 511 through 520

-0.0893 -0.0903 -0.0912 -0.0922 -0.0931 -0.0941 -0.0951 -0.0961 -0.0971 -0.0981

Columns 521 through 530

-0.0991 -0.1001 -0.1011 -0.1022 -0.1032 -0.1043 -0.1053 -0.1064 -0.1075 -0.1086

Columns 531 through 540

-0.1097 -0.1108 -0.1119 -0.1131 -0.1142 -0.1154 -0.1165 -0.1177 -0.1189 -0.1201

Columns 541 through 550

-0.1213 -0.1225 -0.1237 -0.1249 -0.1262 -0.1274 -0.1287 -0.1299 -0.1312 -0.1325

Columns 551 through 560

-0.1338 -0.1351 -0.1365 -0.1378 -0.1391 -0.1405 -0.1419 -0.1432 -0.1446 -0.1460

Columns 561 through 570

-0.1475 -0.1489 -0.1503 -0.1518 -0.1532 -0.1547 -0.1562 -0.1577 -0.1592 -0.1607

Columns 571 through 580

-0.1622 -0.1638 -0.1653 -0.1669 -0.1685 -0.1701 -0.1717 -0.1733 -0.1749 -0.1765

Columns 581 through 590

-0.1782 -0.1799 -0.1815 -0.1832 -0.1849 -0.1867 -0.1884 -0.1901 -0.1919 -0.1937

Columns 591 through 600

-0.1955 -0.1973 -0.1991 -0.2009 -0.2027 -0.2046 -0.2065 -0.2084 -0.2103 -0.2122

Columns 601 through 610

-0.2141 -0.2160 -0.2180 -0.2200 -0.2220 -0.2240 -0.2260 -0.2280 -0.2301 -0.2321

Columns 611 through 620

-0.2342 -0.2363 -0.2384 -0.2405 -0.2427 -0.2448 -0.2470 -0.2492 -0.2514 -0.2536

Columns 621 through 630

-0.2558 -0.2581 -0.2604 -0.2627 -0.2650 -0.2673 -0.2696 -0.2720 -0.2743 -0.2767

Columns 631 through 640

-0.2791 -0.2816 -0.2840 -0.2864 -0.2889 -0.2914 -0.2939 -0.2965 -0.2990 -0.3016

Columns 641 through 650

-0.3042 -0.3068 -0.3094 -0.3120 -0.3147 -0.3174 -0.3200 -0.3228 -0.3255 -0.3283

Columns 651 through 660

-0.3310 -0.3338 -0.3366 -0.3395 -0.3423 -0.3452 -0.3481 -0.3510 -0.3539 -0.3569

Columns 661 through 670

-0.3598 -0.3628 -0.3659 -0.3689 -0.3719 -0.3750 -0.3781 -0.3812 -0.3844 -0.3875

Columns 671 through 680

-0.3907 -0.3939 -0.3972 -0.4004 -0.4037 -0.4070 -0.4103 -0.4136 -0.4170 -0.4204

Columns 681 through 690

-0.4238 -0.4272 -0.4307 -0.4341 -0.4376 -0.4412 -0.4447 -0.4483 -0.4519 -0.4555

Columns 691 through 700

-0.4591 -0.4628 -0.4665 -0.4702 -0.4740 -0.4777 -0.4815 -0.4853 -0.4892 -0.4930

Columns 701 through 710

-0.4969 -0.5008 -0.5048 -0.5087 -0.5127 -0.5168 -0.5208 -0.5249 -0.5290 -0.5331

Columns 711 through 720

-0.5373 -0.5414 -0.5456 -0.5499 -0.5541 -0.5584 -0.5627 -0.5671 -0.5715 -0.5759

Columns 721 through 730

-0.5803 -0.5847 -0.5892 -0.5937 -0.5983 -0.6029 -0.6075 -0.6121 -0.6167 -0.6214

Columns 731 through 740

-0.6262 -0.6309 -0.6357 -0.6405 -0.6453 -0.6502 -0.6551 -0.6600 -0.6650 -0.6700

Columns 741 through 750

-0.6750 -0.6801 -0.6851 -0.6903 -0.6954 -0.7006 -0.7058 -0.7110 -0.7163 -0.7216

Columns 751 through 760

-0.7270 -0.7324 -0.7378 -0.7432 -0.7487 -0.7542 -0.7597 -0.7653 -0.7709 -0.7766

Columns 761 through 770

-0.7823 -0.7880 -0.7937 -0.7995 -0.8053 -0.8112 -0.8171 -0.8230 -0.8290 -0.8350

Columns 771 through 780

-0.8410 -0.8471 -0.8532 -0.8593 -0.8655 -0.8717 -0.8780 -0.8843 -0.8906 -0.8969

Columns 781 through 790

-0.9034 -0.9098 -0.9163 -0.9228 -0.9294 -0.9360 -0.9426 -0.9493 -0.9560 -0.9627

Columns 791 through 800

-0.9695 -0.9764 -0.9832 -0.9901 -0.9971 -1.0041 -1.0111 -1.0182 -1.0253 -1.0325

Columns 801 through 810

-1.0397 -1.0469 -1.0542 -1.0615 -1.0689 -1.0763 -1.0838 -1.0913 -1.0988 -1.1064

Columns 811 through 820

-1.1140 -1.1217 -1.1294 -1.1372 -1.1450 -1.1528 -1.1607 -1.1687 -1.1766 -1.1847

Columns 821 through 830

-1.1928 -1.2009 -1.2090 -1.2173 -1.2255 -1.2338 -1.2422 -1.2506 -1.2590 -1.2675

Columns 831 through 840

-1.2761 -1.2846 -1.2933 -1.3020 -1.3107 -1.3195 -1.3283 -1.3372 -1.3461 -1.3551

Columns 841 through 850

-1.3642 -1.3732 -1.3824 -1.3915 -1.4008 -1.4101 -1.4194 -1.4288 -1.4382 -1.4477

Columns 851 through 860

-1.4573 -1.4669 -1.4765 -1.4862 -1.4960 -1.5058 -1.5156 -1.5255 -1.5355 -1.5455

Columns 861 through 870

-1.5556 -1.5657 -1.5759 -1.5862 -1.5965 -1.6068 -1.6172 -1.6277 -1.6382 -1.6488

Columns 871 through 880

-1.6594 -1.6701 -1.6809 -1.6917 -1.7025 -1.7134 -1.7244 -1.7355 -1.7466 -1.7577

Columns 881 through 890

-1.7689 -1.7802 -1.7915 -1.8029 -1.8144 -1.8259 -1.8375 -1.8491 -1.8608 -1.8726

Columns 891 through 900

-1.8844 -1.8963 -1.9083 -1.9203 -1.9323 -1.9445 -1.9567 -1.9689 -1.9813 -1.9937

Columns 901 through 910

-2.0061 -2.0186 -2.0312 -2.0439 -2.0566 -2.0694 -2.0822 -2.0951 -2.1081 -2.1212

Columns 911 through 920

-2.1343 -2.1475 -2.1607 -2.1740 -2.1874 -2.2009 -2.2144 -2.2280 -2.2417 -2.2554

Columns 921 through 930

-2.2692 -2.2831 -2.2970 -2.3111 -2.3251 -2.3393 -2.3535 -2.3678 -2.3822 -2.3967

Columns 931 through 940

-2.4112 -2.4258 -2.4405 -2.4552 -2.4700 -2.4849 -2.4999 -2.5149 -2.5300 -2.5452

Columns 941 through 950

-2.5605 -2.5758 -2.5912 -2.6067 -2.6223 -2.6380 -2.6537 -2.6695 -2.6854 -2.7013

Columns 951 through 960

-2.7174 -2.7335 -2.7497 -2.7660 -2.7824 -2.7988 -2.8153 -2.8319 -2.8486 -2.8654

Columns 961 through 970

-2.8822 -2.8992 -2.9162 -2.9333 -2.9505 -2.9677 -2.9851 -3.0025 -3.0200 -3.0377

Columns 971 through 980

-3.0553 -3.0731 -3.0910 -3.1089 -3.1270 -3.1451 -3.1633 -3.1816 -3.2000 -3.2185

Columns 981 through 990

-3.2370 -3.2557 -3.2744 -3.2932 -3.3122 -3.3312 -3.3503 -3.3695 -3.3888 -3.4081

Columns 991 through 1,000

-3.4276 -3.4472 -3.4668 -3.4866 -3.5064 -3.5264 -3.5464 -3.5665 -3.5867 -3.6070

Molecular Weight ofHNCO : MolecularWeight HNCO:4.301500e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 101 through 110

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001 0.0001 0.0001 0.0001

Columns 111 through 120

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 121 through 130

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 131 through 140

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 141 through 150

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 151 through 160

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0003 0.0003

Columns 161 through 170

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 171 through 180

0.0003 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004

Columns 181 through 190

0.0004 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005

Columns 191 through 200

0.0006 0.0006 0.0006 0.0006 0.0006 0.0006 0.0006 0.0007 0.0007 0.0007

Columns 201 through 210

0.0007 0.0007 0.0007 0.0008 0.0008 0.0008 0.0008 0.0008 0.0008 0.0009

Columns 211 through 220

0.0009 0.0009 0.0009 0.0009 0.0010 0.0010 0.0010 0.0010 0.0011 0.0011

Columns 221 through 230

0.0011 0.0011 0.0011 0.0012 0.0012 0.0012 0.0012 0.0013 0.0013 0.0013

Columns 231 through 240

0.0014 0.0014 0.0014 0.0014 0.0015 0.0015 0.0015 0.0016 0.0016 0.0016

Columns 241 through 250

0.0017 0.0017 0.0017 0.0018 0.0018 0.0018 0.0019 0.0019 0.0019 0.0020

Columns 251 through 260

0.0020 0.0020 0.0021 0.0021 0.0022 0.0022 0.0022 0.0023 0.0023 0.0024

Columns 261 through 270

0.0024 0.0025 0.0025 0.0026 0.0026 0.0027 0.0027 0.0028 0.0028 0.0029

Columns 271 through 280

0.0029 0.0030 0.0030 0.0031 0.0031 0.0032 0.0032 0.0033 0.0034 0.0034

Columns 281 through 290

0.0035 0.0035 0.0036 0.0037 0.0037 0.0038 0.0039 0.0039 0.0040 0.0041

Columns 291 through 300

0.0041 0.0042 0.0043 0.0043 0.0044 0.0045 0.0046 0.0046 0.0047 0.0048

Columns 301 through 310

0.0049 0.0050 0.0050 0.0051 0.0052 0.0053 0.0054 0.0055 0.0056 0.0056

Columns 311 through 320

0.0057 0.0058 0.0059 0.0060 0.0061 0.0062 0.0063 0.0064 0.0065 0.0066

Columns 321 through 330

0.0067 0.0068 0.0069 0.0070 0.0072 0.0073 0.0074 0.0075 0.0076 0.0077

Columns 331 through 340

0.0078 0.0080 0.0081 0.0082 0.0083 0.0085 0.0086 0.0087 0.0089 0.0090

Columns 341 through 350

0.0091 0.0093 0.0094 0.0095 0.0097 0.0098 0.0100 0.0101 0.0103 0.0104

Columns 351 through 360

0.0106 0.0107 0.0109 0.0110 0.0112 0.0113 0.0115 0.0117 0.0118 0.0120

Columns 361 through 370

0.0122 0.0124 0.0125 0.0127 0.0129 0.0131 0.0133 0.0134 0.0136 0.0138

Columns 371 through 380

0.0140 0.0142 0.0144 0.0146 0.0148 0.0150 0.0152 0.0154 0.0156 0.0159

Columns 381 through 390

0.0161 0.0163 0.0165 0.0167 0.0170 0.0172 0.0174 0.0177 0.0179 0.0181

Columns 391 through 400

0.0184 0.0186 0.0189 0.0191 0.0194 0.0196 0.0199 0.0201 0.0204 0.0207

Columns 401 through 410

0.0209 0.0212 0.0215 0.0218 0.0220 0.0223 0.0226 0.0229 0.0232 0.0235

Columns 411 through 420

0.0238 0.0241 0.0244 0.0247 0.0250 0.0253 0.0257 0.0260 0.0263 0.0266

Columns 421 through 430

0.0270 0.0273 0.0276 0.0280 0.0283 0.0287 0.0290 0.0294 0.0298 0.0301

Columns 431 through 440

0.0305 0.0309 0.0312 0.0316 0.0320 0.0324 0.0328 0.0332 0.0336 0.0340

Columns 441 through 450

0.0344 0.0348 0.0352 0.0356 0.0361 0.0365 0.0369 0.0374 0.0378 0.0382

Columns 451 through 460

0.0387 0.0392 0.0396 0.0401 0.0405 0.0410 0.0415 0.0420 0.0425 0.0429

Columns 461 through 470

0.0434 0.0439 0.0444 0.0450 0.0455 0.0460 0.0465 0.0470 0.0476 0.0481

Columns 471 through 480

0.0487 0.0492 0.0498 0.0503 0.0509 0.0515 0.0520 0.0526 0.0532 0.0538

Columns 481 through 490

0.0544 0.0550 0.0556 0.0562 0.0568 0.0575 0.0581 0.0587 0.0594 0.0600

Columns 491 through 500

0.0607 0.0613 0.0620 0.0627 0.0634 0.0640 0.0647 0.0654 0.0661 0.0668

Columns 501 through 510

0.0676 0.0683 0.0690 0.0697 0.0705 0.0712 0.0720 0.0728 0.0735 0.0743

Columns 511 through 520

0.0751 0.0759 0.0767 0.0775 0.0783 0.0791 0.0799 0.0807 0.0816 0.0824

Columns 521 through 530

0.0833 0.0841 0.0850 0.0859 0.0868 0.0877 0.0885 0.0895 0.0904 0.0913

Columns 531 through 540

0.0922 0.0932 0.0941 0.0950 0.0960 0.0970 0.0979 0.0989 0.0999 0.1009

Columns 541 through 550

0.1019 0.1030 0.1040 0.1050 0.1061 0.1071 0.1082 0.1092 0.1103 0.1114

Columns 551 through 560

0.1125 0.1136 0.1147 0.1158 0.1170 0.1181 0.1193 0.1204 0.1216 0.1228

Columns 561 through 570

0.1239 0.1251 0.1264 0.1276 0.1288 0.1300 0.1313 0.1325 0.1338 0.1351

Columns 571 through 580

0.1364 0.1377 0.1390 0.1403 0.1416 0.1429 0.1443 0.1456 0.1470 0.1484

Columns 581 through 590

0.1498 0.1512 0.1526 0.1540 0.1555 0.1569 0.1584 0.1598 0.1613 0.1628

Columns 591 through 600

0.1643 0.1658 0.1673 0.1689 0.1704 0.1720 0.1736 0.1751 0.1767 0.1783

Columns 601 through 610

0.1800 0.1816 0.1832 0.1849 0.1866 0.1883 0.1900 0.1917 0.1934 0.1951

Columns 611 through 620

0.1969 0.1986 0.2004 0.2022 0.2040 0.2058 0.2076 0.2095 0.2113 0.2132

Columns 621 through 630

0.2151 0.2170 0.2189 0.2208 0.2227 0.2247 0.2266 0.2286 0.2306 0.2326

Columns 631 through 640

0.2346 0.2367 0.2387 0.2408 0.2429 0.2450 0.2471 0.2492 0.2513 0.2535

Columns 641 through 650

0.2557 0.2579 0.2601 0.2623 0.2645 0.2668 0.2690 0.2713 0.2736 0.2759

Columns 651 through 660

0.2783 0.2806 0.2830 0.2853 0.2877 0.2902 0.2926 0.2950 0.2975 0.3000

Columns 661 through 670

0.3025 0.3050 0.3075 0.3101 0.3127 0.3152 0.3178 0.3205 0.3231 0.3258

Columns 671 through 680

0.3284 0.3311 0.3338 0.3366 0.3393 0.3421 0.3449 0.3477 0.3505 0.3534

Columns 681 through 690

0.3562 0.3591 0.3620 0.3649 0.3679 0.3708 0.3738 0.3768 0.3798 0.3829

Columns 691 through 700

0.3859 0.3890 0.3921 0.3953 0.3984 0.4016 0.4048 0.4080 0.4112 0.4144

Columns 701 through 710

0.4177 0.4210 0.4243 0.4276 0.4310 0.4344 0.4378 0.4412 0.4447 0.4481

Columns 711 through 720

0.4516 0.4551 0.4587 0.4622 0.4658 0.4694 0.4730 0.4767 0.4804 0.4841

Columns 721 through 730

0.4878 0.4915 0.4953 0.4991 0.5029 0.5068 0.5106 0.5145 0.5184 0.5224

Columns 731 through 740

0.5263 0.5303 0.5343 0.5384 0.5425 0.5465 0.5507 0.5548 0.5590 0.5632

Columns 741 through 750

0.5674 0.5716 0.5759 0.5802 0.5846 0.5889 0.5933 0.5977 0.6021 0.6066

Columns 751 through 760

0.6111 0.6156 0.6202 0.6247 0.6293 0.6340 0.6386 0.6433 0.6480 0.6528

Columns 761 through 770

0.6576 0.6624 0.6672 0.6721 0.6769 0.6819 0.6868 0.6918 0.6968 0.7019

Columns 771 through 780

0.7069 0.7120 0.7172 0.7223 0.7275 0.7327 0.7380 0.7433 0.7486 0.7540

Columns 781 through 790

0.7593 0.7648 0.7702 0.7757 0.7812 0.7867 0.7923 0.7979 0.8036 0.8093

Columns 791 through 800

0.8150 0.8207 0.8265 0.8323 0.8381 0.8440 0.8499 0.8559 0.8619 0.8679

Columns 801 through 810

0.8739 0.8800 0.8862 0.8923 0.8985 0.9047 0.9110 0.9173 0.9237 0.9300

Columns 811 through 820

0.9364 0.9429 0.9494 0.9559 0.9625 0.9691 0.9757 0.9824 0.9891 0.9958

Columns 821 through 830

1.0026 1.0094 1.0163 1.0232 1.0301 1.0371 1.0442 1.0512 1.0583 1.0655

Columns 831 through 840

1.0726 1.0799 1.0871 1.0944 1.1018 1.1091 1.1166 1.1240 1.1315 1.1391

Columns 841 through 850

1.1467 1.1543 1.1620 1.1697 1.1775 1.1853 1.1931 1.2010 1.2090 1.2169

Columns 851 through 860

1.2250 1.2330 1.2411 1.2493 1.2575 1.2657 1.2740 1.2823 1.2907 1.2991

Columns 861 through 870

1.3076 1.3161 1.3247 1.3333 1.3420 1.3507 1.3594 1.3682 1.3771 1.3859

Columns 871 through 880

1.3949 1.4039 1.4129 1.4220 1.4311 1.4403 1.4495 1.4588 1.4681 1.4775

Columns 881 through 890

1.4869 1.4964 1.5060 1.5155 1.5252 1.5348 1.5446 1.5544 1.5642 1.5741

Columns 891 through 900

1.5840 1.5940 1.6041 1.6141 1.6243 1.6345 1.6448 1.6551 1.6654 1.6758

Columns 901 through 910

1.6863 1.6968 1.7074 1.7181 1.7287 1.7395 1.7503 1.7611 1.7721 1.7830

Columns 911 through 920

1.7941 1.8051 1.8163 1.8275 1.8387 1.8500 1.8614 1.8728 1.8843 1.8959

Columns 921 through 930

1.9075 1.9191 1.9309 1.9426 1.9545 1.9664 1.9784 1.9904 2.0025 2.0146

Columns 931 through 940

2.0268 2.0391 2.0514 2.0638 2.0763 2.0888 2.1014 2.1140 2.1267 2.1395

Columns 941 through 950

2.1523 2.1652 2.1782 2.1912 2.2043 2.2174 2.2307 2.2439 2.2573 2.2707

Columns 951 through 960

2.2842 2.2978 2.3114 2.3251 2.3388 2.3526 2.3665 2.3805 2.3945 2.4086

Columns 961 through 970

2.4228 2.4370 2.4513 2.4657 2.4801 2.4946 2.5092 2.5239 2.5386 2.5534

Columns 971 through 980

2.5683 2.5832 2.5982 2.6133 2.6285 2.6437 2.6590 2.6744 2.6899 2.7054

Columns 981 through 990

2.7210 2.7367 2.7524 2.7683 2.7842 2.8001 2.8162 2.8323 2.8485 2.8648

Columns 991 through 1,000

2.8812 2.8976 2.9142 2.9308 2.9474 2.9642 2.9810 2.9980 3.0150 3.0320

Molecular Weight ofNCO : MolecularWeight NCO:4.200700e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+27 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 101 through 110

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 111 through 120

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 121 through 130

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 131 through 140

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001 0.0001 0.0001

Columns 141 through 150

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 151 through 160

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 161 through 170

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 171 through 180

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0002 0.0002 0.0002

Columns 181 through 190

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 191 through 200

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0003

Columns 201 through 210

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 211 through 220

0.0003 0.0003 0.0003 0.0003 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004

Columns 221 through 230

0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0005 0.0005 0.0005 0.0005

Columns 231 through 240

0.0005 0.0005 0.0005 0.0005 0.0005 0.0006 0.0006 0.0006 0.0006 0.0006

Columns 241 through 250

0.0006 0.0006 0.0006 0.0006 0.0007 0.0007 0.0007 0.0007 0.0007 0.0007

Columns 251 through 260

0.0007 0.0008 0.0008 0.0008 0.0008 0.0008 0.0008 0.0008 0.0009 0.0009

Columns 261 through 270

0.0009 0.0009 0.0009 0.0009 0.0010 0.0010 0.0010 0.0010 0.0010 0.0011

Columns 271 through 280

0.0011 0.0011 0.0011 0.0011 0.0011 0.0012 0.0012 0.0012 0.0012 0.0013

Columns 281 through 290

0.0013 0.0013 0.0013 0.0013 0.0014 0.0014 0.0014 0.0014 0.0015 0.0015

Columns 291 through 300

0.0015 0.0015 0.0016 0.0016 0.0016 0.0017 0.0017 0.0017 0.0017 0.0018

Columns 301 through 310

0.0018 0.0018 0.0019 0.0019 0.0019 0.0019 0.0020 0.0020 0.0020 0.0021

Columns 311 through 320

0.0021 0.0021 0.0022 0.0022 0.0023 0.0023 0.0023 0.0024 0.0024 0.0024

Columns 321 through 330

0.0025 0.0025 0.0026 0.0026 0.0026 0.0027 0.0027 0.0028 0.0028 0.0028

Columns 331 through 340

0.0029 0.0029 0.0030 0.0030 0.0031 0.0031 0.0032 0.0032 0.0033 0.0033

Columns 341 through 350

0.0034 0.0034 0.0035 0.0035 0.0036 0.0036 0.0037 0.0037 0.0038 0.0038

Columns 351 through 360

0.0039 0.0039 0.0040 0.0041 0.0041 0.0042 0.0042 0.0043 0.0044 0.0044

Columns 361 through 370

0.0045 0.0045 0.0046 0.0047 0.0047 0.0048 0.0049 0.0049 0.0050 0.0051

Columns 371 through 380

0.0052 0.0052 0.0053 0.0054 0.0055 0.0055 0.0056 0.0057 0.0058 0.0058

Columns 381 through 390

0.0059 0.0060 0.0061 0.0062 0.0062 0.0063 0.0064 0.0065 0.0066 0.0067

Columns 391 through 400

0.0068 0.0069 0.0069 0.0070 0.0071 0.0072 0.0073 0.0074 0.0075 0.0076

Columns 401 through 410

0.0077 0.0078 0.0079 0.0080 0.0081 0.0082 0.0083 0.0084 0.0085 0.0086

Columns 411 through 420

0.0088 0.0089 0.0090 0.0091 0.0092 0.0093 0.0094 0.0096 0.0097 0.0098

Columns 421 through 430

0.0099 0.0100 0.0102 0.0103 0.0104 0.0106 0.0107 0.0108 0.0110 0.0111

Columns 431 through 440

0.0112 0.0114 0.0115 0.0116 0.0118 0.0119 0.0121 0.0122 0.0124 0.0125

Columns 441 through 450

0.0127 0.0128 0.0130 0.0131 0.0133 0.0134 0.0136 0.0137 0.0139 0.0141

Columns 451 through 460

0.0142 0.0144 0.0146 0.0147 0.0149 0.0151 0.0153 0.0154 0.0156 0.0158

Columns 461 through 470

0.0160 0.0162 0.0164 0.0165 0.0167 0.0169 0.0171 0.0173 0.0175 0.0177

Columns 471 through 480

0.0179 0.0181 0.0183 0.0185 0.0187 0.0189 0.0192 0.0194 0.0196 0.0198

Columns 481 through 490

0.0200 0.0202 0.0205 0.0207 0.0209 0.0211 0.0214 0.0216 0.0219 0.0221

Columns 491 through 500

0.0223 0.0226 0.0228 0.0231 0.0233 0.0236 0.0238 0.0241 0.0243 0.0246

Columns 501 through 510

0.0249 0.0251 0.0254 0.0257 0.0259 0.0262 0.0265 0.0268 0.0271 0.0273

Columns 511 through 520

0.0276 0.0279 0.0282 0.0285 0.0288 0.0291 0.0294 0.0297 0.0300 0.0303

Columns 521 through 530

0.0306 0.0310 0.0313 0.0316 0.0319 0.0323 0.0326 0.0329 0.0333 0.0336

Columns 531 through 540

0.0339 0.0343 0.0346 0.0350 0.0353 0.0357 0.0360 0.0364 0.0368 0.0371

Columns 541 through 550

0.0375 0.0379 0.0383 0.0386 0.0390 0.0394 0.0398 0.0402 0.0406 0.0410

Columns 551 through 560

0.0414 0.0418 0.0422 0.0426 0.0430 0.0435 0.0439 0.0443 0.0447 0.0452

Columns 561 through 570

0.0456 0.0461 0.0465 0.0469 0.0474 0.0479 0.0483 0.0488 0.0492 0.0497

Columns 571 through 580

0.0502 0.0507 0.0511 0.0516 0.0521 0.0526 0.0531 0.0536 0.0541 0.0546

Columns 581 through 590

0.0551 0.0556 0.0562 0.0567 0.0572 0.0577 0.0583 0.0588 0.0594 0.0599

Columns 591 through 600

0.0605 0.0610 0.0616 0.0621 0.0627 0.0633 0.0639 0.0645 0.0650 0.0656

Columns 601 through 610

0.0662 0.0668 0.0674 0.0680 0.0687 0.0693 0.0699 0.0705 0.0712 0.0718

Columns 611 through 620

0.0724 0.0731 0.0737 0.0744 0.0751 0.0757 0.0764 0.0771 0.0778 0.0785

Columns 621 through 630

0.0791 0.0798 0.0805 0.0812 0.0820 0.0827 0.0834 0.0841 0.0849 0.0856

Columns 631 through 640

0.0863 0.0871 0.0879 0.0886 0.0894 0.0901 0.0909 0.0917 0.0925 0.0933

Columns 641 through 650

0.0941 0.0949 0.0957 0.0965 0.0973 0.0982 0.0990 0.0998 0.1007 0.1015

Columns 651 through 660

0.1024 0.1033 0.1041 0.1050 0.1059 0.1068 0.1077 0.1086 0.1095 0.1104

Columns 661 through 670

0.1113 0.1122 0.1132 0.1141 0.1151 0.1160 0.1170 0.1179 0.1189 0.1199

Columns 671 through 680

0.1209 0.1219 0.1229 0.1239 0.1249 0.1259 0.1269 0.1280 0.1290 0.1300

Columns 681 through 690

0.1311 0.1322 0.1332 0.1343 0.1354 0.1365 0.1376 0.1387 0.1398 0.1409

Columns 691 through 700

0.1420 0.1432 0.1443 0.1455 0.1466 0.1478 0.1490 0.1501 0.1513 0.1525

Columns 701 through 710

0.1537 0.1549 0.1561 0.1574 0.1586 0.1599 0.1611 0.1624 0.1636 0.1649

Columns 711 through 720

0.1662 0.1675 0.1688 0.1701 0.1714 0.1727 0.1741 0.1754 0.1768 0.1781

Columns 721 through 730

0.1795 0.1809 0.1823 0.1837 0.1851 0.1865 0.1879 0.1893 0.1908 0.1922

Columns 731 through 740

0.1937 0.1952 0.1966 0.1981 0.1996 0.2011 0.2026 0.2042 0.2057 0.2073

Columns 741 through 750

0.2088 0.2104 0.2119 0.2135 0.2151 0.2167 0.2183 0.2200 0.2216 0.2232

Columns 751 through 760

0.2249 0.2265 0.2282 0.2299 0.2316 0.2333 0.2350 0.2367 0.2385 0.2402

Columns 761 through 770

0.2420 0.2438 0.2455 0.2473 0.2491 0.2509 0.2528 0.2546 0.2564 0.2583

Columns 771 through 780

0.2602 0.2620 0.2639 0.2658 0.2677 0.2697 0.2716 0.2735 0.2755 0.2775

Columns 781 through 790

0.2794 0.2814 0.2834 0.2855 0.2875 0.2895 0.2916 0.2936 0.2957 0.2978

Columns 791 through 800

0.2999 0.3020 0.3042 0.3063 0.3084 0.3106 0.3128 0.3150 0.3172 0.3194

Columns 801 through 810

0.3216 0.3239 0.3261 0.3284 0.3307 0.3330 0.3353 0.3376 0.3399 0.3423

Columns 811 through 820

0.3446 0.3470 0.3494 0.3518 0.3542 0.3566 0.3591 0.3615 0.3640 0.3665

Columns 821 through 830

0.3690 0.3715 0.3740 0.3765 0.3791 0.3817 0.3843 0.3869 0.3895 0.3921

Columns 831 through 840

0.3947 0.3974 0.4001 0.4028 0.4055 0.4082 0.4109 0.4137 0.4164 0.4192

Columns 841 through 850

0.4220 0.4248 0.4276 0.4305 0.4333 0.4362 0.4391 0.4420 0.4449 0.4478

Columns 851 through 860

0.4508 0.4538 0.4567 0.4597 0.4628 0.4658 0.4688 0.4719 0.4750 0.4781

Columns 861 through 870

0.4812 0.4843 0.4875 0.4907 0.4939 0.4971 0.5003 0.5035 0.5068 0.5100

Columns 871 through 880

0.5133 0.5166 0.5200 0.5233 0.5267 0.5300 0.5334 0.5369 0.5403 0.5437

Columns 881 through 890

0.5472 0.5507 0.5542 0.5577 0.5613 0.5648 0.5684 0.5720 0.5756 0.5793

Columns 891 through 900

0.5829 0.5866 0.5903 0.5940 0.5978 0.6015 0.6053 0.6091 0.6129 0.6167

Columns 901 through 910

0.6206 0.6244 0.6283 0.6323 0.6362 0.6401 0.6441 0.6481 0.6521 0.6562

Columns 911 through 920

0.6602 0.6643 0.6684 0.6725 0.6767 0.6808 0.6850 0.6892 0.6934 0.6977

Columns 921 through 930

0.7020 0.7063 0.7106 0.7149 0.7193 0.7236 0.7280 0.7325 0.7369 0.7414

Columns 931 through 940

0.7459 0.7504 0.7549 0.7595 0.7641 0.7687 0.7733 0.7780 0.7826 0.7873

Columns 941 through 950

0.7921 0.7968 0.8016 0.8064 0.8112 0.8160 0.8209 0.8258 0.8307 0.8356

Columns 951 through 960

0.8406 0.8456 0.8506 0.8556 0.8607 0.8658 0.8709 0.8760 0.8812 0.8864

Columns 961 through 970

0.8916 0.8968 0.9021 0.9074 0.9127 0.9180 0.9234 0.9288 0.9342 0.9397

Columns 971 through 980

0.9451 0.9506 0.9562 0.9617 0.9673 0.9729 0.9785 0.9842 0.9899 0.9956

Columns 981 through 990

1.0013 1.0071 1.0129 1.0187 1.0246 1.0305 1.0364 1.0423 1.0483 1.0543

Columns 991 through 1,000

1.0603 1.0664 1.0724 1.0785 1.0847 1.0909 1.0970 1.1033 1.1095 1.1158

Molecular Weight ofCN : MolecularWeight CN:2.600800e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+27 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 101 through 110

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 111 through 120

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 121 through 130

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 131 through 140

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001 0.0001 0.0001 0.0001

Columns 141 through 150

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 151 through 160

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 161 through 170

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 171 through 180

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0002 0.0002 0.0002 0.0002

Columns 181 through 190

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 191 through 200

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0003 0.0003 0.0003

Columns 201 through 210

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 211 through 220

0.0003 0.0003 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004

Columns 221 through 230

0.0004 0.0004 0.0004 0.0004 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005

Columns 231 through 240

0.0005 0.0005 0.0005 0.0005 0.0006 0.0006 0.0006 0.0006 0.0006 0.0006

Columns 241 through 250

0.0006 0.0006 0.0007 0.0007 0.0007 0.0007 0.0007 0.0007 0.0007 0.0008

Columns 251 through 260

0.0008 0.0008 0.0008 0.0008 0.0008 0.0008 0.0009 0.0009 0.0009 0.0009

Columns 261 through 270

0.0009 0.0009 0.0010 0.0010 0.0010 0.0010 0.0010 0.0011 0.0011 0.0011

Columns 271 through 280

0.0011 0.0011 0.0012 0.0012 0.0012 0.0012 0.0012 0.0013 0.0013 0.0013

Columns 281 through 290

0.0013 0.0013 0.0014 0.0014 0.0014 0.0014 0.0015 0.0015 0.0015 0.0015

Columns 291 through 300

0.0016 0.0016 0.0016 0.0017 0.0017 0.0017 0.0017 0.0018 0.0018 0.0018

Columns 301 through 310

0.0019 0.0019 0.0019 0.0020 0.0020 0.0020 0.0021 0.0021 0.0021 0.0022

Columns 311 through 320

0.0022 0.0022 0.0023 0.0023 0.0023 0.0024 0.0024 0.0024 0.0025 0.0025

Columns 321 through 330

0.0026 0.0026 0.0026 0.0027 0.0027 0.0028 0.0028 0.0029 0.0029 0.0029

Columns 331 through 340

0.0030 0.0030 0.0031 0.0031 0.0032 0.0032 0.0033 0.0033 0.0034 0.0034

Columns 341 through 350

0.0035 0.0035 0.0036 0.0036 0.0037 0.0037 0.0038 0.0039 0.0039 0.0040

Columns 351 through 360

0.0040 0.0041 0.0041 0.0042 0.0043 0.0043 0.0044 0.0045 0.0045 0.0046

Columns 361 through 370

0.0047 0.0047 0.0048 0.0049 0.0049 0.0050 0.0051 0.0051 0.0052 0.0053

Columns 371 through 380

0.0054 0.0054 0.0055 0.0056 0.0057 0.0057 0.0058 0.0059 0.0060 0.0061

Columns 381 through 390

0.0061 0.0062 0.0063 0.0064 0.0065 0.0066 0.0066 0.0067 0.0068 0.0069

Columns 391 through 400

0.0070 0.0071 0.0072 0.0073 0.0074 0.0075 0.0076 0.0077 0.0078 0.0079

Columns 401 through 410

0.0080 0.0081 0.0082 0.0083 0.0084 0.0085 0.0086 0.0087 0.0089 0.0090

Columns 411 through 420

0.0091 0.0092 0.0093 0.0094 0.0096 0.0097 0.0098 0.0099 0.0100 0.0102

Columns 421 through 430

0.0103 0.0104 0.0106 0.0107 0.0108 0.0110 0.0111 0.0112 0.0114 0.0115

Columns 431 through 440

0.0116 0.0118 0.0119 0.0121 0.0122 0.0124 0.0125 0.0127 0.0128 0.0130

Columns 441 through 450

0.0131 0.0133 0.0134 0.0136 0.0138 0.0139 0.0141 0.0143 0.0144 0.0146

Columns 451 through 460

0.0148 0.0149 0.0151 0.0153 0.0155 0.0157 0.0158 0.0160 0.0162 0.0164

Columns 461 through 470

0.0166 0.0168 0.0170 0.0172 0.0174 0.0176 0.0178 0.0180 0.0182 0.0184

Columns 471 through 480

0.0186 0.0188 0.0190 0.0192 0.0194 0.0196 0.0199 0.0201 0.0203 0.0205

Columns 481 through 490

0.0208 0.0210 0.0212 0.0215 0.0217 0.0219 0.0222 0.0224 0.0227 0.0229

Columns 491 through 500

0.0232 0.0234 0.0237 0.0239 0.0242 0.0244 0.0247 0.0250 0.0252 0.0255

Columns 501 through 510

0.0258 0.0261 0.0263 0.0266 0.0269 0.0272 0.0275 0.0278 0.0281 0.0284

Columns 511 through 520

0.0287 0.0290 0.0293 0.0296 0.0299 0.0302 0.0305 0.0308 0.0311 0.0315

Columns 521 through 530

0.0318 0.0321 0.0324 0.0328 0.0331 0.0335 0.0338 0.0341 0.0345 0.0348

Columns 531 through 540

0.0352 0.0356 0.0359 0.0363 0.0366 0.0370 0.0374 0.0378 0.0381 0.0385

Columns 541 through 550

0.0389 0.0393 0.0397 0.0401 0.0405 0.0409 0.0413 0.0417 0.0421 0.0425

Columns 551 through 560

0.0429 0.0434 0.0438 0.0442 0.0446 0.0451 0.0455 0.0460 0.0464 0.0469

Columns 561 through 570

0.0473 0.0478 0.0482 0.0487 0.0492 0.0496 0.0501 0.0506 0.0511 0.0516

Columns 571 through 580

0.0520 0.0525 0.0530 0.0535 0.0540 0.0546 0.0551 0.0556 0.0561 0.0566

Columns 581 through 590

0.0572 0.0577 0.0582 0.0588 0.0593 0.0599 0.0604 0.0610 0.0616 0.0621

Columns 591 through 600

0.0627 0.0633 0.0639 0.0645 0.0651 0.0656 0.0662 0.0669 0.0675 0.0681

Columns 601 through 610

0.0687 0.0693 0.0699 0.0706 0.0712 0.0719 0.0725 0.0732 0.0738 0.0745

Columns 611 through 620

0.0751 0.0758 0.0765 0.0772 0.0779 0.0785 0.0792 0.0799 0.0807 0.0814

Columns 621 through 630

0.0821 0.0828 0.0835 0.0843 0.0850 0.0858 0.0865 0.0873 0.0880 0.0888

Columns 631 through 640

0.0896 0.0903 0.0911 0.0919 0.0927 0.0935 0.0943 0.0951 0.0959 0.0968

Columns 641 through 650

0.0976 0.0984 0.0993 0.1001 0.1010 0.1018 0.1027 0.1036 0.1044 0.1053

Columns 651 through 660

0.1062 0.1071 0.1080 0.1089 0.1098 0.1108 0.1117 0.1126 0.1136 0.1145

Columns 661 through 670

0.1155 0.1164 0.1174 0.1184 0.1193 0.1203 0.1213 0.1223 0.1233 0.1243

Columns 671 through 680

0.1254 0.1264 0.1274 0.1285 0.1295 0.1306 0.1316 0.1327 0.1338 0.1349

Columns 681 through 690

0.1360 0.1371 0.1382 0.1393 0.1404 0.1415 0.1427 0.1438 0.1450 0.1461

Columns 691 through 700

0.1473 0.1485 0.1497 0.1509 0.1521 0.1533 0.1545 0.1557 0.1569 0.1582

Columns 701 through 710

0.1594 0.1607 0.1620 0.1632 0.1645 0.1658 0.1671 0.1684 0.1697 0.1710

Columns 711 through 720

0.1724 0.1737 0.1751 0.1764 0.1778 0.1792 0.1806 0.1819 0.1834 0.1848

Columns 721 through 730

0.1862 0.1876 0.1891 0.1905 0.1920 0.1934 0.1949 0.1964 0.1979 0.1994

Columns 731 through 740

0.2009 0.2024 0.2040 0.2055 0.2071 0.2086 0.2102 0.2118 0.2134 0.2150

Columns 741 through 750

0.2166 0.2182 0.2198 0.2215 0.2231 0.2248 0.2265 0.2281 0.2298 0.2315

Columns 751 through 760

0.2333 0.2350 0.2367 0.2385 0.2402 0.2420 0.2438 0.2456 0.2474 0.2492

Columns 761 through 770

0.2510 0.2528 0.2547 0.2565 0.2584 0.2603 0.2622 0.2641 0.2660 0.2679

Columns 771 through 780

0.2698 0.2718 0.2737 0.2757 0.2777 0.2797 0.2817 0.2837 0.2857 0.2878

Columns 781 through 790

0.2898 0.2919 0.2940 0.2961 0.2982 0.3003 0.3024 0.3046 0.3067 0.3089

Columns 791 through 800

0.3111 0.3133 0.3155 0.3177 0.3199 0.3222 0.3244 0.3267 0.3290 0.3313

Columns 801 through 810

0.3336 0.3359 0.3382 0.3406 0.3430 0.3453 0.3477 0.3501 0.3526 0.3550

Columns 811 through 820

0.3574 0.3599 0.3624 0.3649 0.3674 0.3699 0.3724 0.3750 0.3775 0.3801

Columns 821 through 830

0.3827 0.3853 0.3879 0.3906 0.3932 0.3959 0.3985 0.4012 0.4040 0.4067

Columns 831 through 840

0.4094 0.4122 0.4149 0.4177 0.4205 0.4234 0.4262 0.4290 0.4319 0.4348

Columns 841 through 850

0.4377 0.4406 0.4435 0.4465 0.4494 0.4524 0.4554 0.4584 0.4615 0.4645

Columns 851 through 860

0.4676 0.4706 0.4737 0.4768 0.4800 0.4831 0.4863 0.4895 0.4927 0.4959

Columns 861 through 870

0.4991 0.5024 0.5056 0.5089 0.5122 0.5155 0.5189 0.5222 0.5256 0.5290

Columns 871 through 880

0.5324 0.5358 0.5393 0.5428 0.5462 0.5498 0.5533 0.5568 0.5604 0.5640

Columns 881 through 890

0.5676 0.5712 0.5748 0.5785 0.5821 0.5858 0.5896 0.5933 0.5970 0.6008

Columns 891 through 900

0.6046 0.6084 0.6123 0.6161 0.6200 0.6239 0.6278 0.6317 0.6357 0.6397

Columns 901 through 910

0.6437 0.6477 0.6517 0.6558 0.6599 0.6640 0.6681 0.6722 0.6764 0.6806

Columns 911 through 920

0.6848 0.6890 0.6933 0.6975 0.7018 0.7062 0.7105 0.7149 0.7192 0.7236

Columns 921 through 930

0.7281 0.7325 0.7370 0.7415 0.7460 0.7506 0.7551 0.7597 0.7643 0.7690

Columns 931 through 940

0.7736 0.7783 0.7830 0.7877 0.7925 0.7973 0.8021 0.8069 0.8117 0.8166

Columns 941 through 950

0.8215 0.8264 0.8314 0.8364 0.8414 0.8464 0.8514 0.8565 0.8616 0.8667

Columns 951 through 960

0.8719 0.8770 0.8822 0.8875 0.8927 0.8980 0.9033 0.9086 0.9140 0.9194

Columns 961 through 970

0.9248 0.9302 0.9357 0.9411 0.9467 0.9522 0.9578 0.9634 0.9690 0.9746

Columns 971 through 980

0.9803 0.9860 0.9917 0.9975 1.0033 1.0091 1.0149 1.0208 1.0267 1.0326

Columns 981 through 990

1.0386 1.0446 1.0506 1.0566 1.0627 1.0688 1.0749 1.0811 1.0873 1.0935

Columns 991 through 1,000

1.0997 1.1060 1.1123 1.1187 1.1250 1.1314 1.1378 1.1443 1.1508 1.1573

Molecular Weight ofHCNN : MolecularWeight HCNN:4.102300e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+25 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 91 through 100

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 101 through 110

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 111 through 120

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0001 -0.0001

Columns 121 through 130

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 131 through 140

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 141 through 150

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 151 through 160

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 161 through 170

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 171 through 180

-0.0002 -0.0002 -0.0002 -0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 181 through 190

-0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0004 -0.0004

Columns 191 through 200

-0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0005

Columns 201 through 210

-0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0006 -0.0006

Columns 211 through 220

-0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0007 -0.0007 -0.0007 -0.0007 -0.0007

Columns 221 through 230

-0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0009 -0.0009

Columns 231 through 240

-0.0009 -0.0009 -0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010 -0.0010 -0.0011

Columns 241 through 250

-0.0011 -0.0011 -0.0011 -0.0012 -0.0012 -0.0012 -0.0012 -0.0012 -0.0013 -0.0013

Columns 251 through 260

-0.0013 -0.0013 -0.0014 -0.0014 -0.0014 -0.0015 -0.0015 -0.0015 -0.0015 -0.0016

Columns 261 through 270

-0.0016 -0.0016 -0.0017 -0.0017 -0.0017 -0.0018 -0.0018 -0.0018 -0.0018 -0.0019

Columns 271 through 280

-0.0019 -0.0020 -0.0020 -0.0020 -0.0021 -0.0021 -0.0021 -0.0022 -0.0022 -0.0022

Columns 281 through 290

-0.0023 -0.0023 -0.0024 -0.0024 -0.0025 -0.0025 -0.0025 -0.0026 -0.0026 -0.0027

Columns 291 through 300

-0.0027 -0.0028 -0.0028 -0.0029 -0.0029 -0.0030 -0.0030 -0.0031 -0.0031 -0.0032

Columns 301 through 310

-0.0032 -0.0033 -0.0033 -0.0034 -0.0034 -0.0035 -0.0035 -0.0036 -0.0037 -0.0037

Columns 311 through 320

-0.0038 -0.0038 -0.0039 -0.0040 -0.0040 -0.0041 -0.0042 -0.0042 -0.0043 -0.0044

Columns 321 through 330

-0.0044 -0.0045 -0.0046 -0.0046 -0.0047 -0.0048 -0.0049 -0.0049 -0.0050 -0.0051

Columns 331 through 340

-0.0052 -0.0052 -0.0053 -0.0054 -0.0055 -0.0056 -0.0057 -0.0057 -0.0058 -0.0059

Columns 341 through 350

-0.0060 -0.0061 -0.0062 -0.0063 -0.0064 -0.0065 -0.0066 -0.0067 -0.0068 -0.0069

Columns 351 through 360

-0.0070 -0.0071 -0.0072 -0.0073 -0.0074 -0.0075 -0.0076 -0.0077 -0.0078 -0.0079

Columns 361 through 370

-0.0080 -0.0081 -0.0083 -0.0084 -0.0085 -0.0086 -0.0087 -0.0089 -0.0090 -0.0091

Columns 371 through 380

-0.0092 -0.0094 -0.0095 -0.0096 -0.0098 -0.0099 -0.0100 -0.0102 -0.0103 -0.0104

Columns 381 through 390

-0.0106 -0.0107 -0.0109 -0.0110 -0.0112 -0.0113 -0.0115 -0.0116 -0.0118 -0.0119

Columns 391 through 400

-0.0121 -0.0123 -0.0124 -0.0126 -0.0128 -0.0129 -0.0131 -0.0133 -0.0134 -0.0136

Columns 401 through 410

-0.0138 -0.0140 -0.0142 -0.0143 -0.0145 -0.0147 -0.0149 -0.0151 -0.0153 -0.0155

Columns 411 through 420

-0.0157 -0.0159 -0.0161 -0.0163 -0.0165 -0.0167 -0.0169 -0.0171 -0.0173 -0.0176

Columns 421 through 430

-0.0178 -0.0180 -0.0182 -0.0184 -0.0187 -0.0189 -0.0191 -0.0194 -0.0196 -0.0199

Columns 431 through 440

-0.0201 -0.0203 -0.0206 -0.0208 -0.0211 -0.0213 -0.0216 -0.0219 -0.0221 -0.0224

Columns 441 through 450

-0.0227 -0.0229 -0.0232 -0.0235 -0.0238 -0.0240 -0.0243 -0.0246 -0.0249 -0.0252

Columns 451 through 460

-0.0255 -0.0258 -0.0261 -0.0264 -0.0267 -0.0270 -0.0273 -0.0277 -0.0280 -0.0283

Columns 461 through 470

-0.0286 -0.0290 -0.0293 -0.0296 -0.0300 -0.0303 -0.0307 -0.0310 -0.0314 -0.0317

Columns 471 through 480

-0.0321 -0.0324 -0.0328 -0.0332 -0.0335 -0.0339 -0.0343 -0.0347 -0.0351 -0.0355

Columns 481 through 490

-0.0358 -0.0362 -0.0366 -0.0370 -0.0375 -0.0379 -0.0383 -0.0387 -0.0391 -0.0396

Columns 491 through 500

-0.0400 -0.0404 -0.0409 -0.0413 -0.0418 -0.0422 -0.0427 -0.0431 -0.0436 -0.0440

Columns 501 through 510

-0.0445 -0.0450 -0.0455 -0.0460 -0.0464 -0.0469 -0.0474 -0.0479 -0.0484 -0.0490

Columns 511 through 520

-0.0495 -0.0500 -0.0505 -0.0510 -0.0516 -0.0521 -0.0527 -0.0532 -0.0538 -0.0543

Columns 521 through 530

-0.0549 -0.0554 -0.0560 -0.0566 -0.0572 -0.0578 -0.0583 -0.0589 -0.0595 -0.0602

Columns 531 through 540

-0.0608 -0.0614 -0.0620 -0.0626 -0.0633 -0.0639 -0.0645 -0.0652 -0.0658 -0.0665

Columns 541 through 550

-0.0672 -0.0678 -0.0685 -0.0692 -0.0699 -0.0706 -0.0713 -0.0720 -0.0727 -0.0734

Columns 551 through 560

-0.0741 -0.0749 -0.0756 -0.0763 -0.0771 -0.0778 -0.0786 -0.0793 -0.0801 -0.0809

Columns 561 through 570

-0.0817 -0.0825 -0.0833 -0.0841 -0.0849 -0.0857 -0.0865 -0.0873 -0.0882 -0.0890

Columns 571 through 580

-0.0899 -0.0907 -0.0916 -0.0924 -0.0933 -0.0942 -0.0951 -0.0960 -0.0969 -0.0978

Columns 581 through 590

-0.0987 -0.0996 -0.1006 -0.1015 -0.1024 -0.1034 -0.1044 -0.1053 -0.1063 -0.1073

Columns 591 through 600

-0.1083 -0.1093 -0.1103 -0.1113 -0.1123 -0.1133 -0.1144 -0.1154 -0.1165 -0.1175

Columns 601 through 610

-0.1186 -0.1197 -0.1208 -0.1218 -0.1229 -0.1241 -0.1252 -0.1263 -0.1274 -0.1286

Columns 611 through 620

-0.1297 -0.1309 -0.1320 -0.1332 -0.1344 -0.1356 -0.1368 -0.1380 -0.1392 -0.1405

Columns 621 through 630

-0.1417 -0.1430 -0.1442 -0.1455 -0.1468 -0.1480 -0.1493 -0.1506 -0.1520 -0.1533

Columns 631 through 640

-0.1546 -0.1560 -0.1573 -0.1587 -0.1600 -0.1614 -0.1628 -0.1642 -0.1656 -0.1670

Columns 641 through 650

-0.1685 -0.1699 -0.1714 -0.1728 -0.1743 -0.1758 -0.1773 -0.1788 -0.1803 -0.1818

Columns 651 through 660

-0.1834 -0.1849 -0.1865 -0.1880 -0.1896 -0.1912 -0.1928 -0.1944 -0.1960 -0.1977

Columns 661 through 670

-0.1993 -0.2010 -0.2026 -0.2043 -0.2060 -0.2077 -0.2094 -0.2112 -0.2129 -0.2147

Columns 671 through 680

-0.2164 -0.2182 -0.2200 -0.2218 -0.2236 -0.2254 -0.2273 -0.2291 -0.2310 -0.2328

Columns 681 through 690

-0.2347 -0.2366 -0.2385 -0.2405 -0.2424 -0.2444 -0.2463 -0.2483 -0.2503 -0.2523

Columns 691 through 700

-0.2543 -0.2563 -0.2584 -0.2605 -0.2625 -0.2646 -0.2667 -0.2688 -0.2709 -0.2731

Columns 701 through 710

-0.2752 -0.2774 -0.2796 -0.2818 -0.2840 -0.2862 -0.2885 -0.2907 -0.2930 -0.2953

Columns 711 through 720

-0.2976 -0.2999 -0.3022 -0.3046 -0.3069 -0.3093 -0.3117 -0.3141 -0.3165 -0.3190

Columns 721 through 730

-0.3214 -0.3239 -0.3264 -0.3289 -0.3314 -0.3339 -0.3365 -0.3390 -0.3416 -0.3442

Columns 731 through 740

-0.3468 -0.3495 -0.3521 -0.3548 -0.3574 -0.3601 -0.3629 -0.3656 -0.3683 -0.3711

Columns 741 through 750

-0.3739 -0.3767 -0.3795 -0.3823 -0.3852 -0.3881 -0.3909 -0.3939 -0.3968 -0.3997

Columns 751 through 760

-0.4027 -0.4057 -0.4087 -0.4117 -0.4147 -0.4178 -0.4208 -0.4239 -0.4270 -0.4301

Columns 761 through 770

-0.4333 -0.4365 -0.4396 -0.4428 -0.4461 -0.4493 -0.4526 -0.4559 -0.4592 -0.4625

Columns 771 through 780

-0.4658 -0.4692 -0.4726 -0.4760 -0.4794 -0.4828 -0.4863 -0.4898 -0.4933 -0.4968

Columns 781 through 790

-0.5004 -0.5039 -0.5075 -0.5111 -0.5148 -0.5184 -0.5221 -0.5258 -0.5295 -0.5333

Columns 791 through 800

-0.5370 -0.5408 -0.5446 -0.5484 -0.5523 -0.5562 -0.5601 -0.5640 -0.5679 -0.5719

Columns 801 through 810

-0.5759 -0.5799 -0.5839 -0.5880 -0.5921 -0.5962 -0.6003 -0.6045 -0.6086 -0.6128

Columns 811 through 820

-0.6171 -0.6213 -0.6256 -0.6299 -0.6342 -0.6386 -0.6429 -0.6473 -0.6517 -0.6562

Columns 821 through 830

-0.6607 -0.6652 -0.6697 -0.6742 -0.6788 -0.6834 -0.6880 -0.6927 -0.6974 -0.7021

Columns 831 through 840

-0.7068 -0.7116 -0.7164 -0.7212 -0.7260 -0.7309 -0.7358 -0.7407 -0.7456 -0.7506

Columns 841 through 850

-0.7556 -0.7606 -0.7657 -0.7708 -0.7759 -0.7810 -0.7862 -0.7914 -0.7966 -0.8019

Columns 851 through 860

-0.8072 -0.8125 -0.8178 -0.8232 -0.8286 -0.8340 -0.8395 -0.8450 -0.8505 -0.8561

Columns 861 through 870

-0.8617 -0.8673 -0.8729 -0.8786 -0.8843 -0.8900 -0.8958 -0.9016 -0.9074 -0.9133

Columns 871 through 880

-0.9192 -0.9251 -0.9310 -0.9370 -0.9430 -0.9491 -0.9552 -0.9613 -0.9674 -0.9736

Columns 881 through 890

-0.9798 -0.9861 -0.9923 -0.9987 -1.0050 -1.0114 -1.0178 -1.0242 -1.0307 -1.0372

Columns 891 through 900

-1.0438 -1.0504 -1.0570 -1.0636 -1.0703 -1.0770 -1.0838 -1.0906 -1.0974 -1.1043

Columns 901 through 910

-1.1112 -1.1181 -1.1251 -1.1321 -1.1392 -1.1462 -1.1533 -1.1605 -1.1677 -1.1749

Columns 911 through 920

-1.1822 -1.1895 -1.1968 -1.2042 -1.2116 -1.2191 -1.2266 -1.2341 -1.2417 -1.2493

Columns 921 through 930

-1.2569 -1.2646 -1.2723 -1.2801 -1.2879 -1.2957 -1.3036 -1.3116 -1.3195 -1.3275

Columns 931 through 940

-1.3356 -1.3436 -1.3518 -1.3599 -1.3681 -1.3764 -1.3847 -1.3930 -1.4014 -1.4098

Columns 941 through 950

-1.4183 -1.4268 -1.4353 -1.4439 -1.4525 -1.4612 -1.4699 -1.4786 -1.4874 -1.4963

Columns 951 through 960

-1.5052 -1.5141 -1.5231 -1.5321 -1.5412 -1.5503 -1.5594 -1.5686 -1.5779 -1.5871

Columns 961 through 970

-1.5965 -1.6059 -1.6153 -1.6248 -1.6343 -1.6438 -1.6534 -1.6631 -1.6728 -1.6826

Columns 971 through 980

-1.6924 -1.7022 -1.7121 -1.7220 -1.7320 -1.7421 -1.7522 -1.7623 -1.7725 -1.7827

Columns 981 through 990

-1.7930 -1.8033 -1.8137 -1.8241 -1.8346 -1.8451 -1.8557 -1.8664 -1.8770 -1.8878

Columns 991 through 1,000

-1.8986 -1.9094 -1.9203 -1.9312 -1.9422 -1.9533 -1.9644 -1.9755 -1.9867 -1.9980

Molecular Weight ofN2 : MolecularWeight N2:2.801400e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+25 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 91 through 100

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 101 through 110

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 111 through 120

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 121 through 130

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 131 through 140

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 141 through 150

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 151 through 160

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 161 through 170

-0.0001 -0.0001 -0.0001 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 171 through 180

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 181 through 190

-0.0002 -0.0002 -0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 191 through 200

-0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0004 -0.0004 -0.0004

Columns 201 through 210

-0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0005 -0.0005

Columns 211 through 220

-0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0006 -0.0006

Columns 221 through 230

-0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0007 -0.0007 -0.0007 -0.0007

Columns 231 through 240

-0.0007 -0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0009

Columns 241 through 250

-0.0009 -0.0009 -0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010 -0.0010 -0.0010

Columns 251 through 260

-0.0011 -0.0011 -0.0011 -0.0011 -0.0012 -0.0012 -0.0012 -0.0012 -0.0012 -0.0013

Columns 261 through 270

-0.0013 -0.0013 -0.0013 -0.0014 -0.0014 -0.0014 -0.0014 -0.0015 -0.0015 -0.0015

Columns 271 through 280

-0.0015 -0.0016 -0.0016 -0.0016 -0.0017 -0.0017 -0.0017 -0.0018 -0.0018 -0.0018

Columns 281 through 290

-0.0018 -0.0019 -0.0019 -0.0019 -0.0020 -0.0020 -0.0021 -0.0021 -0.0021 -0.0022

Columns 291 through 300

-0.0022 -0.0022 -0.0023 -0.0023 -0.0023 -0.0024 -0.0024 -0.0025 -0.0025 -0.0026

Columns 301 through 310

-0.0026 -0.0026 -0.0027 -0.0027 -0.0028 -0.0028 -0.0029 -0.0029 -0.0030 -0.0030

Columns 311 through 320

-0.0031 -0.0031 -0.0032 -0.0032 -0.0033 -0.0033 -0.0034 -0.0034 -0.0035 -0.0035

Columns 321 through 330

-0.0036 -0.0036 -0.0037 -0.0037 -0.0038 -0.0039 -0.0039 -0.0040 -0.0040 -0.0041

Columns 331 through 340

-0.0042 -0.0042 -0.0043 -0.0044 -0.0044 -0.0045 -0.0046 -0.0046 -0.0047 -0.0048

Columns 341 through 350

-0.0049 -0.0049 -0.0050 -0.0051 -0.0051 -0.0052 -0.0053 -0.0054 -0.0055 -0.0055

Columns 351 through 360

-0.0056 -0.0057 -0.0058 -0.0059 -0.0060 -0.0060 -0.0061 -0.0062 -0.0063 -0.0064

Columns 361 through 370

-0.0065 -0.0066 -0.0067 -0.0068 -0.0069 -0.0070 -0.0071 -0.0072 -0.0073 -0.0074

Columns 371 through 380

-0.0075 -0.0076 -0.0077 -0.0078 -0.0079 -0.0080 -0.0081 -0.0082 -0.0083 -0.0084

Columns 381 through 390

-0.0086 -0.0087 -0.0088 -0.0089 -0.0090 -0.0091 -0.0093 -0.0094 -0.0095 -0.0096

Columns 391 through 400

-0.0098 -0.0099 -0.0100 -0.0102 -0.0103 -0.0104 -0.0106 -0.0107 -0.0109 -0.0110

Columns 401 through 410

-0.0111 -0.0113 -0.0114 -0.0116 -0.0117 -0.0119 -0.0120 -0.0122 -0.0123 -0.0125

Columns 411 through 420

-0.0127 -0.0128 -0.0130 -0.0132 -0.0133 -0.0135 -0.0137 -0.0138 -0.0140 -0.0142

Columns 421 through 430

-0.0144 -0.0145 -0.0147 -0.0149 -0.0151 -0.0153 -0.0155 -0.0156 -0.0158 -0.0160

Columns 431 through 440

-0.0162 -0.0164 -0.0166 -0.0168 -0.0170 -0.0172 -0.0175 -0.0177 -0.0179 -0.0181

Columns 441 through 450

-0.0183 -0.0185 -0.0187 -0.0190 -0.0192 -0.0194 -0.0197 -0.0199 -0.0201 -0.0204

Columns 451 through 460

-0.0206 -0.0208 -0.0211 -0.0213 -0.0216 -0.0218 -0.0221 -0.0223 -0.0226 -0.0229

Columns 461 through 470

-0.0231 -0.0234 -0.0237 -0.0239 -0.0242 -0.0245 -0.0248 -0.0250 -0.0253 -0.0256

Columns 471 through 480

-0.0259 -0.0262 -0.0265 -0.0268 -0.0271 -0.0274 -0.0277 -0.0280 -0.0283 -0.0286

Columns 481 through 490

-0.0290 -0.0293 -0.0296 -0.0299 -0.0303 -0.0306 -0.0309 -0.0313 -0.0316 -0.0320

Columns 491 through 500

-0.0323 -0.0327 -0.0330 -0.0334 -0.0337 -0.0341 -0.0345 -0.0348 -0.0352 -0.0356

Columns 501 through 510

-0.0360 -0.0363 -0.0367 -0.0371 -0.0375 -0.0379 -0.0383 -0.0387 -0.0391 -0.0395

Columns 511 through 520

-0.0400 -0.0404 -0.0408 -0.0412 -0.0417 -0.0421 -0.0425 -0.0430 -0.0434 -0.0439

Columns 521 through 530

-0.0443 -0.0448 -0.0452 -0.0457 -0.0462 -0.0467 -0.0471 -0.0476 -0.0481 -0.0486

Columns 531 through 540

-0.0491 -0.0496 -0.0501 -0.0506 -0.0511 -0.0516 -0.0521 -0.0527 -0.0532 -0.0537

Columns 541 through 550

-0.0543 -0.0548 -0.0553 -0.0559 -0.0564 -0.0570 -0.0576 -0.0581 -0.0587 -0.0593

Columns 551 through 560

-0.0599 -0.0605 -0.0611 -0.0617 -0.0623 -0.0629 -0.0635 -0.0641 -0.0647 -0.0653

Columns 561 through 570

-0.0660 -0.0666 -0.0673 -0.0679 -0.0686 -0.0692 -0.0699 -0.0705 -0.0712 -0.0719

Columns 571 through 580

-0.0726 -0.0733 -0.0740 -0.0747 -0.0754 -0.0761 -0.0768 -0.0775 -0.0783 -0.0790

Columns 581 through 590

-0.0797 -0.0805 -0.0812 -0.0820 -0.0827 -0.0835 -0.0843 -0.0851 -0.0859 -0.0867

Columns 591 through 600

-0.0875 -0.0883 -0.0891 -0.0899 -0.0907 -0.0915 -0.0924 -0.0932 -0.0941 -0.0949

Columns 601 through 610

-0.0958 -0.0967 -0.0975 -0.0984 -0.0993 -0.1002 -0.1011 -0.1020 -0.1029 -0.1039

Columns 611 through 620

-0.1048 -0.1057 -0.1067 -0.1076 -0.1086 -0.1095 -0.1105 -0.1115 -0.1125 -0.1135

Columns 621 through 630

-0.1145 -0.1155 -0.1165 -0.1175 -0.1185 -0.1196 -0.1206 -0.1217 -0.1227 -0.1238

Columns 631 through 640

-0.1249 -0.1260 -0.1271 -0.1282 -0.1293 -0.1304 -0.1315 -0.1326 -0.1338 -0.1349

Columns 641 through 650

-0.1361 -0.1372 -0.1384 -0.1396 -0.1408 -0.1420 -0.1432 -0.1444 -0.1456 -0.1469

Columns 651 through 660

-0.1481 -0.1494 -0.1506 -0.1519 -0.1532 -0.1544 -0.1557 -0.1570 -0.1583 -0.1597

Columns 661 through 670

-0.1610 -0.1623 -0.1637 -0.1650 -0.1664 -0.1678 -0.1692 -0.1706 -0.1720 -0.1734

Columns 671 through 680

-0.1748 -0.1762 -0.1777 -0.1791 -0.1806 -0.1821 -0.1836 -0.1851 -0.1866 -0.1881

Columns 681 through 690

-0.1896 -0.1911 -0.1927 -0.1942 -0.1958 -0.1974 -0.1990 -0.2006 -0.2022 -0.2038

Columns 691 through 700

-0.2054 -0.2071 -0.2087 -0.2104 -0.2121 -0.2137 -0.2154 -0.2171 -0.2189 -0.2206

Columns 701 through 710

-0.2223 -0.2241 -0.2258 -0.2276 -0.2294 -0.2312 -0.2330 -0.2348 -0.2367 -0.2385

Columns 711 through 720

-0.2404 -0.2422 -0.2441 -0.2460 -0.2479 -0.2498 -0.2518 -0.2537 -0.2557 -0.2576

Columns 721 through 730

-0.2596 -0.2616 -0.2636 -0.2656 -0.2677 -0.2697 -0.2718 -0.2739 -0.2759 -0.2780

Columns 731 through 740

-0.2801 -0.2823 -0.2844 -0.2866 -0.2887 -0.2909 -0.2931 -0.2953 -0.2975 -0.2998

Columns 741 through 750

-0.3020 -0.3043 -0.3065 -0.3088 -0.3111 -0.3134 -0.3158 -0.3181 -0.3205 -0.3229

Columns 751 through 760

-0.3253 -0.3277 -0.3301 -0.3325 -0.3350 -0.3374 -0.3399 -0.3424 -0.3449 -0.3474

Columns 761 through 770

-0.3500 -0.3525 -0.3551 -0.3577 -0.3603 -0.3629 -0.3656 -0.3682 -0.3709 -0.3736

Columns 771 through 780

-0.3763 -0.3790 -0.3817 -0.3845 -0.3872 -0.3900 -0.3928 -0.3956 -0.3985 -0.4013

Columns 781 through 790

-0.4042 -0.4070 -0.4099 -0.4129 -0.4158 -0.4188 -0.4217 -0.4247 -0.4277 -0.4307

Columns 791 through 800

-0.4338 -0.4368 -0.4399 -0.4430 -0.4461 -0.4492 -0.4524 -0.4556 -0.4587 -0.4619

Columns 801 through 810

-0.4652 -0.4684 -0.4717 -0.4749 -0.4782 -0.4816 -0.4849 -0.4882 -0.4916 -0.4950

Columns 811 through 820

-0.4984 -0.5019 -0.5053 -0.5088 -0.5123 -0.5158 -0.5193 -0.5229 -0.5264 -0.5300

Columns 821 through 830

-0.5336 -0.5373 -0.5409 -0.5446 -0.5483 -0.5520 -0.5558 -0.5595 -0.5633 -0.5671

Columns 831 through 840

-0.5709 -0.5748 -0.5786 -0.5825 -0.5864 -0.5903 -0.5943 -0.5983 -0.6023 -0.6063

Columns 841 through 850

-0.6103 -0.6144 -0.6185 -0.6226 -0.6267 -0.6309 -0.6350 -0.6392 -0.6435 -0.6477

Columns 851 through 860

-0.6520 -0.6563 -0.6606 -0.6649 -0.6693 -0.6737 -0.6781 -0.6825 -0.6870 -0.6915

Columns 861 through 870

-0.6960 -0.7005 -0.7051 -0.7097 -0.7143 -0.7189 -0.7236 -0.7282 -0.7329 -0.7377

Columns 871 through 880

-0.7424 -0.7472 -0.7520 -0.7569 -0.7617 -0.7666 -0.7715 -0.7765 -0.7814 -0.7864

Columns 881 through 890

-0.7914 -0.7965 -0.8015 -0.8066 -0.8118 -0.8169 -0.8221 -0.8273 -0.8325 -0.8378

Columns 891 through 900

-0.8431 -0.8484 -0.8538 -0.8591 -0.8645 -0.8700 -0.8754 -0.8809 -0.8864 -0.8920

Columns 901 through 910

-0.8975 -0.9031 -0.9088 -0.9144 -0.9201 -0.9259 -0.9316 -0.9374 -0.9432 -0.9490

Columns 911 through 920

-0.9549 -0.9608 -0.9667 -0.9727 -0.9787 -0.9847 -0.9907 -0.9968 -1.0029 -1.0091

Columns 921 through 930

-1.0153 -1.0215 -1.0277 -1.0340 -1.0403 -1.0466 -1.0530 -1.0594 -1.0658 -1.0723

Columns 931 through 940

-1.0788 -1.0853 -1.0919 -1.0985 -1.1051 -1.1118 -1.1185 -1.1252 -1.1319 -1.1387

Columns 941 through 950

-1.1456 -1.1524 -1.1593 -1.1663 -1.1732 -1.1802 -1.1873 -1.1943 -1.2015 -1.2086

Columns 951 through 960

-1.2158 -1.2230 -1.2302 -1.2375 -1.2448 -1.2522 -1.2596 -1.2670 -1.2745 -1.2820

Columns 961 through 970

-1.2895 -1.2971 -1.3047 -1.3124 -1.3201 -1.3278 -1.3355 -1.3433 -1.3512 -1.3591

Columns 971 through 980

-1.3670 -1.3749 -1.3829 -1.3910 -1.3990 -1.4071 -1.4153 -1.4235 -1.4317 -1.4400

Columns 981 through 990

-1.4483 -1.4566 -1.4650 -1.4734 -1.4819 -1.4904 -1.4989 -1.5075 -1.5162 -1.5248

Columns 991 through 1,000

-1.5335 -1.5423 -1.5511 -1.5599 -1.5688 -1.5777 -1.5867 -1.5957 -1.6047 -1.6138

Molecular Weight ofAR : MolecularWeight AR:3.994800e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 91 through 100

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 101 through 110

-0.0000 -0.0000 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 111 through 120

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 121 through 130

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 131 through 140

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 141 through 150

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 151 through 160

-0.0002 -0.0002 -0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 161 through 170

-0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004

Columns 171 through 180

-0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005

Columns 181 through 190

-0.0005 -0.0005 -0.0005 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006

Columns 191 through 200

-0.0007 -0.0007 -0.0007 -0.0007 -0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008

Columns 201 through 210

-0.0008 -0.0009 -0.0009 -0.0009 -0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010

Columns 211 through 220

-0.0010 -0.0011 -0.0011 -0.0011 -0.0011 -0.0012 -0.0012 -0.0012 -0.0012 -0.0013

Columns 221 through 230

-0.0013 -0.0013 -0.0013 -0.0014 -0.0014 -0.0014 -0.0015 -0.0015 -0.0015 -0.0016

Columns 231 through 240

-0.0016 -0.0016 -0.0017 -0.0017 -0.0017 -0.0018 -0.0018 -0.0018 -0.0019 -0.0019

Columns 241 through 250

-0.0019 -0.0020 -0.0020 -0.0021 -0.0021 -0.0021 -0.0022 -0.0022 -0.0023 -0.0023

Columns 251 through 260

-0.0024 -0.0024 -0.0025 -0.0025 -0.0025 -0.0026 -0.0026 -0.0027 -0.0027 -0.0028

Columns 261 through 270

-0.0029 -0.0029 -0.0030 -0.0030 -0.0031 -0.0031 -0.0032 -0.0032 -0.0033 -0.0034

Columns 271 through 280

-0.0034 -0.0035 -0.0035 -0.0036 -0.0037 -0.0037 -0.0038 -0.0039 -0.0039 -0.0040

Columns 281 through 290

-0.0041 -0.0042 -0.0042 -0.0043 -0.0044 -0.0045 -0.0045 -0.0046 -0.0047 -0.0048

Columns 291 through 300

-0.0049 -0.0049 -0.0050 -0.0051 -0.0052 -0.0053 -0.0054 -0.0055 -0.0055 -0.0056

Columns 301 through 310

-0.0057 -0.0058 -0.0059 -0.0060 -0.0061 -0.0062 -0.0063 -0.0064 -0.0065 -0.0066

Columns 311 through 320

-0.0067 -0.0069 -0.0070 -0.0071 -0.0072 -0.0073 -0.0074 -0.0075 -0.0077 -0.0078

Columns 321 through 330

-0.0079 -0.0080 -0.0082 -0.0083 -0.0084 -0.0085 -0.0087 -0.0088 -0.0089 -0.0091

Columns 331 through 340

-0.0092 -0.0094 -0.0095 -0.0097 -0.0098 -0.0099 -0.0101 -0.0103 -0.0104 -0.0106

Columns 341 through 350

-0.0107 -0.0109 -0.0110 -0.0112 -0.0114 -0.0115 -0.0117 -0.0119 -0.0121 -0.0122

Columns 351 through 360

-0.0124 -0.0126 -0.0128 -0.0130 -0.0132 -0.0133 -0.0135 -0.0137 -0.0139 -0.0141

Columns 361 through 370

-0.0143 -0.0145 -0.0147 -0.0149 -0.0152 -0.0154 -0.0156 -0.0158 -0.0160 -0.0163

Columns 371 through 380

-0.0165 -0.0167 -0.0169 -0.0172 -0.0174 -0.0177 -0.0179 -0.0181 -0.0184 -0.0186

Columns 381 through 390

-0.0189 -0.0192 -0.0194 -0.0197 -0.0199 -0.0202 -0.0205 -0.0208 -0.0210 -0.0213

Columns 391 through 400

-0.0216 -0.0219 -0.0222 -0.0225 -0.0228 -0.0231 -0.0234 -0.0237 -0.0240 -0.0243

Columns 401 through 410

-0.0246 -0.0249 -0.0253 -0.0256 -0.0259 -0.0263 -0.0266 -0.0269 -0.0273 -0.0276

Columns 411 through 420

-0.0280 -0.0283 -0.0287 -0.0291 -0.0294 -0.0298 -0.0302 -0.0306 -0.0309 -0.0313

Columns 421 through 430

-0.0317 -0.0321 -0.0325 -0.0329 -0.0333 -0.0337 -0.0342 -0.0346 -0.0350 -0.0354

Columns 431 through 440

-0.0359 -0.0363 -0.0367 -0.0372 -0.0376 -0.0381 -0.0386 -0.0390 -0.0395 -0.0400

Columns 441 through 450

-0.0404 -0.0409 -0.0414 -0.0419 -0.0424 -0.0429 -0.0434 -0.0439 -0.0445 -0.0450

Columns 451 through 460

-0.0455 -0.0460 -0.0466 -0.0471 -0.0477 -0.0482 -0.0488 -0.0494 -0.0499 -0.0505

Columns 461 through 470

-0.0511 -0.0517 -0.0523 -0.0529 -0.0535 -0.0541 -0.0547 -0.0553 -0.0560 -0.0566

Columns 471 through 480

-0.0572 -0.0579 -0.0585 -0.0592 -0.0598 -0.0605 -0.0612 -0.0619 -0.0626 -0.0633

Columns 481 through 490

-0.0640 -0.0647 -0.0654 -0.0661 -0.0668 -0.0676 -0.0683 -0.0691 -0.0698 -0.0706

Columns 491 through 500

-0.0714 -0.0721 -0.0729 -0.0737 -0.0745 -0.0753 -0.0761 -0.0769 -0.0778 -0.0786

Columns 501 through 510

-0.0794 -0.0803 -0.0812 -0.0820 -0.0829 -0.0838 -0.0847 -0.0856 -0.0865 -0.0874

Columns 511 through 520

-0.0883 -0.0892 -0.0901 -0.0911 -0.0920 -0.0930 -0.0940 -0.0949 -0.0959 -0.0969

Columns 521 through 530

-0.0979 -0.0989 -0.1000 -0.1010 -0.1020 -0.1031 -0.1041 -0.1052 -0.1063 -0.1073

Columns 531 through 540

-0.1084 -0.1095 -0.1106 -0.1118 -0.1129 -0.1140 -0.1152 -0.1163 -0.1175 -0.1187

Columns 541 through 550

-0.1199 -0.1211 -0.1223 -0.1235 -0.1247 -0.1259 -0.1272 -0.1284 -0.1297 -0.1310

Columns 551 through 560

-0.1323 -0.1336 -0.1349 -0.1362 -0.1375 -0.1389 -0.1402 -0.1416 -0.1430 -0.1444

Columns 561 through 570

-0.1458 -0.1472 -0.1486 -0.1500 -0.1514 -0.1529 -0.1544 -0.1558 -0.1573 -0.1588

Columns 571 through 580

-0.1603 -0.1619 -0.1634 -0.1650 -0.1665 -0.1681 -0.1697 -0.1713 -0.1729 -0.1745

Columns 581 through 590

-0.1761 -0.1778 -0.1794 -0.1811 -0.1828 -0.1845 -0.1862 -0.1879 -0.1897 -0.1914

Columns 591 through 600

-0.1932 -0.1950 -0.1968 -0.1986 -0.2004 -0.2022 -0.2041 -0.2060 -0.2078 -0.2097

Columns 601 through 610

-0.2116 -0.2135 -0.2155 -0.2174 -0.2194 -0.2214 -0.2234 -0.2254 -0.2274 -0.2294

Columns 611 through 620

-0.2315 -0.2336 -0.2356 -0.2377 -0.2399 -0.2420 -0.2441 -0.2463 -0.2485 -0.2507

Columns 621 through 630

-0.2529 -0.2551 -0.2574 -0.2596 -0.2619 -0.2642 -0.2665 -0.2688 -0.2712 -0.2735

Columns 631 through 640

-0.2759 -0.2783 -0.2807 -0.2831 -0.2856 -0.2881 -0.2905 -0.2930 -0.2956 -0.2981

Columns 641 through 650

-0.3006 -0.3032 -0.3058 -0.3084 -0.3110 -0.3137 -0.3164 -0.3190 -0.3217 -0.3245

Columns 651 through 660

-0.3272 -0.3300 -0.3327 -0.3355 -0.3384 -0.3412 -0.3441 -0.3469 -0.3498 -0.3528

Columns 661 through 670

-0.3557 -0.3586 -0.3616 -0.3646 -0.3676 -0.3707 -0.3738 -0.3768 -0.3799 -0.3831

Columns 671 through 680

-0.3862 -0.3894 -0.3926 -0.3958 -0.3990 -0.4023 -0.4056 -0.4089 -0.4122 -0.4155

Columns 681 through 690

-0.4189 -0.4223 -0.4257 -0.4291 -0.4326 -0.4361 -0.4396 -0.4431 -0.4467 -0.4502

Columns 691 through 700

-0.4538 -0.4575 -0.4611 -0.4648 -0.4685 -0.4722 -0.4759 -0.4797 -0.4835 -0.4873

Columns 701 through 710

-0.4912 -0.4951 -0.4990 -0.5029 -0.5068 -0.5108 -0.5148 -0.5188 -0.5229 -0.5269

Columns 711 through 720

-0.5311 -0.5352 -0.5393 -0.5435 -0.5477 -0.5520 -0.5562 -0.5605 -0.5649 -0.5692

Columns 721 through 730

-0.5736 -0.5780 -0.5824 -0.5869 -0.5914 -0.5959 -0.6004 -0.6050 -0.6096 -0.6143

Columns 731 through 740

-0.6189 -0.6236 -0.6283 -0.6331 -0.6379 -0.6427 -0.6475 -0.6524 -0.6573 -0.6622

Columns 741 through 750

-0.6672 -0.6722 -0.6772 -0.6823 -0.6874 -0.6925 -0.6977 -0.7028 -0.7081 -0.7133

Columns 751 through 760

-0.7186 -0.7239 -0.7292 -0.7346 -0.7400 -0.7455 -0.7510 -0.7565 -0.7620 -0.7676

Columns 761 through 770

-0.7732 -0.7789 -0.7846 -0.7903 -0.7960 -0.8018 -0.8076 -0.8135 -0.8194 -0.8253

Columns 771 through 780

-0.8313 -0.8373 -0.8433 -0.8494 -0.8555 -0.8616 -0.8678 -0.8740 -0.8803 -0.8866

Columns 781 through 790

-0.8929 -0.8993 -0.9057 -0.9121 -0.9186 -0.9251 -0.9317 -0.9383 -0.9449 -0.9516

Columns 791 through 800

-0.9583 -0.9651 -0.9719 -0.9787 -0.9856 -0.9925 -0.9995 -1.0064 -1.0135 -1.0206

Columns 801 through 810

-1.0277 -1.0348 -1.0420 -1.0493 -1.0566 -1.0639 -1.0713 -1.0787 -1.0861 -1.0936

Columns 811 through 820

-1.1012 -1.1087 -1.1164 -1.1240 -1.1318 -1.1395 -1.1473 -1.1552 -1.1631 -1.1710

Columns 821 through 830

-1.1790 -1.1870 -1.1951 -1.2032 -1.2114 -1.2196 -1.2278 -1.2361 -1.2445 -1.2529

Columns 831 through 840

-1.2613 -1.2698 -1.2783 -1.2869 -1.2956 -1.3042 -1.3130 -1.3218 -1.3306 -1.3395

Columns 841 through 850

-1.3484 -1.3574 -1.3664 -1.3755 -1.3846 -1.3938 -1.4030 -1.4123 -1.4216 -1.4310

Columns 851 through 860

-1.4404 -1.4499 -1.4594 -1.4690 -1.4787 -1.4884 -1.4981 -1.5079 -1.5178 -1.5277

Columns 861 through 870

-1.5376 -1.5476 -1.5577 -1.5678 -1.5780 -1.5882 -1.5985 -1.6089 -1.6193 -1.6297

Columns 871 through 880

-1.6402 -1.6508 -1.6614 -1.6721 -1.6829 -1.6937 -1.7045 -1.7154 -1.7264 -1.7374

Columns 881 through 890

-1.7485 -1.7597 -1.7709 -1.7821 -1.7934 -1.8048 -1.8163 -1.8278 -1.8393 -1.8510

Columns 891 through 900

-1.8627 -1.8744 -1.8862 -1.8981 -1.9100 -1.9220 -1.9341 -1.9462 -1.9584 -1.9706

Columns 901 through 910

-1.9829 -1.9953 -2.0078 -2.0203 -2.0328 -2.0455 -2.0582 -2.0709 -2.0838 -2.0967

Columns 911 through 920

-2.1096 -2.1227 -2.1358 -2.1489 -2.1622 -2.1755 -2.1888 -2.2023 -2.2158 -2.2294

Columns 921 through 930

-2.2430 -2.2567 -2.2705 -2.2844 -2.2983 -2.3123 -2.3264 -2.3405 -2.3547 -2.3690

Columns 931 through 940

-2.3833 -2.3978 -2.4123 -2.4268 -2.4415 -2.4562 -2.4710 -2.4859 -2.5008 -2.5158

Columns 941 through 950

-2.5309 -2.5461 -2.5613 -2.5766 -2.5920 -2.6075 -2.6230 -2.6387 -2.6544 -2.6701

Columns 951 through 960

-2.6860 -2.7019 -2.7180 -2.7341 -2.7502 -2.7665 -2.7828 -2.7992 -2.8157 -2.8323

Columns 961 through 970

-2.8490 -2.8657 -2.8825 -2.8994 -2.9164 -2.9335 -2.9506 -2.9678 -2.9852 -3.0026

Columns 971 through 980

-3.0201 -3.0376 -3.0553 -3.0730 -3.0908 -3.1088 -3.1268 -3.1448 -3.1630 -3.1813

Columns 981 through 990

-3.1996 -3.2181 -3.2366 -3.2552 -3.2739 -3.2927 -3.3116 -3.3306 -3.3496 -3.3688

Columns 991 through 1,000

-3.3880 -3.4074 -3.4268 -3.4463 -3.4659 -3.4856 -3.5054 -3.5253 -3.5453 -3.5654

Molecular Weight ofC3H8 : MolecularWeight C3H8:4.406700e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 101 through 110

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 111 through 120

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 121 through 130

0.0000 0.0000 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 131 through 140

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 141 through 150

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 151 through 160

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0002

Columns 161 through 170

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 171 through 180

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0003

Columns 181 through 190

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 191 through 200

0.0003 0.0003 0.0003 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004

Columns 201 through 210

0.0004 0.0004 0.0004 0.0004 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005

Columns 211 through 220

0.0005 0.0005 0.0005 0.0006 0.0006 0.0006 0.0006 0.0006 0.0006 0.0006

Columns 221 through 230

0.0007 0.0007 0.0007 0.0007 0.0007 0.0007 0.0007 0.0008 0.0008 0.0008

Columns 231 through 240

0.0008 0.0008 0.0008 0.0009 0.0009 0.0009 0.0009 0.0009 0.0009 0.0010

Columns 241 through 250

0.0010 0.0010 0.0010 0.0010 0.0011 0.0011 0.0011 0.0011 0.0011 0.0012

Columns 251 through 260

0.0012 0.0012 0.0012 0.0013 0.0013 0.0013 0.0013 0.0014 0.0014 0.0014

Columns 261 through 270

0.0014 0.0015 0.0015 0.0015 0.0015 0.0016 0.0016 0.0016 0.0017 0.0017

Columns 271 through 280

0.0017 0.0018 0.0018 0.0018 0.0019 0.0019 0.0019 0.0020 0.0020 0.0020

Columns 281 through 290

0.0021 0.0021 0.0021 0.0022 0.0022 0.0022 0.0023 0.0023 0.0024 0.0024

Columns 291 through 300

0.0024 0.0025 0.0025 0.0026 0.0026 0.0027 0.0027 0.0027 0.0028 0.0028

Columns 301 through 310

0.0029 0.0029 0.0030 0.0030 0.0031 0.0031 0.0032 0.0032 0.0033 0.0033

Columns 311 through 320

0.0034 0.0035 0.0035 0.0036 0.0036 0.0037 0.0037 0.0038 0.0039 0.0039

Columns 321 through 330

0.0040 0.0040 0.0041 0.0042 0.0042 0.0043 0.0044 0.0044 0.0045 0.0046

Columns 331 through 340

0.0046 0.0047 0.0048 0.0049 0.0049 0.0050 0.0051 0.0052 0.0052 0.0053

Columns 341 through 350

0.0054 0.0055 0.0056 0.0056 0.0057 0.0058 0.0059 0.0060 0.0061 0.0062

Columns 351 through 360

0.0063 0.0063 0.0064 0.0065 0.0066 0.0067 0.0068 0.0069 0.0070 0.0071

Columns 361 through 370

0.0072 0.0073 0.0074 0.0075 0.0076 0.0077 0.0079 0.0080 0.0081 0.0082

Columns 371 through 380

0.0083 0.0084 0.0085 0.0087 0.0088 0.0089 0.0090 0.0091 0.0093 0.0094

Columns 381 through 390

0.0095 0.0097 0.0098 0.0099 0.0100 0.0102 0.0103 0.0105 0.0106 0.0107

Columns 391 through 400

0.0109 0.0110 0.0112 0.0113 0.0115 0.0116 0.0118 0.0119 0.0121 0.0122

Columns 401 through 410

0.0124 0.0126 0.0127 0.0129 0.0131 0.0132 0.0134 0.0136 0.0137 0.0139

Columns 411 through 420

0.0141 0.0143 0.0145 0.0146 0.0148 0.0150 0.0152 0.0154 0.0156 0.0158

Columns 421 through 430

0.0160 0.0162 0.0164 0.0166 0.0168 0.0170 0.0172 0.0174 0.0176 0.0179

Columns 431 through 440

0.0181 0.0183 0.0185 0.0187 0.0190 0.0192 0.0194 0.0197 0.0199 0.0201

Columns 441 through 450

0.0204 0.0206 0.0209 0.0211 0.0214 0.0216 0.0219 0.0221 0.0224 0.0227

Columns 451 through 460

0.0229 0.0232 0.0235 0.0237 0.0240 0.0243 0.0246 0.0249 0.0252 0.0255

Columns 461 through 470

0.0257 0.0260 0.0263 0.0266 0.0269 0.0273 0.0276 0.0279 0.0282 0.0285

Columns 471 through 480

0.0288 0.0292 0.0295 0.0298 0.0302 0.0305 0.0308 0.0312 0.0315 0.0319

Columns 481 through 490

0.0322 0.0326 0.0330 0.0333 0.0337 0.0341 0.0344 0.0348 0.0352 0.0356

Columns 491 through 500

0.0360 0.0364 0.0367 0.0371 0.0375 0.0380 0.0384 0.0388 0.0392 0.0396

Columns 501 through 510

0.0400 0.0405 0.0409 0.0413 0.0418 0.0422 0.0427 0.0431 0.0436 0.0440

Columns 511 through 520

0.0445 0.0450 0.0454 0.0459 0.0464 0.0469 0.0474 0.0478 0.0483 0.0488

Columns 521 through 530

0.0493 0.0499 0.0504 0.0509 0.0514 0.0519 0.0525 0.0530 0.0535 0.0541

Columns 531 through 540

0.0546 0.0552 0.0558 0.0563 0.0569 0.0575 0.0580 0.0586 0.0592 0.0598

Columns 541 through 550

0.0604 0.0610 0.0616 0.0622 0.0628 0.0635 0.0641 0.0647 0.0654 0.0660

Columns 551 through 560

0.0667 0.0673 0.0680 0.0686 0.0693 0.0700 0.0707 0.0714 0.0720 0.0727

Columns 561 through 570

0.0734 0.0742 0.0749 0.0756 0.0763 0.0771 0.0778 0.0785 0.0793 0.0800

Columns 571 through 580

0.0808 0.0816 0.0823 0.0831 0.0839 0.0847 0.0855 0.0863 0.0871 0.0879

Columns 581 through 590

0.0888 0.0896 0.0904 0.0913 0.0921 0.0930 0.0938 0.0947 0.0956 0.0965

Columns 591 through 600

0.0974 0.0983 0.0992 0.1001 0.1010 0.1019 0.1028 0.1038 0.1047 0.1057

Columns 601 through 610

0.1066 0.1076 0.1086 0.1096 0.1106 0.1116 0.1126 0.1136 0.1146 0.1156

Columns 611 through 620

0.1167 0.1177 0.1187 0.1198 0.1209 0.1219 0.1230 0.1241 0.1252 0.1263

Columns 621 through 630

0.1274 0.1286 0.1297 0.1308 0.1320 0.1331 0.1343 0.1355 0.1366 0.1378

Columns 631 through 640

0.1390 0.1402 0.1415 0.1427 0.1439 0.1452 0.1464 0.1477 0.1489 0.1502

Columns 641 through 650

0.1515 0.1528 0.1541 0.1554 0.1567 0.1581 0.1594 0.1608 0.1621 0.1635

Columns 651 through 660

0.1649 0.1663 0.1677 0.1691 0.1705 0.1719 0.1734 0.1748 0.1763 0.1778

Columns 661 through 670

0.1792 0.1807 0.1822 0.1837 0.1853 0.1868 0.1883 0.1899 0.1915 0.1930

Columns 671 through 680

0.1946 0.1962 0.1978 0.1994 0.2011 0.2027 0.2044 0.2060 0.2077 0.2094

Columns 681 through 690

0.2111 0.2128 0.2145 0.2163 0.2180 0.2197 0.2215 0.2233 0.2251 0.2269

Columns 691 through 700

0.2287 0.2305 0.2324 0.2342 0.2361 0.2380 0.2398 0.2417 0.2437 0.2456

Columns 701 through 710

0.2475 0.2495 0.2514 0.2534 0.2554 0.2574 0.2594 0.2614 0.2635 0.2655

Columns 711 through 720

0.2676 0.2697 0.2718 0.2739 0.2760 0.2782 0.2803 0.2825 0.2846 0.2868

Columns 721 through 730

0.2890 0.2913 0.2935 0.2957 0.2980 0.3003 0.3026 0.3049 0.3072 0.3095

Columns 731 through 740

0.3119 0.3143 0.3166 0.3190 0.3214 0.3239 0.3263 0.3288 0.3312 0.3337

Columns 741 through 750

0.3362 0.3387 0.3413 0.3438 0.3464 0.3490 0.3516 0.3542 0.3568 0.3595

Columns 751 through 760

0.3621 0.3648 0.3675 0.3702 0.3729 0.3757 0.3784 0.3812 0.3840 0.3868

Columns 761 through 770

0.3896 0.3925 0.3954 0.3982 0.4011 0.4041 0.4070 0.4099 0.4129 0.4159

Columns 771 through 780

0.4189 0.4219 0.4250 0.4280 0.4311 0.4342 0.4373 0.4405 0.4436 0.4468

Columns 781 through 790

0.4500 0.4532 0.4564 0.4597 0.4629 0.4662 0.4695 0.4728 0.4762 0.4795

Columns 791 through 800

0.4829 0.4863 0.4898 0.4932 0.4967 0.5001 0.5037 0.5072 0.5107 0.5143

Columns 801 through 810

0.5179 0.5215 0.5251 0.5288 0.5324 0.5361 0.5398 0.5436 0.5473 0.5511

Columns 811 through 820

0.5549 0.5587 0.5626 0.5664 0.5703 0.5742 0.5782 0.5821 0.5861 0.5901

Columns 821 through 830

0.5941 0.5982 0.6022 0.6063 0.6104 0.6146 0.6187 0.6229 0.6271 0.6314

Columns 831 through 840

0.6356 0.6399 0.6442 0.6485 0.6529 0.6572 0.6616 0.6661 0.6705 0.6750

Columns 841 through 850

0.6795 0.6840 0.6886 0.6931 0.6977 0.7024 0.7070 0.7117 0.7164 0.7211

Columns 851 through 860

0.7259 0.7306 0.7355 0.7403 0.7451 0.7500 0.7549 0.7599 0.7648 0.7698

Columns 861 through 870

0.7749 0.7799 0.7850 0.7901 0.7952 0.8004 0.8055 0.8108 0.8160 0.8213

Columns 871 through 880

0.8266 0.8319 0.8372 0.8426 0.8480 0.8535 0.8589 0.8644 0.8700 0.8755

Columns 881 through 890

0.8811 0.8867 0.8924 0.8981 0.9038 0.9095 0.9153 0.9211 0.9269 0.9328

Columns 891 through 900

0.9386 0.9446 0.9505 0.9565 0.9625 0.9686 0.9746 0.9807 0.9869 0.9931

Columns 901 through 910

0.9993 1.0055 1.0118 1.0181 1.0244 1.0308 1.0372 1.0436 1.0501 1.0566

Columns 911 through 920

1.0631 1.0697 1.0763 1.0829 1.0896 1.0963 1.1030 1.1098 1.1166 1.1234

Columns 921 through 930

1.1303 1.1372 1.1442 1.1512 1.1582 1.1652 1.1723 1.1794 1.1866 1.1938

Columns 931 through 940

1.2010 1.2083 1.2156 1.2229 1.2303 1.2377 1.2452 1.2527 1.2602 1.2678

Columns 941 through 950

1.2754 1.2830 1.2907 1.2984 1.3062 1.3140 1.3218 1.3297 1.3376 1.3456

Columns 951 through 960

1.3536 1.3616 1.3697 1.3778 1.3859 1.3941 1.4023 1.4106 1.4189 1.4273

Columns 961 through 970

1.4357 1.4441 1.4526 1.4611 1.4697 1.4783 1.4869 1.4956 1.5043 1.5131

Columns 971 through 980

1.5219 1.5307 1.5396 1.5486 1.5576 1.5666 1.5757 1.5848 1.5939 1.6031

Columns 981 through 990

1.6124 1.6217 1.6310 1.6404 1.6498 1.6593 1.6688 1.6784 1.6880 1.6976

Columns 991 through 1,000

1.7073 1.7171 1.7269 1.7367 1.7466 1.7565 1.7665 1.7765 1.7866 1.7967

Molecular Weight ofC3H7 : MolecularWeight C3H7:4.305900e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+26 *

Columns 1 through 10

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 11 through 20

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 21 through 30

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 31 through 40

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 41 through 50

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 51 through 60

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 61 through 70

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 71 through 80

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 81 through 90

-0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000 -0.0000

Columns 91 through 100

-0.0000 -0.0000 -0.0000 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 101 through 110

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 111 through 120

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0001

Columns 121 through 130

-0.0001 -0.0001 -0.0001 -0.0001 -0.0001 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 131 through 140

-0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002 -0.0002

Columns 141 through 150

-0.0002 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003 -0.0003

Columns 151 through 160

-0.0003 -0.0003 -0.0003 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004 -0.0004

Columns 161 through 170

-0.0004 -0.0004 -0.0004 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005 -0.0005

Columns 171 through 180

-0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0006 -0.0007 -0.0007 -0.0007

Columns 181 through 190

-0.0007 -0.0007 -0.0007 -0.0008 -0.0008 -0.0008 -0.0008 -0.0008 -0.0009 -0.0009

Columns 191 through 200

-0.0009 -0.0009 -0.0010 -0.0010 -0.0010 -0.0010 -0.0010 -0.0011 -0.0011 -0.0011

Columns 201 through 210

-0.0011 -0.0012 -0.0012 -0.0012 -0.0013 -0.0013 -0.0013 -0.0013 -0.0014 -0.0014

Columns 211 through 220

-0.0014 -0.0015 -0.0015 -0.0015 -0.0016 -0.0016 -0.0016 -0.0017 -0.0017 -0.0017

Columns 221 through 230

-0.0018 -0.0018 -0.0018 -0.0019 -0.0019 -0.0020 -0.0020 -0.0021 -0.0021 -0.0021

Columns 231 through 240

-0.0022 -0.0022 -0.0023 -0.0023 -0.0024 -0.0024 -0.0025 -0.0025 -0.0026 -0.0026

Columns 241 through 250

-0.0027 -0.0027 -0.0028 -0.0028 -0.0029 -0.0029 -0.0030 -0.0031 -0.0031 -0.0032

Columns 251 through 260

-0.0032 -0.0033 -0.0034 -0.0034 -0.0035 -0.0036 -0.0036 -0.0037 -0.0038 -0.0038

Columns 261 through 270

-0.0039 -0.0040 -0.0041 -0.0041 -0.0042 -0.0043 -0.0044 -0.0044 -0.0045 -0.0046

Columns 271 through 280

-0.0047 -0.0048 -0.0049 -0.0050 -0.0050 -0.0051 -0.0052 -0.0053 -0.0054 -0.0055

Columns 281 through 290

-0.0056 -0.0057 -0.0058 -0.0059 -0.0060 -0.0061 -0.0062 -0.0063 -0.0064 -0.0065

Columns 291 through 300

-0.0067 -0.0068 -0.0069 -0.0070 -0.0071 -0.0072 -0.0074 -0.0075 -0.0076 -0.0077

Columns 301 through 310

-0.0079 -0.0080 -0.0081 -0.0083 -0.0084 -0.0085 -0.0087 -0.0088 -0.0090 -0.0091

Columns 311 through 320

-0.0093 -0.0094 -0.0096 -0.0097 -0.0099 -0.0100 -0.0102 -0.0103 -0.0105 -0.0107

Columns 321 through 330

-0.0108 -0.0110 -0.0112 -0.0114 -0.0115 -0.0117 -0.0119 -0.0121 -0.0123 -0.0125

Columns 331 through 340

-0.0127 -0.0128 -0.0130 -0.0132 -0.0134 -0.0137 -0.0139 -0.0141 -0.0143 -0.0145

Columns 341 through 350

-0.0147 -0.0149 -0.0152 -0.0154 -0.0156 -0.0158 -0.0161 -0.0163 -0.0165 -0.0168

Columns 351 through 360

-0.0170 -0.0173 -0.0175 -0.0178 -0.0180 -0.0183 -0.0186 -0.0188 -0.0191 -0.0194

Columns 361 through 370

-0.0197 -0.0199 -0.0202 -0.0205 -0.0208 -0.0211 -0.0214 -0.0217 -0.0220 -0.0223

Columns 371 through 380

-0.0226 -0.0229 -0.0232 -0.0236 -0.0239 -0.0242 -0.0246 -0.0249 -0.0252 -0.0256

Columns 381 through 390

-0.0259 -0.0263 -0.0266 -0.0270 -0.0274 -0.0277 -0.0281 -0.0285 -0.0289 -0.0292

Columns 391 through 400

-0.0296 -0.0300 -0.0304 -0.0308 -0.0312 -0.0317 -0.0321 -0.0325 -0.0329 -0.0333

Columns 401 through 410

-0.0338 -0.0342 -0.0347 -0.0351 -0.0356 -0.0360 -0.0365 -0.0370 -0.0374 -0.0379

Columns 411 through 420

-0.0384 -0.0389 -0.0394 -0.0399 -0.0404 -0.0409 -0.0414 -0.0419 -0.0424 -0.0430

Columns 421 through 430

-0.0435 -0.0441 -0.0446 -0.0452 -0.0457 -0.0463 -0.0469 -0.0474 -0.0480 -0.0486

Columns 431 through 440

-0.0492 -0.0498 -0.0504 -0.0510 -0.0516 -0.0523 -0.0529 -0.0535 -0.0542 -0.0548

Columns 441 through 450

-0.0555 -0.0562 -0.0568 -0.0575 -0.0582 -0.0589 -0.0596 -0.0603 -0.0610 -0.0617

Columns 451 through 460

-0.0624 -0.0632 -0.0639 -0.0647 -0.0654 -0.0662 -0.0669 -0.0677 -0.0685 -0.0693

Columns 461 through 470

-0.0701 -0.0709 -0.0717 -0.0725 -0.0734 -0.0742 -0.0750 -0.0759 -0.0768 -0.0776

Columns 471 through 480

-0.0785 -0.0794 -0.0803 -0.0812 -0.0821 -0.0830 -0.0840 -0.0849 -0.0858 -0.0868

Columns 481 through 490

-0.0878 -0.0887 -0.0897 -0.0907 -0.0917 -0.0927 -0.0937 -0.0948 -0.0958 -0.0968

Columns 491 through 500

-0.0979 -0.0990 -0.1000 -0.1011 -0.1022 -0.1033 -0.1044 -0.1056 -0.1067 -0.1078

Columns 501 through 510

-0.1090 -0.1102 -0.1113 -0.1125 -0.1137 -0.1149 -0.1161 -0.1174 -0.1186 -0.1199

Columns 511 through 520

-0.1211 -0.1224 -0.1237 -0.1250 -0.1263 -0.1276 -0.1289 -0.1303 -0.1316 -0.1330

Columns 521 through 530

-0.1344 -0.1357 -0.1371 -0.1386 -0.1400 -0.1414 -0.1429 -0.1443 -0.1458 -0.1473

Columns 531 through 540

-0.1488 -0.1503 -0.1518 -0.1533 -0.1549 -0.1564 -0.1580 -0.1596 -0.1612 -0.1628

Columns 541 through 550

-0.1645 -0.1661 -0.1677 -0.1694 -0.1711 -0.1728 -0.1745 -0.1762 -0.1780 -0.1797

Columns 551 through 560

-0.1815 -0.1833 -0.1851 -0.1869 -0.1887 -0.1905 -0.1924 -0.1943 -0.1962 -0.1981

Columns 561 through 570

-0.2000 -0.2019 -0.2038 -0.2058 -0.2078 -0.2098 -0.2118 -0.2138 -0.2159 -0.2179

Columns 571 through 580

-0.2200 -0.2221 -0.2242 -0.2263 -0.2285 -0.2306 -0.2328 -0.2350 -0.2372 -0.2394

Columns 581 through 590

-0.2417 -0.2439 -0.2462 -0.2485 -0.2508 -0.2531 -0.2555 -0.2579 -0.2602 -0.2626

Columns 591 through 600

-0.2651 -0.2675 -0.2700 -0.2725 -0.2750 -0.2775 -0.2800 -0.2826 -0.2851 -0.2877

Columns 601 through 610

-0.2903 -0.2930 -0.2956 -0.2983 -0.3010 -0.3037 -0.3065 -0.3092 -0.3120 -0.3148

Columns 611 through 620

-0.3176 -0.3204 -0.3233 -0.3262 -0.3291 -0.3320 -0.3350 -0.3379 -0.3409 -0.3439

Columns 621 through 630

-0.3470 -0.3500 -0.3531 -0.3562 -0.3593 -0.3625 -0.3656 -0.3688 -0.3720 -0.3753

Columns 631 through 640

-0.3785 -0.3818 -0.3851 -0.3885 -0.3918 -0.3952 -0.3986 -0.4020 -0.4055 -0.4090

Columns 641 through 650

-0.4125 -0.4160 -0.4196 -0.4231 -0.4267 -0.4304 -0.4340 -0.4377 -0.4414 -0.4452

Columns 651 through 660

-0.4489 -0.4527 -0.4565 -0.4604 -0.4642 -0.4681 -0.4720 -0.4760 -0.4800 -0.4840

Columns 661 through 670

-0.4880 -0.4921 -0.4961 -0.5003 -0.5044 -0.5086 -0.5128 -0.5170 -0.5213 -0.5256

Columns 671 through 680

-0.5299 -0.5342 -0.5386 -0.5430 -0.5474 -0.5519 -0.5564 -0.5609 -0.5655 -0.5701

Columns 681 through 690

-0.5747 -0.5794 -0.5840 -0.5888 -0.5935 -0.5983 -0.6031 -0.6079 -0.6128 -0.6177

Columns 691 through 700

-0.6227 -0.6276 -0.6326 -0.6377 -0.6427 -0.6479 -0.6530 -0.6582 -0.6634 -0.6686

Columns 701 through 710

-0.6739 -0.6792 -0.6846 -0.6899 -0.6953 -0.7008 -0.7063 -0.7118 -0.7174 -0.7230

Columns 711 through 720

-0.7286 -0.7343 -0.7400 -0.7457 -0.7515 -0.7573 -0.7632 -0.7690 -0.7750 -0.7809

Columns 721 through 730

-0.7870 -0.7930 -0.7991 -0.8052 -0.8114 -0.8176 -0.8238 -0.8301 -0.8364 -0.8428

Columns 731 through 740

-0.8491 -0.8556 -0.8621 -0.8686 -0.8751 -0.8818 -0.8884 -0.8951 -0.9018 -0.9086

Columns 741 through 750

-0.9154 -0.9222 -0.9291 -0.9361 -0.9431 -0.9501 -0.9572 -0.9643 -0.9714 -0.9786

Columns 751 through 760

-0.9859 -0.9932 -1.0005 -1.0079 -1.0153 -1.0228 -1.0303 -1.0379 -1.0455 -1.0531

Columns 761 through 770

-1.0608 -1.0686 -1.0764 -1.0842 -1.0921 -1.1001 -1.1081 -1.1161 -1.1242 -1.1323

Columns 771 through 780

-1.1405 -1.1487 -1.1570 -1.1653 -1.1737 -1.1822 -1.1906 -1.1992 -1.2078 -1.2164

Columns 781 through 790

-1.2251 -1.2338 -1.2426 -1.2514 -1.2603 -1.2693 -1.2783 -1.2873 -1.2964 -1.3056

Columns 791 through 800

-1.3148 -1.3241 -1.3334 -1.3428 -1.3522 -1.3617 -1.3712 -1.3808 -1.3905 -1.4002

Columns 801 through 810

-1.4100 -1.4198 -1.4297 -1.4396 -1.4496 -1.4596 -1.4698 -1.4799 -1.4901 -1.5004

Columns 811 through 820

-1.5108 -1.5212 -1.5316 -1.5422 -1.5528 -1.5634 -1.5741 -1.5849 -1.5957 -1.6066

Columns 821 through 830

-1.6175 -1.6285 -1.6396 -1.6508 -1.6620 -1.6732 -1.6846 -1.6959 -1.7074 -1.7189

Columns 831 through 840

-1.7305 -1.7422 -1.7539 -1.7656 -1.7775 -1.7894 -1.8014 -1.8134 -1.8255 -1.8377

Columns 841 through 850

-1.8500 -1.8623 -1.8747 -1.8871 -1.8996 -1.9122 -1.9249 -1.9376 -1.9504 -1.9633

Columns 851 through 860

-1.9762 -1.9892 -2.0023 -2.0155 -2.0287 -2.0420 -2.0554 -2.0688 -2.0823 -2.0959

Columns 861 through 870

-2.1096 -2.1233 -2.1372 -2.1510 -2.1650 -2.1790 -2.1932 -2.2074 -2.2216 -2.2360

Columns 871 through 880

-2.2504 -2.2649 -2.2795 -2.2941 -2.3089 -2.3237 -2.3386 -2.3535 -2.3686 -2.3837

Columns 881 through 890

-2.3989 -2.4142 -2.4296 -2.4450 -2.4606 -2.4762 -2.4919 -2.5077 -2.5235 -2.5395

Columns 891 through 900

-2.5555 -2.5716 -2.5878 -2.6041 -2.6205 -2.6370 -2.6535 -2.6701 -2.6869 -2.7037

Columns 901 through 910

-2.7206 -2.7375 -2.7546 -2.7718 -2.7890 -2.8064 -2.8238 -2.8413 -2.8589 -2.8766

Columns 911 through 920

-2.8944 -2.9123 -2.9302 -2.9483 -2.9665 -2.9847 -3.0031 -3.0215 -3.0400 -3.0587

Columns 921 through 930

-3.0774 -3.0962 -3.1151 -3.1341 -3.1532 -3.1724 -3.1917 -3.2111 -3.2306 -3.2502

Columns 931 through 940

-3.2699 -3.2897 -3.3096 -3.3296 -3.3497 -3.3699 -3.3902 -3.4105 -3.4310 -3.4516

Columns 941 through 950

-3.4724 -3.4932 -3.5141 -3.5351 -3.5562 -3.5774 -3.5988 -3.6202 -3.6417 -3.6634

Columns 951 through 960

-3.6852 -3.7070 -3.7290 -3.7511 -3.7733 -3.7956 -3.8180 -3.8405 -3.8631 -3.8859

Columns 961 through 970

-3.9087 -3.9317 -3.9547 -3.9779 -4.0012 -4.0247 -4.0482 -4.0718 -4.0956 -4.1195

Columns 971 through 980

-4.1435 -4.1676 -4.1918 -4.2161 -4.2406 -4.2652 -4.2899 -4.3147 -4.3396 -4.3647

Columns 981 through 990

-4.3898 -4.4151 -4.4405 -4.4661 -4.4917 -4.5175 -4.5434 -4.5695 -4.5956 -4.6219

Columns 991 through 1,000

-4.6483 -4.6748 -4.7015 -4.7283 -4.7552 -4.7822 -4.8094 -4.8367 -4.8641 -4.8916

Molecular Weight ofCH3CHO : MolecularWeight CH3CHO:4.403300e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)

H =

1.0e+25 *

Columns 1 through 10

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 11 through 20

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 21 through 30

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 31 through 40

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 41 through 50

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 51 through 60

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 61 through 70

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 71 through 80

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 81 through 90

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 91 through 100

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 101 through 110

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 111 through 120

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 121 through 130

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000

Columns 131 through 140

0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0000 0.0001

Columns 141 through 150

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 151 through 160

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 161 through 170

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001

Columns 171 through 180

0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 0.0002

Columns 181 through 190

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 191 through 200

0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002 0.0002

Columns 201 through 210

0.0002 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0003

Columns 211 through 220

0.0003 0.0003 0.0003 0.0003 0.0003 0.0003 0.0004 0.0004 0.0004 0.0004

Columns 221 through 230

0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0004 0.0005 0.0005

Columns 231 through 240

0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0005 0.0006 0.0006

Columns 241 through 250

0.0006 0.0006 0.0006 0.0006 0.0006 0.0006 0.0007 0.0007 0.0007 0.0007

Columns 251 through 260

0.0007 0.0007 0.0007 0.0007 0.0008 0.0008 0.0008 0.0008 0.0008 0.0008

Columns 261 through 270

0.0008 0.0009 0.0009 0.0009 0.0009 0.0009 0.0009 0.0010 0.0010 0.0010

Columns 271 through 280

0.0010 0.0010 0.0011 0.0011 0.0011 0.0011 0.0011 0.0012 0.0012 0.0012

Columns 281 through 290

0.0012 0.0012 0.0013 0.0013 0.0013 0.0013 0.0013 0.0014 0.0014 0.0014

Columns 291 through 300

0.0014 0.0015 0.0015 0.0015 0.0015 0.0016 0.0016 0.0016 0.0017 0.0017

Columns 301 through 310

0.0017 0.0017 0.0018 0.0018 0.0018 0.0019 0.0019 0.0019 0.0019 0.0020

Columns 311 through 320

0.0020 0.0020 0.0021 0.0021 0.0021 0.0022 0.0022 0.0022 0.0023 0.0023

Columns 321 through 330

0.0024 0.0024 0.0024 0.0025 0.0025 0.0025 0.0026 0.0026 0.0027 0.0027

Columns 331 through 340

0.0027 0.0028 0.0028 0.0029 0.0029 0.0030 0.0030 0.0031 0.0031 0.0031

Columns 341 through 350

0.0032 0.0032 0.0033 0.0033 0.0034 0.0034 0.0035 0.0035 0.0036 0.0036

Columns 351 through 360

0.0037 0.0038 0.0038 0.0039 0.0039 0.0040 0.0040 0.0041 0.0041 0.0042

Columns 361 through 370

0.0043 0.0043 0.0044 0.0045 0.0045 0.0046 0.0046 0.0047 0.0048 0.0048

Columns 371 through 380

0.0049 0.0050 0.0050 0.0051 0.0052 0.0053 0.0053 0.0054 0.0055 0.0056

Columns 381 through 390

0.0056 0.0057 0.0058 0.0059 0.0059 0.0060 0.0061 0.0062 0.0063 0.0063

Columns 391 through 400

0.0064 0.0065 0.0066 0.0067 0.0068 0.0069 0.0070 0.0071 0.0071 0.0072

Columns 401 through 410

0.0073 0.0074 0.0075 0.0076 0.0077 0.0078 0.0079 0.0080 0.0081 0.0082

Columns 411 through 420

0.0083 0.0084 0.0085 0.0087 0.0088 0.0089 0.0090 0.0091 0.0092 0.0093

Columns 421 through 430

0.0094 0.0096 0.0097 0.0098 0.0099 0.0100 0.0102 0.0103 0.0104 0.0105

Columns 431 through 440

0.0107 0.0108 0.0109 0.0111 0.0112 0.0113 0.0115 0.0116 0.0118 0.0119

Columns 441 through 450

0.0120 0.0122 0.0123 0.0125 0.0126 0.0128 0.0129 0.0131 0.0132 0.0134

Columns 451 through 460

0.0135 0.0137 0.0139 0.0140 0.0142 0.0144 0.0145 0.0147 0.0149 0.0150

Columns 461 through 470

0.0152 0.0154 0.0156 0.0157 0.0159 0.0161 0.0163 0.0165 0.0167 0.0168

Columns 471 through 480

0.0170 0.0172 0.0174 0.0176 0.0178 0.0180 0.0182 0.0184 0.0186 0.0188

Columns 481 through 490

0.0190 0.0193 0.0195 0.0197 0.0199 0.0201 0.0203 0.0206 0.0208 0.0210

Columns 491 through 500

0.0212 0.0215 0.0217 0.0219 0.0222 0.0224 0.0227 0.0229 0.0232 0.0234

Columns 501 through 510

0.0237 0.0239 0.0242 0.0244 0.0247 0.0249 0.0252 0.0255 0.0257 0.0260

Columns 511 through 520

0.0263 0.0266 0.0268 0.0271 0.0274 0.0277 0.0280 0.0283 0.0286 0.0289

Columns 521 through 530

0.0292 0.0295 0.0298 0.0301 0.0304 0.0307 0.0310 0.0313 0.0316 0.0320

Columns 531 through 540

0.0323 0.0326 0.0329 0.0333 0.0336 0.0340 0.0343 0.0346 0.0350 0.0353

Columns 541 through 550

0.0357 0.0360 0.0364 0.0368 0.0371 0.0375 0.0379 0.0382 0.0386 0.0390

Columns 551 through 560

0.0394 0.0398 0.0402 0.0406 0.0410 0.0414 0.0418 0.0422 0.0426 0.0430

Columns 561 through 570

0.0434 0.0438 0.0442 0.0447 0.0451 0.0455 0.0460 0.0464 0.0468 0.0473

Columns 571 through 580

0.0477 0.0482 0.0487 0.0491 0.0496 0.0500 0.0505 0.0510 0.0515 0.0520

Columns 581 through 590

0.0524 0.0529 0.0534 0.0539 0.0544 0.0549 0.0554 0.0560 0.0565 0.0570

Columns 591 through 600

0.0575 0.0581 0.0586 0.0591 0.0597 0.0602 0.0608 0.0613 0.0619 0.0624

Columns 601 through 610

0.0630 0.0636 0.0642 0.0647 0.0653 0.0659 0.0665 0.0671 0.0677 0.0683

Columns 611 through 620

0.0689 0.0695 0.0702 0.0708 0.0714 0.0721 0.0727 0.0733 0.0740 0.0746

Columns 621 through 630

0.0753 0.0760 0.0766 0.0773 0.0780 0.0787 0.0793 0.0800 0.0807 0.0814

Columns 631 through 640

0.0822 0.0829 0.0836 0.0843 0.0850 0.0858 0.0865 0.0873 0.0880 0.0888

Columns 641 through 650

0.0895 0.0903 0.0911 0.0918 0.0926 0.0934 0.0942 0.0950 0.0958 0.0966

Columns 651 through 660

0.0974 0.0982 0.0991 0.0999 0.1007 0.1016 0.1024 0.1033 0.1042 0.1050

Columns 661 through 670

0.1059 0.1068 0.1077 0.1086 0.1095 0.1104 0.1113 0.1122 0.1131 0.1141

Columns 671 through 680

0.1150 0.1159 0.1169 0.1178 0.1188 0.1198 0.1208 0.1217 0.1227 0.1237

Columns 681 through 690

0.1247 0.1257 0.1268 0.1278 0.1288 0.1298 0.1309 0.1319 0.1330 0.1341

Columns 691 through 700

0.1351 0.1362 0.1373 0.1384 0.1395 0.1406 0.1417 0.1428 0.1440 0.1451

Columns 701 through 710

0.1463 0.1474 0.1486 0.1497 0.1509 0.1521 0.1533 0.1545 0.1557 0.1569

Columns 711 through 720

0.1581 0.1594 0.1606 0.1618 0.1631 0.1644 0.1656 0.1669 0.1682 0.1695

Columns 721 through 730

0.1708 0.1721 0.1734 0.1747 0.1761 0.1774 0.1788 0.1801 0.1815 0.1829

Columns 731 through 740

0.1843 0.1857 0.1871 0.1885 0.1899 0.1914 0.1928 0.1943 0.1957 0.1972

Columns 741 through 750

0.1987 0.2001 0.2016 0.2032 0.2047 0.2062 0.2077 0.2093 0.2108 0.2124

Columns 751 through 760

0.2140 0.2155 0.2171 0.2187 0.2203 0.2220 0.2236 0.2252 0.2269 0.2286

Columns 761 through 770

0.2302 0.2319 0.2336 0.2353 0.2370 0.2387 0.2405 0.2422 0.2440 0.2457

Columns 771 through 780

0.2475 0.2493 0.2511 0.2529 0.2547 0.2566 0.2584 0.2602 0.2621 0.2640

Columns 781 through 790

0.2659 0.2678 0.2697 0.2716 0.2735 0.2755 0.2774 0.2794 0.2814 0.2833

Columns 791 through 800

0.2853 0.2874 0.2894 0.2914 0.2935 0.2955 0.2976 0.2997 0.3018 0.3039

Columns 801 through 810

0.3060 0.3081 0.3103 0.3124 0.3146 0.3168 0.3190 0.3212 0.3234 0.3256

Columns 811 through 820

0.3279 0.3301 0.3324 0.3347 0.3370 0.3393 0.3416 0.3440 0.3463 0.3487

Columns 821 through 830

0.3510 0.3534 0.3558 0.3583 0.3607 0.3631 0.3656 0.3681 0.3705 0.3730

Columns 831 through 840

0.3756 0.3781 0.3806 0.3832 0.3858 0.3883 0.3909 0.3936 0.3962 0.3988

Columns 841 through 850

0.4015 0.4042 0.4068 0.4095 0.4123 0.4150 0.4177 0.4205 0.4233 0.4261

Columns 851 through 860

0.4289 0.4317 0.4346 0.4374 0.4403 0.4432 0.4461 0.4490 0.4519 0.4549

Columns 861 through 870

0.4578 0.4608 0.4638 0.4668 0.4699 0.4729 0.4760 0.4790 0.4821 0.4853

Columns 871 through 880

0.4884 0.4915 0.4947 0.4979 0.5011 0.5043 0.5075 0.5108 0.5140 0.5173

Columns 881 through 890

0.5206 0.5239 0.5273 0.5306 0.5340 0.5374 0.5408 0.5442 0.5477 0.5511

Columns 891 through 900

0.5546 0.5581 0.5616 0.5652 0.5687 0.5723 0.5759 0.5795 0.5831 0.5868

Columns 901 through 910

0.5904 0.5941 0.5978 0.6015 0.6053 0.6090 0.6128 0.6166 0.6204 0.6243

Columns 911 through 920

0.6281 0.6320 0.6359 0.6398 0.6438 0.6477 0.6517 0.6557 0.6598 0.6638

Columns 921 through 930

0.6679 0.6719 0.6760 0.6802 0.6843 0.6885 0.6927 0.6969 0.7011 0.7054

Columns 931 through 940

0.7096 0.7139 0.7183 0.7226 0.7270 0.7313 0.7357 0.7402 0.7446 0.7491

Columns 941 through 950

0.7536 0.7581 0.7626 0.7672 0.7718 0.7764 0.7810 0.7857 0.7903 0.7950

Columns 951 through 960

0.7998 0.8045 0.8093 0.8141 0.8189 0.8237 0.8286 0.8335 0.8384 0.8433

Columns 961 through 970

0.8483 0.8533 0.8583 0.8633 0.8684 0.8734 0.8785 0.8837 0.8888 0.8940

Columns 971 through 980

0.8992 0.9045 0.9097 0.9150 0.9203 0.9256 0.9310 0.9364 0.9418 0.9472

Columns 981 through 990

0.9527 0.9582 0.9637 0.9692 0.9748 0.9804 0.9860 0.9917 0.9974 1.0031

Columns 991 through 1,000

1.0088 1.0145 1.0203 1.0261 1.0320 1.0378 1.0437 1.0497 1.0556 1.0616

Molecular Weight ofCH2CHO : MolecularWeight CH2CHO:4.302500e+01

cur_dir =

'/Users/rummankhan/Documents/MATLAB'

Warning: Directory already exists.
> In PARSING (line 92)
Molecular Weight ofCH2CHO : MolecularWeight CH2CHO:4.302500e+01

M =

43.0250

species n molecular mass n 43.025000 n
ans =

RESULTS:

SPECIFIC HEAT,ENTROPY,ENTHALPY PLOTS FOR O2,N2,CO2 SPECIES

1:PLOT FOR O2:

VARIATION OF SPECIFIC HEAT WITH THE TEMPRATURE OF O2

B:VARIATION OF ENTROPY WITH THE TEMPRATURE OF O2

C:VARIATION OF ENTHALPY WITH THE TEMPRATURE OF O2:

2:PLOT FOR N2:

VARIATION OF SPECIFIC HEAT WITH THE TEMPRATURE OF N2:

B:VARIATION OF ENTROPY WITH THE TEMPRATURE OF N2:

C:VARIATION OF ENTHALPY WITH THE TEMPRATURE OF N2:

2:PLOT FOR CO2:

VARIATION OF SPECIFIC HEAT WITH THE TEMPRATURE OF CO2:

B:VARIATION OF ENTROPY WITH THE TEMPRATURE OF CO2:

B:VARIATION OF ENTHALPY WITH THE TEMPRATURE OF CO2:

Conclusion:
Using MATLAB code, the necessary coefficients required to evaluate various thermodynamic parameters for different species are extracted
from NASA thermodynamic data file. The specific heat, enthalpy, and entropy for all the species are calculated and plotted against the local
temperature range. The molecular weight is calculated for all the species.

https://drive.google.com/drive/folders/1RPNxIi1vjqNXCs3Yxp9WItf0D1SvRRIX?usp=sharing

Project 1 - Parsing NASA thermodynamic data

Ship work like this
in your own course.

Talk to a career counsellor

Ship work like thisin your own course.

Talk to a career counsellor

Ship work like this
in your own course.
