Wiring harness routing & packaging Rules Week 3 Challenge

QUESTION 1

process:

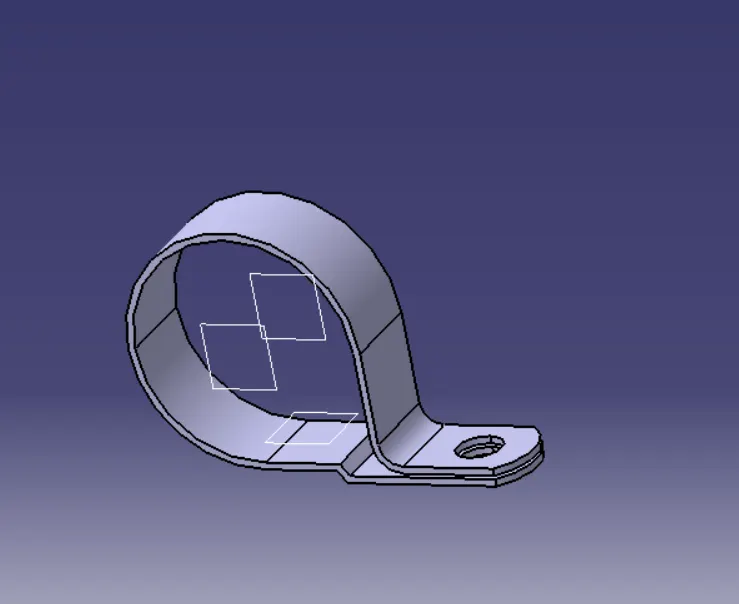

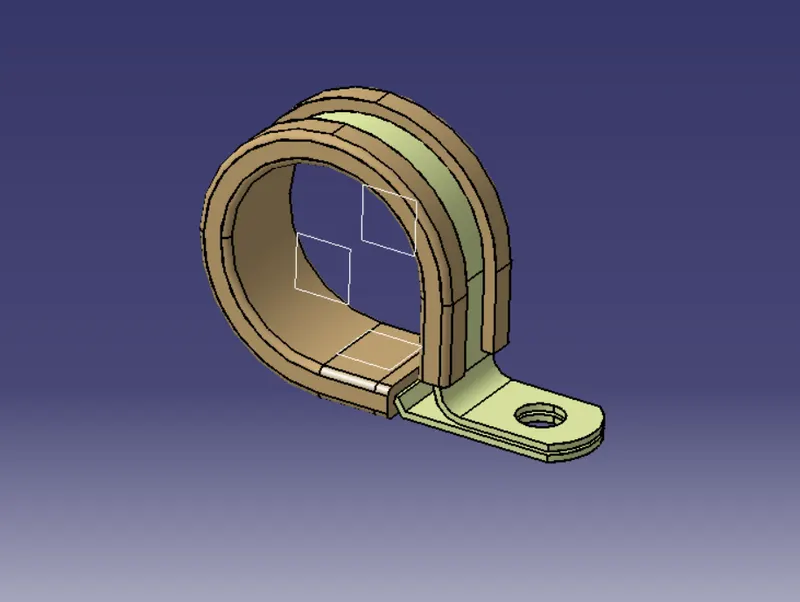

• Create two points one as entry and another as exit point.
• create planes at two points and another at base.
• Switch to Electric part desgn

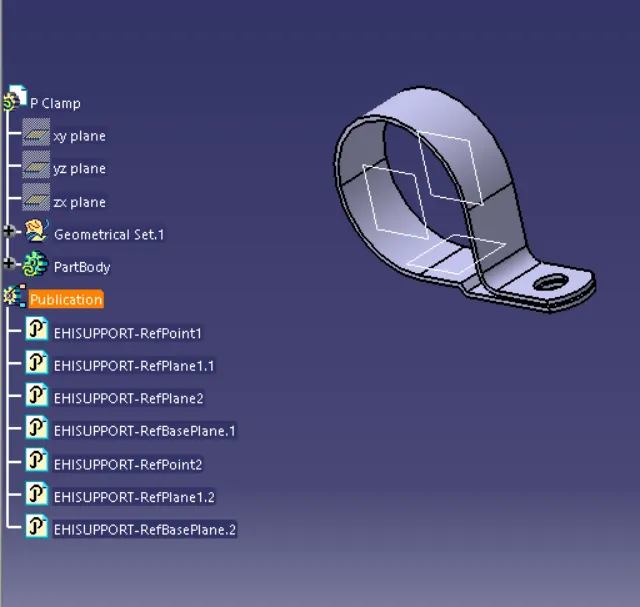

• Click on support defination - select part - select entry point - select entry plane, exit and base plane.
• Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken

QUESTION 2

Process:

• create Back shell entry point.

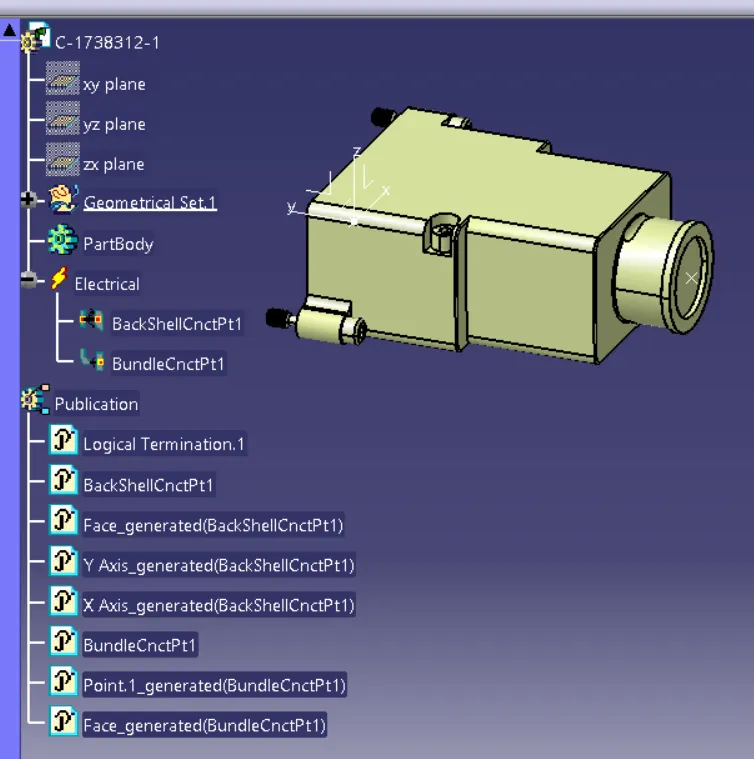

• create axis system for back shell entry.
• create bundle connection point.
• switch to Electrical part design.
• Define part electricaly as back shell.

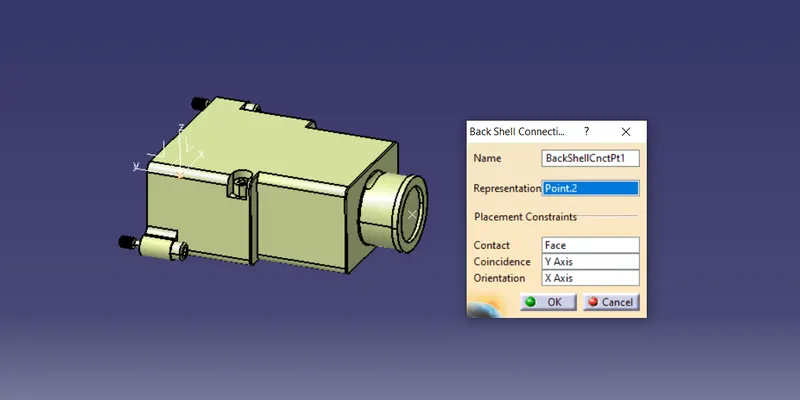

• Then define Back shell connection point.

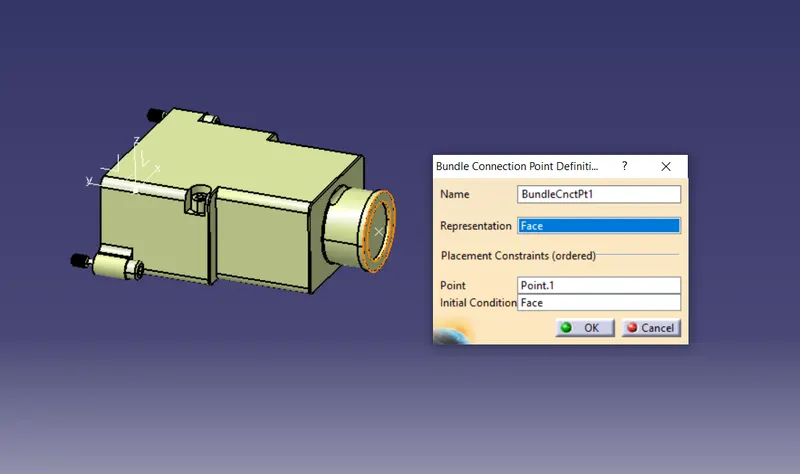

• Define bundle connection point.

QUESTION 3

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

Process:

• Switch to Electrical part design
• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.

Catalogue Cretation:

• new part - catalogue document - add family - give name - type - select Conduit - save.
• Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
