Wiring harness routing & packaging Rules Week 3 Challenge
1. P - Clamp :

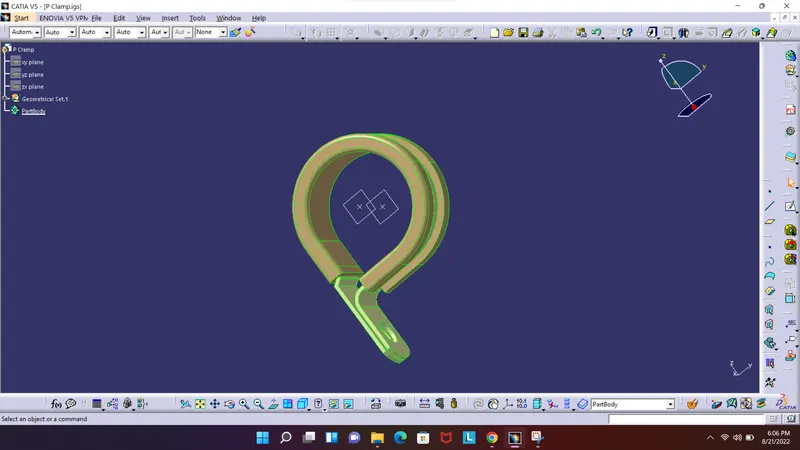

Step - 1 : First , download the P - Clamp IGS file and open it using the CATIA V5 software .
Step - 2 :
- Now we have to define geometry parameters .
- To define geometry parameters , we must navigate to the part workbench .
- We need to create planes at the entry and centre points .
- We need to create planes at the exit and centre points .

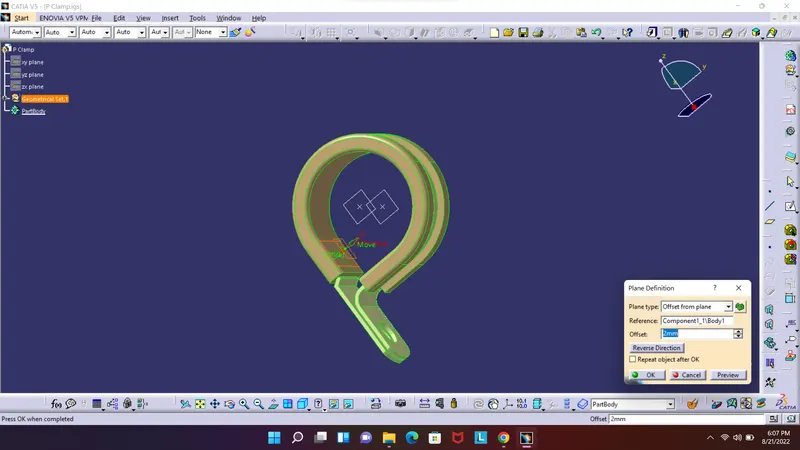

- we need to create a base plane taken from the surface base plane offset is 2mm .
-

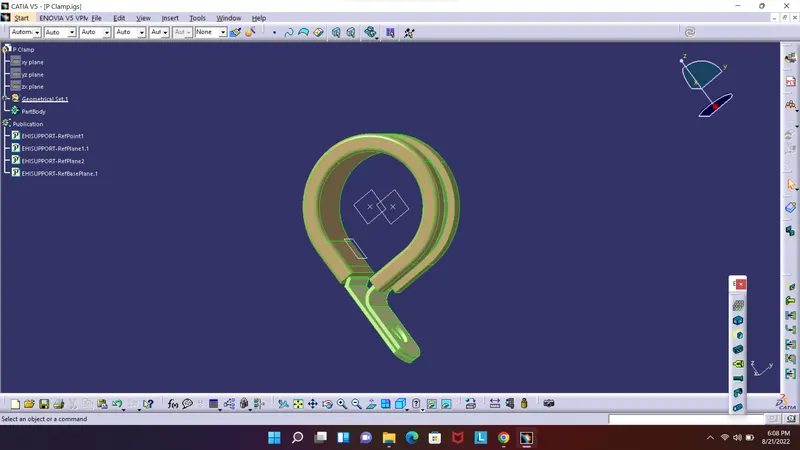

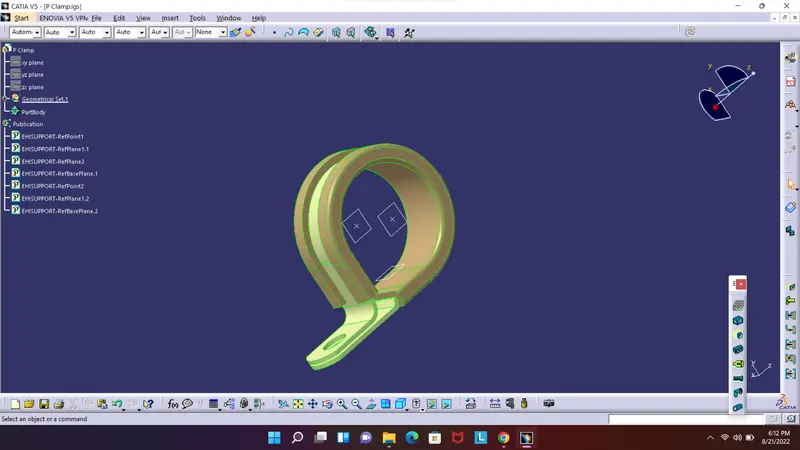

Step - 3 : Switch to Electric part design in order to define the P - Clamp as Electrical Support .
Support 1 : Now using the Define support part option we can define the P - Clamp Entry and Entry point .
- Support 2 : Now again using the Define support part option we can define the P - Clamp Exit and Exit point .
2. Backshell
Step-1:
First , download the backshell IGS file and open it using the CATIA V5 software .

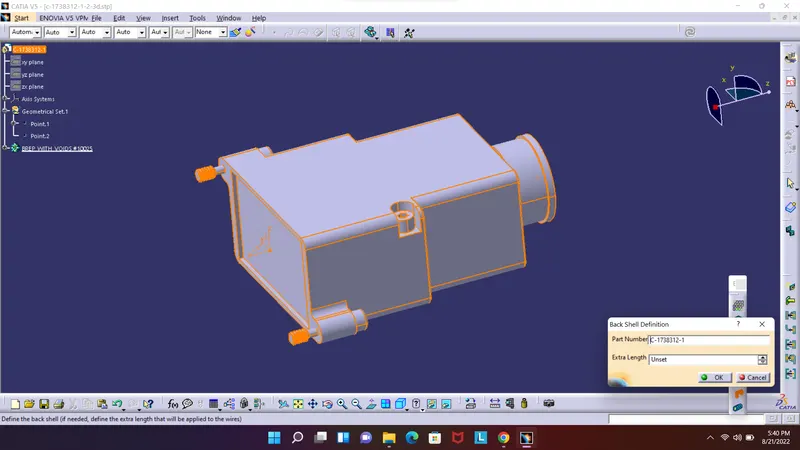

Defined backshell :

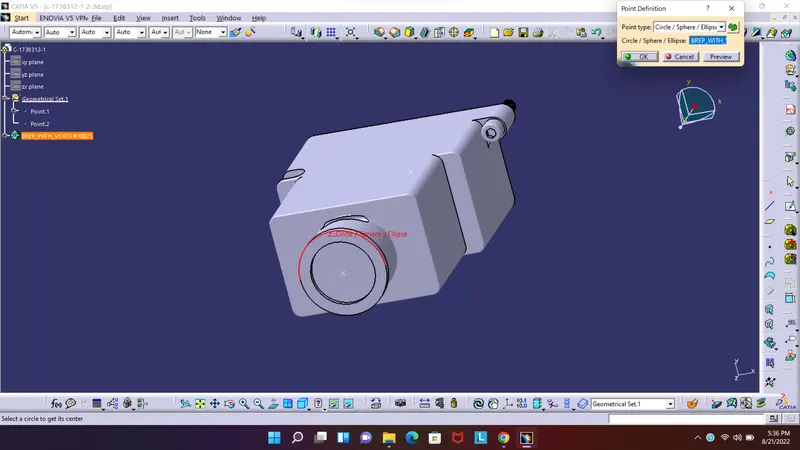

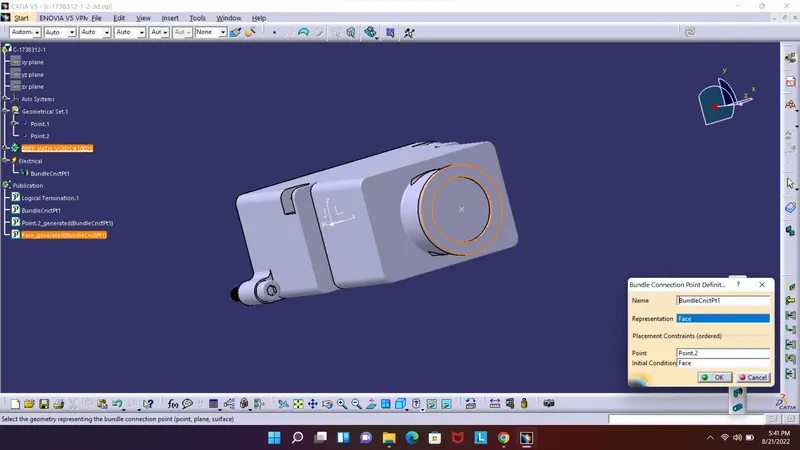

Bundle Entry Point :

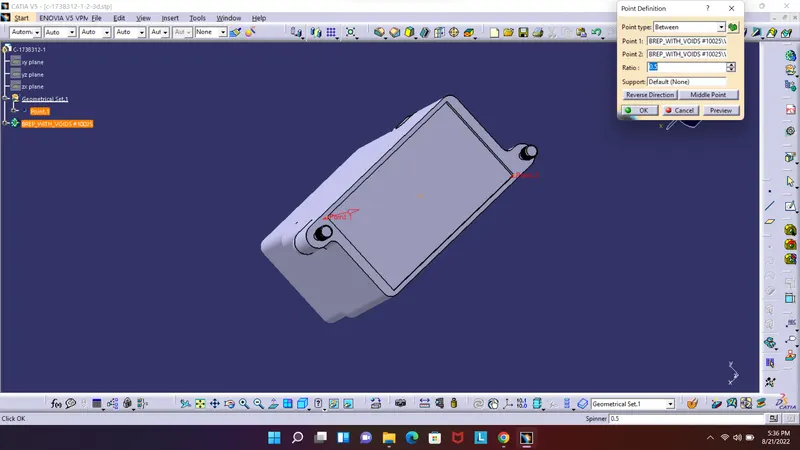

Backshell Point :

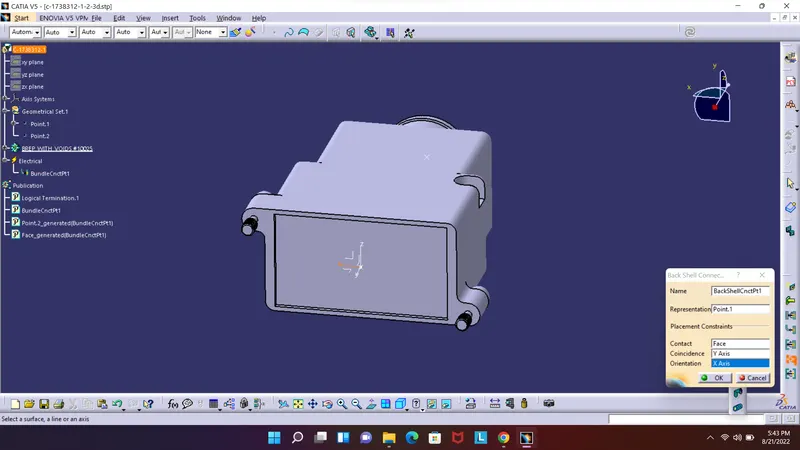

Backshell Connection Point :

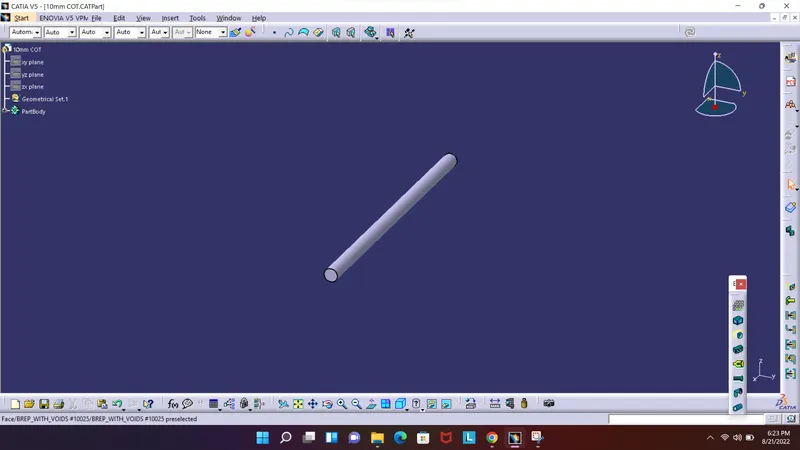

3. Corrugated tubes :
Catalogue under " Slit COT " family .
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |

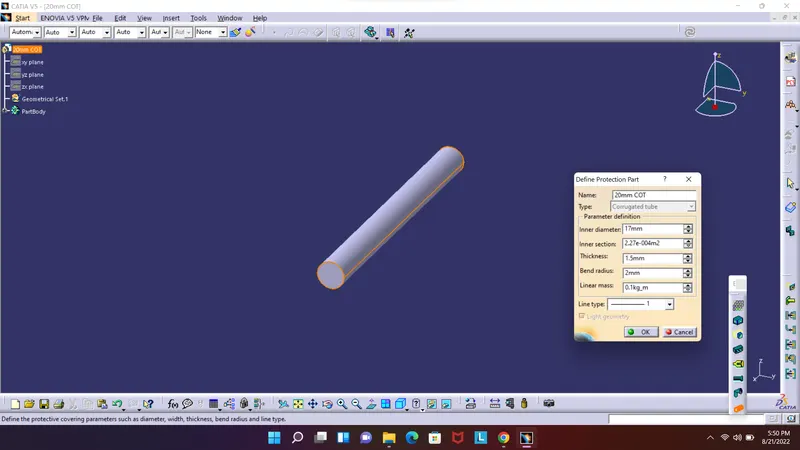

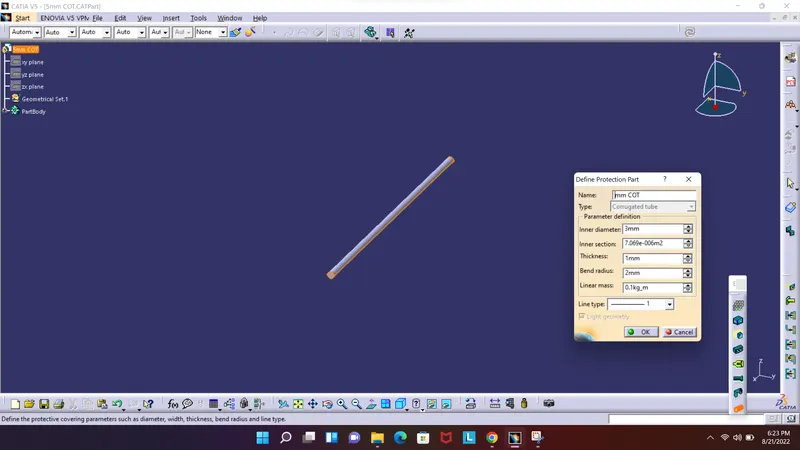

Process:
- Switch to Electrical part design

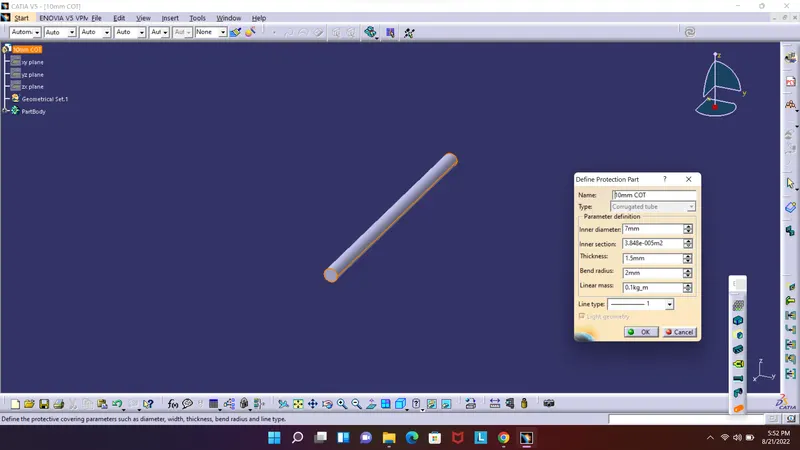

- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.

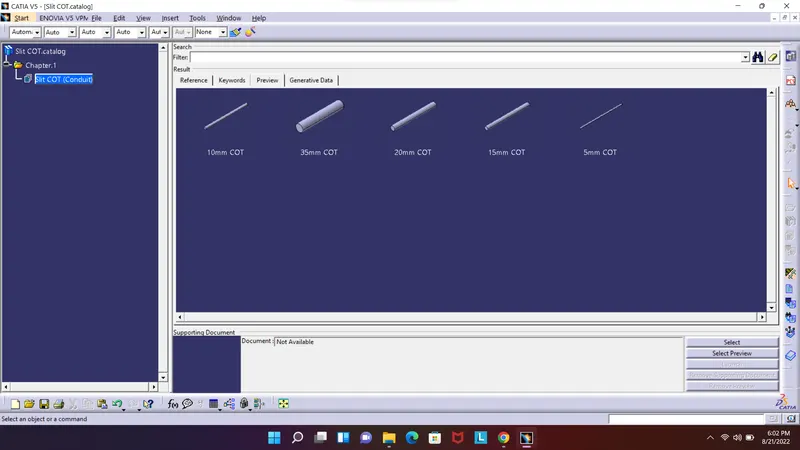

Catalogue Cretation:
- new part - catalogue document - add family - give name - type - select Conduit - save.
- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
