Week 8 - Challenge 3 - Coin Holder Design

CREATING AXIS IS EASY FOR THE PART

First we extract the base and on surafce a point is taken and line draawn in z direction this takes as the tooling axis

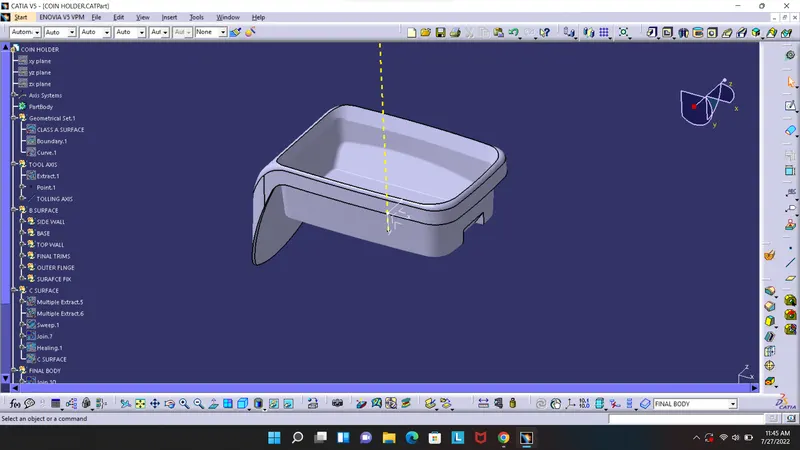

class a surafce (((( the given file -downloded- doesnt have and cut))))

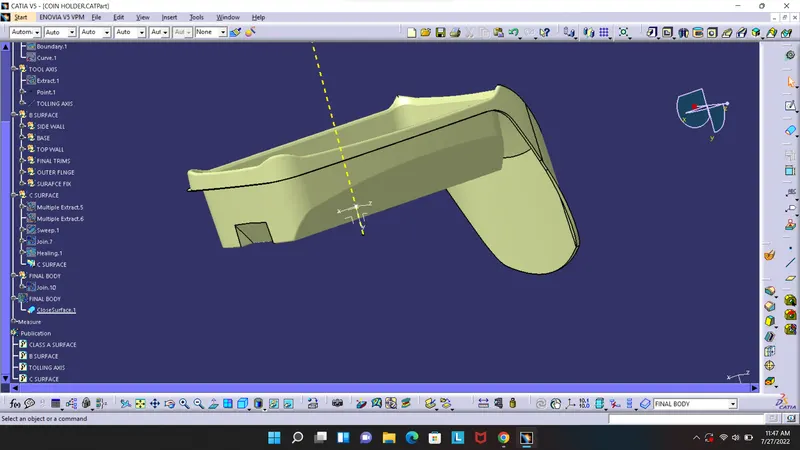

class b

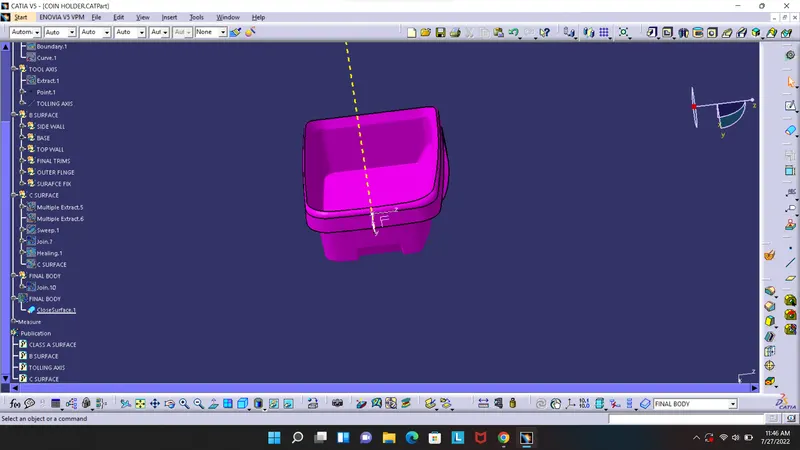

class c

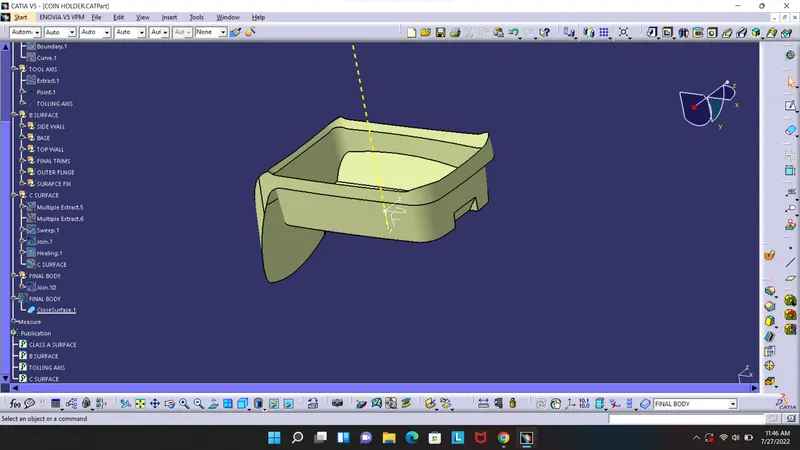

final solid body

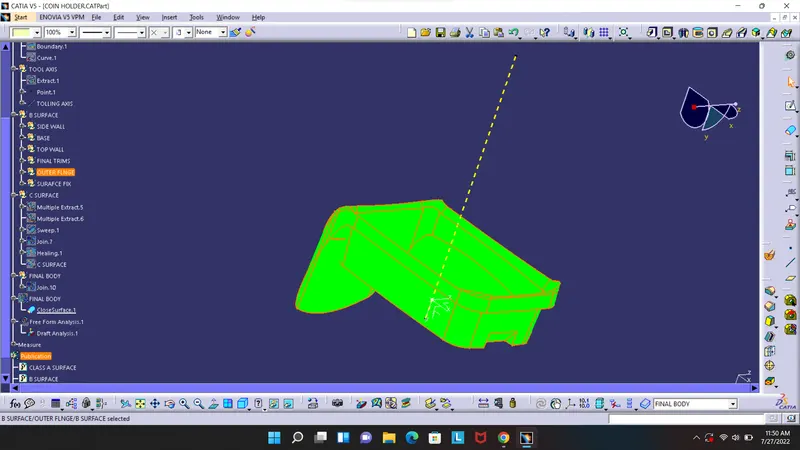

in video sir doesnt mention about draft analyse but in question draftaion analyses ask so i just select draft analys and fix the compass on the tooling axis and select the body
