Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge
Q1. Flatten the harness assembly completed in “ week 4 challenge”. Place the flattened view on drawing sheet. Ensure bundles with protective coverings has different visuals on drawing view.
ANS:
EXPLANATION:
THE ABOVE WEEK 4 CHALLENGE CREATED AS FLATTENING BY
THE FOLLOWING PROCESS:
- OPEN CATIAV5 < FILE < NEW < PRODUCT < NAME IT WIRING HARNESS FLATTENING < SAVE.
- START < EQUIPMENT AND SYSTEM < WIRING HARNESS DISCIPLINE < ELECTRICAL HARNESS FLATTENING W/B.
- SELECT HARNESS FLATTENING PARAMETERS < CHANGE MODIFICATIONS < OK. THEN PARAMETERS ADDED INTO THE TREE STRUCTURE.
- TAKE AN EXTRACT TOOL AND OPEN THE PRODUCT WHICH HAS TO BE FLATTEN CLICK ON TO THE PRODUCT NAME THEN THE ENTIRE BUNDLE CONNECTION WITH CONNECTORS WILL OPEN IN FLATTENING W/B.
- NOW TAKE FLATTENING TOOL < THEN ONE DIALOUGE BOX WILL OPEN < SELECT FACE/PLANE AND BUNDLE CILCK ON SELECT ALL BRANCHES < OK.

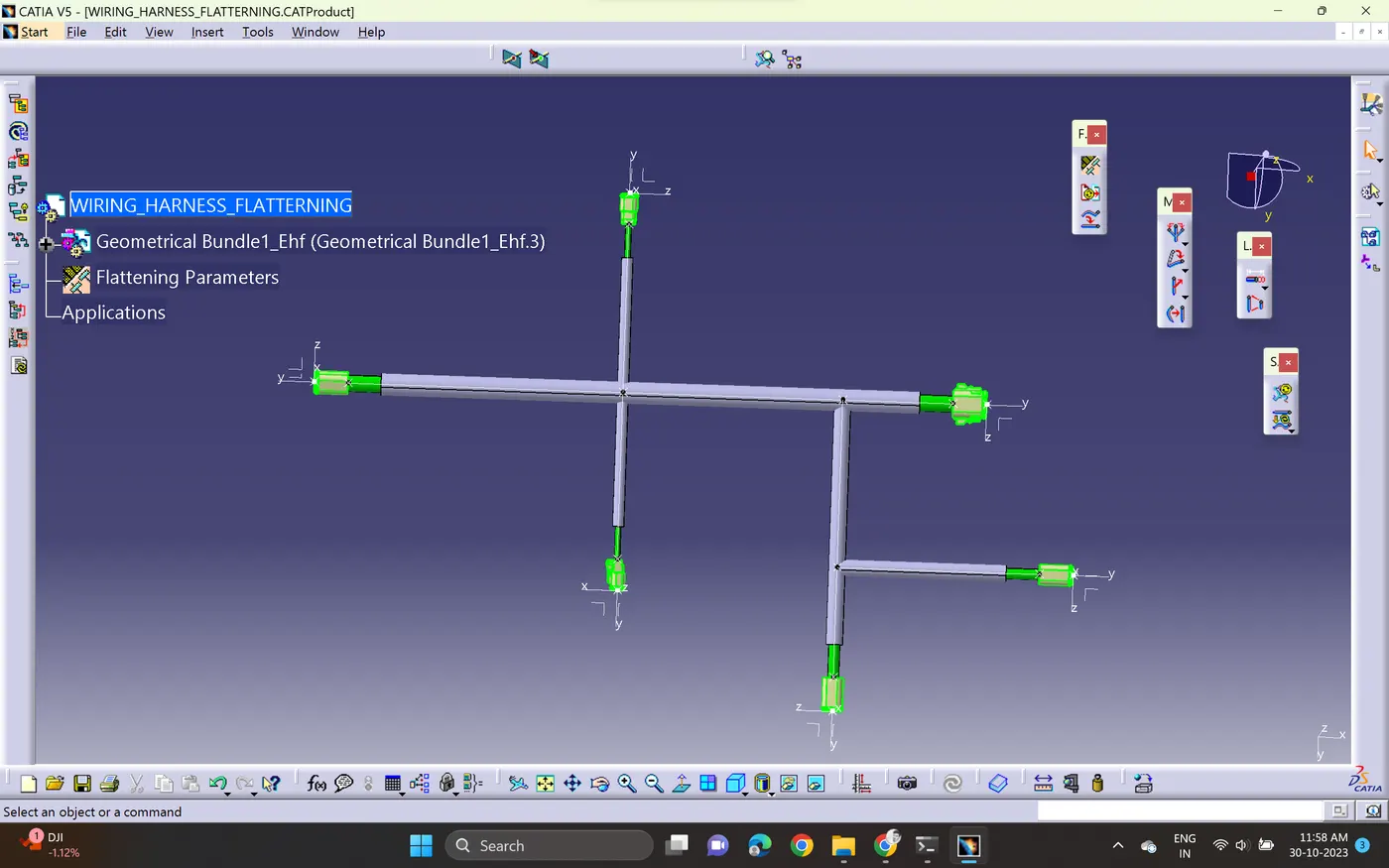

- NOW ENTIRE BUNDLES WILL FLATTEN < SAVE.
- AFTER FLATTERN NOW DRAWING CREATION IS PENDING SO
- FILE < NEW < DRAWING < CHANGE ITS NAME AS FLATTEN DRAWING IN DRATING W/B < SAVE IT.
- SELECT FRONT VIEW FROM VIEW TOOL BAR THEN SELECT FACE OF CONNECTOR FROM FLATTEN PRODUCT .

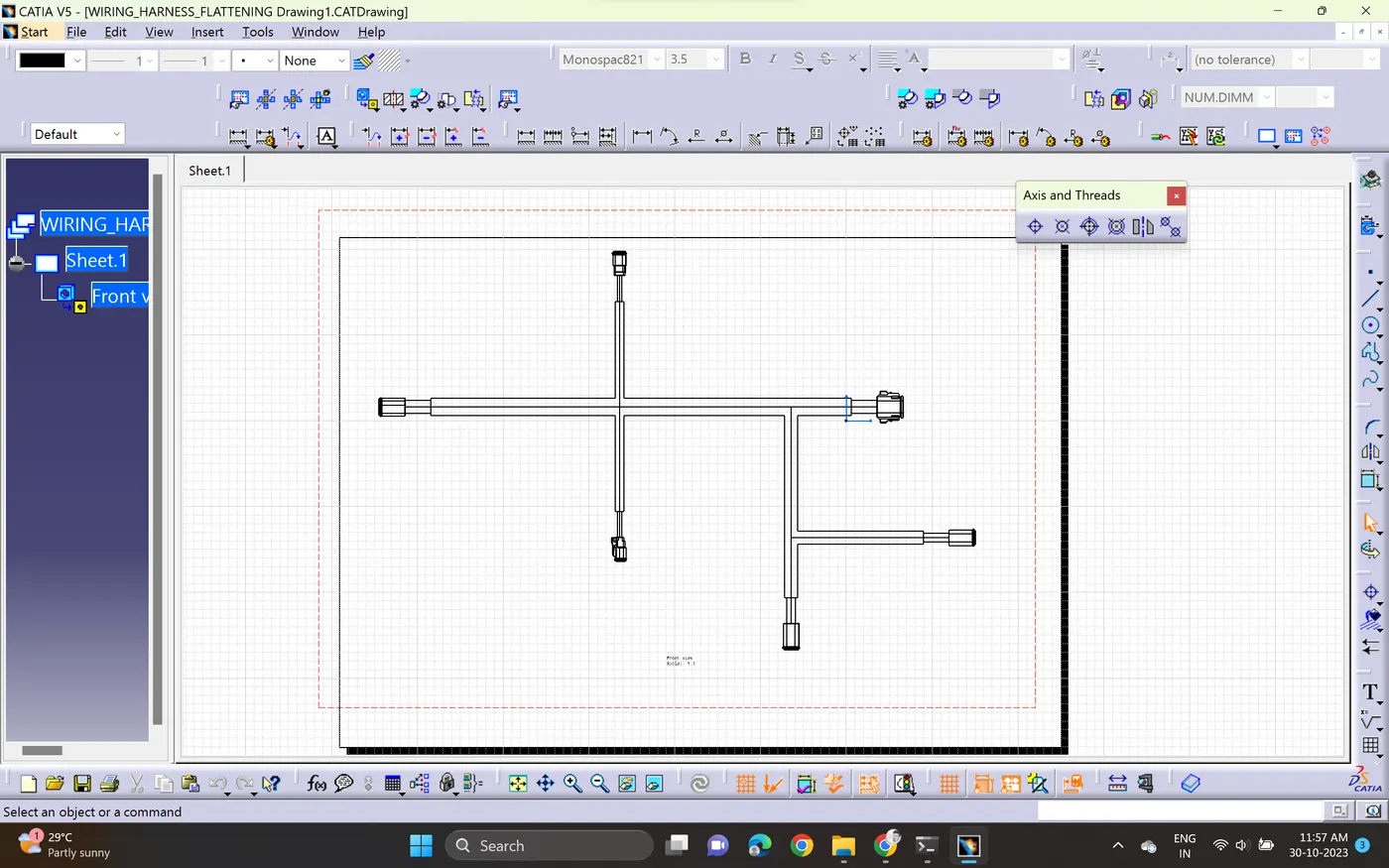

- ENTIRE DRAWING WILL PLACE IN DRAWING SHEET AS BUNDLE CONNECTION WITH TWO LINES AND TUBES WITH DIFFERENT DIAMETER < SAVE IT.
