Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss)

TOOLING AXIS:- IN THIS I CREATED ONE POINT BASED ON Y-AXIS VISIBILITY .IN Y-DIRECTION ALL SURFACE OF COMPONENT IS VISIBLE THAN REMAINING TWO DIRECTION.AND CREATE A POINT ON ONE EDGE WHICH IS LARGE SURFACE.AFTER THAT I CREATED A LINE WITH THE DIRECTION OF Y.FOR EXAMPLE SELECT THAT LINE WHCH IS DRAWN BY YOU AFTER CLICK ON NORMAL VIEW TOOL ITS SHOWS ALL SURFACES TO SELECT BY THIS METHOD ALSO WE CAN FIND RIGHT TOOLING AXIS. IN THIS NO NEED OF BI-SECTING METHOD.

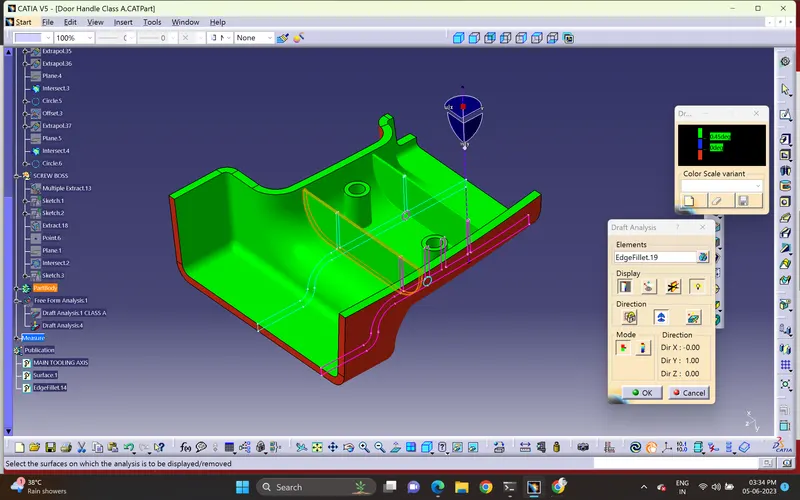

DRAFT ANALYSIS:-FIRSTLY AFTER COMPLETION OF CLOSED SURFACE CHANGE TO MATERIAL MODE BY SELECTING VIEW TOOLBAR.AFTER CLICKING MATERIAL OK.THEN GO TO TOOL<ANALYSIS<FEATURE DRAFT ANALYIS <CLICK ON IT.THEN YOU WILL GET DRAFT ANALYSIS DIALOUGE BOX SELECT COMPASS DRAG ON TO MAIN TOOLING AXIS AND FIX IT,THEN CLICK ON SURFACE IT SHOWS GREEN COLOUR IF YOU FACE ANY COLOUR CHANGES .WE HAVE TO CHANGE DRAFT ANGLE .
