Week 9 - Challenge 1 - Base Bracket Design

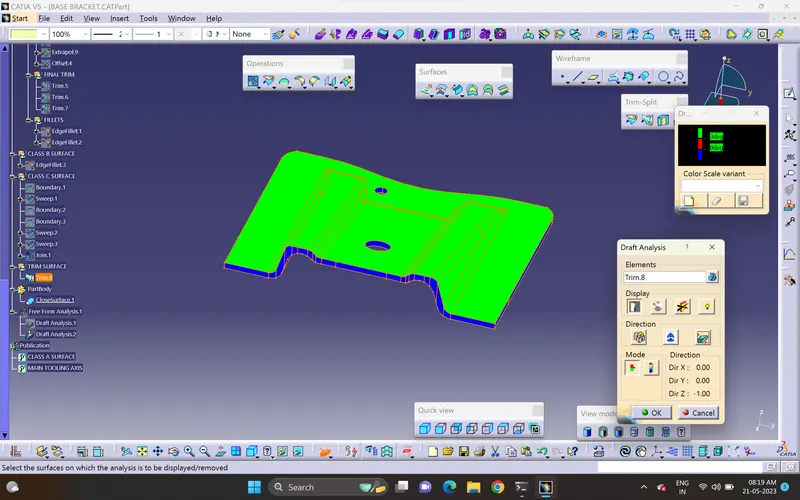

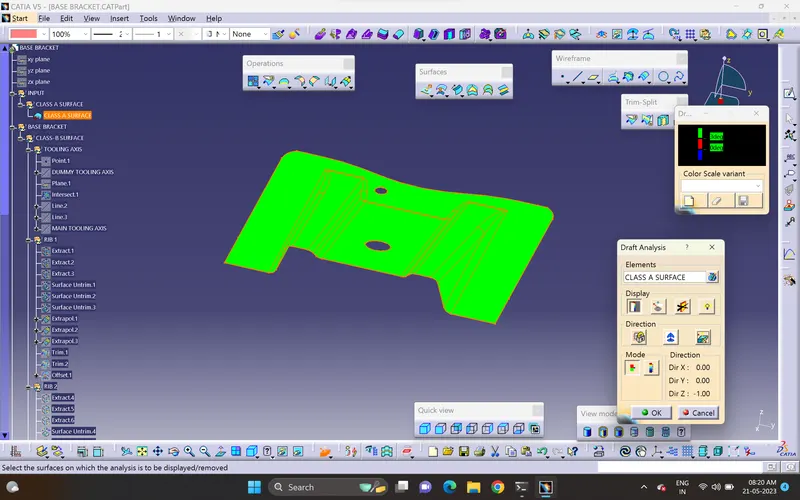

DRAFT ANALYSIS:- In this draft analysis, we have to check connectivity of class-A surface by using boundary option.after that we should understand which direction is better to create all the sketches belongs to class-A surface.if component had a hole start with that hole means create tooling axis by bisecting line. Then enter to check draftanalysis in this first go to viewmode and select cutomise parameters then select material save it after that go to insert <analysis<draft analysis.it shows draft analysis dialogue box, colour scale variaent .in the colour scale variant keep 0 to 3 degree draft angle. After clicking on component shows green and blue colour core and cavity side. then component ready to mass production.
