Week 9 - Challenge 2 - Switch Bezel Design

DRAFT ANALYSIS:- IN THIS,FOR DOING ANALYSIS I NEED TOOLING AXIS.FOR THAT TOOLING AXIS I CREATE FIRSTLY DUMMY TOOLING AXIS BASED ON CLASS SURFACESTRUCTURE (I.E BASED ON WALLS )IN THE X,Y PLANES BY USING INTERSECTION PROJECTING TOOL IN THE SKETCHER.AFTER CREATION PROJECTION WE MAKE A BISECTING LINE BETWEEN TWO LINES IN ONE PLANE.AND ALSO IN THE Y-PLANE HAVE TO CREATE BISECTING LINE .THOSE TWO IN THE X,Y PLANE BI-SECTING LINES ARE DUMMY AXIS .NOW I CREATE MAIN AXIS BETWEEN THOSE DUMMY AXIS.IN THIS IN X PLANE WE HAVE ONE SIDE OF WALL SO TAKE A LINE ALONG PLANE AND MAKE CONSTRAIN WITH AN ANGLE OF 3 TO 5 DEGREES .

NOW AFTER CREATION OF MAIN AXIS TOOL GO TO VIEWMODE TOOL BAR<CUSTOMIZR<MATERIAL<OK.

NEXT GO TO INSERT <ANALYSIS<FEATURE DRAFT ANALYSIS<OK.

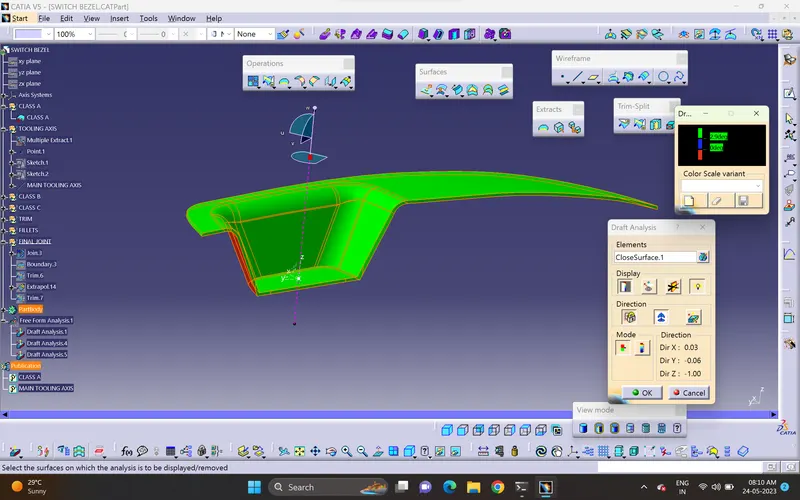

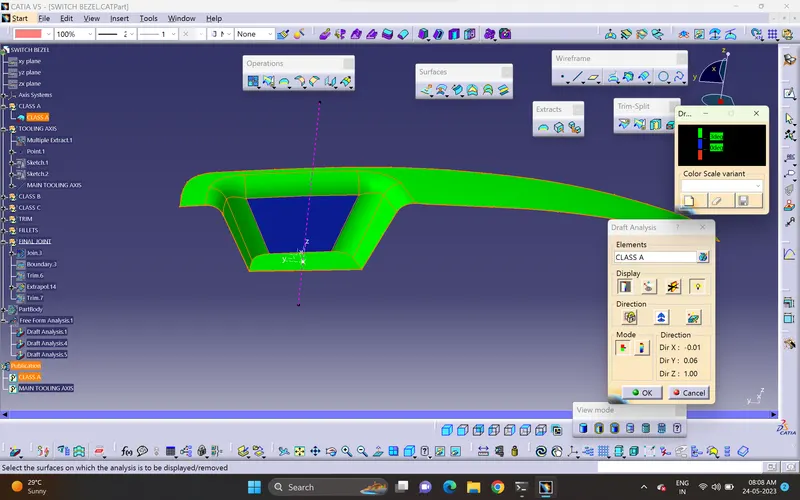

THEN IT SHOWS DRAFT ANALYSIS DIALOUGE BOX SELECT COMPASS AND DRAG IT ON TO THE MAIN TOOLING AXIS AND CLICK ON CLOSED SURFACE THEN IT SHOWS THE COLOURS OF GREEN,BLUE,RED THESE COLOURS ARE THE RANGES AND LOCK THE COMPASS.TO CHECK THE ANGLE WE CREATED BY PLACE THE CURSOR ON SURFACE.

IN THE SWITCH BEZEL WE UNABLE TO GET THE ANGLE IN X-PLANE .SO WE EXTRAPOLAE THE CLASS-A SURFACE WITH MINIMAL VALU THEN IT CREATED AS CLOSED SURFACE.

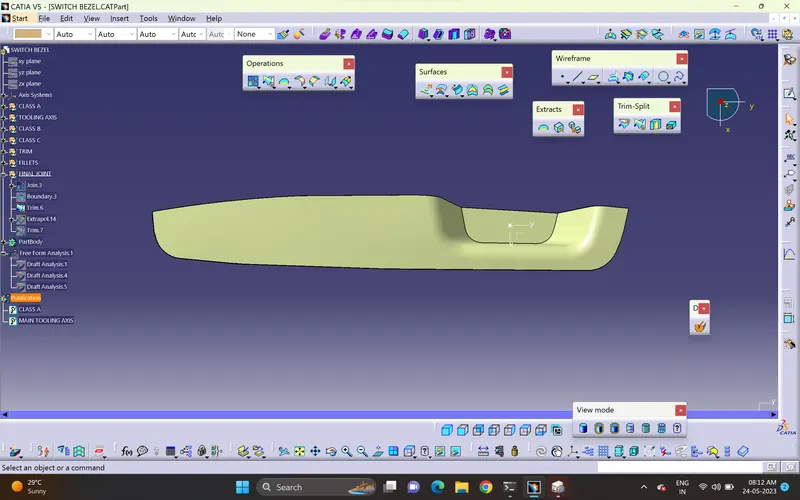

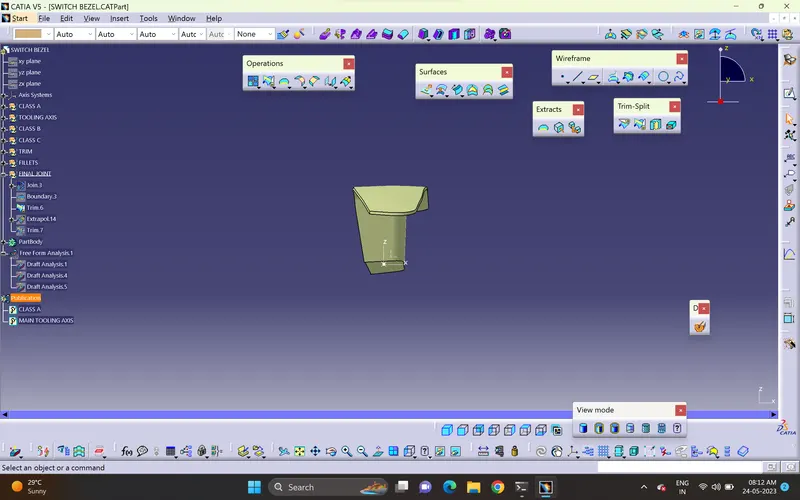

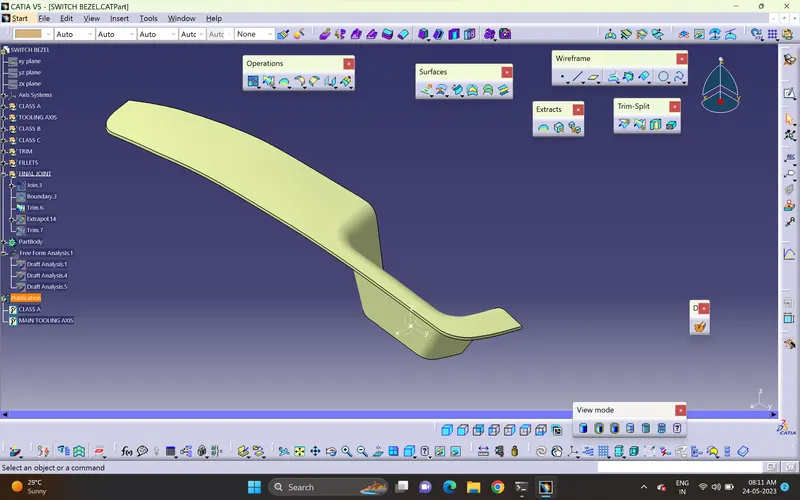

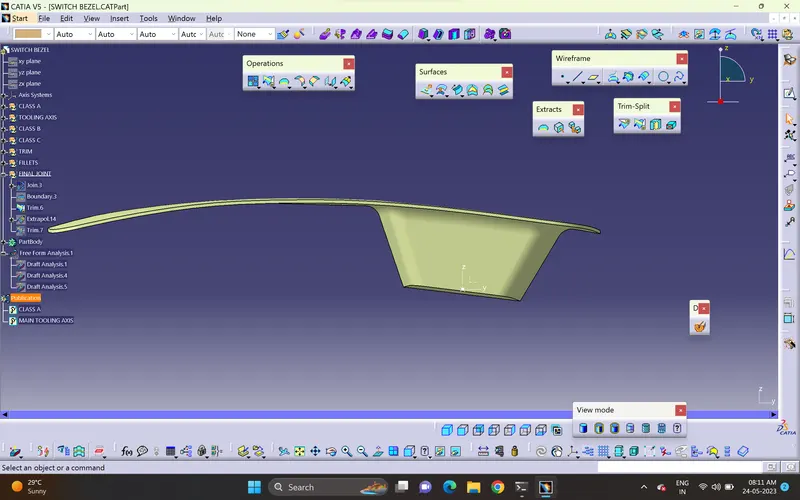

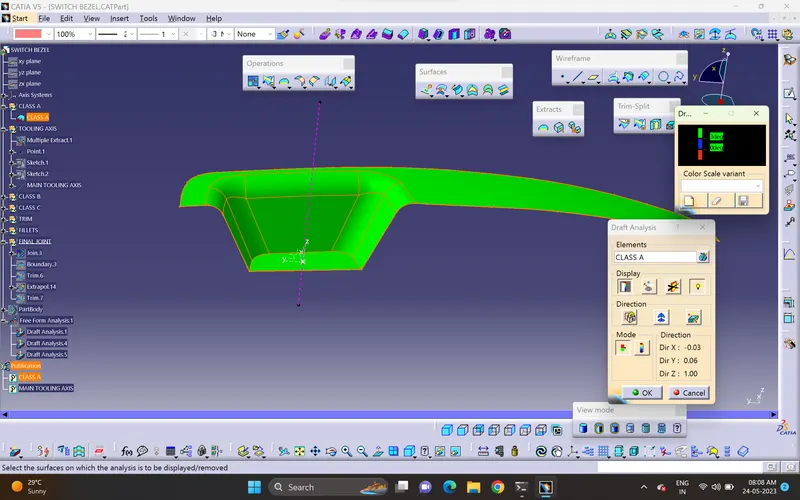

THE FINAL OUTPUT OF DRAFT ANALYSIS ON CLASS-A,CLOSED BODY WITH 3DEGREE,5 DEGREE MAIN AXIS TOOL.
