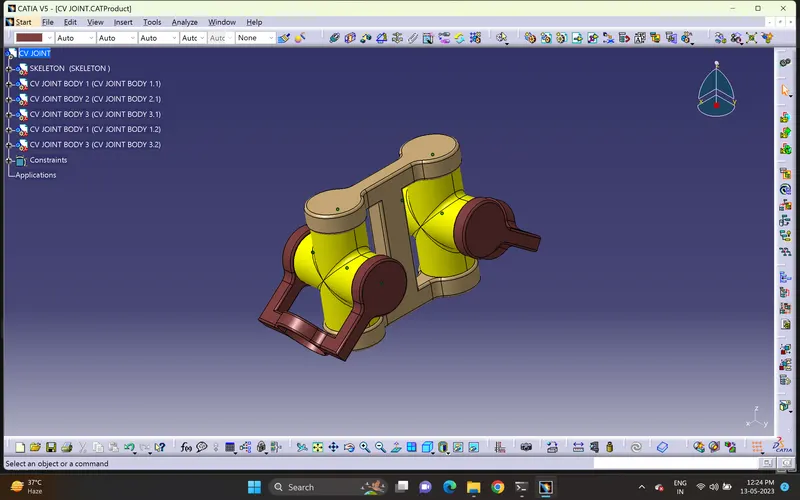

- CV JOINT:-In this ,i created all individual parts by using sketcher and part design .after the creation all components i created assembly pdroduct ,in this first copied all existing components from product structure toolbar .after that created one part file skeleton (for reference elements axis,planes, points,)to fix .then started assembly by giving ref axis,ponits,planes to required components and make it conincide and offset conincidence by using constrain toolbar .we have to publish all reference axis,points,planes. in this iused same components two times based on requirement and saved it in product file.

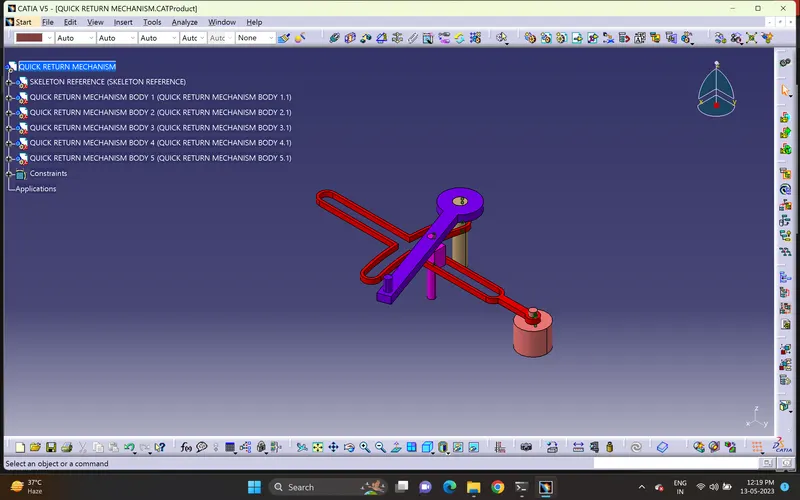

- QUICK RETURN MECHANISM :-In this ,i created all individual parts by using sketcher and part design .after the creation all components i created assembly pdroduct ,in this first copied all existing components from product structure toolbar .after that created one part file skeleton (for reference elements axis,planes, points,)to fix .then started assembly by giving ref axis,ponits,planes to required components and make it conincide and offset conincidence by using constrain toolbar .we have to publish all reference axis,points,planes.
