Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM

To flatten the harness assembly and to place the flattened view on drawing sheet.

PROCEDURE

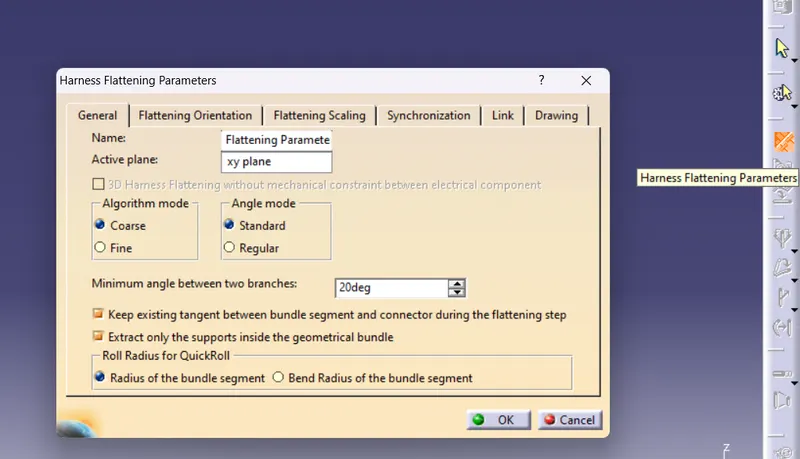

Step 1 : Create a new product file and switch to Electrical Harness Flatten Workbench and set the flattering parameters.Then the flattering paramenter will be added in the model tree.

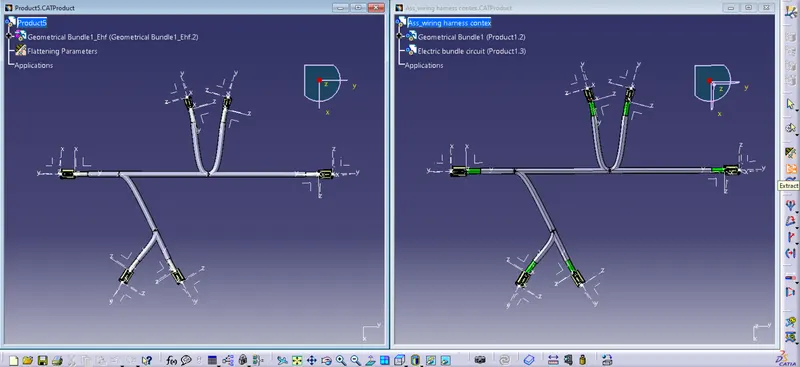

Step 2 : Bring the harness assembly into the newly created Flattening Product by using the "Extract" Command.

Now the geometrical bundle assembly or harness assembly file is changed to an "EHF" file which stands for "Electrical Harness Flattening".

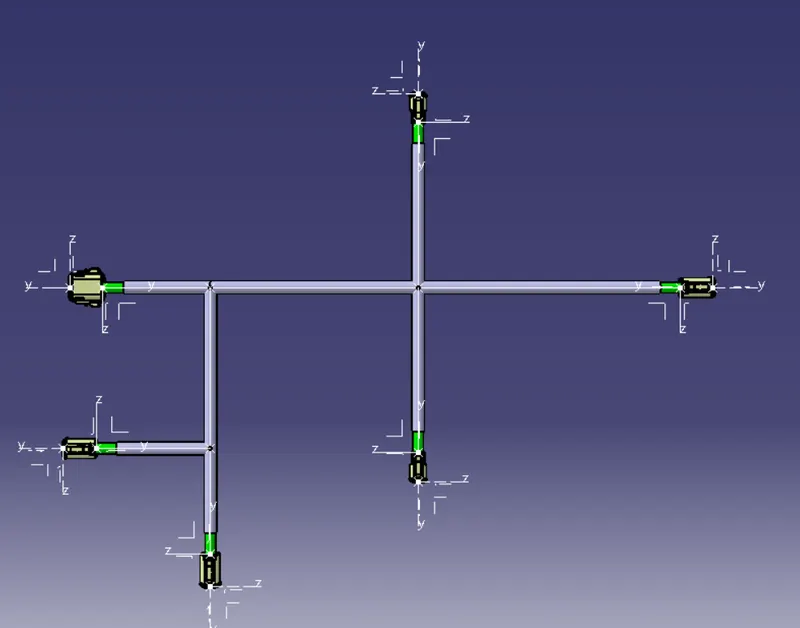

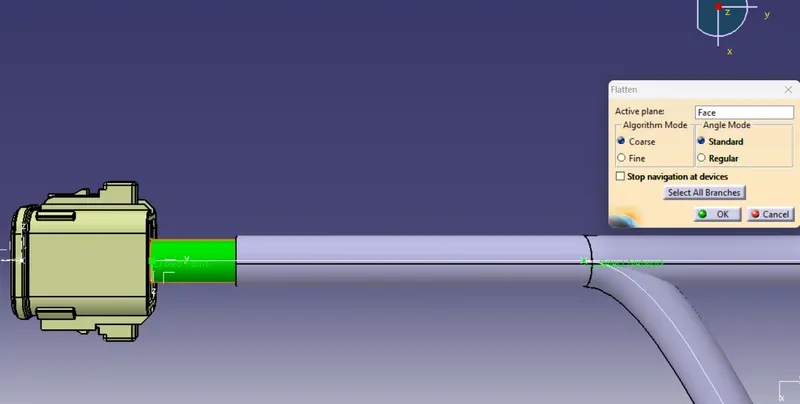

Step 3 : Now to flatten the harness select the Flatten command and then select all the branches present in the harness assembly.

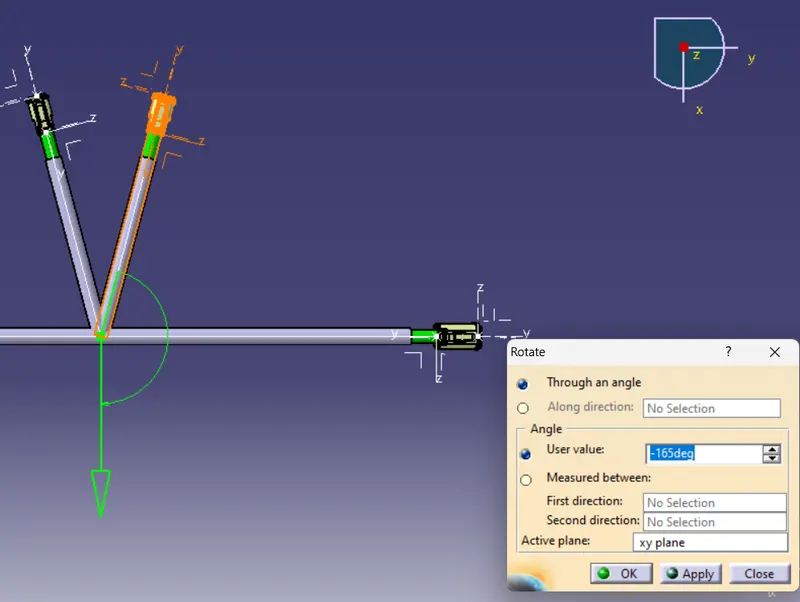

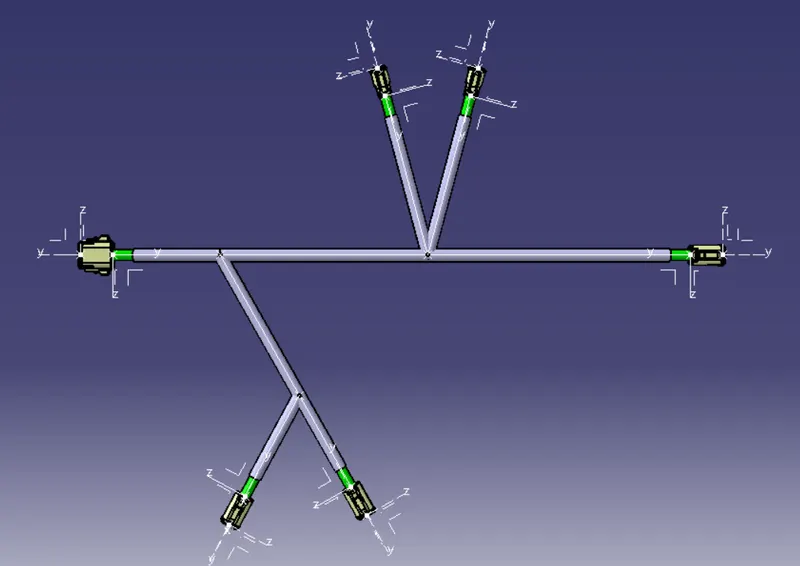

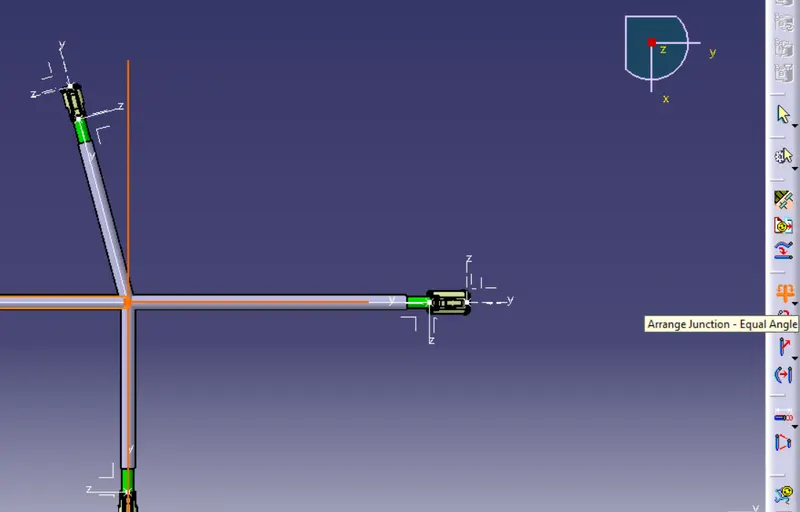

Step 4 : Arrange and rotate the branches using 'Arrange junction' and 'Rotate' Command.

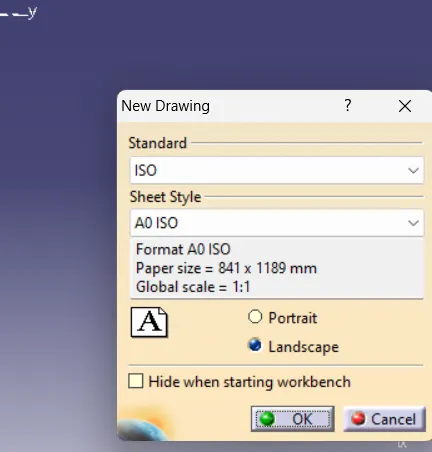

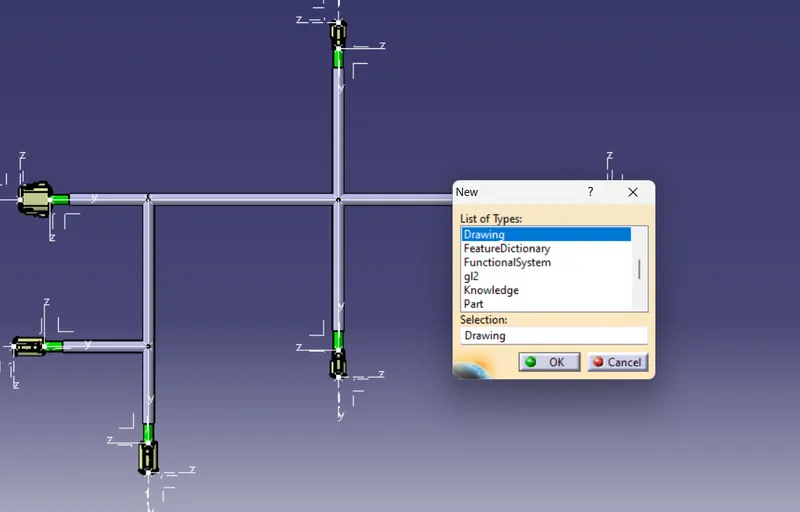

Step 5 : Converting the Flattened bundle in to drawing, for that open new file in 'Drawing'

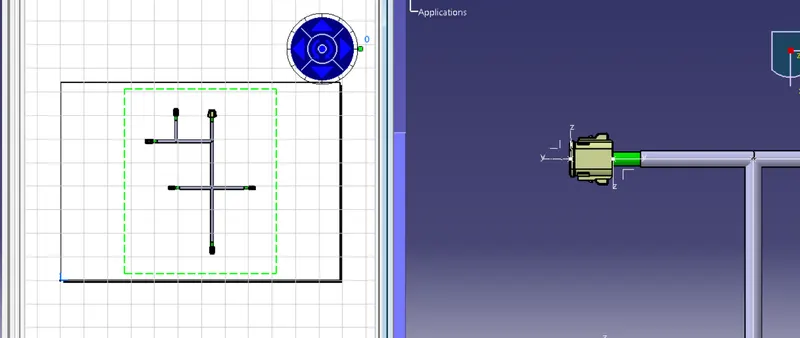

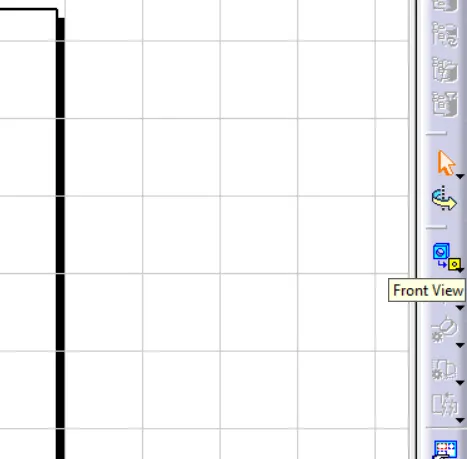

Step 6 : Click on Front view and select any surface from the flattened bundle.

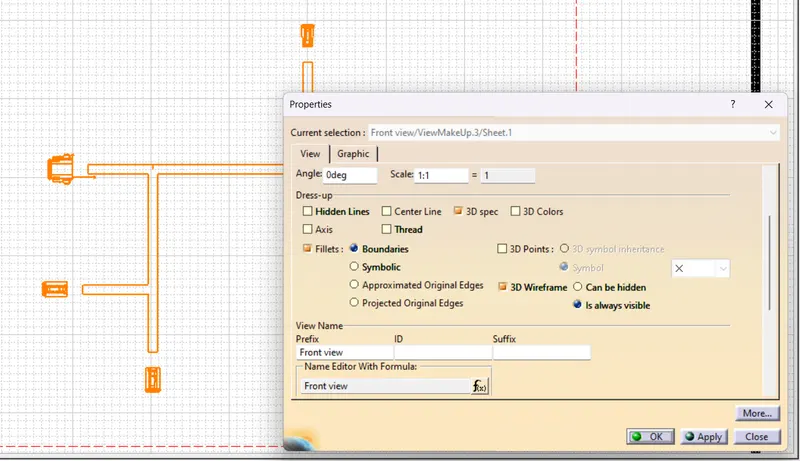

Step 7 : Right click on the view and go to properties and in the view section and check the '3D Wireframe' and select 'Is always visible'.To view the bundle we have to make sure the box is checked.

CONCLUSION

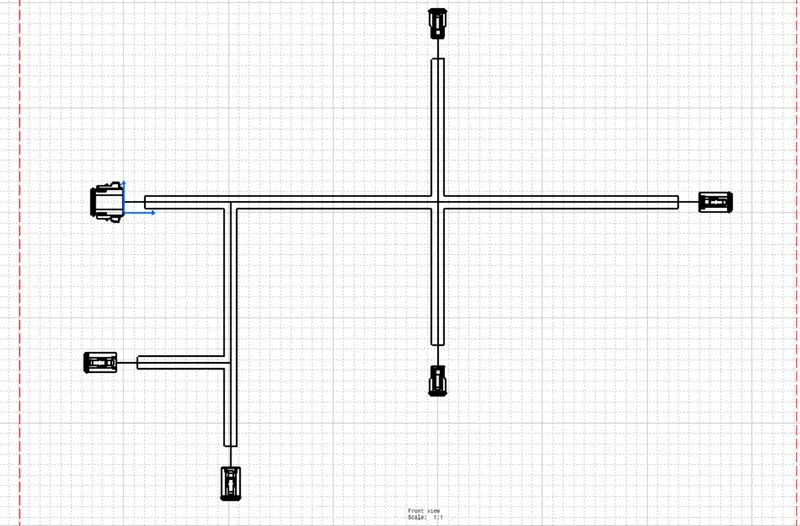

Flattened the harness assembly and to placed the flattened view on drawing sheet.
