Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

2D drawing of the bundle with connector representation and diffrent colour coding for bundle with protective covering

A proper report has to be created with all the required images and explanations required , attach all the necessary files

------------------------------REPORT-------------------------------------------

Define the mechanical parts electrically and the prepare bundle flattening has to be done in the CATIA flattening workbech;

All parts are defined electrically (6 connectors provided o=in previou challenge.)

Other parts like corrugated tubes and Insulatoon tapes are selected from catalogues.

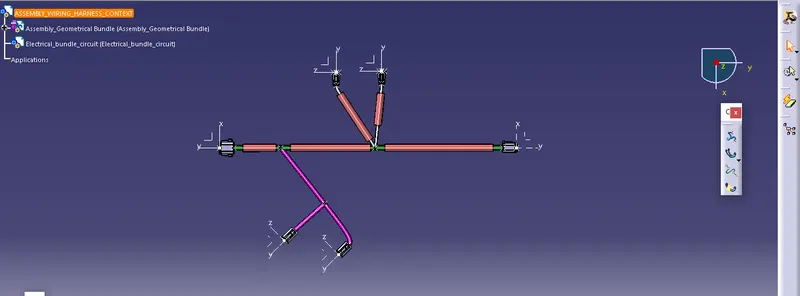

ASSEMBLY_WIRING_HARNESS_CONTEXT was assembly created in Electrical Harness Assembly Workbench.

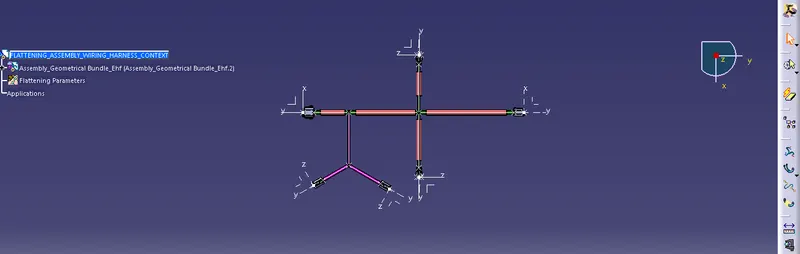

This assebly is extracted in Electrical Flattening Assebly workbench.

Flattened the assembly.

Modifications are doen to balance the branches.

Synchronised the assembly to represent corrugated tubes and cotton tape to be presentin flattening wb.

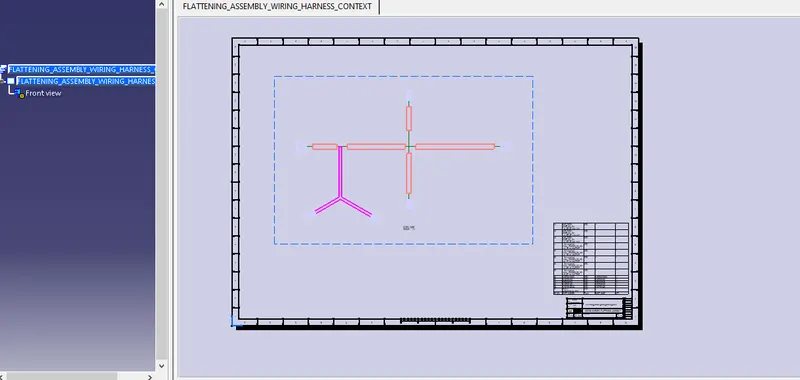

A drawing is created for the same assembly with BOM and Title block. ust for representation.
