Week 8 - Challenge 6 - Core & Cavity Design

RPORT:

Tooling Axis Creation:-

as a flat surface (bin) exists in given A surface, line normal to extarcted surface is created as Line1.

along zx plane and class a intersextion taken, and on this plane a sketch created, line from point at an angle 6 deg. (l2)

a line bisectin L1 and L2 is final tooling axis.

Draft analysis -

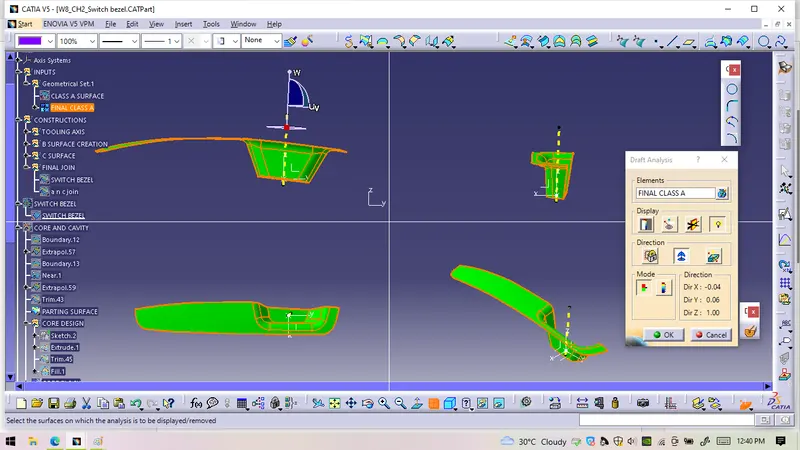

For Class A-

along Tooling Axis, surface cheked for Draft ANalysis. it is clearing DA .

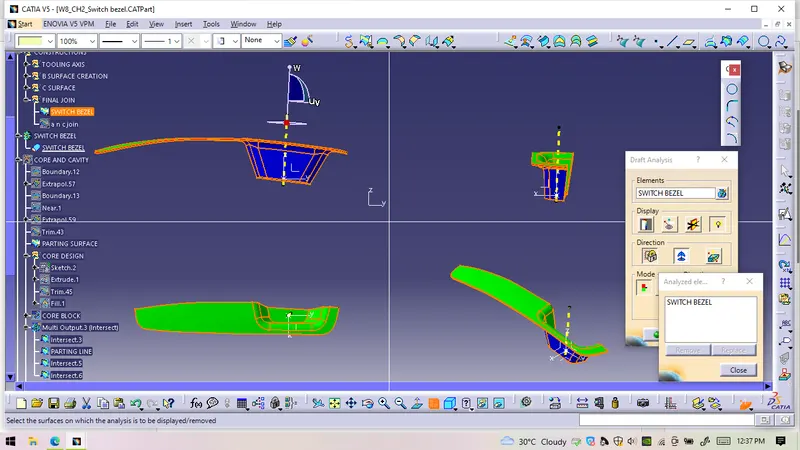

DA for Final PArt body-

same procedure i s followed for part body of switch bezel,

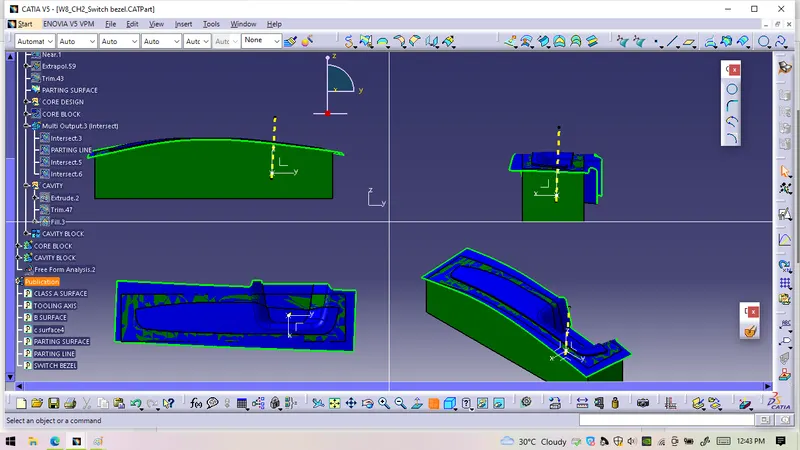

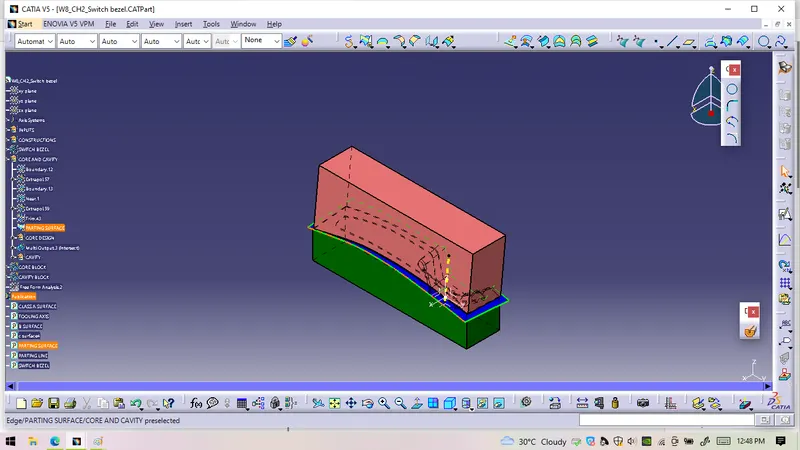

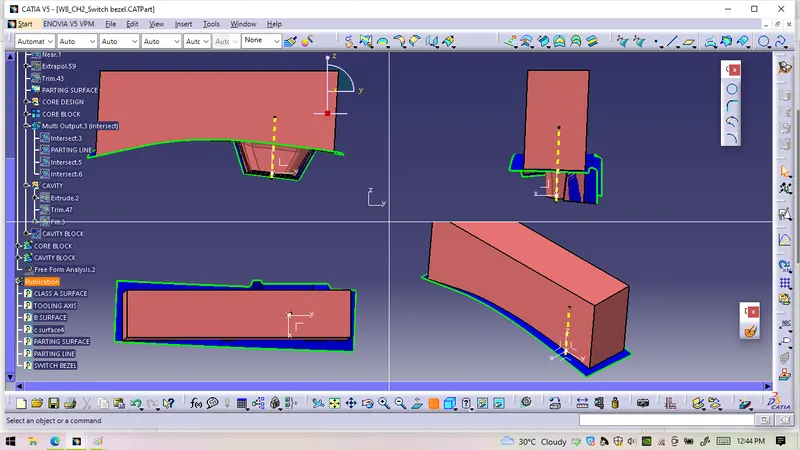

COre and Cavity i sdifferent orientations-
