Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM- To prepare a flattened-view of a previously created harness assembly

OBJECTIVE- The objective of this project is to create a flattened-view for a harness assembly and then place it on the drawing sheet. It is desired that the bundles with protective coverings are represented with different visuals on the drawing sheet.

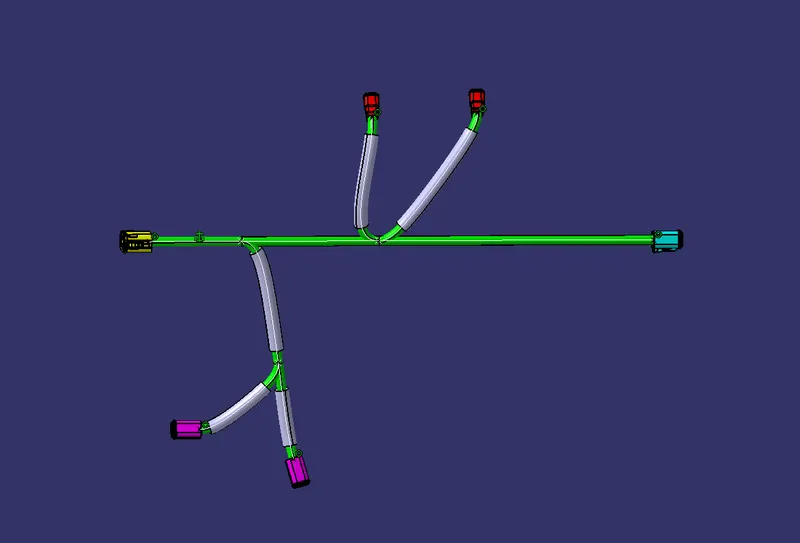

BEFORE FLATENNING

AFTER FLATENNING

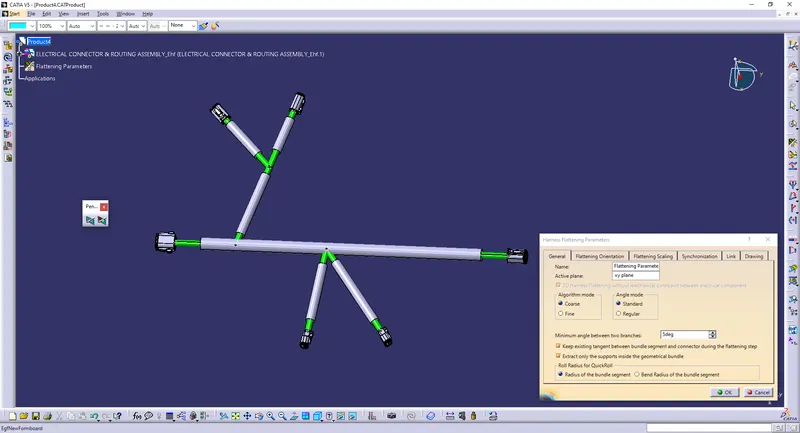

STEP1- Defining Harness Flattening parameters

First, we should make a new product file inside the Electrical Harness Flattening workbench. Second, we should define the harness flattening parameters by clicking on its icon as shown above. In the general tab, we should select the settings as shown above. After the general tab settings are complete we should define the settings for the drawing tab as shown below.

It should be noticed that the type of representation for the bundle segment and protective covering are different from each other. Also for devices, "3D projection" can be used if the connectors are added to the electrical drawing catalog.

STEP 2- Rename the product file as the Flattening Product.

STEP 3- Bring the harness assembly into the newly created Flattening Product by using the "Extract" feature.

TOOLS

1.FLATTENING PARAMTERS

2.EXTRACT

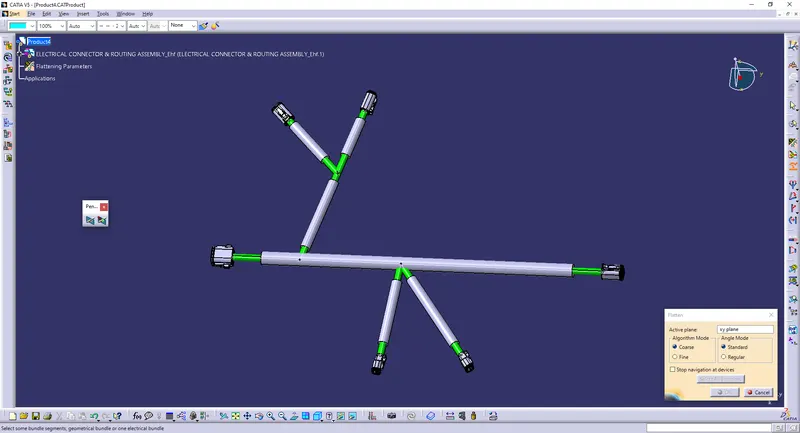

3.FLATTEN

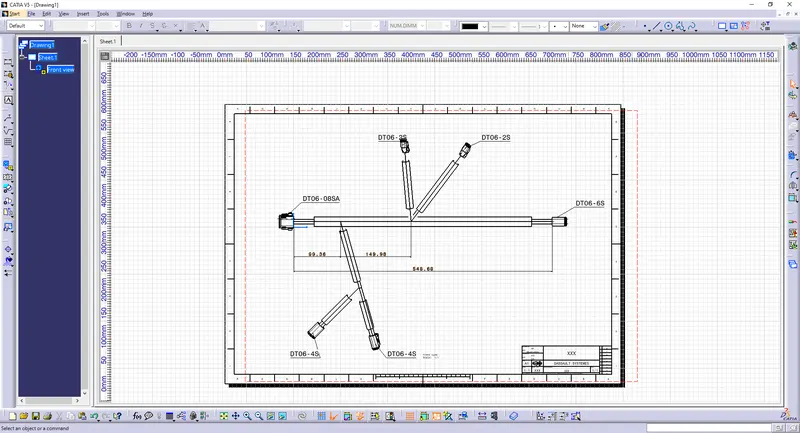

DRAFTING:
